Thomson 28VT68ND, 32VT68ND User Manual

Manuel d'utilisation Bedienungsanleitung Manualedi utilizzazione Manualde utilización User manual Gebruiks aanwijzing Bruksanvisning Betjeningsvejledning

28VT68ND 32VT68ND

9

☞

PREFERENCE INSTALLATION

10

☞

PREFERENCE  INSTALLATION

Volume  Lumière Couleur Contraste Rappel des réglages préférés

Volume maximum Langue GB F D E I S NL Affichage chaîne Non Oui Référence horaire PR 01 Programmation IR (-)Non Oui(+) PR-- Réglage fin Télétexte Non Oui

Rotation image

PROGRAMME AV1 AV2 AV3

Signal S-vidéo RVB Nom CAMCOR

27

☞

P. VT

ZOOM

+-

P.



REPERTOIRE REVEIL VERROUILLAGE

PR 03 00 01 T F 1 02 F R 2

03 F R 3



04 CANAL +

PROGRAMME AV1 AV2 AV3

Signal S-vidéo RVB Nom VCR 2

HAUT-PARLEUR CASQUE AV

Son Auto/Stéréo Mono Effet Normal Elargi TV Aigues TV Basses

16

☞

05 ARTE 06 M 6

REPERTOIRE REVEIL VERROUILLAGE

07 08 09

+/- Feuilleter la liste

0..9 Choix d'une chaîne

Arrêt automatique (-/+) -:--

HAUT-PARLEUR CASQUE AV

Casque

19

☞

20

☞

22

☞

REPERTOIRE REVEIL VERROUILLAGE

Entrer vos numéro de code Mémoriser votre code

PROGRAMME AV1 AV2 AV3

Signal S-vidéo RVB Nom VCR 1

27

☞

HAUT-PARLEUR CASQUE AV

Appareil en AV1/AV2 Stéréo Mono

19

☞

PROGRAMME AV1 AV2 AV3

Norme (-/+) France Décodeur Aucun AV1 AV2 Recherche Canal terrestre CH 22 Canal câble -- Chaîne 03 Réglage fin Nom de station FR3 Effacer (-) Mémoriser (+)

☞

P.

24

☞

37

☞

VT

27

ZOOM

+

–

PR.- PR.+

a z

z a

123 456

789

AV

0/

........

RCT3006

THOMSON

IMAGE PIP FORMAT

Lumière Couleur Contraste Digital Mastering Non Oui 

Format 4/3 16/9 Zoom sous-titre Non Oui Position sous-titres Bas(-) Haut (+)

11

☞

PR- PR+

13

a z

z a

123 456 789

0

........

television set

safety precautions

SAFE USE OF THE EQUIPMENT

1. TO TURN ON

10 cm

5 cm

LEAVE ROOM FOR VENTILATION

AVOID HEAT, WATER, DIRECT SUNLIGHT.

Do not place audio loudspeakers near to television. The magnets in the speakers could cause patches of colour to appear on the screen.

10 cm

2. CARE OF THE EQUIPMENT

The screen should be cleaned with liquid glass cleaner.

• Never use abrasive cleaners.

• To clean the front and the cabinet of your equipment use a soft cloth dipped in mild detergent. The use of strong solvents such as white spirits or alcohol based products could damage your equipment.

• Clean the vents on the rear panel of your set regularly.

To ensure your personal safety and the efficient operation of your equipment, please follow the advice given below : Télévision sets need ventilation to avoid overheating which can cause

10 cm

damage to the components. The ventilation slots at the back of the set should not be covered up by curtains, small covers, newspapers, etc… There must be enough room in built-in cabinets to allow for the cooling air to circulate. The set should not be placed directly next to heating.

This appliance is designed for use in dry areas. If occasionally you should whish to operate it outdoors (for example, on the balcony or veranda), you must insure that it is protected against all forms of moisture (dew, rain, splashed water).

A cold set may be switched on in a warm room only after any condensation which may happen to be on the screen has evaporated. Never remove the cabinet back. Have your aerial installed by an authorised dealer or service technician.

In the evenings, after the TV programmes, or in case of a prolonged absence, it is recommended that the appliance be switched off using the main power switch. Even if the ON/OFF switch is in OFF position the television set is not completely separated from the mains. In order to separate it completely from the mains, it has to be disconnected by unplugging the mains plug. Remove the power plug from the wall outlet under the following conditions :

1. During a thunderstorm. It is also recommended that you disconnect the aerial plug.

2. If you find a burning smell or smoke emerging from the set.

Additional information : Your TV set is adequately shielded to prevent emission of X-rays. The acceleration voltage does not exceed the maximum value of 33 kV.

Work by non-qualified technicians, modification of the high voltage setting or the replacement of the tube with a model that does not comply with the manufacturer’s specifications may lead to a considerable increase in X-ray radiation. A set changed in any of the above ways no longer satisfies the initial specifications and should not be put back into service.

GB

3. DEMAGNETISATION

The earth’s magnetic field may have an effect on your television by causing patches of colour to appear on the screen. If this happens :

• Switch off the television with the on-off button ;

• Wait a few minutes and then press again to switch on.

This allows the screen to be demagnetised automatically. If patches of colour are still visible repeat the procedure.

The pages of this publication are printed on recycled paper.

3

P.

VT

remote control

functions

PROGRAMME Set-up - Preferences Browse - Clock - Lock Tuning - AV1 - AV2 - AV3.

SOUND Audio configuration - Balance - Loudspeakers Headphone - AV (Audiovisual).

PICTURE Picture - PIP - Format.

TELETEXT/TOPTEXT/FASTEXT

remote control

using

When a red, green or yellow button is pressed for the first time, the contents of the menu are displayed at the top of the screen and the menu of the function selected is displayed at the bottom of the screen.

Moving horizontally along in the menus selects the required function on the contents line if it has not been already selected.

- The selected function is displayed in the same colour as the button pressed (red, green, yellow).

Press the coloured button repeatedly to move down through the menus selecting different lines.

- The line selected in the menus is displayed in the same

colour as the button pressed (red, green, yellow).

ZOOM

+

–

PR- PR+

a z

z a

123 456 789

0

........

PERSONAL ADJUSTMENTS and scrolling back through the menus.

TO REMOVE THE MENU DISPLAY or to display programme information, the type of sound transmission (MONO, STEREO or DUAL), the programme name and number, the time.

PICTURE FREEZE

ZOOM FUNCTION

TO CALL UP PREVIOUSLY VIEWED PROGRAMME

TO SCROLL THROUGH THE PROGRAMMES

VOLUME

- Horizontal movement in the menus

- -/+ adjustments of other functions.

Keys 1 to 0 are used to :

- Select the programmes (from 1 to 99)

- Enter the channels numbers

- The 0 key is used to call AV inputs 1, 2 and 3.

MUTE

STAND-BY

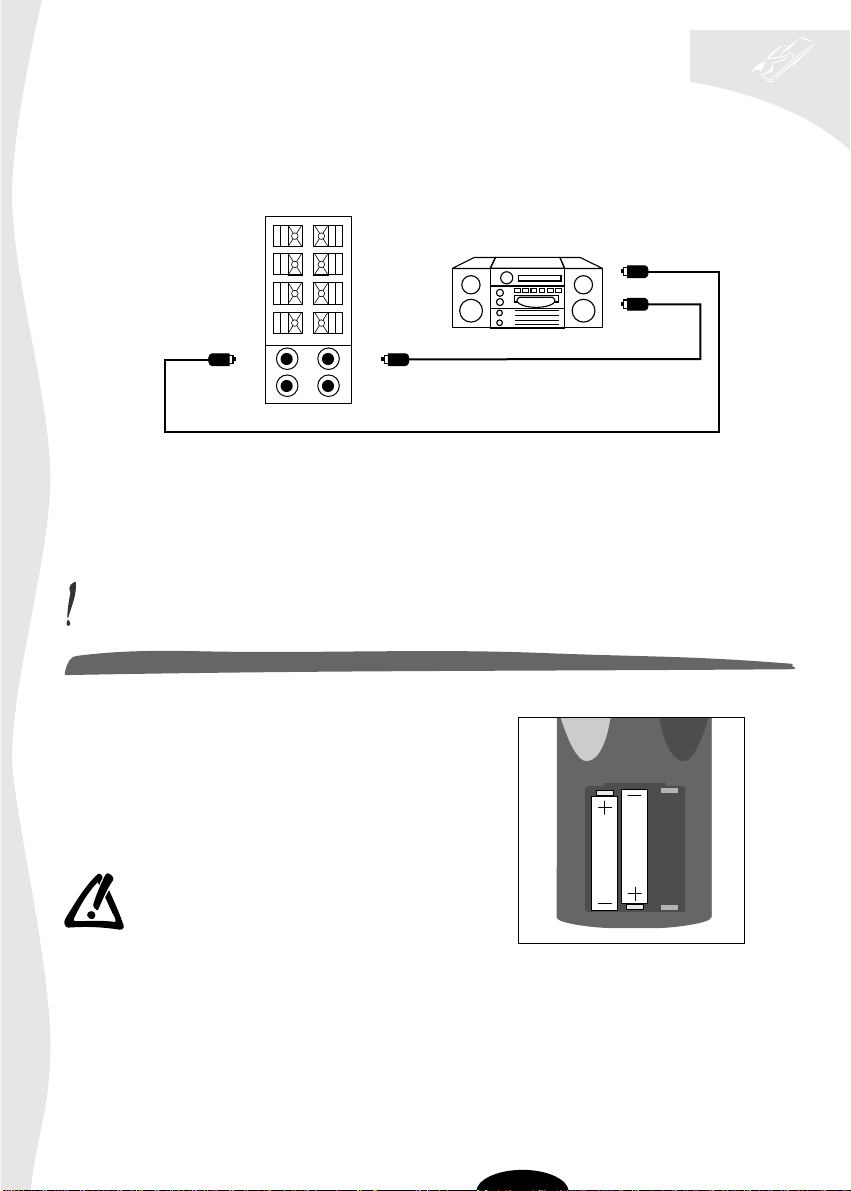

BATTERIES : Refer to page 30 for the fitting of the batteries.

Changes are saved when you quit the menus, except in the PROGRAMME menu.

connections and commands

For further details,

see page 26.

ON THE FRONT SIDE

Connect to A.C. main supply 220-240 V ~ 50 Hz

On/Standby light : Green : On Red : Standby

M/A

ON THE RIGHT  SIDE OF  THE TV-SET

PR +

PR

-

+

-

OSD

GB

INSTAL

PR +

PR

-

+

-

OSD

INSTAL

On/Off Switch

Programme Selection

Volume adjustments

Display

Installation-menu  access button

5

television set

connections and commands

AT THE BACK

AV3

S-VHS and audio sockets

L = Left

VIDEO L AUDIO R

Headphone  socket Ø 6,35 mm

VHS and audio sockets

Connect respectively the red and black terminals of the supplied speakers to the television’s red and black terminals.

Front speaker

AV3

RCL

R = Right

Front speaker

Ideal setting

Front speakers

Listening

area

Surround speakers

Camcorder

S-VHS

or VHS

Aerial*

AV1

Camcorder

Surround speaker

Inoperative in 

Pro Logic mode

Video recorder

R

Unit 1 Unit 2

Decoder

Video games consoleCDV player

Surround speaker

L

S

Ψ 75

AV 1

Satellite receiver

AV2

(IN)

S-Video Video Audio

(OUT)

AV 2

AV2

Camescope

Video recorder

* We recommend that you use an aerial cable with double isolation.

6

television set

auto-programming

This set is equiped with an automatic station search system which is used for :

• Searching for all the stations received in your region and storing them in memory

• Automatically searching for the name of the station

• Automatically allocating a programme number.

WELCOME

Turn on the television set main power. The WELCOME menu is displayed.

If it is not, Press the INSTAL button on the television set control panel.

Briefly press the remote control button corresponding to the

INSTAL

a z

1

number of the language you require for the menus.

A list of countries appears (on two pages). To go to the next or previous page, press

9

WELCOME

BIENVENUE

WILLKOMMEN

BIENVENIDO

BENVENUTO

VÄLKOMMEN

ENGLISH FRANÇAIS DEUTSCH ESPAÑOL

ITALIANO

SVENSKA NEDERLANDS

UK : [ 1 ] FRANCE : [ 2 ] GERMANY : [ 3 ] ITALY : [ 4 ] SPAIN : [ 5 ] PORTUGAL : [ 6 ] SWISS : [ 7 ] AUSTRIA : [ 8 ] Next page : [ 9 ]

WELKOM

Press

key number

Appuyer

sur la touche

Drücken

Sie die Taste

Pulse

tecla numero

Premere

il tasto

Tryck

knapp nummer

Druk op

knop nummer

CHOOSE YOUR COUNTRY :

[1] [2] [3] [4] [5] [6] [7]

Briefly press the remote-control button corresponding to the country in which you are located, for example: for England

a z

1

The menu which then appears permits the user to:

a z

• start an automatic search,

• search for new channels,

• access channel organisation.

1

z a

2

3

You can leave the menus at any time by pressing the button.

AUTO - PROGRAMMING

at the bottom of the menu (grey background).

For the first time or after a change of region :

a z

start automatic channel search by pressing the button

1

Searching for stations and storing them in the memory depends on the language chosen from the WELCOME menu.

The previously memorised stations are erased. AUTO-PROGRAMMING is completed when the cursor is at

the extreme right. To interrupt the search, press briefly on the key, this displays the channel management menu.

 NETHERLANDS : [ 1 ]  BELGIUM : [ 2 ] LUXEMBURG : [ 3 ] SWEDEN : [ 4 ] DANMARK : [ 5 ] FINLAND : [ 6 ] NORWAY : [ 7 ] OTHERS : [ 8 ] Previous page : [ 9 ]

AERIAL INSTALLATION

Make sure that the aerial cable

and decoder (if any)

are connected to this TV set.

[ 1 ] Launch terrestrial installation [ 2 ] Update the terrest. installation [ 3 ] Access to the organiser

To help you, follow the instructions

AUTO - PROGRAMMING

Searching for stations

10 stations found

GB

7

09

CHILD

06 O S

television set

auto-programming

Programme Organiser

When the automatic search is completed, the Programme Organiser menu appears.

Scan through to check that the stations found are correctly numbered and named as you want than:

• IF YES ➡ press briefly

the menu disappears and is replaced by the picture of the programme selected.

• IF NO ➡ you make changes as follows

- The programme number

Select the programme number to be changed.

Bring the cursor to the new programme number.

You may also use the number buttons 0 to 9.

Confirm the change (green button).

- The station name

Press the blue button briefly. A list of station names per country appears

United Kingdom Nederlands France Belgique Deutschland Luxembourg Italia Sverige España Danmark Portugal Finland Schweiz Norge Österreich

Select the country you require.

If the name appears in the list displayed,

select the name Confirm the selection (green button).

If the name does not appear in the list displayed,

select the "- - - - - -"line

You have 6 characters to enter a station name

To enter a station name, Press the green button briefly and the first character flashes.

Select the first character of the new name. Enter the next character

and repeat the process up to the last character. Confirm your choice (green button). The new name is stored in the memory and the list disappears.

PR.- PR.+

VT

PR.- PR.+

This menu is used to :

• change the programme number,

• change the station number,

• delete a programme.

Programme Organiser

01  02  03

04 

05 06 07 08 09

PR+, PR- Select a station +, -, 0..9 Move this programme Blue Change the name Yellow Erase this station

01 

To exit, press the (TV) key

02  03 04 05

06

07 08 09

Moving PR 06 BBC to PR 04 +, -, 0..9 Give it another number Green Confirm change Red Cancel change

Programme Organiser

01  02  03 04 05

06

07 08 09

+, - Next/Previous name page PR+, PR- Select a new name Green Confirm change Red Cancel change

07 08 09

PR+, PR- Select a station +, -, 0..9 Move this programme Blue Change the name Yellow Erase this station To exit, press the (TV) key

+, - Next/Previous position PR+, PR- Select a character  Green Confirm new name Red Cancel new name

+, - Next/Previous position PR+, PR- Select a character Green Confirm new name Red Cancel new name

PR+, PR- Select a station +, -, 0..9 Move this programme Blue Change the name Yellow Erase this station To exit, press the (TV) key

United Kingdom

BBC 1 BBC 2 I T V CHAN 4 CHAN 5

SKY +

M-GOLD M-CHAN CHILD C N N

C N N



C N N

SKYONE DISCOV UKGOLD SKYSPO BRAVO ESPORT S-NEWS M T V EUNEWS

- - - - - - -

S-

8

television set

auto-programming

To delete a programme

Select the programme to be deleted.

Press the yellow button.

Confirm your choice (green button).

The programme is deleted the following programme is selected.

You may cancel any unconfIrmed command (change of programme number or channel name, programme erasure) by pressind the red button.

PR.- PR.+

P.

New channels

To search only for new channels.

Press the television set INSTAL button.

Select the country and press the button

When search is finished, the Programme Organiser menu appears. Reorganise the programmes. To do this, follow the instructions given on the previous page.

To make the menu disappear, press

INSTAL

z a

2

01 BBC 1 02 BBC 2 03 04 05 06 07 08

09 CANAL+

 Erase PR 04 CANAL+ Green Confirm erase R ed Cancel erase

Turn on the television set by pressing

one of the buttons from 1 to 9.

GB

installation

• Limit the maximum volume.

• Change the menu language (German, Spanish, French, English, Italian, Swedish, Dutch),

• Permanently display the number of the programme being watched,

• Store the time reference programme number,

• Compensate for variations due to the earth's magnetic field.

SET-UP

Press the yellow button then the (-) button.

The SET-UP menu is displayed

Maximum Volume Limitation

Select the Max. Volume line (yellow button).

Set the maximum volume with the cursor.

The volume cannot be set to zero when using this function.

With this menu you may:

PREFERENCES SET-UP

P.

Max. Volume Language GB F D E I S NL Programme Display Off On Time reference PR 01 IR download (-) No Yes (+) PR-- Teletext Fine Tuning Off On Picture rotation

P.

Max. Volume

Language GB F D E I S NL Programme Display Off On Time reference PR 01 IR download (-) No Yes (+) PR-- Teletext Fine Tuning Off On Picture rotation

9



television set

installation

Menu language

P.

Select the Language line (yellow key). Select

GB : English F : French D : German

I : Italian S : Swedish NL : Dutch

E : Spanish

All the menus will be displayed in the language selected.

Programme number display

P.

Select the Programme Display line (yellow key). Select : • Off no permanent display.

• On the programme number

is permanently displayed

Time reference

P.

Select the Time reference (yellow key). The television set internal clock must be set. This synchronises automatically when the television set is turned on to a programme broadcasting Teletext, you can opt to select any one of the 4 channels - BBC1, BBC2, ITV, CH4. Select the corresponding programme number.

PR.- PR.+

The IR download line has no effect on your TV set.

Teletext Fine Tuning

This adjustment allows writing errors (missing letters) on the teletext pages of French networks (L Standard) to be reduced. To do this,

On must be selected in the Teletext Fine Tuning line.

This adjustment is not active for B, G, D, K, K' and I standards.

Magnetic field correction

This adjustment compensates for disturbances due to the Earth’s magnetic field. Select the Picture rotation line. Adjust so that the selected menu is horizontal if it was not before.

PREFERENCES

This menu enables you to save your preferred settings. Press the yellow or pink key repeatedly to return to the Menu contents line.

Press to display the PREFERENCES menu. Select the line required with the yellow key. Set with the key. Erase the menu. To return to your preferred settings at any time,

press the pink key.

P.

or

P.

10

PREFERENCES SET-UP

Max. Volume

Language

Programme Display Off On Time reference PR 01 IR download (-) No Yes (+) PR-- Teletext Fine Tuning Off On Picture rotation

Max. Volume Language GB F D E I S NL

Programme Display Off On

Time reference PR 01 IR download (-) No Yes (+) PR-- Teletext Fine Tuning Off On Picture rotation

Max. Volume Language GB F D E I S NL Programme Display Off On

Time reference PR 01

IR download (-) No Yes (+) PR-- Teletext Fine Tuning Off On Picture rotation

Teletext Fine Tuning Off On

Max. Volume Language GB F D E I S NL Programme Display Off On Time reference PR 01 IR download (-) No Yes (+) PR-- Teletext Fine Tuning Off On

Picture rotation

GB F D E I S NL



PREFERENCES SET-UP

Volume Brightness Colour Contrast

PREFERENCES SET-UP

Resets to these preferences

Volume

Brightness Colour Contrast Resets to these preferences

television set

picture adjustments

You may adjust the picture

settings at any times.


Press the green key.

The PICTURE menu is displayed : PICTURE is selected.

If this is not the case, select the Contents line using the green key and Picture with the key.

Select the Brightness line (green key).

Adjust the brightness.

Repeat the same procedure to select and adjust the Colour, and Contrast.

The TINT line only appears if the source is NTSC from an AV1, AV2 or AV3 audio-visual programme.

Digital Mastering

Select the Digital Mastering line (green key).

Select the option required.

When changing channels, Digital Mastering automatically returns to On.

The process suppresses flicker from the TV image. In addition, Digital Mastering improves image quality with a further reduction of the trembling effect. The images are more stable, sharper and less straining to the eyes. Finally, image noise is reduced automatically according to reception quality (INR system : Intelligent Noise Reduction).

PIP (Picture in picture)

Gives you several possibilities

for programmes inlays.

PICTURE PIP FORMAT

Brightness Colour Contrast

PICTURE PIP FORMAT

D

igital Mastering

Brightness

Colour Contrast D

igital Mastering

Brightness Colour Contrast D

igital Mastering

Tint

PICTURE PIP FORMAT

Off On

Off On

GB

Brightness Colour Contrast

Digital Mastering Off

On

You use this function to :

• inlay in one of the corners of the screen (P I P) :

– images from the input connectors (AV1, AV2, AV3 or RGB),

while viewing a channel ;

– or one of the channels, while viewing a programme from one

of the audiovisual input connectors (AV).

• inlay on the screen in groups of 12, all the channels in memory

(Channel guide).

Press the green button once or several times to select the Contents line.

Select P I P. The PIP menu appears.

PICTURE PIP FORMAT

PIP Off 0n

Source (-) 03 (+) Channel Guide (+) Change Corner 1 2 3 4

11
