Thomson 2-8821AH, 2-8821A Users Manual

Model 28821 Series DECT 6.0 Cordless Handset Speakerphone Answering System User’s Guide

Your new GE telephone system is EXPANDABLE up to a total of 6 handsets

(by purchase of optional Model TBD handset with charge cradle)

Need Artwork

Equipment Approval Information

Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA.

1 Notiﬁcation to the Local Telephone Company

On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company.

The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company.

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.

Notes

• This equipment may not be used on coin service provided by the telephone company.

• Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company.

• Notice must be given to the telephone company upon permanent disconnection of your telephone from your line.

• If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualiﬁed installer.

US Number is located on the cabinet bottom.

REN Number is located on the cabinet bottom.

2 Rights of the Telephone Company

Should your equipment cause trouble on y our line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations.

The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service.

Interference Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

Privacy of Communications may not be ensured when using this product. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference).

• Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna.

• Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected.

If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Ofﬁce, Washington, D.C. 20402. Please specify stock number 004000-00345-4 when ordering copies.

Notice: The changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Hearing Aid Compatibility (HAC)

This telephone system meets FCC standards for Hearing Aid Compatibility.

Licensing

Licensed under US Patent 6,427,009.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.”

For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with the belt clip supplied with this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

Information for DECT Product

This telephone is compliant with the DECT 6.0 standard which operates in the 1.92GHz to 1.93GHz frequency range.

To Be UpdaTed

Table of Contents

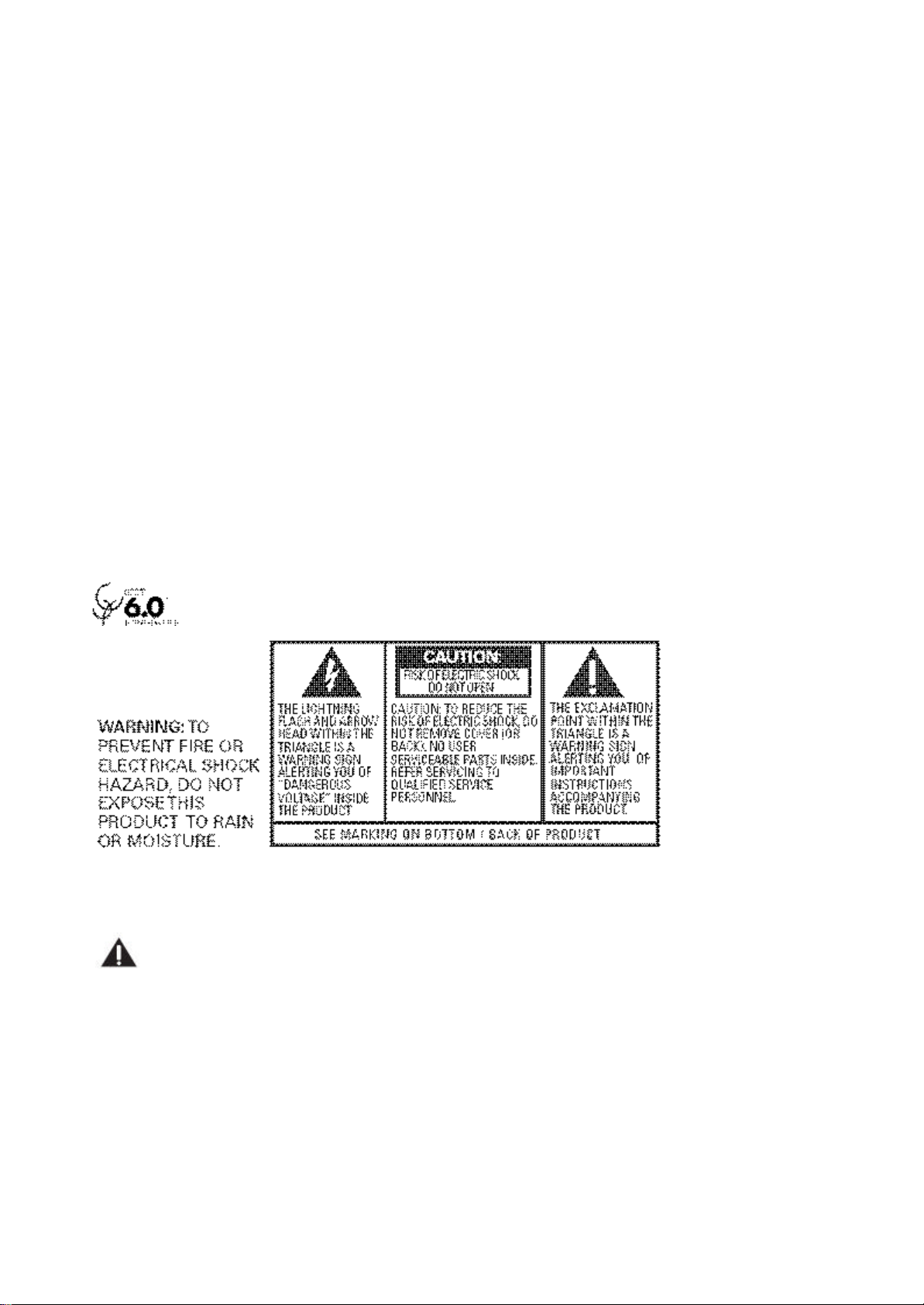

SE E M ARK ING ON BO TTO M / BACK OF PR ODU CT

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

THE LIGHTNING FLASH AND ARROW HEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF “DANGEROUS VOLTAGE” INSIDE THE PRODUCT.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THE EXCLAMATION POINT WITHIN THE TRIANG LE IS A WARNING SIGN ALERTI NG YOU OF IMPORTANT INSTRU CTIONS ACCOMPANYING THE PR ODUCT.

CAUTION:

Table of Contents

Introduction

CAUTION: When using telephone equipment, there are basic safety instructions that should always be followed. Refer to the IMPORTANT SAFETY INSTRUCTIONS provided with this product and save them for future reference.

IMPORTANT: Because cordless phones operate on electricity, you should have at least one phone in your home that isn’t cordless, in case the power in your home goes out.

Before You Begin

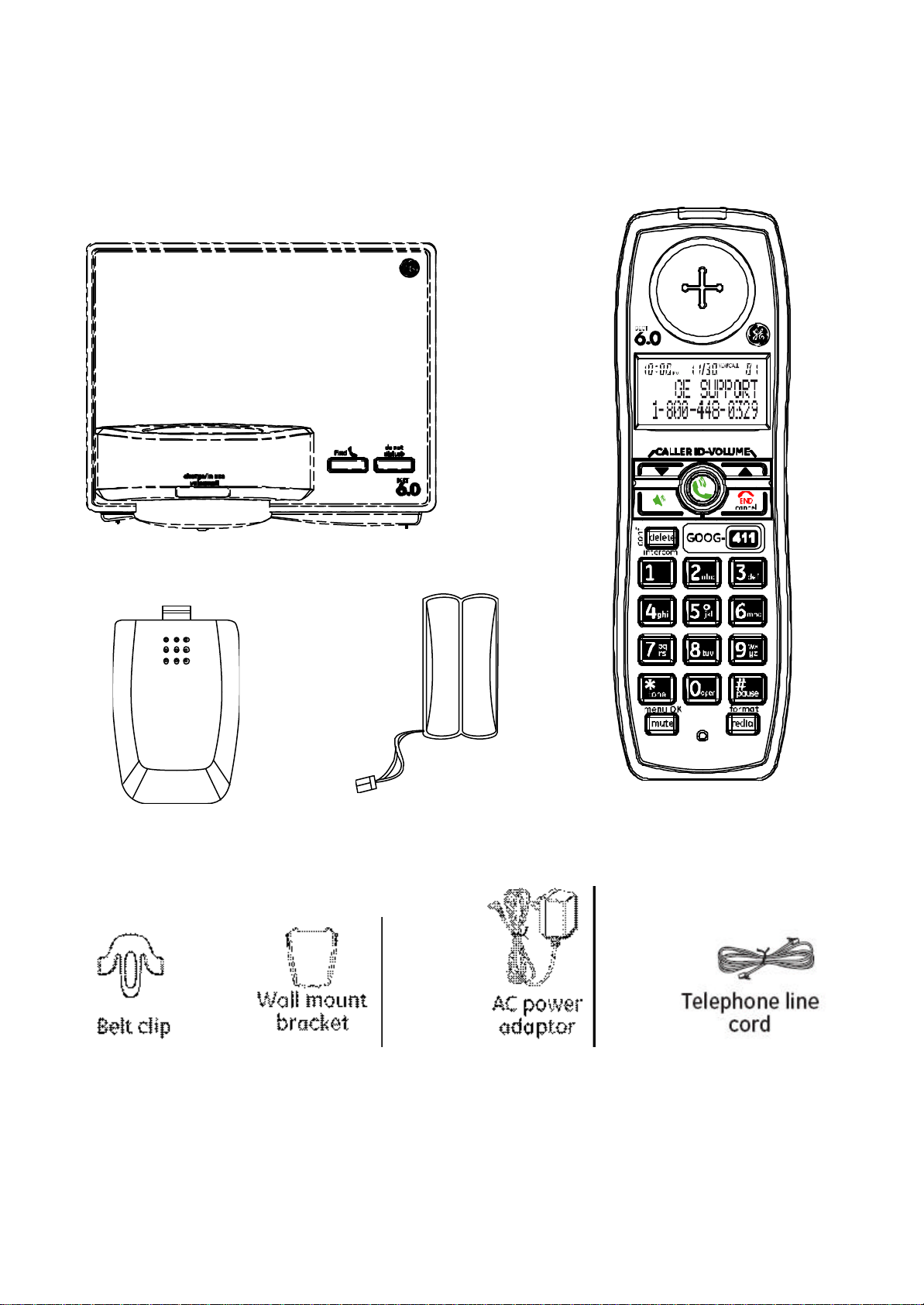

Parts Checklist (for model 28821)

Make sure your package includes the items shown here.

Base

Handset

Telephone line

cord

AC power

adaptor

Handset

battery pack

Belt clip

Battery

compartment

cover

Wall mount

bracket

For Model 28821xx2 there will be ONE additional handset, charge cradle, belt clip, battery pack and cover than shown above.

For Model 28821xx3 there will be TWO additional handsets, charge cradles, belt clip, battery packs and covers than shown above.

For Model 28821xx4 there will be THREE additional handsets, charge cradles, belt clip, battery packs and covers than shown above.

For Model 28821xx5 there will be FOUR additional handsets, charge cradles, belt clip, battery packs and covers than shown above.

For Model 28821xx6 there will be FIVE additional handsets, charge cradles, belt clip, battery packs and covers than shown above.

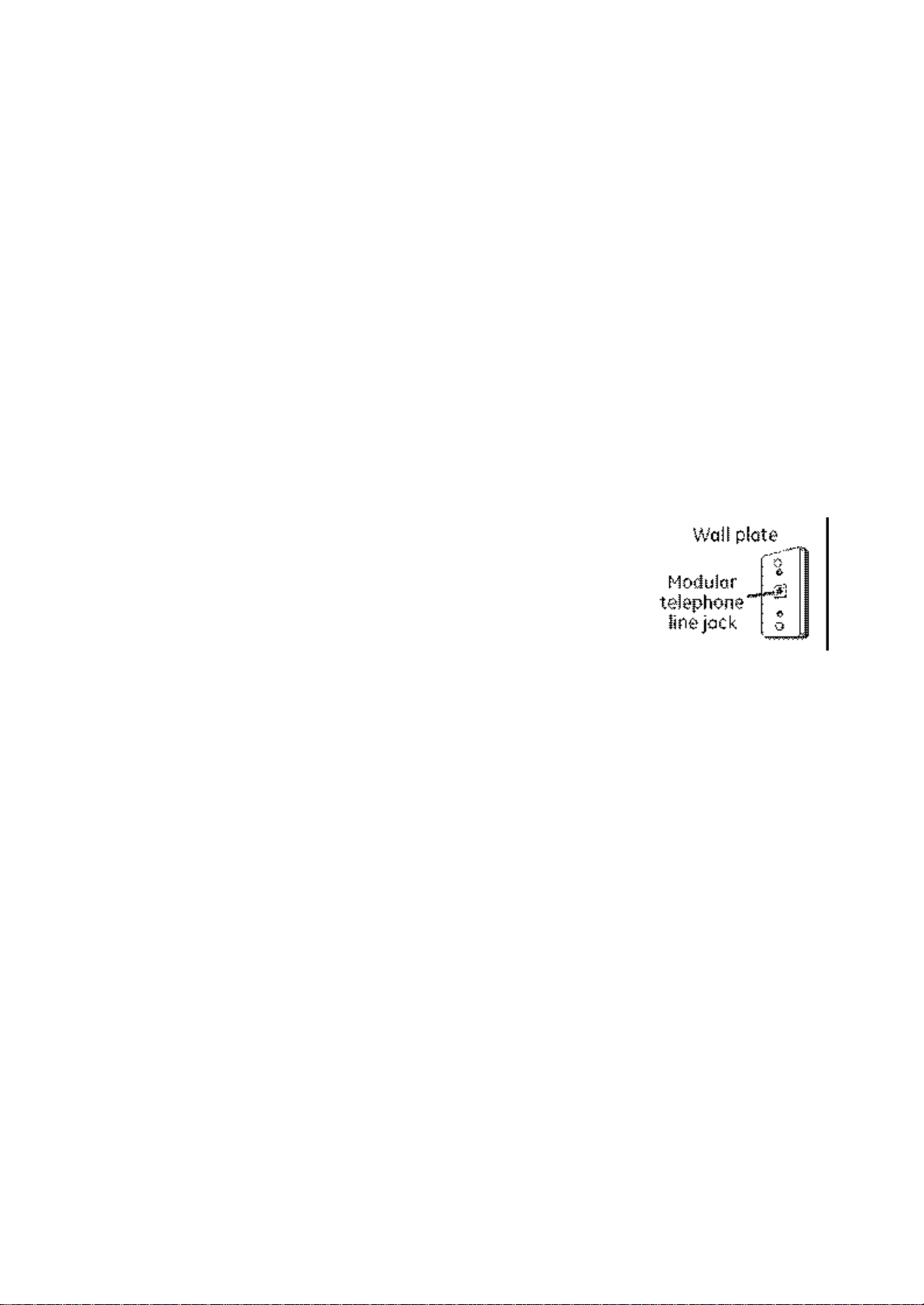

Telephone Jack Requirements

To use this phone, you need an RJ11C type modular telephone jack, which might look like the one pictured here, installed in your home. If you don’t have a modular jack, call your local phone company to ﬁnd out how to get one installed.

Modular

telephone

line jack

Wall plate

Installation

Digital Security System

Your cordless phone uses a digital security system to protect against false ringing, unauthorized access, and charges to your phone line.

INSTALLATION NOTE: Some cordless telephones operate at frequencies that may cause or receive interference with nearby TVs, microwave ovens, and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV, microwave ovens, or VCR. If such interference continues, move the cordless telephone farther away from these appliances.

Certain other communications devices may also use the 1.9 GHz frequency for communication, and, if not properly set, these devices may interfere with each other and/or your new telephone. If you are concerned with interference, please refer to the owner’s manual for these devices on how to properly set channels to avoid interference. Typical devices that may use the 1.9 GHz frequency for communication include wireless audio/video senders, wireless computer networks, multi-handset cordless telephone systems, and some long-range cordless telephone systems.

Important Installation Guidelines

• Avoid sources of noise and heat, such as motors, ﬂuorescent lighting, microwave ovens, heating appliances and direct sunlight.

• Avoid areas of excessive dust, moisture and low temperature.

• Avoid other cordless telephones or personal computers.

• Never install telephone wiring during a lightning storm.

• Never install telephone jacks in wet locations unless the jack is speciﬁcally designed for wet locations.

• Never touch non-insulated telephone wires or terminals, unless the telephone line has been disconnected at the network interface.

• Use caution when installing or modifying telephone lines.

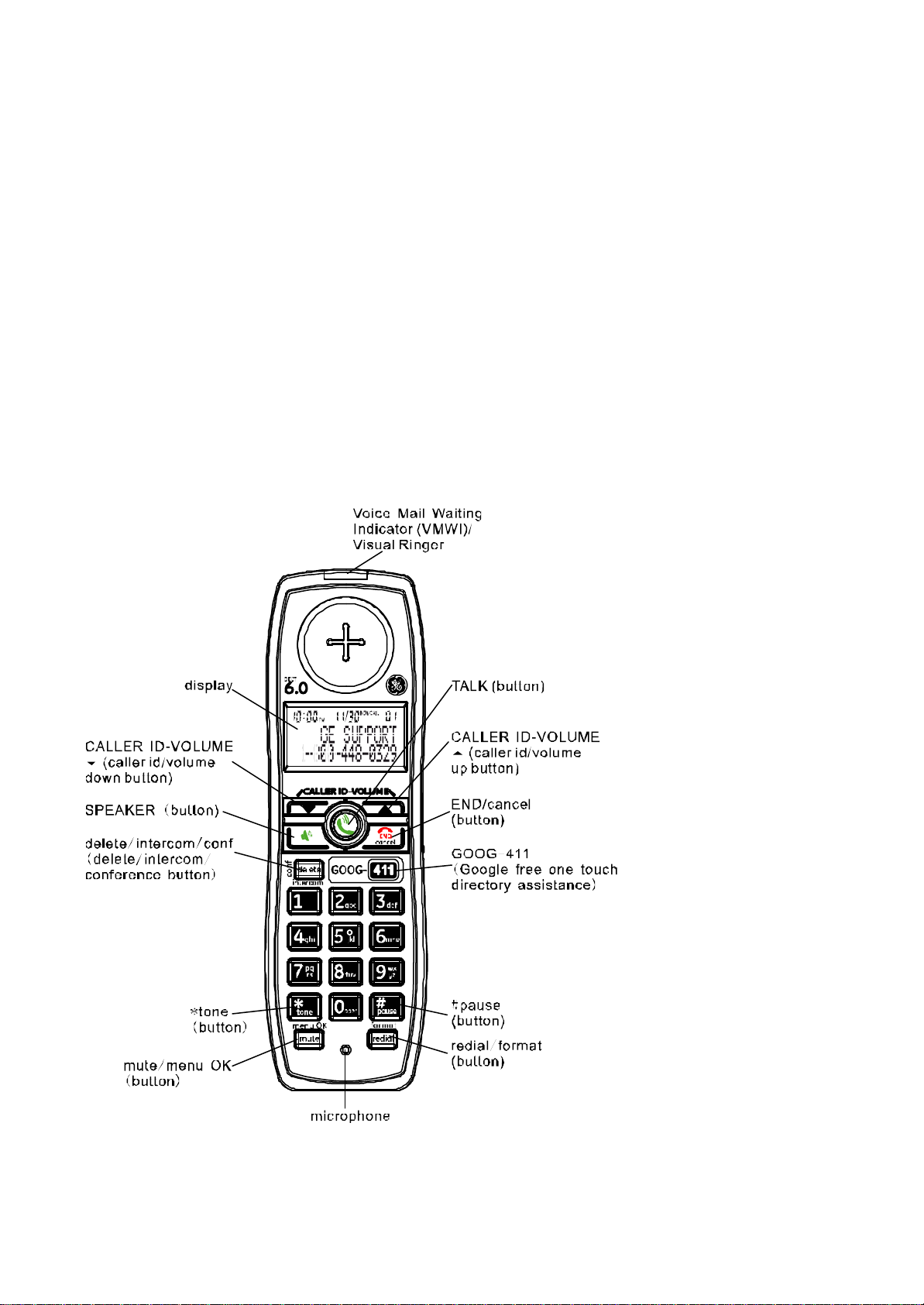

Handset Layout

microphone

TALK

(button)

END/cancel

(button)

delete/intercom/conf

(delete/intercom/

conference button)

#pause (button)

redial/format

(button)

Voice Mail Waiting

Indicator (VMWI) /

Visual Ringer

CALLER ID-VOLUME 6(caller id/volume

down button)

SPEAKER

( button)

phone book

(button)

* tone (button)

mute/menu OK

(button)

CALLER ID-VOLUME

5(caller id/volume up

button)

display

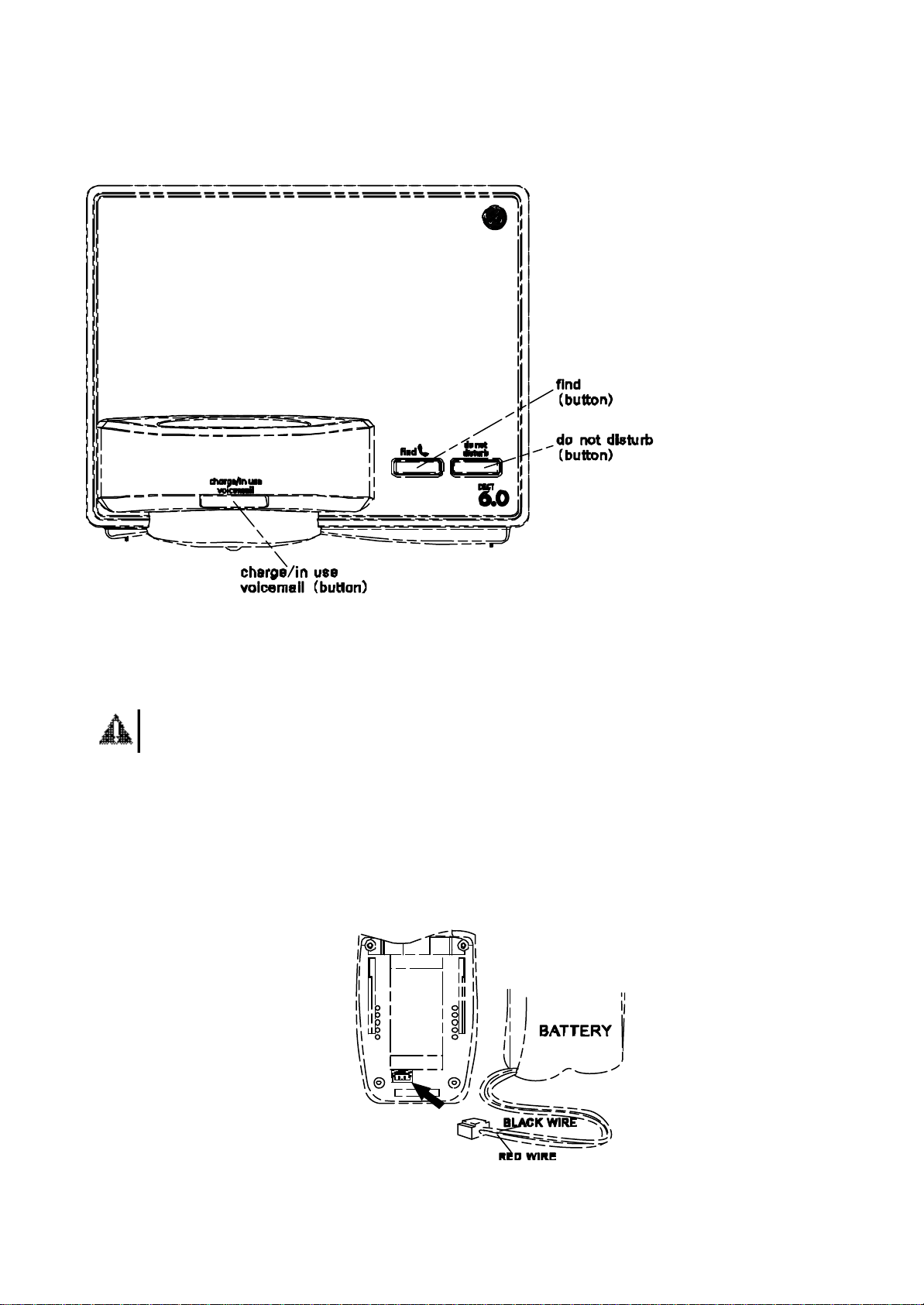

Base Layout (Top & Front Views)

charge/in use

voicemail

(indicator)

delete (button)

volume 5/ 6

(buttons)

skip

(button)

repeat

(button)

PLAY/STOP

(button)

speed

(button)

page

(button)

D-N-D

(do not disturb

button)

Message Counter

(indicator)

memo

(button)

announce

(button)

ans on/off

(answerer on/off

button)

Installing the Phone

Installing the Handset Battery

NOTE: You must connect the handset battery before use.

CAUTION: To reduce the risk of ﬁre or personal injury, use only the Thomson Inc. approved Model TBD Nickel-metal Hydride battery (Ni-MH), which is compatible with this unit.

1. Locate battery and battery door which are packaged together inside a plastic bag and are separate from the handset.

2. Locate the battery compartment on the back of the handset.

3. Plug the battery pack cord into the jack inside the compartment.

NOTE: To ensure proper battery installation, the connector is keyed and can be inserted only one way.

BATTERY

BLACK WIRE

RED WIRE

4. Insert the battery pack.

5. Close the battery compartment by pushing the door up until it snaps into place.

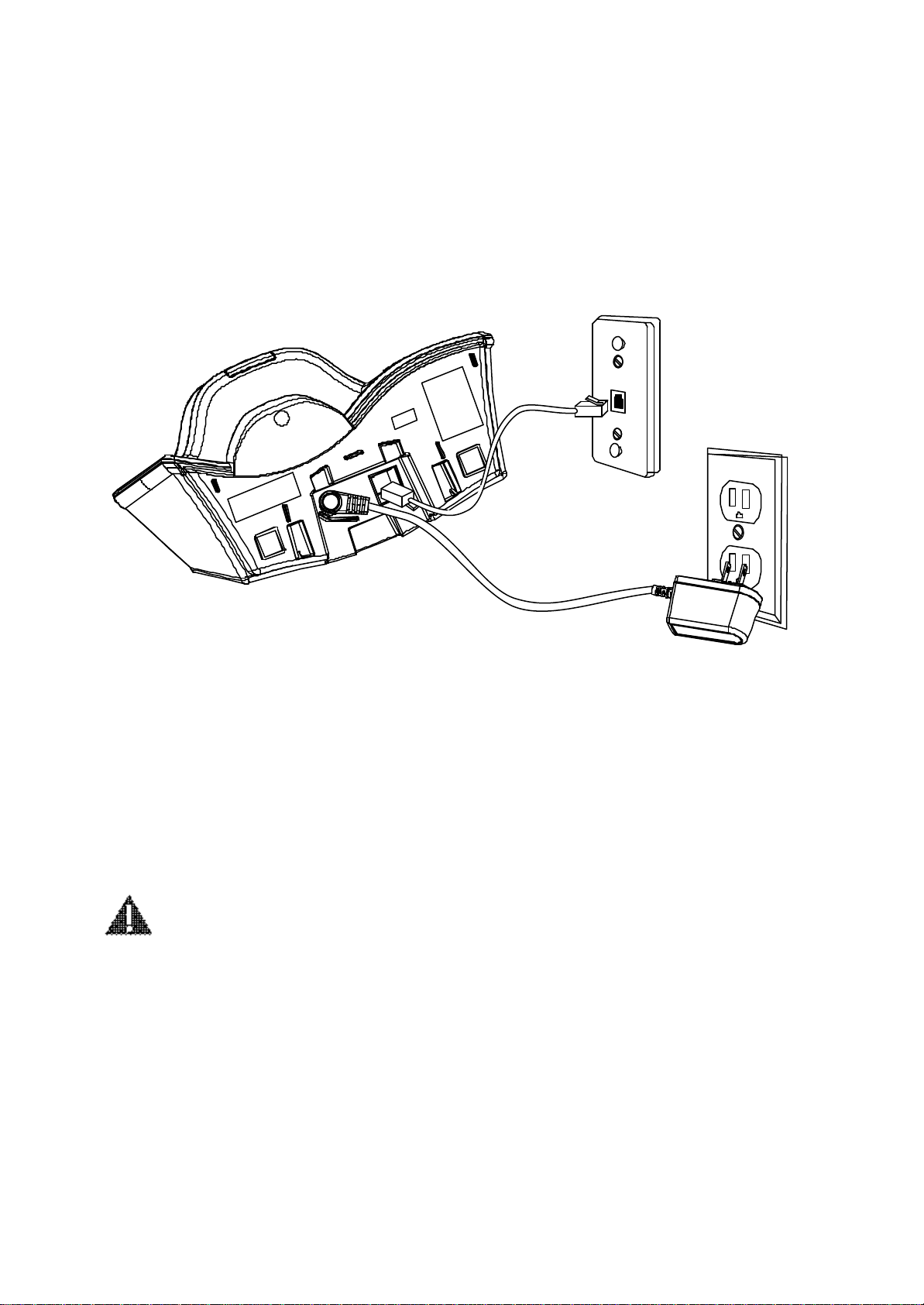

Base Station

1. Choose an area near an electrical outlet and a telephone wall jack (RJ11C), and place your cordless telephone on a level surface, such as a desktop or tabletop, or you may mount it on the wall.

2. Plug one end of the telephone line cord into the TEL LINE jack on the back of the base and the other end into a modular jack.

3. Plug the AC power converter into the electrical outlet and the DC connector into the jack on the back of the base.

4. Place the handset in the base cradle. The charge/in use voicemail indicator turns on, verifying the battery is charging.

5. Allow the phone to charge for 16 hours prior to ﬁrst use. If you don’t properly charge the phone, battery performance is compromised.

CAUTION: To reduce risk of personal injury, ﬁre, or damage use only the TBD power adaptor listed in the user’s guide. This power adaptor is intended to be correctly orientated in a vertical or ﬂoor mount position.

Answering System Setup

This section shows you how to set up your answering system to receive incoming calls. Before you begin the set up process, you must turn on the answering system.

• Press the ans on/off button to turn the answering system on and off. The MESSAGES indicator lights when the answering system is on. The indicator blinks when you have new messages.

NOTE: The answering system displays “- -” when it is off.

Answerer

In the Answerer Menu, there are ﬁve programmable submenus: Handset Access, Set Prompt Language, Rings to Answer, Message Alert and Security Code.

1. Make sure your phone is OFF (not in TALK mode).

2. Press the mute/menu OK button to go to the main menu.

3. Press caller ID-volume (5 or 6) button to scroll to ANSWERER.

4. Press mute/menu OK button to enter the submenu.

Handset Access

Need text for this section.......

Set Prompt Language

From the Answerer Menu:

1. Press the CALLER ID-VOLUME (5 or 6) button to scroll to PROMPT LANG.

2. Press the mute/menu OK button to enter the menu. PROMPT LANG 1ENG 2FRA 3ESP shows in the display.

3. Use the touch tone pad on the handset to select 1ENG, 2FRA, 3ESP, or use the CALLER ID-VOLUME (5 or 6) button to scroll to the desired language. English is the default setting.

4. Press the mute/menu OK button to save your selection. You will hear a conﬁrmation tone.

Rings to Answer

This feature lets you select the number of times you want the phone to ring before the answering system answers a call.

From the Answerer Menu:

1. Press the caller ID-volume (5 or 6) button to scroll to the RING TO ANSWER sub-menu.

2. Press mute/menu OK button to enter the menu. RING TO ANSWER 3 5 TS shows in the display.

3. Use the caller ID-volume (5 or 6) button to scroll to the your selection. The default setting is 5.

4. Press the mute/menu OK button to conﬁrm. You will hear a conﬁrmation tone and the new setting shows in the display.

NOTE: If you select Toll Saver (TS) the unit answers after the 3rd ring if there are NEW messages, OR the unit answers after the 5th ring if there are NO new messages. This allows user to access their answerer from another location and then hang up after 4 rings to save long distance charges.

Message Alert

This feature sets your answering system to give an alert tone every 10 seconds when there are new messages.

From the Answerer Menu:

1. Press the caller ID-volume (5 or 6) button to scroll to the MESSAGE ALERT submenu.

2. Press mute/menu OK button to enter the menu. NEW MSG ALERT 1ON 2OFF shows in the display.

3. Use the touch-tone pad to enter the selection, or use the caller ID-volume (5 or

6) button to scroll to the 1ON or 2OFF. The default setting is 2OFF.

4. Press the mute/menu OK button to conﬁrm. You will hear a conﬁrmation tone and the new setting shows in the display.

Security Code

You can access the answering system from a tone dialing telephone in another (remote) location. The security code is required for remote access, and it prevents unauthorized access to your answering system.

From the Answerer menu:

1. Press the caller ID-volume (5 or 6) button to scroll to the SECURITY CODE submenu.

2. Press mute/menu OK button to enter the menu. SECURITY CODE 1 2 3 shows in the display.

3. Use the touch-tone pad to enter your new -digit security code. The default setting is 123.

4. Press the mute/menu OK button to conﬁrm. You will hear a conﬁrmation tone and the new security code shows in the display.

NOTE: If you make a mistake, use the delete/intercom/conf button to delete the security code and begin again.

Speaker Volume

Use the volume (5 or 6) buttons to adjust speaker volume on the base to a comfortable level. L1 is the minimum speaker volume and L5 is the maximum.

Voice Instruction

If you need additional assistance, press the

repeat

button in standby mode and

follow the voice instructions.

Recording the Outgoing Announcement

For best results when recording, you should be about nine inches from the microphone, and eliminate as much background noise as possible.

You may record an outgoing announcement in the answerer or choose the default for your current outgoing announcement.

1. Make sure the answering system is ON.

2. Press and hold the announce button until the speaker announces “RECORD ANNOUNCEMENT AFTER TONE“.

3. Begin speaking after you hear the beep.

4. Release the button when you ﬁnish your announcement.

NOTE: If you choose not to record an outgoing announcement, a default announcement plays instead. To return to the default announcement after you have recorded your own outgoing announcement, press the announce button and release it when you hear the beep. Or, press the delete button while the announcement is reviewing.

Sample Outgoing Announcement

Hi, this is (use your name here), I can’t answer the phone right now, so please leave your name, number and a brief message after the tone, and I’ll get back to you. Thanks.

NOTE: The maximum recording time for the outgoing announcement is 2 minutes.

Reviewing and Choosing the Announcement

Press and release the announce button to review and select this one as your outgoing announcement.

NOTE: Press the PLAY/STOP button at any time to stop playing the announcement.

Programming the Telephone

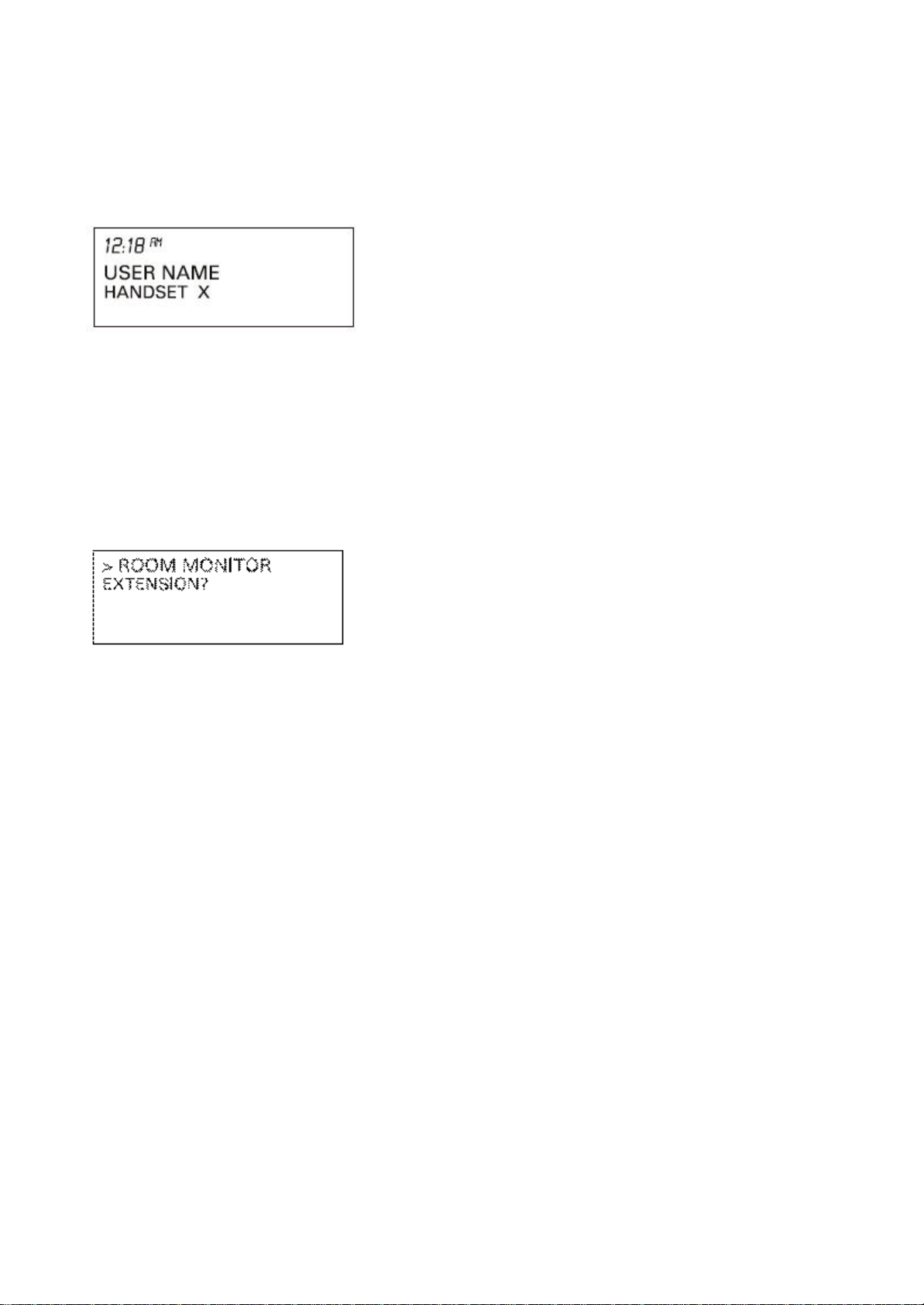

Standby Screen

The handset displays the handset number and user name.

Programming Functions

The system uses a menu structure to give you access to all of the built-in features. You may program the following items in main menu: Room Monitor, Answerer, Set

Alarm Clock and Handset Setup.

Room Monitor (applicable only with additional handsets)

1. Make sure your phone is OFF (not in TALK mode).

2. Press the mute/menu OK button to go to the main menu.

3. Press caller ID-volume ( 6 or 5) button to scroll to ROOM MONITOR.

4. Press mute/menu OK button to enter ROOM MONITOR menu, ROOM MONITOR EXTENSION? shows in the display.

5. Use the touch tone pad to enter the handset number to be monitored.

NOTE: When this phone system is expanded (up to 6 handsets by purchase of optional Model TBD handset with recharge cradle), handsets are named HANDSET 1, HANDSET 2, HANDSET 3 and so on respectively.

6. The receiving handset will turn on the microphone and the originating handset will turn on the speakerphone to monitor sound from the receiving handset.

NOTE: For room monitoring mode to work, the originating handset must NOT be on the cradle.

NOTE: While in room monitoring mode, the handsets will emit an alert tone approximately every 5 seconds if there is an incoming call. You may press the SPEAKER button to quit room monitor and answer the call.

NOTE: While in room monitoring mode, the originating handset can be switched to monitor by handset earpiece by pressing the TALK button once. Switch back to speakerphone by pressing the SPEAKER button once.

NOTE: Press the END/cancel button on the handset to exit room monitor mode.

Answerer

Need text for this section.............

Set Alarm Clock

1. Make sure your phone is OFF (not in TALK mode).

2. Press the mute/menu OK button to go to the main menu.

3. Press caller ID-volume ( 6 or 5) button to scroll to ALARM.

4. Press mute/menu OK button to enter the submenu, ALARM 1ON 2OFF shows on the display.

5. Use the touch-tone pad to enter the selection, or use the caller ID-volume ( 6 or 5) button to scroll to 1ON or 2OFF.

6. If you select ON, press the mute/menu OK button to conﬁrm and advance Set Alarm Time sub-menu.

7. Use the number keys to enter the time, then use the caller ID-volume ( 6 or 5) to select AM or PM.

8. Press the mute/menu OK button to conﬁrm and advance Set Cycle Time sub-menu.

9. Use the caller ID-volume ( 6 or 5) button to select Once or Daily. The default setting is Once.

10.Press the mute/menu OK button to save your selection. You will hear a conﬁrmation tone.

NOTE: If you select Daily, the system will follow the current time setting to turn on the alarm.

Handset Setup

1. Make sure your phone is OFF (not in TALK mode).

2. Press the mute/menu OK button to go to the main menu.

3. Press caller ID-volume ( 6 or 5) button to scroll to HANDSET SETUP.

4. Press mute/menu OK button to conﬁrm and you may program the following items: Language, Handset Name, Ringer Tone, Ringer Volume, VIP Melody, Key Tone, Set Day/Time, Equalizer, Area Code, Tone/Pulse, Registration, Deregistration and Default Setting.

NOTE: During programming, you may press the END/cancel button at any time to exit the sub-menu and return to the menu.

Language

From the Handset Setup Menu:

1. Press the caller ID-volume ( 6 or 5) button to scroll to the SET LANGUAGE sub-menu.

2. Press mute/menu OK button to enter the menu. SET LANGUAGE 1ENG 2FRA 3ESP shows in the display.

3. Use the touch tone pad on the handset to select 1ENG, 2FRA, 3ESP, or use the caller ID-volume ( 6 or 5) button to scroll to the desired language. English is the default setting.

4. Press the mute/menu OK button to save your selection. You will hear a conﬁrmation tone and the selected language shows in the display.

Handset Name

From the Handset Setup Menu:

1. Press the caller ID-volume ( 6 or 5) button to scroll to the HANDSET NAME submenu.

2. Press mute/menu OK button to enter the menu. HANDSET NAME shows in the display.

3. Use the touch-tone pad to enter a name (up to 15 characters). More than one letter is stored in each of the number keys. For example, to enter Bill Smith, press the 2 key twice for the letter B. Press the 4 key 3 times for the letter I. Press the 5 key 3 times for the letter L. Press the 5 key 3 times for the second letter L, and press the 1 key to insert a space between the ﬁrst and last name. Press the 7 key 4 times for the letter S; press the 6 key once for the letter M; press the 4 key 3 times for the letter I; press the 8 key for the letter T; press the 4 key twice for the letter H.

NOTE: If you make a mistake, use the delete/intercom/conf button to backspace and delete one character at a time.

4. Press the mute/menu OK button to save your name. You will hear a conﬁrmation tone and the handset name shows in the display.

Ringer Tone

You may choose from ten different ringer tones and ten different melodies.

From the Handset Setup Menu:

1. Press the caller ID-volume ( 6 or 5) button to scroll to the RINGER TONE sub-menu.

2. Press mute/menu OK button to enter the menu. SET RINGER TONE 01 shows in the display. 01 is default setting.

3. Use the caller ID-volume ( 6 or 5) button to scroll to the desired setting (1 through 20). You will hear a sample of the ringer tone/melody you select.

4. Press the mute/menu OK button to save your selection. You will hear a conﬁrmation tone and the selected ringer tone shows in the display.

NOTE: You must have the Ringer Volume set to ON for ring tone to signal an incoming call.

Ringer Volume

From the Handset Setup Menu:

Press the caller ID-volume ( 6 or 5) button to scroll to the RINGER VOLUME sub-menu.

2. Press mute/menu OK button to enter the menu. SET RINGER LEVEL 5 shows in the display.

3. Use the caller ID-volume ( 6 or 5) button to scroll to your selection. LEVEL 5 is the default setting.

4. Press the mute/menu OK button to save your selection. You will hear a conﬁrmation tone and the new volume setting shows in the display.

NOTE:

If you turn the ringer OFF, the ringer off icon shows in the

display.

VIP Melody

This features allows you to assign a speciﬁc melody to someone you want to get your attention when the person calls. When a VIP melody is assigned and that person calls, the unit rings the normal ring for the ﬁrst ring and then follows with VIP melody ring. You may choose from ten different polyphonic melodies and may store up to 10 VIP records.

NOTE:

This feature ONLY works when the following conditions are

met.

1. You have subscribed to Caller ID.

2. You have your Caller ID record previously transferred to the memory. (Refer to Storing CID Records in Internal Memory). NO USER MEMORY will show in the display to remind the user to do CID record transfer ﬁrst.

Storing VIP Melody

From the Handset Setup Menu:

1. Press the caller ID-volume ( 6 or 5) button to scroll to VIP MELODY sub-menu.

2. Press mute/menu OK button to select VIP melody feature and then display VIP 1 record.

- If VIP1 does NOT contain any speciﬁc number/records, it will display EMPTY.

3. Press caller ID-volume ( 6 or 5) button to select the speciﬁc VIP melody memory location (10 VIP locations) that does not contain any record.

4. Press mute/menu OK button to display SELECT MEMORY.

NOTE: If the memory location does not contain any CID memory records and you are trying to mark a speciﬁc record as VIP MELODY, then SELECT MEMORY will not be displayed. Instead, NO USER MEMORY will display in prompt to alert the user.

Press caller ID-volume ( 6 or 5) button to view the records from memory to be selected as VIP

6. Press mute/menu OK button to conﬁrm and then display VIP MELODY 01 to wait for the melody tone selection.

7. Press caller ID-volume ( 6 or 5) button to select from melody 01 to melody 10 (a testing tone is generated while making melody selection)

8. Press mute/menu OK button to conﬁrm.

NOTE: If the desired number/record was previously stored in any one of the ten VIP melody records, DUPLICATE NUMBER shows in the display.

Changing a Stored VIP Melody Record

Use the Storing VIP Melody procedure to change the number of a selected record and replace the old phone number with new phone number.

When REPLACE VIP# ? shows in the display, you must press mute/menu OK button on the handset to conﬁrm replacement.

Reviewing And Deleting Stored VIP Melody Record

From the Handset Setup Menu:

1. Press the mute/menu OK button to enter to VIP MELODY menu.

2. Use the caller ID-volume ( 6 or 5) button to scroll to the desired VIP Melody Record.

3. If you want to delete the information, press the delete/intercom/conf button on the handset while the entry displays. The display show DELETE VIP# ?.

4. Press delete/intercom/conf again to conﬁrm. You will hear a conﬁrmation tone and VIP# DELETED shows in the display.

Key Tone

From the Handset Setup Menu:

1. Press the caller ID-volume ( 6 or 5) button to scroll to the KEY TONE sub-menu.

2. Press mute/menu OK button to enter the menu. SET KEY TONE 1ON 2 OFF shows in the display.

3. Use the touch tone pad on the handset to select 1 or 2, or use the caller IDvolume ( 6 or 5) button to scroll to your selection. 1ON is the default setting.

4. Press the mute/menu OK button to conﬁrm and the key tone setting shows in the display.

Set Day/Time

From the Handset Setup Menu:

1. Press the caller ID-volume ( 6 or 5) button to scroll to the SET DAY/TIME submenu.

2. Press mute/menu OK button to enter the menu. SET DAY MONDAY shows in the display. MONDAY is default setting.

3. Press the caller ID-volume ( 6 or 5) button to select from MONDAY to SUNDAY.

4. Press mute/menu OK button to conﬁrm your selection and advance SET TIME sub-menu.

5. Use the number keys to enter the current hour and minute, then use the caller ID-volume ( 6 or 5) to select AM or PM.

6. Press the mute/menu OK button to save your selection. You will hear a conﬁrmation tone and the current time shows in the display.

Equalizer

This feature lets you to adjust the audio quality.

From the Handset Setup Menu:

1. Press the caller ID-volume ( 6 or 5) button to scroll to Equalizer.

2. Press the mute/menu OK button to enter the menu.

3. Use the caller ID-volume ( 6 or 5) button to scroll to desired selection. The default is Natural.

4. Press the mute/menu OK button to save your selection. You will hear a conﬁrmation tone.

Area Code

From the Handset Setup Menu:

1. Press the caller ID-volume ( 6 or 5) button to scroll to the AREA CODE sub-menu.

2. Press mute/menu OK button to enter the menu. SET AREA CODE - - - shows in the display.

3. Use the touch-tone pad to enter your 3-digit area code.

4. Press the mute/menu OK button to conﬁrm. You will hear a conﬁrmation tone and the new area code shows in the display.

NOTE: To restore the default setting to - - -, press and release

delete/

intercom/conf

when SET AREA CODE shows in the display.

Tone/Pulse

From the Handset Setup Menu:

1. Press the caller ID-volume ( 5 or 6) button to scroll to the TONE PULSE submenu.

2. Press mute/menu OK button to enter the menu. TONE/PULSE 41TONE 2PULSE shows in the display. The default setting is “1 TONE”.

3. Use the touch-tone pad or caller ID-volume ( 5 or 6) to enter 1 TONE or 2 PULSE.

4. Press the mute/menu OK button to conﬁrm. You will hear a conﬁrmation tone and your selection shows in the display.

+ 69 hidden pages
