Thomson 28301EE1 Instruction

Model 28300

2 in 1 - Internet Phone

User’s Guide

Quick

Set-Up

Guide

on page 6

can be used with the internet or as a landline telephone

Equipment Approval Information

Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA.

1Notification to the Local Telephone Company

On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company.

The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company.

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.

Notes

•This equipment may not be used on coin service provided by the telephone company.

•Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company.

•Notice must be given to the telephone company upon permanent disconnection of your telephone from your line.

•If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

US Number is located on the cabinet bottom.

REN Number is located on the cabinet bottom.

2Rights of the Telephone Company

Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary

discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations.

The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your

telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service.

Interference Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

Privacy of Communications may not be ensured when using this product.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference).

•Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna.

•Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected.

If these measures do not eliminate the interference, please consult your dealer or an experienced radio/ television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies.

Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Hearing Aid Compatibility (HAC)

This telephone system meets FCC standards for Hearing Aid Compatibility.

Licensing

Licensed under US Patent 6,427,009.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.”

For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with the belt clip supplied with this product. Use of other accessories may not ensure compliance

with FCC RF exposure guidelines.

Information for DECT Product

This telephone is compliant with the DECT 6.0 standard which operates in the 1.92GHz to 1.93GHz frequency range.

Table of Contents

	Equipment Approval Information..................	2	Select Base.................................................	25
	Interference Information.............................	3	Default Setting..........................................	25
	Hearing Aid Compatibility (HAC)..................	3	Base Settings..................................................	25
	Licensing......................................................	3	Ringer Type.................................................	26
	FCC RF Radiation Exposure Statement.........	3	Ringer On/Off...........................................	26
	Information for DECT Product...................	3	Skype Status...............................................	26
	Introduction................................................	7	Default Setting..........................................	26
	Before You Begin.........................................	7	Function...........................................................	27
	Parts Checklist............................................	7	Games..........................................................	27
	Telephone Jack Requirements.........................	8	Telephone Operation..................................	27
	Installation..................................................	8	Power On/Off Operation.............................	27
	Digital Security System....................................	8	Making a Call.................................................	27
	Important Installation Guidelines..................	8	Traditional Landline Calls......................	27
	Handset Layout............................................	9	Skype Calls.................................................	28
	Base Layout..................................................	9	SkypeOut™ Call..................................	28
	Installing the Phone..................................	10	Skype Call.............................................	29
	Installing the Handset Battery...................	10	During an Ongoing Landline Call...	29
	Base Station....................................................	10	Answering a Call...........................................	30
	Software Installation................................	11	Call Waiting...................................................	30
	SKYLINK™ Operation Guide.....................	15	Incoming Landline Call during a
	To Uninstall the Software.....................	16	Landline Call........................................	30
	Programming the Telephone.......................	16	Incoming Landline Call during Skype
	Timer.................................................................	17	Call or Incoming Skype Call during
	Time Format................................................	17	Landline Call........................................	30
	Clock (Set Date/Time)...............................	17	Dialing from Contacts..................................	32
	Alarm...........................................................	17	Adjusting Earpiece and Ringer Volume.....	32
	Handset Settings...........................................	18	Muting the Microphone and Ringer...........	32
	Language.....................................................	18	Paging the Handset.......................................	32
	Ringer Type.................................................	19	Handset Speaker Phone................................	33
	Ringer Volume...........................................	19	Key Lock...........................................................	33
	Message Waiting.......................................	20	Call Transfer/Forwarding.......................	33
	Wallpaper...................................................	21	Intercom Operation....................................	34
	Contrast.....................................................	21	Handset to Handset Intercom Call	34
	Key Tones	21
			Receiving an Intercom Call	34
	Auto Answer	22
			Advanced Intercom Features	34
	Handset Name	22
			Receiving an Incoming Call During an
	...............................................Menu Color	23	Intercom Call............................................	34
	....................................................Backlight	23	Using Intercom with External Telephone
	..........................................Skype Contacts	23	Calls............................................................	34
	................................................Registration	24	Two-Way Calling	35
	Deregistration	24

Table of Contents

Conference Operation ...............................	35
Local Three-way Conference Call........	35
Skype Conference Call............................	36
Conference Call with a Landline and an
Skype Contact............................................	36
Call Log....................................................	36
Browsing Call Logs .....................................	37
Formatting and Saving Individual Call
Records..................................................	37
Deleting Individual Call Records.....	38
Deleting Call Logs........................................	38
Contacts (Landline Only)...........................	38
Searching.........................................................	39
Adding..............................................................	39
Group...............................................................	40
Speed Dial........................................................	40
Check Memory................................................	41

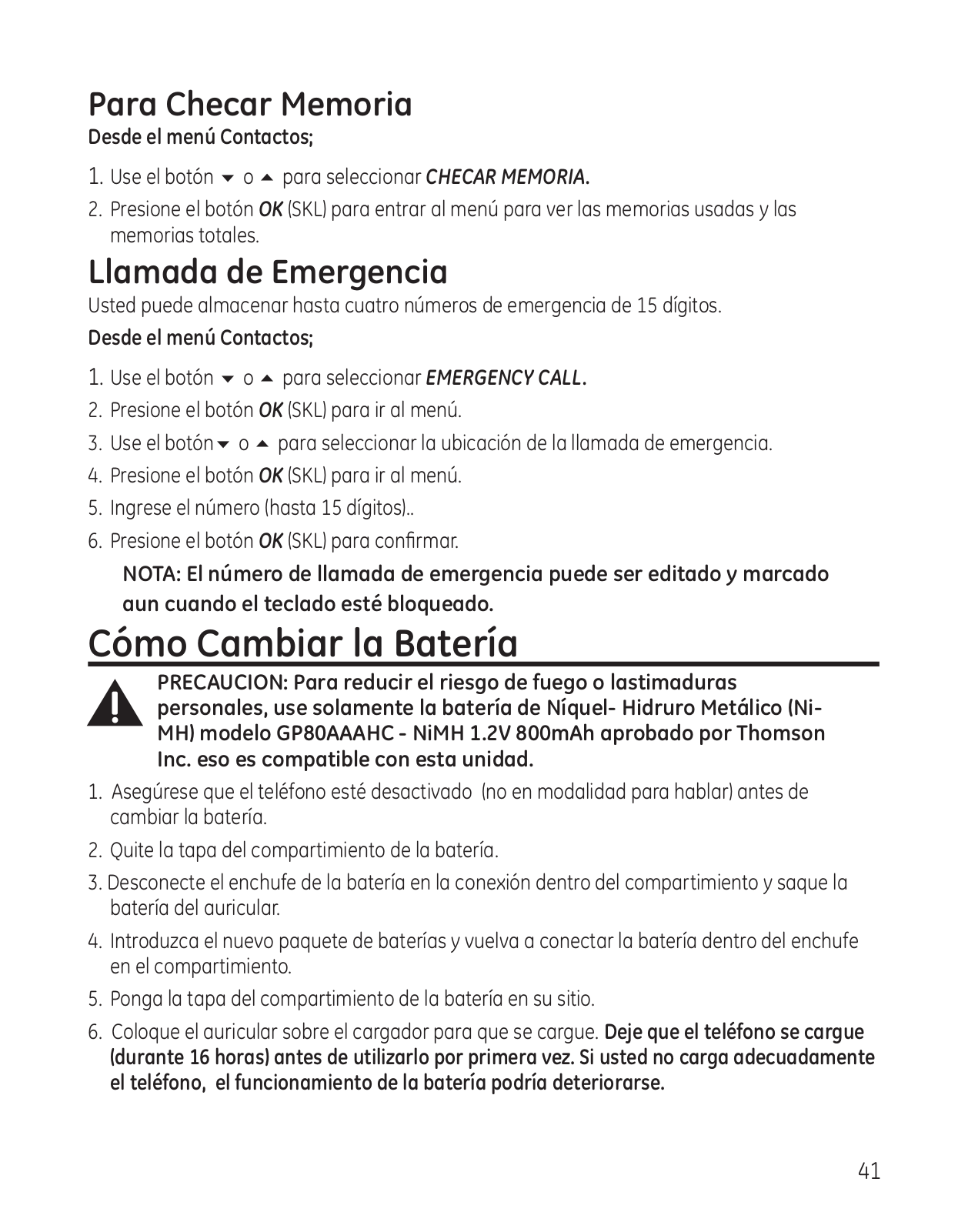

Emergency Call..............................................	41
Changing the Battery.................................	41
Battery Safety Precautions........................	42
Shortcut Key Guide....................................	42
LCD Icon Guide.........................................	43
Troubleshooting Guide..............................	44
Forgot Base PIN ......................................	44
Telephone Solutions.................................	44
Caller ID Solutions.................................	46
Skype Solutions.........................................	46
Battery Solutions.....................................	47

Accessory Information...............................	48
General Product Care...............................	48
Causes of Poor Reception..........................	48
Warranty Assistance.................................	49
Limited Warranty.......................................	50
Index..........................................................	52

WARNING:TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSETHIS PRODUCT TO RAIN OR MOISTURE.

		CAUTION:
		RISKOFELECTRICSHOCK
		DONOTOPEN
THE LIGHTNING	CAUTION: TO REDUCE THE			THE EXCLAMATION
FLASH AND ARROW	RISK OF ELECTRIC SHOCK, DO			POINT WITHIN THE
HEAD WITHIN THE	NOT REMOVE COVER (OR			TRIANGLE IS A
TRIANGLE IS A	BACK). NO USER			WARNING SIGN
WARNING SIGN	SERVICEABLE PARTS INSIDE.			ALERTING YOU OF
ALERTING YOU OF	REFER SERVICING TO			IMPORTANT
“DANGEROUS	QUALIFIED SERVICE			INSTRUCTIONS
VOLTAGE” INSIDE	PERSONNEL.			ACCOMPANYING
THE PRODUCT.				THE PRODUCT.

SEE MARKING ON BOTTOM / BACK OF PRODUCT

Get Connected Easily

Connect to	Connect to
traditional phone	Skype™
system

System Requirements

Recommended:

PC running Windows 2000 or XP 1 GHz processor

256 MB RAM

30 MB free space on hard drive Cable, DSL or equivalent broadband connection to Internet Standard PSTN line (RJ-11)

Minimum:

PC running Windows 2000 or XP 400 MHz processor

128 MB RAM

10M free disk space on hard drive Internet Connection (either dial-up: minimum 33.6 Kbps modem, or any broadband: cable, DSL, etc.)

3

steps

step 1	step 2
download and install Skype™	install the software in
software from www.skype.com	the CD to your computer

setup your

GE 28300 USB DECT

step 3

connect the GE 28300 to your computer and landline respectively

		traditional	VOIP
?	?	phone calls	calls

1.	go to website: www.skype.com	1.	put the CD into the CD-rom	1.	plug in power cord	now you can make and receive
2.	download the free software		drive of your computer	2.	connect to your landline	both traditional phone calls
3.	follow the install wizard	2.	double click the setup icon		socket with phone cable	& VOIP calls
		3.	follow the install wizard	3.	connect to USB port when

prompted by CD-rom

Introduction

CAUTION: When using telephone equipment, there are basic

safety instructions that should always be followed. Refer to the IMPORTANT SAFETY INSTRUCTIONS provided with this product and save them for future reference.

IMPORTANT: Because cordless phones operate on electricity, you should have at least one phone in your home that isn’t cordless, in

case the power in your home goes out.

Before You Begin

Parts Checklist (for model 28300xx1)

Make sure your package includes the items shown here.

Base	AC power	Telephone
	adaptor	line cord

Handset

				SKYLINK™ Dual Phone Utility
	2 AAA	Belt	Battery	SKYLINK™
	Nickel-metal		compartment	Install
		clip
	Hydride batteries		cover	CD ROM

For Model 28300xx2 there will be ONE additional handset, belt clip, battery

compartment cover, 2 AAA Nickel-metal Hydride batteries and a charge cradle than shown above.

Telephone Jack Requirements

To use this phone with a landline, you need an RJ11C type modular telephone jack, which might look like the one pictured here, installed in your home. If you don’t have a modular jack, call your local phone company to find out how to get one installed.

Wall plate

Modular telephone line jack

Installation

Digital Security System

Your cordless phone uses a digital security system to protect against false ringing, unauthorized access, and charges to your phone line.

INSTALLATION NOTE: This product operates at a frequency of 1.9GHz. to provide communication with minimal interference from other electronic devices. To further minimize the possibility of interference, the base of the cordless telephone should not be placed near or on top of a TV, microwave oven, or VCR. If

interference continues, move the cordless telephone further away from these appliances.

Important Installation Guidelines

•Avoid sources of noise and heat, such as motors, fluorescent lighting, microwave ovens, heating appliances and direct sunlight.

•Avoid areas of excessive dust, moisture and low temperature.

•Avoid other cordless telephones.

•Never install telephone wiring during a lightning storm.

•Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.

•Never touch non-insulated telephone wires or terminals, unless the telephone line has been disconnected at the network interface.

•Use caution when installing or modifying telephone lines.

Handset Layout

earpiece

	display
Soft Key Left (SKL/ | )	Soft Key Right (SKR/ | )
(button)	(button)
5/6Navigational
(button)
Landline (button)	Skype (button)
	[computer call]
[traditional call]
	END CALL
speaker	(button)
(button)
	#/PAUSE/lock
*	(button)
(button)
REDIAL/flash	INT
	(intercom button)
(button)	microphone

Base Layout

PAGE (indicator)

CHARGE (indicator)

IN USE/CID /VM (indicator)

PAGE

Installing the Phone

Installing the Handset Battery

NOTE: You must connect the handset battery before using the cordless handset(s).

CAUTION: To reduce the risk of fire or personal injury,

use only the Thomson Inc. approved model GP80AAAHC - NiMH 1.2V 800mAh rechargeable Nickel-metal Hydride battery, which is compatible with this unit.

1.Locate batteries and battery door which are packaged together inside a plastic bag and are separate from the handset.

2.Locate the battery compartment on the back of the handset.

3.Insert the batteries.

4. Close the battery compartment by pushing the door up until it snaps into place.

Base Station

1.Choose an area near an electrical outlet and a telephone wall jack (RJ11C), and place your cordless telephone on a level surface near your personal computer.

System Requirements:

Recommended:

PC running Windows 2000 or XP 1 GHz processor

256 MB RAM

30 MB free space on your hard drive Cable, DSL or equivalent broadband connection to Internet

Standard landline (RJ-11)

Minimum:

PC running Windows 2000 or XP 400 MHz processor

128 MB RAM

10M free disk space on your hard drive Internet Connection (either dial-up: minimum 33.6 Kbps modem,

or any broadband: cable, DSL, etc.)

10

2.Plug one end of the telephone line cord into the TEL jack on the back of the base and the other end into a modular jack.

3.Plug the AC power converter into the electrical outlet and the DC connector into the jack on the back of the base.

4.Place the handset in the base cradle. The CHARGE indicator turns on, verifying the battery is charging.

Allow handset to charge for 16 hours prior to first use. If you do not properly charge the handset, battery performance is compromised.

CAUTION: Use only the model 5-2711 power adaptor that came with this unit. Using other power adaptors may damage the unit.

Software Installation

Verify that the USB cable is NOT connected to computer before starting this installation.

1.Insert the SKYLINK™ 2-in-1 Phone Utility CD in your personal computer. Select the install language, and click [Next] to continue.

-OR-

If the following screen does not appear, find SKYLINK™ Setup and click on icon to start the SKYLINK™ 2-in-1 Phone Utility procedure.

2.Wait while the program prepares setup. Click [Cancel] ONLY if you wish to stop the installation.

11

3.The Welcome screen appears. Click [Next] to continue or [Cancel] to terminate the procedure.

4.Select "I accept the terms of the license agreement" and click [Next] to continue.

5.The folder where setup installs the files can be changed. The default directory is “C:\Program Files\SKYLINK\SKYLINK™ 2-in-1 Phone Utility”. Press [Change…] to change the directory. Click [Next] to continue.

6.The Install screen appears. Click [Install] to continue.

7.Connect USB cable when prompted. Wait 10 seconds, then press [OK].

8.Install is complete. Click [Finish] to exit the program.

NOTE: If the Skype™ program is not installed on the computer, it will prompt you to install. Click [Yes], to automatically go to the Skype website where you can download the Skype software. Click [No] to cancel.

9.A Skype prompt window will pop-up, select "Allow this program to use Skype" to assure that the Skylink ™2-in-1 Phone Utility works properly with Skype.

Important: If you do not select “Allow this program to use Skype” the Skype connection will not work with this phone and you will

have to remove and reinstall the SKYLINK™ 2-in-1 Phone Utility software.

12

After successful installation, a SKYLINK™ 2-in-1 Phone Utility icon will appear in your toolbar menu.

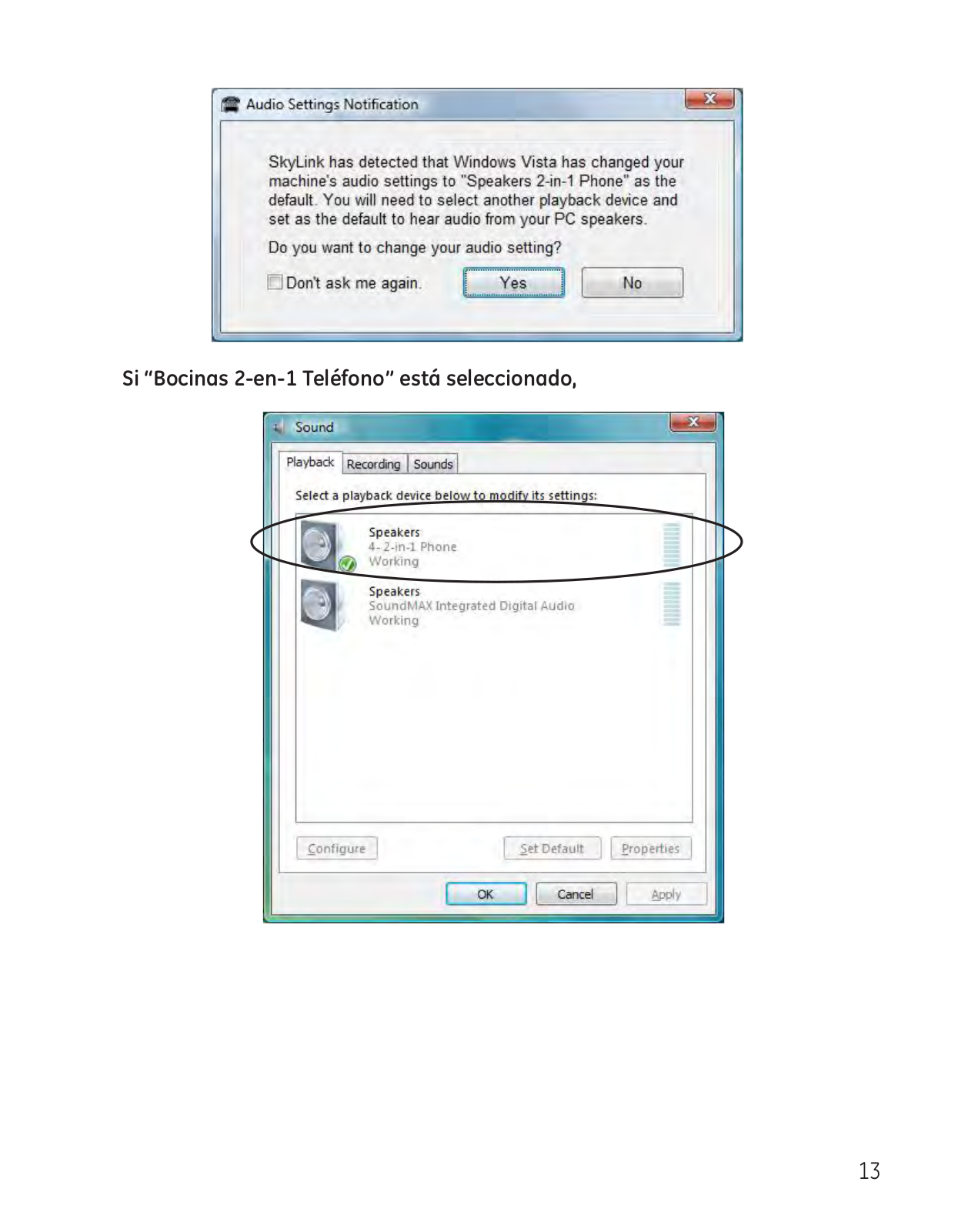

NOTE: If you are using Microsoft Vista you will see a Notifcation window suggesting that you verify your audio settings. Click Yes to manually check your settings.

If "Speakers 2-in-1 Phone" is selected,

13

then select your PC playback device

and set as default.

10. Right-Click on the icon to view the following options;

Open Monitor	Opens the SKYLINK™ 2-in-1 Phone Utility Monitor window,
	see SKYLINK™ Operation Guide section for more detail.

Start when windows start Automatically starts the SKYLINK™ 2-in-1 Phone Utility when computer is started or rebooted. This can be turned ON or OFF as the user prefers.

Exit	Closes the SKYLINK™ 2-in-1 Phone Utility.

14

SKYLINK™ Operation Guide

The "Status" screen indicates SKYLINK™ and Skype are operational.

The "Tools" screen allows you to easily register handsets and deregister handsets from the drop down menu.

The "About" screen has information regarding SKYLINK™ 2-in-1 Phone Monitor.

15

To Uninstall the Software

If you choose to uninstall the software from the PC.

1.Go to the START/Setting/Control Panel, choose the icon "Add or Remove Programs".

2.Select "SKYLINK™ 2-in-1 Phone Utility" from the list and click [Remove] to uninstall.

3.A message box appears. Click [Yes] to continue, or [No] to cancel.

4.After uninstalling the program, click [Finish] to exit.

Programming the Telephone

LCD Standby Screen

The screen displays various information regarding the status of your phone the handset name, time, battery charge status and wallpaper when idle. It also displays information when using Skype.

The handset menu gives you access to all of the built-in features. Press the Menu (SKL) button to display the first menu Contacts, and press 5or 6buttons to navigate to the desired menu option. Press the OK (SKL) button to activate a menu option. For details on programming, refer to the applicable section.

During programming, you may press the Back (SKR) button at any time to exit the menu and keep the previous setting.

CONTACTS	The telephone can store up to 100 landline entries in
	the contacts list with three numbers per entry.
CALL LOG	Review Caller ID data (20 record limit) and Skype call
	data (unlimited); allows you to review a number and
	dial or redial.
TIMER	Set time format, clock and alarm settings.
HANDSET SETTINGS	Allows you to set preferences for the handset.
BASE SETTINGS	Allows you to set preferences for the base.
FUNCTION	Games selection.

16

Timer

There are three programmable menus available: Time Format, Clock and Alarm.

1.Make sure your phone is OFF (not in talk mode).

2.Press the MENU (SKL) button and use the 6or 5button to scroll to TIMER.

3.Press the OK (SKL) button to enter the menu.

Time Format

Choose between 12 hour or 24 hour format.

From the TIMER menu;

1.Use the 6or 5 button to scroll to TIME FORMAT.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to 12 Hours or 24 Hours.

4.Press the OK (SKL) button to save your selection.

Clock (Set Date/Time)

From the TIMER menu;

1.Use the 6or 5 button to scroll to CLOCK.

2.Press the OK (SKL) button to enter the menu.

3.Use the number keypad to input the date.

4.Press the OK (SKL) button to save your selection.

5.Use the number keypad to input the time.

6.Press the OK (SKL) button to save your selection.

7.Use the 6or 5 button to scroll to AM or PM.

8.Press the OK (SKL) button to save your selection.

Alarm

Select the settings for your alarm notification.

From the TIMER menu;

1.Use the 6or 5 button to scroll to ALARM.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to select On/Off, Ringer Type or Ringer Volume and press the OK (SKL) button.

17

On/Off

There are four options: Off, Once, Everyday, and Weekday. Off - Press the OK (SKL) button to confirm.

Once, Everyday, and Weekday - Press the OK (SKL) button to enter the menu. Set the time using the keypad, then press OK (SKL) button to confirm.

NOTE: Once the alarm is set, the alarm icon will appear in the top icon bar.

Ringer Type

1.Use the 6or 5 button to scroll to the desired ring tone for your alarm.

2.Press the OK (SKL) button to confirm your selection.

Ringer Volume

1.Use the 6or 5 button to scroll to the desired ring volume for your alarm.

2.Press the OK (SKL) button to confirm your selection.

Handset Settings

There are sixteen programmable menus available: Language, Ringer Type, Ringer Volume, Message Waiting, Wallpaper, Contrast, Key Tones, Auto Answer, Handset Name, Menu Color, Backlight, Skype Contacts, Registration, De-registration, Select Base and Default Setting.

1.Make sure your phone is OFF (not in talk mode).

2.Press the MENU (SKL) button and use the 6or 5button to scroll to HANDSET SETTINGS.

3.Press the OK (SKL) button to enter the menu.

Language

This menu allows you to change the language of the display prompts and the input special characters for French or Spanish text.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to LANGUAGE.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to the desired language. The default is ENGLISH.

18

4. Press the OK (SKL) button to save your selection.

NOTE: When English is selected, press the OK (SKL) button if you would like to add an additional input language, (or Cancel (SKR) to use English character set only) then press the 6 or 5 button to scroll to French or Spanish character set and press the OK (SKL) button to confirm. Press the Back (SKR) repeatedly to return to the main menu.

5. Press the BACK (SKR) button twice to return to main menu.

Ringer Type

This menu allows you to change the ringer tone (from 10 ring melodies) for each category/group.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to RINGER TYPE.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to a category.

4.Press the OK (SKL) button to enter.

5.Use the 6or 5 button to scroll to the desired ring tone.

6.Press the OK (SKL) button to confirm your selection.

Ringer Volume

This menu allows you to change the ringer volume (5 levels) for each category/group.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to RINGER VOLUME.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to a category.

4.Press the OK (SKL) button to enter.

5.Use the 6or 5 button to scroll to the desired ring volume.

6.Press the OK (SKL) button to confirm your selection.

19

Message Waiting

If you have subscribed to a voice messaging service, the green message light on the base will flash to alert you that you have messages waiting. To hear your messages, contact your voice messaging service provider.

NOTE: For quick dialing you can store the voice messaging service number on your phone. To dial the programmed VoiceMail number, press and hold the * button for 2 seconds.

To store/dial the voice messaging service number: From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to MESSAGE WAITING.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to SERVICE.

4.Press the OK (SKL) button to enter the menu.

5.Enter the number of your messaging service provider.

6.Press the OK (SKL) button to confirm your selection.

NOTE: Press the (landline) button to dial the number. Press the END CALL button to return to standby mode.

When you have listened to your messages, to turn off the flashing message light: From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to MESSAGE WAITING.

2.Press the OK (SKL) button to confirm your selection.

3.Use the 6or 5 button to scroll to CLEAR MESSAGE.

4.Press the OK (SKL) button to confirm your selection.

NOTE: Press the END CALL button to return to standby mode.

20

Wallpaper

You may choose from the 3 preset images.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to WALLPAPER.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to the desired selection.

4.Press the OK (SKL) button to save your selection.

Contrast

You may choose from the 5 contrast levels.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to CONTRAST.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to the desired selection.

4.Press the OK (SKL) button to save your selection.

Key Tones

This menu allows you to ON or OFF the key tones.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to KEY TONES.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to On or Off.

4.Press the OK (SKL) button to save your selection.

21

Auto Answer

If Auto Answer is set to ON, you can answer the phone by lifting it from cradle. If Auto Answer is OFF, you must press the (Skype) or (landline) or (speaker) or INT button on the handset

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to AUTO ANSWER.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to On or Off.

4.Press the OK (SKL) button to save your selection.

Handset Name

This menu allows you to enter a name for the handset, which displays on the idle screen.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to HANDSET NAME.

2.Press the OK (SKL) button to enter the menu.

3.Enter the handset name (up to 10 characters). More than one letter is stored in each of the number keys.

Directory Keypad Character Selection

Button	Character Order		Button	Character Order
1	[- ? ! , . & = : # ” $]		7	[p q r s] [P Q R S]
2	[a b c]	[A B C]	8	[t u v]	[T U V]
3	[d e f]	[D E F]	9	[wxy z]	[W XY Z]
4	[g h i]	[G H I]	0	space
5	[j k l]	[J K L]]	* shift lowercase, capitals, numbers
6	[m n o]	[M NO]	#	[* + % @ ( ) / [ ] ; _ ’ ^]

4. Press the OK (SKL) button to save your selection.

NOTE: If you make a mistake, use the DELETE (SKR) button to backspace and delete one character at a time or press and hold to delete all.

22

Menu Color

This feature allows you change the background color and the color of the highlighter from 4 color schemes.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to Menu Color.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to the desired selection.

4.Press the OK (SKL) button to save your selection.

Backlight

During an incoming ring, the backlight is always on. When alarm rings, the backlight is on for 5 seconds. After a call ends, the backlight is on for 3 seconds.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to BACKLIGHT.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to Normal or Power Saving.

4.Press the OK (SKL) button to save your selection.

NOTE: If Power Saving mode is chosen, the backlight will be on for 15 seconds. If Normal mode is selected, it will be on for 30 seconds.

Skype Contacts

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to Skype CONTACTS.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to All or Online.

NOTE: If All is chosen, all contacts are displayed. If Online is chosen, only online users are displayed.

4. Press the OK (SKL) button to save your selection.

23

Registration

Your handset is pre-registered and ready to use. It is not recommended that handset be registered again unless absolutely necessary.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to REGISTRATION.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to a specific base (1-4).

4.Press the OK (SKL) button.

5.While the system is searching, press and hold the PAGE button on base station for 2 seconds until the Charge/In Use indicator blinks.

NOTE: The maximum number of handsets that can be registered to a base, is six. The maximum number of bases to which a handset can be registered to, is four.

Deregistration

Deregistration cancels registration. During the deregistration process, keep the handset near the base.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to DE-REGISTRATION.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to a specific handset (1-6) and press the OK (SKL) button

4.Press the OK (SKL) button to confirm the selection. You will hear a confirmation tone when handset is deregistered.

WARNING: It is not recommended that a handset be deregistered unless absolutely necessary because once a handset is deregistered, that handset’s telephone features cannot be used until the handset is reregistered.

5.Select Back, if you do not want to deregister.

NOTE: When you complete the deregistration process, NOT REGISTERED shows on the display. To use the handset, you must register the handset.

24

Select Base

This option allows you to register a handset to more than one base and select which base it takes the signal from. The handset can also search for the most suitable base automatically if Auto Base is selected.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to SELECT BASE.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to a specific base (1-4, Auto Base).

4.Press the OK (SKL) button to save your selection.

Default Setting

This option allows you to return the handset to factory preset settings.

From the HANDSET SETTINGS menu;

1.Use the 6or 5 button to scroll to DEFAULT.

2.Press the OK (SKL) button to enter the menu.

3.Press the OK (SKL) button to confirm the selection.

NOTE: If you select OK, all the settings in the programmable menu are returned to factory default setting. You will hear a confirmation tone.

Base Settings

There are four programmable menus available: Ringer Type, Ringer On/Off, Skype Status and Default Setting.

1.Make sure your phone is OFF (not in talk mode).

2.Press the MENU (SKL) button and use the 6or 5button to scroll to BASE SETTINGS.

3.Press the OK (SKL) button to enter the menu.

25

Ringer Type

This menu allows you to change the ringer tone (from 5 ring melodies) for the base.

From the BASE SETTINGS menu;

1.Use the 6or 5 button to scroll to RINGER TYPE.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to select the desired ring tone (1-5).

4.Press the OK (SKL) button to confirm your selection.

Ringer On/Off

From the BASE SETTINGS menu;

1.Use the 6or 5 button to scroll to RINGER ON/OFF.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to scroll to On or Off.

4.Press the OK (SKL) button to save your selection.

Skype Status

From the BASE SETTINGS menu;

1.Use the 6or 5 button to scroll to MY Skype STATUS.

2.Press the OK (SKL) button to enter the menu.

3.There are 7 different settings: Online, Offline, Skype Me, Away, Not Available, Do Not Disturb, Invisible. These are described on the Skype website user Help/Online Status. Use the 6or 5 button to scroll to your desired Skype Status.

4.Press the OK (SKL) button to save your selection.

NOTE: If no PC connection is available, the message “PC Not Available” appears in the display.

Default Setting

This option allows you to return the base to factory preset settings.

From the BASE SETTINGS menu;

1.Use the 6or 5 button to scroll to DEFAULT.

2.Press the OK (SKL) button to enter the menu.

3.Press the OK (SKL) button to confirm the selection.

26

NOTE: If you select OK, all the settings in the programmable menu are returned to factory default setting. You will hear a confirmation tone.

Function

1.Make sure your phone is OFF (not in talk mode).

2.Press the MENU (SKL) button and use the 6or 5button to scroll to FUNCTION.

3.Press the OK (SKL) button to enter the menu.

Games

This menu allows you to choose from two different games.

From the FUNCTION menu;

1.Use the 6or 5 button to scroll to GAMES.

2.Press the OK (SKL) button to enter the menu.

3.Use the 6or 5 button to select the desired game.

4.Press the OK (SKL) button to confirm your selection.

NOTE: Select [Play] to start the game. Select [Help] to get operational guide for the game.

Telephone Operation

Power On/Off Operation

The handset is powered on by connecting the battery or if the handset has been powered down, press and hold the END CALL button for 2 seconds.

To power off the handset, press and hold the END CALL button for 2 seconds.

NOTE: If the handset is on the cradle, only the (speaker) and END CALL buttons are functional.

Making a Call

Traditional Landline Calls

1.Pick up the handset, and press the (landline) or (speaker) button. Wait for a dial tone, then dial the desired number.

-OR-

27

Dial the number and then press the (landline) or (speaker) button.

NOTE: If you make a mistake, use the DELETE (SKR) button to backspace and delete one number at a time.

2.When finished, press the END CALL button or place the handset in the base cradle to hang up.

NOTE: During the conversation, you can use the 6or 5 button to adjust the receiver/speaker volume (5 levels).

NOTE: Call timer will start counting when you press the telephone key and go off-hook, the call timer format is HH:MM:SS.

NOTE: After connection is established, user can view phone book by pressing the Contact (SKR) button.

Skype Calls

In order to make or receive a Skype call, please check the following:

1.PC is powered on and not in standby or hibernate mode.

2.Skype is logged into and running properly (Skype software should be 1.4 or later version).

3.28300 Hardware connected to PC and USB Driver is functioning properly.

SkypeOut™ Call

SkypeOut allows you to use your internet connection to call ordinary telephones and mobile telephones worldwide.

1.Dial the number with format; 001, area code, telephone number. You must dial the "1" and the area code even if it is a local number, othewise you will dial up another country. For international calls; 011, country code, telephone number.

- OR -

Press the (Skype) button. The first entry in the Skype contacts list appears. Use the 6or 5 button to scroll to the required subscriber from the list or enter the first letter of the name.

2.Press the (Skype) button to connect.

3.When finished, press the END CALL button.

28

Skype Call

Use Skype to call other Skype users free of charge. Verify that Skype™ is installed and activated on your computer.

1.Press the (Skype) button. The first entry in the Skype contacts list appears.

2.Use the 6or 5 button to browse the contacts (online or all) or enter the first letter of the desired name to select a Skype contact.

3.Press the (Skype) button to connect.

4.When finished, press the END CALL button.

During an Ongoing Landline Call

1.Press the (Skype) button to put the landline call on hold.

2.Press the (Skype) button again to enter into the Skype contacts list.

3.Use the 6or 5 button to browse the contacts (online or all) or enter the first letter of the desired name to select a Skype contact.

4.Press the (Skype) button to connect.

5.Toggle between the two calls by pressing the (Skype) button to select Skype call or the (landline) button to select the landline call.

NOTE: To terminate the ongoing Skype call and return to the landline call, press the the (Skype) button while on the line or

press the (landline) button to release the landline line and turn to the Skype call.

6. When finished, press the END CALL button to end both calls.

NOTE: If one call is ended, the other ongoing call can be terminated by pressing the END CALL key.

29

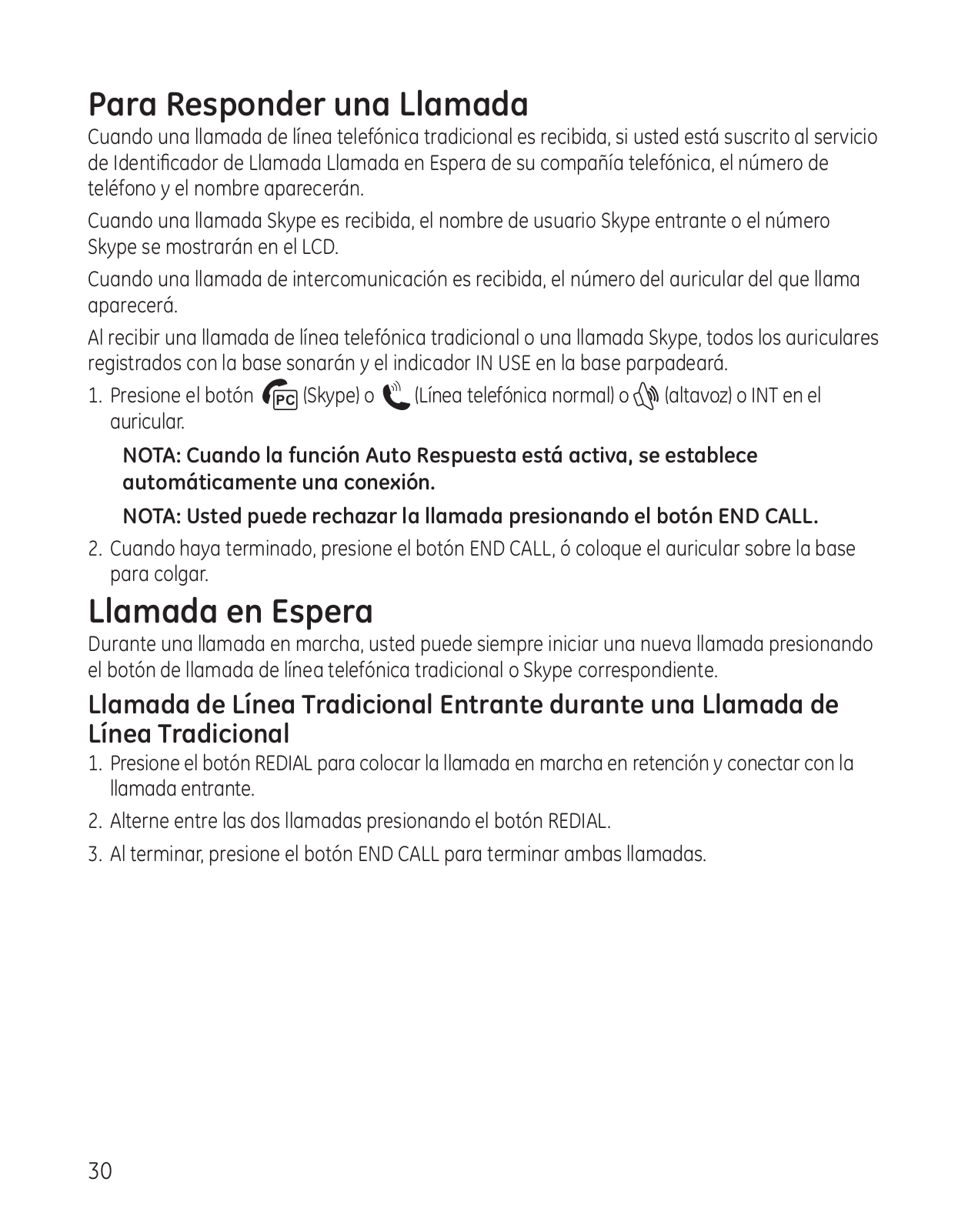

Answering a Call

When a landline call is received, if you subscribe to Call Waiting Caller ID service from your phone company, the phone number and name will appear.

When an Skype call is received, the incoming Skype username or SkypeIn™ number will be shown on the LCD.

When an intercom call is received, the caller’s handset number will appear.

When receiving a landline or Skype call, all handsets registered to base will ring and IN USE indicator on base will flash.

1. Press the (Skype) or (landline) or (speaker) or INT button on the handset.

NOTE: When the Auto Answer function is active, a connection is automatically established.

NOTE: You can reject the call by pressing the END CALL button.

2.When finished, press the END CALL button or place the handset in the base cradle to hang up.

Call Waiting

During an ongoing call, you can always start a new call by pressing the corresponding landline or Skype call button.

Incoming Landline Call during a Landline Call

1.Press the REDIAL button to place the ongoing call on hold and connect to the incoming call.

2.Toggle between the two calls by pressing the REDIAL button.

3.When finished, press the END CALL button to end both calls.

Incoming Landline Call during Skype Call or

Incoming Skype Call during Landline Call

1.Press the (Skype) or (landline) button to place the ongoing call on hold and connect to the incoming call.

2.Toggle between the two calls by pressing the (Skype) button to select the Skype call or the (landline) button to select the landline call.

30
