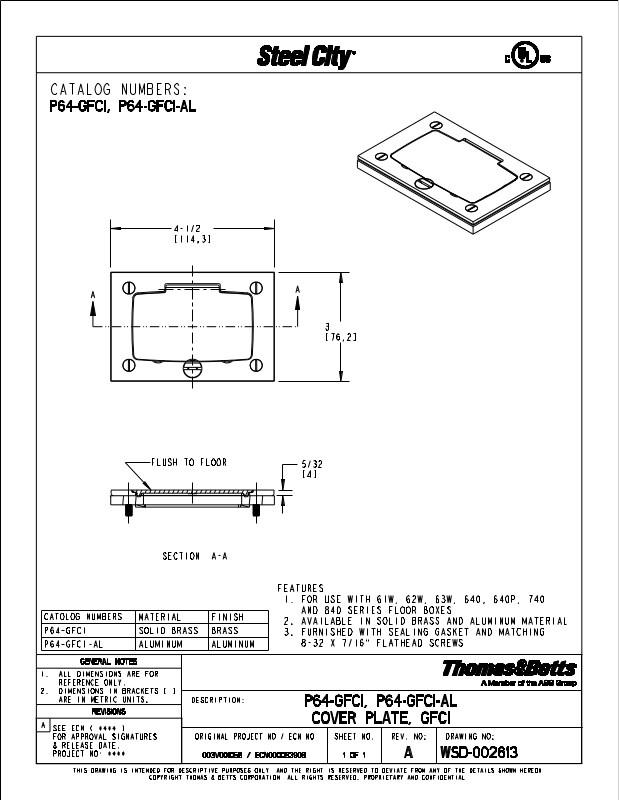

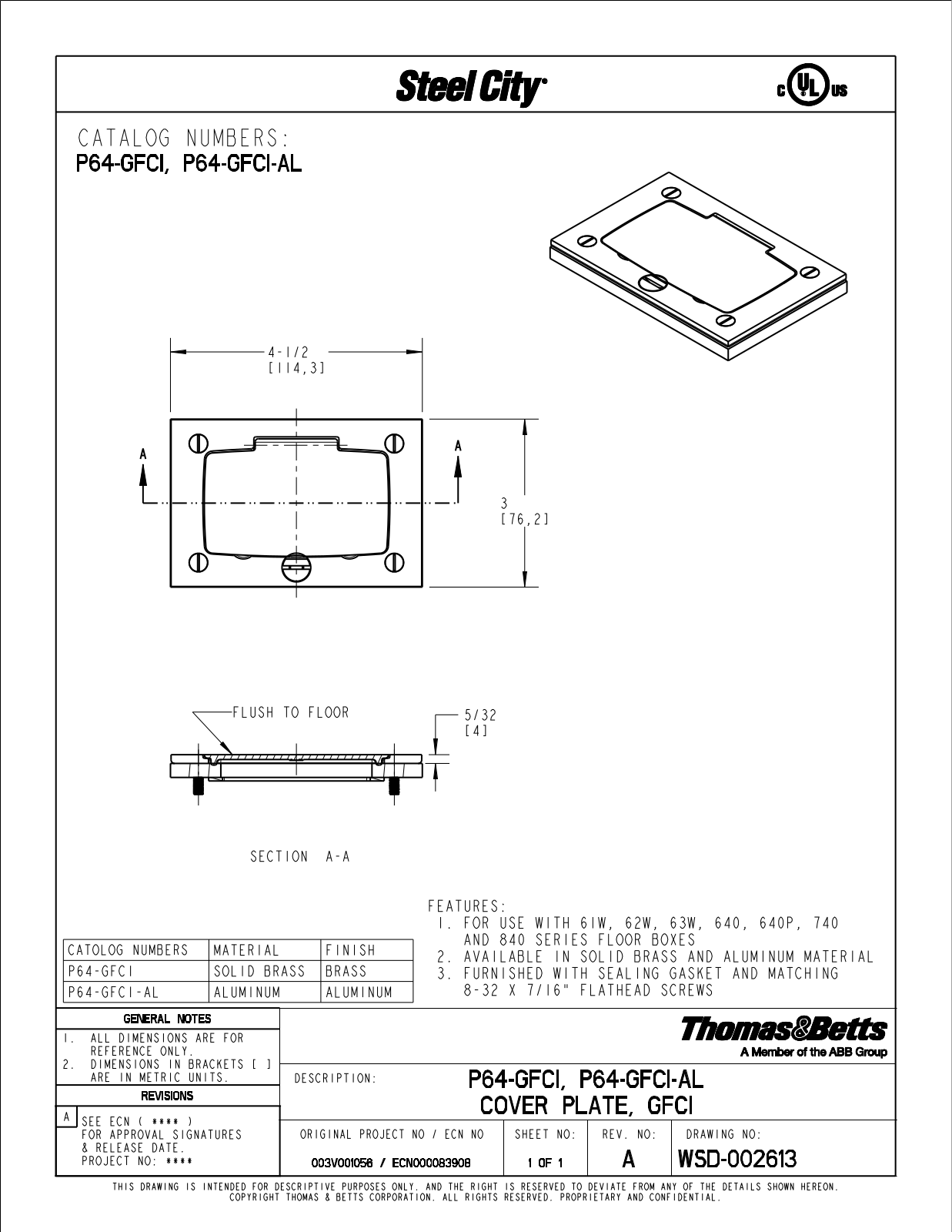

CATALOG NUMBERS:
P64-GFCI, P64-GFCI-AL
4-1/2
114,3[ ]
3
76,2[ ]
FLUSH TO FLOOR
SECTION A-A
CATOLOG NUMBERS
P64-GFCI SOLID BRASS BRASS
P64-GFCI-AL ALUMINUM ALUMINUM
GENERAL NOTES
1. ALL DIMENSIONS ARE FOR
REFERENCE ONLY.
2. DIMENSIONS IN BRACKETS [ ]
ARE IN METRIC UNITS.
REVISIONS
A
SEE ECN ( **** )
FOR APPROVAL SIGNATURES
& RELEASE DATE.
PROJECT NO: ****
THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.
MATERIAL FINISH
DESCRIPTION:
ORIGINAL PROJECT NO / ECN NO
003V001056 / ECN000083908 1 OF 1 A WSD-002613
COPYRIGHT THOMAS & BETTS CORPORATION. ALL RIGHTS RESERVED. PROPRIETARY AND CONFIDENTIAL.
5/32
4[ ]
FEATURES:
1. FOR USE WITH 61W, 62W, 63W, 640, 640P, 740
AND 840 SERIES FLOOR BOXES
2. AVAILABLE IN SOLID BRASS AND ALUMINUM MATERIAL
3. FURNISHED WITH SEALING GASKET AND MATCHING
8-32 X 7/16" FLATHEAD SCREWS
P64-GFCI, P64-GFCI-AL
COVER PLATE, GFCI
SHEET NO: REV. NO: DRAWING NO:
