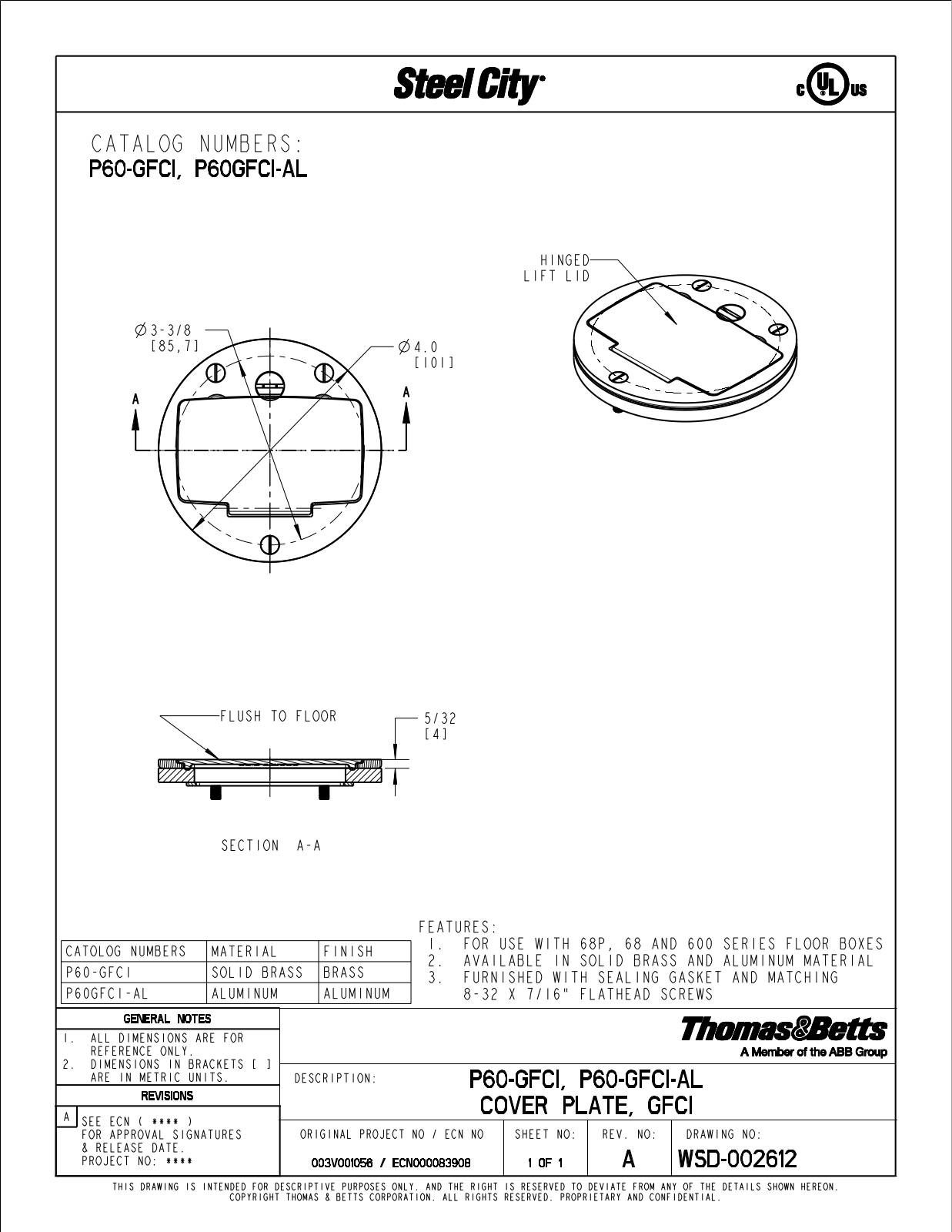

Thomas & Betts P60-GFCI, P60-GFCI-AL Reference Drawing

CATALOG NUMBERS:
P60-GFCI, P60GFCI-AL

3-3/8

85,7[ ]

HINGED

LIFT LID

4.0
101[ ]

FLUSH TO FLOOR

SECTION A-A

CATOLOG NUMBERS

P60-GFCI SOLID BRASS BRASS

P60GFCI-AL ALUMINUM ALUMINUM

GENERAL NOTES

1. ALL DIMENSIONS ARE FOR
REFERENCE ONLY.

2. DIMENSIONS IN BRACKETS [ ]
ARE IN METRIC UNITS.

REVISIONS

A

SEE ECN ( **** )
FOR APPROVAL SIGNATURES
& RELEASE DATE.
PROJECT NO: ****

THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.

MATERIAL FINISH

DESCRIPTION:

ORIGINAL PROJECT NO / ECN NO

003V001056 / ECN000083908 1 OF 1 A WSD-002612

COPYRIGHT THOMAS & BETTS CORPORATION. ALL RIGHTS RESERVED. PROPRIETARY AND CONFIDENTIAL.

5/32

4[ ]

FEATURES:

1. FOR USE WITH 68P, 68 AND 600 SERIES FLOOR BOXES

2. AVAILABLE IN SOLID BRASS AND ALUMINUM MATERIAL

3. FURNISHED WITH SEALING GASKET AND MATCHING
8-32 X 7/16" FLATHEAD SCREWS

P60-GFCI, P60-GFCI-AL

COVER PLATE, GFCI

SHEET NO: REV. NO: DRAWING NO:
