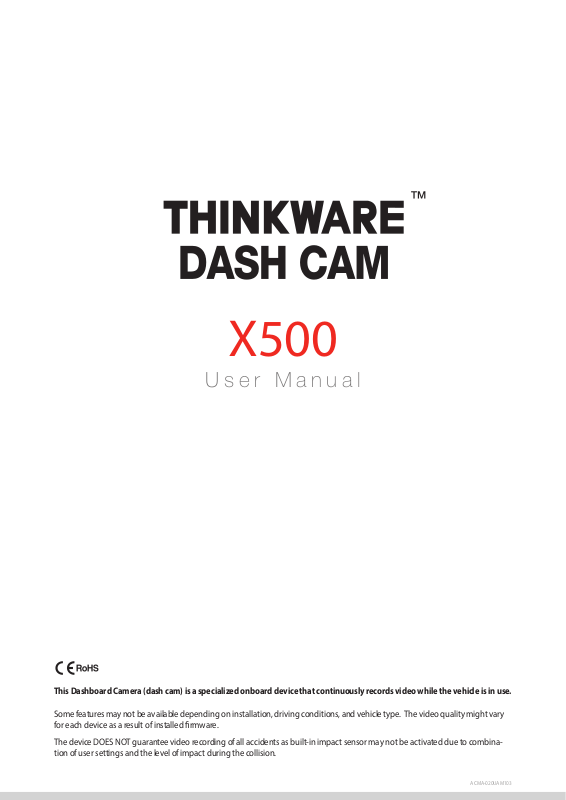

X500
U s e r M a n u a l
This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use.
Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary
for each device as a result of installed rmware.
The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combination of user settings and the level of impact during the collision.
ACMA-020UAM103
C o n t e n t s
Before Using THINKWARE DASH CAMTM X500 2
FCC Statement 2
Caution 3
01
02
03
Getting Started
1-1. In the Package 4
1-2. Optional Accessories 4
1-3. Product Overview 5
1-4. Inserting a Memory Card 6
1-5. Vehicle Installation 7
Basic Operations
2-1. Turning the Device Power On/O 9
2-2. Road Safety Warning System 10
2-3. Recorded Files 11
2-4. Recording Videos While Driving 12
2-5. [Optional] Recording Videos While Parked 14
2-6. Manual Recording 15
2-7. Formatting MicroSD Card 16
2-8. Upgrading Firmware 16
LCD Display
3-1. Main Menu 17
3-2. Live View 18
3-3. File List 19
3-4. Memory Card Settings 21
3-5. Dual Save Videos 22
3-6. Settings > Camera Settings 23
3-7. Settings > Continuous Recording Settings 24
3-8. Settings > Parking Recording Settings 25
3-9. Settings > System Settings 26
3-10. About Device 27
04
05
PC Application
4-1. Thinkware Dash Cam PC Viewer 28
Product Specications
5-1. Specications 33
Before Using THINKWARE DASH CAMTM X500
▶
Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent
of THINKWARE.
▶
Every eort has been made to ensure this Guide's accuracy. However, we cannot guarantee the accuracy of
the contents in this document as there may be technical errors, omissions, and/or futures changes.
▶
THINKWARE reserves the right to change or modify the product and the content of this manual at any time
without prior notice for product improvements.
▶
Images contained in this user guide are illustrations for instructional purposes only and may dier from the
actual product.
▶
Users do not reserve the right to use the product for purposes other than as specied in this user guide.
According to the Personal Information Protection Act and other related regulations, the user/owner may
be held liable if the video and/or conversation recorded by the device are distributed without their consent. Thus, special attention should be paid in using this product.
●
The MicroSD memory card should be tested for errors on a regular basis and as the memory card is a
consumable item, it will need to be replaced periodically.
●
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from the use of
disingenuous, modied, or unauthorizedparts and accessories.
●
The device and the recorded videos are intended for personal use and the recorded videos should be
used for reference only.
●
The device does NOT guarantee video recording of all accidents as built-in impact sensor may not be
activated due to combination of user settings and the level of impact during the collision.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
▶
Reorient or relocate the receiving antenna.
▶
Increase the separation between the equipment and receiver.
▶
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
▶
Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: Any changes or modications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
2
01
Caution
This device is designed to record video while the
vehicle is in operation. The quality of the video
might be aected by weather conditions and the
road environment such as day or night, presence
of street lighting, entering/exiting tunnels, and
surrounding temperatures.
THINKWARE is NOT responsible for the loss of any
recorded video during operation.
Although designed to withstand high impact of
car collision, THINKWARE does NOT guarantee recording of accidents where the impact may cause
the device to be damaged.
Keep the windshield clean for optimal video qual-
ity.
If a foreign substance (e.g. ngerprints) is attached
to the lens, this might reduce the quality of the
recorded videos. Keep the lens clean all the time.
The specied operating temperature of this prod-
uct is -20°C to 65°C (-4°F to 149°F) and storage
temperature is -40°C to 80°C (-40°F to 176°F). Ensure that the device is kept within these temperature ranges; otherwise, the device may not function as designed and at extreme temperatures,
permanent physical damage can result which is
not covered by warranty.
Avoid placing the device under direct sunlight.
Avoid using the Product in extreme conditions
where the Product is exposed to high tempera-
ture and/or humidity.
Only use genuine accessories and peripherals
from THINKWARE or authorized THINKWARE deal-
er. THINKWARE does not warrant the safety and
compatibility from use of peripherals from oth-
er manufacturers Use genuine parts supplied by
THINKWARE.
Do not apply excessive force when pushing the
buttons on the device.
Do not clean the Product using chemical cleaner
or solvents as it may damage plastic components.
Use soft, clean, dry fabric to gently wipe the Prod-
uct.
Getting Started
Do not disassemble the Product as it will void
product warranty and may also damage the product.
Handle with care. Drop, shock, and mishandling
of the Product may result in malfunction and/or
damage to the device.
Do not operate this device while driving.
Install this device in a location where it has unob-
structed view of the road but does not interfere
with the driver’s view. Check with your local and
regional laws before mounting to windshield.
The device and/or installation parts have moving
parts and may shift in extreme road conditions
such as unpaved road. Check frequently to ensure
the device is positioned as instructed in this guide.
Do not operate or handle power cable with wet
hands.
Do not use a damaged power cable.
Keep the power cable away from heaters or other
hot objects.
Check that power cable with correct connector is
used and the connections are secure and rmly in
place.
Do not pull, insert, or bend the power cable using
excessive force.
Do not place heavy objects on the device and the
power cable.
Do not modify or cut the power cable.
THINKWARE does not guarantee that devices or
peripherals not authorized by THINKWARE will be
compatible with its Product.
Do not attempt to insert foreign objects into the
device or power cable.
Do not spill or spray liquid into the device as it
may cause malfunction, re, or electric shock.
This device is intended to be used inside the ve-
hicle only.
Do not place or store the device where it can be
accessible by children and pets.
3
1. Getting Started
This unit was tested with shielded cables on the peripheral devices.
Shielded cables must be used with the unit to insure compliance.
1-1. In the Package
Main Dash Cam Unit
MicroSD memory card with adapter
(consumable)
Mount with 3M tape
(1ea)
USB MicroSD card
1-2. Optional Accessories
reader
Car Charger
User Manual (stored in the MicroSD card)
Adhesive Cable Holder
(5ea)
Quick Start Guide/Warranty/
Hardwiring Cable Rear View Camera
4
01
micro SD
1-3. Product Overview
14 5 6
9
micro SD
Front view
Right view
Getting Started
72 3
8
Rear view
Top view
10
11 12
No. Name Description
1 Camera Lens Front facing camera for video recording
2 Mount Connector Connects to the windshield mount
3 Security LED
LED light that is used to visually indicate that the vehicle is equipped
with dash cam which is in operation
4 Speaker For voice guidance and alert/notication sounds
5 Reset Press to force the device to restart
6 Microphone Records audio along with video
7 LCD Screen Provides Live View, video playback, and access to dash cam conguration
8 Control Buttons Control Buttons to navigate through user menu on the screen
9 Memory Card Slot Location for the memory card
10
Power Button
Press and hold for 3 seconds to turn the device on/o
11 DC-IN Connects to power cable
12 V-IN Socket
Connects to rear view camera. (Optional rear view camera is not includ ed
and requires separate purchase)
5
1-4. Inserting a Memory Card
1-4-1. About Memory Cards
UHS MicroSD card must be used with a storage capacity of 16GB, 32GB, or 64GB.
It is strongly recommended that minimum 16GB memory card is used for full HD recording.
The MicroSD card should be formatted every 2 weeks to maximize the lifetime of the memory card.
1-4-2. Installing a MicroSD Card
Open the slot cover and insert
the MicroSD card into the slot
with the metal contacts facing up
toward the mount connector and
push until it locks into place.
Inserting the memory card
Removing the memory card
Press the end of MicroSD card
until it clicks out from the slot. Pull
out the MicroSD card and close
the slot cover.
MicroSD card
Device only supports MicroSDUHS-I card with capacity of 16GB or higher
Do not apply excessive force on the MicroSD card or attempt to insert it in the wrong direction as it may
cause damage the MicroSD card and the card slot.
Cautions
The MicroSD card should be tested for errors on a regular basis and as the memory card is a consumable
item, it will need to be replaced periodically.
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using
genuine or authorized parts and accessories. It is strongly recommended that THINKWARE memory card
is used to minimize memory card error.
Turn the device o completely before removing the MicroSD card to avoid damages to the memory card.
To prevent loss of important data, frequently copy recorded videos from MicroSD card to another storage
device such as personal computer for back up.
6
01
1-5. Vehicle Installation
1-5-1. Connecting the Device and the
Mount
① Place the mount so it is aligned with the connector
(A), and push it toward (B) until it clicks into place.
② Remove the protective lm from the camera lens.
Getting Started
1-5-2. Installing the Device
① Clean the area on the windshield where the
dash cam will be installed.
② With dash cam main unit still attached to the
mount, remove the protective tape from the
back of the mount.
③ Attach the adhesive side of the mount on the
windshield where it has an unobstructed view
of the road but does not interfere with the
driver’s view.
TIP
The camera is located on the left side of the main unit
so install the dash cam on the right of center behind the
rearview mirror.
TIP
To ensure that the mount is safely secured, it is recommended that you separate the device from the mount after installation and press the mount towards windshield for 5 minutes
to maintain pressure. Allow 24 hours until the adhesive on
the mount has set before connecting the dash cam.
7
1-5-3. Connecting to power
① Connect the power cable to DC-IN socket of
the device.
② Plug the charger adapter end of the power
cable into a 12V DC vehicle power socket.
③ Arrange the wire by using the adhesive cable
holder as shown below.
④
Adjust the camera so that the dash cam is facing-
forward and level with the road.
TIP
After installation, turn on the dash cam and use the live view
on the LCD screen to adjust the camera angle.
Hide the power cable by placing (tucking)
it in the space between the vehicle ceiling
Recommended locations for
attaching adhesive wires clips
to arrange the power cable are
illustrated in the diagram
and headliner at the top of the windshield
For more information on the power cable routing instruction, please visit Thinkware homepage.
(www.thinkware.com)
Preventing Vehicle Battery Discharge
■ Depending on the car make and model, the power from the vehicle can be supplied even with
the ignition turned off. In this case, the dash cam stays on as continuous mode and does not
enter parking surveillance mode which will result in vehicle battery discharge.
■ Some vehicles with multiple power sockets might be equipped with at least 1 outlet that does
not shut off the power with the ignition. So, test each power outlet to ensure you connect to an
outlet that shut off with vehicle ignition.
8
2. Basic Operations
2-1. Turning the Device Power On/O
The device will automatically turn on and o with vehicle ignition.
02
Basic Operations
Power cable for vehicle
To manually turn the device on/o, press and hold the Power button ( ) for 3 seconds.
Press and hold for 3
seconds
9
2-2. Road Safety Warning System
Using embedded GPS and road data, related road safety information will be notied to the driver
Alert will be displayed on the LCD
screen when approaching nearby
points of interest.
Resetting GPS
┗ Built-in Internal GPS can be reset by selecting “Main Menu > About Device > GPS Info > Reset GPS”
Cautions
This feature may not be available in some countries.
GPS may be aected by weather conditions, satellite signal, and/or surrounding geographical features.
Coated windshields can interfere with GPS signal which may result in poor or blocked GPS reception.
Other electronic devices and/or equipment may interfere with GPS signal if placed too close to the dash cam.
10
02
2-3. Recorded Files
Recorded video les are saved in the folder by date and hour in the MicroSD card.
┗ Files are created based on the time when the videos are recorded.
Year Month Day Hour
Second
Minute
Rear view recording
(optional rear view camera must be installed)
Front view
recording
Basic Operations
As a surveillance product, the dash cam will automatically
overwrite oldest le in the memory card once the memory
is full. However, event recording and manual recording
videos are stored in separate location and will be protected
from le overwriting.
Cautions
Do not use MicroSD as external storage device.
Do not save or modify saved les in the MicroSD card.
This may result in unexpected behavior during operation.
11
2-4. Recording Videos While Driving
2-4-1. Continuous Recording Mode
Videos are recorded in 1 minute segments and saves as les
in the MicroSD card under folder named “cont_rec”.
2-4-2. Incident Recording in During Continuous Recording Mode
When the dash cam detects impact, it will immediately
store the previous 10 seconds prior to impact and start
recording video for next 10 seconds.
This 20-second video will then be saved in a secure location on
the MicroSD card under folder named “evt_rec”.
Note that the dash cam will detect impact as incident only
if the level of impact is greater than the sensitivity of the G-sensor set in the user conguration.
Cautions
Driving over speed bump, manhole, or uneven road at high speed can also be detected as incident.
The device can record up to 1 minute if there are continuous impacts in case of multiple accidents.
The time for which the device records video before and after impact can vary according to the device
setting.
12
02
2-4-3. Dual SaveTM (Internal Memory Backup)
Dual Save is a Thinkware proprietary technology that utilizes built-in memory as secure backup in addition
to the MicroSD memory card. Dual Save technology guarantees incident video recording using internal
memory in case of an accident that causes damage to the MicroSD memory card.
┗
In addition to saving incident video les to MicroSD card at the time of the accident, Dual save stores an-
other backup copy onto the built-in internal memory in case there has been a damage to either the main
unit or the MicroSD card that might result in failure to save incident videos on the external memory
┗
When Dual Save is activated, it will immediately store the previous 4 seconds prior to impact and start
recording video for next 2 seconds for total of 6 second video clip
┗ View Dual Save Video Files: Video recorded and stored on the
internal backup memory through Dual Save technology can be
viewed in the list located at "Dual Save Videos > Videos".
Basic Operations
┗ Copy Dual Save Video Files: Video recorded and stored on the
internal backup memory through Dual Save technology can be
copied to MicroSD card using copy menu located at
"Dual Save Videos > Copy to SD". Ensure that a MicroSD card is
present in the device
Cautions
Dual Save technology saves duplicate copy of the recorded video as secure backup to the internal memo-
ry so the internal memory life span may be aected by G-sensor user setting, road conditions, and driving
behavior which directly impact the frequency of incident recordings.
Driving over speed bump, manhole, or uneven road at high speed can also be detected as incident.
Professional product service is required for replacing internal memory.
13
2-5. [Optional] Recording Videos While Parked
This feature is available only when the dash cam has been hardwired directly to the vehicle battery.
Separate purchase for the hardwiring cable accessory and professional installation is required.
2-5-1. Incident Recording
When the dash cam detects impact while parked, it will imme-
diately store the previous 10 seconds prior to impact and start
recording video for next 10 seconds which is then saved in
a secure location on the MicroSD card under folder named
“parking_rec”.
2-5-2. Motion Detection Recording
The dash cam and optional rear view camera are both equipped with motion detectors which are used to
detect motion that initiates video recording while the vehicle is parked.
When the dash cam detects impact while parked, it will immediately store the previous 10 seconds prior
to impact and start recording video for next 10 seconds which is then saved in a secure location on the
MicroSD card under folder named “motion_rec”.
Cautions
The device can record up to 1 minute for continuous impacts in case of multiple collisions.
14
02
2-6. Manual Recording
In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to capture scenery and/or places while driving. This feature can also be used to save video as witness where the
installed vehicle is not directly involved in an accident. Video les saved during manually recording mode are
stored in a separate location on the memory card and will be protected from video overwriting in continuous
recording mode.
Briey press the REC button to start recording. The de-
vice will record video for 1 minute (10 seconds before and
50 seconds after) as of the time when the button is pressed.
The recorded video will be saved under the “manual_rec”
folder.
Note that when manual recording is initiated, the previous
10 seconds prior to pressing the button will be saved so
even if you just missed a scene, you can still capture and
safely store the video by initiating manual record within 10
seconds of the event.
Basic Operations
Cautions
When the allocated storage for manual recording videos is full, oldest video le will be replaced by the
new recorded video.
15
2-7. Formatting MicroSD Card
Select “Memory Card Format” menu located at "Mem Card Settings >
Memory Format".
Cautions
The MicroSD card should be formatted every 2 weeks to maximize the lifetime of the memory card.
2-8. Upgrading Firmware
The system will automatically be updated if the MicroSD card contains the rmware upgrade le.
The device restarts automatically after the upgrade has been completed.
Make sure your device is always up to date with latest rmware. Please check back frequently at THINK-
WARE website (www.thinkware.com) for latest rmware updates.
16
3. LCD Screen
3-1. Main Menu
03
LCD Display
Recording status
Directional Keys
Change to Live View
Select
GPS status
Data/Time
17
3-2. Live View
LCD screen can be used to verify current recording view.
Switch to Front/
Rear view
Audio recording status
Back to main menu
Manual recording
status
Rearview camera (appears only when
rearview camera is connected)
Current speed / Voltage
18
03
3-3. File List
Recording will suspend when browsing through video list and settings menu. Visual notication will
appear on the screen to conrm the suspension of recording prior to entering the menu.
3-3-1. File List - 1
LCD Display
Continuous: Lists loop recording videos during continuous mode (in 1 minute segments)
Incident Continuous: Lists incident recording videos during continuous mode
Motion Detection: Lists motion detection recording videos during parking surveillance mode
Parking Incident: Lists incident recording videos during parking surveillance mode
Manual Recording: Lists manual recording videos initiated by selecting button
Cautions
The congured storage capacity may be dierent from the actual capacity by approximately 30 to 40MB.
19

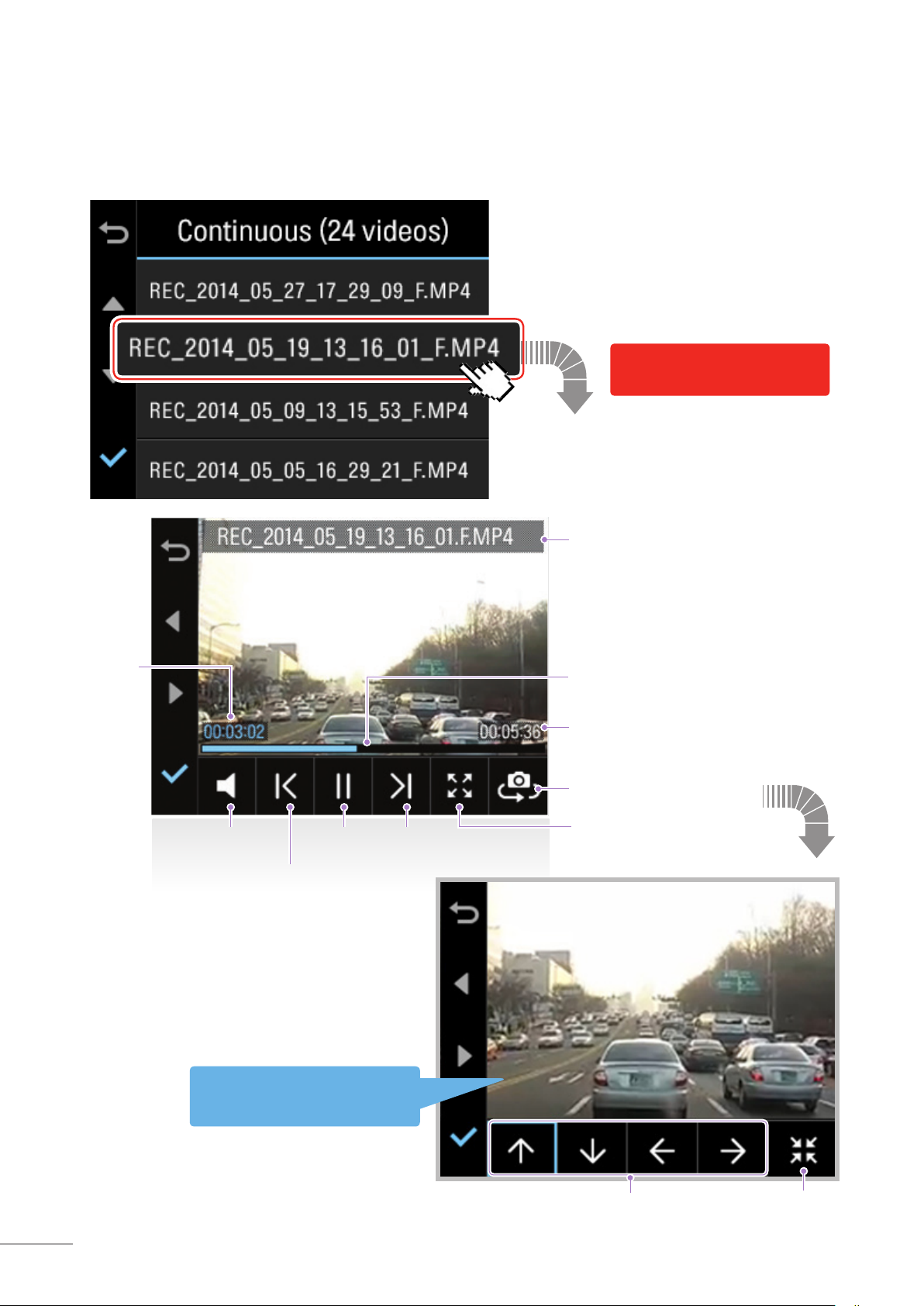

3-3-2. File List - 2
Recording will stop when
accessing on-screen menu.
Video le name
Current
play time
Play/PauseMute on/o
Previous
Video playback with 3X zoom
Next
Video playback
progress bar
Total playing time
Switch to front/rear view
Enter zoom view
20
Exit zoom viewDirectional button
03
3-4. Memory Card Settings
LCD Display
Memory Partition: Sets how storage space on the memory card will be allotted for each recording mode
┗ Type A (recommended) : Optimized for continuous recording
┗ Type B : Optimized for incident and motion detection during parking surveillance
┗ Type C : Optimized for continuous and incident recording
Memory Format: Formats the MicroSD card
┗ Formatting will completely erase all video les stored in the memory card
Video Overwrite: Sets the overwriting option which will allow new video les to overwrite oldest video in
storage reserved for each mode
Cautions
It is recommended that you back up data before formatting the memory card.
Once you format the memory card, all data will be deleted and cannot be restored.
The method for formatting a MicroSD card might vary depending on the computer operating system.
21
3-5. Dual Save Videos
Videos: View Dual Save video list
Copy to SD: Copy all videos saved on the internal memory to MicroSD card
Delete All: Delete all videos saved on the internal memory
22
03
3-6. Settings > Camera Settings
LCD Display
Brightness-F/R: Sets the video recording brightness for front/rear camera
Wide Dynamic Range : Sets the WDR mode to record clear video even under large variation of
backlightingillumination.
23
3-7. Settings > Continuous Recording Settings
Impact Sensitivity: Sets the impact sensitivity level
Road Safety Warnin: Sets audible notications for road safety warnings
Cautions
Tips on sensitivity
It is recommended that you set the sensitivity according to vehicle type. High sensitivity setting is rec-
ommended for cars with softer ride such as luxury sedans; while low sensitivity setting is recommended
for cars such as performance cars, trucks, or SUVs which tends to have stier suspension settings.
24
03
3-8. Settings > Parking Recording Settings
LCD Display
Use Parking Mode: Monitors vehicle ignition status to automatically convert to parking mode when the
vehicle engine is turned o
Impact Sensitivity: Sets the impact sensitivity during parking recording mode
Motion Detection Sensitivity: Sets the motion detection sensitivity during parking recording mode
O Timer: Sets the timer for the dash cam to automatically shut down in parking mode to prevent from
draining the vehicle battery
O Voltage: Sets the voltage level for the dash cam to automatically shut down in order to prevent from
draining the vehicle battery
Cautions
It is recommended to format the memory card when settings have been changed.
Backup important video les before formatting the memory card.
25
3-9. Settings > System Settings
Language : Sets language
Voice Volume: Sets the volume level
LCD Brightness: Sets the brightness of the LCD screen
LCD Auto-O: Sets the time for LCD auto shut o
┗ When LCD is o, pressing any button will turn the LCD screen back on
Security LED: Sets the pattern for security LED
Time Zone: Sets the time zone
Daylight Saving Time (DST): Sets the daylight saving time
Speed Unit: Sets the unit for the vehicle speed
26
03
3-10. About Device
LCD Display
Functions : Help for device features
Device Info : Information on device and rmware
┗ Factory Reset: Restores to factory setting
GPS Info : View GPS information
┗ GPS Initialization: Reset GPS
27
4. PC Application
4-1. Thinkware Dash Cam PC Viewer
Thinkware Dash Cam Viewer for both Windows/MacOSis provided which can be used to watch videos recorded with the dash cam. The video les recorded by the dash cam are in one minute segments and the PC
viewer allows user to watch the segments as a single continuous video.
The setup le for the Thinkware Dash Cam PC Viewer is included in the MicroSD card in the package.
Please check THINKWARE homepage(www.thinkware.com) for latest Dash Cam PC Viewer
application.
4-1-1. Thinkware Dash Cam PC Viewer Software
①
Front Rear
MicroSD card
Insert the MicroSD card into the USB MicroSD card
reader (included in the package) with front side
facing up as shown in the illustration.
Removing MicroSD card
②
Connect the USB MicroSD card reader to the PC
Ensure that the USB card reader is correctly
oriented when inserting to USB drive on the PC
28
04
4-1-2. Installing Thinkware Dash Cam Viewer
Windows
①
Double-click the Thinkware Dash Cam Viewer setup
le saved in the MicroSD card to initiate program
installation.
②
Double-click the application icon once PC Viewer
installation completes and the application main
screen will then appear.
Cautions
System requirements :
Windows XP (32bit), Windows 7 (32bit/64bit),
Windows 8.x (32bit/64bit)
PC Application
MAC
①
Move the le named “Dashcam Viewer.zip” stored in the MicroSD card to the desktop.
②
Right click on the mouse and select “Open With” > “Archive Utility” to launch the Thinkware Dash Cam
viewer application.
Cautions
System requirements : MAC OS X 10.8 Mountain Lion or later (OS X 10.9 Mavericks, OS X 10.10 Yosemite)
29
4-1-3. Select the Device Drive for X500
①
②
Click File from menu and select the drive for
the portable storage drive for the connected
MicroSD card.
Select any le from the list to load entire video play-
list in the memory card.
Cautions
The MicroSD card will not be recognized by the software until it has been initialized in the dash cam.
It is recommended that the user record at least one video clip on the MicroSD card with the dash cam
unit before accessing the Thinkware Dash Cam PC Viewer.
30
04
4-1-4. Thinkware Dash Cam Viewer Overview
Dash cam setting / Information
File open
Viewing screen
Playback
Progress
Current play time/
Total play time
Driving speed
PC Application
Full screen
Switch between front/rear view
Rear view
(Enabled only if MicroSD card contains
video captured
using rear view
camera)
Map
Checks the location
of the recorded
video (Enabled only
if video is captured
while connected
using GPS antenna
(optional in some
models) and also
must be connected
to Internet)
Impact sensor value
No. Name Description
Play Previous Plays the previous le before the current le
Rewind by 10 Sec
Play/Pause Plays the recorded le / temporarily pauses playback
Stop
Fast-forward by 10 Sec
Play Next Plays the next le after the current le
Auto Play Automatically loops the video back to beginning once the end has reached
Zoom Sets the video expansion ratio (0.5x / 1.0x / 1.5x / 2.0x)
Screen Setting Sets brightness/speed of the video
Rewinds the current le being played by 10 seconds
(If selected, it continues to rewind by 10 seconds)
Stops the le being played. The playback status resets to the starting point of
the video.
Fast-forwards the current le being played by 10 seconds
(If selected, it continues to fast-forward by 10 seconds)
Playlist
Save Saves the video in play
Volume Sets the volume of the playback
31
4-1-5. View Video Playlist
Select appropriate folder (Continuous Recording, Incident Recording, Manual Recording, Parking Motion,
Parking Incident) to see the playlist for each recording mode.
32
Continuous Recording Playlist Manual Recording Playlist
5. Specications
5-1. Specications
The specications of this product may change without prior notice for product improvements.
Item Standard Note
Model X500
Size/weight 104.3 x51.4 x 29.3mm / 109g
Display Panel 2.7"LCD (320x240)
05
Product Specications
Capacity
Recording mode
Camera 2.0 Megapixel, 1/2.9" CMOS Same for rear camera
Viewing angle Approximately 144° (diagonally) Same for rear camera
Video
Frame rate 1 channel (Front view) : up to 30 fps Same for rear camera
Audio PCM (Pulse code modulation)
Acceleration sensor 3-axis acceleration sensor (3D, ±3G) Ad justable impact sensitivity (5 levels)
Rear camera Support V-IN port
MicroSD card (UHS-I)
Continuous Recording Mode Records in 1 minute segment
Incident Recording Mode
Manual Recording Mode
Parking Surveillance Mode
Audio Recording
Full HD
(1920 x 1080/H.264/extension MP4)
16GB/32GB/64GB
Optional hardwiring cable and installation are required for continuous supply of
power when vehicle ignition is o.
Same for rear camera
Optional accessory that requires separate
purchase.
GPS Embedded GPS
Input power source DC 12/24V Rearview camera: DC 3.3V
Current consumption 2CH: 3.5W/1CH: 2.5W (mean)
Auxiliary power unit Super Capacitor
Warning sound Embedded speaker Voice (buzzer sound) guidance
Operation/Storage
Temperature
Connection Interface 1 x V-IN port (Micro USB)
-20°C to 65°C / -40°C to80°C
-4°F to 149°F / -40°F to 176°F
Based on fully charged super capacitor/
LCD o
33
Loading...
