Thinkware H50 User Manual

H50
U s e r M a n u a l
This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use.
Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary for each device as a result of installed rmware.
The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combina­tion of user settings and the level of impact during the collision.
ACMA-021KAM101
Before Using THINKWARE DASH CAMTM H50 2 FCC Statement 2 Caution 3
01
02
Getting Started
1-1. In the Package 4 1-2. Optional Accessories 4 1-3. Product Overview 5 1-4. Inserting a Memory Card 6 1-5. Vehicle Installation 7
Basic Operations
2-1. Turning the Device Power On/O 9 2-2. Date/Time Settings 10 2-3. Connecting External GPS Receiver(Optional Accessory) 12 2-4. Recorded Files 13 2-5. Recording Videos While Driving 14 2-6. Recording Videos While Parked (Optional Accessory) 15 2-7. Manual Recording 16 2-8. Voice Recording 16 2-9. Formatting MicroSD Card 17 2-10. Upgrading Firmware 17
03
04
PC Application
3-1. Thinkware Dash Cam PC Viewer 18 3-2. PC ViewerSetting 22
Device Information
4-1. Specications 23
Before Using THINKWARE DASH CAM™ H50
Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent
of THINKWARE.
Every eort has been made to ensure this Guide's accuracy. However, we cannot guarantee the accuracy of
the contents in this document as there may be technical errors, omissions, and/or future changes.
THINKWARE reserves the right to change or modify the product and the content of this manual at any time
without prior notice for product improvements.
Images contained in this user guide are illustrations for instructional purposes only and may dier from the
actual product.
Users do not reserve the right to use the product for purposes other than as specied in this user guide.
According to the Personal Information Protection Act and other related regulations, the user/owner may be held liable if the video and/or conversation recorded by the device are distributed without their consent. Thus, special attention should be paid in using this product.
The MicroSD memory card should be tested for errors on a regular basis and as the memory card is a con-
sumable item, it will need to be replaced periodically.
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from the use of
disingenuous, modied, or unauthorized parts and accessories.
The device and the recorded videos are intended for personal use and the recorded videos should be
used for reference only.
The device does NOT guarantee video recording of all accidents as built-in impact sensor may not be
activated due to combination of user settings and the level of impact during the collision.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter­ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: Any changes or modications to the equipment not expressly approved by the party responsi­ble for compliance could void your authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
2
Caution
Depending on the make and model of your car,
the power may be constantly supplied to the dash cam even with the ignition turned o. This may result in vehicle battery discharge.
This device is designed to record video while the
vehicle is in operation. The quality of the video might be aected by weather conditions and the road environment such as day or night, presence of street lighting, entering/exiting tunnels, and the surrounding temperature.
THINKWARE is NOT responsible for the loss of any
recorded video during operation.
Although designed to withstand high impact of
car collision, THINKWARE does NOT guarantee re­cording of accidents where the impact may cause the device to be damaged.
Keep the windshield clean for optimal video qual-
ity.
If a foreign substance (e.g. ngerprints) is at-
tached to the lens, it may reduce the quality of the recorded videos. Keep the lens clean all the time.
The specied operating temperature of this prod-
uct is -10°C to 60°C (14°F to 140°F) and storage temperature is -20°C to 70°C (-4°F to 158°F). En­sure that the device is kept within these tempera­ture ranges; otherwise, the device may not func­tion as designed and at extreme temperatures, permanent physical damage can result which is
not covered by warranty. Avoid placing the device under direct sunlight. Avoid using the device in extreme conditions
where the Product is exposed to high tempera-
ture and/or humidity. Only use genuine accessories and peripherals
from THINKWARE or authorized THINKWARE deal-
er. THINKWARE does not warrant the safety and
compatibility from use of peripherals from other
stop after 'manufacturers'. Use genuine parts sup-
plied by THINKWARE. Do not apply excessive force when pushing the
buttons on the device.
Do not clean the Product using chemical cleaner
or solvents as it may damage plastic components. Use soft, clean, dry fabric to gently wipe the Prod­uct.
Do not place or store the device where it can be
accessible by children and pets.
Do not disassemble the Product as it will void
product warranty and may also damage the prod­uct.
Handle with care. Drop, shock, and mishandling
the Product may result in malfunction and/or
damage to the device. Do not operate this device while driving. Install this device in a location where it has unob-
structed view of the road but does not interfere
with the driver’s view. Check with your local and
regional laws before mounting to windshield. The device and/or installation parts have moving
parts and may shift in extreme road conditions
such as unpaved road. Check frequently to ensure
the device is positioned as instructed in this guide. Do not operate or handle power cable with wet
hands. Do not use a damaged power cable. Keep the power cable away from heaters or other
hot objects. Check that power cable with correct connector is
used and the connections are secure and rmly in
place. Do not pull, insert, or bend the power cable using
excessive force. Do not place heavy objects on the device and the
power cable. Do not modify or cut the power cable. THINKWARE does not guarantee that devices or
peripherals not authorized by THINKWARE will be
compatible with its Product. Do not attempt to insert foreign objects into the
device or power cable. Do not spill or spray liquid into the device as it
may cause malfunction, re, or electric shock. This device is intended to be used inside the ve-
hicle only.
3
1. Getting Started
This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to insure compliance.
1-1. In the Package
Main Dash Cam Unit
MicroSD memory card with adapter
(consumable)
Mount with 3M tape
(1ea)
USB MicroSD card
1-2. Optional Accessories
reader
Car Charger
User Manual (stored in the MicroSD card)
Adhesive Cable Holder
(5ea)
Quick Start Guide/Warranty/
Hardwiring Cable External GPS Receiver
4
01
0,&
0,&
0,&
1-3. Product Overview
1 6
3
7
Front view
Left view
Rear view
Under view
Getting Started
5
0,&
42
8
9 10
No. Name Description
1 Camera Lens Front facing camera for video recording
2 Mount Connector Connects to the windshield mount (refer to installation)
3 Security LED
Operation indicator lights that are used to visually indicate that the vehi­cle is equipped with a dash cam
4 DC-IN Connects to power cable
5 Microphone Records audio along with video
6 Speaker Outputs voice guidance and alert/notication sounds
7 GPS Receiver Socket
Connects to external GPS receiver (optional accessory that requires separate purchase)
Short Press : Starts manual recording
8 REC Button
Press and hold for 3 seconds : Audio recording ON/OFF Press and hold for 5 seconds : Memory card format
9 Operation Status LED Indicates the device operating status
10 Memory Card Slot Location for the MicroSD memory card
5
1-4. Inserting a Memory Card
1-4-1. About Memory Cards
Class 10 MicroSD card must be used with a storage capacity of 8GB, 16GB, or 32GB.
It is strongly recommended that minimum 8GB memory card is used for HD recording.
The MicroSD card should be formatted every 2 weeks to maximize the lifetime of the memory card.

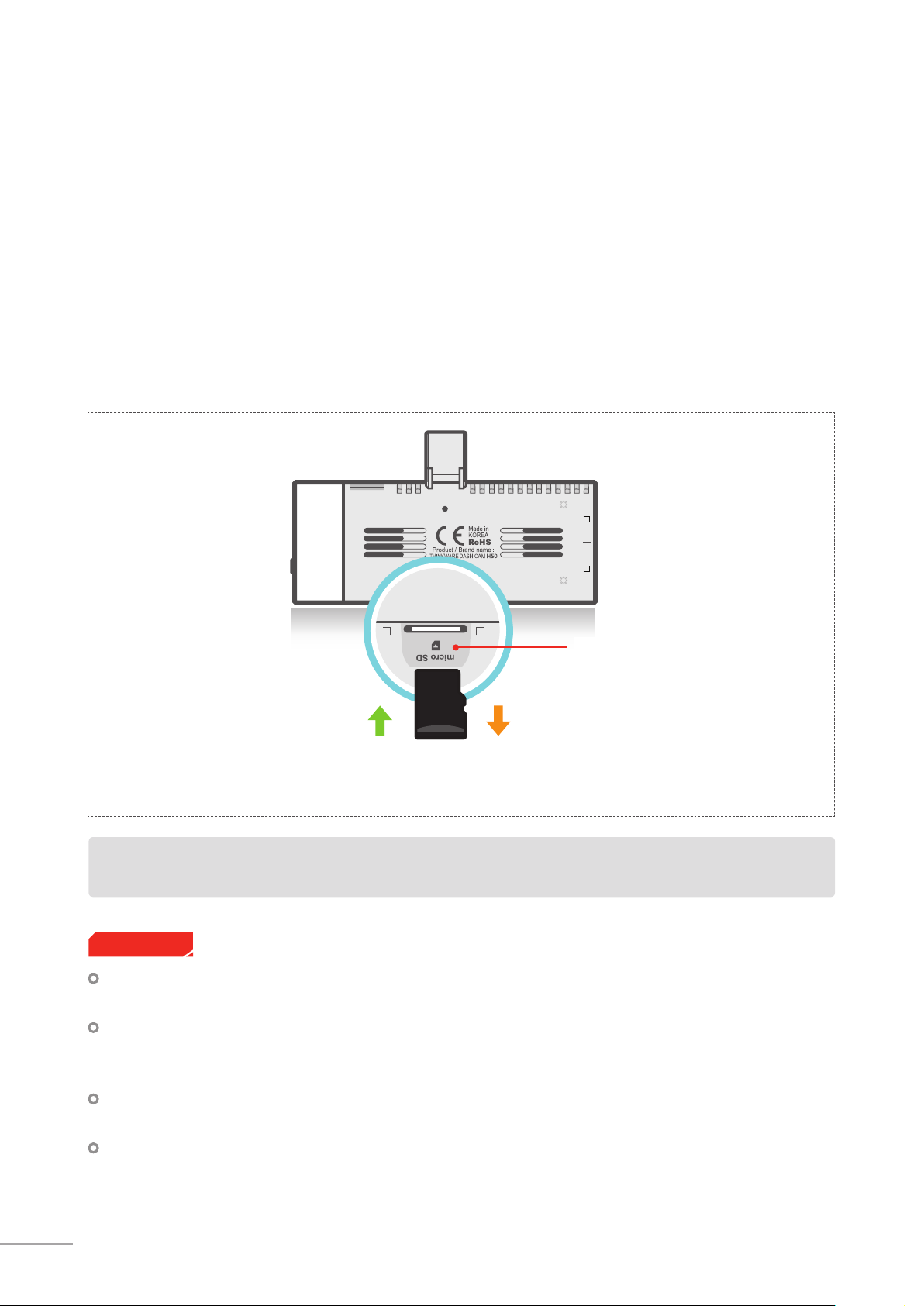

1-4-2. Installing a MicroSD Card
0,&
MicroSD card
Insert the MicroSD card into
the slot with the metal contacts
facing up toward the mount
connector and push until it locks
into place.
Do not apply excessive force on the MicroSD card or attempt to insert it in the wrong direction as it may cause damage to the MicroSD card and the card slot.
Cautions
The MicroSD card should be tested for errors on a regular basis and as the memory card is a consumable
item, it should be replaced periodically.
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using
genuine or authorized parts and accessories. It is strongly recommended that THINKWARE memory cards are used to minimize memory card error.
Ensure that the device is completely o before removing the MicroSD card to avoid damages to the
memory card.
Inserting the
memory card
Removing the memory card
Press the end of MicroSD card until it clicks out from the slot and pull out the MicroSD card.
To prevent loss of important data, frequently copy recorded videos from MicroSD card to another storage
device such as personal computer for back up.
6
01
1-5. Vehicle Installation
1-5-1. Connecting the Device and the
Mount
Insert the mounting connector of the dash cam
between the connector brackets of the mount. Use the screw to attach the dash cam to the mount.
Remove the protective lm from the camera lens.
Getting Started
1-5-2. Installing the Device
Remove the protective cover from adhesive mount
and attach mount on the windshield where it has unobstructed view of the road but does not inter­fere with the driver’s view.
Select the location on the windshield where
buttons are accessible and clean the area before securing the mount with attached 3M tape
TIP
The camera is located on the left side of the main unit so install the dash cam on the right of center behind the rearview mirror.
To ensure that the mount is safely secured, sepa rate
the device from the mount after installation. Press the mount towards the windshield to allow the ad­hesive on the mount to set before connecting the dash cam.
Attach the dash cam to the mount once the
mount has been securely attached
7
1-5-3. Connecting to power
Connect the power cable to DC-IN socket of the device.
Plug the car charger adapter end of the power
cable into a 12V DC vehicle power socket.
Arrange the wire by using the adhesive cable
holders as shown below.
Adjust the camera so that the dash cam is facing
forward and is level with the road.
TIP
After installation, run the dash cam to record videos and check the videos using Thinkware Dash Cam Viewer to verify camera position. Adjust the camera angle if neces­sary.
Hide the power cable by placing (tucking) it in the space between the vehicle ceiling and headliner at the top of the windshield
Recommended locations for attaching adhesive wire clips to arrange the power cable are illustrated in the diagram
For more information on the power cable routing instruction, please visit Thinkware homepage. (www.thinkware.com)
Preventing Vehicle Battery Discharge
Depending on the make and model of your car, the power may be supplied to the dash cam
even with the ignition turned off. This may result in vehicle battery discharge.
Some vehicles with multiple power sockets might be equipped with at least 1 outlet that does
not shut off the power with the ignition. Test each power outlet to ensure you connect to an out­let that shuts off with vehicle ignition.
8
2. Basic Operations
2-1. Turning the Device Power On/O
Once connected to the vehicle, the device will automatically turn on and o with vehicle ignition.
Operation LED
02
Basic Operations
Orange Light ON
Power cable for vehicle
9
2-2. Date/Time Settings
It is strongly recommended that the correct date/time and time zone are set before using the device
Insert the MicroSD card into the USB MicroSD card
Front Rear
MicroSD card
reader (included in the package) with front side facing up as shown in the illustration.
Connect the USB MicroSD card reader to the PC.
Ensure that the USB card reader is correctly orient ed when inserting it into the USB drive
Removing MicroSD card
Double-click the Dash Cam Viewer(H50).exe le
saved in the MicroSD card and install the program.
Double-click the Thinkware Dash Cam Viewer icon
after installation completes. The Viewer application screen will then appear.
-
10
Leave the MicroSD card in the USB port of the PC.
If another MicroSD card is to be used for recording videos in the dash cam, insert this memory card into the USB port of the PC.
Select Setting ( ) icon from the PC Viewer.
Select Dash Cam Setting > Set time zone and Get
current time of your location.
Once the correct time has been set, insert the Mi­croSD card immediately back in the dashcam and start the device to apply the changed settings.
User congured settings will be stored in the
MicroSD card. The settings will be automatically applied to the dash cam when the MicroSD card is inserted into the dash cam and powered on.
02
Basic Operations
11
2-3. Connecting External GPS Receiver(Optional Accessory)
External GPS Receiver is available as an optional accessory that can be purchased from Thinkware autho-
rized dealers.
External GPS Receiver enables recording of vehicle locations in the video le for driving route tracking.
Connect external GPS Receiver to the GPS port of the dash cam.
Cautions
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using
genuine or authorized parts and accessories. It is strongly recommended that THINKWARE external GPS receiver is used.
Turn the device o completely before connecting the GPS receiverto avoid damages.
12
02
2-4. Recorded Files
H50 uses proprietary le format technology for optimal performance and reliability and therefore,
THINKWARE AVI Converter or Thinkware PC Viewer MUST be used for video playback.
The videos cannot be viewed using smartphone and/or tablets due to unrecognized le format The available disk space for the memory card will NOT be correctly displayed when viewed using Windows
Explorer. This is due to FormatFree™ Technology and NOT a memory card problem.
FormatFree™ Technology
FormatFree™ is a Thinkware proprietary technology that had been developed to eliminate disk fragmentation when writing/ overwriting recorded video les on the memory card. This allows the dash cam to increase performance and reliability and most importantly, it eliminates the need to periodically format the memory card. This technology uses proprietary le type which can only be viewed using dedicated THINKWARE AVI Converter or Thinkware PC Viewer. Both THINKWARE AVI Con­verter or Thinkware PC Viewer are available for download at Thinkware homepage (www.thinkware.com) and also included in the MicroSD card in the package.
2-4-1. THINKWARE AVI Converter for H50
Insert the MicroSD card into the USB MicroSD card
reader (included in the package) and launch the THINKWARE AVI Converter.exe.
Basic Operations
Year Month
Day
Hour
Second
Minute
Select videos using THINK-
WARE AVI Converter the videos to AVI le and down­load to the PC. (File format converting/downloading may take long time depend­ing on the number of les selected for conversion)
Front view recording
Cautions
Do not use the MicroSD card as an external storage device. Do not tamper with the system les within the in the MicroSD card. This may result in unexpected behav-
ior during operation.
13
2-5. Recording Videos While Driving
0,&
0,&
2-5-1. Continuous Recording Mode
Videos are recorded in 1 minute segments and saved at a des-
ignated location for continuous recording in the MicroSD card.
Operation LED
Green Light ON
2-5-2. Incident Recording During Continuous Recording Mode
When the dash cam detects an impact, it will immediately
store the 10 seconds prior and after the impact.
The 20-second impact recording is saved at a designated
location for event recording in the MicroSD card.
Operation LED
Red Light ON
14
02
2-6. Recording Videos While Parked (Optional Accessory)
This feature is available only when the dash cam has been hardwired directly to the vehicle battery. Separate purchase for the hardwiring cable accessory and professional installation is required.
2-6-1. Incident Recording
When the dash cam detects an impact, it will immediately
store the 10 seconds prior and after the impact.
The 20-second impact recording is saved at a designated
location for event recording in the MicroSD card.
2-6-2. Motion Detection Recording
When the dash cam detects motion while parked, it will immediately store the previous 10 seconds prior to
the activation of motion detection start recording video for the next 10 seconds.
Basic Operations
The 20-second motion detection recording is saved at a designated location for parking recording in the
MicroSD card.
Security LED
White Light Blinking
Cautions
The device can record up to 1 minute for continuous impacts in the case of multiple collisions.
15
2-7. Manual Recording
0,&
0,&
In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to cap­ture scenery and/or places while driving. This feature can also be used to save video as witness where the installed vehicle is not directly involved in an accident. Video les saved during manual recording mode are stored in a separate location on the memory card and will be protected from video overwriting in continuous recording mode.
Briey press the REC button to start recording. The device
will record video for 1 minute (10 seconds be fore and 50 seconds after) as of the time when the button is pressed. The recorded video will be saved at a designated location for manual recording in the MicroSD card.
Operation LED
Red Light ON
2-8. Voice Recording
Press and hold the REC button for more than 3 seconds to turn the voice recording ON/OFF
Press briey
Operation LED
16
Green Light ON (Voice Recording ON)
Green Light Blinking (Voice Recording OFF)
Press and hold for 3 seconds
02
0,&
2-9. Formatting MicroSD Card
Press and hold REC button for 5 seconds to initiate memory card format
Operation LED
Red Light Blinking
Basic Operations
Press and hold for 5 seconds
2-10. Upgrading Firmware
The system will automatically be updated if the MicroSD card contains
the rmware upgrade le.
The device restarts automatically after the upgrade has been com-
pleted.
Make sure your device is always up to date with latest rmware. Please
check back frequently at THINKWARE website (www.thinkware.com) for the latest rmware updates.
Operation LED
Red Light Blinking
17
3. PC Viewer Software
3-1. Thinkware Dash Cam PC Viewer
Thinkware Dash Cam Viewer for Windows is provided which can be used to watch videos recorded with the dash cam. The video les recorded by the dash cam are in one minute segments and the PC viewer allows the user to watch these segments as a single continuous video.
The setup le for the Thinkware Dash Cam PC Viewer is included in the MicroSD card within the package. Please check THINKWARE homepage(www.thinkware.com) for the latest Dash Cam PC Viewer application.
3-1-1. Thinkware Dash Cam PC Viewer Software
Removing MicroSD card
Front Rear
MicroSD card
Insert the MicroSD card into the USB MicroSD card
reader (included in the package) with front side facing up as shown in the illustration.
Connect the USB MicroSD card reader to the PC.
Ensure that the USB card reader is correctly oriented when inserting it into the USB drive
18
03
3-1-2. Installing Thinkware Dash Cam Viewer
Windows
Double-click the Dash Cam Viewer(H50).exe le
saved in the MicroSD card to initiate program instal­lation.
Double-click the application icon once PC Viewer
installation completes and the application main screen will then appear.
Cautions
System requirements :
Windows XP (32 bit), Windows 7 (32/64 bit), Windows 8.x (32/64 bit)
PC Application
19
3-1-3. Select the Device Drive for H50
Insert the MicroSD card with recorded videos into
the USB port of the PC using USB MicroSD card reader.
Select the video from the video le list and double
click the le or select Play icon to start the video playback.
or
Cautions
The MicroSD card will not be recognized by the software until it has been initialized in the dash cam. It is recommended that the user record at least one video clip on the MicroSD card with the dash cam
unit before accessing the Thinkware Dash Cam PC Viewer.
20
03
3-1-4. Thinkware Dash Cam Viewer Overview
Viewing screen
Playback
Progress
Current play time/
Total play time
Volume control
PC Application
Switch to Map View
Playlist
File download to PC
(It may take long time depending on the number of les selected for PC download)
MAP
Displays location information for the video being played (Must be connected to Internet for the location informa­tion to be displayed on the map)
G-sensor values
Adjust video brightness
No. Name Description
File Open Retrieves video le list
Stop
Previous Play the previous video le from the list
Rewind 10 seconds
Play / Pause Video playback / pause
Next Play the next video le from the list
Fast forward 10 seconds
Zoom Zoom in to expand the video
Stops the current video playback. Playback progress will be reset to the begin­ning of the video
Rewind 10 seconds from current video playback location (press and hold for continuous rewind by 10 seconds)
Fast forward 10 seconds from current video playback location (press and hold for continuous fast forward by 10 seconds)
Still image capture Capture still image from video playback
Settings Congure dash cam settings
21
3-2. PC ViewerSetting
3-2-1. Setting
Others
Memory partition :
Sets how storage space on the memory
card will be allotted for each recording mode
Settings
Voice Recording :
Sets the voice recording on/o and recording volume
Voice Guidance :
Sets the voice guidance on/o and the volume
Impact Sensitivity :
Sets the impact sensitivity of the G-Sensor
Motion Sensitivity :
Sets the sensitivity of the motion detection sensor
Language : Sets the system language Set time zone : Sets the time zone Date/Time : Sets the date/time Get current time : Retrieves the current time from the PC Units of Speed : Sets the unit for the vehicle speed Vehicle voltage : Sets the voltage level for the dash cam to automatically shut down in order to prevent
the vehicle battery from draining
Version : Version information for the device and its rmware
Save
Press Save button to store the new configuration on the MicroSD card and apply the changed settings Saved configuration is stored in blackbox.cfg file located in MicroSD card under Settings folder Insert the MicroSD card with changed settings to apply the changes to the device
Deleting/Removing blackbox.cfg le using PC le explorer will disable the use of PC Viewer. In such
case, insert the MicroSD card and power on the device which automatically generates blackbox.cfg le with default settings to enable use of PC Viewer.
22
4. Specications
4-1. Specications
The specications of this product may change without prior notice for product improvements.
Item Standard Note
Model H50
04
Device Information
Size/weight
Capacity
Recording mode
Video quality
Camera 2.0 Megapixel CMOS Sensor
Viewing angle Approximately 120° (diagonally)
Video HD (1280X720) / H.264 / extension AVI
Frame rate 1 channel (Front view) : up to 30 fps
Audio PCM (Pulse code modulation)
76 x 30.5 x 38.4mm / 36.8g
3.0 x 1.2 x 1.51inches / 0.08lbs
MicroSD card
Continuous Recording Mode Records in 1 minute segment
Incident Recording Mode
Manual Recording Mode
Parking Surveillance Mode
Audio Recording
Choose from one of three dierent modes (low/mid/high)
8GB /16GB/32GB
10 seconds before/after incident (total 20 seconds)
Optional hardwiring cable and installa­tion are required for continuous supply of power when vehicle ignition is o.
Total recording time varies depending on the partition type.
Acceleration sensor 3-axis acceleration sensor (3D, ±3G) Adjustable impact sensitivity (10 levels)
GPS
Input power source DC 12/24V
Current consumption 2.1W (Max)
Indicator LED Front : Security LED / Rear : Status LED
Warning sound Embedded speaker Voice (buzzer sound) guidance
Operation/Storage Temperature
External GPS Receiver (Stereo jack 2.5Ø)
-10°C to 60°C/ -20°C to 70°C 14°F to 140°F/ -4°F to 158°F
Optional accessory that requires separate purchase
23
Loading...
