H100
U s e r M a n u a l
This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use.
Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary
for each device as a result of installed rmware.
The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combination of user settings and the level of impact during the collision.
ACMA-020QAM1
C o n t e n t s
Before Using THINKWARE DASH CAMTM H100 2
FCC Statement 2
Caution 3
01
02
Getting Started
1-1. In the Package 4
1-2. Optional Accessories 4
1-3. Product Overview 5
1-4. Inserting a Memory Card 6
1-5. Vehicle Installation 7
Basics
2-1. Turning the Device Power On/O 9
2-2. Date/Time Settings 10
2-3. Connecting External GPS Receiver (Optional Accessory) 12
2-4. Recorded Files 13
2-5. Recording Videos While Driving 14

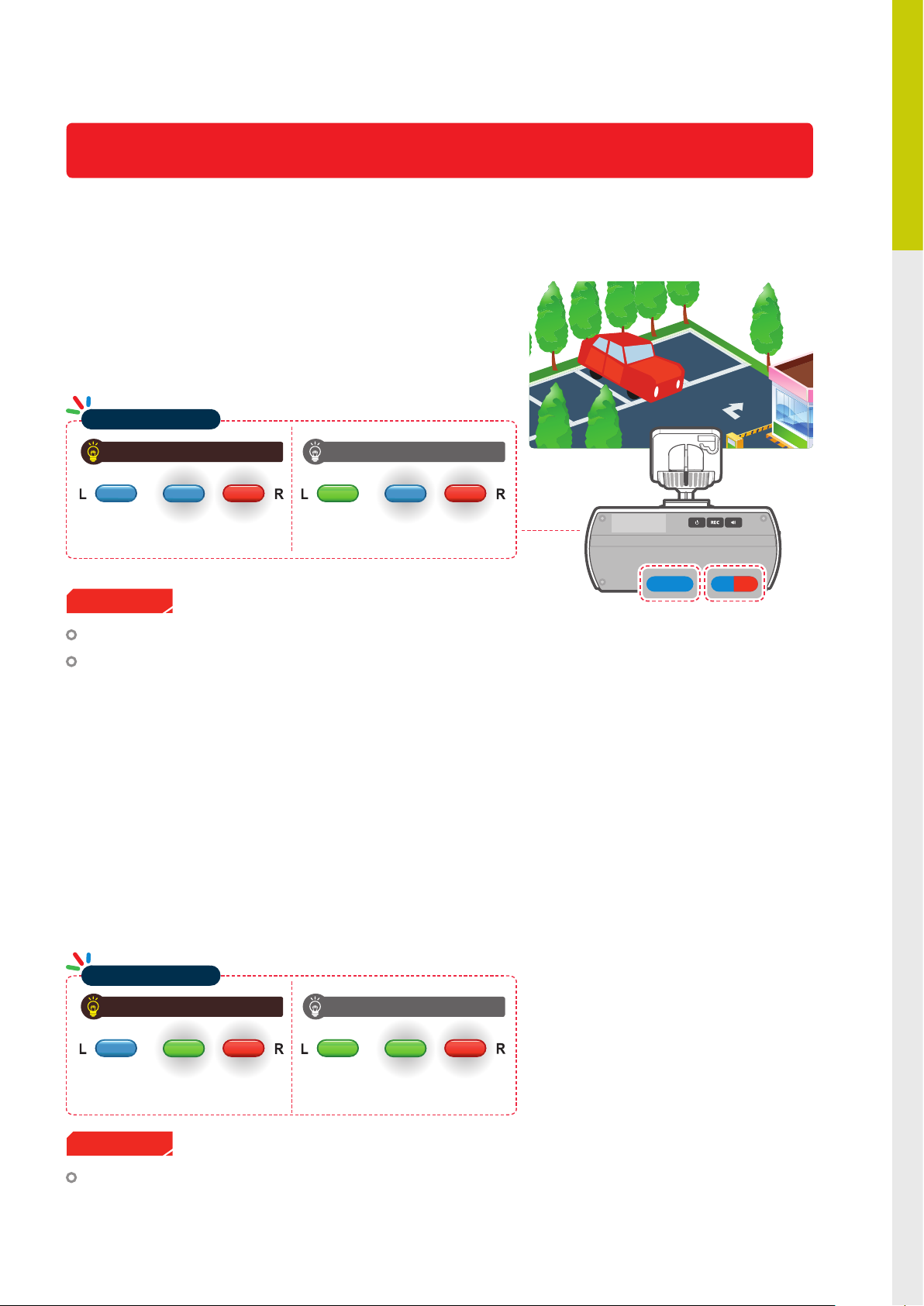

2-6. [Optional] Recording Videos While Parked 15
2-7. Manual Recording 16
2-8. Capturing Still Images 17

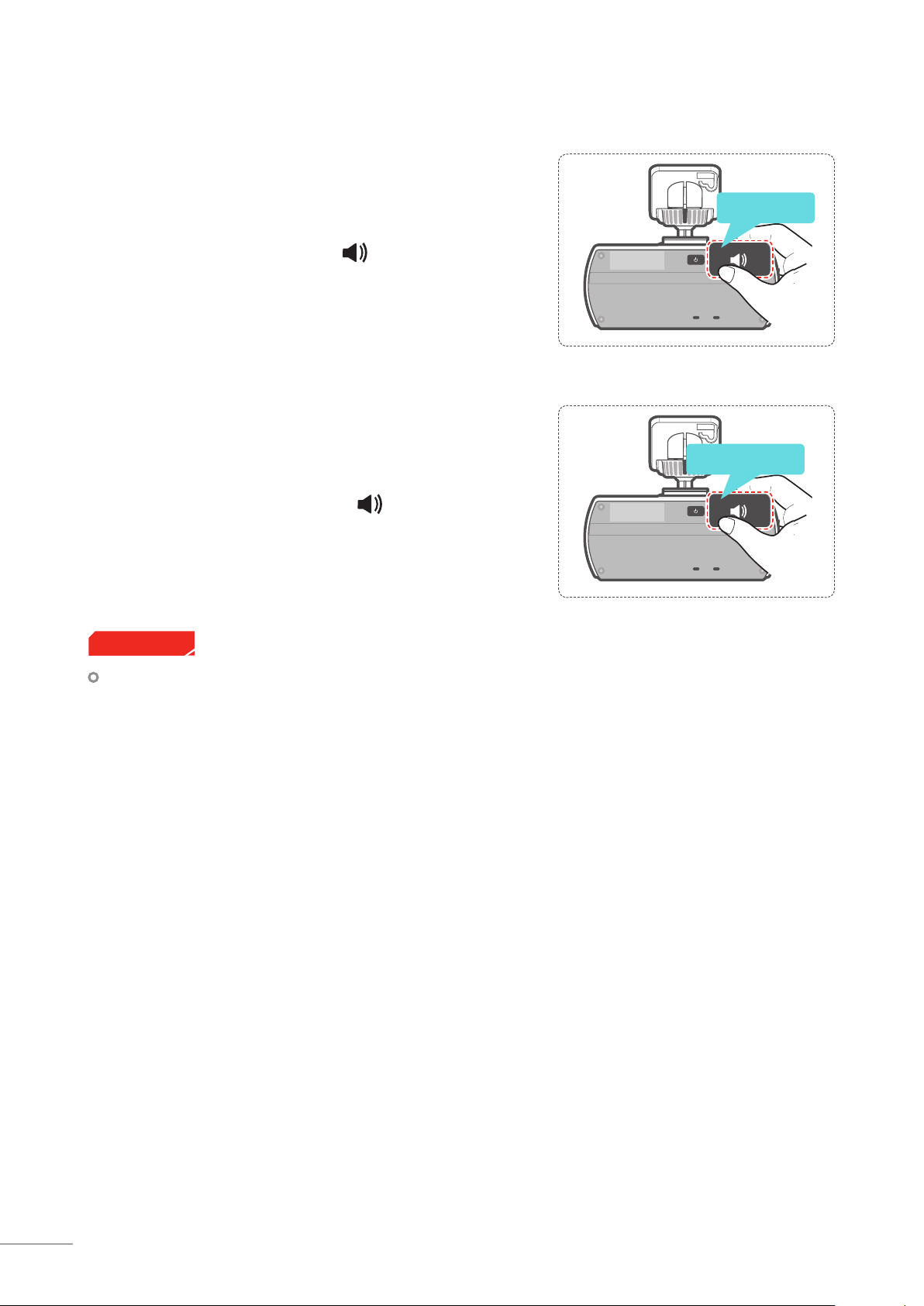

2-9. Setting Audio Options 18

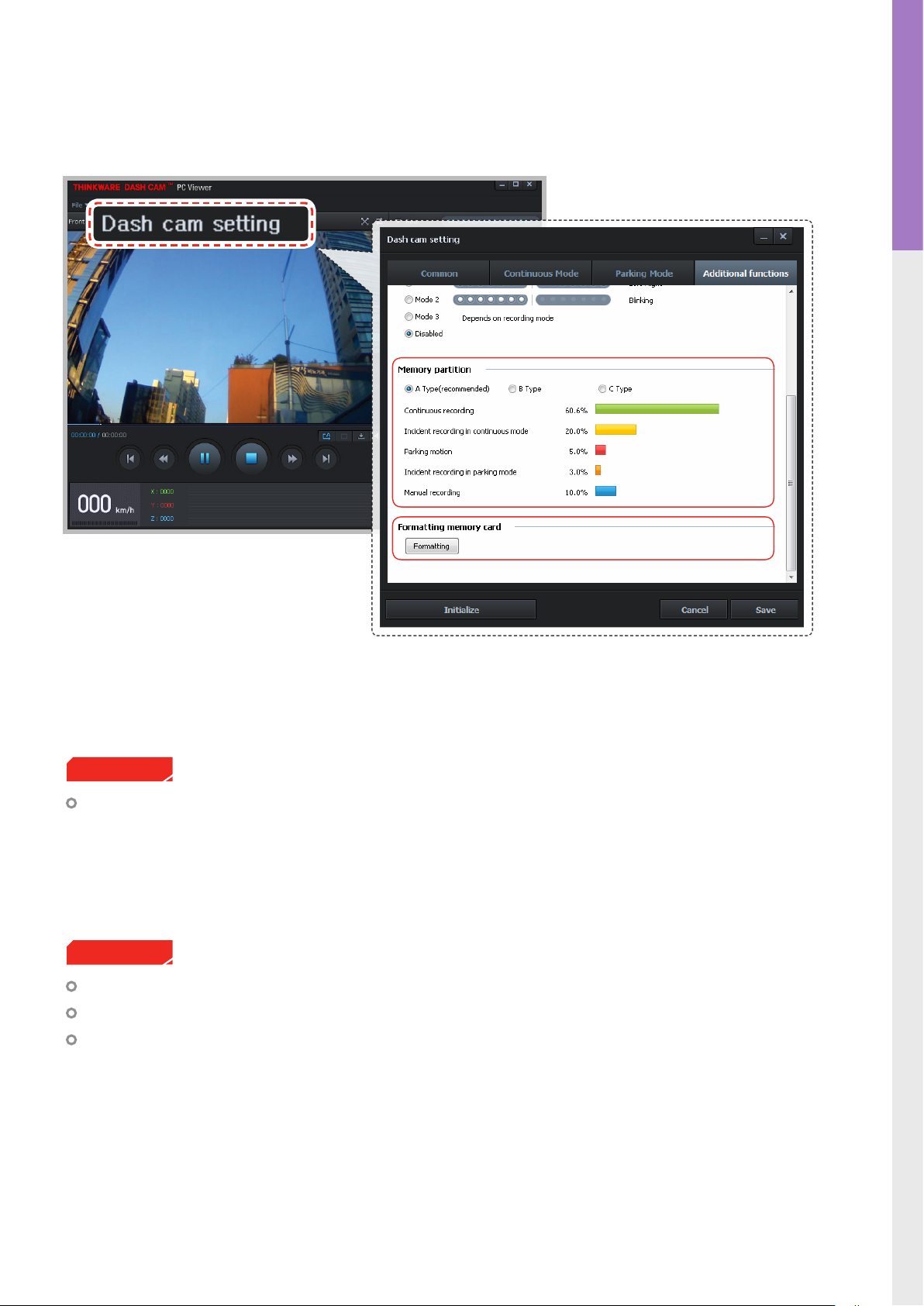

2-10. Formatting MicroSD Card 19
2-11. Upgrading Firmware 19
03
04
PC Application

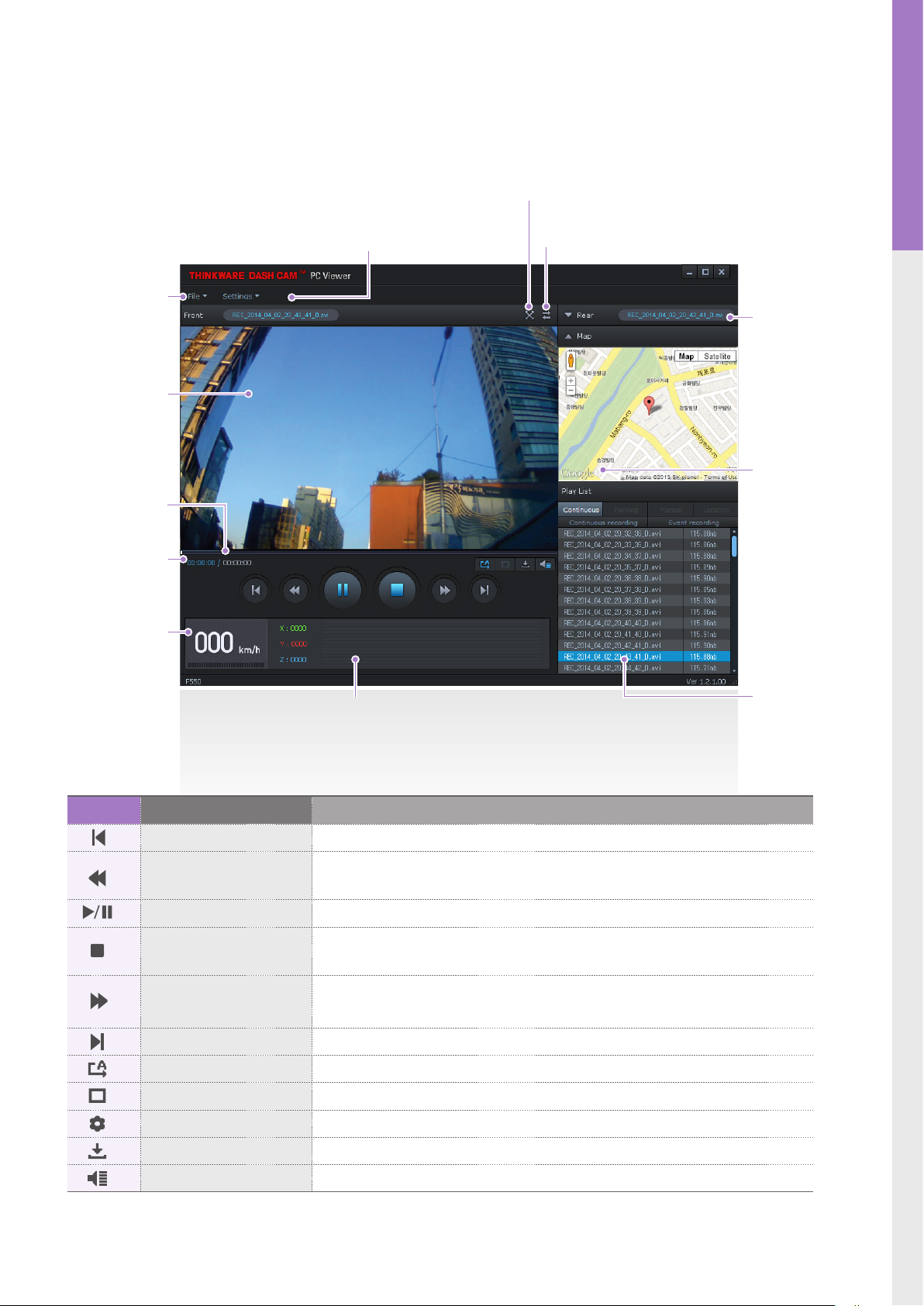

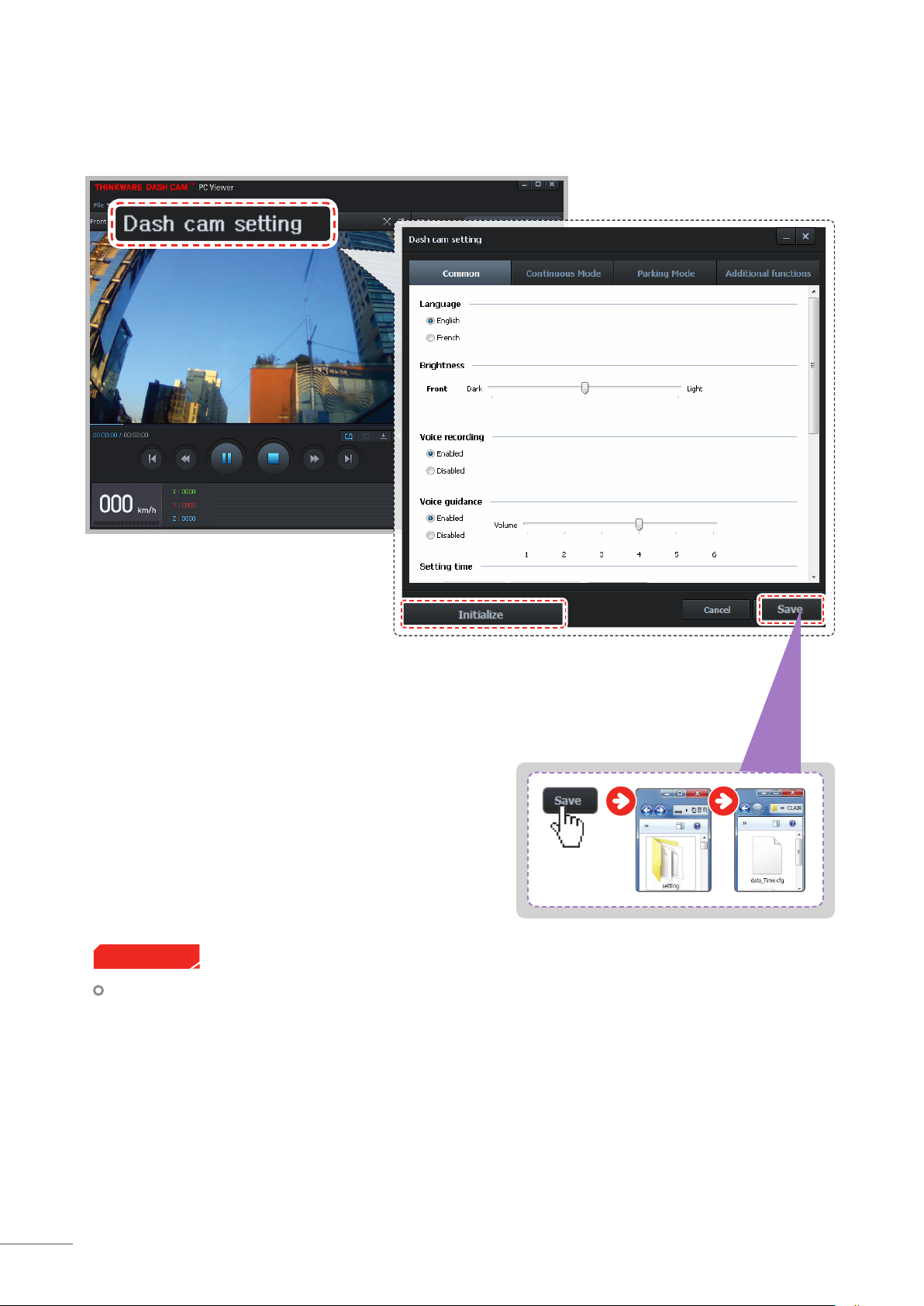

3-1. Thinkware Dash Cam Viewer 20
Device Information
4-1. Specications 33
Before Using THINKWARE DASH CAMTM H100
▶
Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent
of THINKWARE.
▶
Every eort has been made to ensure this Guide's accuracy. However, we cannot guarantee the accuracy
of the contents in this document as there may be technical errors, omissions, and/or futures changes.
▶
THINKWARE reserves the right to change or modify the product and the content of this manual at any time
without prior notice for product improvements.
▶
Images contained in this user guide are illustrations for instructional purposes only and may dier from the
actual product.
▶
Users do not reserve the right to use the product for purposes other than as specied in this user guide.
According to the Personal Information Protection Act and other related regulations, the user/owner may
be held liable if the video and/or conversation recorded by the device are distributed without their consent. Thus, special attention should be paid in using this product.
●
The microSD memory card should be tested for errors on a regular basis and as the memory card is a
consumable item, it will need to be replaced periodically.
●
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using
genuine or authorized parts and accessories.
●
The device and the recorded videos are intended for personal use and the recorded videos should be
used for reference only.
●
The device does NOT guarantee video recording of all accidents as built-in impact sensor may not be
activated due to combination of user settings and the level of impact during the collision.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
▶
Reorient or relocate the receiving antenna.
▶
Increase the separation between the equipment and receiver.
▶
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
▶
Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: Any changes or modications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
2
01
Caution
This device is designed to record video while the
vehicle is in operation. The quality of the video
might be aected by weather conditions and the
road environment such as day or night, presence
of street lighting, entering/exiting tunnels, and
surrounding temperatures.
THINKWARE is NOT responsible for the loss of any
recorded video during operation.
Although designed to withstand high impact of
car collision, THINKWARE does NOT guarantee recording of accidents where the impact may cause
the device to be damaged.
Keep the windshield clean for optimal video qual-
ity.
If a foreign substance (e.g. ngerprints) is attached
to the lens, this might reduce the quality of the
recorded videos. Keep the lens clean all the time.
The specied operating temperature of this prod-
uct is -20°C to 65°C (-4°F to 149°F) and storage
temperature is -40°C to 80°C (-40°F to 176°F). Ensure that the device is kept within these temperature ranges; otherwise, the device may not function as designed and at extreme temperatures,
permanent physical damage can result which is
not covered by warranty.
Avoid placing the device under direct sunlight.
Avoid using the Product in extreme conditions
where the Product is exposed to high tempera-
ture and/or humidity.
Only use genuine accessories and peripherals
from THINKWARE or authorized THINKWARE deal-
er. THINKWARE does not warrant the safety and
compatibility from use of peripherals from other
manufacturers Use genuine parts supplied by
THINKWARE.
Getting Started
Do not disassemble the Product as it will void
product warranty and may also damage the product.
Handle with care. Drop, shock, and mishandling
of the Product may result in malfunction and/or
damage to the device
Do not operate this device while driving.
Install this device in a location where it has unob-
structed view of the road but does not interfere
with the driver’s view. Check with your local and
regional laws before mounting to windshield.
The device and/or installation parts have moving
parts and may shift in extreme road conditions
such as unpaved road. Check frequently to en-
sure the device is positioned as instructed in this
guide.
Do not operate or handle power cable with wet
hands.
Do not use a damaged power cable.
Keep the power cable away from heaters or other
hot objects.
Check that power cable with correct connector is
used and the connections are secure and rmly in
place.
Do not pull, insert, or bend the power cable using
excessive force.
Do not place heavy objects on the device and the
power cable.
Do not modify or cut the power cable.
THINKWARE does not guarantee that devices or
peripherals not authorized by THINKWARE will be
compatible with its Product.
Do not attempt to insert foreign objects into the
device or power cable.
Do not apply excessive force when pushing the
buttons on the device.
Do not clean the Product using chemical cleaner
or solvents as it may damage plastic components.
Use soft, clean, dry fabric to gently wipe the Product.
Do not place or store the device where it can be
accessible by children and pets.
Do not spill or spray liquid into the device as it
may cause malfunction, re, or electric shock.
This device is intended to be used inside the ve-
hicle only.
3
1. Getting Started
This unit was tested with shielded cables on the peripheral devices.
Shielded cables must be used with the unit to insure compliance.

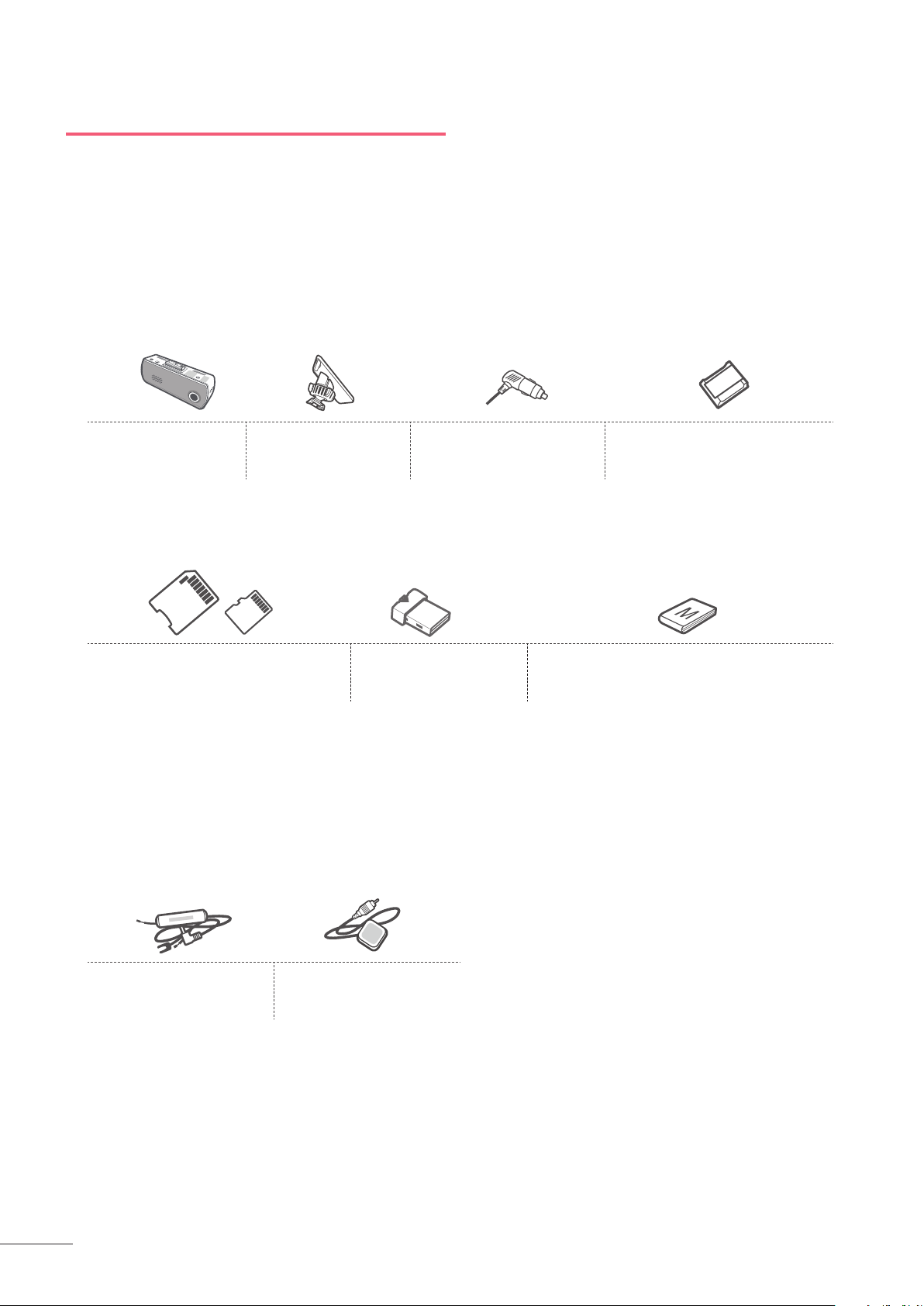

1-1. In the Package
Main Dash Cam Unit
MicroSD memory card with adapter
(consumable)
Mount with 3M tape
(1ea)
USB MicroSD card
1-2. Optional Accessories
reader
Car Charger
User Manual (stored in the MicroSD card)
Adhesive Cable Holder
(5ea)
Quick Start Guide/Warranty/
Hardwiring Cable External GPS Receiver
4
01
RESET
DC-IN V-OUTGPS
GPS
RESET
micro SD
DC-IN V-OUTGPS
RESET
1-3. Product Overview
3
9
1
Front
view
Top view
DC-IN V-OUT
Rear
view
Top view
Getting Started
7652
84
13
GPS
14
10
Left view Right view
11 1215
No. Name Description
1 Camera Lens Front facing camera for video recording
2 Mount Connector Connects to the windshield mount
3 Security LED
LED light that is used to visually indicate that the vehicle is equipped
with dash cam which is in operation
4 Speaker For voice guidance and alert/notication sounds
5
Power Button
Press and hold for 3 seconds to turn the device on/o
6 REC Button Initiates manual recording or press and hold to capture still image
7
Voice Guidance Button
8 Operation Status LED Indicates the device operating status
Activates/deactivates voice guidance or press and hold to turn audio
recording on/o
9 Memory Card Slot Location for the memory card
10 V-OUT Socket Service port
11 DC-IN Connects to power cable
12 GPS Receiver Socket
13 Level Guiding Line
Connects to external GPS receiver
(optional accessory that requires separate purchase)
Indicator line to display horizontal axis to be used as reference during
installation
14 Reset Press to force the device to reboot
15 Microphone Records audio along with video
5
1-4. Inserting a Memory Card
micro SD
1-4-1. About Memory Cards
Class 6 or higher microSD card must be used with a storage capacity of 8GB or 16GB.
It is strongly recommended that minimum 8GB memory card is used for HD recording.
The microSD card should be formatted every 2 weeks to maximize the lifetime of the memory card.
1-4-2. Installing a microSD Card
Open the slot cover and insert the MicroSD card
into the slot with the metal contacts facing up
toward the mount connector and push until it
locks into place.
Inserting the
memory card
Removing the
MicroSD card
Press the end of MicroSD card until it clicks out
from the slot. Pull out the MicroSD card and
Do not apply excessive force on the MicroSD card or attempt to insert it in the wrong direction as it may
cause damage the MicroSD card and the card slot.
Cautions
The microSD card should be tested for errors on a regular basis and as the memory card is a consumable
item, it will need to be replaced periodically.
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using
genuine or authorized parts and accessories. It is strongly recommended that THINKWARE memory card
is used to minimize memory card error.
Turn the device o completely before removing the microSD card to avoid damages to the memory card.
memory card
close the slot cover.
To prevent loss of important data, frequently copy recorded video from microSD card to another storage
device such as personal computer for back up.
6
01

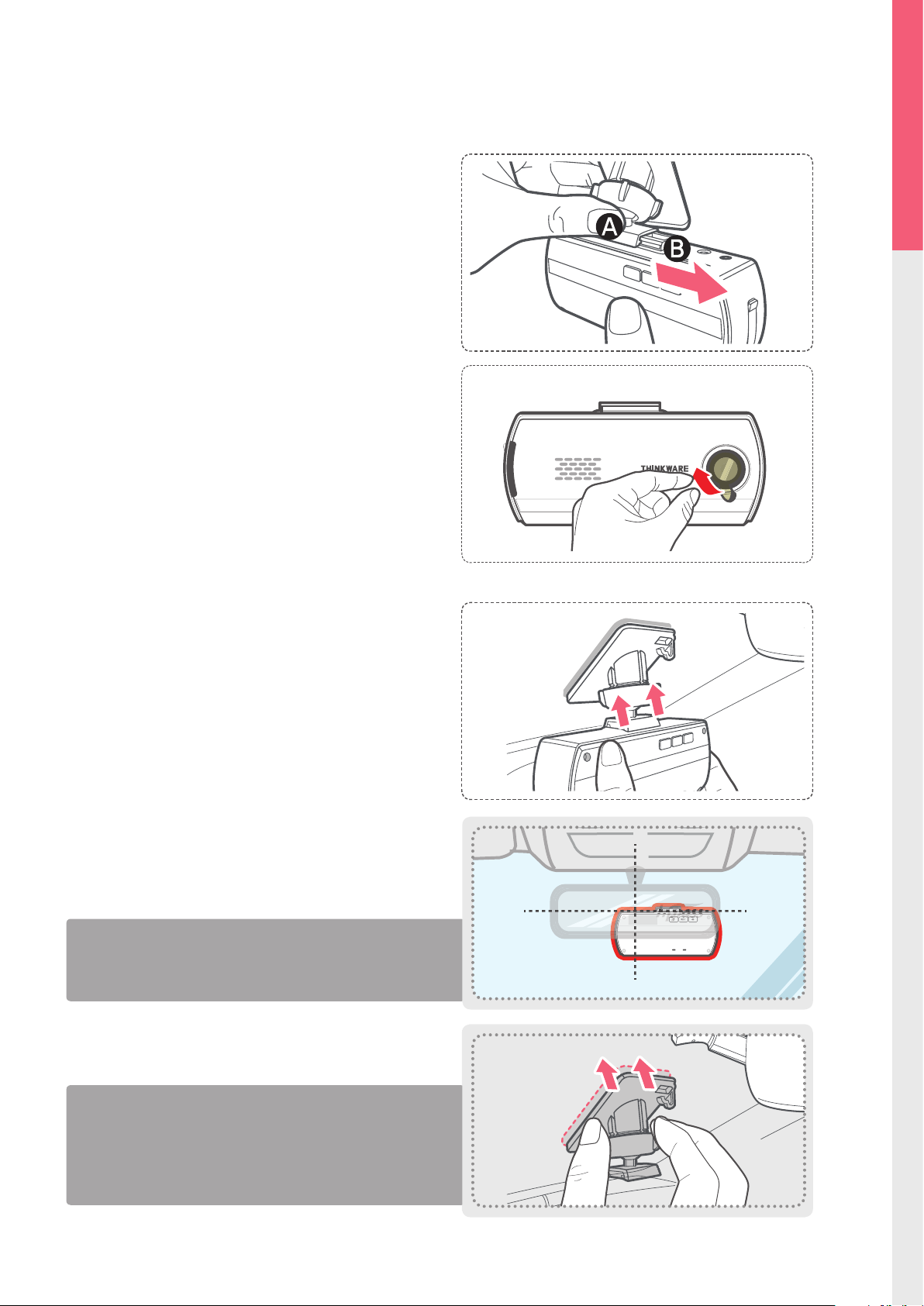

1-5. Vehicle Installation
1-5-1. Connecting the Device and the
Mount
①
Place the mount so it is aligned with the connector
(A), and push it toward (B) until it clicks into place.
②
Remove the protective lm from the camera lens.
Getting Started
1-5-2. Installing the Device
①
Clean the area on the windshield where the dash
cam will be installed.
②
With dash cam main unit still attached to the
mount, remove the protective tape from the back
of the mount.
③
Attach the adhesive side of the mount on the wind-
shield where it has unobstructed view of the road
but does not interfere with the driver’s view.
TIP
The camera is located on the left side of the main unit so install the dash cam on the right side of the center behind the
rearview mirror.
TIP
To ensure that the mount is safely secured, it is recommended that you separate the device from the mount after installation and press the mount towards windshield for 5 minutes to maintain pressure. Allow 24 hours until the adhesive
on the mount has set before connecting the dash cam.
7
④
RESET
The dash cam should be facing forwarding and
level with the vehicle and the road. Adjust the
camera using the level guiding line marked on the
side of the device.
TIP
Adjust the camera to have the horizontal indica tor on the
dash cam to be level with the vehicle and the road.
TIP
After installation, run the dash cam to record videos and
check the videos using Thinkware Dash Cam Viewer to verify
camera position. Adjust the camera angle if necessary.
1-5-3. Connecting to power
①
Connect the power cable to DC-IN socket of the
device.
②
Plug the charger adapter end of the power cable
into a 12V DC vehicle power socket.
③
Arrange the wire by using the adhesive cable holder
as shown below.
Guiding Line
Hide the extra wires by placing the wires
in the space between the ceiling of vehicle
Recommended location for adhesive wires clips are illustrated
in the diagram
and the top of the windshield.
For more information on the power cable routing instruction, please visit Thinkware homepage
(http://thinkwaredashcam.com)
Preventing Vehicle Battery Discharge
■ Depending on the car make and model, the power from the vehicle can be supplied even with
the ignition turned off. In this case, the dash cam stays on as continuous mode and does not
enter parking surveillance mode which will result in vehicle battery discharge.
■ Some vehicles with multiple power sockets might be equipped with at least 1 outlet that does
not shut off the power with the ignition. So, test each power outlet to ensure you connect to an
outlet that shut off with vehicle engine.
8
2. Basic Operations
2-1. Turning the Device Power On/O
The device will automatically turn on and o with vehicle ignition.
: Red
: Green
: Blue
02
Basics
Blinks in all 3 colors
Power cable for vehicle
To manually turn the device on/o, press and hold the Power button ( ) for 3 seconds.
Press and hold for 3
seconds
9
2-2. Date/Time Settings
It is strongly recommended that the correct date/time and time zone are set before using the device
①
Insert the microSD card into the USB microSD card
Front Rear
MicroSD card
reader (included in the package) with front side
facing up as shown in the illustration.
②
Connect the USB microSD card reader to the PC
Ensure that the USB card reader is correctly orient
ed when inserting to USB drive on the PC
Removing microSD card
③
Double-click the Thinkware Dash Cam Viewer
setup le saved in the microSD card and install the
program.
④
Double-click the Thinkware Dash Cam Viewer icon
after installation completes. The Viewer application
screen will then appear.
-
10
이미지 교체 한글로
되어있음
⑤
Click File from menu and select the drive for
the portable storage device assigned to the microSD card.
⑥
Select Additional functions > Time zone and set
the date and time of your location (timezone).
Once the correct time has been set, insert the
microSD card immediately back in the dashcam and start the device to apply the changed
settings.
⑦
Insert the microSD card back into the device.
Note that the conguration information is stored
in the microSD card so it is strongly recommended
to format the memory card using device feature
or Thinkware Dash Cam Viewer only. Formatting
the memory card using 3rd party applications will
permanently delete the user setting and will have
to re-initialize to default setting.
02
Basics
11
2-3. Connecting External GPS Receiver (Optional Accessory)
●
External GPS Receiver is available as an optional accessory that can be purchased from Thinkware autho-
rized dealers.
●
External GPS Receiver enables recording of vehicle locations in the video le for driving route tracking.
Connect external GPS Receiver to the GPS port of the dash cam.
Blue light blinking Indicates current
recording status
Cautions
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using
genuine or authorized parts and accessories. It is strongly recommended that THINKWARE external GPS
receiver is used.
Turn the device o completely before connecting the GPS receiverto avoid damages.
12
02
2-4. Recorded Files
Recorded video les are saved in the folder by date and hour in the microSD card.
Files are created based on the time when the videos are recorded.
Year Month Day Hour
As a surveillance product, the dash cam will automatically
overwrite oldest le in the memory card once the memory
is full. However, event recording and manual recording
videos are stored in separate location and will be protected
from le overwriting.
Second
Minute
Basics
Cautions
Do not use microSD as external storage device.
Do not save or modify saved les in the microSD card.
This may result in unexpected behavior during operation.
13
2-5. Recording Videos While Driving
2-5-1. Continuous Recording Mode
Videos are recorded in 1 minute segments and saves as
les in the microSD card under folder named “cont_rec”.
Operation Status LED
Voice recording is turned on. Voice recording is turned o.
Blue light on Blue light on Blue light onGreen light on
2-5-2. Incident Recording in During Continuous Recording Mode
When the dashcam detects impact, it will immediately store
the previous 10 seconds prior to impact and start recording
video for next 10 seconds.
This 20 second video will then be saved in a secure location
on the microSD card under folder named “evt_rec”. Note that
the dashcam will detect impact as incident only if the level of
impact is greater than the sensitivity of the G-sensor set in the
user conguration.
Operation Status LED
Voice recording is turned on. Voice recording is turned o.
+ +
Blue light on Green light on
Right LED alternates
between blue and red.
Right LED alternates
between blue and red.
Cautions
Driving over speed bump, manhole, or uneven road at high speed can also be detected as incident.
The device can record up to 1 minute if there are continuous impacts in case of multiple accidents.
The time for which the device records video before and after impact can vary according to the device
setting.
14
02
2-6. [Optional] Recording Videos While Parked
This feature is available only when the dashcam has been hardwired direct to the vehicle battery.
Separate purchase is required for the hardwiring cable accessory and installation is required.
2-6-1. Incident Recording
When the dash cam detects impact while parked, it will imme-
diately store the previous 10 seconds prior to impact and start
recording video for next 10 seconds which is then saved in
a secure location on the microSD card under folder named
“parking_rec”.
Operation Status LED
Voice recording is turned on. Voice recording is turned o.
+ +
Blue light on Green light on
Right LED alternates
between blue and red.
Right LED alternates
between blue and red.
Basics
Cautions
The device can record up to 1 minute if there are continuous impacts in case of multiple accidents.
The time for which the device records video before and after impact can vary according to the device
setting.
2-6-2. Motion Detection Recording
The dash cam and optional rear view camera are both equipped with motion detectors which are used to
detect motion that initiates video recording while the vehicle is parked.
When the dash cam detects impact while parked, it will immediately store the previous 10 seconds prior
to impact and start recording video for next 10 seconds which is then saved in a secure location on the
microSD card under folder named “motion_rec”.
Operation Status LED
Voice recording is turned on. Voice recording is turned o.
+ +
Blue light on Green light on
Right LED alternates
between green and red.
Right LED alternates
between green and red.
Cautions
The device can record upto 1 minute if there are continuous impacts in case of multiple accidents.
15
2-7. Manual Recording
In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to capture scenery and/or places while driving. This feature can also be used to save video as witness where the
installed vehicle is not directly involved in an accident. Video les saved during manually recording mode are
stored in a separate location on the memory card and will be protected from video overwriting in continuous
recording mode.
Briey press the REC button to start recording. The device
will record video for 1 minute (10 seconds before and 50
seconds after) as of the time when the button is pressed.
The recorded video will be saved under the “manual_rec”
folder.
Note that when manual recording is initiated, the previous
10 seconds prior to pressing the button will be saved so
even if you just missed a scene, you can still capture and
safely store the video by initiating manual record within 10
seconds of the event.
Press Briey
Operation Status LED
Voice recording is turned on. Voice recording is turned o.
Blue light blinkingBlue light on Blue light blinkingGreen light on
Cautions
When the allocated storage for manual recording videos is full, oldest video le will be replaced by the
new recorded video.
16
02
2-8. Capturing Still Images
Press and hold REC button to take a photo. Buzzer will
sound to indicate that a picture has been successfully taken.
Still images captured are saved in a secure location on the
microSD card under folder named “capture”.
Basics
Press and hold
17
2-9. Setting Audio Options
2-9-1. Turning Voice Guidance Function
On/O
Briey press the Voice Guidance ( ) button to turn the voice
guidance on or o.
2-9-2. Turning Voice Recording function
On/O
Press and hold the Voice Guidance ( ) button to turn the
audio recording on or o.
Cautions
Press Briey
Press and hold
Users do not reserve the right to use the product for purposes other than as specied in this user guide.
According to the Personal Information Protection Act and other related regulations, the user/owner may
be held liable if the video and/or conversation recorded by the device are distributed without their consent. Thus, special attention should be paid in using this product.
18
02
2-10. Formatting MicroSD Card
Disconnect the power cable. While pressing the REC button, connect the power cable to power the device on.
Operation Status LED
+
Left LED will alternately
blink in green and red.
Cautions
The microSD card should be formatted every 2 weeks to maximize the lifetime of the memory card.
O
Basics
2-11. Upgrading Firmware
The system will automatically be updated if the microSD card contains the rmware upgrade le.
The device restarts automatically after the upgrade has been completed.
Make sure your device is always up to date with latest rmware.
Please check back frequently at THINKWARE website (http://thinkwaredashcam.com) for latest rmware
updates.
Operation Status LED
Green light blinking Green light blinking
19
3. PC Application
3-1. Thinkware Dash Cam Viewer
Thinkware Dash Cam Viewer for both Windows/MacOS is provided which can be used to watch videos recorded with the dash cam. The video les recorded by the dash cam are in one minute segments and the PC
viewer allows user to watch the segments in single continuous video.
The setup le for the Thinkware Dash Cam Viewer is included in the microSD card in the package.
Please check THINKWARE homepage (http://thinkwaredashcam.com) for latest Dash Cam Viewer application.

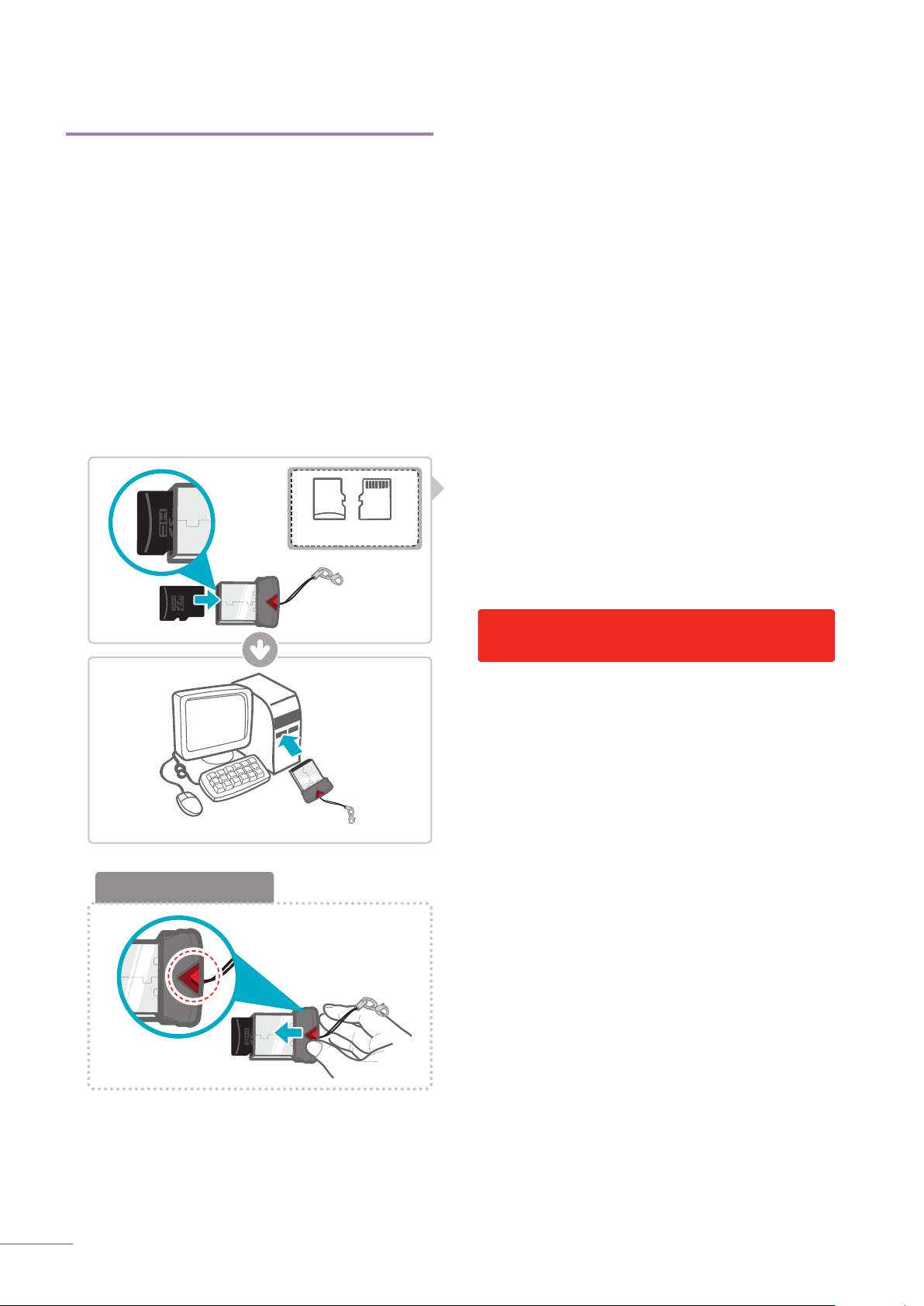

3-1-1. Thinkware Dash Cam PC Viewer Software
①
Front Rear
MicroSD card
Insert the microSD card into the USB microSD card
reader (included in the package) with front side
facing up as shown in the illustration.
Removing microSD card
②
Connect the USB microSD card reader to the PC.
Ensure that the USB card reader is correctly
oriented when inserting to USB drive on the PC
20
03
3-1-2. Installing Thinkware Dash Cam Viewer
Windows
①
Double-click the Thinkware Dash Cam Viewer setup
le saved in the microSD card to initiate program
installation.
②
Double-click the application icon once PC Viewer
installation completes and the application main
screen will then appear.
PC Application
MAC
①
Move the le named “Dashcam Viewer.zip” stored in the microSD card to the desktop.
②
Right click on the mouse and select “Open With” > “Archive Utility” to launch the Thinkware Dash cam
viewer application.
Cautions
Mac OS X v10.6.6 or higher required for PC Viewer installation
21

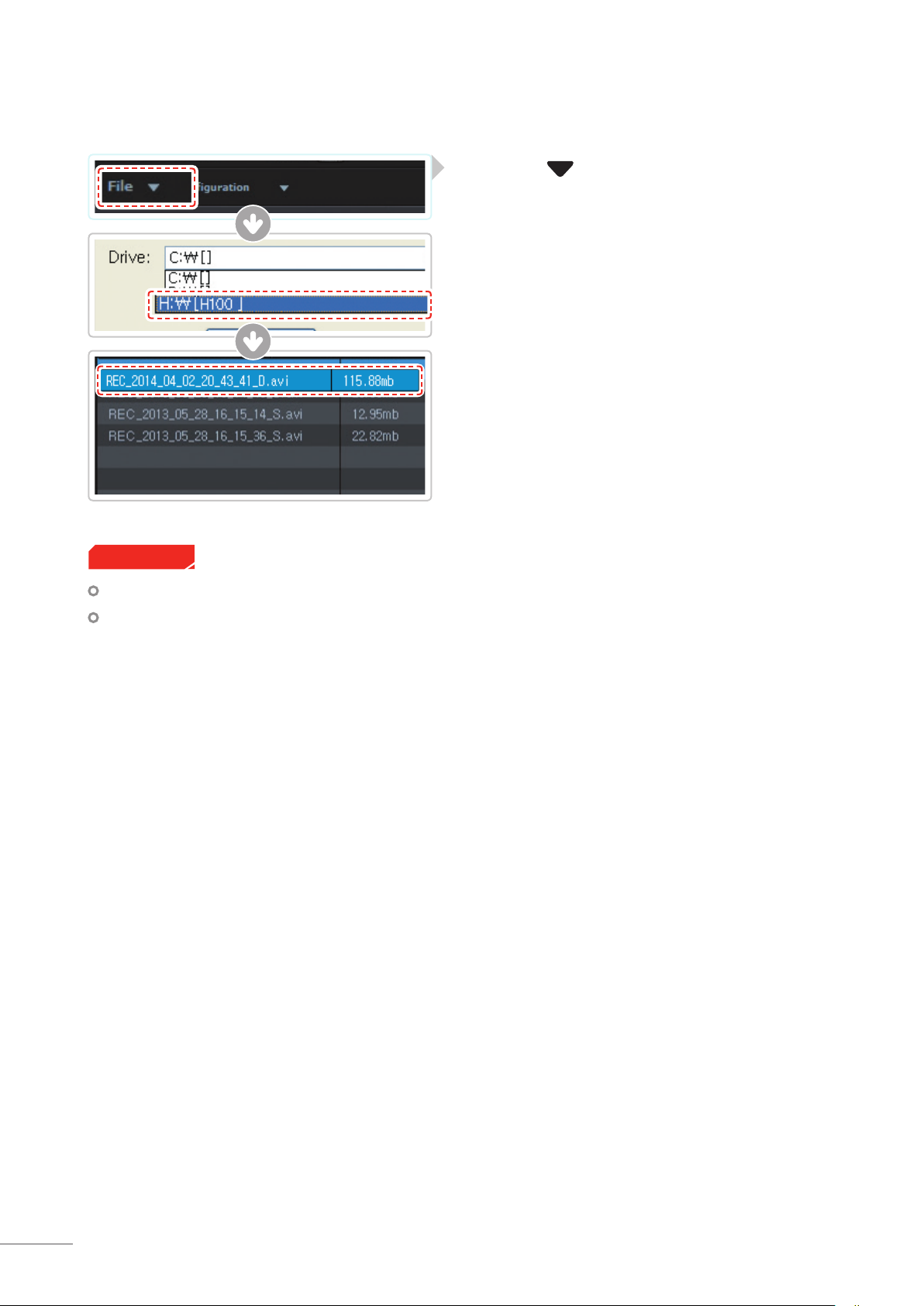

3-1-3. Select the Device Drive for H100
①
②
Click File from menu and select the drive for
the portable storage drive for the connected microSD card.
Select any le from the list to load entire video play-
list in the memory card.
Cautions
The drive for microSD card will not open if it has not previously been initialized in the dash cam.
Record at least 1 video clip with the microSD card in the dash cam before being able to access full menu
on Thinkware Dash Cam Viewer software.
22
03
3-1-4. Thinkware Dash Cam Viewer Overview
File Open
Viewing Screen
Playback
Progress
Current Playing Time/
Total Playing Time
Driving Speed
Dash Cam Setting / Information
PC Application
Full Screen
Switch between Front/Rear View
Rear View
(Enabled only if microSD card contains
video captured
using rear view
camera)
Map
Checks the location
of the recorded
video (Enabled only
if video is captured
while connected
using GPS antenna
(optional in some
models) and also
must be connected
to Internet)
Impact Sensor Value
No. Name Description
Play Previous Plays the previous le before the current le
Rewind by 10 Sec
Play/Pause Plays the recorded le / temporarily pauses playback
Stop
Fast-forward by 10 Sec
Play Next Plays the next le after the current le
Auto Play Automatically loops the video back to beginning once the end has reached
Zoom Sets the video expansion ratio (0.5x / 1.0x / 1.5x / 2.0x)
Screen Setting Sets brightness/speed of the video
Rewinds the current le being played by 10 seconds
(If selected, it continues to rewind by 10 seconds)
Stops the le being played. The playback status resets to the starting point of
the video.
Fast-forwards the current le being played by 10 seconds
(If selected, it continues to fast-forward by 10 seconds)
Playlist
Save Saves the video in play
Volume Sets the volume of the playback
23
3-1-5. View Video Playlist
Select appropriate folder (Continuous Recording, Incident Recording, Manual Recording, Parking Motion,
Parking Incident) to see the playlist for each recording mode.
24
Continuous Recording Playlist Manual Recording Playlist
03
3-1-6. Dash Cam Setting > Common
PC Application
Language: Sets the language for the device.
Brightness: Sets the brightness of the front and rear view camera.
Voice recording: Enable or disable audio recording.
Enabled (default)
Disabled
Voice guidance: Enable or disable voice guidance.
Enabled (default)
Disabled
Setting time/Time zone : Sets date and time for your location.
Daylight Saving Time : Sets the daylight saving time (DST) on/o.
Video date format : Sets the date format of the recorded video les.
Speed unit : Sets unit for the vehicle speed (Km/h or mph).
25
3-1-7. Dash Cam Setting > Continuous Recording Mode - 1
Resolution: Sets resolution of recorded videos in the Continuous Recording Mode.
Front
VGA(640X480)
HD(1280X720) (default)
Number of frames: Sets the number of frames in Continuous Recording Mode.
15 fps
30 fps (default)
26
03
3-1-8. Dash Cam Setting > Continuous Recording Mode - 2
PC Application
Video quality: Sets the video quality level. The video le sizes will vary according to the congured quality.
As the quality of the video increases, the size of the videos will also increase resulting in
reduced total recording capacity.
Low (The video le size will increase)
Normal
High (The video le size will decrease)
Impact sensitivity: Set impact sensitivity from Level 1 to 10 (1 is least sensitive/ 10 is most sensitive).
Cautions
Tip on sensitivity
It is recommended that you set the sensitivity according to vehicle type. High sensitivity setting is rec-
ommended for cars with softer ride such as luxury sedans and low sensitivity setting is recommended for
cars such as performance cars, trucks, or SUVs which tends to have stier suspension settings.
27
3-1-9. Dash Cam Setting > Parking Surveillance Mode - 1
This feature is available only when the dash cam has been hardwired direct to the vehicle battery. Separate
purchase is required for the hardwiring cable accessory and installation is required.
Parking Mode: Dash cam automatically changes recording mode to parking surveillance when vehicle
ignition is turned o.
Enabled
Disabled (default)
Resolution: Sets resolution of recorded videos in the Parking Surveillance Mode.
Front
VGA(640X480)
HD(1280X720) (default)
Number of frames: Sets number of frames for Parking Surveillance Mode.
15 fps
30 fps (default)
Video quality: Sets the video quality level. The video le sizes will vary according to the congured quality.
As the quality of the video increases, the size of the videos will also increase resulting in
reduced total recording capacity.
Low (The video le size will increase)
Normal
High (The video le size will decrease)
28
03
3-1-10. Dash Cam Setting > Parking Surveillance Mode - 2
PC Application
Impact sensitivity: Sets the impact sensitivity level in parking mode.
Motion detection: Sets motion detection sensitivity from Levels 1 to 10.
Enabled (default)
Disabled
Timer Setting for recording: Dash cam can be congured to stop recording after preset time period
during parking surveillance mode in order to prevent the vehicle battery
from being discharged.
Time Range: 1~48 hours (7 levels)
Battery voltage setting for stop recording: Dash cam can be congured to automatically shut down
when battery voltage drops below preset value during parking surveillance mode in order to prevent the vehicle battery
from being discharged.
Vehicle voltage 12V - 11.6V-12.3V (changeable by 0.1V)
Vehicle voltage 24V - 23.2V-24.6V (changeable by 0.2V)
29
3-1-11. Dash Cam Setting > Additional Functions - 1
Overwriting video: The oldest le is deleted if the total size of the recorded videos in the checked folder
exceeds the storage capacity of the memory card.
Security LED: Sets the pattern of the Security LED which is used to visually alert other drivers that the vehi-
cle is equipped with functional dash cam.
Mode 1 (moving): LED moves from top to bottom and vice versa.
Mode 2 (blinking): The entire LED blinks every 0.5 seconds.
Mode 3 (expanding): LED expands and fades out to top/bottom starting from center.
Not in Use: Security LED is turned o (default).
30
03
3-1-12. Dash Cam Setting > Additional Functions - 2
PC Application
Memory partition: Sets how storage space on the memory card will be allotted for each recording mode
(precongured type A, B, and C).
Cautions
The set storage capacity may be dierent from the actual capacity by approximately 30 to 40MB.
Formatting memory card: Formats the microSD card. Note that dash cam setting is restored after format-
ting the memory card.
Cautions
It is recommended that you back up data before formatting the memory card.
Once you format the memory card, all data will be deleted and cannot be restored.
The method for formatting a microSD card might vary depending on the computer operating system.
31
3-1-13. Dash Cam Setting > Initialize Settings
Initialize: Click Initialize button to restore back to factory settings.
Apply and Save Settings
①
Click Save after changing settings to store the
conguration information on the microSD card.
②
The setting le is stored on the microSD card as
setup.cfg under Setting folder.
③
Insert the microSD card into the dash cam and turn on
the device to apply the settings.
Cautions
Thinkware Dash Cam Viewerrequires setup.cfg le on the microSD card in order to recognize the external
drive as dash cam memory device. If setup.cfg is deleted or corrupted, PC Viewerwill not be able to read
videos or device settings on the microSD card. In such case, insert the microSD card back in the dash cam
and power on the device to reinitialize which will create a setup.cfg le with default settings.
32
4. Specications
4-1. Specications
The specications of this product may change without prior notice for product improvements.
Item Standard Note
Model H100
04
Device Information
Size/weight
Capacity microSD card 8GB/16GB Class 6 or higher
Recording mode
Video quality
Camera 2.0 Megapixel, 1/3.2" CMOS
View angle Approximately 140° (diagonally)
Video HD (1280 x 720/H.264/extension AVI)
108.5 x 45.2 x 26mm / 75g
4.3 x 1.8 x 1.0 inches / 0.17 lbs
Continuous Recording Mode Records in 1 minute segments
Incident Recording Mode
Manual Recording Mode
Optional hardwiring cable and installa-
Parking Surveillance Mode
Capturing Still Image
Audio Recording
Choose from one of three dierent
modes (low/mid/high)
tion are required for continuous supply
of power when vehicle ignition is o.
Total recording time varies depending on
the partition type.
Frame rate 1 channel (Front view) : up to 30 fps
Audio PCM (Pulse code modulation)
Acceleration sensor 3-axis acceleration sensor (3D, ±4G) Adjustable impact sensitivity (10 levels)
GPS External GPS Receiver
Input power source DC 12/24V
Current consumption 3.1W (Max)
Auxiliary power unit Super Capacitor
Security LED Panoramic white LED
Notication LED 3-color LED 2 rear LEDs
Warning sound Embedded speaker Voice (buzzer sound) guidance
Operation/
Storage Temperature
Connection Interface External GPS
-20°C to 65°C / -40°C to 80°C
-4°F to 149°F / -40°F to 176°F
Optional accessory that requires separate
purchase
33
Loading...
