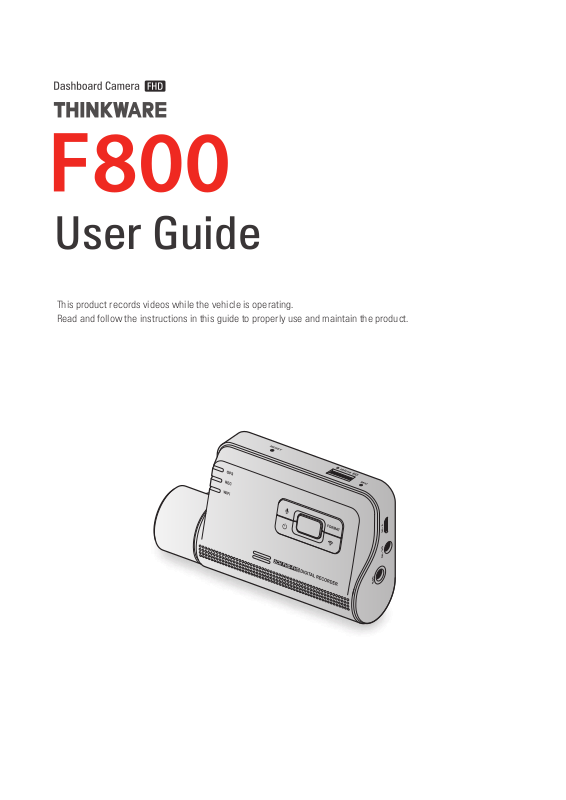

User Guide
This product records videos while the vehicle is operating.
Read and follow the instructions in this guide to properly use and maintain the product.
Before using the product
About the product
This product records videos while the vehicle is operating. Use this product only for reference when
investigating incidents or road accidents. This product is not guaranteed to record ALL events. The device
may not properly record accidents with small impacts that are too minor to activate the impact sensor or
accidents with massive impacts that cause the vehicle’s battery voltage to deviate.
Video recording does not begin until the product is completely turned on (booted up). To ensure that all
vehicle events are recorded, wait until the product is completely booted up after turning it on, and then
begin operating the vehicle.
THINKWARE is not responsible for any loss caused by an accident, nor is it responsible for providing any
support regarding the outcome of an accident.
Depending on the vehicle's configuration or operating conditions, such as the installation of remote door
lock devices, ECU settings, or TPMS settings, some product features may not be supported, and different
firmware versions may influence the product's performance or features.
About the user guide
The information provided in the guide may change when the manufacturer updates its service policy.
This user guide is intended for THINKWARE F800 models only, and it may contain technical errors, editorial
errors, or missing information.
Copyrights
All rights for the content and maps in this guide are reserved by THINKWARE and are protected under
copyright laws. All unauthorized duplication, revision, publication, or distribution of this guide without
written consent from THINKWARE is prohibited and is eligible for criminal charges.
Registered trademarks
THINKWARE F800 is a registered trademark of THINKWARE.
Other product logos and service names in this guide are trademarks of the relevant companies.
Industry Canada Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20 cm between the radiator & your
body.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
• This appliance and its antenna must not be co-located or operation in conjunction with any other
antenna or transmitter.
• A minimum separation distance of 20cm must be maintained between the antenna and the person
for this appliance to satisfy the RF exposure requirements.
FCC CAUTION: Any changes or modifications to the equipment not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
FCC ID: 2ADTG-F800
Information to user : RSS-247
This device complies with Industry Canada’s licence-exempt RSSs.
Please be cautioned the changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Notice: Operation is subject to the following two conditions : (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
IC: 12594A-F800
Contents
Safety information 6
1. Product overview 9
1.1 Included items 9
1.1.1 Standard items 9
1.1.2 Accessories (sold separately) 9
1.2 Part names 10
1.2.1 Front camera (main unit) - front view 10
1.2.2 Front camera (main unit) - rear view 11
1.2.3 Rear camera (optional) 11
1.3 Removing and inserting the memory card 12
2. Installing the product 13
2.1 Installing the front camera (main unit) 13
2.1.1 Selecting an installation location 13
2.1.2 Securing the product 13
2.1.3 Connecting the power cable 15
2.2 Installing the rear camera (optional) 16
2.2.1 Selecting an installation location 16
2.2.2 Securing the rear camera 17
2.2.3 Connecting the rear camera cable 18
3. Using recording features 19
3.1 Turning the product on or off 19
3.2 Learning about file storage locations 19
3.3 Using the continuous recording feature 19
3.4 Recording manually 20
3.5 Using parking mode 20
4. Using the mobile viewer 22
4.1 Connect the product to a smartphone 22
4.2 Mobile viewer screen layout 22
4.3 Playing recorded videos on the mobile
viewer 23
4.4 Video control menu overview 23
5. Using the PC viewer 24
5.1 System requirements 24
5.2 Installing the PC viewer 24
5.3 PC viewer screen layout 25
5.4 Playing recorded videos on the PC viewer 26
5.5 Video control menu overview 27
6. Settings 28
6.1 Managing the memory card 28
6.1.1 Partitioning the memory card 28
6.1.2 Formatting the memory card 28
6.1.3 Configuring the video overwriting
function 28
6.2 Setting the camera 29
6.2.1 Setting the brightness of the front
camera 29
6.2.2 Setting the brightness of the rear
camera 29
6.2.3 Reversing the rear view upside down 29
6.3 Setting recording features 30
6.3.1 Setting the continuous impact detection
sensitivity 30
6.3.2 Setting the Super Night Vision feature 30
6.3.3 Setting parking mode 30
6.3.4 Setting the impact sensitivity in
parking mode 31
6.3.5 Setting the motion detection sensitivity 31
6.3.6 Setting the record timer feature 31
6.3.7 Setting the battery protection feature 32
6.3.8 Setting the battery cutoff voltage
feature 32
6.3.9 Setting the battery protection feature
for wintertime 32
6.4 Setting road safety features 33
6.4.1 Setting the safety cameras 33
6.4.2 Setting the mobile zone alert 33
6.4.3 Identifying the vehicle type 33
6.4.4 Initializing the ADAS calibration setting 33
4
6.4.5 Setting the lane departure warning
sensitivity 34
6.4.6 Setting the lane departure detection
speed 34
6.4.7 Setting the forward collision detection
sensitivity 34
6.4.8 Setting the low speed forward collision
detection sensitivity 34
6.4.9 Setting front vehicle departure warning 35
6.5 Configuring the system settings 35
6.5.1 Setting the display language 35
6.5.2 Adjusting the system volume 35
6.5.3 Setting the Security LED 35
6.5.4 Setting the rear camera LED 36
6.5.5 Setting the time zone 36
6.5.6 Setting the daylight saving time 36
6.5.7 Setting the speed unit 36
6.5.8 Setting the speed stamp 36
7. Accessing the product information 37
7.1 Viewing the product information 37
7.2 Accessing and configuring the GPS 37
8. Upgrading the firmware 38
9. Troubleshooting 39
10. Specifications 40
5
Safety information
Read the following safety information to properly use the product.
Safety symbols in this guide
"Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death.
"Caution" - Indicates a potential hazard which, if not avoided, may result in minor injury or property damage.
"Note" - Provides useful information to help users better utilize the product's features.
Safety information for proper use
Driving and product operation
•Do not operate the product while driving a vehicle. Distraction while driving may cause accidents and
result in injury or death.
•Install the product in places where the driver's view is not obstructed. Obstruction of the driver’s vision
may cause accidents and result in injury or death. Check with your state and municipal laws before
mounting the product to the windshield.
6
Power supply
•Do not operate or handle the power cable with wet hands. Doing so may result in electrocution.
•Do not use damaged power cables. Doing so may result in electrical fire or electrocution.
•Keep the power cable away from all heat sources. Failure to do so may cause the power cord insulation to
melt, resulting in electrical fire or electrocution.
•Use the power cable with the correct connector and make sure the power cable is connected securely
and is firmly in place. Failure to do so may result in electrical fire or electrocution.
•Do not modify or cut the power cable. Also, do not place heavy objects on the power cable or pull, insert,
or bend the power cable using excessive force. Doing so may result in electrical fire or electrocution.
•Use only genuine accessories from THINKWARE or an authorized THINKWARE dealer. THINKWARE does
not guarantee compatibility and normal operation of third-party accessories.
•When connecting the power cable to the product, ensure that the connection between the cable plug
and the power cable connector on the product is secure. If the connection is loose, the power cable may
become disconnected due to vehicle vibration. Video recording is not available if the power connector is
disconnected.
Children and pets
•Ensure that the product is out of the reach of children and pets. If the product breaks, it may result in fatal
damage.
7
Other information about the product
Product management and operation
•Do not expose the product to direct sunlight or intense light. The lens or internal circuitry may fail
otherwise.
•Use the product at a temperature between 14°F and 140°F (-10°C to 60°C) and store the product at a
temperature between -4°F and 158°F (-20°C to 70°C). The product may not fuction as designed and some
permanent physical damages may result if it is operated or stored out of the specified temperature ranges.
Such damages are not covered by the warranty.
•Frequently check the product for the proper installation position. Impact caused by extreme road
conditions may alter the installation position. Ensure that the product is positioned as instructed in this
guide.
•Do not apply excessive force when pressing the buttons. Doing so may damage the buttons.
•Do not use chemical cleaners or solvents to clean the product. Doing so may damage plastic components
of the product. Clean the product using a clean, soft, and dry fabric.
•Do not disassemble the product or subject the product to impact. Doing so may damage the product.
Unauthorized disassembly of the product voids the product warranty.
•Handle with care. If you drop, mishandle, or expose the product to external shocks, it may cause damage
and/or result in the malfunction of the product.
•Do not attempt to insert foreign objects into the device.
•Avoid excessive humidity and do not allow any water to enter the product. Electronic components inside
the product may fail if exposed to humidity or water.
•Depending on the make and model of your car, the power may be constantly supplied to the dash cam
even when the ignition is turned off. Installation of the device to a continuously powered 12V outlet could
result in vehicle battery drainage.
•This device is designed to record video while the vehicle is in operation. The quality of the video might be
affected by weather conditions and the road environment, such as whether it is day or night, presence of
street lighting, entering/exiting tunnels, and the surrounding temperature.
•THINKWARE is NOT responsible for the loss of any recorded video during operation.
•Although the device was designed to withstand high-impact car collisions, THINKWARE does not
guarantee the recording of accidents when the device is damaged as a result of the accident.
•Keep the windshield and camera lens clean for optimal video quality. Particles and substances on the
camera lens or windshield may reduce the quality of the recorded videos.
•This device is intended to be used inside the vehicle only.
8
1. Product overview
1.1 Included items
Ensure that all the items are included when you open the product box.

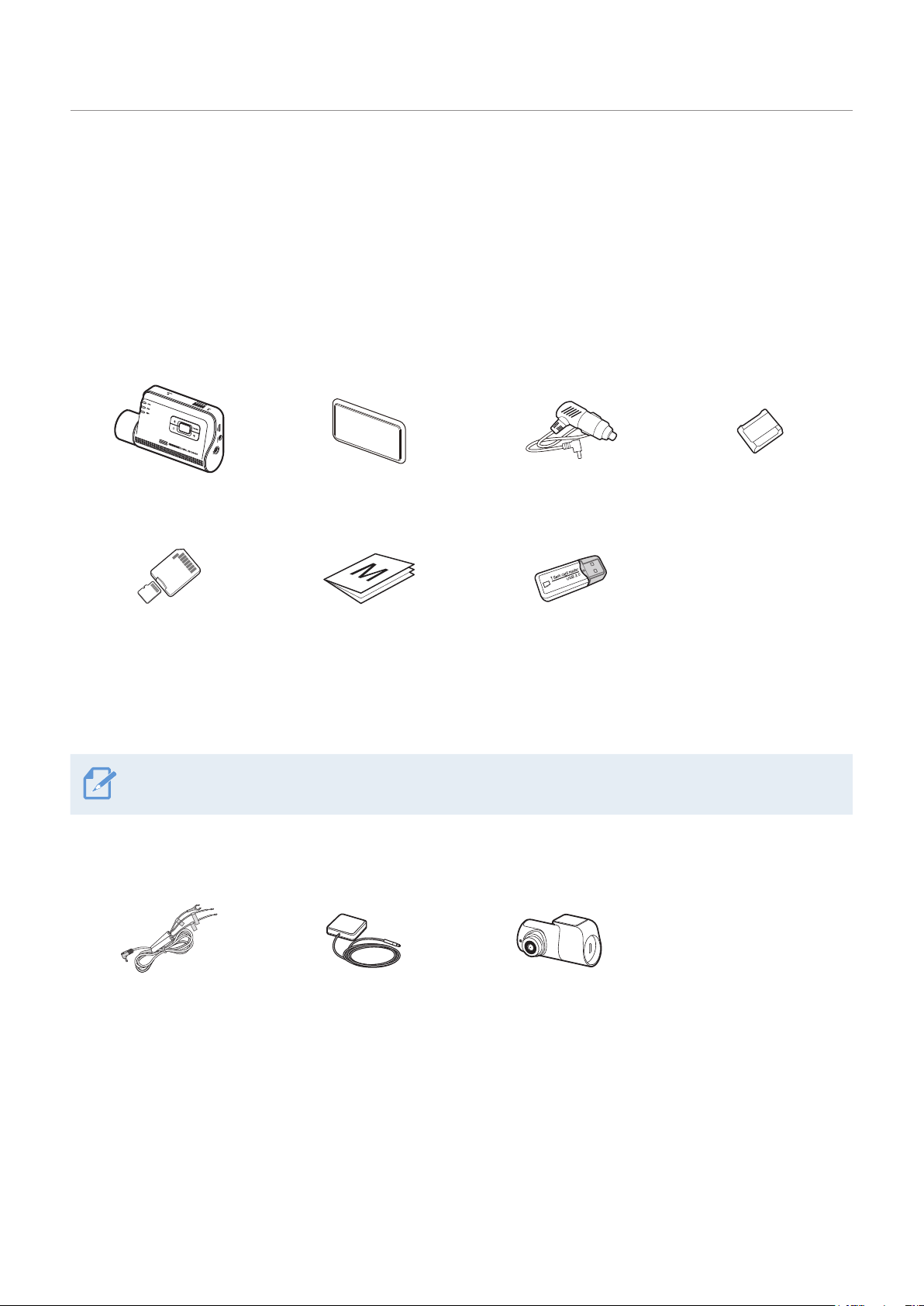

1.1.1 Standard items
Front camera (main unit) Mount
MicroSD memory card
with adapter
(consumable)
The standard items may change without prior notice.
Quick start guide & Warranty
/ CS information / User guide
(stored in the microSD card)
1.1.2 Accessories (sold separately)
BATTERY
GND
ACC
Hardwiring cable
External GPS receiver
Car charger
USB MicroSD card reader
Rear camera
Adhesive cable holder
9
Product overview
1.2 Part names

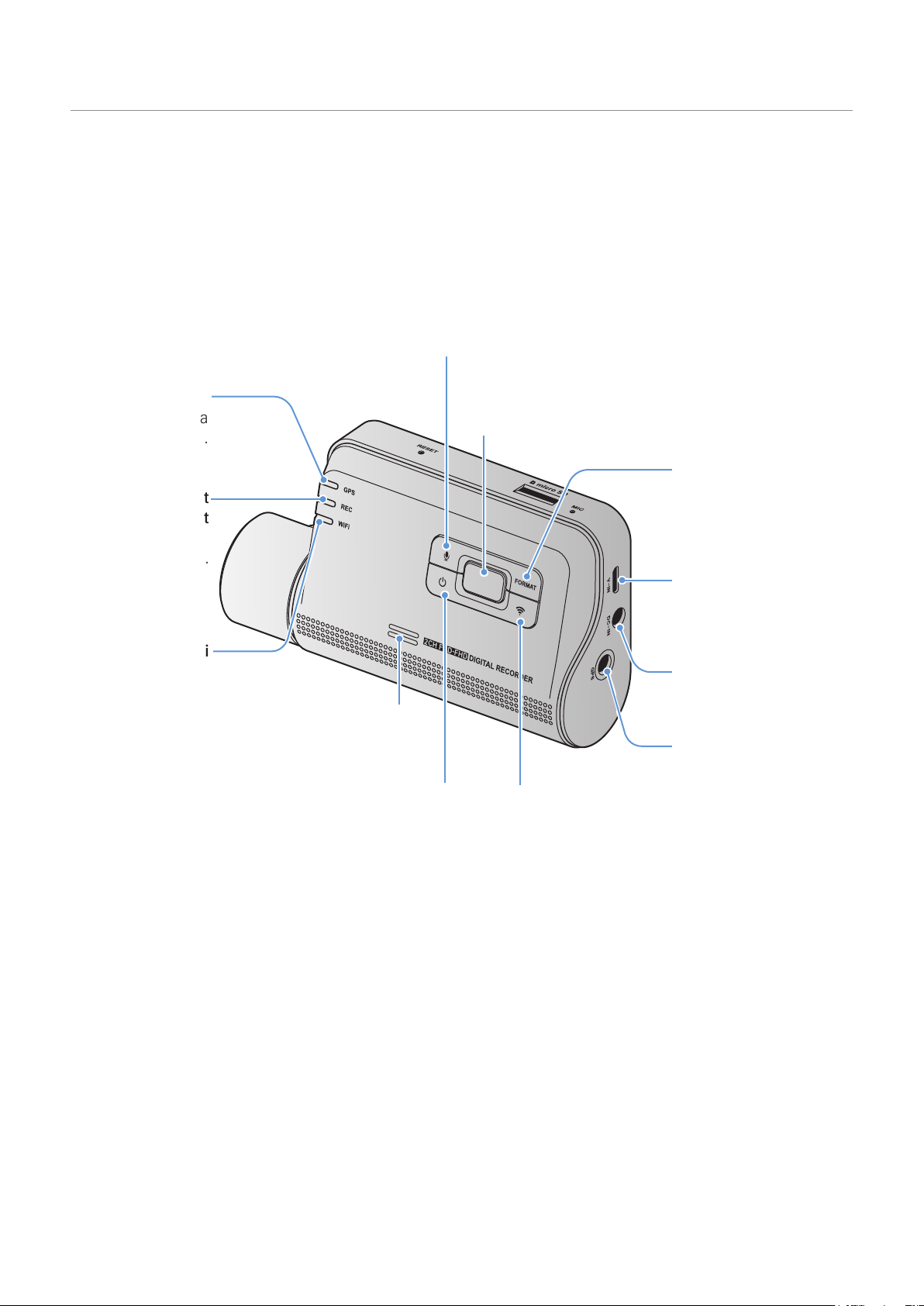

1.2.1 Front camera (main unit) - front view
GPS LED
Indicates the GPS
connection status.
Recording LED
Indicates the
recording status.
Wi-Fi LED
Indicates the Wi-Fi
connection status.
Outputs the voice guide and buzzer
sounds to indicate the product’s status.
Press and hold to turn off the product.
Voice recording button
Press to enable or disable voice
recording.
Manual recording button
Press to start manual recording.
Speaker
Power button
Press to turn on the product.
Wi-Fi button
Press to connect the
product to a smartphone
via Wi-Fi network.
Format button
Press and hold to
format the memory
card.
V-IN input port
Used to connect the
rear camera (optional).
DC-IN power port
Used to connect the
power cable.
GPS port
Used to connect the
external GPS receiver
(optional).
10
1.2.2 Front camera (main unit) - rear view
Microphone
Used for voice recording.
Product overview
Memory card slot
Insert a memory card to save recordings.
Security LED
Indicates that video
is being recorded.
Mount connector
Used to connect the mount.
Reset button
Insert the tip of a sharp object to
reset the product when an error
occurs.
Front camera lens
Records the front view.
1.2.3 Rear camera (optional)
Rear camera lens
Records the rear view.
Security LED
Indicates that the video is being recorded.
Adhesive mount
Used to fix the rear camera in the vehicle.
Connection port
Used to connect the rear
camera to the front camera
using a rear camera cable.
11
Product overview

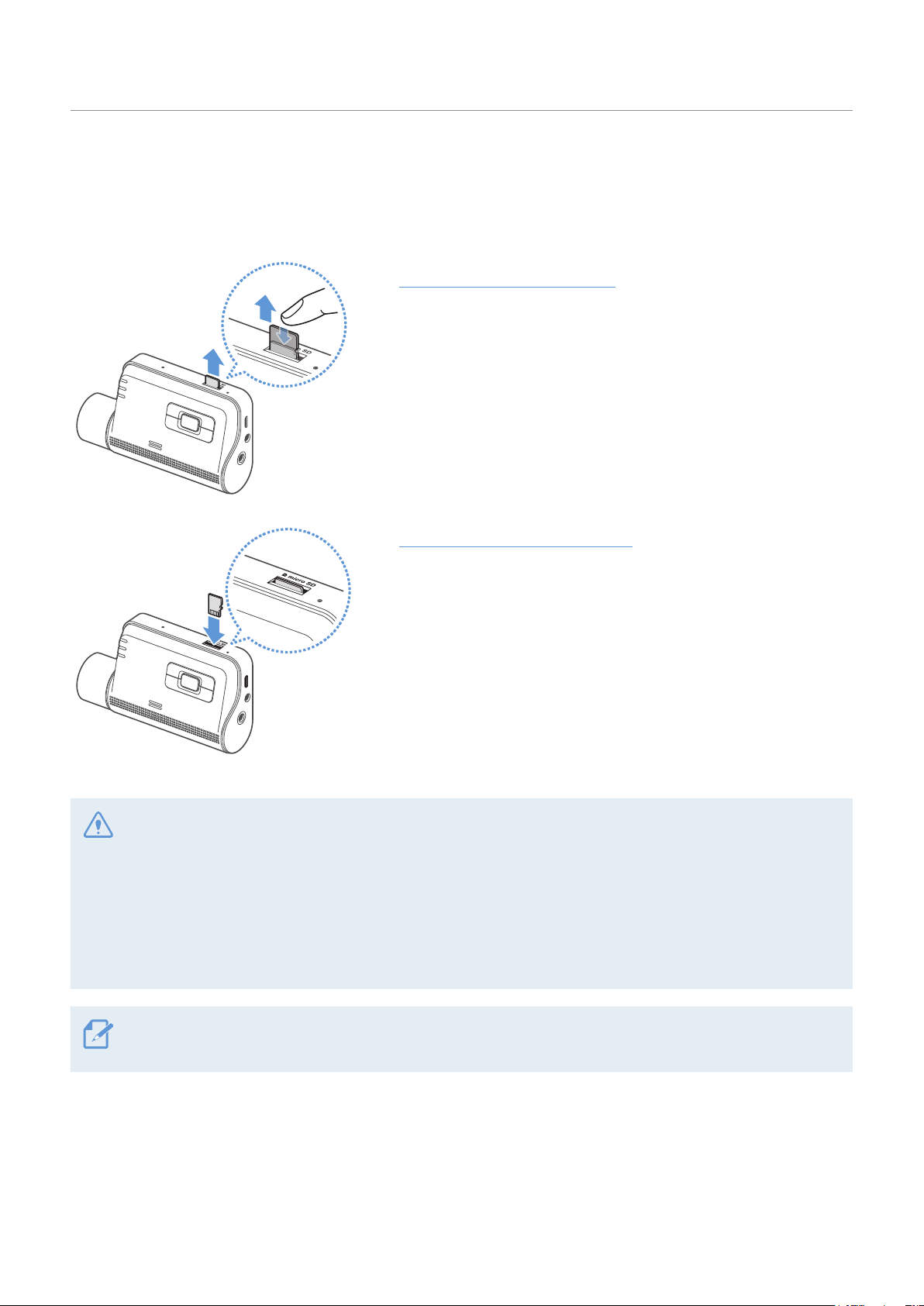

1.3 Removing and inserting the memory card
Follow the instructions to remove the memory card from the product or to insert the memory card into the
product.
Removing the memory card
Ensure that the product is turned off, and then gently push the
bottom of the memory card with your fingernail. The lower
part of the memory card will be exposed.
Remove it from the product.
Inserting the memory card
Insert the memory card into the memory card slot, paying
attention to the direction of the memory card, and then push
the memory card into the slot until you hear a click.
Before inserting the memory card, ensure that the metal
contacts on the memory card are facing toward the buttons of
the product.
•Ensure that the product is turned off before removing the memory card. The recorded video files may be
corrupted or lost if you remove the memory card while the product is on.
•Ensure that the memory card is in the correct direction before inserting it into the product. The memory
card slot or the memory card may be damaged if it is inserted incorrectly.
•Use only authentic memory cards from THINKWARE. THINKWARE does not guarantee compatibility and
normal operation of third-party memory cards.
To prevent loss of recorded video files, periodically back up the video files on a separate storage device.
12
2. Installing the product
20 cm
2.1 Installing the front camera (main unit)
Follow the instructions to properly install the product.

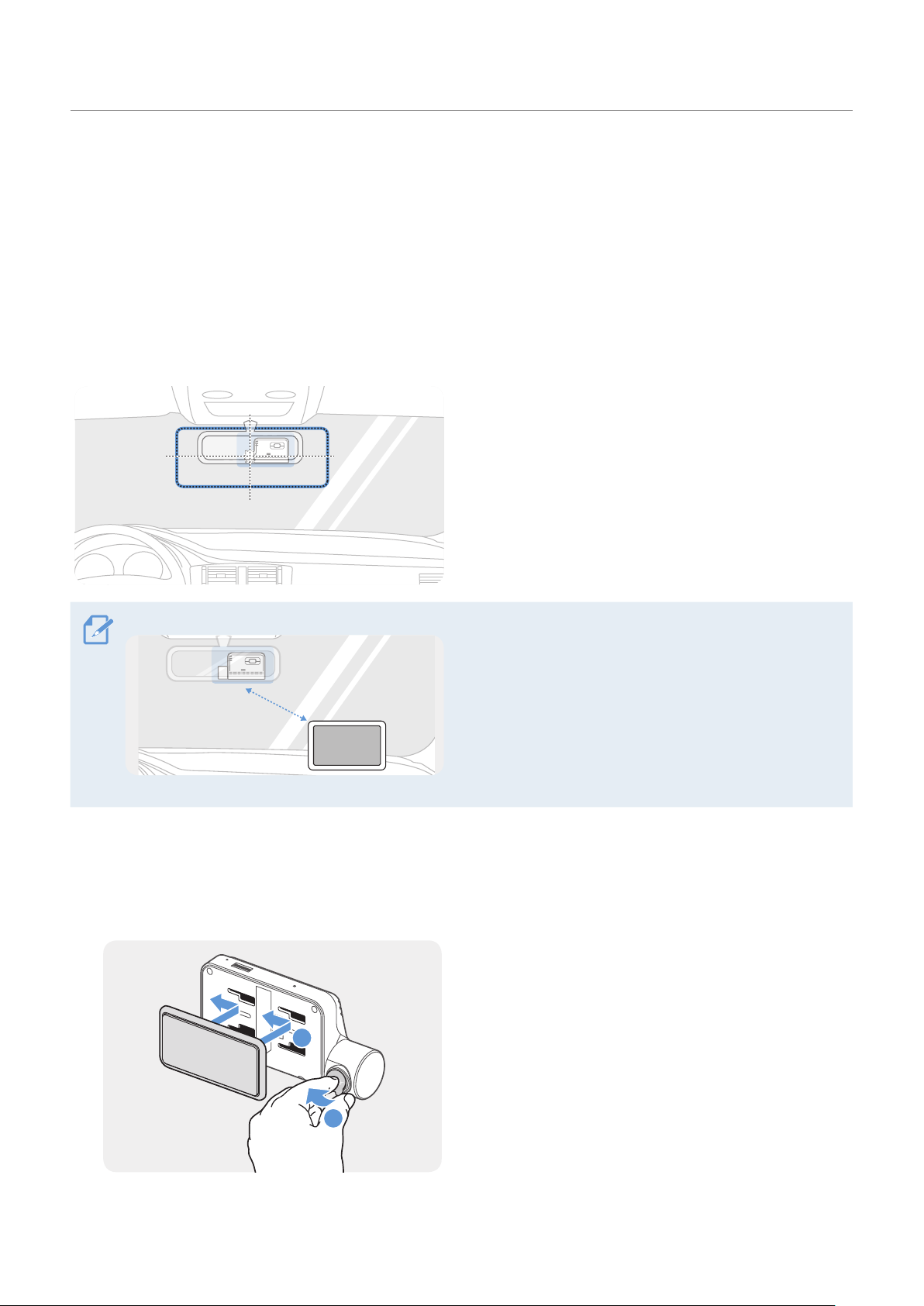

2.1.1 Selecting an installation location
Select an installation location that can record the
entire view in front of the vehicle without obstructing
the driver’s vision. Ensure that the front camera lens
is located in the center of the windshield.
If a GPS navigating device is installed on the dashboard,
its GPS reception may be affected depending on the
dashboard camera's installation location.
Adjust the installation location of the GPS navigating
device to ensure that the two devices are separated by
at least 20 centimeters (approximately 8 inches).
2.1.2 Securing the product
Follow the instructions to secure the product at the installation location.
1
1
2
After determining the installation location, wipe the installation location on the windshield with a dry
2
cloth.
Align the mount to the mount rail on the product,
➊
➋
). Then,
).
and then slide it until you hear a click (
carefully remove the protective film (
13
Installing the product
3
4
5

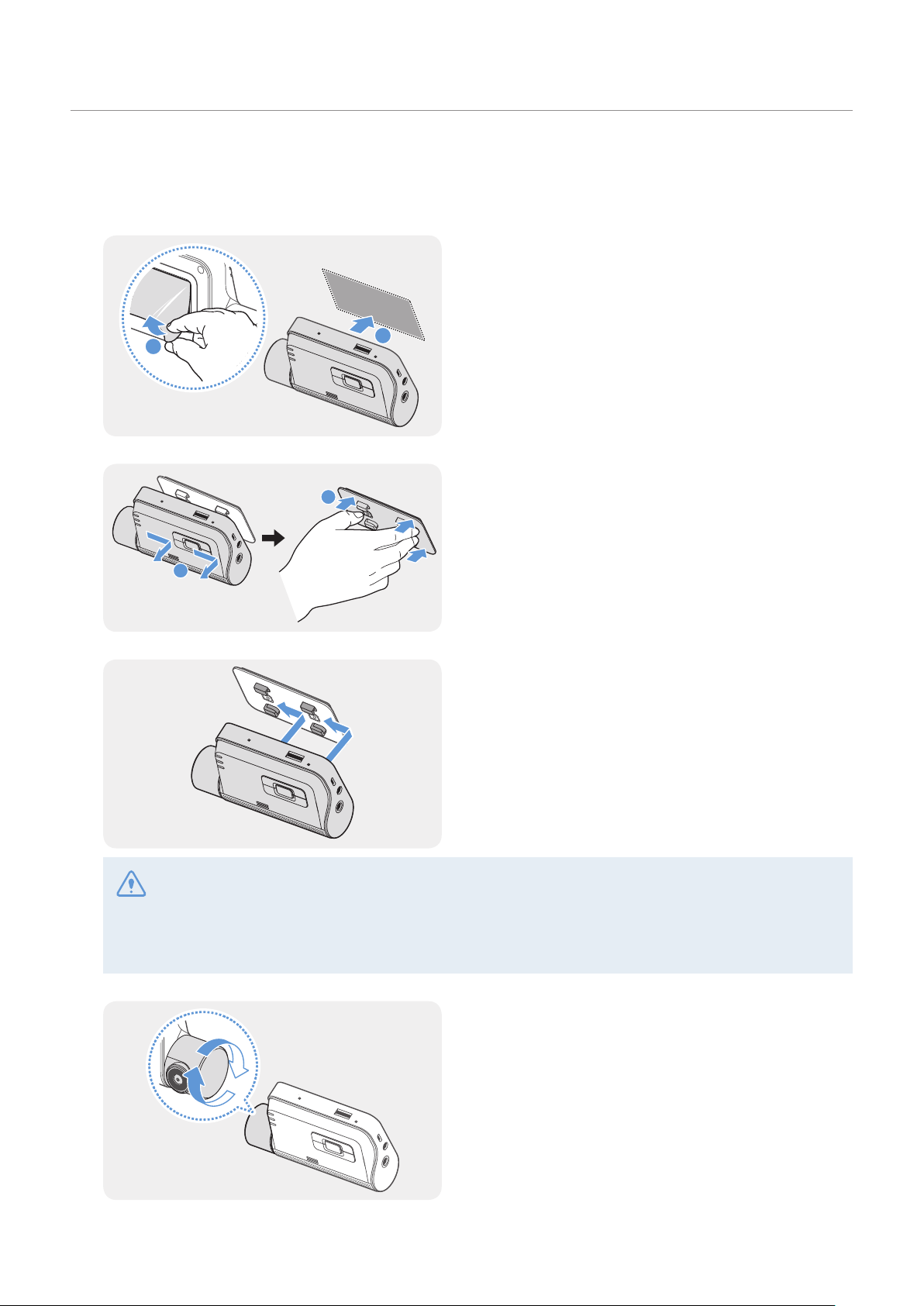

Remove the protective film from the adhesive mount,
and then press the mount to the installation location.
1
2
Remove the product from the mount and push the
2
mount against the windshield to ensure that the
mount is firmly fixed.
1
Align the product to the mount, and then slide it into
the locking position until you hear a click.
14
6
•The product may fall and be damaged during vehicle operation if it is not firmly fixed to the mount.
•If you need to remove the mount from the windshield to alter the installation location, be careful not
to damage the windshield’s film coat.
Set the vertical angle of the camera appropriately.
To confirm the camera angle, record a video after installation and check the video using the mobile
viewer or the PC viewer. If necessary, adjust the camera angle again.
For more information about the mobile viewer or the PC viewer, refer to "4. Using the mobile viewer" on
page 22 or "5. Using the PC viewer" on page 24.

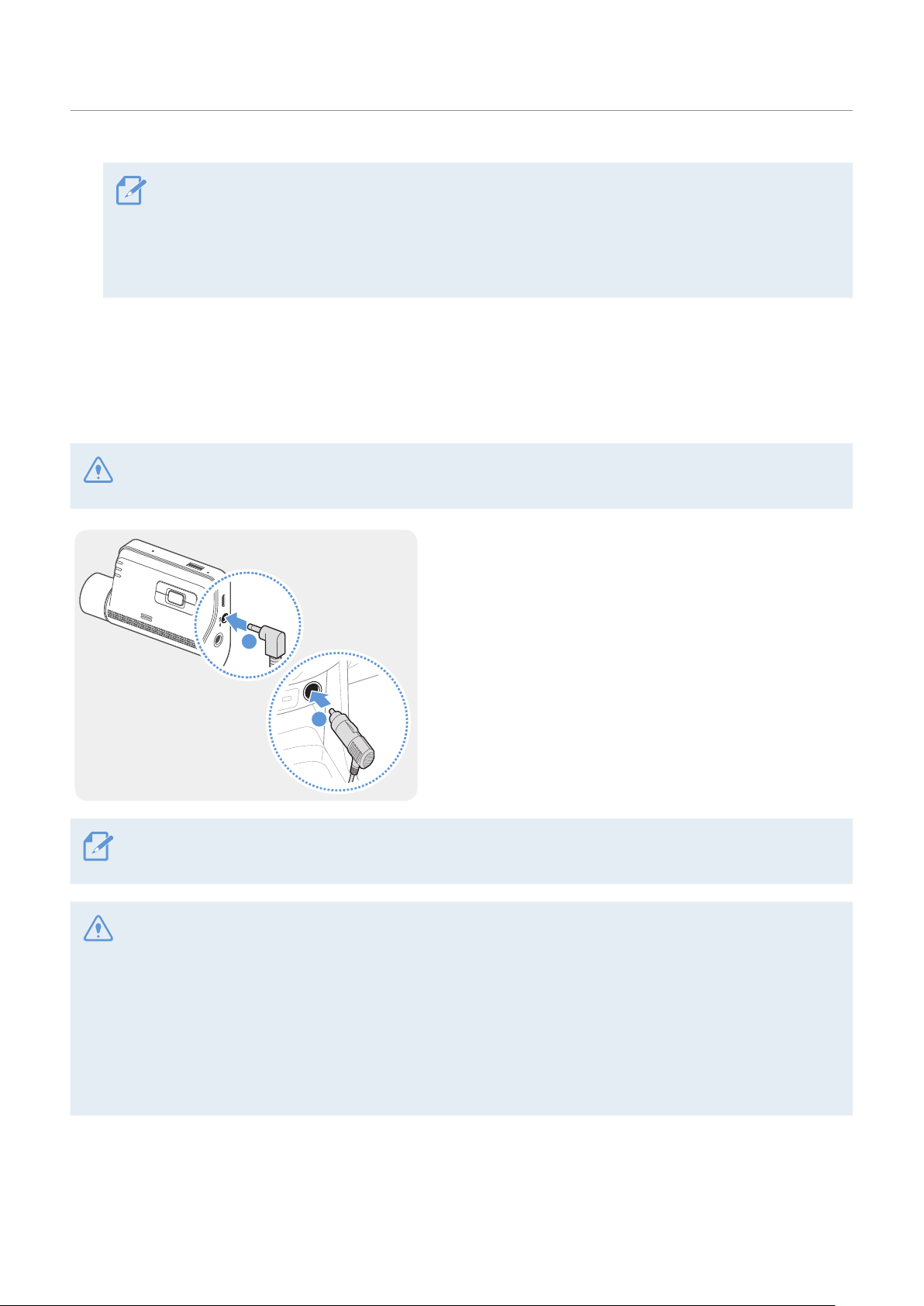

2.1.3 Connecting the power cable
When the engine and electrical accessories are turned off, connect the car charger.
The hardwiring cable (optional) must be professionally installed to the vehicle by a trained mechanic.
Connect the car charger to the product’s DC-IN power
port and insert the cigar jack into the vehicle’s power
socket.
1
2
Installing the product
The location and specifications of the power socket may differ by vehicle make and model.
•Use the authentic THINKWARE car charger. Use of third party power cables may damage the product and
result in electrical fire or electrocution due to the voltage difference.
•Do not cut or modify the power cable yourself. Doing so may damage the product or the vehicle.
•For safe driving, arrange the cables to prevent the driver's vision from being obstructed or interfering with
driving. For more information about arranging cables, visit www.thinkware.com.
15
Installing the product
2.2 Installing the rear camera (optional)
Refer to the following instructions to properly install the rear camera.

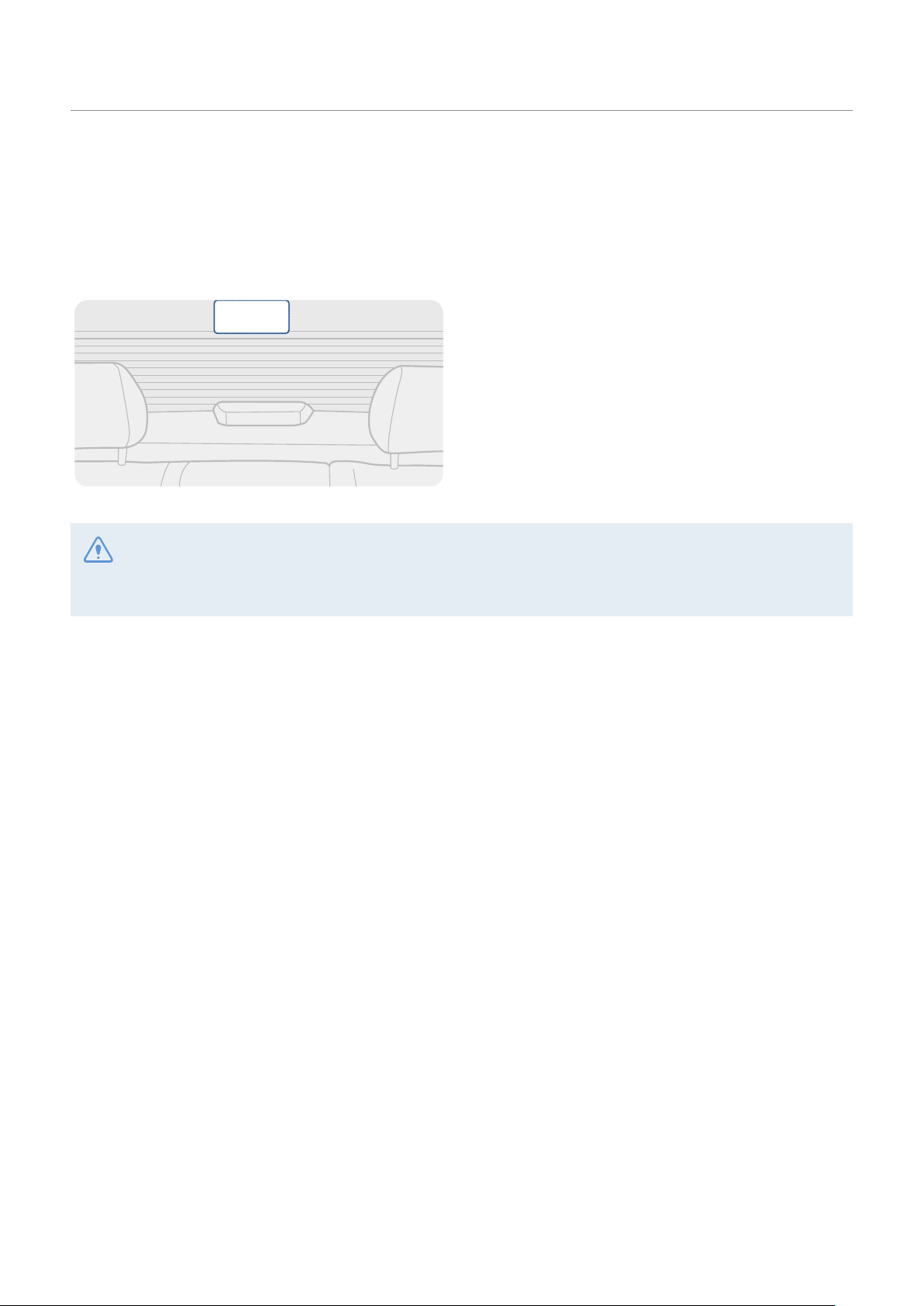

2.2.1 Selecting an installation location
Select a location on the rear windshield where there
is no defrost grid wire and the camera can record
the entire rear view.
•For vehicles with a sunshade attached to the rear windshield, you must select a location where using the
sunshade will not interfere with camera operation.
•The adhesive part of the rear camera should not touch the defrost grid.
16
Installing the product
2
1
THINKWARE
THINKWARE

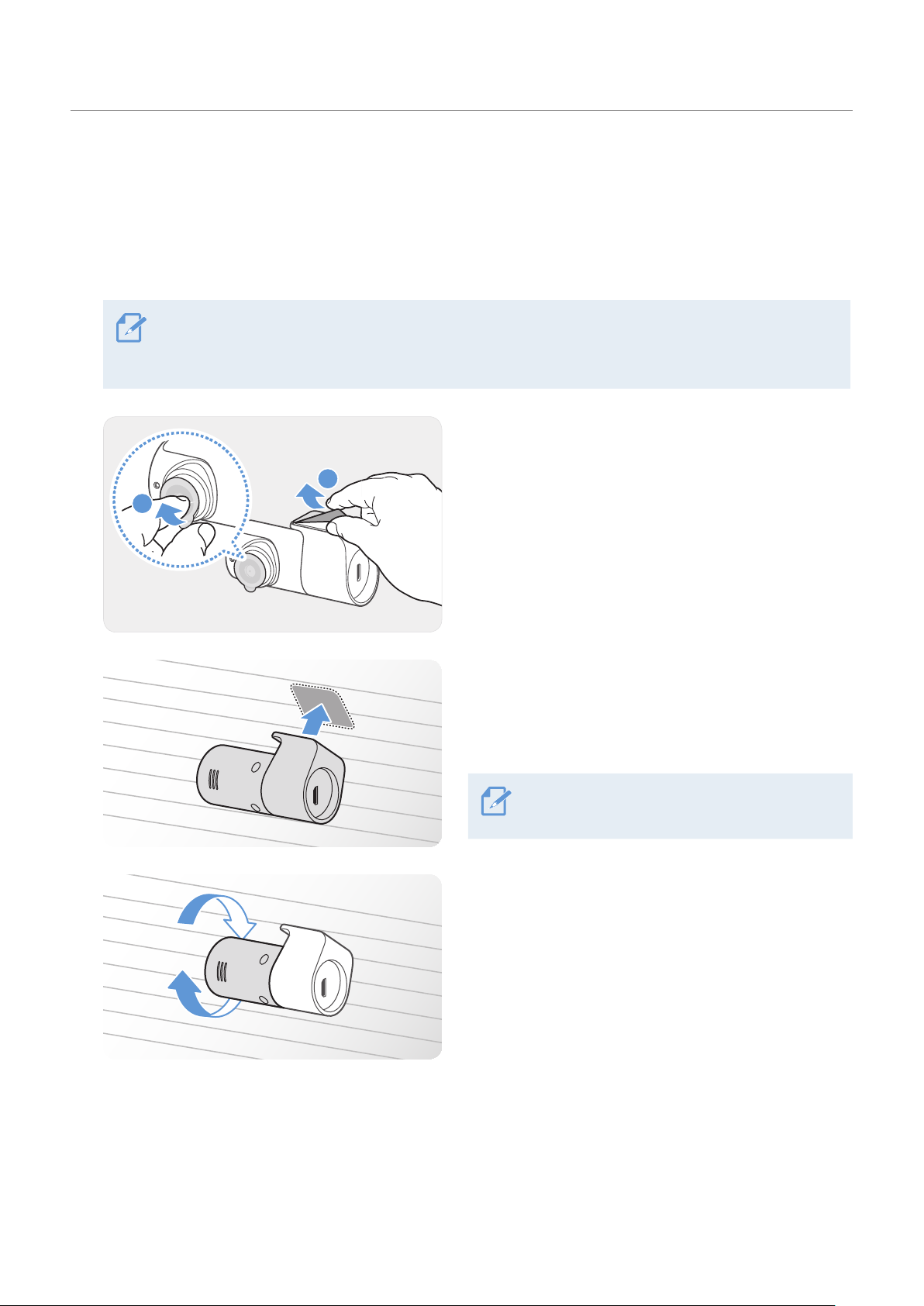

2.2.2 Securing the rear camera
Refer to the following instructions to secure the product to the installation location.
After determining the installation location, wipe the installation surface of the windshield with a dry
1
cloth.
Check the installation location before you secure the rear camera to the rear windshield. After
securing the rear camera to the windshield, it is hard to remove the camera or change the installation
location due to the strong adhesive.
2
3
Remove the protective film from the adhesive mount
and camera lens.
Attach the product with the THINKWARE logo facing
indoors and press the adhesive tape firmly to secure
the camera.
If the product is fixed in reverse, the rear view
will be recorded upside down.
4
Adjust the camera's vertical angle.
17
Installing the product
THINKWARE

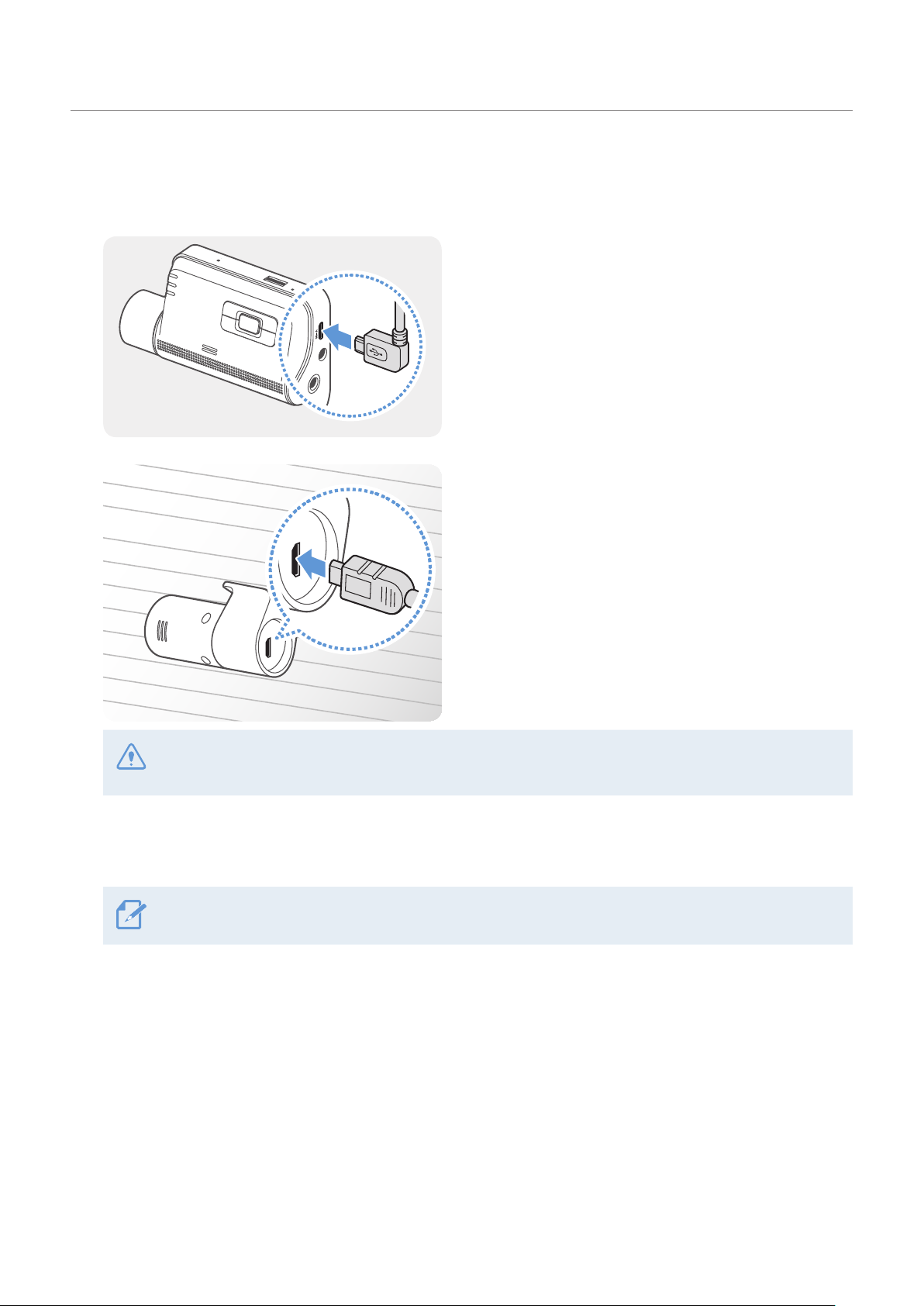

2.2.3 Connecting the rear camera cable
Power off the product and connect the rear camera cable to the front camera (main unit).
1
2
Connect one end of the rear camera cable to the
front camera’s V-IN port.
Connect the other end of the rear camera cable to
the rear camera's connection port.
For safe driving, arrange the cables to prevent the driver's vision from being obstructed or interfering
with driving.
Turn on the ACC or start the engine to check if the product is powered on. After the product is powered
3
on, the Status LED and the voice guidance will be turned on.
The product is powered on when the ACC mode is turned on or when the engine starts.
18
3. Using recording features
REC_2017_07_01_10_25_30_
REC_2017_07_01_10_25_30_R.MP4
3.1 Turning the product on or off
The product is turned on automatically and continuous recording starts when you turn on the ACC or start
the engine.
Wait until the product is completely booted up after turning it on, and then begin operating the vehicle. The
video recording does not begin until the product is completely turned on (booted up).

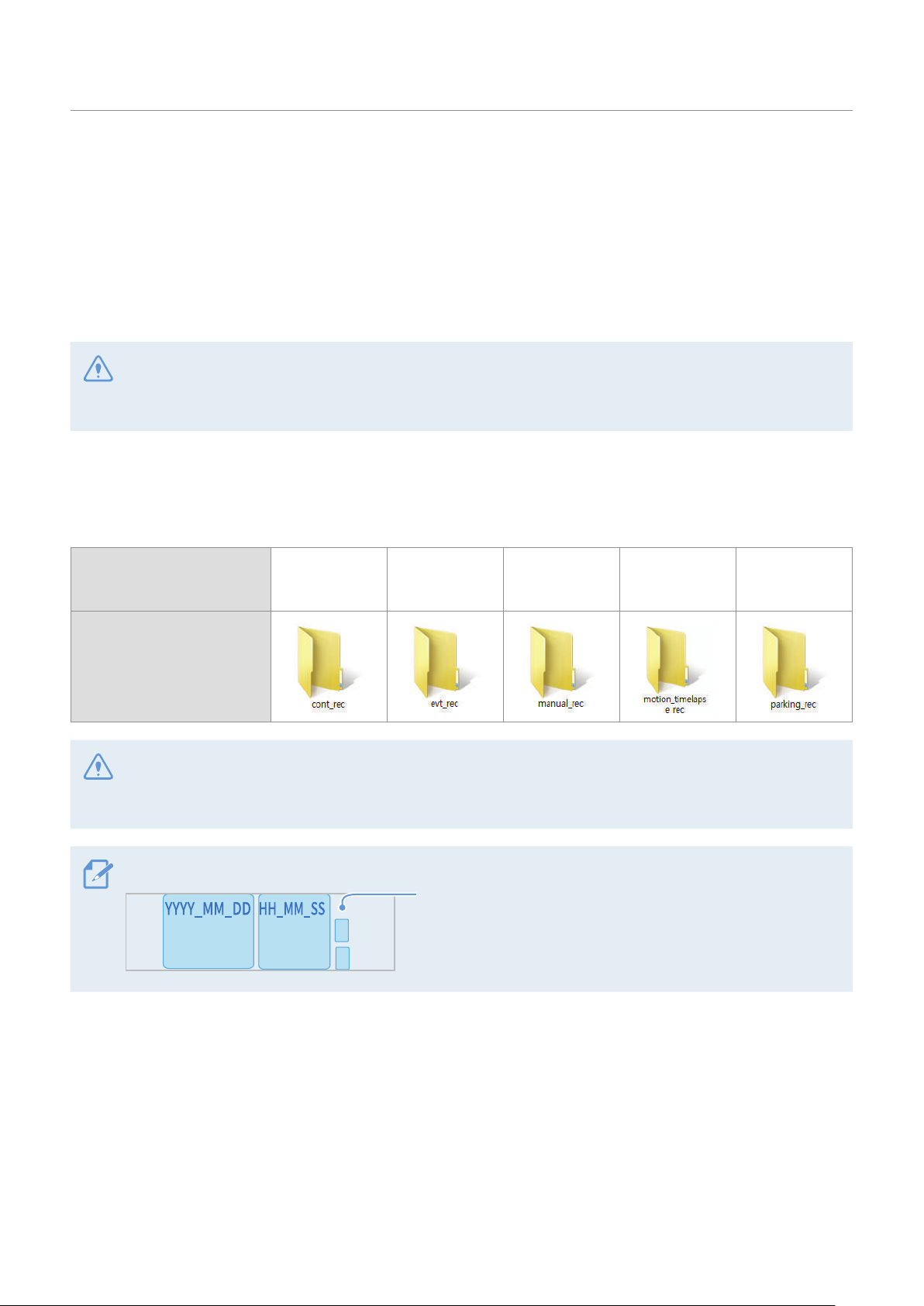

3.2 Learning about file storage locations
Videos are stored in the following folders according to their recording mode.
On the mobile viewer
In the memory card
Play videos on a computer only. If you play videos by inserting the memory card in devices such as a
smartphone or a tablet PC, the video files may be lost.
A file name is composed of the recording start date and time, and the recording option.
Continuous
F.MP4
Continuous
Incident
Recording conditions
•F: Front camera
•R: Rear camera (when optional
rear camera is equipped)
Manual
Recording
Motion
Detection
Parking Incident
3.3 Using the continuous recording feature
Connect the power cable to the product’s DC-IN power port and then turn on the vehicle’s electrical
accessories or start the engine. The status LED and the voice guide are turned on, and the continuous
recording starts.
19
Using recording features
During continuous recording, the product operates as follows.
Mode Operation description Recording LED (REC)
Continuous
recording
Incident
continuous
recording*
* When an impact to the vehicle is detected during continuous recording, incident continuous recording starts with a
buzzer sound.
•Wait until the product is completely booted up after turning it on, and then begin operating the vehicle. The
video recording does not begin until the product is completely turned on (booted up).
•When incident continuous recording starts, the buzzer sounds as a notification. This function saves you
time when checking the status LED to know the operating status of the product.
•To enable recording, you must insert a memory card into the product.
During driving, videos are recorded in 1 minute segments and stored
in the "cont_rec" folder.
When an impact to the vehicle is detected, a video is recorded for 20
seconds, from 10 seconds before the detection to 10 seconds after
the detection, and stored in the "evt_rec" folder.
(light on)
(flickers)
3.4 Recording manually
You can record a scene you want to capture while driving and store it as a separate file.
To start manual recording, press the REC button. Then, manual recording will start with the voice guide.
During manual recording, the product operates as follows.
Mode Operation description Recording LED (REC)
Manual
recording
When you press the REC button, a video will be recorded for 1 minute, from
10 seconds before to 50 seconds after pressing the button, and stored in
the "manual_rec" folder.
(flickers)
3.5 Using parking mode
When the product is connected to the vehicle via the hardwiring cable (optional), the operating mode is
switched to parking mode with the voice guide after the engine or electrical accessories are turned off.
•Parking mode operates only when the hardwiring cable is connected. The hardwiring cable (optional)
must be professionally installed to the vehicle by a trained mechanic.
•To use all recording modes, you must insert a memory card into the product.
•Depending on the battery charging status of the vehicle, the duration of parking mode may differ. If you
want to use parking mode for an extended period, check the battery level to prevent battery depletion.
20
Using recording features
If you do not want to use parking mode or you want to change the mode settings, from the mobile viewer,
>
click Dash cam Settings
Record Settings.
Refer to the following table to set the Parking Mode options.
Option Operation description Recording LED (REC)
No
motion
or impact
detected
Monitors movement in the area or impacts to the vehicle. Video
will be recorded only when motion or an impact is detected.
(light on)
Motion
Detection
Time
Lapse
Motion
detected
Impact
detected
No
impact
detected
Impact
detected
When a moving objects is detected while parking, a video is
recorded for 20 seconds, from 10 seconds before detection to 10
seconds after detection, and stored in the "motion_rec" folder.
When an impact is detected while parking, a video is recorded for
20 seconds, from the moment 10 seconds before detection to 10
seconds after detection, and stored in the "parking_rec" folder.
A videos is recorded at a rate of 2 fps for 10 minutes, compressed
into a 2-minute long file, and stored in the "motion_rec" folder.
Since the video file recorded with this option is small, you can
record a long video.
When an impact is detected while parking, a video is recorded for
100 seconds at a rate of 2 fps, from the moment 50 seconds before
detection to 50 seconds after detection, and stored in the "parking_
rec" folder after being compressed into a 20-second long file. (The
buzzer will sound.)
(flickers)
(flickers)
(light on)
(flickers)
OFF
You cannot use Motion Detection and Time Lapse at the same time.
If parking mode settings are changed, the videos recorded with the previous settings will be deleted. To
prevent data loss, back up all parking mode videos before changing parking mode settings.
The product is powered off when electric accessories and the
engine are turned off.
Off
21
4. Using the mobile viewer
You can view and manage the recorded videos and configure various product features on your smartphone.
One of the following environments is required to use the Thinkware dash cam viewer for F800 application:
•Android 4.0 (Ice Cream Sandwich) or higher
•iOS 7.0 or higher
4.1 Connect the product to a smartphone
On your smartphone, run Play Store or App store, and download and install Thinkware dash cam
1
viewer for F800.
Run Thinkware dash cam viewer for F800.
2
Tap Dash cam connection is required. at the bottom of the screen and follow the on-screen
3
instructions to connect the product to an smartphone.

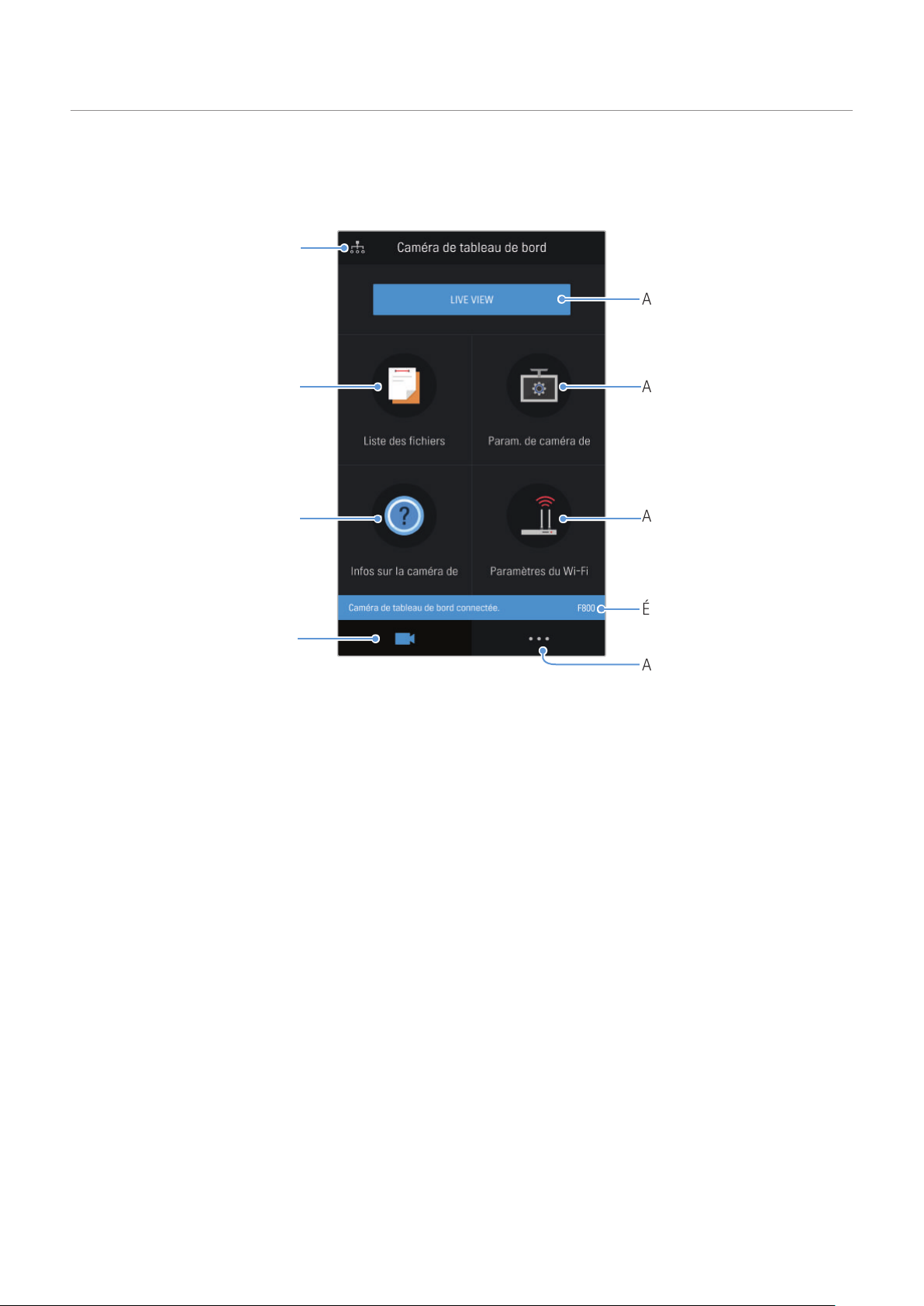

4.2 Mobile viewer screen layout
The following provides brief information about the mobile viewer’s screen layout.
View the connected
product or configure a
new connection.
View and play the
recorded videos.
View the product
information.
View main menu.
Move to the live view
screen.
View or configure the
dash cam settings.
View the connected WiFi network or add a new
network.
Displays the connection
status with the product.
22
View more menus for
downloading the latest firmware
or safety cameras data.
Using the mobile viewer
4.3 Playing recorded videos on the mobile viewer
Follow the instructions to play recorded videos.
The recording and the Advanced Driver Assistance System (ADAS) features of the product are disabled
while checking the video file list or playing a video on the mobile viewer.
On your smartphone, run the Thinkware Cloud application and connect the product to the smartphone.
1
From the home screen of the mobile viewer, tap File List. The categories will be displayed.
2
Tap the desired category. The video file list will appear.
3
If necessary, tap All, Front, or Rear to filter the video file list by camera.
4
Select the desired video.
5

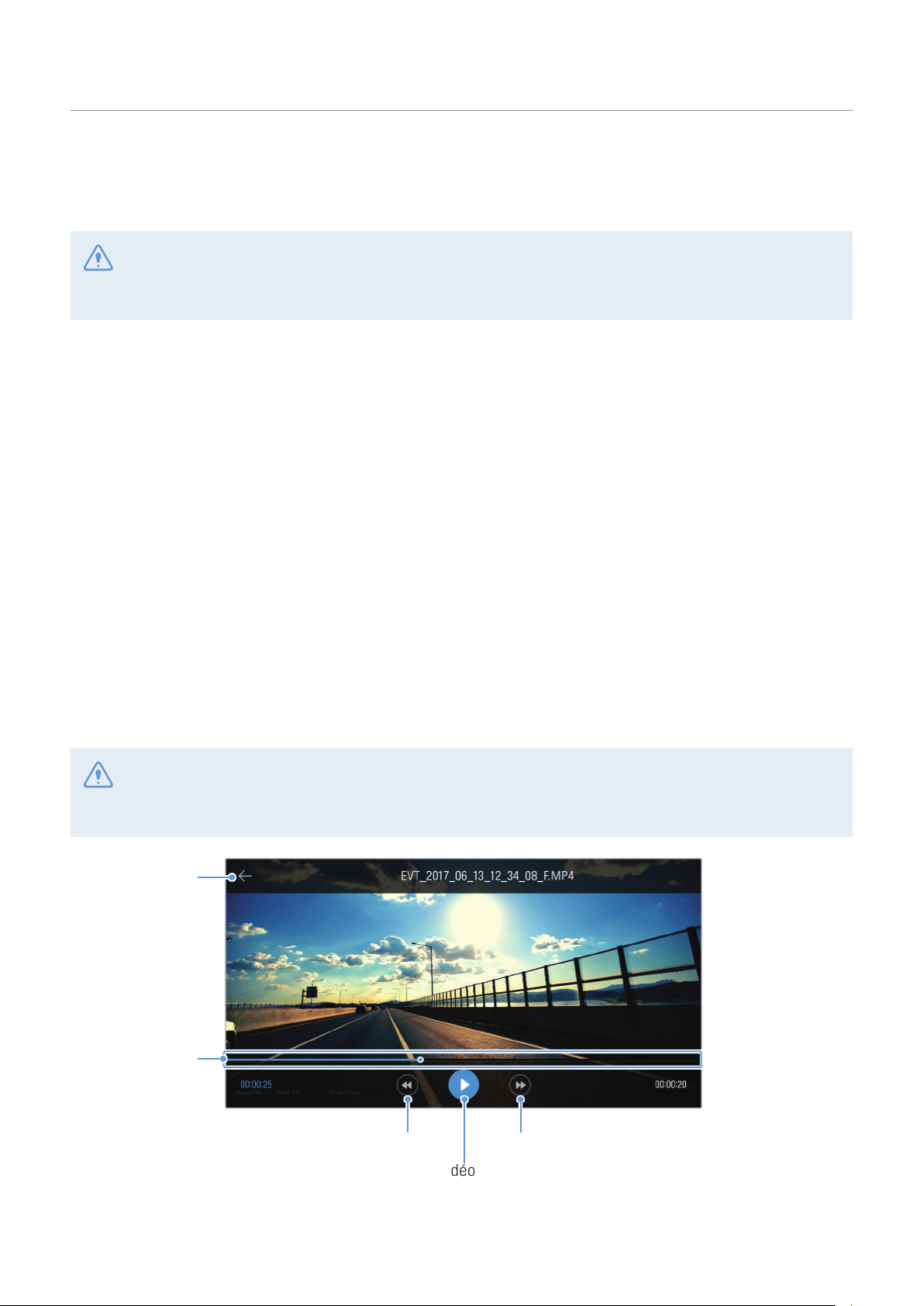

4.4 Video control menu overview
The following provides brief information about the mobile viewer’s video control menu.
The recording and the Advanced Driver Assistance System (ADAS) features of the product are disabled
while checking the video file list or playing a video on the mobile viewer.
Move to the file list
screen.
Displays the
playback status.
Play the next file.Play the previous file.
Play or pause the video.
23
5. Using the PC viewer
You can view and manage the recorded videos and configure various product features on your PC.
5.1 System requirements
The following are the system requirements for running the PC viewer.
• Processor: Intel Core i5, or higher
• Memory: 4 GB or more
• Operating system: Windows 7 or later (64-bit is recommended), macOS X10.8 Mountain Lion or later
• Other: DirectX 9.0 or higher / Microsoft Explorer version 7.0 or higher
The PC viewer will not operate properly on PC systems running an operating system other than those listed
in the system requirements.
5.2 Installing the PC viewer
You can download the latest PC viewer software from the THINKWARE website (http://www.thinkware.com/
Support/Download).
Windows
The PC viewer installation file (setup.exe) is stored in the root folder of the memory card that is provided
with the product. Follow the instructions to install the PC viewer on your PC.
Insert the memory card into a memory card reader connected to your PC.
1
Run the installation file, and complete the installation according to the instructions given in the
2
installation wizard.
After the installation is complete, there will be a shortcut icon to THINKWARE Dashcam Viewer.
24
Mac
Insert the memory card into a memory card reader connected to your Mac.
1
Move the file named "Dashcam Viewer.zip" to the desktop.
2
Right-click the Dashcam Viewer.zip and click Open With > Archive Utility.
3
The THINKWARE Dashcam Viewer opens.

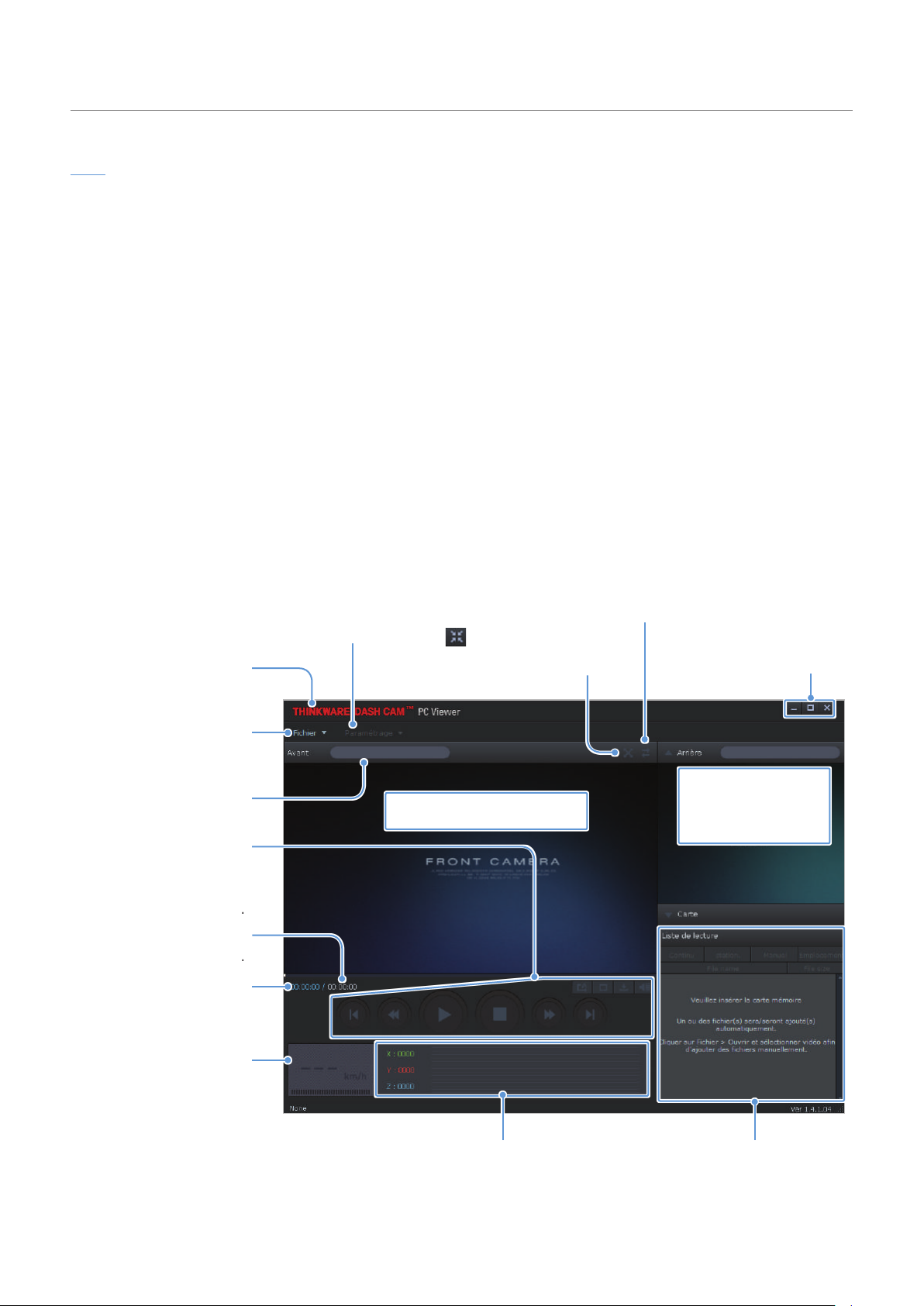

5.3 PC viewer screen layout
The following provides brief information about the PC viewer's screen layout.
Using the PC viewer
View or configure the dashcam
settings, and set the language
Visit the THINKWARE
website.
Open a file, or save a
video with a different
name.
Displays the video file
name.
Play or control a video.
Displays the progress of
video playback.
Displays the current and
total running time of the
current video.
for the PC viewer.
Display the current video in full
screen. Tap the Back button (
to return to the previous screen.
Displays the current video.
Switch between the front and
rear videos.
)
Minimize, expand, or close
the software.
Displays the GPS
information at the
time of recording.
Indicates the vehicle's
driving speed at the time
of recording.
Indicates the G sensor value
at the time of recording.
Displays the playlist.
25
Using the PC viewer
5.4 Playing recorded videos on the PC viewer
Follow the instructions to play recorded videos.
Turn off the product and remove the memory card.
1
Insert the memory card into a memory card reader connected to your PC.
2
Double-click the shortcut to the PC viewer ( ) to open the program. The video files in the memory
3

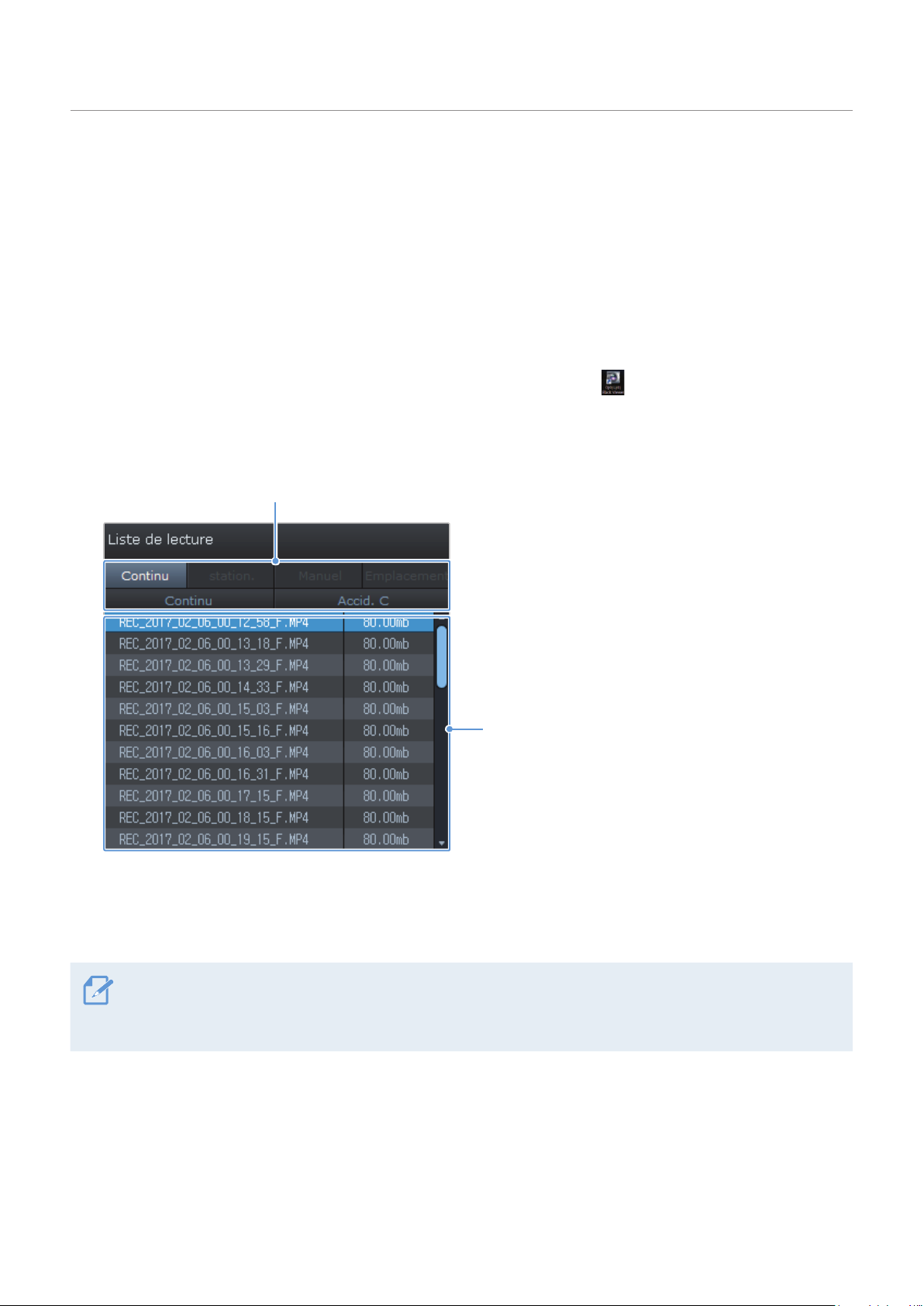

card will be automatically added to the playlist in the bottom-right corner of the PC viewer screen. The
playlist section layout is as follows.
Select a folder.
Displays a list of videos
in the selected folder.
Double-clickavideofileafterselectingavideofolder,orclickthePlaybutton(▶)afterselectinga
4
video file. The selected video file will be played.
If the video files on the memory card are not automatically added to the playlist when you run the PC viewer,
click File▼ > Open, select the removable storage device for the memory card, and click Confirm.
26

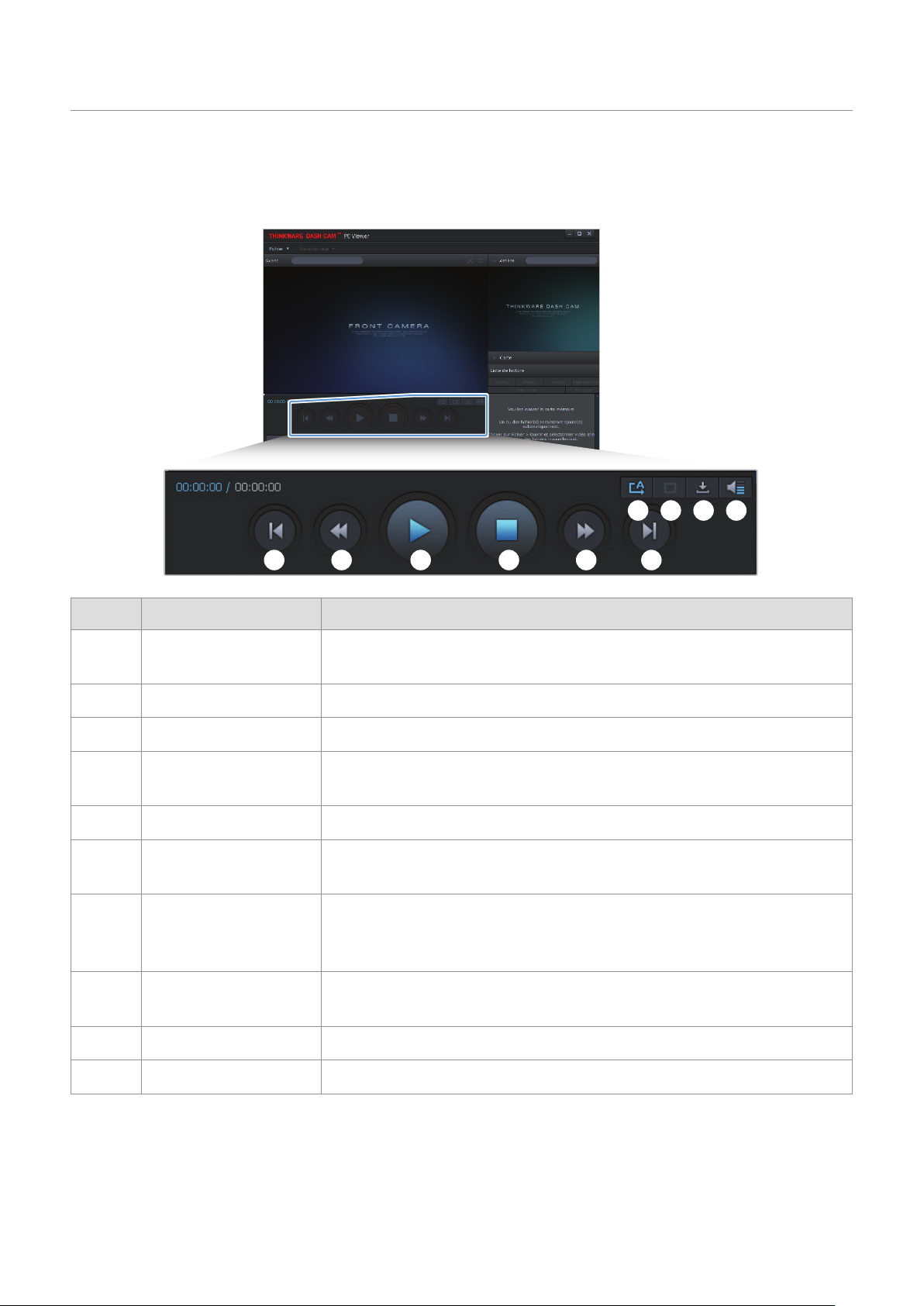

5.5 Video control menu overview
The following provides brief information about the PC viewer's video control menu.
➐ ➑ ➒ ➓
Using the PC viewer
➊ ➋ ➌ ➍ ➎ ➏
Number Item Description
➊
➋
➌
➍
➎
➏
➐
➑
➒
Play the previous file Play the previous file in the currently selected folder.
Rewind by 10 sec. Rewind the video by 10 sec.
Play/Pause Play or pause the selected video file.
Stop
Skip forward by 10 sec. Fast forward the video by 10 sec.
Play the next file Play the next file in the currently selected folder.
Enable/Disable playing
the next file in the
playlist
Enlarge/Reduce image Enlarge or reduce the size of the current video.
Save Save the current video on your PC.
Stop playing the current video. The progress bar will move to the beginning of
the video.
Enables or disables the feature for playing the next file in the playlist.
➓
Volume Adjust the volume of the current video.
27
6. Settings
You can set the product features according to your needs to your needs and preferences using the mobile
viewer or the PC viewer. The following procedures are based on the mobile viewer.
The product will stop recording while configuring settings on the mobile viewer.
6.1 Managing the memory card
6.1.1 Partitioning the memory card
You can partition the memory card to adjust the storage space for different types of video recordings. Refer
to the following instructions to partition the memory card.
From the mobile viewer, tap Dash cam Settings > Memory Card Settings.
1
From Memory Partition, select the desired memory partition type. The new setting is applied
2
automatically.
6.1.2 Formatting the memory card
This menu allows you to format the memory card that is inserted in the product. Refer to the following
instructions to format the memory card.
From the mobile viewer, tap Dash cam Settings > Memory Card Settings and click the Format button
1
under Formatting Memory Card.
From Formatting Memory Card, tap OK to proceed with memory formatting. All the data stored on the
2
memory card will be erased after the formatting. Tap Cancel to cancel memory formatting.
6.1.3 Configuring the video overwriting function
This menu allows new video files to overwrite the oldest video files in the storage reserved for each mode.
From the mobile viewer, tap Dash cam Settings > Memory Card Settings.
1
From Overwrite Videos, select the modes to allow video overwriting. The new setting is applied
2
automatically.
28
Settings
6.2 Setting the camera
You can adjust the brightness of the front and rear view or reverse left and right of the rear view.
6.2.1 Setting the brightness of the front camera
You can set the brightness of the front view recording. Refer to the following instructions to set the
brightness.
From the mobile viewer, tap Dash cam Settings > Camera Settings.
1
From Brightness-front, select Dark, Mid, or Bright. The new setting is applied automatically.
2
6.2.2 Setting the brightness of the rear camera
You can set the brightness of the rear view recording. Refer to the following instructions to set the
brightness.
From the mobile viewer, tap Dash cam Settings > Camera Settings.
1
From Brightness-rear, select Dark, Mid, or Bright. The new setting is applied automatically.
2
6.2.3 Reversing the rear view upside down
You can reverse the rear view image upside down. Follow the instructions to activate the feature.
From the mobile viewer, tap Dash cam Settings > Camera Settings.
1
From Rotate Rear Camera, select Enabled or Disabled. The new setting is applied automatically.
2
29
Settings
6.3 Setting recording features
You can set and adjust various features for recording, including the detection sensitivity for recording when
the product detects an impact during continuous recording.
6.3.1 Setting the continuous impact detection sensitivity
You can set the detection sensitivity for recording when an impact is detected while driving. When you set
the sensitivity, you must consider the road conditions, traffic situation, and your driving style.
From the mobile viewer, tap Dash cam Settings > Record Settings.
1
From Continuous Mode Incident Recording Sensitivity, select the desired sensitivity. The new setting is
2
applied automatically.
6.3.2 Setting the Super Night Vision feature
You can record bright and high resolution videos while parking at night if you activate the Super Night
Vision feature. Follow the instructions to select a recording mode to use the Super Night Vision feature.
From the mobile viewer, tap Dash cam Settings > Record Settings.
1
From Super Night Vision, select the desired recording mode to use the Super Night Vision feature. The
2
new setting is applied automatically.
6.3.3 Setting parking mode
You can set the operating mode of the product while the vehicle is parked. Follow the instructions to set
parking mode.
To use parking mode, you must install the hardwiring cable (optional). If continuous power is not supplied to
the product, the product will stop recording when the vehicle engine is turned off.
For more information about parking mode, refer to "3.5 Using parking mode"
From the mobile viewer, tap Dash cam Settings > Record Settings.
1
From Parking Mode, select the desired parking mode option. The new setting is applied automatically.
2
30
