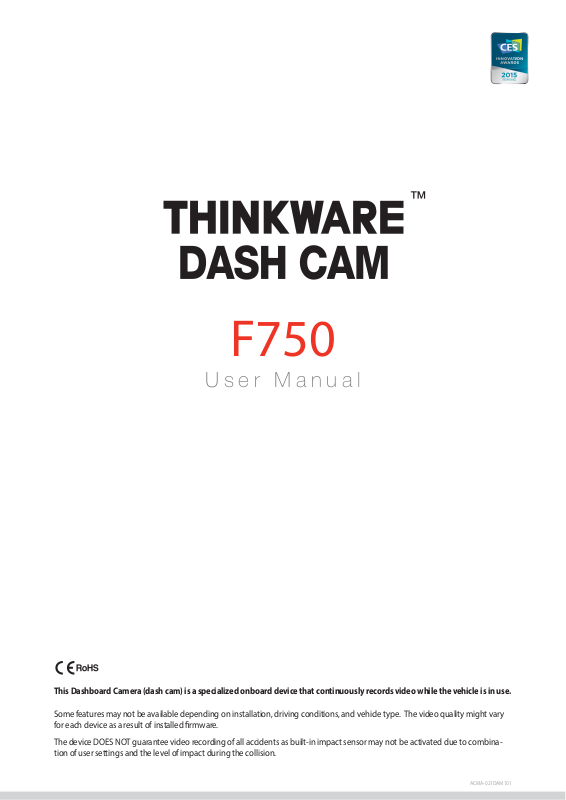

F750
U s e r M a n u a l
This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use.
Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary
for each device as a result of installed rmware.
The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combination of user settings and the level of impact during the collision.
ACMA-021DAM101
C o n t e n t s
Before Using THINKWARE DASH CAMTM F750 2
FCC Statement 2
Caution 3
01
02
Getting Started
1-1. In the Package 5
1-2. Optional Accessories 5
1-3. Product Overview 5
1-4. Inserting a Memory Card 7
1-5. Vehicle Installation 8
Basics
2-1. Turning the Device Power On/O 10
2-2. Road Safety Warning System 11
2-3. Lane Departure Warning System (LDWS) 12
2-4. Forward Collision Warning System (FCWS) 12
2-5. Recorded Files 13
2-6. Recording Videos While Driving 14
2-7. Recording Videos While Parked (Optional Accessory) 16
2-8. Manual Recording 17
2-9. Audio Recording 18
2-10. Formatting MicroSD Card 18
2-11. Initializing Device Settings 19
2-12. Upgrading Firmware 19
03
04
05
Mobile Application
3-1. Thinkware Dash Cam Mobile Viewer 20
PC Viewer Software
4-1. Thinkware Dash Cam PC Viewer 29
Device Information
5-1. Specications 34
Before Using THINKWARE DASH CAMTM F750
ⶺ
Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent
of THINKWARE.
ⶺ
Every eort has been made to ensure this Guide's accuracy. However, we cannot guarantee the accuracy
of the contents in this document as there may be technical errors, omissions, and/or future changes.
ⶺ
THINKWARE reserves the right to change or modify the product and the content of this manual at any time
without prior notice for product improvements.
ⶺ
Images contained in this user guide are illustrations for instructional purposes only and may dier from the
actual product.
ⶺ
Users do not reserve the right to use the product for purposes other than as specied in this user guide.
According to the Personal Information Protection Act and other related regulations, the user/owner may
be held liable if the video and/or conversation recorded by the device are distributed without their consent. Thus, special attention should be paid in using this product.
ⷅ
The MicroSD memory card should be tested for errors on a regular basis and as the memory card is a
consumable item, it will need to be replaced periodically.
ⷅ
THINKWARE is NOT responsible for any problems and/or damages that may occur from the use of disin-
genuous, modied, or unauthorized parts and accessories.
ⷅ
The device and the recorded videos are intended for personal use and the recorded videos should be
used for reference only.
ⷅ
The device does NOT guarantee video recording of all accidents as built-in impact sensor may not be
activated due to combination of user settings and the level of impact during the collision.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
ⶺ
Reorient or relocate the receiving antenna.
ⶺ
Increase the separation between the equipment and receiver.
ⶺ
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
ⶺ
Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: Any changes or modications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
FCC ID: 2ADTG-F750
2
01
Information to user :
Please be cautioned the changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
5IJTEFWJDFDPNQMJFTXJUI*OEVTUSZ$BOBEBhTMJDFODFFYFNQU344T0QFSBUJPOJTTVCKFDUUPUIFGPMMPXJOHUXP
DPOEJUJPOT
5IJTEFWJDFNBZOPUDBVTFJOUFSGFSFODFBOE
5IJTEFWJDFNVTUBDDFQUBOZJOUFSGFSFODFJODMVEJOHJOUFSGFSFODFUIBUNBZDBVTFVOEFTJSFEPQFSBUJPOPG
UIFEFWJDF
This Class B digital apparatus complies with Canadian ICES-003.
IC: 12594A-F750
Getting Started
3
Caution
Depending on the make and model of your car,
the power may be constantly supplied to the
dash cam even with the ignition turned o. This
may result in vehicle battery discharge.
This device is designed to record video while the
vehicle is in operation. The quality of the video
might be aected by weather conditions and the
road environment such as day or night, presence
of street lighting, entering/exiting tunnels, and
the surrounding temperature.
THINKWARE is NOT responsible for the loss of any
recorded video during operation.
Although designed to withstand high impact of
car collision, THINKWARE does NOT guarantee recording of accidents where the impact may cause
the device to be damaged.
Keep the windshield clean for optimal video qual-
ity.
If a foreign substance (e.g. ngerprints) is at-
tached to the lens, it may reduce the quality of the
recorded videos. Keep the lens clean all the time.
The specied operating temperature of this prod-
uct is -10°C to 60°C (14°F to 140°F) and storage
temperature is -20°C to 70°C (-4°F to 158°F). Ensure that the device is kept within these temperature ranges; otherwise, the device may not function as designed and at extreme temperatures,
permanent physical damage can result which is
not covered by warranty.
Avoid placing the device under direct sunlight.
Avoid using the device in extreme conditions
where the Product is exposed to high tempera-
ture and/or humidity.
Only use genuine accessories and peripherals
from THINKWARE or authorized THINKWARE deal-
er. THINKWARE does not warrant the safety and
compatibility from use of peripherals from other
manufacturers. Use genuine parts supplied by
THINKWARE.
Do not apply excessive force when pushing the
buttons on the device.
※7KLVDSSOLDQFHDQGLWVDQWHQQDPXVWQRWEH
FRORFDWHGRURSHUDWLRQLQFRQMXQFWLRQZLWKDQ\
RWKHUDQWHQQDRUWUDQVPLWWHU
$PLQLPXPVHSDUDWLRQGLVWDQFHRI㎝PXVW
EHPDLQWDLQHGEHWZHHQWKHDQWHQQDDQGWKH
4
SHUVRQIRUWKLVDSSOLDQFHWRVDWLVI\WKH5)
H[SRVXUHUHTXLUHPHQWV
Do not clean the Product using chemical cleaner
or solvents as it may damage plastic components.
Use soft, clean, dry fabric to gently wipe the Product.
Do not place or store the device where it can be
accessible by children and pets.
Do not disassemble the Product as it will void
product warranty and may also damage the product.
Handle with care. Drop, shock, and mishandling
the Product may result in malfunction and/or
damage to the device.
Do not operate this device while driving.
Install this device in a location where it has unob-
structed view of the road but does not interfere
with the driver’s view. Check with your local and
regional laws before mounting to windshield.
The device and/or installation parts have moving
parts and may shift in extreme road conditions
such as unpaved road. Check frequently to ensure
the device is positioned as instructed in this guide.
Do not operate or handle power cable with wet
hands.
Do not use a damaged power cable.
Keep the power cable away from heaters or other
hot objects.
Check that power cable with correct connector is
used and the connections are secure and rmly in
place.
Do not pull, insert, or bend the power cable using
excessive force.
Do not place heavy objects on the device and the
power cable.
Do not modify or cut the power cable.
THINKWARE does not guarantee that devices or
peripherals not authorized by THINKWARE will be
compatible with its Product.
Do not attempt to insert foreign objects into the
device or power cable.
Do not spill or spray liquid into the device as it
may cause malfunction, re, or electric shock.
This device is intended to be used inside the ve-
hicle only.
1. Getting Started
This unit was tested with shielded cables on the peripheral devices.
Shielded cables must be used with the unit to ensure compliance.
1-1. In the Package
01
Getting Started
Main Dash Cam Unit Mount with 3M tape
(1ea)
MicroSD memory card with adapter
(consumable)
USB MicroSD card
1-2. Optional Accessories
reader
Car Charger Adhesive Cable Holder
(5ea)
Quick Start Guide/Warranty/
User Manual (stored in the MicroSD card)
Hardwiring Cable Rear View Camera
5
1-3. Product Overview
982
4
Rear
view
Top
view
5
6 7
13
14
1
3
V-IN
DC-IN
RESET
15
Front
view
Left
view
No. Name Description
17
10
11
12
micro SD
MIC
16
1 Camera Lens Front facing camera for video recording
2 Mount Connector Connects to the windshield mount
3 Security LED
LED light that is used to visually indicate that the vehicle is equipped
with dash cam which is in operation
4 Wi-Fi LED Indicates connection status of Wi-Fi device (blue when connected)
5 GPS Receiver LED Indicates connection status of built-in GPS antenna
6 Operation Status LED Indicates the device operating status
7 Format Button Press and hold for 3 seconds to initiate memory card format
8
9
Power
Wi-Fi (
Button
) Connection
Button
Press and hold for 3 seconds to turn the device on/o
Press briey : Connecting with Wi-Fi password
Press and Hold (5 seconds or longer) :
Connecting with WPS (Wi-Fi Protected Setup)
10 REC Button Initiates manual recording
11
Voice Recording
Button
Activates/deactivates audio recording
12 Speaker For voice guidance and alert/notication sounds
13 V-IN Socket
Connects to rear view camera. (Optional rear view camera is not included and requires separate purchase)
14 DC-IN Connects to power cable
15 Reset Press to force the device to reboot
16 Memory Card Slot Location for the memory card
17 Microphone Records audio along with video
6
01
MIC
micro SD
1-4. Inserting a Memory Card
1-4-1. About Memory Cards
X UHS MicroSD card must be used with a storage capacity of 16GB, 32GB, or 64GB.
It is strongly recommended that minimum 16GB memory card is used for full HD recording.
X The MicroSD card should be formatted every 2 weeks to maximize the lifetime of the memory card.
1-4-2. Installing a MicroSD Card
Inserting the memory card
Open the slot cover and insert the MicroSD card into
the slot with the metal contacts facing up toward the
mount connector and push until it locks into place.
Removing the memory card
Press the end of MicroSD card until it
clicks out from the slot. Pull out the
MicroSD card and close the slot cover.
Getting Started
MicroSD card
Do not apply excessive force on the MicroSD card or attempt to insert it in the wrong direction as it may
cause damage to the MicroSD card and the card slot.
Cautions
The MicroSD card should be tested for errors on a regular basis and as the memory card is a consumable
item, it should be replaced periodically.
THINKWARE is NOT responsible for any problems and/or damages that may occur from not using genu-
ine or authorized parts and accessories. It is strongly recommended that THINKWARE memory cards are
used to minimize memory card error.
Ensure that the device is completely o before removing the MicroSD card to avoid damages to the
memory card.
To prevent loss of important data, frequently copy recorded video from MicroSD card to another storage
device such as personal computer for back up.
7
1-5. Vehicle Installation
1-5-1. Connecting the Device and the
Mount
Align the mount with the connector (A), and slide it
towards (B) until it clicks into place.
Remove the protective lm from the camera lens.
1-5-2. Installing the Device
ⴘ
Clean the area on the windshield where the dash
cam will be installed.
ⴙ
With dash cam main unit still attached to the
mount, remove the protective tape from the back
of the mount.
ⴚ
Attach the adhesive side of the mount on the wind-
shield where it has unobstructed view of the road
but does not interfere with the driver’s view.
TIP
The camera is located on the left side of the main unit so
install the dash cam on the right side of the center behind
the rearview mirror.
TIP
To ensure that the mount is safely secured, it is recommended that you separate the device from the mount after installation and press the mount towards windshield
for 5 minutes to maintain pressure. Allow 24 hours until
the adhesive on the mount has set before connecting the
dash cam.
8
01
1-5-3. Connecting to power
Connect the Micro USB end of the power cable
to DC-IN socket of the device.
Plug the car charger adapter end of the power cable
into a 12V DC vehicle power socket.
Arrange the wire by using the adhesive cable
holders as shown below.
ⴛ The dash cam should be facing forwarding
and is level with the vehicle and the road.
Adjust the camera using the level guiding line
marked on the side of the device.
TIP
Adjust the camera to have the horizontal indica tor on the
dash cam to be level with the vehicle and the road.
TIP
Getting Started
Guiding Line
After installation, run the dash cam to record videos and
check the videos using Thinkware Dash Cam Viewer (Mobile
or PC) to verify camera position. Adjust the camera angle if
necessary.
Hide the extra wires by placing the wires
in the space between the ceiling of vehicle
Recommended location for adhesive wire clips are illustrated
in the diagram
and the top of the windshield.
For more information on the power cable routing instruction, please visit Thinkware homepage
(http://thinkwaredashcam.com)
Preventing Vehicle Battery Discharge
Depending on the make and model of your car, the power may be supplied to the dash cam
even with the ignition turned off. This may result in vehicle battery discharge.
Some vehicles with multiple power sockets might be equipped with at least 1 outlet that does
not shut off the power with the ignition. Test each power outlet to ensure you connect to an
outlet that shuts off with vehicle engine.
9
2. Basic Operations
2-1. Turning the Device Power On/O
X Once connected to the vehicle, the device will automatically turn on and o with vehicle ignition.
: Red
: Green
: Blue
Blinks in all 3 colors
Power cable for vehicle
X To manually turn the device on/o, press and hold the Power button ( ) for 3 seconds.
Press and hold for 3
seconds
10
02
2-2. Road Safety Warning System
Using embedded GPS and road data, related road safety information will be notied to the driver.
X Initializing GPS
Built-in Internal GPS can be reset by selecting "Information > GPS Info > Reset GPS” on the Thinkware
Dash Cam Mobile Viewer.
GPS LED
Cautions
This feature may not be available in some countries.
Basics
GPS may be aected by weather conditions, satellite signal, and/or surrounding geographical features.
Coated windshields can interfere with GPS signal which may result in poor or blocked GPS reception.
Other electronic devices and/or equipment may interfere with GPS signal if placed too close to the dash
cam.
11
2-3. Lane Departure Warning System (LDWS)
Audible warning noties the driver in real time when the vehicle is leaving its lane. This warning is only enabled when the vehicle is traveling above 50km/h (approx 30mph)
* Default setting : 80km/h (approx 50mph)
X LDWS Setting
1. Verify that the GPS is connected by checking for the green light on GPS LED.
2. Enable LDWS feature by selecting "Dashcam Settings > Road safety settings
> LDWS" on the Thinkware Dash Cam Mobile Viewer.
GPS LED
2-4. Forward Collision Warning System (FCWS)
Audible warning noties the driver in real time to avoid possible rear-end collision when the vehicle is ahead
is slowing or stopped. The warning is only enabled when the vehicle is traveling above 30km/h (approx 20
mph)
X FCWS Setting
1. Verify that the GPS is connected by checking for the green light on GPS LED.
2. Enable FCWS feature by selecting "Dashcam Settings > Road safety settings
> FCWS" on the Thinkware Dash Cam Mobile Viewer.
GPS LED
12
02
2-5. Recorded Files
X Recorded video les are saved in the folder by date and hour in the MicroSD card.
Files are created based on the time when the videos are recorded.
Year Month Day Hour
Second
Minute
As a loop-recording surveillance product, the dash cam will
automatically overwrite oldest le in the memory card once
the memory is full. However, event recording and manual
recording videos are stored in separate locations and will be
protected from le overwriting.
Front view recording
Rear view recording
(optional rear view
camera must be
installed)
Basics
Cautions
Do not use the MicroSD card as an external storage device.
Do not tamper with the system les within the in the MicroSD card.
This may result in unexpected behavior during operation.
13
2-6. Recording Videos While Driving
2-6-1. Continuous Recording Mode
X Videos are recorded in 1 minute segments and saved as les
in the MicroSD card under the folder named “cont_rec”.
Operation Status LED
Voice recording is turned on. Voice recording is turned o.
Blue light on Blue light on Blue light onGreen light on
2-6-2. Incident Recording During Continuous Recording Mode
X When the dash cam detects impact, it will immediately store
the 10 seconds prior and after the impact.
X The 20-second impact recording is saved on the MicroSD card
under the "evt_rec" folder. Note that the dash cam will detect
impact as incident only if the level of impact is greater than
the sensitivity of the G-sensor set in the user conguration.
Operation Status LED
Voice recording is turned on. Voice recording is turned o.
Blue light blinkingBlue light on Blue light blinkingGreen light on
Cautions
Driving over speed bumps, manholes, or uneven roads at high speeds can also be detected as an impact
and may trigger incident recording.
The device can record up to 1 minute of incident recordings in the case of continuous impacts or multi-
ple accidents.
The duration of incident footage recorded may vary according to the device settings.
14
02
2-6-3. Dual SaveTM (Internal Memory Backup)
X Dual Save is a Thinkware proprietary technology that utilizes built-in memory as secure backup in addition
to MicroSDmemory card. Dual Save technology guarantees incident video recording using internal memory in case of an accident that causes damage to the MicroSD memory card.
Press and hold REC button and Voice Recording ( ) button at the same time for 3 seconds to copy inci-
dent recording from MicroSD memory card to internal Dual Save memory.
When Dual Save is activated, it will immediately store the previous 4 seconds prior to impact and start
recording video for next 2 seconds for total of 6 second video clip.
Operation Status LED
Green light blinking
O
Basics
Cautions
Dual Save technology saves duplicate copy of recorded video for secure backup to the internal memory
so the internal memory life span may be aected by G-sensor user setting, road conditions, and driving
behaviorwhich directly impact frequency of incident recordings.
Driving over sspeed bumps, manholes, or uneven roads at high speeds can also be detected as an impact
and may trigger incident recording.
Professional product service is required when replacing the internal memory.
15
2-7. Recording Videos While Parked (Optional Accessory)
This feature is available only when the dash cam has been hardwired direct to the vehicle battery.
Separate purchase is required for the hardwiring cable accessory and installation is required.
2-7-1. Incident Recording
X When the dash cam detects impact while parked, it will im-
mediately store the 10 seconds prior and after the impact.
The 20-second impact recording is saved on the MicroSD card
under the "evt_rec" folder.
Operation Status LED
Voice recording is turned on. Voice recording is turned o.
Blue light blinkingBlue light on Blue light blinkingGreen light on
Cautions
The device can record up to 1 minute of incident recordings in the case of continuous impacts or multiple
accidents.
The duration of incident footage recorded may vary according to the device settings.
2-7-2. Motion Detection Recording
The dash cam and the optional rear view camera are both equipped with motion detectors which are used
to detect motion that initiates video recording while the vehicle is parked.
X When the dash cam detects motion while parked, it will immediately store the previous 10 seconds prior
to the activation of motion detection start recording video for the next 10 seconds (Delete this phrase and
start new bullet)
The 20-second motion detection recording is then saved on the MicroSD card under the folder named "mo-
tion_rec".
Operation Status LED
Voice recording is turned on. Voice recording is turned o.
Blue light blinkingBlue light on
Blue light blinkingGreen light on
Cautions
ᵝ₉༉ᔍᬊᵲᱥᬱLFZෝᱽ⦽݉ัʑ᮹LFZ۵࠺᯲⦹ḡᦫܩ݅
16
02
2-8. Manual Recording
In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to capture scenery and/or places while driving. This feature can also be used to save video as witness where the
installed vehicle is not directly involved in an accident. Video les saved during manual recording mode are
stored in a separate location on the memory card and will be protected from video overwriting in continuous
recording mode.
X Briey press the REC button to start recording. The device
will record video for 1 minute (10 seconds before and 50
seconds after) as of the time when the button is pressed.
The recorded video will be saved under the “manual_rec”
folder.
X Note that when manual recording is initiated, the previous
10 seconds prior to pressing the button will be saved so
even if you just missed a scene, you can still capture and
safely store the video by initiating manual record within 10
seconds of the event.
Basics
Press Briey
Operation Status LED
Voice recording is turned on. Voice recording is turned o.
Blue light blinkingBlue light on Blue light blinking
Green light on
Cautions
When the allocated storage for manual recording videos is full, oldest video le will be replaced by the new
recorded video.
17
2-9. Audio Recording
X Briey press the Voice Recording ( ) button to turn the audio
recording on or o.
Cautions
Users do not reserve the right to use the product for purposes other than as specied in this user guide.
According to the Personal Information Protection Act and other related regulations, the user/owner may
be held liable if the video and/or conversation recorded by the device are distributed without their consent. Thus, special attention should be paid in using this product.
Press Briey
2-10. Formatting MicroSD Card
X Press and hold the FORMAT button for 3 seconds to initiate memory card format.
Operation Status LED
Green light blinking
O
18
02
2-11. Initializing Device Settings
X Press and hold REC and FORMAT buttons simultaneously to reset the device settings to default factory
settings.
Operation Status LED
OGreen light on
2-12. Upgrading Firmware
Basics
X The system will automatically be updated if the MicroSD card contains the rmware upgrade le.
The device restarts automatically after the upgrade has been completed.
X Make sure your device is always up to date with latest rmware.
Please check back frequently at THINKWARE website (www.thinkware.com) for the latest rmware updates.
X Dash cam rmware upgrade directly from the smartphone is available when using Thinkware Dash Cam
Mobile Viewer for iOS
Operation Status LED
Green light blinking Green light blinking
19
3. Mobile Application
3-1. Thinkware Dash Cam Mobile Viewer
Thinkware Dash Cam Mobile Viewer App is available through Google Play and the App Store from iTunes.
Mobile App device OS version requirements: Android 4.0 (Ice Cream Sandwich) or higher, iOS 7.0 or higher.
For iOS devices, Wi-Fi settings can only be accessed using the smartphone or tablet settings.
3-1-1. Connecting with WPS
ⴘ
Download and install Thinkware Dash Cam Mobile Viewer application.
ⴙ
Press and hold Wi-Fi ( )
ⴚ
Select "WPS" button on the Thinkware Dash Cam Mobile Viewer application to automatically connect to
the Thinkware dash cam using Wi-Fi. (takes approximately 20~30 seconds)
button for more than 5 seconds on the dash cam to enter WPS connection mode.
: Retry Wi-Fi search
For Android devices, WPS is supported for Android
versions 5.0 (Lollipop) and higher.
ⲼWPS, Wi-Fi Protected Setup, is a feature that lets the user wirelessly connect to the the device using Wi-Fi in
a secure and easy way.
.
Press and hold for 5
seconds
ⲼDash cam will automatically exit WPS connection mode if not connected within 2 minutes.
20
03
3-1-2. Connect Wi-Fi with Password
ⴘ
Download and install Thinkware Dash Cam Mobile Viewer application
ⴙ
Press briey the Wi-Fi button on the dash cam to enter Wi-Fi connection mode
ⴚ
(Make sure to turn on the Wi-Fi in the device setting for iOS devices) In the Thinkware Dash Cam Mobile
Viewer application, turn on the Wi-Fi option, select “thinkware” from SSID list, and enter password as
“123456789”
Password is only required during rst time you try to connect.
The device will auto-connect in subsequent connections.
Press Briey
Mobile Application
ⲼDash cam will automatically turn o the Wi-Fi connection mode if not connected within 1 minute.
Cautions
Dash cam will stop video recording while being accessed using Thinkware Dash Cam Mobile Viewer.
The distance range between the dash cam and connecting smart device is approximately 10 meters (3.3ft)
in an open eld environment
Use of ADAS features (road safety warning system) are restricted while being accessed using Thinkware
Dash Cam Mobile Viewer.
Only the selective keys and buttons will work on the connecting device (not including the power button)
when using Thinkware Dash Cam Mobile Viewer.
21
3-1-3. Thinkware Dash Cam Mobile Viewer Main Menu
Following section describing the Thinkware Dash Cam Mobile Viewer menu is based on Android devices.
Layouts and screen captures might be slightly dierent for iOS devices.
X Live View
Audio recording
on/o
Back
Switch to front/rear view
(appears only when
the rear view camera is
connected)
Live View
Current speed/voltage
Current date/time
GPS status
22
03
3-1-4. Video List
X Continuous Recording : Lists loop recording videos during continuous mode
(in 1 minute segments)
X Incident in Continuous Mode : Lists incident recording videos during contin-
uous mode
X Motion in Parking Mode : Lists motion detection recording videos during
parking surveillance mode
X Incident in Parking Mode : Lists incident recording videos during parking
surveillance mode
X Manual Recording : Lists manual recording videos initiated by selecting man-
ual recording button
X
Recording List Menu
Mobile Application
Download : Copies selected video le to the device from the dash cam
MicroSD card (Wi-Fi must be connected)
Video Info : Displays date/time, le name, recording type, size, duration,
video quality for the selected video le
Delete : Removes the selected video le
23
X Video Playback
Front view videos
Rear view videos
Zoom in/out to expand video up to
200% (commonly supported on the
device with pinch in/out gestures)
Auto loop
Previous
Fastforward10
seconds
(tap and hold for contin-
uousfast forward by 10
seconds)
Play/Pause
Video playback
progress bar
Switch between front/
rear view
Next
Rewind 10 seconds
(tap and hold
for continuous rewind by 10
seconds)
24
03
3-1-5. Memory Management
X
Memory card management
Memory partition setting :
Sets how storage space on the memory card will be allotted for each
recording mode (Entire memory card will be formatted when the
memory partition setting is changed)
Memory card format :
Formats the MicroSD card. Formatting will completely erase all video
les stored in the memory card
Ⲽ It is recommended that you back up data before formatting the
memory card.Once you format the memory card, all data will be deleted and cannot be restored.The method for formatting a MicroSD
card might vary depending on the computer operating system.
Video overwrite setting :
Sets the overwriting option which will allow new video les to over-
write oldestvideo in storage reserved for each mod
Mobile Application
X
Dual Save Video
Dual Save Video : Lists Dual Save videos
Copy to memory card : Copy all Dual Save videos saved on the inter-
nal memory to the MicroSD card
Delete Dual Save : Delete all Dual Save videos saved on the internal
memory
25
3-1-6. Dashcam Settings
X
Camera Settings
Front/Rear Camera Resolution :
Sets the video recording resolution for front/rear camera
Front/Rear Camera brightness :
Sets the video recordingbrightness for front/rear camera
Wide Dynamic Range :
Sets the WDR mode to record clear videos under large variation of-
backlightingillumination
X
Record Settings
Continuous recording impact sensitivity :
Sets the impact sensitivity during continuous recording mode. It is
recommended that you set the sensitivity according to vehicle type.
High sensitivity setting is recommended for cars with softer ride such
as luxury sedans; while low sensitivity setting is recommendedfor cars
such as performance cars, trucks, or SUVs which tends to have stier
suspension settings.
Parking mode :
Monitors vehicle ignition status to automatically convert to parking
mode when the vehicle engine is turned o. The dash cam must be
hardwired to the vehicle for the use of parking mode.
Parking mode impact sensitivity :
Sets the impact sensitivity during parking mode
Motion detection sensitivity :
Sets the motion detection sensitivity during parking mode
Sensitivity :
Sets the impact sensitivity level in parking mode.
Device auto-o timer :
Sets the timer for the dash cam to automatically shut down in parking mode to prevent fromdraining the
vehicle battery
Device auto-ovoltage :
Sets the voltage level for the dash cam to automatically shut down if the dash cam detects voltage level
lower than congured value for more than 5 minutes in order to prevent fromdraining the vehicle battery
26
03
X
Road Safety Warning System Settings
Road safety warning notication :
Sets the audible notications for road safety warnings.
Vehicle type :
Sets the vehicle type to be used to optimize Advanced Driver Assis-
tance System (ADAS) features such as Lane Departure Warning System
(LDWS) and Forward Collision Warning System (FCWS).
Lane Departure Warning System (LDWS) :
Sets the LDWS driver assistance notication.
LDWS sensitivity :
Sets the lane departure detection sensitivity. (It is recommended that
the sensitivity is set at high for wider vehicles)
LDWS speed :
Sets the speed at which the LDWS notication is enabled. LDWS
warning will only be notied to the driver when the vehicle veers o
the lane travelling at the congured speed.
Forward Collision Warning System (FCWS) :
Sets the FCWS driver assistance notication.
Mobile Application
FCWS sensitivity : Sets the forward collision detection sensitivity
X
System Settings
Language : Sets dash cam system language.
Volume : Sets the volume level
Security LED : Sets the pattern for security LED
Time zone : Sets the time zone
Daylight saving : Sets the daylight saving time
Speed unit : Sets the unit for the vehicle speed
27
X
Wi-Fi Settings
Sets the Wi-Fi name and/or password.
X
Information
App Information : Displays current version and latest available version.
Dash cam information : Displays dash cam information.
GPS Information : Displays GPS information and provides GPS reset option
28
4. PC Viewer Software
4-1. Thinkware Dash Cam PC Viewer
Thinkware Dash Cam PC Viewer for Windows/MacOS is provided which can be used to watch videos recorded
with the dash cam. The video les recorded by the dash cam are in one minute segments and the PC viewer
allows the user to watch these segments in single continuous video.
The setup le for the Thinkware Dash Cam PC Viewer is included in the MicroSD card within the package.
Please check THINKWARE homepage(www.thinkware.com) for the latest Dash Cam PC Viewer application.
4-1-1. Thinkware Dash Cam PC Viewer Software
ⴘ
Front Rear
MicroSD card
Insert the MicroSD card into the USB MicroSD card
reader (included in the package) with front side
facing up as shown in the illustration.
04
PC Viewer Software
Removing MicroSD card
ⴙ
Connect the USB MicroSD card reader to the PC.
Ensure that the USB card reader is correctly
oriented when inserting it into the USB drive
29
4-1-2. Installing Thinkware Dash Cam PC Viewer
Windows
ⴘ
Double-click the Thinkware Dash Cam PC Viewer
setup le saved in the MicroSD card to initiate program installation.
ⴙ
Double-click the application icon once PC Viewer
installation completes and the application main
screen will then appear.
Cautions
System requirements : Windows XP (32bit),
Windows 7 (32/64bit), Windows 8.x (32/64bit)
MAC
ⴘ
Move the le named “Dashcam Viewer.zip” stored in the MicroSD card to the desktop.
ⴙ
Right click on the mouse and select “Open With” > “Archive Utility” to launch the Thinkware Dash cam
PC viewer application.
Cautions
System requirements : MAC OS X 10.8 Mountain Lion or later (OS X 10.9 Mavericks, OS X 10.10 Yosemite)
30
04
4-1-3. Select the Device Drive for F750
ⴘ
ⴙ
PC Viewer Software
Click File from menu and select the drive for
the portable storage drive for the connected
MicroSD card.
Select any le from the list to load entire video play-
list in the memory card.
Cautions
The MicroSD card will not be recognized by the software until it has been initialized in the dash cam.
It is recommended that the user record at least one video clip on the MicroSD card with the dash cam
unit before accessing the Thinkware Dash Cam PC Viewer.
31
4-1-4. Thinkware Dash Cam PC Viewer Overview
Full Screen
File Open
Viewing Screen
Playback
Progress
Current Playing Time/
Total Playing Time
Driving Speed
Dash Cam Setting / Information
Switch between Front/Rear View
Rear View
(Enabled only if
MicroSD card
contains video
captured using rear
view camera)
Map
Checks the location
of the recorded
video (Enabled only
if video is captured
while connected
using GPS antenna
(optional in some
models) and must
also be connected
to the Internet)
Impact Sensor Value
No. Name Description
Play Previous Plays the previous le before the current le
Rewind by 10 Sec
Play/Pause Plays the recorded le / temporarily pauses playback
Stop
Fast-forward by 10 Sec
Play Next Plays the next le after the current le
Auto Play Automatically loops the video back to beginning once the end has reached
Zoom Sets the video expansion ratio (0.5x / 1.0x / 1.5x / 2.0x)
Screen Setting Sets brightness/speed of the video
Rewinds the current le being played by 10 seconds
(If selected, it continues to rewind by 10 seconds)
Stops the le being played. The playback status resets to the starting point of
the video.
Fast-forwards the current le being played by 10 seconds
(If selected, it continues to fast-forward by 10 seconds)
Playlist
32
Save Saves the video in play
Volume Sets the volume of the playback
04
4-1-5. View Video Playlist
X Select appropriate folder (Continuous Recording, Incident Recording, Manual Recording, Parking Motion,
Parking Incident) to see the playlist for each recording mode.
PC Viewer Software
Continuous Recording Playlist Manual Recording Playlist
33
5. Specications
5-1. Specications
The specications of this product may change without prior notice for product improvements.
Item Standard Note
Model F750
Size/weight
Capacity MicroSD card (UHS-I) 16/32/64GB
Recording mode
Camera 2.19 Megapixel, 1/2.9" CMOS Same for rear camera
Viewing angle Approximately 140° (diagonally) Same for rear camera
Video Full HD (1920 x 1080/H.264/extension MP4) Same for rear camera
Frame rate 1 channel (Front view) : up to 30 fps Same for rear camera
Audio PCM (Pulse code modulation)
Acceleration sensor 3-axis acceleration sensor (3D, ±3G) Adjustable impact sensitivity (5 levels)
105.2 x 61.5 x 41mm / 140.5g
4.14 x 6.36 x 1.6 inches / 0.31 lbs
Continuous Recording Mode Records in 1 minute segment
Incident Recording Mode
Manual Recording Mode
Optional hardwiring cable and installa-
Parking Surveillance Mode
Audio Recording
tion are required for continuous supply
of power when vehicle ignition is o.
Press Voice Recording Button to turn the
audio recording on or o
Rear camera Support V-IN port
GPS Embedded GPS
Input power source DC 12/24V Rear view camera: 3.3V DC
Current consumption 2CH: 3.5W/1CH: 2.5W (mean) Based on fully charged super capacitor
Auxiliary power unit Super Capacitor
Security LED Panoramic white LED
Notication LED 3-color LED 2 rear LEDs
Hardware status notication LED
Warning sound Embedded speaker Voice (buzzer sound) guidance
Operation/Storage
Temperature
Connection Interface 1 x V-IN port
Wi-Fi receiver, GPS receiver,
operation status
-10°C to 60°C/ -20°C to 70°C
14°F to 140°F/ -4°F to 158°F
Optional accessory that requires separate
purchase.
Supports Road safety Warning System
(ADAS)
2 rear LEDs
34
05
Device Information
35
Loading...
