Thinklogical VDA-1, VDA-2, VDA-5, VDA-3 Product Manual
VDA Series
Single-Link and Dual-Link Video
Distribution Amplifiers/DVI Splitters
Thinklogical, LLC®
100 Washington Street
Milford, Connecticut 06460 U.S.A.
Telephone: 1-203-647-8700
Fax: 1-203-783-9949
www.thinklogical.com
Page
ii
Copyright Notice
Copyright © 2014. All rights reserved. Printed in the U.S.A.
100 Washington Street
Milford, Connecticut, U.S.A. 06460
Telephone: 1-203-647-8700
All trademarks and service marks are property of their respective owners.
Thinklogical, LLC®
Subject: VDA Series DVI Splitters
Revision: Rev C, May, 2014
V D A S e r i e s D V I S p litters , R e v . C , M a y , 2 0 1 4
Page
iii
Table of Contents
1. Introduction...…………………..……..1
About Thinklogical
1.1. Contents 2
1.2. Product Overview 4
2. System Features.………….………...…4
2.1. General System Features 4
2.2. Technical Specifications 5
3. Installation...………………….………...6
4. Product Serial Number...…………..…10
5. How to Contact Us.…………………....10
5.1 Customer Support 10
5.1.1 Website 10
5.1.2 Email 11
5.1.3 Telephone 11
5.1.4 Fax 11
5.2 Product Support 11
5.2.1 Warranty 11
5.2.2 Our Address 12
Appendix: VDA Quick Start Guides..........13
VDA-1 13
VDA-2 14
VDA-3 15
VDA-5 16
®
1
V D A S e r i e s D V I S p l i t t e r s , R e v . C , M a y , 2 0 1 4
Page
1
1. Introduction
About Thinklogical
Thinklogical is the leading manufacturer and provider of fiber optic KVM, video, audio,
and peripheral extension and switching solutions used in video-rich, big-data computing
environments.
Thinklogical offers the only fiber optic KVM matrix switches and routers in
the world that are accredited to The Common Criteria, EAL4 and TEMPEST.
Governments, entertainment, scientific and industrial customers worldwide rely on
Thinklogical’s products and solutions for security, high performance, continuous
operation and ease of integration. Thinklogical products are designed and manufactured
in the USA and are certified to the ISO 9001-2008 standard.
Thinklogical is headquartered in Milford, Connecticut and is privately held by Riverside
Partners, LLC, Boston, MA (http://www.riversidepartners.com). For more information
about Thinklogical products and services, please visit www.thinklogical.com.
Follow Thinklogical on LinkedIn at http://www.linkedin.com/company/thinklogical and on
Facebook at http://www.facebook.com/ThinklogicalUSA
V D A S e r i e s D V I S p l i t t e r s , R e v . C , M a y , 2 0 1 4
Page
2
1.1.Contents
When you receive your Thinklogical® VDA Series DVI Splitter, depending on your order, you
should find the following items:
VDA-000001
• 1 Single-Link DVI In to 2 Single-Link DVI Out (VDA-000001)
• DVI-D (M) TO DVI-D (M), 2M Cable (CBL000009-002MR) Qty 1
• +5VDC Power Supply (PWR-000022-R)
POWER
DVI IN
DVI OUT 1
DDC
DVI OUT 2
VDA-000002
• 1 Single-Link DVI In to 4 Single-Link DVI Out (VDA-000002)
• DVI-D (M) TO DVI-D (M), 2M Cable (CBL000009-002MR) Qty 1
• +5VDC Power Supply (PWR-000022-R)
5VDC
+

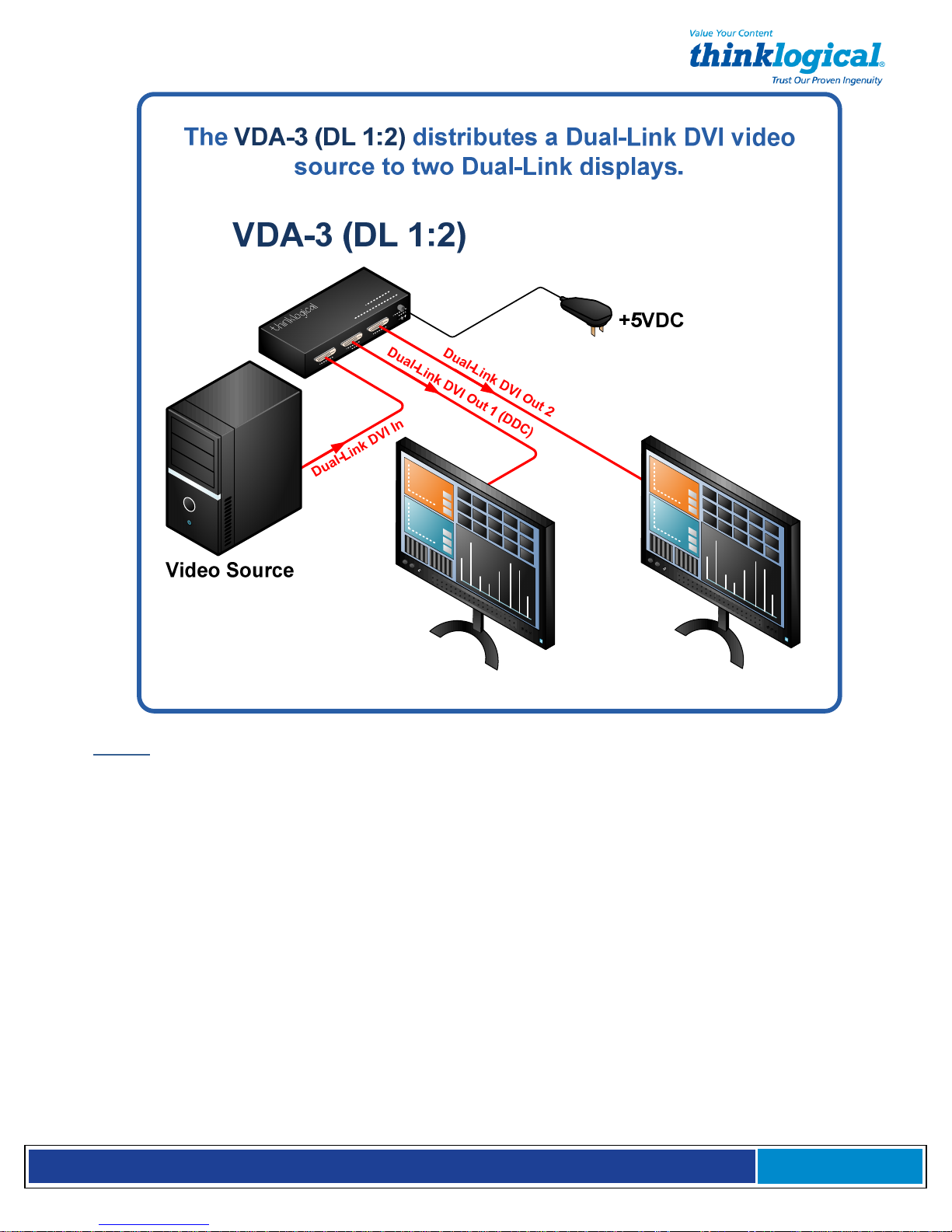

VDA-000003
• 1 Dual-Link DVI In to 2 Dual-Link DVI Out (VDA-000003)
• DVI-D DUAL LINK, 2M Cable (CBL000023-002MR) Qty 1
• +5VDC Power Supply (PWR-000022-R)
VDA-000005

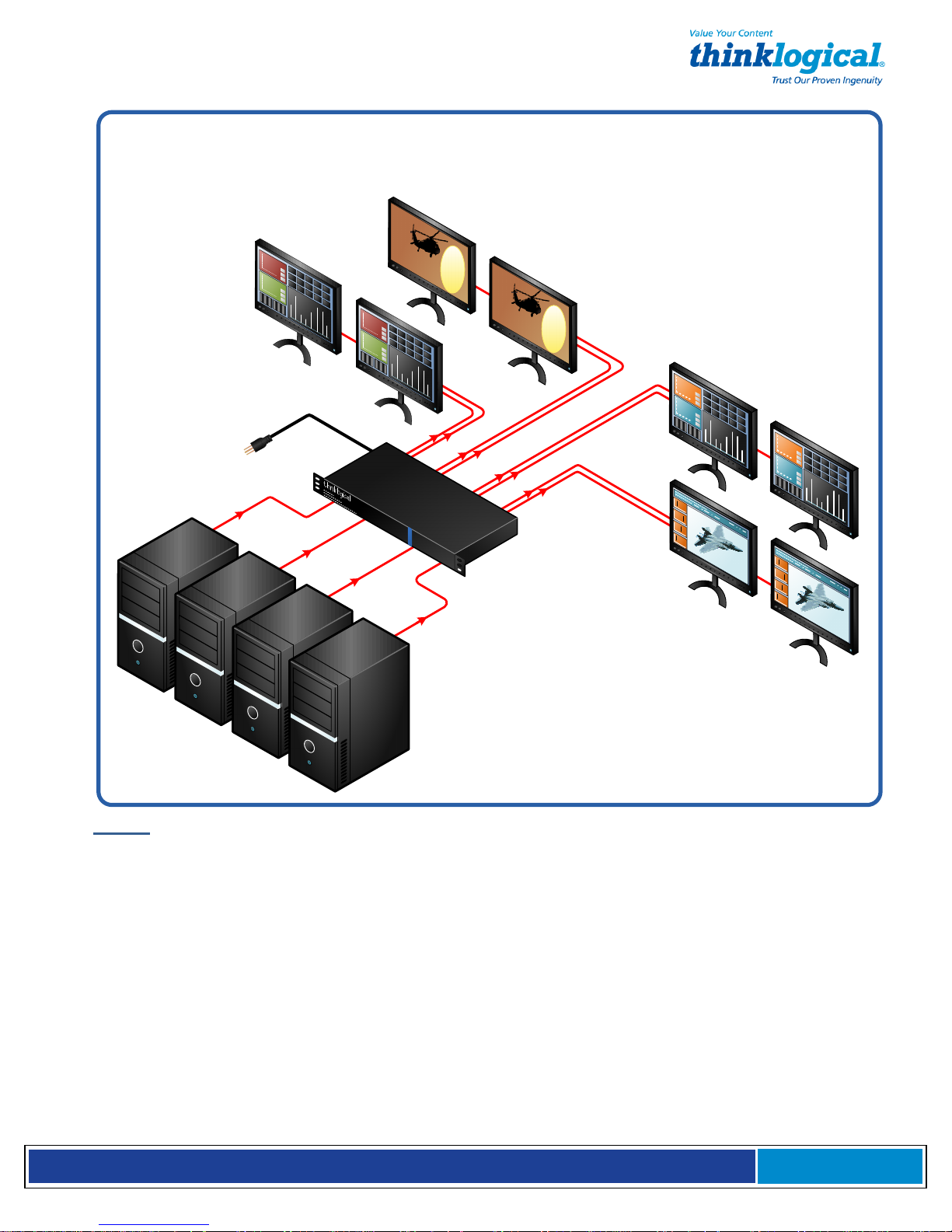

• 4 DVI Splitters: 1 Single-Link DVI In to 2 Single-Link DVI Out (VDA-000005)
• DVI-D (M) TO DVI-D (M), 2M Cable (CBL000009-002MR) Qty 4
• AC Line Cord (PWR-000006-R)
V D A S e r i e s D V I S p l i t t e r s , R e v . C , M a y , 2 0 1 4
Page
3
Cords & Cables Supplied as Required:
FUSE
USE ONLY
WITH 250V
V D A S e r i e s D V I S p l i t t e r s , R e v . C , M a y , 2 0 1 4
USE ONLY WITH 250V FUSE
