TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Copyright Notice
Copyright © 2019. All rights reserved. Printed in the U.S.A.
Thinklogical, A BELDEN BRAND
100 Washington Street
Milford, Connecticut 06460 U.S.A.
Telephone: 1-203-647-8700
All trademarks and service marks are property of their respective owners.
Subject: TLX24 10G Matrix Switch Product Manual
Revision: H, October 2019
®
Website: https://www.thinklogical.com
Facebook: www.facebook.com/ThinklogicalUSA
LinkedIn: www.linkedin.com/company/thinklogical
Google+: http://plus.google.com/u/0/109273605590791763795/about
YouTube: www.youtube.com/user/thinklogicalNA
Twitter: @thinklogical
Page 3
Page iii
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Table of Contents
PREFACE................................................................................................................................................ v
About Thinklogical® ...................................................................................................................... v
About This Product Manual .......................................................................................................... vi
Note and Warning Symbols ...................................................................................................... vi
Class 1 Laser Information ......................................................................................................... vi
SECTION 1: TLX SYSTEM FEATURES ................................................................................................. 1
THE TLX24 MATRIX SWITCH DESIGN ........................................................................... 2
Desktop or Rack Mount .................................................................................................. 3
The Front Panel ............................................................................................................. 3
LCD and Navigation Buttons ...................................................................................... 3
Navigating the Menus................................................................................................. 4
Alarms Displayed on the LCD .................................................................................... 4
The Button Panel ....................................................................................................... 4
The Power Supply Module ............................................................................................. 6
The Processor - iMX6 Quad (Freescale) ........................................................................ 6
The Network Interfaces .................................................................................................. 6
SNMP Support ............................................................................................................... 7
NTP Support .................................................................................................................. 7
System Log Files Support .............................................................................................. 7
Serial/RS-232 Interfaces ................................................................................................ 8
Port Numbering .............................................................................................................. 8
The Digital Crosspoint Switch ........................................................................................ 8
The TLX24 Matrix Switch Part Numbering ..................................................................... 9
Product Serial Number ................................................................................................... 9
Connection to the Product .............................................................................................. 9
THE TLX24 TECHNICAL SPECIFICATIONS ................................................................. 10
SECTION 2: SET-UP AND INSTALLATION ......................................................................................... 11
Contents ..................................................................................................................................... 11
Unpacking the TLX24 Matrix Switch ........................................................................................... 11
Connecting the TLX24 Matrix Switch .......................................................................................... 11
External Control CPU Minimum Requirements ........................................................................... 12
Pluggable SFP Modules .................................................................................................. 12
LC-Type Fiber-Optic Cables ............................................................................................ 13
CATx Cables ................................................................ ................................ ................... 13
TLX Extender Fiber-Optic Cable Configurations .......................................................... 14
TLX CATx Extender Cable Configurations ................................................................... 15
Routing Thinklogical Extenders through the TLX24 ........................................................ 16
Connecting to a Receiver ............................................................................................. 16
Connecting to a Transmitter ......................................................................................... 16
Connecting to a Control CPU ....................................................................................... 17
Firmware ...................................................................................................................... 18
On Screen Display (OSD) - Firmware Option .............................................................. 18
Order of Installation Events ................................................................ ........................ 18
Updates ...................................................................................................................... 18
System Reboot or Power Off at the Chassis ................................................................... 19
Page 4
Page iv
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
System Shut-Down at the Command Line ...................................................................... 19
How to Install and Replace a Power Supply.................................................................... 20
SECTION 3: REGULATORY & SAFETY REQUIREMENTS ................................................................. 21
Symbols Found on Our Products ................................................................................................ 21
Regulatory Compliance .............................................................................................................. 21
North America ............................................................................................................. 21
Australia & New Zealand ............................................................................................. 21
European Union .......................................................................................................... 21
Declaration of Conformity ................................................................................................... 21
Standards with Which Our Products Comply .............................................................................. 21
Supplementary Information ........................................................................................................ 22
SECTION 4: THINKLOGICAL® SUPPORT ........................................................................................... 23
Customer Support ...................................................................................................................... 23
Website ....................................................................................................................... 23
Email ........................................................................................................................... 23
Telephone ................................................................................................................... 23
Fax .............................................................................................................................. 23
Product Support ......................................................................................................................... 23
Warranty ...................................................................................................................... 23
Return Authorization ................................................................................................... 23
Our Addresses ............................................................................................................ 23
Appendix A: TLX24 QUICK START GUIDE ......................................................................................... 24
Appendix B: FPGA PROGRAM UPDATE PROCEDURE .................................................................... 25
Appendix C: SECURE APPLICATIONS ............................................................................................... 26
MADE IN USA
Page 5
Page v
PREFACE
About Thinklogical A BELDEN BRAND
Thinklogical, a Belden brand, is the leading manufacturer and provider of fiber-optic and
CATx video, KVM, audio, and peripheral extension and switching solutions used in video-rich,
big-data computing environments.
Thinklogical offers the only fiber-optic KVM Matrix Switches in the world that are
accredited to the Common Criteria EAL4, TEMPEST SDIP 24 Level B, and NATO
NIAPC Evaluation Scheme: GREEN and the U.S. DoD DISA JITC UCR 2013 APL
information assurance standards. And Thinklogical Velocity products are the first
system with both KVM and video matrix switching capabilities to be placed on the
Unified Capabilities Approved Product List (UC APL) under the Video Distribution
System (VDS) category.
Thinklogical products are designed and manufactured in the USA and are certified to
the ISO 9001:2015 standard.
Thinklogical is headquartered in Milford, Connecticut and is owned by Belden, Inc., St. Louis,
MO (http://www.belden.com). For more information about Thinklogical products and
services, please visit https://www.thinklogical.com.
Page 6
Page vi
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
About this Product Manual
This product manual is divided into four sections: TLX System Features, Set-Up & Installation,
Regulatory & Safety Requirements and Thinklogical Support. These are sub-divided to help you find
the topics and procedures you are looking for. This manual also contains Appendices.
Section 1 – The TLX System Features: Pg. 1. Details the features and functions of your equipment.
Section 2 – Set-Up and Installation: Pg. 11. Contains all the requirements and procedures necessary
to connect and install your equipment, including FPGA updates.
Section 3 – Safety & Regulatory Requirements: Pg. 21. Thinklogical® strongly recommends that you
read this section prior to starting the hardware assembly.
Section 4 – Thinklogical Support: Pg. 23. Thinklogical provides the best customer support available. If
you have any questions or need to contact us for any reason, please refer to this section of the manual.
Note and Warning Symbols
Throughout this manual you will notice certain symbols that bring your attention to important information.
These are Notes and Warnings. Examples are shown below.
Note: Important Notes appear in blue text preceded by a yellow exclamation point
symbol, as shown here.
A note is meant to call the reader’s attention to helpful or important information at a point in the text
that is relevant to the subject being discussed.
Warning! All Warnings appear in red text, followed by blue text, and preceded by a red
stop sign, as shown here.
A warning is meant to call the reader’s attention to critical information at a point in the text that is
relevant to the subject being discussed.
Class 1 Laser Information
The TLX24, like all Thinklogical® products, is designed and identified as a
Class 1 LASER product.
This means the maximum permissible exposure (MPE) cannot be exceeded when viewing the laser
with the naked eye or with the aid of typical magnifying optics (e.g. telescope or microscope).
CLASS 1 LASERS do not require any special
precautions under conditions of normal use.
SFP
Modules
Fiber-Optic
Cables
Class 1 Lasers
Page 7
Page 1
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Section 1: TLX System Features
The Logical Solution
The TLX24 is an ultra-compact 10G high performance non-blocking matrix switch that supports
full, uncompressed 4K video with full color depth at 60Hz frame rate for complete, end-to-end
routing of video and peripheral signals over multi-mode or single-mode fiber-optic cable in a
single 1 RU Chassis.
The TLX24 provides mission critical dependability and unrivalled signal integrity. Being protocol agnostic,
the switch supports DVI, SDI, HD-SDI, Dual-link DVI, Dual-link SDI, USB HID, USB 2.0 and audio.
HYBRID SWITCHING SOLUTION
For Uncompressed, High Resolution Video & KVM Systems
Thinklogical’s TLX Matrix Switches are high performance, non-blocking switches for complete end-to-
end switching of video, audio and peripheral signals over multi-mode or single mode fiber-optic cable
or CATx cable.
TLX switches are protocol agnostic, supporting most video, audio and peripheral signals and allow users
to consolidate all their system switching requirements in a single chassis. TLX Matrix Switches are ideal
for small or large system applications, with switch sizes ranging from 12 ports to 1280 ports. Each port
supports 10Gbps bandwidth, preserving signal integrity to provide uncompressed, high resolution video
with no artifacts, latency or lost frames. Thinklogical’s re-clocking technology ensures that every video
and data stream is delivered in perfect synchronization.
SECURITY
Creating physical separation between potential threats (users) and the target (secure data) is essential
to a secure system design. Thinklogical’s system permits users to access sources up to 80 kilometers
away, with no performance degradation. System administrators can safeguard sources in a
centralized location, allowing users to maintain remote access to the sources, but with no means to
breach the system, either accidentally or intentionally (such as downloading sensitive information onto a
USB drive).
PARTITIONED AND RESTRICTED SWITCHING
To protect data between multiple networks, partitioning allows the switch resources to be divided to
support more than one network without allowing switching between networks. Restricted switching
allows the administrator to manage access on a port-by-port basis. Partitioned and restricted switching is
enabled through the switch’s firmware, which means a threat would have to physically access the switch
to tamper with the settings. (See Appendix C, Secure Applications on pg. 26)
Note: CATx Matrix Switching applications do not offer an EAL4 rated level of security.
CATx is not available with the TLX80.
Page 8
Page 2
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
THE TLX24 MATRIX SWITCH DESIGN
The ultra-compact design of the TLX24 10G Matrix Switch (sometimes referred to as a Switch or Router)
supports up to 24 ports of full, uncompressed 4K video with full color depth at 60Hz frame rate in a single
1 RU chassis for complete, end-to-end routing of video and peripheral signals over multi-mode or singlemode fiber-optic cable or CATx cable, thus minimizing critical rack space.
Thinklogical’s TLX24 10G Matrix Switch includes:

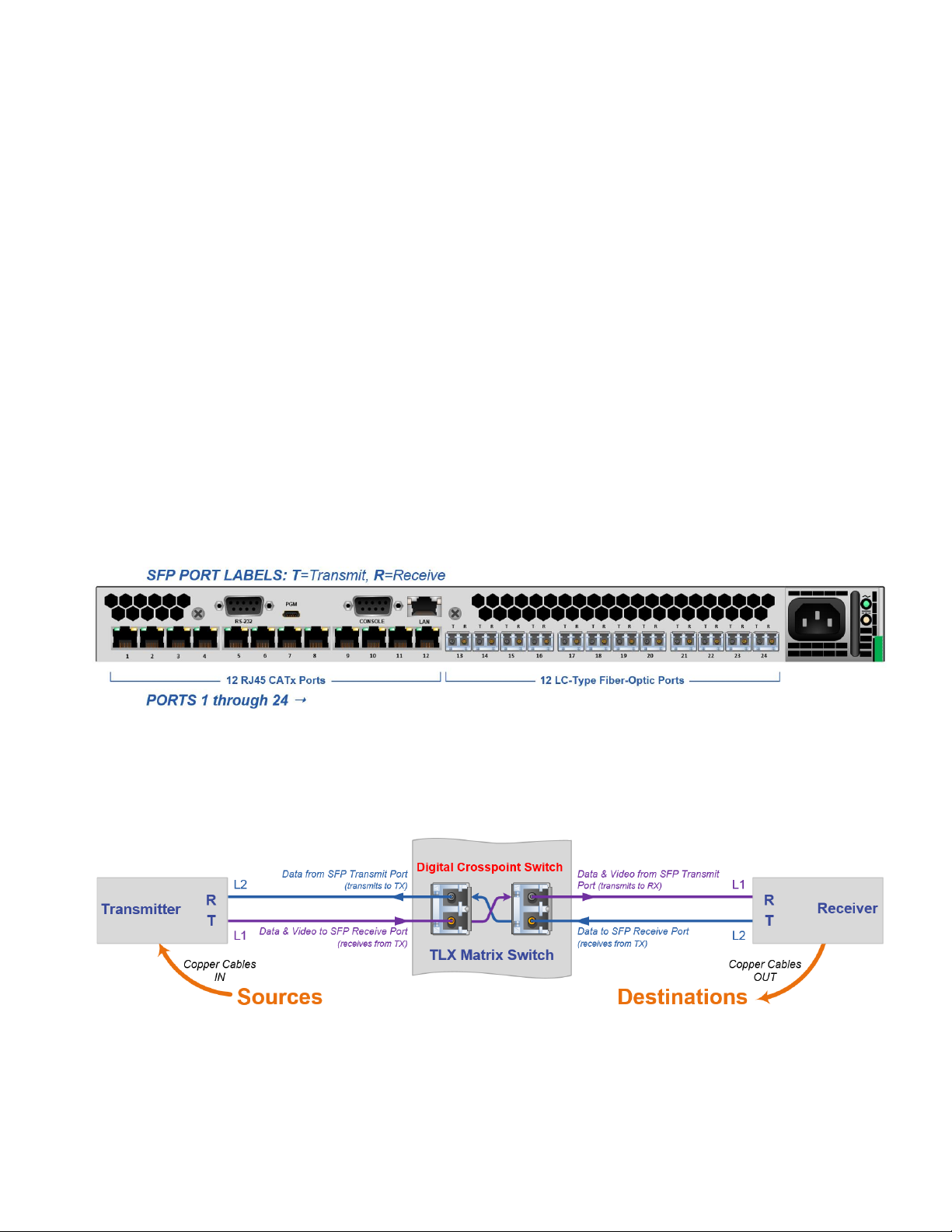

• A 1 RU Chassis with 24 fiber-optic or CATx Transmit/Receive Ports, or 12 of each
• Front Panel LCD and Navigation Buttons
• Front Panel Source, Destination and Control Buttons
• Desktop or Rack Mountable
• Power Supply Module with over-current, over-voltage and over-temperature protection
• RS-232 and Console Serial Ports
• Controllable via LAN or serial connection
• USB Mini-B Update Port
• Custom Button-less versions operated through a GUI
• Each connection supports 10Gbps / 6.25 Gbps with re-clocking input
• Single-mode, multi-mode fiber and BNC coaxial capability
• Comprehensive system setup and control via Thinklogical’s Configurator software (optional)
• Multicasting and macros supported
• SNMP control protocol
Page 9
Page 3
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Desktop or Rack Mount
You may choose to place your TLX24 Chassis on or under a shelf or desktop (rubber feet included,
under-desk mounting brackets, Kit ENCA000797, available), or rack mount it using the supplied EIA 19”
mounting brackets. In any mounting configuration, the front panel should be visible and unobstructed so
that the navigation buttons and LCD display are accessible. All connections are made on the rear of the
chassis. The TLX24 chassis does not need to be opened or accessed. The sturdy metal case allows
units to be stacked as needed (maximum of four units per stack, with a minimum of two inches of
clearance between stacks for adequate ventilation).
The Front Panel
TLX24 FRONT PANEL
LCD & Navigation Buttons
Button Panel
LCD & Navigation Buttons
The LCD and Navigation Buttons are used to view and modify System and Network settings, assign IP
addresses, monitor the temperature and fans, and to reboot or power down the unit. The TLX24 frontpanel LCD should be visible and accessible for system setup.
Navigating the Menus
Main Root Menus: Once the system is powered up, the initial chassis display is shown as follows:
Page 10
Page 4
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Your chosen Host Name is listed on the first line of the display. The model and software version (VX.XX)
of the unit are displayed on the second line.
From the Main Menu, press enter, then or to:
• View System Menu: FPGA Version, Ambient Temp, Physical Temp, Alarm Status
• View Network Menu: IP Address. Network Mask, Gateway, MAC Address
• Program Network: IP Address. Network Mask, Gateway
• Reboot/Power Off
Alarms Displayed on the LCD
• Temperature: 0 = OK, 1 = exceeds 70° Celsius
• Card: 0 = OK, 1 = software or hardware failure
• Fans: 0x000 = All fans OK 0x010 = Fan 1 failure 0x008 = Fan 2 failure
0x004 = Fan 3 failure 0x002 = Fan 4 failure 0x001 = Fan 5 failure
The physical locations of Fans 1-5 inside the TLX24 Chassis
The Button Panel
The Button Panel is used to select sources and destinations, make new switch connections and to
review existing switch connections.
The Button Panel, located on the front of the TLX24, provides Matrix Switch control via the RS232
port’s API interface. The following pages provide a functional description of each of the 60
buttons.
SOURCES 1-24 Used to select any one of the 24 Matrix Switch
inputs. Only one input can be selected per action. (Pressing a
button illuminates it to confirm the selection.) A previously selected
input will be deselected upon selecting a new input. To deselect,
simply press the illuminated button and the button shall no longer
be illuminated/selected. When an input is selected, all the
corresponding connected DESTINATION ports shall illuminate,
reporting the full connection map of the selected input. If no
DESTINATION ports illuminate, then the input is not connected.
Source 1 is connected to
Destinations 13, 14 & 15.
Page 11
Page 5
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
DESTINATIONS 1-24 Used to select Matrix Switch outputs. If an
input and output(s) are illuminated, then selecting another
output will enable an additional output to the connection map. If
no prior input or output(s) are illuminated, then selecting an output
will illuminate the corresponding connected input and output(s). To
deselect, simply press the illuminated button and the button shall no
longer be illuminated/selected.
TAKE In MANUAL mode (as opposed to AUTO mode),
connections/disconnections require pressing the TAKE
button. After the connection/disconnection is performed, the
selected SOURCE and DESTINATION(S) will no longer
remain illuminated.
AUTO In AUTO mode, connections are made or broken immediately after a DESTINATION button
is selected (so the TAKE button will not be required) or deselected (so the DISCONNECT button will
not be required).
• Any selection of an unilluminated DESTINATION while a SOURCE is selected (illuminated) will
cause that SOURCE to be connected to the DESTINATION.
• Pressing a DESTINATION while illuminated (which means it is connected to the currently
illuminated SOURCE) will cause that DESTINATION to be disconnected and no longer illuminated.
LOCK Press the LOCK button to disable the following action buttons: MACRO, SNAPSHOT,
AUTO, TAKE and DISCONNECT. Selecting the SOURCE or DESTINATION will continue to provide
connection status information only. Creating MACRO(S) and SNAPSHOT(S) will be performed in the
LOCK mode.
DISCONNECT In MANUAL mode, after illuminating a SOURCE and one or more DESTINATION (S),
press the DISCONNECT button to disconnect all illuminated DESTINATION (S) from the illuminated
SOURCE. After the disconnect is performed, the selected SOURCE and DESTINATION (S) will no
longer remain illuminated.
BIDIRECTIONAL This is a special TAKE button which supports full duplex connectivity. For
example, in MANUAL mode when SOURCE 1 and DESTINATION 2 are illuminated, pressing the
BIDIRECTIONAL button connects both the selected SOURCE 1 to DESTINATION 2 as well as
SOURCE 2 to DESTINATION 1.
LED TEST Runs an automatic test of all LEDs collectively and individually for color and functionality.
MACRO n When in LOCK mode, holding one of the MACRO buttons for >5 seconds will capture
currently connected DESTINATION (s) (but not those that are disconnected). When in NORMAL mode,
selecting that MACRO button will ‘add’ the MACRO connections to the existing connection map.
SNAPSHOT n When in LOCK mode, holding one of the SNAPSHOT buttons for >5 seconds will
capture the full connection map including those DESTINATION(S) that are disconnected. When in
NORMAL mode, pressing that SNAPSHOT button will replace all the connections with the SNAPSHOT
connection map (not an additive action).
RESET The reset button is recessed behind the front panel and can be pressed with a fine tipped tool.
This will reset the entire unit and is used only in extreme cases. Preferred ways of resetting the unit
use the front panel menus.
Pressing Destination 16 when
the LEDs are lit adds it to Source
1’s outputs.
Page 12
Page 6
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
THE POWER SUPPLY MODULE
The TLX24 Power Supply is a high-efficiency, 650-watt supply
(100-240VAC, 50-60Hz input) with a 12V main output and a
12V standby. The supply includes an internal cooling fan,
status LEDs on the outer panel and over-current, over-voltage
and over-temperature protection. The supply is NOT hot
pluggable. (See pg. 19 for the Poweroff procedure.)
THE PROCESSOR – i.MX 6 QUAD (Freescale)
The Processor platform key features:
• ARM Cortex-A9 MPCore 4 x CPU
• Memory Interfaces
➢ 64-Bit DDR3-1066
➢ SD (Memory Card Specification, v3.0 including high-capacity SDHC cards up to 32 GB.
➢ Serial NAND Flash (SPI)
➢ SATA II, 3.0 Gbps HDD
➢ EIM Bus (FPGA Parallel Bus I/F)
• HDMI 1.4 port
• USB 2.0 Host (2 ports)
• UART (4 ports)
• Gigabit Ethernet Controller (RGMII)
• GPIO (32 bits)
• I2C Masters (3 ports)
• Internal 100 Megabit Ethernet Interface for processor to processor communications
THE NETWORK INTERFACES
The default subnet used by the TLX24 is 192.168.13.xxx. Users may change to their own subnet by
reconfiguring the switch’s network startup.
This is detailed in the document: Manual_How_To_Change_A_TLX_Matrix_Switch’s_IP_Address.
The switch uses several network ports for control and status. Port 17567 accepts commands to control
the switch.
The command API is described in the document: Manual_TLX_Matrix_Switch_ASCII_API_V5
There are other ports that can be read to access system configuration and operating data. The actual
data format varies by model and is described in the following sections. There are five blocks of data
available for reading.
These ports are documented in: Manual_TLX_Matrix_Switch_Interfaces
1. Switch connection status (broadcast over port 17564 every few seconds)
• The primary CPU IP address
• First port number in this block
• Last port number in this block
• 'N' port number values
Page 13
Page 7
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
2. Port settings (UDP port 17565, matrix switch localhost only)
• Port output level value
• Port input enable status
• Input port number (big-endian format)
3. Hardware sensor status (TCP port 17566)
• Reserved for future use.
4. Inventory and Power Supply Status (TCP port 17600)
• Card Inventory
• Power Supply Status (internal TL use only)
• Switch card temperature readings
5. I/O data (TCP port 17601)
Refer to the document: Manual_TLX_Matrix_Switch_Interfaces
6. Service Request (LOS) Signaling (UDP port 17560)
The TLX24 10G Matrix Switch can broadcast a message over the network when a remote receiver
requests attention. When enabled, the receiver will toggle its TX pin, causing a LOS (loss of signal)
event to occur at the switch. When detected, the switch broadcasts an 'Attention Request' message over
the network. This message contains the IP address of the switch and the port number that detected the
request. It is left up to an external system to detect, decode and act upon this request.
• 32-bits, switch 's primary IP address
• 16-bits, set to 0
• 16-bits, port number (list starts from 1, not 0)
• 16-bits, key code in bits 0 – 7, 0x00 and 0xff are ignored
SNMP SUPPORT
The switch can be monitored via SNMP Simple Network Management Protocol (supports version V2c
and V3 USM). Please call our technical support staff at 1-203-647-8700 for downloadable MIB
Management Information Base definition files.
There are certain entries in the SNMP configuration file (/etc/snmp/snmpd.conf) that users may wish
to modify:
• syslocation Text to aid in locating the unit
• syscontact Name/ Phone/ Email address of a contact
• trap2sink IP address/ Name of a system to receive SNMP traps
The default name used by trap2sink is 'snmp.trap' and is defined in the file /etc/hosts as pointing to
127.0.0.1. The easiest method to change the trap address is to modify the /etc/hosts entry and not
change the trap2sink setting in the configuration file. Users may have multiple trap2sink entries in the
configuration file to specify multiple trap destinations. See: Manual_TLX_Matrix_Switch_SNMP_Traps
NTP SUPPORT
NTP, or Network Time Protocol, is used to keep the internal clock on the switch set to the correct
time. By enabling this service, users keep the switch’s clock synchronized to an external time reference.
To use the service users must have a time server running on their network or allow the switch to access
a public time server. NTP configuration is contained in the file /etc/ntp.conf
Details about NTP configuration may be found at:
http://tldp.org/LDP/sag/html/basic-ntp-config.html
SYSTEM LOG FILES SUPPORT
The switch records system events into files located in the directory /var/log/. If you wish to preserve
log files, you may redirect the logs to another system(s). This is a standard feature of Linux's rsyslogd
program. Redirection is enabled by entries in rsyslog configuration files located in /etc/rsyslog.d/
Details about syslog configuration file entries may be found at: http://www.rsyslog.com/doc/
Page 14
Page 8
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
SERIAL/RS-232 INTERFACES
The TLX24 has two RS-232 serial ports. One is for the Linux command line interface (labeled
CONSOLE), and the other is for the switch's ASCII command interface (labeled RS232.
Linux Command Console (Console)
• Baud Rate: 115200
• Data Bits: 8
• Parity: none
• Stop Bits: 1
• Flow Control: none
• DB9 DCE
➢ A straight cable is needed to connect to a PC (not a null-modem).
ASCII API (RS232)
• Baud Rate: 9600
• Data Bits: 8
• Parity: none
• Stop Bits: 1
• Flow Control: XON/XOFF (Software)
• DB9 DCE
➢ A straight cable is needed to connect to a PC (not a null-modem).
PORT NUMBERING
Port numbering starts with Port 1 on the left. Each port has a number designation, 1 through 24, printed
below it for easy reference.
THE DIGITAL CROSSPOINT SWITCH
The Digital Crosspoint Switch is a non-blocking asynchronous switch that can connect any input to any
output of Thinklogical’s TLX, VX and MX Matrix Switches. Video and Data signals are routed in both
directions and the data stream is de-multiplexed at the receiver to deliver uncompressed, high resolution
video, audio and peripheral data at the end-user’s workstation.
Page 15
Page 9
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
TLX24 Matrix Switch Part Numbering
(Custom versions are designated with A, B, C… in the part numbering system.)
Product Serial Number
Thinklogical products have a unique serial number, which includes a date-code, printed on an
adhesive label that is affixed to the unit. The format for the date-code is 2 digits for the month,
dash, 2 digits for the year, plus at least four digits for a unique unit number. For example:
05-190129 indicates the unit was built in the 5th month of 2019, and is unit number 129.
Connection to the Product
Connections and installation hardware for our products use industry-standard devices
and methods. All wiring connections to the customer equipment are designed to minimize
proprietary or customized connectors and cabling. Power connections are made with regionally
appropriate power cords and approved methods.
Page 16
Page 10
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
TLX24 TECHNICAL SPECIFICATIONS
PHYSICAL
TLX24 Chassis
Dimensions:
Rack Size: EIA 19.00" (482.6 mm)
Height (1 RU): 1.75” (44.5 mm)
Depth: 15.50" (393.7 mm)
Width: 17.47" (443.7 mm)
Weight (Fiber or CATx): 11.0 lbs. (5.0 kg)
Shipping Weight: 15.0 lbs. (6.8 kg)
Ports
24 CATx, 24 fiber, or 12 CATx / 12 fiber
ENVIRONMENTAL
Temperature
Operating: 0° to 50°C (32°F to 122°F) Ambient
Storage: -20°C to 70°C (-4°F to 158°F)
Humidity
Operating: 5% to 95%, non-condensing
Storage: Unlimited
Altitude
Operating: Thinklogical components are rated to 1000m max. elevation.
Max. operating temp. de-rates by 3% for every 330m > 1000m
Storage: Unlimited
ELECTRICAL
Input Rating
100-240VAC, 1.5A, 50-60Hz (current to nearest 0.1A)
Max. DC Power
Consumption
Equal to max. output of a single Power Supply.
THERMAL
Heat load (BTU/HR): Equal to DC Power consumption x 3.1412
REGULATORY
US / Canada EN 90650, FCC 47 CFR Part 15, ICES, CE
WARRANTY
One year from date of shipment. Extended warranties available.
Page 17
Page 11
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Section 2: Set-Up & Installation
Contents
When you receive your Thinklogical® TLX24 KVM Matrix Switch, you should find the following
items in the quantities specified in your order:
• TLX24 Chassis (includes 1 Power Module)
• Power Cord – PWR-000006-R (International connections may differ)
• Product Manual CD
• Product Quick Start Guide
Unpacking the TLX24 Matrix Switch
The TLX24 Matrix Switch is designed to be mounted in a standard EIA 19” rack. All physical
connections to the product use industry-standard connectors. Non-supplied cables that may be needed
are commercially available. All connections are found on the rear of the unit.
• Carefully remove the TLX24 from its shipping package and inspect it to make certain that it is in
good condition.
• Ensure that all the SFP modules are sealed with a removable dust plug.
• Verify that the power supply is fully seated in the chassis and that the locking latch is
secure.
• When the device has been inspected and found to be in suitable condition, the installation
process can begin.
Connecting to the TLX24 Matrix Switch
Thinklogical’s line of TLX Extenders come in both fiber-optic cable and CATx cable versions.
Thinklogical’s proprietary multiplexing technology combines video, audio and peripheral data on a single
data stream for up to 80km over a single fiber or up to 100m over a single CATx cable.
TLX Matrix Switches are compatible with the following Thinklogical® products:
• Single & Multi-Mode TLX 10G KVM and Video Extenders (10G to 10G only)
• Single & Multi-Mode Velocity 6G KVM and Video Extenders (6G to 6G only)
• SDI Xtreme 3G+ Extenders
• Configurator / Hot-Key Manager / System Management Interface
• Standard VX Matrix Switch ASCII Interface (via RS-232 port or via Network port)
• Standard VX Matrix Switch IP Address Configuration Procedure
• Standard VX Matrix Switch SNMP Traps
Page 18
Page 12
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
External Control CPU Minimum Requirements
The External Control CPU must meet the following minimum requirements (including requirements
for using Thinklogical’s System Management Portfolio):
• System Management Interface package requires Debian 32 or 64 bit.
• Configurator and Hot Key Manager run on Linux (RedHat 32 & 64 bit,
Debian 32 & 64 bit or Windows XP, 7, and 8).
• RAM (minimum): Linux: 1GB Windows: 4GB OSX: 4GB
• VIDEO: Works with all video adapters. (Not required if the computer is used as a headless server.)
• KEYBOARD/MOUSE: Works with any keyboard/mouse/touchpad. (Not required if the computer is
used as a headless server.)
• NETWORK: One port minimum, although two ports are recommended for security considerations.
• DISK SPACE: Thinklogical programs typically use less than 40 MB.
• SERIAL PORT: 1 optional RS-232 serial port (Crestron/AMX serial access)
Pluggable SFP+ Modules
Each Fiber-Optic Chassis contains rows of SFP+ modules that serve
as the fiber-optic couplers for the fiber cables to and from the
Thinklogical Transmitter and Receiver Extenders.
The SFP+ Optical Module is an 8Gbs Short-Wavelength Transceiver
designed for use in bi-directional fiber-optic channel links. The
modules have LC-type connectors, are hot-pluggable and operate
on 3.3VDC.
Always use dust caps to protect against dust and damage when
a fiber-optic connector is not attached to its coupling device
(fiber-optic equipment, bulkheads, etc.). All Thinklogical Matrix
Switch SFPs are fully populated with dust plugs upon shipment.
Note: It is good practice to immediately install dust plugs in unused SFP modules and on
the ferrules of unconnected fiber-optic cables.
Each fiber-optic TLX24 has either 12 or 24 SFP+ Modules, each mounted within a grounded metal
enclosure. Each SFP is locked into its enclosure with a built-in latch handle that can be opened for
removal or locked for installation (right).
The latch handle spans the two LC ports. Arrows printed on the handle indicate which port is an INPUT
( ) and which is an OUTPUT ( ).
SFP+ Latch Closed SFP+ Latch Open
Page 19
Page 13
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
LC-Type Fiber-optic Cable
Installing Fiber-optic Cable: The TLX24
switching matrix connects any SFP’s optical
output port (Transmit) to any other SFP’s optical
input port (Receive) with LC-type connectors.
OPTICAL OUTPUT PORT (Transmit)
OPTICAL INPUT PORT (Receive)
Requirements: Thinklogical recommends LC-type SX+ Laser Enhanced (50µm) fiber with LC-type
connectors for your TLX24 KVM Matrix Switch and Velocity Extension System. Multi-mode fiber can
extend up to a maximum of 400m and Single-mode fiber can extend up to 80km.
T R T R
LC LC
◄Transmit◄Receive
Handling Fiber-optic Cable: Unlike copper cabling, fiber-optic cable requires special handling.
A small speck of dust or a scratch to the ferrule tip (the end of the connector) can attenuate the
optical signal, rendering the cable inop er able.
Warning! The ends of the connectors
(the ferrule) should never come in
contact with any foreign object,
including fingertips. Always install a
dust cap immediately on the ferrule of
any unused fiber to protect the tip.
Dust cap installed on the ferrule.
Warning! Minimum bend diameter
must be no less than 3”. Be careful
not to kink or pinch the fiber when
using ties.
3"
CATx Cable
There are currently several versions of CATx (category 5/5a/6/6a/etc.) cables with RJ-45 connectors on the
market. Thinklogical recommends 23 AWG Category 6a Cabling for TLX applications, which
operates over channel lengths of up to 100 meters. Assume a 30% derating for 26 AWG CAT6a cabling.
Page 20
Page 14
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
TLX Extender Fiber-Optic Cable Configurations
SINGLE VIDEO MODULES
DUAL VIDEO MODULES
Note: On Dual Video models, SFPs 1 & 2 are Video 1 and SFPs 3 & 4 are Video 2.
Page 21
Page 15
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
TLX CATx Extender Cable Configurations
There are currently several versions of CATx (category 5/5a/6/6a/etc.) cables on the market.
Thinklogical recommends using a minimum of CAT6 for your TLX KVM Matrix Switch and
Extension System (CAT6a 23 AWG recommended). All cables CAT6 or higher can extend up to a
maximum of 100m.
Note: On Dual Video models, Ports 1 & 2 are Video 1 and Ports 3 & 4 are Video 2.
SINGLE VIDEO
DUAL VIDEO
Page 22
Page 16
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Routing Thinklogical Extenders through the TLX24
Comprised of a fiber-in, fiber-out matrix switch and fiber-optic or CATx Transmitter and Receiver
Extenders, this complete system provides transparent and secure routing, switching and extension of
video and high-speed data peripherals to remote destinations with ease.
Connecting to the Receiver
The Velocity Receiver serves as the Destination (desktops, theaters, conference rooms, editing
suites, control consoles, video walls, etc). Depending on your configuration, your KMASS devices (audio,
keyboard, mouse, etc.) are connected to the Receiver first, using standard cables. Power can then be
applied to the unit. The Receiver then connects to the TLX24 using fiber-optic cable (Multi-mode fiber for
distances up to 400m; Single-mode fiber for distances beyond 400m).
Connecting to the Transmitter
The Transmitter serves as the Source (computer and video entities). If the source includes a
workstation, depending on your configuration, your local KMASS devices (audio, keyboard, mouse, etc.)
should be connected first. The video sources (e.g. computers, tape decks, etc.) are connected next,
followed by any local video devices. Power can then be applied to the unit. The Transmitter connects to
the TLX24 Transmitter ports using fiber-optic cables (Multi-mode fiber for distances up to 400m; Singlemode fiber for distances beyond 400m).
TLX24 Matrix Switch Transmit
/ Receive Concept - Fiber
TLX24 Matrix Switch Transmit
/ Receive Concept - CATx
Page 23
Page 17
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Routing Thinklogical® TLX Extenders through the TLX24
Connecting to a Control CPU
The TLX24 is controlled via a dedicated external Control CPU. This allows for customization as well as
ease of control and administration. Access is provided via a network connection or serial RS-232 port.
Note: The Control CPU (Computer) is supplied separately.
The network and serial RS-232 connection both use the same low-level ASCII API syntax. This
command syntax is defined in the document: Manual_TLX_Matrix_Switch_ASCII_API_V5. Each line
contains only one command and must end with a carriage return (CR) and line feed (LF), or just a line
feed (LF). The characters are not echoed.
The serial port is configured for 9600 baud, 1 stop bit, no parity, and no flow control. The network
interface listens on TCP (Transmission Control Protocol) port 17567. It accepts the same commands as
the serial interface. You may use telnet to manually open a connection and control the TLX Matrix Switch
using port 17567.
Third-party controllers will control the Matrix Switch by connecting to either the serial or network port.
Using the network is the only means to take advantage of our automatic fail-over facility.
Thinklogical offers a web-based control program called 'Configurator'. This program is described in
greater detail in the document: Manual_System_Management_Portfolio, available on the Thinklogical
web site.
Page 24
Page 18
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Linux Command Console (Console)
• Baud Rate: 115200
• Data Bits: 8
• Parity: none
• Stop Bits: 1
• Flow Control: none
• DB9 DCE
➢ A straight (NOT a null-modem) cable is needed to connect to a PC.
ASCII API (RS-232) Settings
• Baud Rate: 9600
• Data Bits: 8
• Parity: none
• Stop Bits: 1
• Flow Control: XON/XOFF (Software)
• DB9 DCE
➢ A straight (NOT a null-modem) cable is needed to connect to a PC
Firmware
On Screen Display (OSD) - Firmware Option
The optional Configurator can be accessed and controlled via an OSD (On-Screen Display) technology.
The Configurator software can be installed on a designated out-of-band (OOB) PC which users can
access from a workstation. A preconfigured hot-key sequence will deliver the Configurator GUI straight
to the user’s desktop monitor. The user can then select the defined sources and destinations that they
wish to connect. While a user is making the connections, they have exclusive use of the OOB PC. Once
they have completed their connections, the OOB PC becomes available for the next user. The OOB PC
that has the Configurator loaded on it has a built-in timeout function, therefore the PC should not be
taken out of service for an extended period. The timeouts can be set in increments of one second.
Typical timeouts are in the order of 10 seconds.
Order of Installation Events
Please refer to the Quick Start Guide included with your products for detailed instructions. The
TLX24 Quick Start Guide is also available in Appendix A (pg. 24).
Updates
See APPENDIX B: FPGA Program Code Update Procedure, pg. 25.
Firmware updates are available through Thinklogical®. For technical assistance, please call us at
1-203-647-8700.
Note: If mounting the chassis in a rack, insure that air flow to the fans is not restricted
(minimum 2” of free space on all sides).
Note: If any of the sensors detect an over temperature condition, power will be removed
from all sensitive components and the system will shut down.
Page 25
Page 19
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
System Reboot or Power Off at the Chassis
From the Chassis’ LCD Main Menu, press the down arrow 4 times to get to the Reboot/Power Off
menu.
Thinklogical
TLX24 Matrix Switch V1.02
From the Reboot/Power Off menu, press the arrow once to choose Reboot or twice to Poweroff.
Press to Cancel.
Press enter to execute either choice.
You will be given another chance to either Enter or Cancel your choice. If no selection is made within
~30 seconds, the display will revert to the Main Menu.
For Poweroff, press Enter. The shut-down process will begin (displayed). When OK to power off is
displayed, remove the AC power cord from the chassis. The system is now fully powered down.
Note: When rebooting via the LCD, Console Port, or an SSH connection, the chassis
power on the TLX24 will NOT be turned off and existing switch connections will remain. To
clear the switch connections, use the PWROFF command line or the LCD menu.
System Shut-Down at the Command Line
The following commands allow a safe shut-down of the system:
Note: During normal operation, the processor can be managed via the Console Port or an
SSH connection.
The PWROFF Command
• Typing pwroff at the command line prompt will halt the processor but will NOT turn off the
power to the entire base board, including the SFPs.
• Once the processor is inactive, the display will indicate “OK to power off” and the system must
then be fully powered down by unplugging the Matrix Switch’s AC power cord.
Note: Chassis power on the TLX24 cannot be turned off via the LCD, Console Port, or an
SSH connection. To clear the switch connections, the AC power cord must be removed, as
described above.
Page 26
Page 20
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
How to Install and Replace a Power Supply
The Power Module is universal input 100-240VAC, 50-60Hz. Use the proper power cords for your region
(PWR-000006-R, supplied with the unit).
1 Perform a Poweroff as shown, previous page. Ensure the power cord is removed from the power
supply module.
Warning! Do not proceed to Step 2 until the power cord
has been removed.
2 Press the green latch in (to the left) with your right hand while
grasping the handle with your left.
3 Pull the Power Module straight out of the chassis by the handle.
4 Insert the new Power Module into the chassis and slide it in until it reaches the backplane
connector. At this point, use just enough force to firmly engage the module with the mating connector
and lock the latch. Install the AC cord.
Warning! If the module does not slide easily into the connector, do not force it! Damage
may occur. Remove the module and start over.
Page 27
Page 21
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Section 3: Regulatory & Safety Requirements
Symbols Found on Our Products
Markings and labels on our products follow industry-standard conventions. Regulatory markings found
on our products comply with all required domestic and many international requirements.
Regulatory Compliance
Thinklogical’s® products are designed and made in the U.S.A. These products have been tested by a
certified testing laboratory and found compliant with the following standards for both domestic USA and
many international locations:
North America
Safety
UL 62368-1:2014Ed.2
CSA C22.2#62368-1:2014Ed.2
LASER Safety
CDRH 21 CFR 1040.10
Class 1 LASER Product
Canadian Radiation Emitting Devices Act, REDR C1370
IEC 60825:2001 Parts 1 and 2
Class 1 LASER Product
Electromagnetic Interference
FCC 47CFR Part 15 Subpart B: 2013 Class A
Industry Canada ICES-003: 2016 Ed. 6
Australia & New Zealand
This is a Class A product. In a domestic environment this product may cause radio interference, in which
case the user may be required to take corrective action.
European Union
Declaration of Conformity
Manufacturer’s Name & Address: Thinklogical, A BELDEN BRAND
100 Washington Street
Milford, Connecticut 06460 USA
Thinklogical’s products comply with the requirements of the Low Voltage Directive 2006/95/EC, the EMC
Directive 2004/108/EC, the RoHS Directive 2011/65/EU, the WEEE Directive 2012/19/EU and carry the
marking accordingly.
Standards with Which Our Products Comply
Safety
IEC 62368-1:2014Ed.2+C1
CB Scheme Certificate
Electromagnetic Emissions
CENELEC EN 55022:2010 +AC:2011
Page 28
Page 22
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Electromagnetic Immunity
EN 55024:2011+A1
CENELEC EN 55032:2015
EN 61000-3-2:2000 Harmonics
EN 61000-3-3:2008 Flicker
EN 61000-4-2:2009 Electro-Static Discharge Test
EN 61000-4-3:2006 A1:2008, A2:2010 Radiated Immunity Field Test
EN 61000-4-4:2004 Electrical Fast Transient Test
EN 61000-4-5:2006 Power Supply Surge Test
EN 61000-4-6:2009 Conducted Immunity Test
EN 61000-4-11:2004 Voltage Dips & Interrupts Test
Supplementary Information
The following statements may be appropriate for certain geographical regions and might not apply to
your location:
• This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations. Cet appareil numérique de la classe A respecte toutes les exigencies du
Règlement sur le matérial brouilleur du Canada.
• This is a Class A product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take corrective action.
• This equipment has been tested and found compliant with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications in
which case the user may be required to make adequate corrective measures at their own expense.
• This Class A digital apparatus complies with Canadian ICES-003 and has been verified as compliant
within the Class A limits of the FCC Radio Frequency Device Rules (FCC Title 47, Part 15, Subpart B
CLASS A), measured to CISPR 22:1993 limits and methods of measurement of Radio Disturbance
Characteristics of Information Technology Equipment.
•
The user may notice degraded audio performance in the presence of electro-magnetic fields
.
Page 29
Page 23
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Section 4: How to Contact Us
Customer Support
Website: https://www.thinklogical.com
Check out our website for current products, support documents and useful information about all
the products and services we offer, including:
• Technical Specification Sheets
• Quick-Start Guides
• Product Manuals (for viewing online or for download)
• Chat live with a Technical Service Representative
Email: mailto:support@thinklogical.com
For product support, technical issues or questions, product repairs and request for Return
Merchandise Authorization.
Telephone: 1-203-647-8700
Please contact our expert sales staff in Milford, CT Monday - Friday from 8:30am to 5:00pm,
Eastern Time Zone. If leaving a voice message, please provide a preferred time to call back.
Fax: 1-203-783-9949
Please indicate the nature of the fax on your cover sheet and provide contact information.
Product Support
Warranty
Thinklogical warrants this product against defects in materials and workmanship for a period of
one year from the date of delivery, with longer terms available at time of purchase on most
products. Thinklogical and its suppliers disclaim all other warranties. Please refer to your
product invoice for the Warranty Terms & Conditions.
Defect remedy shall be the repair or replacement of the product, provided that the defective
product is returned to the authorized dealer within a year from the date of delivery.
If you wish to return your device, contact the Thinklogical authorized dealer where you
purchased the device, or if you purchased directly, call Thinklogical at 1-800-647-8700.
Return Authorization
If you must return a product to Thinklogical directly, please contact us at 1-203-647-8700.
Customer Support will ask you to describe the problem and will issue you a Return Merchandise
Authorization number (RMA#). Pack the device in its original box, if possible, and return it with
the RMA# printed on the outside of the box. DO NOT return a product to Thinklogical
without a Return Merchandise Authorization.
Our Address
If you have any product issues or questions or need technical assistance with your Thinklogical
system, please call us at 1-203-647-8700 and let us help. If you need to write us or return a
product, please use the following address:
Please include the Return Merchandise Authorization number: Thinklogical, A BELDEN BRAND
100 Washington Street
Milford, CT 06460 USA
Attn: RMA#
Page 30
Page 24
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Appendix A: TLX24 ALL FIBER QUICK START GUIDE
Page 31
Page 25
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Appendix B: FPGA Program Code Update Procedure
Page 32
Page 26
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Appendix C: Secure Applications
TLX24 Matrix Switch Control
When used in a secure application, the Matrix Switch and External Computer (server) used to manage
the system must be in a physically secure environment to which only trusted administrators have access.
Similarly, the server used to manage the Matrix Switch must be physically protected and have suitable
identification/authentication mechanisms to ensure that only trusted administrators have access.
Thinklogical’s TLX, VX and MX Matrix Switches use two methods for secure routing. One is known as
Restricted Switching and the other is known as Partitioning. These methods can be deployed
singularly or jointly, depending on security requirements.
CATx Matrix Switching applications, not available on all Thinklogical Matrix Switch models, do not offer
an EAL4 rated level of security.
Page 33
Page 27
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Restricted Switching
Restricted Switching provides multiple levels of security classification domains on the same
Matrix Switch. Each destination must ensure that no unauthorized content is displayed or accessed.
Therefore, every input and output must be prioritized. Priorities can range from 1 to the total number of
ports in the Matrix Switch. An output can connect to an input with a priority greater than, or equal to, its
own. Thus, a priority level of 1 on an output can connect to any input (priority 1, 2, 3…).
The user must provide a table defining the priorities for each input and output of the switch matrix. This
table is in the form of a comma separated value (csv) file. This file contains the values in three columns:
Port Direction (i=input, o=output), Port Number and Port Priority. For example:
I/O Number Priority
"i", 1, 1
"i", 2, 2
"i", 3, 3
"i", 4, 1
"i", 5, 3
"o", 1, 1
"o", 2, 3
"o", 3, 2
"o" 4, 4
"o", 5, 1
Output 1 can connect to ports 1-5.
Output 2 can connect to ports 3 and 5.
Output 3 can connect to ports 2, 3, and 5.
Output 4 cannot connect to any ports.
Output 5 can connect to ports 1-5.
Note that Port Direction (i or o) is in quotes and that the table must use only the following ASCII printable
characters:
Double quotes (or speech marks) character code = 34 (")
Lower case i character code = 105 (i)
Lower case o character code = 111 (o)
Comma character code = 44 (,)
Carriage Return character code = 13 (CR)
Line Feed character code = 10 (LF)
The Restricted Switching Table files are stored on the iMX6 processor at:
/var/local/router/restrict/upstream.csv
At system power up, after initial boot-up completes, the processor will only evaluate its Restricted
Switching Table (upstream.csv file) once upon becoming active. If an upstream.csv file is found, a log
entry to the deamon.log file is made indicating “Restricted Switching ENABLED.” If no file is found, then
a log entry of “Restricted Switching DISABLED” is made.
Any errors that occur during the Restricted Switching Table evaluation process will be logged as “error”
with a field and line invalid identifier. The daemon.log file will be at the following location:
/var/log/daemon.log.
For access to the daemon.log file via SSH, refer to THE NETWORK INTERFACES section of this
document (pg. 6).
To verify the system’s Restricted Switching policy, Thinklogical recommends the following:
1) Review the daemon.log file and correct any errors in the Restricted Switching Table before
implementing multiple levels of security classification domains on the same Matrix Switch.
2) Fully test the Restricted Switching before implementing multiple levels of security classification
domains on the same Matrix Switch.
Page 34
Page 28
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
There are cases where updates to the Restricted Switching Table must be made in an active
system. When an update is made to the table, the processor will not evaluate the updated table until the
LAN connection is restored.
Restricted Switching is disabled when Restricted Switching Table files are removed. By default,
when there are no Restricted Switching Table files, all input and output ports will have a priority of 1. All
Switches are shipped without Restricted Switching Table files stored on the processor and therefore do
not restrict any connection.
Restricted Switching with TLX, VX and MX Matrix Switches
Restricted Switching Priority Scheme
The following example shows a priority scheme for four levels of security managed by one TLX Matrix Switch:
Restricted switching is configured via firmware loaded into the
Matrix Switch. The configuration file for this scenario will appear
like the table at right.
Page 35
Page 29
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Partitioning
Partitions allow TLX, VX and MX Matrix Switch sources and destinations to be segregated.
Therefore, destination work stations will only receive signals that are transmitted from source computers
in the same partition. In addition, it is impossible for a source computer to be inadvertently routed outside
of its designated partition as the signals will not be transmitted.
The user must provide a table defining the partitions. This table is in the form of a Comma Separated
Value (CSV) file located in /var/local/router/partition on the Switch. This file contains the port number
and the partitions to which it belongs.
Example: TLX80 Matrix Switch with four distinct partitions:
Four partitions set up for secure routing and extension applications. Signals are only capable of
transmitting and receiving within a single partition and not across partitions
The maximum number of partitions is the number of ports that make up the Switch (12-1280). A TLX80,
for example, can be configured with up to 80 partitions, a TLX160 with up to 160, and so forth. There are
also overlapping partition configurations.
A TLX80 with four partitions: Ports 5-10 are accessible to both partitions 2 and 3.
The following example shows a TLX80 Switch with an overlapping partition:
The TLX24 Partition Table files are stored on the iMX6 at:
/var/local/router/partition/upstream.csv
Page 36
Page 30
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
At system power up, after initial boot-up, the processor will only evaluate its Partition Table
(upstream.csv file) once upon becoming active. If an upstream.csv file is found, a log entry to the
deamon.log file is made indicating “Partition ENABLED.” If no file is found, then a log entry of “Partition
DISABLED” is made.
Any errors that occur during the Partition Table evaluation process will be logged as “error” with a field
and line invalid identifier. The daemon.log file will be at the following location on the processor:
/var/log/daemon.log.
For access to the daemon.log file via SSH, refer to THE NETWORK INTERFACES section of this
manual (pg. 6) for correct IP addresses.
To verify the system’s Partitioning policy, Thinklogical recommends the following:
1) Review the daemon.log file and correct any errors in the Partition Table before implementing
multiple levels of security classification domains on the same Matrix Switch.
2) Fully test the Partitioning before implementing multiple levels of security classification domains
on the same Matrix Switch.
There are cases where updates to the Partition Table need to be made in an active system. When
an update is made to the table, the processor will not evaluate the updated table until the LAN
connection is restored.
Partition Switching is disabled when Partition Table files are removed. By default, when there are
no Partition Table files, all ports not listed will default to partition 1. All Switches are shipped without
Partition Table files stored on the processor and therefore do not restrict any connection.
Administration Access
There are two methods by which the administrator can access the Switch Control Configurations:
1. The Serial Console directly connected to the Switch. (It should be noted that, while no
administrator password is required to use the Serial Console, physical access to the Switch is
required. Therefore, the Switch should be stored in a physically secure location to avoid
unauthorized access.)
2. SSH access. The Switch allows SSH connections to the Switch for management purposes. SSH
sessions are authenticated using an encrypted password file.
Password Security
For security purposes, the Switch defaults to using the Message-Digest Algorithm (MD5) and shadow
passwords. It is highly recommended that you DO NOT alter these settings. If you select the older
Data Encryption Standard (DES) format, passwords will be limited to eight alphanumeric characters
(disallowing punctuation and other special characters) with a modest 56-bit level of encryption. The
single most important thing you can do to protect the Switch is create a strong password.
Creating Strong Passwords:
The password can contain up to 127 characters and cannot contain a space.
MAKE THE PASSWORD AT LEAST EIGHT CHARACTERS LONG. The longer the password, the more
effective it will be. If you are using an MD5 password, it should be approximately 15 characters long.
With DES passwords, use the maximum eight-character length.
Mix UPper AnD LowER CASE LETTERS. Passwords are case sensitive, so mixing will multiply the
number of possible combinations.
Mix LETTER5 AND NUM8ER5 within the password to enhance its strength.
Include NON-ALPHANUMER!C CH@RACTER$. Special characters (& $ % >) and punctuation marks (?
“ - !) increase the strength of a password.
Page 37
Page 31
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
Secure Application Examples
The Diagram on pg. 32 shows the TLX24 Matrix Switch in a secure application. The highly secure
components are described as the Red Network and the other, lower security components are
described as the Black Network. The Red Network, containing the computers (sources), is shown in a
physically secure environment along with the TLX Matrix Switch, the computer server used to manage
the Switch, and the Network Hub. The Network Hub is a dedicated network used only to connect the TLX
Switch to the computer server. This dedicated network does not connect to any other components and
does not extend beyond the physically secure environment. The dedicated network connection may be
replaced by a direct serial connection (RS-232) between the TLX Switch and the computer server.
The TLX Matrix Switch can be configured to prevent accidental connection from the Red Network
to the Black Network using the Restricted Switching feature. For example, the TLX Matrix Switch
Network Diagram should be configured with the following csv file:
Direction Number Priority
I 1 2
I 2 2
O 2 2
I 42 2
O 41 2
O 42 2
I 5 1
O 5 1
I 45 1
O 45 1
The following connection rules apply:
• SOURCE 2 can be connected only to DESTINATION 2
• SOURCE 1 can be connected to both DESTINATION 1 and DESTINATION 2
Note: The TLX Matrix Switch and the computer server used to manage the Switch must be
protected according to the highest security classification of any component in the entire
network application. The optical connections and Destination Receiver designated as Red
Network must be kept physically secure.
The configuration of the TLX Matrix Switch should be reviewed regularly to ensure that it
continues to meet organizational security policies concerning:
▪ Changes in the TLX Matrix Switch configuration
▪ Changes in the organizational security policy
▪ Changes in the threats presented from non-trusted network interfaces
▪ Changes in the administration, operation staff or the physical environment of the TLX Matrix Switch
Page 38
Page 32
TLX24 Matrix Switch Product Manual thinklogical Rev. H, Oct., 2019
TLX24 Matrix Switch Secure Application
Loading...
