PREFACE

About this Product Manual

This manual is divided into five sections: 1. Introduction, 2. System Features, 3. Connecting
the SDI to HDMI Converter, 4. Regulatory and Safety Compliance and 5. Customer &
Product Support. These are sub-divided to help you find the topics and procedures you are

looking for. This manual also contains Appendices.

Conventions Used in this Manual

As you read this manual you will notice certain conventions that bring your attention to important
information. These are Notes and Warnings. Examples are shown below.

Note: Important Notes appear in blue text preceded by a yellow exclamation
point symbol, like this.

A note is meant to call the reader’s attention to helpful information at a point in the text that is
relevant to the subject being discussed.

Warning! All Warnings appear in red text, followed by blue text, and pre-

ceded by a red stop sign, like this.

A warning is meant to call the reader’s attention to critical information at a point in the text that is
relevant to the subject being discussed.

1. Introduction

1.1. Contents

When you receive your Thinklogical® SDI to HDMI Converter, you should find the following items:

• SDI to HDMI Converter (SDC-000001) or
SDI to HDMI Converter/Extender (SDC-000001-LC)

• AC/DC adapter universal input 90-264 VAC – PWR-000022-R

• SDI to HDMI Converter product manual.

SDI to HDMI Converter, Rev. C 4 July, 2012

1.2. Product Overview

The Thinklogical® SDI to HDMI Converter allows you to seamlessly convert a broadcast quality
SDI signal to HDMI. The unit is full SMPTE compliant, including the active loop out port.

FIGURE 1: Top View of SDI to HDMI Converter (P/N SDC-000001)

FIGURE 2: Top View of SDI to HDMI Converter/Extender (P/N SDC-000001-LC)

SDI to HDMI Converter, Rev. C 5 July, 2012

2. System Features

2.1. General System Features

The Thinklogical® SDI to HDMI Converter allows users to seamlessly convert a broadcast
quality SDI signal to HDMI. The SDI to HDMI Converter is full SMPTE compliant, including
the active loop out port. The SDI to HDMI Converter/Extender has a fiber output that is fully
compatible with our Velocity line of receivers as well as our VX routers for a comprehensive
conversion and extension solution. Not only does it convert and scale video signals in real-

time, it also provides the highest quality images for professional audio-visual end users.

Each SDI to HDMI Converter system includes the following features:

Conversion/Scaling:

• Input: SD, HD, 3G SDI

• Output: 1920x1200p60, 1080p50, 1080p60, 720p50, 720p60, 576p50, 480p60.

• Fiber optic output compatible with Thinklogical Velocity Receivers

• SDI embedded audio conversion to HDMI output and compatible with Thinklogical

Velocity Receivers

• User Control via RS-232 and Ethernet

• SMPTE standards supported: 259M-C, 292, 424M, 425 level A and level B

• Active SMPTE compliant loop out port

• Automatic Video Input Detection

• Additional manual resolution selection via push buttons

Video Processor Features:

• Per pixel motion-adaptive video noise reduction- removes the white Gaussian noise
present in most types of video

• Content adaptive block and mosquito noise reduction- significantly reduces the blocking
and mosquito noise artifacts present in compressed video

• Advanced per-pixel, motion-adaptive, edge-adaptive 3D de-interlacing with support for
arbitrary film cadences- removes “jaggies” and “feathering” to produce smooth and clear
images

• Adaptive scaling- produces sharp and clean images and low or high resolutions

• Natural dept expansion- enhances details and sensation of depth for greater realism and

super resolution effect

• Adaptive contrast enhancement (ACE) brings out shadow detail without crushing mid­tones or highlights

• Intelligent color remapping (ICR) enables vivid color without hue shifts and clipping while
maintaining accurate flesh tone

• Qdeo™ true color- a unique solution for using the full dynamic range of 10-bit and 12-bit
displays which eliminates contouring seen when viewing typical 8-bit consumer video

SDI to HDMI Converter, Rev. C 6 July, 2012

Complianc

e

2.2. Technical Specifications

Frame Rate Formats Supported: Progressive, Interlaced, PsF

Function Video Standards Supported Formats
SD-SDI SMPTE 259M PAL and NTSC

HD-SDI SMPTE 292M All standard HD-SDI compatible formats

3G SDI SMPTE 424M, 425M, Level A and B

Storage Temperature 0 to 50 deg C , 5 – 95 % RH, non condensing

Power Supply Voltage +5.0 VDC

DC Adapter AC/DC adapter universal input 90-264 VAC

Power Consumption

Operating Temperature and

Humidity

Enclosure Dimensions

Weight

With Velocity SFP: 9.5 Watts
Without Velocity SFP: 8.5 Watts

0 to 50 °C (32 to 122 °F); 5 to 95% RH, non-condens ing

Height: 1.1” (27.94 mm)
Depth: 7” (177.80 mm)
Width: 5.375" (136.65 mm)

Actual Weight: 1 lb (0.45 kg)
Shipping Weight: 9 lbs (4.08 kg)

Pending approvals for US, Canada, and European Union

All SMPTE 425 level A and B compatible
formats

SDI to HDMI Converter, Rev. C 7 July, 2012

3. Connecting the SDI to HDMI Converter

3.1 RS-232 Pin Out

3.2

The IEX3 has many configuration options and this document will cover these options in detail.
Every configuration can be set regardless of the user interface (e.g. RS-232, RS-422, Front
Panel Display, Web Interface). There are a lot of status and configuration settings that can be
viewed but are not output to the Front Panel display due to the display limitations. The RS-232
and RS-422 interface menus will have an 'exit' option. Selecting this option will display the menu
items one level up. The SPACE bar will repeat the current menu and the ENTER key will return
the user to the top level menu. This document will be formatted similarly to the configuration
menus that are displayed on power-up.

The RS-232 setup and configuration is as follows:

• Use Hyperterm or similar type interface.

• Baud rate is 115200, 8 bits, no parity, 1 stop bit, no flow control

• Emulate VT-100 mode

MAIN USER MENU:

A: Set Input Select
B: Set Output Select
C: Video Processing Setup
D: Audio Info and Setup
E: User Config Setups
F: System Settings
G: System Information

User Menu Configurations:

SDI to HDMI Converter, Rev. C 8 July, 2012

MAIN MENU:
A: Set Input Select

Note:

A valid input must be applied in order for the configuration to be used.

a: Single Link Input

This option forces a re-configure of the unit. A valid signal needs to be present.

b: Enable Loop Output

This will enable the video signal applied to input 1 to be looped back out of the
IEX3. This is enabled as default.

c: Disable Loop Output

Turns off the BNC Loop output 1.

d: AUTO mode ON

Detects when a video source has changed format. On cable insertion, the unit
performs a re-configuration of the last known output setting with the new input.

e: AUTO Mode OFF

Turns off the AUTO mode.

MAIN MENU:
B: Set Output Select

Sets the output video resolution. A valid input video signal needs to be present.

a: 480p @ 60

b: 576p @ 50

c: 720p @ 50
d: 720p @ 60

e: 1080p @ 50
f: 1080p @ 60 (default)
g: 1920x1200p @ 60

MAIN MENU:
C: Video Processing Setup

a: Comp. Artifact Reducer

Selects menu for Component Artifact Reducer (CAR) video processing functions.

b: DeInterlacer

Selects the menus for the DeInterlacer (DEINT) video processing functions.

c: Noise Reducer

Selects the menus for the Noise Reduction (NR) video processing functions.

d: Picture Control

Selects the menus for Picture Control (PC) video processing functions.

e: Edge Enhancer

Selects the menus for Edge Enhancement (EE) video processing functions.

f: Color Management Unit

Selects menus for Color Management Unit (CMU) video processing functions.

SDI to HDMI Converter, Rev. C 9 July, 2012

g: Adapt. Contrast Enhancer

Selects the menus for the Adaptive Contrast Enhancer (ACE) video processing
functions.

h: 3D Control Menu
Selects the menu for output 3D processing formats.

MAIN MENU:

D: Audio Info and Setup

a: Enable Audio Output

Enables the embedded audio output from the selected input.

b: Disable Audio Output

Mutes all embedded audio output channels.

c: Get Audio Info Input

Get Audio information from BNC Input.

d: Set Audio Delay

Audio Delay range is from -50 - +50 in mS with the default being 0.

e: Get Audio Delay

The programmed Audio Delay in mS.

f: Get Audio Channel Cfg.
Get the audio channel mapping.

g: Assign Audio Channels
Configure input to output channel configuration.

MAIN MENU:
E: User Config Setups

a: Save Current Config

Saves the current system settings to the non-volatile Memory. Maximum of 20
characters for the record name.

b: Set Power On Config

This option will set the current configuration to the user in an accessible region of
flash. This configuration is restored during power up.

c: Restore Config Record

Recall any one of the current saved configuration records.

d: Restore Factory Config

By selecting this, the IEX3 will delete the stored power on configuration and will
re-configure to the factory default on the next power cycle (1080i @ 60 Hz).
Another way to achieve this is to hold down the front panel knob for a minimum
of 5 seconds during a power cycle.

e: Erase Record(s)

Erase a particular record or all records.

SDI to HDMI Converter, Rev. C 10 July, 2012

MAIN MENU:
F: System Settings

a: Ethernet Settings
Settings for the network interface.

Default Settings:
IP Address – 192.168.75.200
Mask – 255.255.255.0
Gateway – 0.0.0.0

b: Enable HDMI Output Video Mode
Enables the HDMI output to be in true HDMI mode.

c: Enable DVI Output Video Mode
Enable this option if the sink device is a true DVI monitor/projector.

d: Get Video Mode
This will return the current video mode.

MAIN MENU:
G: System Information

The following is used for retrieving information regarding current setup and signal
detection information. The 'Get Genlock Info' is not available for display on the Front
Panel. The 'Get Input X', 'Get Output Info' will display the signal format only on the Front
Panel whereas the other communications interfaces will display more verbose info.

a: Get Software Version

Displays the System’s software version number.

b: Get FPGA Version

Displays FPGA 1 version number
c: Get Linux Version

Displays version of software currently running on ethernet interface.

d: Get Local Temperature

Displays the temperature inside the box

e: Get Input Info

Displays Information about the video and embedded audio signal on BNC Input 1

f: Get Output Info

Displays Information about the video and embedded audio signal on BNC

Outputs

MAIN MENU:
C: Video Processing Setup

SUB-MENU:
a: Comp. Artifact Reducer

This feature is used to reduce compression artifacts that are caused by video com­pression schemes such as MPEG2. Mostly used on YCbCr 4:2:2 interlaced or pro­gressive input video.

a: Comp. Arti. Reducer EN
Enables the Compression Artifact Reducer.

SDI to HDMI Converter, Rev. C 11 July, 2012

b: Mosq. Noise Reducer EN
Enables the Mosquito (Ringing) Noise Reducer.

c: Block Noise Reducer EN

Enables the Block (8x8) Noise Reducer.
d: Non Std Block Noise Det EN

Enables the Non-Standard Block Detection.
e: Enable All CAR Blocks

Enables All the above (A,B,C,D) Noise Reduction Blocks.
f: Disable All CAR Blocks

Disables All the Noise Reduction Blocks.

MAIN MENU:
C: Video Processing Setup
SUB-MENU:
b: DeInterlacer

Selects the menu for the DeInterlacer (DEINT) video processing functions.
a: Deinterlacer BYPASS

Bypasses the deinterlacer (input is progressive).
b: Deint 2D VECTOR

Sets the Interlacer for 2D Vector mode (Interlaced input DEFAULT mode).
c: Deint 2D VECTOR AGGRES.

Sets the Interlacer for 2D Aggressive mode (Interlaced input).
d: Deint 3D FIXED

Sets the Interlacer for 3D fixed mode (Interlaced input).
e: Deint 3D Mo Adpt Vector

Sets the Interlacer for 3D Motion Adaptive Vector mode.
f: Deint 3D MA Vect Aggres

Sets the Interlacer for 3D Motion Adaptive Vector Aggressive mode.

g: Deint 3D MA Vect Linear

Sets the Interlacer for 3D Motion Adaptive Vector Linear mode.

h: DEINTERLACER DEFAULT

Sets the Interlacer for DEFAULT mode.

MAIN MENU:
C: Video Processing Setup
SUB-MENU:
c: Noise Reducer

Selects the menus for the Video Noise Reduction (NR) video processing functions.

Used mostly on YCbCr 4:2:2 Input video.

a: Noise Reducer DISABLE

Disables the Noise Reduction block.

b: Noise Reducer 2D

Sets the Noise Reducer for 2D (Spatial) mode.

c: Noise Reducer 3D Fixed

Sets the Noise Reducer for 3D Fixed (Temporal) mode.

SDI to HDMI Converter, Rev. C 12 July, 2012

d: Noise Reducer 3D Adapt

Sets the Noise Reducer for 3D Adaptive (Temporal) mode.

e: Noise Reducer Default

Sets the Noise Reducer for Default mode.

f: Noise Reducer Automatic

Sets the Noise Reducer for Automatic mode.

MAIN MENU:
C: Video Processing Setup
SUB-MENU:
d: Picture Control

a: Set All Levels Default

Restores Contrast, Brightness, Tint, Black, Color Temp levels to defaults.
b: Set Contrast Level

Enter the Contrast Level 0 to +10. The Default value is 10.

c: Set Brightness Level

Enter the Brightness Level -100 to +100. The Default value is 0.
d: Set Tint Level

Enter the Tint Level -180 to +180. The Default value is 5.
e: Set Black Level

Enter the Black Level 0 to +100. The Default value is 0.
f: Set Color Temperature

SUB MENU : Video Set Color Temperature Menu
a: Color Temperature NORMAL
Sets the color temp to 6500.

b: Set Color Temperature COOL

Sets the color temp to 8000.
c: Color Temperature WARM

Sets the color temp to 6000.

d: Color Temperature CUSTOM
Enter Color Temp Level 6000 to 8000 (Normal = 6500)

MAIN MENU:
C: Video Processing Setup
SUB-MENU:
e: Edge Enhancer

Selects the menus for Edge Enhancement (EE) video processing functions.

a: Edge Enhancer OFF

b: Edge Enhancer LOW
c: Edge Enhancer MED

d: Edge Enhancer HIGH

SDI to HDMI Converter, Rev. C 13 July, 2012

MAIN MENU:
C: Video Processing Setup
SUB-MENU:
f: Color Management Unit

Selects the menus for Color Management Unit (CMU) video processing functions.

a: Hue Saturation Menu
Video Hue Saturation Menu
a: Hue Saturation ENABLE

b: Hue Saturation DISABLE
c: Intelligent Saturation ENABLE

d: Intelligent Saturation DISABLE
e: Set HUE Saturation Level
f: Set HUE Global Sat. Level
g: ICR Advanced Menu

Note: Hue saturation needs to be enabled (selection ‘a’) in order for ‘Set

HUE Saturation Level’ (selection ‘e’) to be valid.

b: Qdeo True Color Menu

Video Qdeo Menu

a: Qdeo True Color OFF

b: Qdeo True Color SOFT
c: Qdeo True Color GENTILE

d: Qdeo True Color MEDIUM

c: Film Grain Gain Menu

b: Set Film Grain Gain
Range is 0 - 255. Default is 0.
c: Set FGG Temporal Freq.
Range is 0 - 255. Default is 0.

d: Flesh Tone Correction

b: Set FTDC Preset Level 1
c: Set FTDC Preset Level 2

e: Set FTDC Preset Level 4
f: Set FTDC Preset Level 5
g: Set FTDC Preset Level 6

e: Set GAMMA Menu

b: GAMMA 1.8
c: GAMMA 2.5

e: GAMMA S-Curve Dark

e: Qdeo True Color HIGH

Video Film Grain Gain MENU
a: Disable Film Grain Gain

a: Set FTDC Preset Enable

d: Set FTDC Preset Level 3

h: Set FTDC Preset Disable

a: GAMMA Disable

d: GAMMA S-Curve Light

SDI to HDMI Converter, Rev. C 14 July, 2012

MAIN MENU:
C: Video Processing Setup
SUB-MENU:
g: Adapt. Contrast Enhancer

Selects the menus for Adaptive Contrast Enhancer (ACE) video processing functions.

a: ACE PRESET OFF

b: ACE PRESET LOW
c: ACE PRESET MEDIUM

d: ACE PRESET HIGH
e: ACE PRESET RANGE 0-255
f: ACE PRESET RANGE 16-235
g: ACE Brightness Menu
a: Brightness DISABLE
b: Brightness DEFAULT
c: Brightness Taper Size
Enter Taper Size (16, 32, 64, 128, 256, 512).

d: Brightness Taper Side
Enter Taper Side Select (1,2).

e: Brightness Enhancement
Enter Enhancement Level (1 - 15).

f: Brightness Threshold 1
Enter Threshold 1 Level (0 - 1023).

g: Brightness Threshold 2
Enter Threshold 2 Level (0 - 1023).

MAIN MENU:
C: Video Processing Setup
SUB-MENU:
h: 3D Control Menu

a: Left/Right Frame Menu
Menu to functions that will allow the zooming in of an incoming 3D side-

by-side signal and display one half as a 2D image (left eye or right eye).
b: Line-By-Line Output Menu

Select output format of a line-by-line signal.
c: Disable Line-By-Line Output

Turns off the line-by-line feature.
d: Side-By-Side Output Menu

Select output format of a side-by-side signal.
e: Disable Side-By-Side Output

Turns off the side-by-side feature.
f: Dual Stream Output Menu

Select output format of a dual stream signal.
g: Enable Adaptive Clock

Factory Use.
h: Disable Enable Adaptive Clock

Factory Use.

SDI to HDMI Converter, Rev. C 15 July, 2012

4. Regulatory and Safety

4.1 Safety Requirements

4.1.1 Symbols Found on Product

Markings and labels on the product follow industry-standard conventions. Regulatory markings
found on the products comply with requirements.

4.2 Regulatory Compliance

Thinklogical® products are designed and made in the USA. Our products have been tested by a
nationally recognized testing laboratory and found to be compliant with the following standards
(both domestic USA and many international locations).

4.2.1 North America

These products WILL comply with the following standards:

Safety

• ANSI/UL60950-1: 1st Edition (2003)

• CAN/CSA C22.2 No. 60950-1-03

Electromagnetic Interference

• FCC CFR47, Part 15, Class A

• Industry Canada ICES-003 Issue 2, Revision 1

4.2.2 Australia & New Zealand

This is a Class A product. In a domestic environment this product may cause radio interference,
in which case the user may be required to take adequate measures.

SDI to HDMI Converter, Rev. C 16 July, 2012

European Union

4.2.2.1 Declaration of Conformity

Manufacturers name and address:

Thinklogical, LLC®
100 Washington Street
Milford, CT 06460 USA

Telephone [phone]

SDI to HDMI Converter (Part number SDC-000001)
SDI to HDMI Converter/Extender (Part number SDC-000001-LC)

Product name

This product complies with the requirements of the Low Voltage Directive 72/23/EEC and

the EMC Directive 89/336/EEC.

4.2.2.2 Standards with which the Products Comply

Safety

• CENELEC EN 60950-1, 1st Edition (2001)

Electromagnetic Emissions

• EN55022: 1994 (IEC/CSPIR22:1993)

• EN61000-3-2/A14:2000

• EN61000-3-3:1994

Electromagnetic Immunity

• EN55024:1998 Information Technology Equipment-Immunity Characteristics

• EN61000-4-2:1995 Electro-Static Discharge Test

• EN61000-4-3:1996 Radiated Immunity Field Test

• EN61000-4-4:1995 Electrical Fast Transient Test

• EN61000-4-5:1995 Power Supply Surge Test

• EN61000-4-6:1996 Conducted Immunity Test

• EN61000-4-8:1993 Magnetic Field Test

• EN61000-4-11:1994 Voltage Dips & Interrupts Test

SDI to HDMI Converter, Rev. C 17 July, 2012

4.2.3 Supplementary Information

The following statements may be appropriate for certain geographical regions and might not
apply to your location.

Note

Note

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.

Cet appareil numerique de la classe A respecte toutes les exigencies du Reglement sur le
material brouilleur du Canada.

: This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference to radio communications at his own expense.

: This Class A digital apparatus complies with Canadian ICES-003 and has

been verified as being compliant within the Class A limits of the FCC Radio
Frequency Device Rules (FCC Title 47, Part 15, Subpart B Class A), measured to
CISPR 22: 1993 limits and methods of measurement of Radio Disturbance
Characteristics of Information Technology Equipment.

Warning!

cause radio interference, in which case the user may be required to take adequate
measures.

Note:

electromagnetic fields.

This is a Class A product. In a domestic environment this product may

The user may notice degraded audio performance in the presence of

4.2.4 Product Serial Number

Thinklogical® products have a unique serial number, imprinted on a small silver label that is
placed on the bottom of the chassis. The serial number includes a date-code. The format for
the date-code is two digits for the month; two digits for the day and four digits for the year and
two or three digits for a unique unit number. This serial number is also found on the original
shipping carton.

SDI to HDMI Converter, Rev. C 18 July, 2012

5. How to Contact Us

5.1 Customer Support

Thinklogical® is an engineering company and we believe that the first lines of support are the
design engineers that developed each particular product. Therefore your questions will be
handled promptly by our most knowledgeable engineers.

5.1.1 Website

Check out our website for current product offerings, support information and general information
about all of the products we offer.

Our internet website offers product information on all current systems, including technical
specification sheets and installation guides (for viewing online or for download), product
diagrams showing physical connections and other information you might need.

www.thinklogical.com

Note:

not have the Adobe Acrobat reader needed to view PDF files, visit www.adobe.com
for a download.

Most online documents are stored as Adobe Acrobat “PDF” files. If you do

5.1.2 Email

Thinklogical® is staffed Monday through Friday from 8:30am to 5:00pm, Eastern Time Zone.
We will try to respond to your email inquiries promptly, use the following email addresses for
your different needs:

[e-mail] – Information about Thinklogical® and our products.
[e-mail] – Sales Department - orders, questions or issues.
[e-mail] – Product support, technical issues or questions, product

repairs and request for Return Authorization.

SDI to HDMI Converter, Rev. C 19 July, 2012

5.1.3 Telephone

Telephone Sales: Contact our expert sales staff in Milford, CT at 1-203-647-8700 or if in the

continental US, you may use our toll-free number 1-800-291-3211. We are here Monday
through Friday from 8:30am to 5:00pm, Eastern Time Zone. Ask for their direct dial phone
number when you call.

Telephone Product Support: Contact Product Support in Milford, CT at 1-203-647-8700. The

support lines are manned Monday through Friday, 9am to 5pm, Eastern Time Zone.

International Sales: Please contact our US sales staff in Milford, CT at 1-203-647-8700. We

are here Monday through Friday, 8:30am to 5:00pm, Eastern Time Zone (same as New York
City). If leaving a voice message, please let us know the best time to call back so we may
reach you at your convenience.

Our switchboard attendant will direct your call during regular business hours. We have an
automated attendant answering our main telephone switchboard after regular business hours
and holidays. You can leave voice messages for individuals at any time and you may contact
your Sales Representative directly.

5.1.4 Fax

Our company facsimile number is 1-203-783-9949. Please indicate the nature of the fax on
your cover sheet and provide return contact information.

5.2 Product Support

Thinklogical’s® support personnel are available Monday through Friday from 8:30am to 5:00pm,
Eastern Time Zone. If your application requires assistance at some time outside of our normal
business hours, please contact us beforehand and we will do our best to make arrangements to
help you with your Thinklogical® products.

5.2.1 Warranty

Thinklogical, LLC® (“Thinklogical”) warrants this product against defects in materials and
workmanship for a period of one (1) year from the date of delivery (ordinary wear and tear
excluded). This limited warranty does not cover defects resulting from (i) use of the product
other than as described in the applicable documentation for the product; (ii) modifications to or
repairs of the product that are made by any party other than Thinklogical or a party acting on
Thinklogical’s behalf, or (iii) combination of the product with third party products that is not
consented to by Thinklogical. Occurrences of events described in (i) – (iii) shall void the
foregoing warranty. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.

Except for the express warranty set forth above, to the fullest extent permitted under
applicable law, Thinklogical, LLC® and its suppliers disclaim any and all other warranties,
express and implied, including without limitation the implied warranties of merchant­ability, fitness for a particular purpose, title and non-infringement.

SDI to HDMI Converter, Rev. C 20 July, 2012

If the defective product is returned to the authorized dealer within one (1) year of the delivery
date, repair or replacement of the product will be made. Repairs may be made with refurbished
parts. If repair or replacement is not possible, Thinklogical® may keep the defective product and
refund the amount that you paid for the defective product. These are Thinklogical’s sole
obligations, and your exclusive remedies, for a breach of the limited warranty set forth above.

To return a defective product, contact the Thinklogical® authorized dealer from whom you
purchased the product. Do not return a product directly to Thinklogical® without prior
authorization from your dealer.

If you have received prior authorization from your dealer and are returning a product directly to
Thinklogical®:

1. Contact your sales representative, or call Customer Support at 1-800-291–3211 or +

1-203-647–8700.

2. Describe the defect with the product and Customer Support will issue a Return

Merchandise Authorization number (RMA#).

3. Pack the product in all of its original packing, if possible, and write the RMA number

on the box.

4. Return the product to:

Thinklogical, LLC®
Attn: RMA# [Insert the RMA# issued to you, by Thinklogical, here.]
100 Washington Street
Milford, CT 06460 USA

Note:

Contact your sales representative for further information and pricing.

Extended warranties are available from Thinklogical® at an additional cost.

5.2.2 Our Address

If you have any issue with your product, have product questions or need technical assistance
with your Thinklogical® system, please call us at 1-800-291-3211 (USA only) or 1-203-647-8700
and let us help.

If you’d like to write us, we are located at:

Thinklogical, LLC®
100 Washington Street
Milford, CT 06460 USA

SDI to HDMI Converter, Rev. C 21 July, 2012

Appendix A- Application Diagrams

C

u

s

S

t

u

o

C

p

m

o

p

m

e

l

i

r

e

p

d

u

t

e

r

U

S

E

R

M

’

S

E

N

U

R

S

-

2

3

2

b

i

F

s

e

l

b

a

C

c

i

t

p

O

r

e

F

i

b

e

r

O

p

t

i

c

C

a

b

l

e

s

G

e

n

L

o

c

k

I

N

S

D

I

I

N

S

D

I

M

o

n

i

t

o

r

Thinklogical® conversion application using SDI to HDMI Converter with fiber extension, VX80
Router, 3 AV+ Receiver, HDMI to SDI Converter

SDI to HDMI Converter, Rev. C 22 July, 2012

C

u

s

S

t

u

C

B

N

C

c

o

-

a

x

U

S

E

R

M

’

S

E

N

U

R

S

-

2

3

2

o

p

m

o

p

m

e

l

i

r

e

p

d

u

t

e

r

B

N

C

c

o

-

a

x

Thinklogical® conversion application using HDMI to SDI Converter, HDX80 Router, SDI to HDMI
Converter

SDI to HDMI Converter, Rev. C 23 July, 2012

U

M

S

E

R

E

N

U

HDMI/DVI

Source

’

S

R

R

S

-

2

3

2

HDMI to SDI

Converter

Network
Hub

C

u

s

S

t

u

o

C

p

m

o

p

m

e

l

i

r

e

p

d

u

t

e

r

s

e

l

b

a

C

c

i

t

p

O

r

e
b

i

F

S

-

4

2

2

b

i

F

N

I

I

V

D

/

I

M

D

H

S

s

e

l

b

HDX80 Router

a

C

c

i

t

p

O

r

e

N

I

I

D

S

D

I

M

o

n

i

t

o

r

S

D

I

O

U

T

H

M

D

SDIXtreme 3G+

T

U

O

I

Receiver

R

SDI to HDMI

Converter

S

-

4

2

2

Pan/Tilt/Zoom

Controller

H

D

M

I

M

o

n

i

t

o

r

Thinklogical® conversion application using HDMI to SDI Converter with fiber output, HDX80
Router, SDI 3G+ Receiver, SDI to HDMI Converter

SDI to HDMI Converter, Rev. C 24 July, 2012

Appendix B- Quick Start Guide

SDI to HDMI Converter, Rev. C 25 July, 2012

APPENDIX C: GUI

The Graphical User Interface (GUI) for the SDI to HDMI Converter was developed to easily
create, set and recall custom configurations. There are 6 main menus that allow you to
configure the Input/Output, Video Processor, Audio, User Configurations, Xtreme 3G and
System Information. There are sub-menus under the video processor menu for Video Control
and Picture Control.

Note: When power has been cycled on a unit it will reset to factory settings unless
the “Set Power On Config” has been set in the User Menu.

Input/Output Menu

This menu allows you to select the input and the format of the output. By clicking the “Take”
button at the bottom of the screen you are able to commit the output format that you have
selected.

SDI to HDMI Converter, Rev. C 26 July, 2012

Video Processor > Video Control

The Video Control sub-menu allows you to control DeInterlacer, Noise Reducer, Compression
Artifact Reducer, Edge Enhancer, and Adaptive Contrast Enhancer.

SDI to HDMI Converter, Rev. C 27 July, 2012

Video Processor > Picture Control

The Picture Control sub-menu allows you to control Hue Saturation, Advanced Color
Remapping, Flesh Tone Correction and Color Temperature. You can also reset all levels back
to the factory default.

SDI to HDMI Converter, Rev. C 28 July, 2012

Audio

The Audio menu allows you to select which output audio channel is sourced with any input
audio channel. It also allows you to enter an audio delay (from -50 ms to +50 ms) when
needed.

SDI to HDMI Converter, Rev. C 29 July, 2012

User

The User menu allows you to save your current configuration by name or restore factory
configuration. You can also use the drop down menu to “Select Config Name” and set power on
configuration (which sets the current configuration to be the default power on configuration),
restore factory configuration and delete the selected configuration.

SDI to HDMI Converter, Rev. C 30 July, 2012

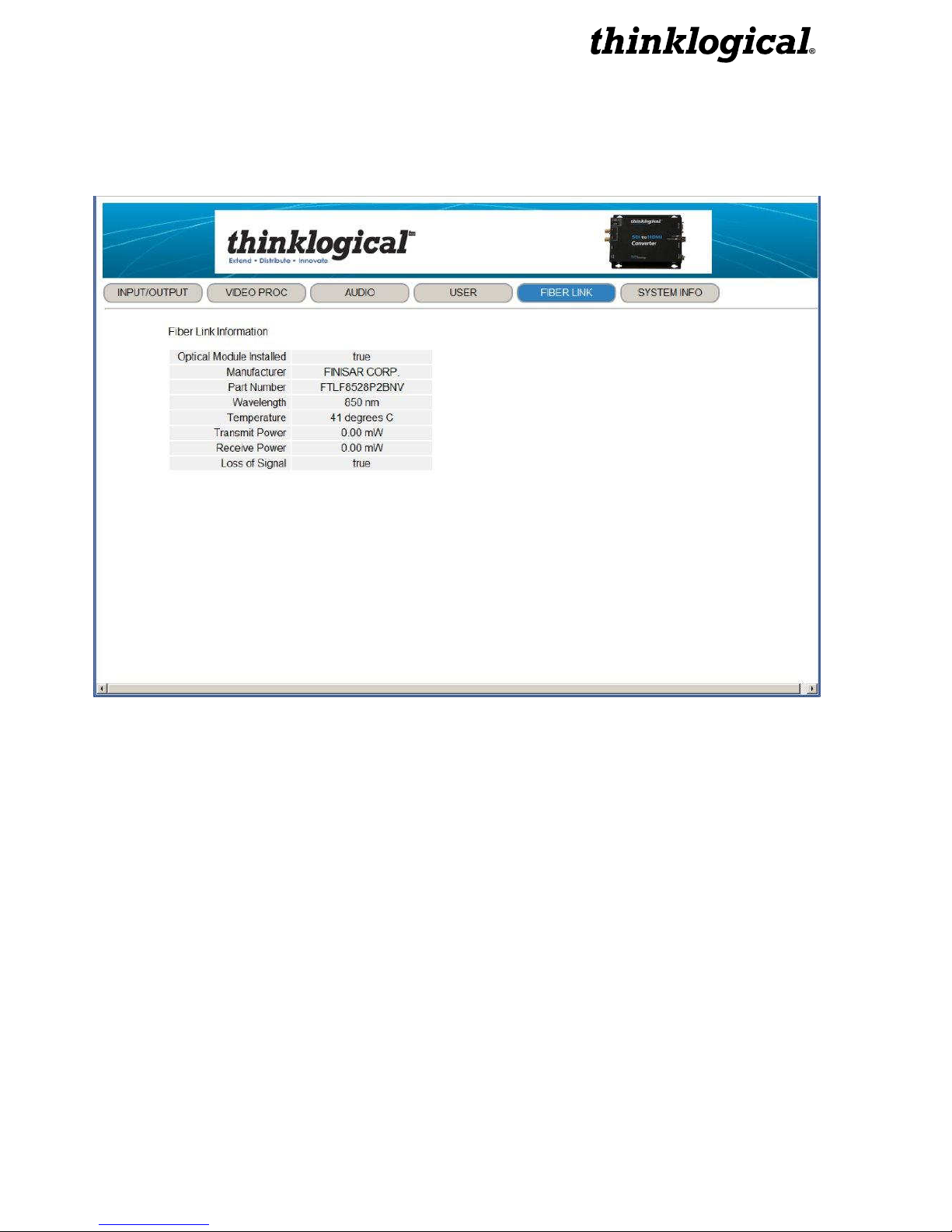

Fiber Link

The Fiber Link menu is valid only if the Optical Module Option is installed. This menu allows
you to view the Thinklogical Velocity Module and SFP information of the unit in use.

SDI to HDMI Converter, Rev. C 31 July, 2012

System Info

The System Info menu allows you to view information for the inputs and outputs as well as
Genlock and software and firmware versions.

SDI to HDMI Converter, Rev. C 32 July, 2012
