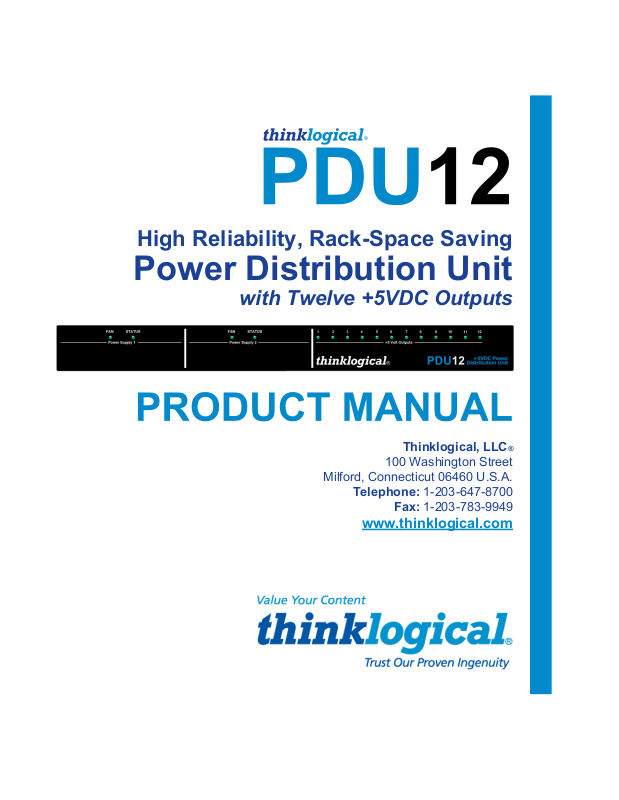

Thinklogical Remote Power Distribution 12 User Manual

®
High Reliability, Rack-Space Saving
Power Distribution Unit
with Twelve +5VDC Outputs
Thinklogical, LLC®
100 Washington Street
Milford, Connecticut 06460 U.S.A.
Telephone: 1-203-647-8700
Fax: 1-203-783-9949
Copyright Notice
Copyright Notice
Copyright NoticeCopyright Notice
Copyright © 2014. All rights reserved. Printed in the U.S.A.
Thinklogical, LLC® 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700
All trademarks and service marks are property of their respective owners.
Subject: Power Distribution Unit-12 (PDU12) Product Manual Release: Initial Release, May, 2014
P D U - 1 2 P r o d u c t M a n u a l ,
M a y , 2 0 1 4
Page 2
Table of Contents
PREFACE 4
About Thinklogical 4 Note and Warning Symbols 5
1.0. INTRODUCTION 5
1.1. Product Overview 5
2.0. SYSTEM FEATURES 7
2.1. General System Features 7
2.2. Supplied Cords and Cables 7
2.3. Dry Contact Alarm 8
3.0. PDU-12 TECHNICAL SPECIFICATIONS 9
4.0. REGULATORY & SAFETY COMPLIANCE 10
4.1. Safety Requirements 10 Symbols Found on the Product 10 Regulatory Compliance 10 North America 10 Australia & New Zealand 10 European Union 10 Standards with which Our Products Comply 10
4.2. Supplementary Information 11 Product Serial Number 11 Connection to the Product 11
5.0. HOW TO CONTACT US 11
5.1. Customer Support 11 Website 12 Email 12 Telephone 12 Fax 13
5.2. Product Support 13
5.2.1. Warranty 13
5.2.2. Return Authorization 13 Our Address 13
APPENDIX: PDU-12 Quick Start Guide 14
P D U - 1 2 P r o d u c t M a n u a l ,
M a y , 2 0 1 4
Page 3
PREFACE
About Thinklogical
Thinklogical is the leading manufacturer and provider of fiber optic KVM, video, audio, and peripheral extension and switching solutions used in video-rich, big-data computing environments.
Thinklogical offers the only fiber optic KVM matrix switches and routers in the world that are accredited to The Common Criteria, EAL4 and TEMPEST.
Governments, entertainment, scientific and industrial customers worldwide rely on Thinklogical’s products and solutions for security, high performance, continuous operation and ease of integration. Thinklogical products are designed and manufactured in the USA and are certified to the ISO 9001-2008 standard.
Thinklogical is headquartered in Milford, Connecticut and is privately held by Riverside Partners, LLC, Boston, MA (http://www.riversidepartners.com). For more information about Thinklogical products and services, please visit www.thinklogical.com.
Follow Thinklogical on LinkedIn at http://www.linkedin.com/company/thinklogical and on Facebook at http://www.facebook.com/ThinklogicalUSA
P D U - 1 2 P r o d u c t M a n u a l ,
M a y , 2 0 1 4
Page 4
Note and Warning Symbols
Throughout this manual you will notice certain symbols that bring your attention to important information. These are Notes and Warnings. Examples are shown below.
Note: Important Notes appear in blue text preceded by a yellow exclamation point symbol, as shown here.
A note is meant to call the reader’s attention to helpful information at a point in the text that is relevant to the subject being discussed.
Warning! All Warnings appear in red text, followed by blue text, and
preceded by a red stop sign, as shown here.
A warning is meant to call the reader’s attention to critical information at a point in the text that is relevant to the subject being discussed.
1.0. Introduction
PDU-12 Power Distribution Unit (Part Number PDU-000012)
H: 1.72” (43.69 mm) x D: 10.52” (267.08mm) x W: 17.49” (444.29 mm)
1.1. Product Overview
The PDU-12 is a one rack-unit device that provides twelve +5 volt outputs via the rear panel. Each unit contains two redundant, hot swappable AC-DC power supplies that are capable of load sharing. These supplies plug into the rear of the chassis and have removable AC line cords.
The rear panel features twelve DC Locking Power Jacks with a .100” diameter center pin. Each +5 volt output is capable of sourcing +5 volts ±.25volts at a maximum of 4 amps.
PDU-12 Power Distribution Unit, rear panel
