Thinklogical OriginKVM 41 User Manual

REVISION A
JUNE 2008
OriginKVM 41
Product Manual
100 Washington Street
Milford, Connecticut 06460 U.S.A.
Telephone (203) 647
-
8700
Fax (203) 783
-
9949
www.thinklogical.com
REVISION A
i
JUNE 2008
Copyright Notice
Copyright
©
2008
All rights reserved. Printed in the U.S.A.
Thinklogical, a subsidiary of
Logical Solutions,
Incorporated
100 Washington Street
Milford, Connecticut 06460 U.S.A.
Telephone (203) 647
-
8700
All trademarks and service marks are property of their
respective owners.
Subject:
OriginKVM 41, 4x1
KVM Switch
Revision: Rev
A,June
2008
REVISION A
ii
JUNE 2008
Table of Contents
1.
Introduction
................................
................................
................................
................................
......11.1.
Contents
................................
................................
................................
................................
...11.2.
Product Overview
................................
................................
................................
.....................
12.System Features
................................
................................
................................
..............................
2
2.1.
General System Features
................................
................................
................................
.........
2
2.2.
Technical Specifications
................................
................................
................................
...........
3
2.2.
Product Overview
................................
................................
................................
.....................
4
2.2.1.
Desktop Device
................................
................................
................................
.................
4
2.2.2.
Convection Cooled
................................
................................
................................
...........
43.Connecting the OriginKVM 4
1
................................
................................
................................
..........
5
3.1
Front Panel View: LED Indicators
................................
................................
.............................
5
3.2
Rear Panel View
................................
................................
................................
.......................
6
3.3
Cables
................................
................................
................................
................................
......63.3.1
3.5mm to 3.5mm Cable, 6 Feet (CBL0000
16-
006FR)
Qty 4
................................
...........
6
3.3.2
USB A
-
B Cable, 6 Feet (CBL000015
-
006FR)
Qty4................................
.......................
6
3.3.3
HDMI to DVI, 2 Meters (CBL000030
-
002MR)
Qty5................................
.......................
64.Installation
................................
................................
................................
................................
........
75.Regulatory and Safety
................................
................................
................................
......................
9
5.1
Safety Requirements
................................
................................
................................
................
9
5.1.1
Symbols Found on Product
................................
................................
...............................
9
5.2
Regulatory Compliance
................................
................................
................................
............
9
5.2.1
North America
................................
................................
................................
...................
9
5.2.2
Australia & New Zealand
................................
................................
................................
..95.2.3
European Union
................................
................................
................................
..............
10
5.2.3.1
Declaration of Conformity
................................
................................
............................
10
5.2.3.2
Stan
dards with which the Products Comply
................................
................................
10
5.2.4
Supplementary Information
................................
................................
.............................
11
5.2.5
Product Serial Number
................................
................................
................................
....116.
How to Contact Us
................................
................................
................................
.........................
12
6.1
Customer Support
................................
................................
................................
..................
12
6.1.1
Website
................................
................................
................................
...........................
12
6.1.2
Email
................................
................................
................................
..............................
12
6.1.3
Telephone
................................
................................
................................
.......................
13
6.1.4
Fax
................................
................................
................................
................................
.136.2
Product Support
................................
................................
................................
......................
13
6.2.1
Warranty
................................
................................
................................
.........................
13
6.2.2
Return Authorization
................................
................................
................................
.......
14
6.2.3
Our Address
................................
................................
................................
...................
14
REVISION A
1
JUNE 2008
1.
Introduction
1.1.
Contents
When you receive your Thinklogical
OriginKVM
41,you should find the following items:
OriginKVM 41 Switch
KVM
-
000041
AC Power Cord
PWR
-
000
006-R (Internat
ional connections may differ)
OriginKVM 41
Cable
sOriginKVM 41
Product Manual
1.2.
Pro
duct Overview
The ThinklogicalOriginKVM 41 is a high performance KVM switch that enables access from one user
station, allowing them to access and switch between four multi
-
platform servers. The OriginKVM 41
improves operational productivity, from the simplest to the
most complex requirements and for a variety
of applications; such as hardware/software development and testing labs, network server management,
and multi
-
workstation operation.
FIGURE 1
:
Rear View of
OriginKVM 41
.
All models listed are available fr
om
Thinklogical
:
KVM
-
000041
OriginKVM 41
Switch, DVI USB
4 IN x 1
OUT
REVISION A
2
JUNE 2008
2.
System Features
2.1.
General System Features
The OriginKVM 41 is a 1 user 4 CPU switch. This single user switch provides USB connectivity for users
and targeted devices.
The OriginKVM 4
1 supports USB 2.0 up to 480mbps. This feature dedicates an individual device
emulator to each connected computer, allowing the computer to have a continuous connection to the
keyboard and mouse, even when the CPU is not selected. This ensures flawless boo
t up of computers
running a variety of operating systems. The
O
riginKVM 41 also allows the user to switch the 3.5mm line
in and line out audio along with USB 2.0 and DVI/HDMI. In addition, video intensive applications now
benefit with OriginKVM 41’s DVI a
nd HDMI support.
Each
OriginKVM 41
system includes the following features:
Switches DVI/HDMI, USB, and Audio line level
KVM switch with infrared and select switches on the front panel
4 ports on the USB hub console side
LEDs that indicate USB power, pow
er from DVI/HDMI and selected port CPU LED
Easily configure, select and manage your system and servers via Thinklogical’s unique
communication actuation technology and on
-
screen menus
BIOS level access
“Keep
-
alive” technology for continuous server availabi
lityPlug
-
and-play auto configured installation
Internal universal power supply (universal country specific power cables available upon request)
Uses standard IEC power cable
Support any mix of computers
UNIX, Linux, Windows NT, Windows 2000, Novel 4.x,
or Open VMS
REVISION A
3
JUNE 2008
2.2.
Technical Specifications
Storage Temperature
-
20 to 70°C (
-
4 to 158°F), 10 to 90% RH, non
-
condensing
Power
Supply Voltage
100 to 240 VAC, 50/60 Hz
Power Consumption
15
Watts
, typical
Heat Dissipation
51
BTUs per hour
Panel Connectors
Video Ports HDMI (4)
USB Keyboard/Mouse USB B (4)
Audio Input 3.5mm (4)
Serial/IR Receiver RS
-
232 (1)
Video for User Displays HDMI (1)
HID Keyboard/Mouse USB A (4)
Audi
o Output 3.5mm (1)
Refer to Section 3.1.1
for more details on the Rear Panel
Operating Temperature and
Humidity
0 to 50 °C (32 to 122 °F); 5
to 95% RH, non
-
condensing
Enclosure Dimensions
Approx.
15.795 x 7.654in x 1.640
in high
(40.
119cm x 19.441cm x 4.166
cm high)
(Tolerance: ± .039”; .100cm)
Weight
4lbs (1.81
kg)
Shipping Weight
16 lbs (7.26
kg)
Copper Cables
(supplied with unit)
(4)
3.5mm Male
to
3.5mm Male Plug
, 6FT
Thinklogical Part Number: CBL
000016
-006FR
(4
) USB Type
A to USB Type B Cable, 6 Feet
Thinklogical Part Number:
CBL
000
015-006FR
(4
) HDMI Male to DVI Male Cable, 2 Meters
Thinklogical Part Number: CBL000030
-
002MR
Compliance
Approvals for US, Canada, and European Union
(pending)
Warranty
12 months from dat
e of shipment
Extended warranties available
REVISION A
4
JUNE 2008
2.2.
Product Overview
2.2.1.
Desktop Device
You may choose to place it on a shelf or desktop (
rubber
feet included). The front panel should be
visible and front panel buttons
will need
to be accessible. All connections
are made to the rear of the
chassis.
The OriginKVM 41
chassis do
es
not need to be opened or accessed. The sturdy metal case
allows units to be stacked, as required.
NOTE: Be sure to leave adequate ventilation space on both sides of the units, especiall
y if units
are being stacked.
2.2.2.
Convection Cooled
The
OriginKVM 41
does not require
special cooling or ventilation.
No fan means that it does not add to
the ambient noise in your equipment room and it is less prone to equipment failure. Be sure not to bl
ock
the air vents on the sides of the unit, and leave space on both sides
.
REVISION A
5
JUNE 2008
3.
Connecting th
e
OriginKVM 41
All physical connections to the product use industry
-
standard connectors. All connections are
found on the rear of the
unit
.

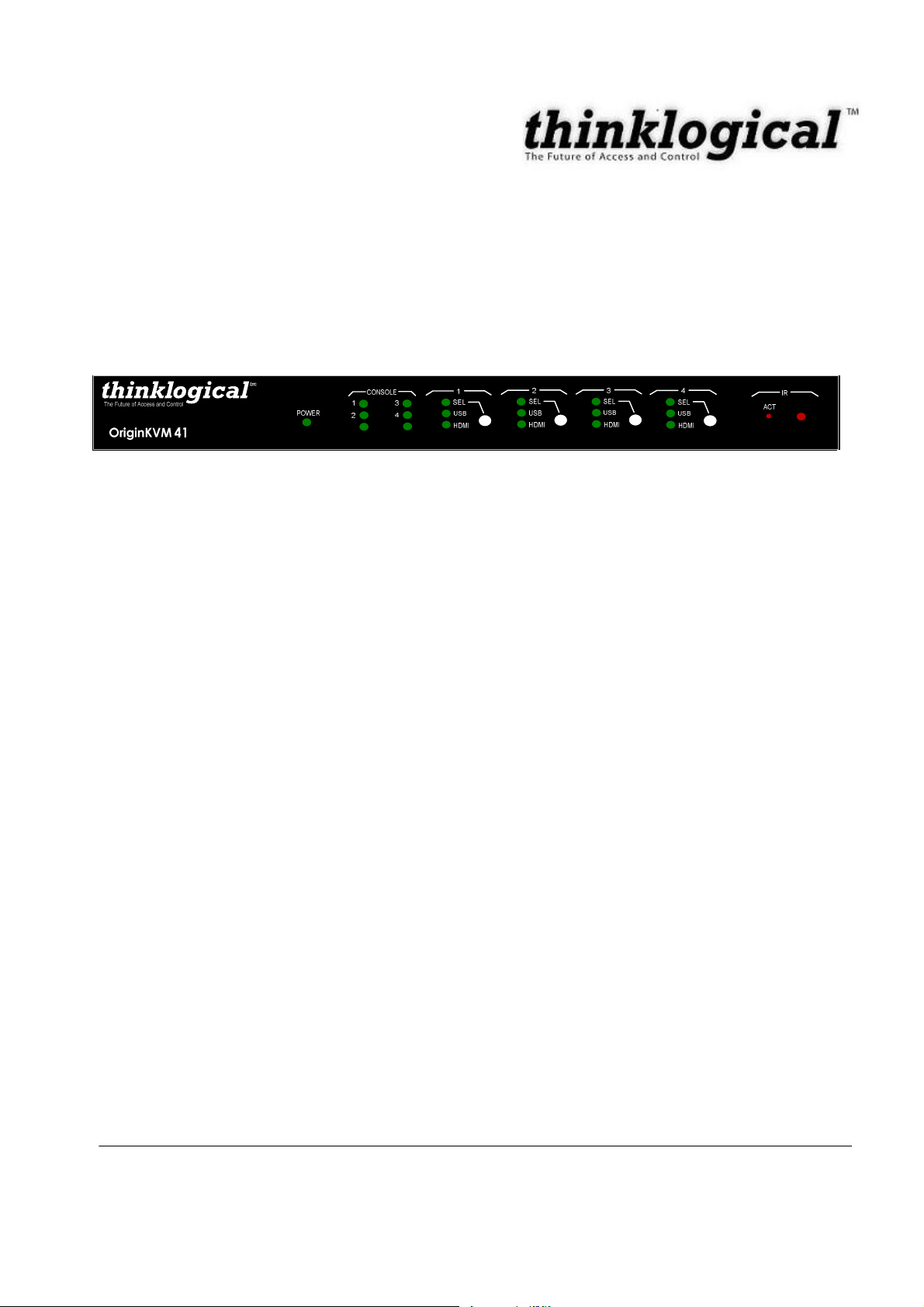

3.1
Front Panel View
: LED Ind
icators
Power
LED on (green)
Power is connected and supplied to OriginKVM 41
LED off
Power is not connected and/or not supplied to OriginKVM 41
Console
1
LED on (green)
A USB device is connected at the USB A connector labeled 1 of the
Cons
ole
LED
off
A USB device is not connected/proper connection has not been
made at the USB A connector labeled 1 of the Console
2
LED on (green)
A USB device is connected at the USB A connector labeled 2 of the
Console
LED
off
A USB device is not
connected/proper connection has not been
made at the USB A connector labeled 2 of the Console
3
LED on (green)
A USB device is connected at the USB A connector labeled 3 of the
Console
LED
off
A USB device is not connected/proper connection has not b
een
made at the USB A connector labeled 3 of the Console
4
LED on (green)
A USB device is connected at the USB A connector labeled 4 of the
Console
LED
off
A USB device is not connected/proper connection has not been
made at the USB A connector label
ed 4 of the Console
CPU
1-4
SEL
LED on (green)
Channel is selected
USB
LED on (green)
USB is connected properly and power is supplied
HDMI
LED on (green)
HDMI is connected properly and power is supplied
IR
ACT
LED on (red)
IR Receiver is communicatin
g/receiving data from the remote
REVISION A
6
JUNE 2008
3.2
Rear Panel View
3.3
Cables
3.3.1
3.5mm
to
3.5mm
Cable, 6 Feet (CBL000006
-
006FR)
Qty 4
3.3.2
USB A
-
B C
able
, 6
Feet
(CBL000015
-
006FR)
Qty
4
3.3.3
HDMI
to DVI, 2 M
eters
(CBL000030
-
002MR)
Qty
4
USB A
USB
B
HDMI Male
DVI Male
REVISION A
7
JUNE 2008
4.
Installation
OUT
REMOTE IR
HDMI
AUDIOININ
CPU1HDMI
AUDIOININ
CPU3HDMI
AUDIOININ
CPU2HDMI
AUDIOININ
CPU4HDMI
CONSOLE1234
OUT
AUDIO
Caution!Replace
with
same
type
and
rating
fuse
.
CPUs
1
through
4
1.CPU to DVI Port using CBL
000030
-
002MR2.USB Keyboard
/
Mouse to USB Port using CBL
000015
-
006FR3.Audio to Audio In Port using CBL
000016
-
006FRUSBKeyboard
/
Mouse123Audio
CPU
CPU 1 through 4 Port Connections:
1. Plug the included DVI to HDMI cable
(CBL000030
-
002MR)
into the CPU DVI
Video card and
the OriginKVM 41’s HDMI connector labeled under CPU P
ort1.
2. Pl
ug the included
USB
A to USB B
cable
(CBL00
0015
-
006FR)
into t
he USB Keyboard/Mouse
and the OriginKVM 41’s USB B connector labeled under CPU Port 1.
3.Plug the included 3.5mm to 3.5mm
cable
(CBL000016
-
006FR)
into t
he Audio device and the
OriginKVM 41’s 3.5mm stereo plug labeled under CPU Port 1.
4.
Rep
eat as needed for CPU 2 through 4 Ports.
REVISION A
8
JUNE 2008
Console Connections:
1. Plug
the DVI Display into the HDMI connection labeled HDMI OUT.
2.
Plug up to (4)
USB HID device
s
(such as keyboard and mouse
, USB Tablets
) into
the USB A
connectors labeled 1 through 4.
3.
Plug the Audio device into the 3.5mm stereo plug labeled Audio Out.
4.
Optional:
Plug a Remote IR into the Serial interface.
5.
Connect a power cord to the origin and turn the unit on.
Your
OriginKVM 41
is now prope
rly connected.
OUT
REMOTE IR
HDMI
AUDIO
ININCPU1HDMI
AUDIO
ININCPU3HDMI
AUDIO
ININCPU2HDMI
AUDIO
ININCPU4HDMI
CONSOLE1234
OUT
AUDIO
Caution!Replace
with
same
type
and
rating
fuse
.
DVI Display
USBKeyboard
/
Mouse
USBTablet
CONSOLE
CPUs
1
through
4
1.CPU to DVI Port using CBL
000030
-
002MR2.USB Keyboard
/
Mouse to USB Port using CBL
000015
-
006
FR
3.Audio to Audio In Port using CBL
000016
-
006
FR
USBKeyboard
/
Mouse
123
Audio
CPU
Audio
REVISION A
9
JUNE 2008
5.
Regulat
o
ry and Safety
Testing is pending at this time
5.1
Safety Requirements
5.1.1
Symbols Found on Product
Markings and labels on the product follow industry
-
standard conventions. Regulatory markings found on
the products comply with requirements.
5.2
Regulatory Compliance
TheThinklogical Inc. products are designed and made in the USA.
Our
products have been tested by a
nationally recognized testing laboratory and found to be compliant with the following standards (both
domestic USA an
d many inter
national locations).
5.2.1
North America
These products comply with the following standards:
Safety
ANSI/
UL60950
-1:
1stEdition (2003)
CAN/CSA C22.2 No. 60950
-1-03Electromagnetic Interference
FCC CFR47, Part 15, Class A
Industry Canada ICES
-
003 Issue 2, Rev
ision 1
5.2.2
Australia & New Zealand
This is a Class A product. In a domestic environment this product may cause radio interference, in
which case the user may be required to take adequate measures.
REVISION A
10
JUNE 2008
5.2.3
European Union
5.2.3.1
Declaration of Conformity
Manufacturers n
ame and address:
Thinklogical, a subsidary of
Logical Solutions
Inc.
100 Washington Street
Milford, CT 06460 USA
Telephone (203)647
-
8700
Product name
Model:
OriginKVM 41
Th
is product
compl
ies
with the requirements of the Low Voltage Directive 7
2/23/EEC and the EMC
Directive 89/336/EEC.
5.2.3.2
Standards with which the Products Comply
Safety
CENELEC EN 60950
-
1, 1stEdition (2001)
Electromagnetic Emissions
EN55022: 1994 (IEC/CSPIR22:1993)
EN61000
-3-
2/A14:2000
EN61000
-3-
3:1994
Electromagnetic Immunity
EN55024:1998 Information Technology Equipment
-
Immunity Characteristics
EN61000
-4-
2:1995 Electro
-
Static Discharge Test
EN61000
-4-
3:1996 Radiated Immunity Field Test
EN61000
-4-
4:1995 Electrical
Fast Transient Test
EN61000
-4-
5:1995 Power Supply Surge Test
E
N61000
-4-
6:1996 Conducted Immunity Test
EN61000
-4-
8:1993 Magnetic Field Test
EN61000
-4-
11:1994 Voltage Dips & Interrupts Test
REVISION A
11
JUNE 2008
5.2.4
Supplementary Information
The following statements may be appropriate for certain geographical regions and might not apply to
yo
ur location.
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equ
ipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operat
ion of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference to radio
communications at his own expense.
NOTE:
This Class A digital apparatus complies with Canadian
ICES
-
003 and has been verified as being
compliant within the Class A limits of the FCC Radio Frequency Device Rules (FCC Title 47, Part
15, Subpart B Class A), measured to CISPR 22: 1993 limits and methods of measurement of
Radio Disturbance Characteristi
cs of Information Technology Equipment.
This Class A digital apparatus meets all requirements of the Canadian Interference
-
Causing Equipment
Regulations.
Cet appareil numerique de la classe A respecte toutes les exigencies du Reglement sur le material
br
ouilleur du Canada.
WARNING:
This is a Class A product. In a domestic environment this product may cause radio
interference, in which case the user may be required to take adequate measures.
NOTE:
The user may notice degraded audio performance in the p
resence of electromagnetic fields.
5.2.5
Product Serial Number
Thinklogical
products have a unique serial number, imprinted on a small silver label that is placed on the
bottom of the chassis. The serial number includes a date
-
code. The format for the date
-code is two
digits for the month; two digits for the day and four digits for the year and two or three digits for a unique
unit number. This serial number is also found on the original shipping carton.
REVISION A
12
JUNE 2008
6.
How to Contact Us
6.1
Customer Support
Thank you
for c
hoosing a
T
hinklogical product for your application. We appreciate your business and
are interested in helping yo
u successfully use our product.
Thinklogical is here to help you.
Thinklogical is an engineering company; you receive the information you
require from the key engineer.
We believe
that the first line of support is the design engineer that developed the product.
Therefore,
your questions will be handled promptly by an engineer.
To contact
Thinklogical
, use the following telephone numbers
and internet
-
based methods.
6.1.1
Website
Check out our website for current product offerings, support information and general information about
all of the
products
we offer.
Our internet website offers product information on all current systems, including te
chnical specification
sheets and installation guides (for viewing online or for download), product diagrams showing physical
connections and oth
er information you might need.
Internet: www.thinklogical.com
*NOTE:
Most online documents are stored as Adob
e Acrobat “PDF” files. If you do not have the Adobe
Acrobat reade
r needed to view PDF files,
visit www.adobe.com for a download.
6.1.2
Email
Thinklogical is staffed Monday through Friday from 8:30am
to 5:0
0pm, Eastern Time Zone. We will try to
respond to your
email inquiries promptly, use the following email addresses for your different needs:
i
nfo@thinklogical.com
Information on
T
hinklogical and our products.
sales@thinklogical.com
Sales Department
-
orders, questions or issues.
support@thinklogical.co
m–Product support, technical issues or questions, product
repairs and request for Return Authorization.
REVISION A
13
JUNE 2008
6.1.3
Telephone
Telephone Sales: Contact our expert
,
technically oriented sales staff via telephone in Milford, CT at
(203) 64
7-8700
or if in the continental US, you may use our
toll-free number (800) 291
-
3211
. We are
her
e Monday through Friday from 8:3
0am to 5:00pm, Eastern Time Zone. Ask for their direct dial phone
number when you call.
Telephone Product Support: Contact Pr
oduct Support via telephone in Milford, CT at
(203) 647
-
8700
.
The support lines are manned Monday through Friday, 9am to 5pm, Eastern Time Zone.
International Sales: Please contact our US sales staff in Milford, CT at
(203) 647
-
8700
. We are here
Mond
ay
through Friday, 8:30am to 5:0
0pm, Eastern Time Zone (same as New York City). If leaving a
voice message, please provide a “best time to call back” so we may reach you at your convenience.
Our switchboard attendant will direct your call during regular bu
siness hours. We have an automated
attendant answering our main telephone switchboard after regular business hours and holidays. You
can leave voice messages for individuals at any time. Our Sales Representatives have direct numbers
to speed up your nex
t call to us.
6.1.4
Fax
Our company facsimile number is
(203) 783
-
9949
. Please indicate the nature of the fax on your cover
sheet and provide return contact information.
6.2
Product Support
Thinklogical
’s support personnel are available Monday through Friday fro
m 8:30am
to 5:0
0pm, Eastern
Time Zone. If your application might require assistance at some time outside of our normal business
hours, please contact us beforehand and we will do our best to make arrangements to help you with your
Thinklogical
products.
6.2.1
W
arranty
Thinklogical®
warrants this product against defects in materials and workmanship for a period of one
year from the date of delivery.
Thinklogical®
® and its suppliers disclaim any and all other warranties.
*NOTE
:
Thinklogical®
Inc. products carr
y a one year warranty, with longer term available at time of
purchase on most products.
Your sole remedy shall be, repair or replacement of the product, provided that the defective product be
returned to the authorized dealer within a year from the date
of delivery.
If you wish to return your device, contact the
Thinklogical®
® authorized dealer where you purchased the
device, or if you purchased directly, call
Thinklogical®
® at 1
-
800-291-3211 (USA).
Do not return a product to
Thinklogical®
® without
authorization.
REVISION A
14
JUNE 2008
6.2.2
Return Authorization
In the event you must return the device to
Thinklogical®
directly:
1.
Contact Customer Support at 1
-
800-291-3211 or 203
-
647-8700.
2.
Customer Support will ask you to describe the problem and will issue you a Return Merchand
ise
Authorization (RMA).
3.
Pack the device in its original box, if possible, and return it with the RMA# on the box.
Return Address:
Attn: RMA#
100 Washington Street
Milford, CT 06460 USA
PH: 800
-
291-3211 (USA only)
6.2.3
Our Address
If you have any issue
with the product, have product questions or need technical assistance with your
Thinklogical®
system, please call us at
800-291-3211 (USA only)
or
(203) 647
-
8700
and let us help.
If
you’d like to write us, we are located at:
Thinklogical®
Inc.
100 Washi
ngton Street
Milford, CT 06460 USA
Thinklogical®
Inc. products carry a one year warranty, with longer term available at time of purchase on
most products. Please refer to your product invoice for your products Warranty Terms & Conditions.
Loading...
