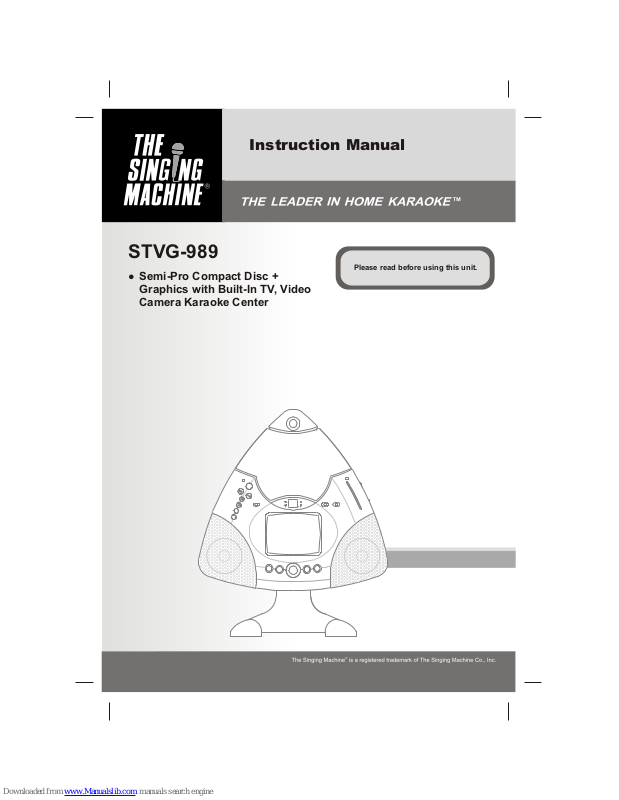

The Singing Machine STVG-989 Instruction Manual

STVG-989

Semi-Pro Compact Disc +
Graphics with Built-In TV, Video
Camera Karaoke Center

Please read before using this unit.

Instruction Manual

WARNINGS

WARNING: TO REDUCE THE RISK OF

FIRE OR SHOCK HAZARD, DO NOT EXPOSE

THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION: TO PREVENT THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE COVER

OR BACK. NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol is intended to alert you
of the presence of un-insulated
dangerous voltage within the
product's enclosure that might be of
sufficient magnitude to constitute a
risk of electric shock. Do not open
the product's case.

This symbol is intended to inform
you that important operating and
maintenance instructions are
included in the literature
accompanying this product.

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.

DRIPPING WARNING

The product shall not be exposed to dripping
or splashing and that no objects filled with
liquids, such as vases, shall be placed on the
product.

VENTILATION WARNING

The normal ventilation of the product shall not
be impeded for intended use.

This CD player is made and tested to meet
exacting safety standards. It meets FCC
requirements and complies with safety
performance standards of the U.S.
Department of Health and Human Services.

Warnings:

! This CD player employs a laser light beam.

Only a qualified service person should
remove the cover or attempt to service this
device, due to possible eye injury.

! The use of controls, adjustments, or

procedures other than those specified
herein might result in hazardous radiation
exposure.

! The apparatus shall be used in an open

area.

CAUTION

This compact disc player is classified as a
CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT label is
located on the rear panel.

CAUTION!

Invisible laser radiation when open and inter
locks defeated. Avoid exposure to beam.

IMPORTANT

Since CD circuitry may cause interference to
other radio tuners nearby, switch this unit off
when not in use or move it away from the
affected radio tuner.

1

WARNINGS

NOTE: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as
set out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable
protection against harmful Nterference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television (which can be determined by
turning the equipment off), the user is encouraged to try to correct the interference by one or more of the following
measures:

! Reorient or relocate the receiving antenna.
! Increase the separation between the equipment and receiver.
! Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
! Consult the dealer or an experienced radio / TV technician for help.

2

IMPORTANT SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a damp cloth for cleaning the exterior only. Do NOT attempt to clean the inside.

6. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause
hazards.

7. Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen
sink, or laundry tub; in a wet basement, or near a swimming pool, and the like.

8. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may
fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand,
tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the
product should follow the manufacturer's instructions, and should use a mounting accessory recommended by
the manufacturer.

9. A product and cart combination should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance and cart Combination to overturn.

10. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of
the product and to protect it from overheating, and these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is
provided.

11. Power Sources - This product should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to your home, consult your product dealer or local power
company. For products intended to operate from battery power, or other sources, refer to the operating
instruction.

12. Grounding or Polarization - This product may be equipped with a polarized alternating current line plug (a
plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to
fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized
plug.

Alternate Warnings - This product may be equipped with a three-wire grounding-type plug, a plug having a
third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat
the safety purpose of the grounding-type plug.

IMPORTANT SAFETY INSTRUCTIONS

ANTENNA
LEAD IN
WIRE

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)

GROUND
CLAMP

ELECTRIC
SERVICE
EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE
S2898A

13. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.

14. Protective Attachment Plug - The product is equipped with an attachment plug having overload protection.
This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If
replacement of the plug is required, be sure the service technician has used a replacement plug specified by
the manufacturer that has the same overload protection as the original plug.

15. Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver, be sure the antenna system is
grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810 of
the National Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to
an antenna-discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the
grounding Electrode. See figure:

16. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This
will prevent damage to the product due to lightning and power-line surges.

17. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact
with them might be fatal.

18. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.

19. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of
any kind on the product.

20. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

21. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions. Adjust only those

controls that are covered by the operating instructions as an improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the product to

its normal operation.
e) If the product has been dropped or damaged in any way, and
f ) When the product exhibits a distinct change in performance - this indicates a need for service.

22. Replacement Parts - When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.

23. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks to determine that the product is in proper operating condition.

24. Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the
manufacturer.

25. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.

3

INTRODUCTION

4

Your Semi-Pro Compact Disc+Graphics with Built-In TV, Video Camera Karaoke Center will
provide you with fun and entertainment. It can let you be the "star" as you sing along with
your favorite recordings and hear your voice with the music through the system's speaker.

This Karaoke System is compact and designed to include many features, yet it is easy to
use. Just a few simple instructions and you will become an expert. Before you attempt to
use your unit, please read this manual thoroughly to familiarize yourself with all the features
available and the sections of the manual that describe their operation. Next go to the section
for the specific operation you wish to perform.

For your easy reference, listed here are some of the main features of this Karaoke Center:

Lyrics on TV screen - displays the lyrics with the tempo of music when playing CD+G discs.

Auto Voice Control (A.V.C.) - lets you replace the original singer's voice with your own

voice when any prerecorded multiplex disc is played. To activate, just rotate Mic Volume to a
comfortable listening level, and Auto Voice Control for the best balance between playback
and microphone levels.

Balance Control - lets you adjust the balance between the prerecorded original singer's
voice and the music if you use a multiplex karaoke recording.

Echo Control - lets you add reverb to enrich your voice for a concert hall effect.

- camera lens to display your image on the Singing Machine’s monitor or TV.

Built-In Speaker - lets you share the music with your family or friends.

Auxiliary Output Jacks - let you connect another audio output component, such as an

equalizer/booster or a PA system.

Master Volume Control - lets you turn the volume control clockwise or counter - clockwise until
desired volume level is obtained.

Headphone Jack - lets you connect the headphones instead of using the built-in speaker.

CONTROL LOCATIONS

5

FRONT VIEW

1. Adjustable Camera Lens 13. Function Selector 25. Dial Pointer

2. CD Door 14. Monitor Selector 26. Band Selector

3. Model Number 15. Speaker 27. Video Out Selector

4. PLAY/PAUSE LED 16. Mic Volume Control 28. Monitor Selector

5. ON/OFF LED 17. Auto Voice Control 29. REPEAT LED

6. ON/OFF Button 18. Master Volume Control 30. LED Display

7. SKIP Button 19. Mic 1 Jack 31. PROGRAM LED

8. PLAY/PAUSE Button 20. Headphone Jack 32. Speaker

9. STOP Button 21. CD Door Open Lid 33. Echo Control

10. PROGRAM Button 22. CDG LED 34. Balance Control

11. REPEAT Button 23. FM Stereo Indicator 35. Mic 2 Jack

12. SKIP Button 24. Tuning Knob

22
23
24

32

33

25
26
27
28

29
30
31

34

35

21

1

2

3
4

5
6
7
8
9
10
11
12

13

14

15

16
17

18

19

20

STVG-989

CONTROL LOCATIONS

6

REAR VIEW

36. AUX OUT Jack (L) 40. Contrast Control 44. AUX IN Jack (L)

37. VIDEO IN Jack 41. Brightness Control 45. Antenna Jack

38. VIDEO OUT Jack 42. AC Power Cord 46. AUX IN Jack (R)

39. AUX OUT Jack (R) 43. Rod Antenna 47. Vertical Hold Control

36

37
38

39

40

42

43

44

45

46

47

41

7

MAKING THE CONNECTIONS

CONNECTING POWER

You can power the system from a standard AC outlet by using the supplied power cord.

CAUTION: The supplied AC power cord has a polarized plug that fits into the wall outlet only one
way. If the plug does not fit properly, turn it over and try again. Do not force it.

CONNECTING TO YOUR HEADPHONE

A headphone jack is provided for using headphones instead of the built-in speaker.
(Headphones are sold separately.)

CONNECTING TO YOUR TV

The Singing Machine provides a patch cord to give you the option of connecting your unit to an
external audio/sound system and video device. The patch cord has three RCA jacks at each
end, white and red are for left and right audio connections and the yellow is for connecting the
video.

Make sure that you have a CDG disc in the Singing Machine and playing when you are making
this connection. You will know you have the proper settings on your TV or VCR as soon as you
see the Singing Machine logo or lyrics on the screen!

VIDEO CONNECTION

Please follow the steps below to display CDG lyrics on the TV screen:
(1) Locate the multicolored patch cords.
(2) Connect video cable (yellow) to the Video Out of the back of the Singing Machine.
(3) Connect the other end of the video patch cord (yellow) to the Video Input on your TV or

VCR.

VIDEO
INPUT

AUDIO

INPUT

R

L

VIDEO OUTPUT

(Yellow Jack)

VIDEO INPUT
(Yellow Jack)

REAR VIEW OF

SINGING MACHINE

REAR VIEW OF TV

R

L

OUT

IN

AUX

IN

OUT

VIDEO
