Why Humidify?

• Proper humidity reduces static
electricity, dried cracked furniture
and wood trim, and wilting
house plants.

• Your family will feel more
comfortable as dry skin, throats
and noses are soothed.

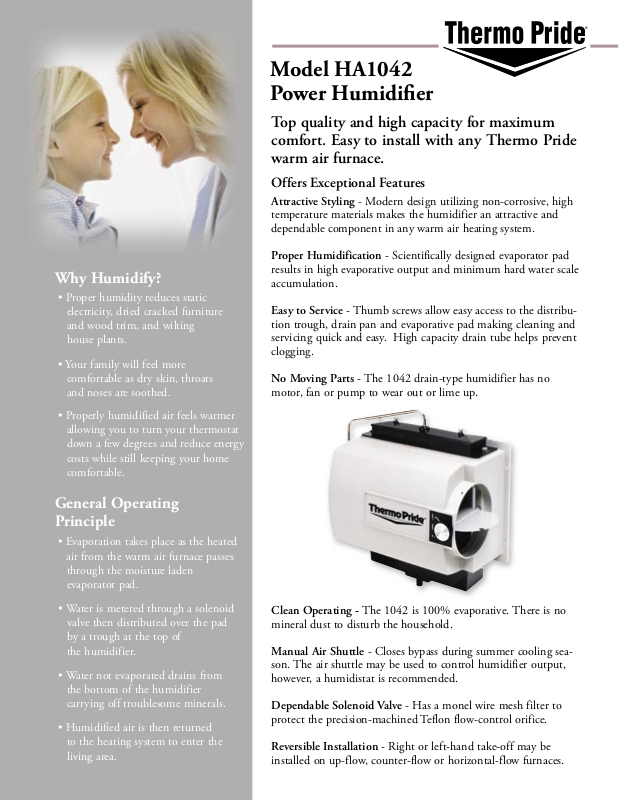

Model HA1042
Power Humidifi er

Top quality and high capacity for maximum
comfort. Easy to install with any Thermo Pride
warm air furnace.

Offers Exceptional Features

Attractive Styling - Modern design utilizing non-corrosive, high

temperature materials makes the humidifier an attractive and
dependable component in any warm air heating system.

Proper Humidification - Scientifically designed evaporator pad
results in high evaporative output and minimum hard water scale
accumulation.

Easy to Service - Thumb screws allow easy access to the distribu­tion trough, drain pan and evaporative pad making cleaning and
servicing quick and easy. High capacity drain tube helps prevent
clogging.

No Moving Parts - The 1042 drain-type humidifier has no
motor, fan or pump to wear out or lime up.

• Properly humidified air feels warmer
allowing you to turn your thermostat
down a few degrees and reduce energy
costs while still keeping your home
comfortable.

General Operating
Principle

• Evaporation takes place as the heated
air from the warm air furnace passes
through the moisture laden
evaporator pad.

• Water is metered through a solenoid
valve then distributed over the pad
by a trough at the top of
the humidifier.

• Water not evaporated drains from
the bottom of the humidifier
carrying off troublesome minerals.

• Humidified air is then returned
to the heating system to enter the
living area.

Clean Operating - The 1042 is 100% evaporative. There is no
mineral dust to disturb the household.

Manual Air Shuttle - Closes bypass during summer cooling sea-
son. The air shuttle may be used to control humidifier output,
however, a humidistat is recommended.

Dependable Solenoid Valve - Has a monel wire mesh filter to
protect the precision-machined Teflon flow-control orifice.

Reversible Installation - Right or left-hand take-off may be
installed on up-flow, counter-flow or horizontal-flow furnaces.

Application:

F

orced warm-air furnaces

Unit Size

:

½" high x 9" deep

Plenum Opening

:

¼

½" high

Bypass Duct

:

6" diameter (collar supplied)

Water Supply

:

Use

¼

Electrical

:

Model HA1042 Drain Type with Humidistat

- 24 V. 60 Hz.

Drain Connections

:

dia. (15' vinyl hose supplied)

Controls

:

Manual air shutter Humidistat

with HA1042

Specifications

HUMIDITY REQUIREMENTS IN GALLONS PER

DAY BASED ON HOUSE SIZE AND TYPE OF

CONSTRUCTION (FROM ARI GUIDELINE F)

Type of
Construction

Tight

Average

Loose

*Based on 8 ft. ceiling height.

500 1000 1500 2000 2500 3000

2.1

3.3

4.6

Size of House (sq. ft.)*

4.2

6.5

9.2

6.4

9.8

13.8

8.5

13.1

18.4

10.6

16.3

23.0

12.7

19.6

27.6

Tight House

With insulated walls and ceilings, vapor barriers, weather
stripping on doors and windows, and snug doors, windows
and fireplace damper (½ air change per hour)

Average House

Insulated walls and ceilings with vapor barriers, but loose
storm doors, windows and fireplace damper (1 air change
per hour)

Loose House

Without insulation, storm doors, storm windows, weather
stripping or vapor barriers (2 air changes per hour)

Evaporative Capacity Output

Temp°F

GPD

*Industry Standard rating conditions. 140° hot water supplied to

the humidifier in heat pump applications will increase capacity by

4.3 gallons per day.

80° 100° 120° 140°* 1 60°

8.0 12.2 16.4 19.2 23.2

Illustrations and photographs in this brochure are only representative.
Due to ongoing engineering upgrades, some variations may occur.

Form No. PL81410061006-2/06-3Ms

Printed in the U.S.A.

© 2006 Thermo Products, LLC - North Judson, IN
