ALL PRO GRAND® RANGES INCLUDE THESE FEATURES
Regardless of which Thermador Pro Grand®
Range you choose, you can expect your kitchen
to transform into a room that is as beautiful
as it is functional. Each and every Pro Grand
Range features these common ingredients to
create the ultimate cooking experience.
EXTRALOW® SIMMER
Our ExtraLow feature provides the widest variety of temperature control of any simmer system. Cycling on and off, each Star Burner® can maintain temperatures as low as 100°, a must-have option for cooks who demand perfection when preparing delicate sauces, melted cheeses, or even sugary confections. Each Thermador Pro Grand Range features four ExtraLow burners.
QUICKCLEAN BASE
The raised pedestal burner and porcelain maintop have been crafted for perfect integration and easy cleanup. A hand and sponge t easily under each burner to wipe the surface clean and a teardrop emboss reduces food buildup near the base.
®
FASTEST TIME TO BOIL
Our Star® Burner’s 18,000 BTUs/hr of output and superior heat distribution boils water in a fraction of the time of a conventional range or cooktop and over 50% faster than leading competitors.
TELESCOPIC RACKS
Full Access® telescopic racks glide smoothly on ball bearings, allowing them to expand completely for safe, easy access to your meal. Plus, their robust construction safely supports the heaviest dishes while integrated easy­grip handles make them easy to use.
SINGLE FAN TECHNOLOGY
Our convection technology is so powerful that only one fan is needed. Convection keeps the temperature consistent throughout the cavity and allows for multi-rack cooking. Controlled airow patterns optimize the transfer of heat so that food is heated evenly.
20
THERMADOR EXCLUSIVE
22K BURNER
Our powerful sealed Star® Burner delivers an industry­leading 22,000 BTUs of pure cooking power for better searing and faster boiling.
PRO GRAND
®
RANGES | FEATURES & BENEFITS
SOFTCLOSE® HINGES
Hydraulic SoftClose hinges prevent slamming and ensure ultra smooth closing of both ovens and the warming drawer.
EXTRA-LARGE CAPACITY OVEN
Our 36-inch and 48-inch ovens offer a maximum capacity of
5.7 cubic feet and can accommodate full-sized commercial sheet pans.
ELECTRONIC DISPLAY
Electronic oven display interfaces with cook timer, CookControl™ meat probe and preheat status with audible alert.
VERSATILE DESIGN OPTIONS
Pro Grand Ranges feature striking stainless steel feet or you can add a stainless steel toekick accessory for a sleek, nished look.
STAR-K CERTIFIED
Thermador Professional® Ranges are Star-K certied making it possible to use them on the Sabbath or the Holidays.
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
21
CATEGORY
A STAR-SHAPED PEG IN A
FEATURES & BENEFITS
WORLD OF ROUND HOLES
OUR EXCLUSIVE, PATENTED STAR® BURNER
Lighting a heavenly re under the status quo,
the Star Burner is perhaps the single most iconic
innovation from Thermador. But the star shape
isn’t just for show. Featured on all Thermador
®
Professional
56% more coverage with superior ame spread
and a reduced cold spot for faster and more even
heating across any size pan.
Ranges, the Star Burner delivers
Star Burner: 35 ports / 16 3/4" perimeter
3
Conventional Burner: 28 ports / 10
/4" perimeter
22
CATEGORY
FEATURES & BENEFITS
PRO GRAND
®
RANGES | FEATURES & BENEFITS
SELECTED PRO GRAND
®
RANGES INCLUDE
THESE FEATURES
FASTEST SELF-CLEAN
In just 2 hours, the interior walls and rack supports become perfectly clean, thanks to the fastest self-cleaning cycle on the market.
12-INCH REMOVABLE GRIDDLE AND GRILL ACCESSORY
Our 12-inch non-stick, rust-proof cast-aluminum fusion coated surface griddle is thermostatically controlled to deliver consistent, even heating across the entire surface. It is also removable for easy cleaning or interchange it with our grill accessory.
Our non-stick, rust-proof cast-aluminum grill accessory (sold separately) features a fusion coated surface that is easy to clean and dishwasher-safe.
INDOOR ELECTRIC PRO GRILL WITH CERAMIC BRIQUETTES
Our easy-to-clean, indoor grilling feature boasts industry­leading design, featuring ceramic briquettes and fusion coated grill plates that fully cover the heating elements to offer exceptional grilling performance with genuine smoky avor while minimizing are-ups. 2 heating zones let you control the front and back zones independently.
1.800.735.4328 | THERMADOR.COM
THIRD ELEMENT CONVECTION SYSTEM
Thermador® Dual-Fuel Ranges feature a True Convection system that directs heat to cook foods more evenly with gourmet results and 25% time savings.
THERMADOR EXCLUSIVE
2323
THE ULTIMATE CULINARY SERIES
Devout cooks and avid entertainers will revel in the cutting-edge innovation, personalization and exceptional
versatility of our new 60-inch Ultimate Culinary Center and our new Ultimate Entertainer’s Center. The 60-inch
Pro Grand® Range puts the power of kitchen personalization in your hands.
How do you cook? Choose from two rangetops and two oven congurations and design the center that is right
for your cooking style. With this much size, power and culinary performance, the only thing larger than our 60-inch
ranges is the desire to own one.
24
PERSONALIZATION IN EVERY SQUARE INCH
Thermador goes beyond expectations by offering unparalleled personalization to suit your unique cooking style. Seize the rare opportunity to mix and match two cooking surfaces and two oven congurations. Each center incorporates dual fuel rangetops with 6 Star® Burners. The rest? Is up to you! No matter what your preference, the Ultimate Culinary Series provides personal design, combined with the Thermador quality, craftsmanship and performance that provide real innovations for real cooks.
CHOOSE YOUR RANGETOP CONFIGURATION
PRO GRAND
®
RANGES | FEATURES & BENEFITS
SIX BURNERS + DOUBLE GRIDDLE
It doesn’t get any bigger than this. Our 24-inch Double Griddle is unrivaled for sheer size and cooking superiority. The griddle is designed to remove easily for cleaning and boasts a smooth, scratch resistant surface.
SIX BURNERS + ELECTRIC INDOOR GRILL + GRIDDLE
Unlimited cooking potential. For those wanting the exibility to do everything, the Grill + Griddle combination is unbeatable. The 12-inch indoor grill features lava briquettes, authentic grilling performance and easy cleanup while the 12-inch griddle boasts a smooth, scratch resistant surface to easily handle all of your entertaining needs.
CHOOSE YOUR OVEN CONFIGURATION
STEAM & CONVECTION OVEN + 36-INCH CONVECTION OVEN
Healthier Results. Moisture Retention. Flavor Enhancement. The benets of cooking with steam are plentiful. Combined with a large 36-inch convection oven that accommodates a full size sheet pan, plus a warming drawer.
TWO LARGE DOUBLE CONVECTION OVENS— 30-INCH AND 36-INCH
Even Cooking. Faster Results. Improved Efciency. Cooking with convection has been the mainstay in professional kitchens for decades. The 36-inch oven accommodates a full size sheet pan and the unequivocal secondary oven has more cu. ft. usable capacity than the competition’s primary 30-inch ovens.
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
25
PRO GRAND® STEAM RANGES THE ULTIMATE CULINARY CENTER
It’s no mere range. No mere oven. It’s an arsenal for the culinary enthusiast. It’s where the real cook’s passion for
food meets our passion for innovation. Available in 48-inch and 60-inch, Thermador Pro Grand Steam Ranges are
the only ranges to offer unmatched versatility and exceptional cooking prowess with seven ways to cook.
26
THE ULTIMATE CULINARY CENTER
FEATURE HIGHLIGHTS
PRO GRAND
THE ULTIMATE CULINARY CENTER
GOES BIGGER
For those whose kitchens demand cooking superiority in a big way, Thermador offers the 60-inch Pro Grand® Steam Range. Never before has a range existed on the market at this size, with this culinary repower. It is the only range available with a steam and convection combination oven plus full size convection oven, warming drawer and next-generation surface cooking that features a full size double griddle. With its bold and timeless design, easy-to-clean environment and Thermador exclusives, like our patented Star® Burner, a 60-inch Pro Grand Steam Range in the kitchen is the ultimate joy for real cooks.
DUAL ZONE, DOUBLE GRIDDLE
Our industry leading 60-inch range boasts the largest dual zone, double griddle on the market. Zoned for perfect control for delicate foods or searing at higher temperatures. And best of all, it’s very easy to remove and clean.
SEVEN COOKING OPTIONS
Both the 60-inch and 48-inch Ultimate Culinary Center® feature seven distinct cooking options that will forever change the way real cooks cook. These are the only ranges on the market to offer ExtraLow® simmering technology, 22,000 BTUs of cooking power, fusion coated surface Griddle & Grill or Double Griddle, a large capacity Convection Oven, Warming Drawer and the industry exclusive Steam & Convection Oven.
®
RANGES | FEATURES & BENEFITS
STEAM AND CONVECTION OVEN
The award-winning oven offers three distinct cooking variations: Steam only, Convection only or Steam & Convection Cooking which makes food crisp on the outside and moist on the inside, just like it was being served at a 5-star restaurant.
WARMING DRAWER
The spacious warming drawer features a state-of-the-art glass-ceramic surface that uses a powerful element to ensure quick and even heating. It’s easy-to-clean and you can place food directly on the surface. An integrated warming drawer is the ultimate indulgence for the culinary enthusiast.
1.800.735.4328 | THERMADOR.COM
27
60-INCH PRO GRAND® RANGES THE ULTIMATE ENTERTAINER’S CENTER
With unmatched versatility and exceptional cooking prowess, The Ultimate Entertainer’s Center is the ideal arsenal
for culinary enthusiasts who love to entertain and want the powerful possibilities to ensure exceptional results.
28
60-INCH ULTIMATE
4.9
cu. ft.
5.7
cu. ft.
ENTERTAINER’S CENTER
FEATURE HIGHLIGHTS
PRO GRAND
THE BIG STORY—30+36=60
How does 30+36=60? Simply stated, our ovens have been re-designed to perform for the ultimate entertainer. The 36-inch convection oven accommodates professional­grade catering trays and the secondary oven has more cu. ft. usable capacity than the competition’s primary 30-inch ovens. At a massive 10.6 cubic square feet, it has the largest combined oven cooking capacity on the market.
DUAL ZONE, DOUBLE GRIDDLE
The 60-inch Ultimate Entertainer’s Center is available with the largest dual zone, double griddle on the market. Zoned for perfect control for delicate foods or searing at higher temperatures. And best of all, it’s very easy to remove and clean.
FLUSH WALL INSTALL
By incorporating innovative venting technology that reduces back wall temperatures, the 60-inch Pro Grand® Range is the rst of its size that can be installed ush against a combustible wall with zero clearance for pure, unadulterated design exibility.
®
RANGES | FEATURES & BENEFITS
THERMADOR EXCLUSIVE
1.800.735.4328 | THERMADOR.COM
29
PRO GRAND® RANGES
OPTIONAL ACCESSORIES
36-INCH DUAL-FUEL 36-INCH GAS
PABRICKBKN Black Ceramic Briquettes with Basket
PA12GRILLN 12" Pro Grill
PA12LCVRN 12" Pro Grill Cover for Indoor Electric Grill
PA12CVRJ 12" Pro Griddle Cover
PA36JLBG 9" Low Backguard
PAGRIDDLEN Griddle for Indoor Electric Grill
PA12CHPBLK 12" Cutting Board
PA36JTKG Toekick
PAGRIDDLE Griddle
PRD364JDGU
PRD364NLGU
PRD366JGU
PRG364JDG
PRL364JDG
PRG364NLG
PRL364NLG
PRG366JG
PRL366JG
30
PWOKRINGHC Wok Ring
PAKNOBLUNG Blue Knob Pro Grand Kit
PRO GRAND® RANGES
OPTIONAL ACCESSORIES
48-INCH DUAL-FUEL 48-INCH GAS
PRO GRAND
®
RANGES | ACCESSORIES
PABRICKBKN Black Ceramic Briquettes with Basket
PA12GRILLN 12" Pro Grill
PA12LCVRN 12" Pro Grill Cover for Indoor Electric Grill
PA12CVRJ 12" Pro Grill / Griddle Cover
PA48JLBSG 9" Low Backguard
PA48JLBG 9" Low Backguard
PAGRIDDLEN Griddle for Indoor Electric Grill
PA12CHPBLK 12" Cutting Board
PAGRIDDLE Griddle
PRD48JDSGU
PRD48NLSGU
PRD48NCSGU
PRD486JDGU
PRD486NLGU
PRD484NCGU
PRG486JDG
PRL486JDG
PRG486NLG
PRL486NLG
PWOKRINGHC Wok Ring
PA48JTKG Toekick
PAKNOBLUNG Blue Knob Pro Grand Kit
CSRACKH Wire Rack
CS2XLH Cooking Pan – Full Size
CS1XLPH Perforated Cooking Pan – Half Size
5
/
8
(1
" Deep)
CS1XLH Cooking Pan – Half Size
CS2XLPH Perforated Cooking Pan – Full Size
5
/
8
(1
" Deep)
CS2LH Baking Tray
1.800.735.4328 | THERMADOR.COM
31
PRO GRAND® RANGES
OPTIONAL ACCESSORIES
60-INCH DUAL-FUEL
PABRICKBKN Black Ceramic Briquettes with Basket
PA12GRILLN 12" Pro Grill
PA12LCVRN 12" Pro Grill Cover for Indoor Electric Grill
PA12CVRJ 12" Pro Grill / Griddle Cover
PA24CVRR 24" Griddle Cover
PA60RLBG 9" Low Backguard
PAGRIDDLEN Griddle for Indoor Electric Grill
PA12CHPBLK 12" Cutting Board
PAGRIDDLE Griddle
PRD606RCG
PRD606REG
PRD606RCSG
PRD606RESG
PAWOKRINGHC Wok Ring
PA60RTKG Toekick
PAKNOBLURG Blue Knob Pro Grand Kit
CSRACKH Wire Rack
CS2XLH Cooking Pan – Full Size
CS1XLPH Perforated Cooking Pan – Half Size
5
/
8
(1
" Deep)
CS1XLH Cooking Pan – Half Size
CS2XLPH Perforated Cooking Pan – Full Size
5
/
8
(1
" Deep)
CS2LH Baking Tray
32
PRD366JGU
36-INCH DUAL-FUEL PRO GRAND® RANGE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.7 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 40 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
Bake Power 2,000 W
Broil Power 4,000 W
Convection Power 2,750 W
BURNER PERFORMANCE
Total Number of Cooktop Burners 6
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35 7/8"–36 3/4" x
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
35 15/16" x 28 3/4"
7
/8"–36 3/4" x 36" x
24"–25 1/8"
7
/8"
2 Year
PRO GRAND
®
RANGES | ACCESSORIES & SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
33
PRD364JDGU
36-INCH DUAL-FUEL PRO GRAND® RANGE WITH GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.7 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 40 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
Bake Power 2,000 W
Broil Power 4,000 W
Convection Power 2,750 W
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Griddle
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35 7/8"–36 3/4" x
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
35 15/16" x 28 3/4"
7
/8"–36 3/4" x 36" x
24"–25 1/8"
7
/8"
2 Year
34
THERMADOR EXCLUSIVE
PRD364NLGU
36-INCH DUAL-FUEL PRO GRAND® RANGE WITH GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.7 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 40 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
Bake Power 2,000 W
Broil Power 4,000 W
Convection Power 2,750 W
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35 7/8"–36 3/4" x
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
35 15/16" x 28 3/4"
7
/8"–36 3/4" x 36" x
24"–25 1/8"
7
/8"
2 Year
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
35
PRG366JG
36-INCH GAS PRO GRAND® RANGE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Also Available: PRL366JG - LP
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 15 A
Volts (V) 120 V
Frequency (Hz) 60 Hz; 50-60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
Bake Power 30,000 BTU (NG)
Broil Power 17,000 BTU (NG)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35 7/8"–36 3/4" x 36" x
Adjustable Range Height (in.)
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
7
/8"–36 3/4" x
35 15/16" x 28 3/4"
24"–25 1/8"
7
/8"
2 Year
36
THERMADOR EXCLUSIVE
PRL366JG
36-INCH GAS PRO GRAND® RANGE (LP)
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Also Available: PRG366JG - Natural Gas
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 18,000 BTU (LP) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 15 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Liquid Gas 27, 5 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
Bake Power 25,000 BTU (LP)
Broil Power 17,000 BTU (LP)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6
Power of Front Left Burner BTU 15,000 and XLO (LP)
Power of Back Left Burner BTU 15,000 and XLO (LP)
Power of Back Center Burner BTU 15,000 (LP)
Power of Front Center Burner BTU 15,000 (LP)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 15,000 and XLO (LP)
Power of Front Right Burner BTU 18,000 and XLO (LP)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35 7/8"–36 3/4" x 36" x
Adjustable Range Height (in.)
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
7
/8"–36 3/4" x
35 15/16" x 28 3/4"
24"–25 1/8"
7
/8"
2 Year
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
37
PRG364JDG
36-INCH GAS PRO GRAND® RANGE WITH GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Also Available: PRL364JDG - LP
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong NEMA
5-20
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
Bake Power 30,000 BTU (NG)
Broil Power 17,000 BTU (NG)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Griddle
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35 7/8"–36 3/4" x 36" x
Adjustable Range Height (in.)
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
7
/8"–36 3/4" x
35 15/16" x 28 3/4"
24"–25 1/8"
7
/8"
2 Year
38
THERMADOR EXCLUSIVE
PRG364NLG
36-INCH GAS PRO GRAND® RANGE WITH GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Also Available: PRL364NLG - LP
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
Bake Power 30,000 BTU (NG)
Broil Power 17,000 BTU (NG)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 1,630 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35 7/8"–36 3/4" x 36" x
Adjustable Range Height (in.)
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
7
/8"–36 3/4" x
35 15/16" x 28 3/4"
24"–25 1/8"
7
/8"
2 Year
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
39
PRL364JDG
36-INCH GAS PRO GRAND® RANGE WITH GRIDDLE (LP)
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Also Available: PRG364JDG - Natural Gas
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 18,000 BTU (LP) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong NEMA
5-20
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Liquid Gas 27.5 mbar
(USA)
Alternative Gas Type Natural Gas 15 mbar
(USA)
See page 30 for accessories.
Bake Power 25,000 BTU (LP)
Broil Power 17,000 BTU (LP)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Griddle
Power of Front Left Burner BTU 15,000 and XLO (LP)
Power of Back Left Burner BTU 15,000 and XLO (LP)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 15,000 and XLO (LP)
Power of Front Right Burner BTU 18,000 and XLO (LP)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35 7/8"–36 3/4" x 36" x
Adjustable Range Height (in.)
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
7
/8"–36 3/4" x
35 15/16" x 28 3/4"
24"–25 1/8"
7
/8"
2 Year
40
THERMADOR EXCLUSIVE
PRL364NLG
36-INCH GAS PRO GRAND® RANGE WITH GRILL (LP)
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Also Available: PRG364NLG - Natural Gas
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 18,000 BTU (LP) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Liquid Gas 27.5 mbar
(USA)
Alternative Gas Type Natural Gas 15 mbar
(USA)
See page 30 for accessories.
Bake Power 25,000 BTU (LP)
Broil Power 17,000 BTU (LP)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Grill
Power of Front Left Burner BTU 15,000 and XLO (LP)
Power of Back Left Burner BTU 15,000 and XLO (LP)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 1,630 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 15,000 and XLO (LP)
Power of Front Right Burner BTU 18,000 and XLO (LP)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35 7/8"–36 3/4" x 36" x
Adjustable Range Height (in.)
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
7
/8"–36 3/4" x
35 15/16" x 28 3/4"
24"–25 1/8"
7
/8"
2 Year
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
41
PRD486JDGU
48-INCH DUAL-FUEL PRO GRAND® RANGE WITH GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.7 / 2.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Cleans both ovens simultaneously in just 2 hours
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
Broil Power 4,000 W (Lg) /
Convection Power 2,750 W (Lg) /
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Telescopic Rack ­Small, 2 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan Small, 1 X Broiler Pan, Probe
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
1,400 W (Sm)
3,600 W (Sm)
1,960 W (Sm)
7
/8"–36 3/4 x
47 15/16" x 28 3/4"
7
/8"–36 3/4" x 48" x
24"–25 1/8"
7
/8"
2 Year
42
THERMADOR EXCLUSIVE
PRD486NLGU
48-INCH DUAL-FUEL PRO GRAND® RANGE WITH GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.7 / 2.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Cleans both ovens simultaneously in just 2 hours
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
Broil Power 4,000 W (Lg) /
Convection Power 2,750 W (Lg) /
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Telescopic Rack ­Small, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan Small, 1 X Broiler Pan, Probe
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
1,400 W (Sm)
3,600 W (Sm)
1,960 W (Sm)
7
/8"–36 3/4" x
47 15/16" x 28 3/4"
7
/8"–36 3/4" x 48" x
24"–25 1/8"
7
/8"
2 Year
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
43
PRD484NCGU

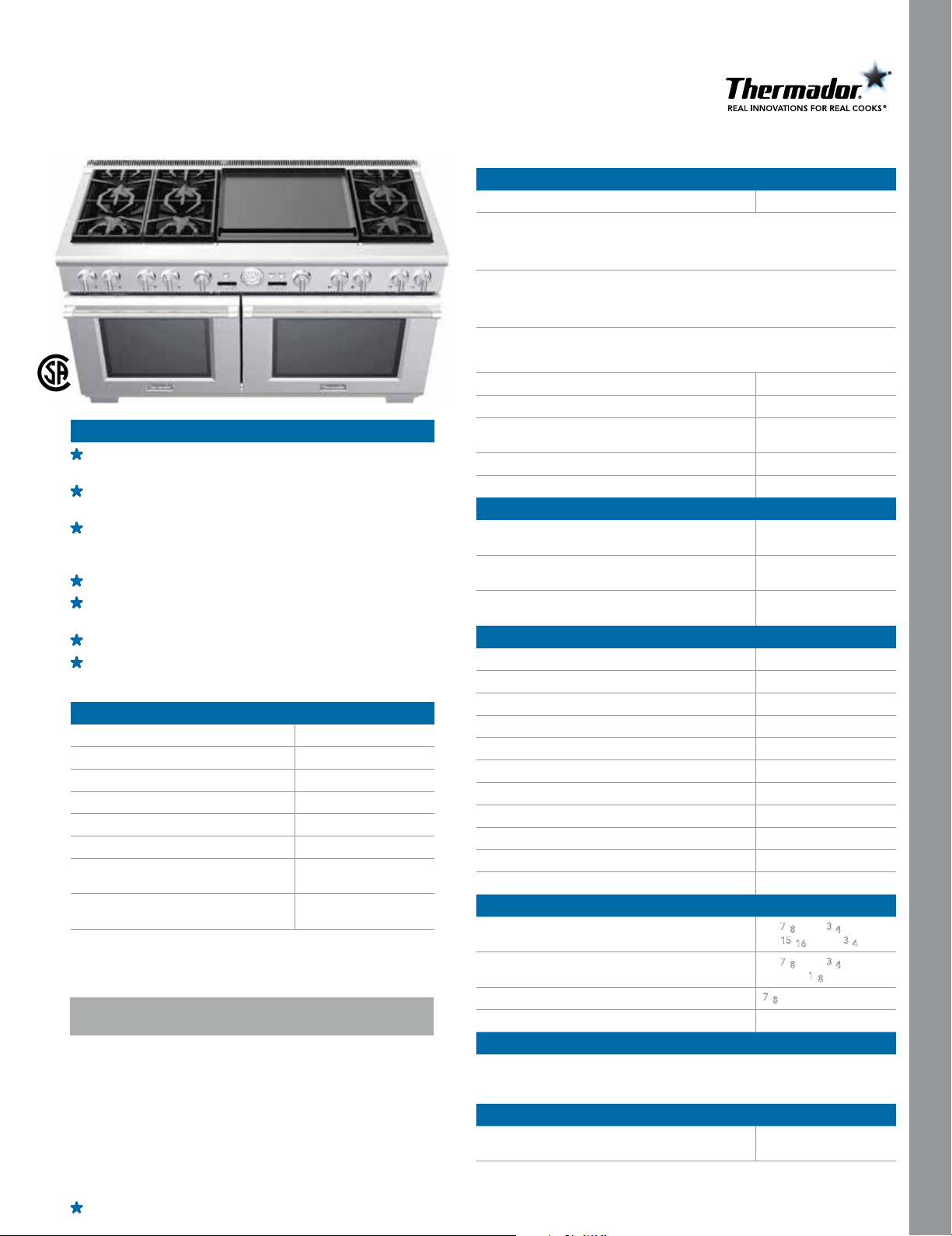

48-INCH DUAL-FUEL PRO GRAND® RANGE WITH GRIDDLE AND GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.7 / 2.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Cleans both ovens simultaneously in just 2 hours
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
Broil Power 4,000 W (Lg) /
Convection Power 2,750 W (Lg) /
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Griddle + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 and XLO (NG)
Power of Front Center Burner BTU 22,000 and XLO (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Far Right 12" Electric Griddle (W) 1,630 W
Power of Back Right Burner BTU N/A
Power of Front Right Burner BTU N/A
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Telescopic Rack ­Small, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan Small, 1 X Broiler Pan, Probe
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
1,400 W (Sm)
3,600 W (Sm)
1,960 W (Sm)
7
/8"–36 3/4" x
47 15/16" x 28 3/4"
7
/8"–36 3/4" x 48" x
24"–25 1/8"
7
/8"
2 Year
44
THERMADOR EXCLUSIVE
PRD48JDSGU
48-INCH DUAL-FUEL PRO GRAND® RANGE WITH STEAM AND GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.1 / 1.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self clean, Keep Warm
Cooking Modes - Small Cavity
Steam, True Convection, Steam / Convection, Reheat, Proof, Slow Cook, Defrost, Easy Cook
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Primary)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer 1.1 cu. ft. - Low, Med,
FEATURES & BENEFITS
- The only professional range on the market with a built-in steam oven and warming drawer
- 27 Easy Cook® food programs. Pre-programmed modes automatically set the oven temperature and humidity to ensure perfect cooking results
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
Broil Power 4,000 W (Lg)
Convection Power 2,750 W (Lg)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35 7/8"–36 3/4" x 48" x
Adjustable Range Height (in.)
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Temperature Sensor, 1 X Island Trim, 1 X STS Tray-GN1/3-Punched-40 mm Deep, 1 X STS Tray-GN1/3-Unpunched-40 mm Deep, 1 X STS Tray-GN2/3­Unpunched-40 mm Deep, 1 X STS Tray-GN2/3-Punched-40 mm Deep, 1 X STS Tray-GN2/3-Unpunched-28 mm Deep, 1 X Grid, 1 X Grill Plate, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
PRO GRAND
®
RANGES | SPECIFICATIONS
®
Display
High
1,960 W (Sm)
7
/8"–36 3/4" x
47 15/16" x 28 3/4"
24"–25 1/8"
7
/8"
2 Year
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
45
PRD48NLSGU
48-INCH DUAL-FUEL PRO GRAND® RANGE WITH STEAM AND GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.1 / 1.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self clean, Keep Warm
Cooking Modes - Small Cavity
FEATURES & BENEFITS
- The only range in the market with a steam and convection combination oven, plus a full-size convection oven and a warming drawer
- 27 Easy Cook® food programs. Pre-programmed modes automatically set the oven temperature and humidity to ensure perfect cooking results
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
Steam, True Convection, Steam / Convection, Reheat, Proof, Slow Cook, Defrost, Easy Cook
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Primary)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer 1.1 cu. ft. - Low, Med,
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
Broil Power 4,000 W (Lg)
Convection Power 2,750 W (Lg)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35 7/8"–36 3/4" x 48" x
Adjustable Range Height (in.)
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X STS Tray-GN1/3-Punched-40 mm Deep, 1 X STS Tray-GN1/3-Unpunched-40 mm Deep, 1 X STS Tray-GN2/3­Unpunched-40 mm Deep, 1 X STS Tray-GN2/3-Punched-40 mm Deep, 1 X STS Tray-GN2/3-Unpunched-28 mm Deep, 1 X Grid, 1 X Grill Plate, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
®
Display
High
1,960 W (Sm)
7
/8"–36 3/4" x
47 15/16" x 28 3/4"
24"–25 1/8"
7
/8"
2 Year
46
THERMADOR EXCLUSIVE
PRD48NCSGU
48-INCH DUAL-FUEL PRO GRAND® RANGE WITH STEAM, GRIDDLE AND GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.1 / 1.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self clean, Keep Warm
Cooking Modes - Small Cavity
Steam, True Convection, Steam / Convection, Reheat, Proof, Slow Cook, Defrost, Easy Cook
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Primary)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer 1.1 cu. ft. - Low, Med,
FEATURES & BENEFITS
- The only range in the market with a steam and convection combination oven, plus a full-size convection oven and a warming drawer
- 27 Easy Cook® food programs. Pre-programmed modes automatically set the oven temperature and humidity to ensure perfect cooking results
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
Broil Power 4,000 W (Lg)
Convection Power 2,750 W (Lg)
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Griddle + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 and XLO (NG)
Power of Front Center Burner BTU 22,000 and XLO (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Far Right 12" Electric Griddle (W) 1,630 W
Power of Back Right Burner BTU N/A
Power of Front Right Burner BTU N/A
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35 7/8"–36 3/4" x 48" x
Adjustable Range Height (in.)
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X STS Tray-GN1/3-Punched-40 mm Deep, 1 X STS Tray-GN1/3-Unpunched-40 mm Deep, 1 X STS Tray-GN2/3­Unpunched-40 mm Deep, 1 X STS Tray-GN2/3-Punched-40 mm Deep, 1 X STS Tray-GN2/3-Unpunched-28 mm Deep, 1 X Grid, 1 X Grill Plate, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
PRO GRAND
®
RANGES | SPECIFICATIONS
®
Display
High
1,960 W (Sm)
7
/8"–36 3/4" x
47 15/16" x 28 3/4"
24"–25 1/8"
7
/8"
2 Year
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
47
PRG486JDG
48-INCH GAS PRO GRAND® RANGE WITH GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.5 / 2.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean,
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
Also Available: PRL486JDG - LP
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong NEMA
5-20
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
OVEN PERFORMANCE
Bake Power 30,000 BTU NG (Lg) /
Broil Power 17,000 BTU NG (Lg) /
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35 7/8"–36 3/4" x
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 2 X Telescopic Rack - Small, 2 X Temperature Sensor, 1 X Island Trim, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
K
eep Warm
Display
15,000 BTU NG (Sm)
9,000 BTU NG (Sm)
47 15/16" x 28 3/4"
7
/8"–36 3/4" x 48" x
24"–25 1/8"
7
/8"
2 Year
48
THERMADOR EXCLUSIVE
PRG486NLG
48-INCH GAS PRO GRAND® RANGE WITH GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.5 / 2.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean,
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
Also Available: PRL486NLG - LP
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
OVEN PERFORMANCE
Bake Power 30,000 BTU NG (Lg) /
Broil Power 17,000 BTU NG (Lg) /
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 1,630 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35 7/8"–36 3/4" x
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Telescopic Rack - Small, 1 X Temperature Sensor, 1 X Island Trim, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
K
eep Warm
Display
15,000 BTU NG (Sm)
9,000 BTU NG (Sm)
47 15/16" x 28 3/4"
7
/8"–36 3/4" x 48" x
24"–25 1/8"
7
/8"
2 Year
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
49
PRL486JDG
48-INCH GAS PRO GRAND® RANGE WITH GRIDDLE (LP)
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.5 / 2.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
Also Available: PRG486JDG - Natural Gas
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 18,000 BTU (LP) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong NEMA
5-20
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Liquid Gas 27.5 mbar
(USA)
Alternative Gas Type Natural Gas 15 mbar
(USA)
See page 31 for accessories.
OVEN PERFORMANCE
Bake Power 25,000 BTU NG (Lg) /
Broil Power 17,000 BTU NG (Lg) /
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 15,000 and XLO (LP)
Power of Back Left Burner BTU 15,000 and XLO (LP)
Power of Back Center Burner BTU 15,000 (LP)
Power of Front Center Burner BTU 15,000 (LP)
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 15,000 and XLO (LP)
Power of Front Right Burner BTU 18,000 and XLO (LP)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 2 X Telescopic Rack - Small, 2 X Temperature Sensor, 1 X Island Trim, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
12,300 BTU NG (Sm)
9,000 BTU NG (Sm)
7
/8"–36 3/4" x
47 15/16" x 28 3/4"
7
/8"–36 3/4" x 48" x
24"–25 1/8"
7
/8"
2 Year
50
THERMADOR EXCLUSIVE
PRL486NLG
48-INCH GAS PRO GRAND® RANGE WITH GRILL (LP)
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.5 / 2.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
Also Available: PRG486NLG - Natural Gas
FEATURES & BENEFITS
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 18,000 BTU (LP) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Liquid Gas 27.5 mbar
(USA)
Alternative Gas Type Natural Gas 15 mbar
(USA)
See page 31 for accessories.
OVEN PERFORMANCE
Bake Power 25,000 BTU NG (Lg) /
Broil Power 17,000 BTU NG (Lg) /
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Grill
Power of Front Left Burner BTU 15,000 and XLO (LP)
Power of Back Left Burner BTU 15,000 and XLO (LP)
Power of Back Center Burner BTU 15,000 (LP)
Power of Front Center Burner BTU 15,000 (LP)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 1,630 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 15,000 and XLO (LP)
Power of Front Right Burner BTU 18,000 and XLO (LP)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Telescopic Rack - Small, 1 X Temperature Sensor, 1 X Island Trim, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
12,300 BTU NG (Sm)
9,000 BTU NG (Sm)
7
/8"–36 3/4" x
47 15/16" x 28 3/4"
7
/8"–36 3/4" x 48" x
24"–25 1/8"
7
/8"
2 Year
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
51
PRD606RCG
60-INCH DUAL-FUEL PRO GRAND® RANGE WITH GRILL AND GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.7 / 4.9 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
FEATURES & BENEFITS
- Largest Pro Range Oven capacity in the industry @ 10.6 cu. ft. overall (5.7 cu. ft. main oven & 4.9 cu. ft. secondary oven)
- Superior grilling results, 2000 watt Indoor Electric Grill with Ceramic Briquettes in addition to 12" electric griddle and 6 powerful Star® Burners
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Cleans both ovens simultaneously in just 2 hours
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type 240V-4 Prong
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 32 for accessories.
AVAILABLE SUMMER 2016
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
Broil Power 3,600 W (Lg) /
Convection Power 2,750 W (Lg) /
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle + Grill
Power of Front Left Burner BTU 22,000 and XLO (NG)
Power of Back Left Burner BTU 12,500 and XLO (NG)
Power of Back Center Burner BTU 12,500 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Center 24" Dual Zone Electric Griddle N/A
Power of Far Right 12" Electric Griddle (W) 1,630 W
Power of Back Right Burner BTU 12,500 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 668 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Telescopic Rack ­Secondary Oven, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan Small, 1 X Broiler Pan, Probe
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
2,000 W (Sm)
3,000 W (Sm)
2,750 W (Sm)
7
/8"–36 3/4" x
59 15/16" x 28 3/4"
7
/8"–36 3/4" x 60" x
24"–25 1/8"
7
/8"
2 Year
52
THERMADOR EXCLUSIVE
PRD606REG
60-INCH DUAL-FUEL PRO GRAND® RANGE WITH DOUBLE GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.7 / 4.9 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
FEATURES & BENEFITS
- Largest Pro Range Oven capacity in the industry @ 10.6 cu. ft. overall (5.7 cu. ft. main oven & 4.9 cu. ft. secondary oven)
- 24" Double griddle with two independently controlled zones (left & right)
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
- SoftClose® hinges for ultra smooth closing of the oven door
- Cleans both ovens simultaneously in just 2 hours
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type 240V-4 Prong
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 32 for accessories.
AVAILABLE SUMMER 2016
Controls Metal Knobs and LCD
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
Broil Power 3,600 W (Lg) /
Convection Power 2,750 W (Lg) /
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle + Grill
Power of Front Left Burner BTU 22,000 and XLO (NG)
Power of Back Left Burner BTU 12,500 and XLO (NG)
Power of Back Center Burner BTU 12,500 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) N/A
Power of Center 24" Dual Zone Electric Griddle 1,630 W (Left & Right)
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 12,500 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35
Adjustable Range Height (in.)
Net Weight (lbs) 652 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Telescopic Rack ­Secondary Oven, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan Small, 1 X Broiler Pan, Probe
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
Display
2,000 W (Sm)
3,000 W (Sm)
2,750 W (Sm)
7
/8"–36 3/4" x
59 15/16" x 28 3/4"
7
/8"–36 3/4" x 60" x
24"–25 1/8"
7
/8"
2 Year
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
THERMADOR EXCLUSIVE
53
PRD606RCSG
60-INCH DUAL-FUEL PRO GRAND® RANGE WITH STEAM, GRILL AND GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.7 / 1.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self clean, Keep Warm
Cooking Modes - Small Cavity
Steam, True Convection, Steam / Convection, Reheat, Proof, Slow Cook, Defrost, Easy Cook
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Primary)
Type of Grate Continuous Cast Iron
FEATURES & BENEFITS
- Largest Pro Range Oven capacity in the industry @ 5.7 cu. ft. (large enough to t a caterers full sheet pan)
- Superior grilling results, 2000 watt Indoor Electric Grill with Ceramic Briquettes in addition to 12" electric griddle and 6 powerful star burners
- The only professional range on the market with a built-in steam oven and warming drawer
- 27 Easy Cook® food programs. Pre-programmed modes automatically set the oven temperature and humidity to ensure perfect cooking results
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type 240V-4 Prong
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 32 for accessories.
AVAILABLE SUMMER 2016
Controls Metal Knobs and LCD
Warming Drawer 1.4 cu. ft.- Low, Med,
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
Broil Power 3,600 W (Lg)
Convection Power 2,750 W (Lg)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 22,000 and XLO (NG)
Power of Back Left Burner BTU 12,500 and XLO (NG)
Power of Back Center Burner BTU 12,500 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) 2,000 W
Power of Center 24" Dual Zone Electric Griddle N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 12,500 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35 7/8"–36 3/4" x 60" x
Adjustable Range Height (in.)
Net Weight (lbs) 610 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Temperature Sensor, 1 X Island Trim, 1 X STS Tray-GN1/3-Punched-40 mm Deep, 1 X STS Tray-GN1/3-Unpunched-40 mm Deep, 1 X STS Tray-GN2/3­Unpunched-40 mm Deep, 1 X STS Tray-GN2/3-Punched-40 mm Deep, 1 X STS Tray-GN2/3-Unpunched-28 mm Deep, 1 X Grid, 1 X Grill Plate, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
®
Display
High
1,960 W (Sm)
7
/8"–36 3/4" x
59 15/16" x 28 3/4"
24"–25 1/8"
7
/8"
2 Year
54
THERMADOR EXCLUSIVE
PRD606RESG
60-INCH DUAL-FUEL PRO GRAND® RANGE WITH STEAM AND DOUBLE GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
GENERAL PROPERTIES
Oven Capacity 5.7 / 1.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast, Self clean, Keep Warm
Cooking Modes - Small Cavity
Steam, True Convection, Steam / Convection, Reheat, Proof, Slow Cook, Defrost, Easy Cook
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Primary)
Type of Grate Continuous Cast Iron
FEATURES & BENEFITS
- Largest Pro Range Oven capacity in the industry @ 5.7 cu. ft. (large enough to t a caterers full sheet pan)
- 24" Double griddle with two independently controlled zones (left & right)
- The only professional range on the market with a built-in steam oven and warming drawer
- 27 Easy Cook® food programs. Pre-programmed modes automatically set the oven temperature and humidity to ensure perfect cooking results
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type 240V-4 Prong
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 32 for accessories.
AVAILABLE SUMMER 2016
Controls Metal Knobs and LCD
Warming Drawer 1.4 cu. ft.- Low, Med,
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
Broil Power 3,600 W (Lg)
Convection Power 2,750 W (Lg)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 22,000 and XLO (NG)
Power of Back Left Burner BTU 12,500 and XLO (NG)
Power of Back Center Burner BTU 12,500 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) N/A
Power of Center 24" Dual Zone Electric Griddle 1,630 W (Left & Right)
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 12,500 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
Required Cutout Size (HxWxD) (in) 35 7/8"–36 3/4" x 60" x
Adjustable Range Height (in.)
Net Weight (lbs) 590 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Temperature Sensor, 1 X Island Trim, 1 X STS Tray-GN1/3-Punched-40 mm Deep, 1 X STS Tray-GN1/3-Unpunched-40 mm Deep, 1 X STS Tray-GN2/3­Unpunched-40 mm Deep, 1 X STS Tray-GN2/3-Punched-40 mm Deep, 1 X STS Tray-GN2/3-Unpunched-28 mm Deep, 1 X Grid, 1 X Grill Plate, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor
PRO GRAND
®
RANGES | SPECIFICATIONS
®
Display
High
1,960 W (Sm)
7
/8"–36 3/4" x
59 15/16" x 28 3/4"
1.800.735.4328 | THERMADOR.COM
24"–25 1/8"
7
/8"
2 Year
THERMADOR EXCLUSIVE
55
PRO GRAND® RANGES
PLANNING INFORMATION
MODEL OPTIONS
There are three sizes of Thermador Pro Grand® Ranges to choose from— 36-inch, 48-inch and 60-inch — in your choice of all-gas or dual-fuel congurations. All models are 27-inches deep and available in stainless steel with porcelain cooktop. Be sure to reference the correct model information in this design guide.
INSTALLATION CONSIDERATIONS
The information in this design guide provides key features, product dimensions, cutouts and installation specications. Before installing a Thermador Pro Grand Range, be sure to verify the cutout dimensions and electrical / gas connections. Also, always consult with the installation manual packed with the product for complete details before installing.
INSTALLATION OPTIONS
Thermador Pro Grand Ranges feature a bold, professional design and a commercial-depth of 27-inches. These ranges can be installed in a wall or island installation.
BACKGUARDS
When using the Flush Island Trim, Thermador recommends a minimum 12" (305 mm) rear clearance to a combustible surface (see Figure 1, Cabinet Clearances). Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certied by CSA. Clearances of less than 12" (305 mm) must be approved by the local codes and / or by the local authority having jurisdiction.
VENTILATION REQUIREMENTS
We strongly recommend that a Thermador Professional® Wall or Island Hood or Custom Insert be installed with all Thermador Pro Grand Ranges. Downdraft ventilation should not be used. Do not install a microwave-hood combination above the cooktop, as these types of units do not provide the proper ventilation and are not suitable for use with Thermador Pro Grand Ranges.
Due to the 27-inch commercial-depth of Pro Grand Ranges, the PH Professional Series Wall Hoods or Professional Series Custom Inserts would provide the appropriate depth from the wall to correspond to these ranges.
For high output gas cooktops (60,000 BTU or greater), the minimum of one (1) CFM of ventilation per 100 BTU is recommended. If the cooktop has a grill or griddle, add 150 CFM to the estimated blower capacity. Additional blower capacity may be required for longer duct runs.
The following table indicates the ventilation hood options that are recommended for use with Thermador Pro Grand Ranges. Refer to the Ventilation section or www.Thermador.com for a complete selection of Professional ventilation options, blowers, and accessories.
VENTILATION
WIDTH CONFIGURATION
36" 4 Burners
w/Grill OR Griddle
OPTIONS
36" or 42" Pro Wall Hood 36" Chimney Wall Hood 42" Island Hood 36" Custom Insert
NATURAL GAS OR LP
Thermador Dual-Fuel Pro Grand Ranges are shipped by the factory to operate on natural gas. They must be converted for use with propane. Verify that the type of gas being used at the installation site matches the type of gas used by the appliance. If the location / job site requires conversion from natural gas to propane (LP), utilize the included LP kit. Field conversion must be done by qualied service personnel only. Please refer to the LP Conversion Instructions for further information.
HIGH ALTITUDE
A high altitude kit is available through Customer Services as service part number 746376.
36" 6 Burners 36" or 42" Pro Wall Hood
36" Chimney Wall Hood 42" Island Hood 36" Custom Insert
48" 4 Burners
w/Grill AND Griddle
48" 6 Burners
w/Grill OR Griddle
60" 6 Burners with Grill
AND Griddle OR 24" Griddle
48" or 54" Pro Wall Hood 48" Chimney Wall Hood 42" Island Hood 36" Custom Insert
48" or 54" Pro Wall Hood 48" Chimney Wall Hood 42" Island Hood 36" Custom Insert
60" Pro Wall Hood 60" Custom Insert
56
PRO GRAND® RANGES
RECEPT
PLANNING INFORMATION
PRO GRAND
ELECTRICAL AND GAS SPECIFICATIONS
Be sure your appliance is properly installed and grounded by a qualied technician. Installation, electrical and gas connections, and grounding must comply with all applicable local codes.
GAS REQUIREMENTS AND HOOKUP
Verify that the type of gas being used at the installation site matches the type of gas used by the appliance. If an LP kit is utilized, conversion from natural gas to propane must be done by qualied service personnel only. Please refer to the LP Conversion Instructions for further information.
A manual gas shut-off valve must be installed external to the appliance, in a location accessible from the front, for the purpose of shutting off the gas supply. The supply line must not interfere with the back of the unit.
NATURAL GAS REQUIREMENTS:
Inlet Connection: 3/4" NPT external, 1/2" NPT internal (Minimum 3/4" diam. ex line)
Supply Pressure: 6" min. to 14" max. water column (14.9 to 34.9 mb)
Manifold Pressure: 5" water column (12.5 mb)
PROPANE GAS REQUIREMENTS:
Inlet Connection: 3/4" NPT external, 1/2" NPT internal (Minimum 3/4" diam. ex line)
Supply Pressure: 11" min. to 14" max. water column (27.4 mb to 34.9 mb)
Manifold Pressure: 10" water column (24.9 mb)
ALL-GAS:
Thermador Pro Grand All-Gas Ranges are equipped with a 3-wire plug and are designed to be connected to a 120V AC, 60 Hz, single­phase power supply. A dedicated circuit breaker is required.
MODEL REQUIRED CIRCUIT BREAKER
120V AC, 60 Hz
PRG366JG – NG 15 A
PRL366JG – LP 15 A
PRG364JDG – NG 20 A
PRG364NLG – NG 20 A
PRL364JDG – LP 20 A
PRL364NLG – LP 20 A
PRG486JDG – NG 20 A
PRG486NLG – NG 20 A
PRL486JDG – LP 20 A
PRL486NLG – LP 20 A
DUAL-FUEL:
Thermador Pro Grand Dual-Fuel Ranges are dual rated, designed to be connected to either 240 / 208V AC, 60 Hz, 4-wire, single-phase power supply. The connection may be made with a range supply cord kit (purchased separately) or by hard-wiring to the power supply. A dedicated circuit breaker is required.
MODEL REQUIRED CIRCUIT BREAKER
240 / 208V AC, 60Hz
PRD366JGU 40 A
PRD364JDGU 40 A
PRD364NLGU 40 A
PRD486JDGU 50 A
PRD486NLGU 50 A
PRD484NCGU 50 A
PRD48JDSGU 50 A
PRD48NLSGU 50 A
PRD48NCSGU 50 A
PRD606RCG 50 A
PRD606REG 50 A
PRD606RCSG 50 A
PRD606RESG 50 A
ELECTRICAL SUPPLY
IMPORTANT: The cord supplied with
gas ranges having an electric griddle requires a NEMA 5-20 receptacle as shown here. Local codes my require a different wiring method.
WARNING: This appliance is equipped with a three-prong grounding plug for protection against shock hazard and should be plugged directly into a properly grounded receptacle. DO NOT cut or remove the grounding prong from this plug. DO NOT ALTER THIS PLUG.
NEMA 5-20
ACLE
PLUG
ELECTRICAL AND GAS LOCATIONS
Typical placement of the electrical and gas supply can be found within the ”Cutout and Range Dimensions“ located on the installation pages. Alternate placement within the supply zone is acceptable. Dual-Fuel ranges may be connected to the power supply with a range supply cord kit (sold separately) or by hard-wiring to the power supply. All-gas ranges may be connected to the power supply with the supplied range cord or by hard-wiring. It is the responsibility of the installer to provide the proper wiring components (cord or conduit and wires) and complete the electrical connection as dictated by local codes and ordinances and / or the National Electric Code. The units must be properly grounded.
Installation of the range must be planned so that the rough-in of the junction box for the receptacle or conduit connection will allow maximum clearance to the rear of the unit.
®
RANGES | PLANNING INFORMATION
1.800.735.4328 | THERMADOR.COM
57
PRO GRAND® RANGES
INSTALLATION
36-INCH RANGE DIMENSIONS
36-INCH RANGE CUTOUT DIMENSIONS
58
PRO GRAND® RANGES
INSTALLATION
PRO GRAND
48-INCH RANGE DIMENSIONS
48-INCH RANGE CUTOUT DIMENSIONS
®
RANGES | INSTALLATION
59
1.800.735.4328 | THERMADOR.COM
PRO GRAND® RANGES
INSTALLATION
60-INCH RANGE DIMENSIONS
60-INCH RANGE CUTOUT DIMENSIONS
60
10"(254 mm)
7"
(178 mm)8"(203 mm)
34"(864 mm)
5"
(127 mm)
2 ½"(64 mm)
6"
(153 mm)
PRO GRAND® RANGES
Combustible
48¾" (1238 mm)
Installation Clearances with Flush Island Trim
Combustible Materials
31¼" (794 mm)
29
1
/8
" (740 mm)
36" (914 mm) min. to combustible materials
251/8
" (638 mm)
max. recess depth
Combustible Back Wall
7
/8
" (911 mm) Min.
26
7
/8
" (683 mm)
48¾" (1238 mm)
Installation Clearances with Flush Island Trim
12” (305 mm) min. to combustible surface with Flush Island Trim
12" (305 mm) min. to combustible surface with Flush Island Trim
If an inner wall is used under the cantilever counter top, there should be a
1
/8
" (3 mm) gap from the rear of the range to the inner wall.
For Flush Island Trim
For Flush Island Trim
installations, counter
installations, counter
surface should have
surface should have
a cantilever edge
a cantilever edge
meeting the back
meeting the back
section of the Flush
section of the Flush
Island Trim accessory.
Island Trim accessory.
Shaded area behind range indicates minimum clearance to combustible surfaces, combustible materials cannot be located within this area.
Shaded area behind range indicates minimum clearance to combustible surfaces, combustible materials cannot be located within this area.
must be approved by the local codes and/or by the local authority having jurisdiction.
Combustible
Combustible
Installation Clearances with Low Backguard
9" (229 mm) Lowback
Combustible Materials
31¼" (794 mm)
29
1
/8" (740 mm)
36" (914 mm) min. to combustible materials
251/8" (638 mm) max. recess depth
Combustible Back Wall
7
/8" (911 mm) Min.
26
7
/8" (683 mm)
48¾" (1238 mm)
Installation Clearances with Low Backguard
INSTALLATION
CATEGORY | INSTALLATION
PRO GRAND
36-INCH, 48-INCH AND 60-INCH PRO GRAND RANGE DIMENSIONS AND CLEARANCE REQUIREMENTS WITH “LOW BACK”
Note: A 36-inch minimum clearance is required between
the top of the cooking surface and the bottom of an unprotected cabinet. A 30-inch clearance can be used when the bottom of the wood or metal cabinet is protected by not less than 1/4 inch of a ame retardant material covered with not less than No. 28 MSG sheet steel, 0.015 inch (0.4 mm) thick stainless steel, 0.024 inch (0.6 mm) aluminum, or 0.020 inch (0.5 mm) thick copper.
As defined in the “National Fuel Gas Code” (ANSI Z223.1, Current Edition). Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA. Clearances of less than 12" (305 mm) must be approved by the local codes and/or by the local authority having jurisdiction.
357/8
36¾" (933 mm) Max.
36-INCH, 48-INCH AND 60-INCH PRO GRAND RANGE DIMENSIONS AND CLEARANCE REQUIREMENTS WITH “FLUSH ISLAND TRIM”
Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA. Clearances of less than 12" (305 mm)
As defined in the “National Fuel Gas Code” (ANSI Z223.1, Current Edition).
357/8" (911 mm) Min.
36¾" (933 mm) Max.
36" (914 mm) min. to combustible materials
" (911 mm) Min.
36" (914 mm) min. to combustible materials
31¼" (794 mm)
1
/8
" (740 mm)
29
251/8 max. recess depth
267/8
48¾" (1238 mm)
12” (305 mm) min. to
12" (305 mm) min. to
combustible surface
combustible surface
with Flush Island Trim
with Flush Island Trim
31¼" (794 mm)
1
/8" (740 mm)
29
251/8" (638 mm)
max. recess depth
" (638 mm)
" (683 mm)
Materials
9" (229 mm) Lowback
Back Wall
Materials
Shaded area behind
Shaded area behind
range indicates
range indicates
minimum clearance
minimum clearance
to combustible surfaces,
to combustible surfaces,
combustible materials
combustible materials
cannot be located within
cannot be located within
this area.
this area.
For Flush Island Trim
For Flush Island Trim
installations, counterinstallations, counter surface should havesurface should have a cantilever edgea cantilever edge meeting the back meeting the back
section of the Flush
section of the Flush Island Trim accessory.Island Trim accessory.
Combustible Back Wall
If an inner wall is used under the cantilever counter top, there should be a
1
/8" (3 mm) gap from
the rear of the range to the inner wall.
®
RANGES | INSTALLATION
1.800.735.4328 | THERMADOR.COM
1.800.735.4328 | THERMADOR.COM
267/8" (683 mm)
61
61
EXPERIENCE
®
THERMADOR
Thermador is committed to giving you an enjoyable, creative and
rewarding cooking experience. Whether you would like to research our
products, watch a video of our chef searing the perfect scallop, or have
questions on the use and care of your product, simply browse our online
resource library at thermador.com.
CONNECT WITH US
B
thermador.com/blog
pinterest.com/thermador
instagram.com/thermadorhome
facebook.com
youtube.com/thermadorhome
twitter.com/thermador
VISIT THE ABOVE SITES TO SHARE PHOTOS OF YOUR NEW KITCHEN AND CREATIVE DISHES.
TAKE US WITH YOU
Visit the App Store
download our Innovations app, including
the Thermador Kitchen Ideas & Lookbook
and the Thermador Kitchen Design and
Planning Guide.
CUSTOMER SERVICE
For dedicated customer service on
any Thermador product, please call:
1-800-735-4328 or contact us at
thermador.com
or Google Play™ to
432 App Store is a trademark of Apple Inc.; Google Play is a trademark of Google Inc.
PRODUCT
WARRANTY
PROFESSIONAL RANGES
Limited warranty, entire appliance, parts and labor (2 year)
PROFESSIONAL RANGETOPS
Limited warranty, entire appliance, parts and labor (2 year)
BUILT-IN OVENS
Limited warranty parts and labor (2 year)
INDUCTION COOKTOPS
Limited warranty, entire appliance, parts and labor (2 year)
Limited warranty for glass ceramic surface/electronic elements and switches; parts only (3rd to 5th year)
GAS COOKTOPS
Limited warranty, entire appliance, parts and labor (2 year)
ELECTRIC COOKTOPS
Limited warranty, entire appliance, parts and labor (2 year)
Limited warranty for glass ceramic surface/electronic elements and switches; parts only (3rd to 5th year)
VENTILATION
Limited warranty, entire appliance, parts and labor (2 year)
WARMING DRAWERS
Limited warranty, entire appliance, parts and labor (2 year)
BUILT-IN MICROWAVES
Limited warranty, entire appliance, parts and labor (2 year)
REFRIGERATION
Limited two-year warranty, entire appliance, parts and labor on any part of the refrigerator that fails because of a manufacturing defect
Limited warranty for sealed refrigeration system*; parts and labor (3rd to 6th year)
Limited warranty for sealed refrigeration system*; parts only (7th to 12th year)
* Sealed refrigeration system includes compressor, evaporator, condenser,
dryer/ strainer and connection tubing
DISHWASHERS
Full warranty, entire appliance, parts and labor (2 year)
Limited warranty for microprocessor or printed circuit board; parts only (3rd to 5th year)
Limited warranty for racks (does not include rack components); parts only (3rd to 5th year)
Limited warranty for rust-through on inner tub liner; parts only (Lifetime)
BUILT-IN COFFEE MACHINES
Limited warranty, entire appliance, parts and labor (2 year)
These warranties give you specic legal rights and you may have other rights that vary from state to state. Limited Warranty from Date of Purchase. For complete warranty details, refer to your Use & Care manual, or ask your dealer.
Specications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation engineer for your specic ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador® indicating the model number. Specications are correct at time of printing. Thermador reserves the right to change product specications or design without notice. Some models are certied for use in Canada. Thermador is not responsible for products that are transported from the U.S. for use in Canada.
© 2015 BSH Home Appliances Corporation.
433
1 800 735 4328
USA THERMADOR.COM
CANADA THERMADOR.CA
©2015 BSH HOME APPLIANCES CORPORATION. ALL RIGHTS RESERVED.
#13-THD-0250 MG 10/15
Loading...
