Thermador P30 User Manual
INSTALLATION
INSTRUCTIONS
For Thermador Professional
PRO-HARMONY™ Gas Ranges
®
INSTRUCTIONS
D’INSTALLATION
Pour toutes cuisinières à gaz Thermador
Professional® PRO-HARMONY™
Models
P30
P36
Please Read Entire Instructions
Before Proceeding
IMPORTANT: Save these instructions for the Local Gas Inspector’s use.
INSTALLER: Please leave these Installation Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
W ARNING
Disconnect power before installing. Before
turning power ON, be sure that all controls are
in the OFF position.
IMPORTANT
Local codes vary. Installation, gas
connections and grounding must
comply with all applicable codes.
W ARNING
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or death.
— Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
:
For Massachusetts Installations:
1. Installation must be performed by a qualified
or licensed contractor, plumber or gas fitter
qualified or licensed by the state, province or
region where this appliance is being installed.
2. Shut-off valve must be a “T” handle gas
cock.
3. Flexible gas connector must not be longer
than 36 inches.
W ARNING
■ All Ranges can tip
■ Injury to Persons
could result
■ Install Anti-Tip Device
■ See Installation
Instructions
— WHAT TO DO IF YOU SMELL GAS
■ Do not try to light any appliance.
■ Do not touch any electrical switch.
■ Do not use any phone in your building.
■ Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
■ If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed
by a qualified installer, service agency or the
gas suppler.
TO REDUCE THE RISK OF TIPPING OF THE
APPLIANCE, IT MUST BE SECURED BY A
PROPERLY INSTALLED ANTI-TIP DEVICE.
VERIFY THAT THE ANTI-TIP DEVICE IS ENGAGED
PER INSTALLATION INSTRUCTIONS. (NOTE:
ANTI-TIP DEVICE IS REQUIRED ON ALL 30" AND
36" RANGES).
Note: This Range is NOT designed for installation
in manufactured (mobile) homes or for installation
in Recreational Park Trailers.
Do Not install this range outdoors.
Contents
Important Installation Information .................1
Step 1: Ventilation Requirements................2
Step 2: Cabinet Preparation.................3 – 7
Step 3: Unpacking, Moving
and Placing the Range .........................8 – 9
Step 4: Installing Anti-Tip Device ...... 10 – 11
Step 5: Gas Requirements and Hookup....12
Step 6: Electrical Requirements,
Connection and Grounding .......................13
Step 7: Backguard Installation ..................14
Step 8: Door Removal and Reinstallation..15
Step 9: Burner Test and Adjustment..16 – 17
Installer Checklist......................................18
To Clean and Protect Exterior Surfaces....18
Important Installation Information
GAS type verification
Verify the type of gas supplied to the location. Ensure
that the appliance is connected to the type of gas for
which it is certified. Ranges are certified for use with
only natural gas or propane (LP) gas. Make certain the
range matches the gas type available; these ranges
are NOT convertible between gas types.
W ARNING
To avoid possible burn or fire hazard, a backguard
designed specifically for this range must be installed
whenever the range is used.
Refer to the Backguard Installation instructions
on page 14, for the correct backguard models that
are designed for this range. After selecting the
correct backguard, the range must be installed
properly, using the minimum clearances to combustible surfaces specified in the Cabinet Preparation instructions on pages 4 and 5.
Important
• A backguard must be utilized when there is less
than a 12” horizontal clearance between combustible materials and the back edge of the range. The
Thermador Low Back backguard must be ordered separately and installed at the rear of the
range. For island installations and other installations with more than 12” clearance, an optional
stainless steel Island Trim is available to cover the
backguard mounting flanges.
• Verify that the appliance is correct for the type of gas
being provided. Refer to Step 5 on Page 12 before
proceeding with the installation.
CAUTION
To eliminate risk of burns or fire caused by
reaching over heated surface units, cabinet
storage located above the surface units should
be avoided.
Gas Supply:
Natural Gas – 6 inch water column. (14.9 mb) min.,
14 inch (34.9 mb) maximum
Propane Gas – 11 inch water column. (27.4 mb) min.,
14 inch (34.9 mb) maximum
Electric Power Supply:
30" Model:
4 Burners - 120 VAC, 60 Hz., 1Ph., 10 Amp circuit.
36" Models:
6 Burners – 120 VAC, 60 Hz., 1Ph., 10 Amp circuit.
4 Burners with Grill – 120 VAC, 60 Hz., 1Ph., 10 Amp circuit.
4 Burners with Griddle – 120 VAC, 60 Hz., 1Ph., 20 Amp
circuit.
CAUTION
When connecting the unit to propane gas, make
certain the propane gas tank is equipped with its own
high-pressure regulator in addition to the pressure
regulator supplied with the range. The maximum gas
pressure to this appliance must not exceed 14.0
inches water column (34.9 mb) from the propane
gas tank to the pressure regulator.
CAUTION
This unit is designed as a cooking appliance.
Based on safety considerations, never use it for
warming or heating a room.
This appliance has been tested in accordance with
ANSI Z21.1, Standard for Household Cooking Appliances (USA) and in accordance with CAN 1.1-M81
Domestic Gas Ranges (Canadian).
It is
strongly recommended that this appliance be
installed in conjunction with a suitable overhead vent
hood. (See Step 1 for Ventilation Requirements.) Due
to the high heat capability of this unit, particular attention should be paid to the hood and duct work installation to assure it meets local building codes.
This appliance complies with one or more of the
following standards:
• UL 858, Standard for the Safety of Household
Electric Ranges
• UL 923, Standard for the Safety of Microwave
Cooking Appliances
• UL 507, Standard for the Safety of Electric Fans
• ANSI Z21.1, American National Standard for
Household Cooking Gas Appliances
• CAN/CSA-C22.2 No. 113-M1984 Fans and Venti-
lators
• CAN/CSA-C22.2 No. 61-M89 Household Cooking
Ranges
Check local building codes for the proper method of
appliance installation. Local codes vary. Installation,
electrical connections and grounding must comply
with all applicable codes. In the absence of local
codes the appliance should be installed in accordance with the National Fuel Gas Code ANSI Z223.1/
NFPA 54 current issue and National Electrical Code
ANSI/NFPA 70 -current issue. In Canada, installation
must be in accordance with the CAN 1-B149.1 and .2
– Installation Codes for Gas Burning Appliances and/
or local codes.
It is the responsibility of the owner and the installer to
determine if additional requirements and/or standards
apply to specific installations.
1
Step 1: Ventilation Requirements
It is strongly recommended that a
suitable exhaust hood be installed
above the range. Downdraft
ventilation should not be used. The
table below indicates the
Thermador hoods, by model
number, that are recommended
for use with all ranges.
1. Select Hood and
Blower Models:
• For wall installations, the hood
width must, at a minimum,
equal the width of the range
cooking surface. Where
space permits, a hood larger
in width than the cooking surface may be desirable for improved ventilation performance.
• For island installations, the
hood width should, at a minimum, overhang the range
cooking surface by 3" on each
side.
IMPORTANT:
Ventilation hoods and blowers are
designed for use with single wall
ducting. However, some local
building codes or inspectors may
require double wall ducting. Consult local building codes and/or
local agencies, before starting, to
assure that hood and duct installation will meet local requirements.
Do not install a microwave oven/
ventilator combination above the
range, as these type of units do
not provide the proper ventilation
and are not suitable for use with
the range.
2. Hood Placement:
• For best smoke elimination,
the lower edge of the hood
should be installed 36" above
the range cooking surface.
(See Fig. 1).
• If the hood contains any combustible materials (i.e. a wood
covering), it must be a minimum of 40" above the cooking
surface.
3. Consider Make-Up
Air:
• Due to the high volume of ventilation air, a source of outside
replacement air is recommended. This is particularly
important for tightly sealed and
insulated homes.
• A qualified heating and ventilating contractor should be
consulted.
RANGE WIDTH
30" RANGE
36" RANGE
PH30CS
PHE30 / 36
HNW36YS
PHH30DS***
PH36CS / 42CS
PHE36 / 42
HNW36YS / 42YS
PHH36DS***
WALL INST ALLATION ISLAND INSTALLA TION
HOOD* BLOWER** HOOD BLOWER
VTR1030D,
VTR1530D,
or VTN1030C
VTR1030D,
or VTR1530D
--- N/A ---
VTR1030D,
VTR1530D,
or VTN1030C
VTR1030D,
or VTR1530D
--- N/A ---
HNI42YS
HTNI42YS
HNI42YS
HTNI42YS
VTR1030D
or VTR1530D
VTR1030D
or VTR1530D
Notes:* For wall installations where adequate space is available, the installer or user may elect to
use a hood that is wider than the rangetop cooking surface. This may be particularly beneficial
for installations having a long duct run or when heavy usage of the grill is anticipated, in which
improved capturing of the cooking exhaust is desired.
** Thermador offers a choice of remote (VTR1030D or VTR1530D) or in-hood (VTN1030C)
blowers for use in wall installations.
*** Hood models PHH30DS and PHH36DS include a 600-CFM built-in blower. For optimal
ventilation, a hood model with 1000-CFM blower or greater is recommended for ranges
having a griddle or grill.
2
Step 2: Cabinet Preparation
1. The range is a free standing unit. If the unit is to
be placed adjacent to cabinets, the clearances

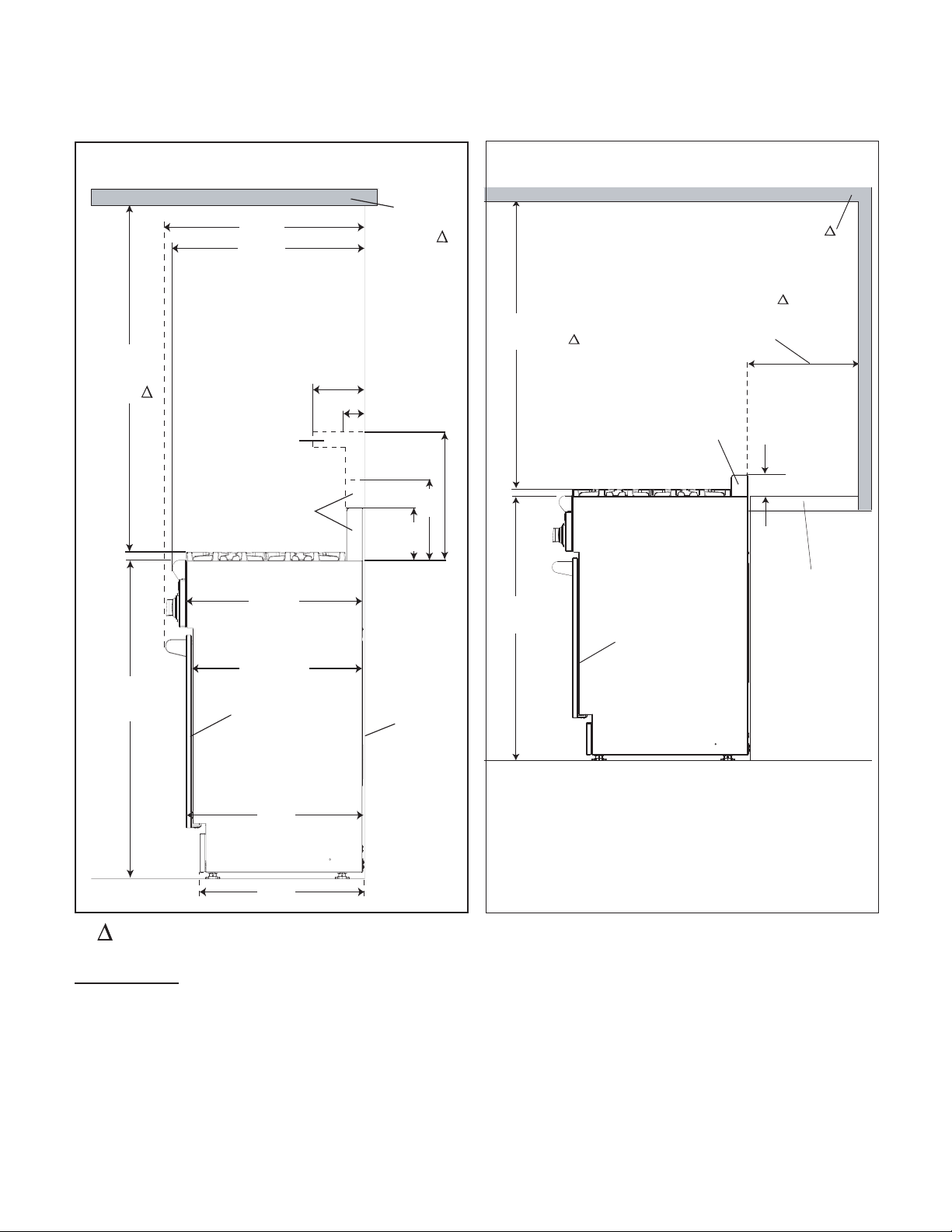

shown in Fig. 1 are required. The same clearances apply to island installations, except for the
overhead cabinets, which must have a space
wide enough to accept the flared island hood, as
indicated in Fig. 1.
2. These ranges may be recessed into the cabinets
beyond the edge of the front face of the oven (See
Figures 2A and 2B).
CAUTION
In these installations, the door and cabinet
can cause a pinching hazard.
3. The gas and electrical supply should be within the
zones shown in Fig. 3A.
Note: The maximum depth of over head cabinets
installed on either side of the hood is 13".
4. Any openings in the wall behind the range and in
the floor under the range must be sealed.
5. When there is less than a 12" horizontal clearance between combustible material and the
back edge of the range above the cooking surface, a Thermador Low Back or Pot and Pan
Shelf must be installed. (See Fig. 2A). When
clearance to combustible material is over 12",
a Thermador Island Trim may be used. (See Fig.
2B). Figures 2A and 2B indicate the space
required for each type of backguard.
6. Always keep appliance area clear and free from
combustible materials, gasoline and other flammable vapors and liquids.
7. Do not obstruct the flow of combustion and ventilation air to the unit.
8. A (4) inch minimum clearance is needed when
the range is installed beside a combustible side
wall.
A 40-inch minimum clearance is required between
the top of the cooking surface and the bottom of an
unprotected cabinet. A 36-inch distance can be used
when the bottom of the wood or metal cabinet is
protected by not less than 1/4 inch of a flame retardant material covered with not less than No. 28 MSG
sheet steel, 0.015 inch (0.4 mm) thick stainless steel,
0.024 inch (0.6 mm) aluminum, or 0.020 inch (0.5
mm) thick copper. Flame retardant materials bear
the mark:
UNDERWRITERS LABORATORIES INC.
CLASSIFIED MINERAL AND FIBER BOARDS
SURFACE BURNING CHARACTERISTICS
Followed by the flame spread and smoke ratings.
These designations are shown as “FHC (FIame
Spread/Smoke Developed)”. Materials with “O” flame
spread ratings are flame retardant. Local codes may
allow other flame spread ratings.
As defined in the “National Fuel Gas Code”
(ANSI Z223.1, NFPA 54 Current Edition).
3
Step 2: Cabinet Preparation
FIG. 1 Cabinet Clearances
®
®
36" from bottom of overhead
Hood to cooking surface (40"
min. if hood contains combus-
18"
Min.
tible materials )
®
®
For 30" Ranges
For 36" Ranges
®
Min. Distance Between Overhead
Cabinets of Combustible Material Ð
®
30" or 36" Wide Hood
}
36" or 42" for Island
36" or 42" Wide Hood
}
42" or 48" for Island
30" Range – 30"
36" Range – 36"
Range width
30" or 36"
13" Max.
Cabinet
Depth
Cooking
Surface
}
®
®
4" Min. to
combustible
side wall
material Ð ,
(both sides)
CAUTION: See
Figs. 2A, and 2B.
40" Min. to
combustible
material
from cooking
surface
,
®
®
®
•
®
*35-7/8" Min. Range Height
with Leveling Legs fully
retracted
*36-3/4" Max. Range Height
with Leveling Legs fully
extended.
For Electrical and Gas Supply Zone,
see Figure 3A. Zone size and position
differ according to the model.
as defined in the “National Fuel Gas Code” (ANSI Z223.1, Current
Edition). *The range height is adjustable. The level of the range top must be at
the same level or above the countertop level.
4
Step 2: Cabinet Preparation
FIG. 2A - Side View
40" min. to
combust-
ibles
Low Back Guard
36 3/4" max.
35 7/8" min.
Front Face
27 5/8"
26 1/2"
Pot and
High Shelf
Pan Shelf
24 5/8"
23 7/8" max.
10 3/4"
combustible
materials
2 1/4"
9"
(36"*)
(P36)
6"
(P304)
(30"*)
Wall
22"
FIG. 2B - Side View
40" min. to
combustibles
36 3/4" max.
35 7/8" min.
front face
with island trim
island trim
combustible
materials
12" min. to
combustibles
3"
Countertop
24 3/4"
22 1/2"
As defined in the “National Fuel Gas Code” (ANSI Z223.1, Current Edition).
Note: With the oven door fully open, the top of the door extends to 44 5/8" from the back wall,
behind the range when installed. Installation must allow ample clearance for movement around the
door when fully open.
* Refers to 30" and 36" range models.
5
Step 2: Cabinet Preparation
GAS AND ELECTRIC SUPPLY
FIG. 3A Gas & Electrical Supply Locations for All Gas Ranges
1 3/4" maximum protrusion
from wall for gas or
electrical supply
gas
supply zone
6"
1 3/4"
6"
8 1/2"
6"
electrical
supply zone
6 "
30 1/4" (30" models)
36 1/4" (36" models)
NOTE: If not already present, install gas shut-off valve in an easily accessible location. Make sure all
users know where and how to shut off the gas supply to the range.
NOTE: The installer should inform the consumer of the location of the gas shut-off valve.
NOTE: An opening in the wall behind the appliance and any opening in the floor under the appliance must be
sealed.
The All Gas ranges may be connected to the power supply with a range supply cord (supplied with range)
or by hard-wiring to the power supply. It is the responsibility of the installer to provide the proper wiring
components (cord or conduit and wires) and complete the gas connection as dictated by local codes and
ordinances, and/or the National Electric Code. The units must be properly grounded. Refer to Step 6 for
details.
The range must be connected only to the type of gas for which it is certified. If the range is to be
connected to propane gas, ensure that the propane gas supply tank is equipped with its own high
pressure regulator in addition to the pressure regulator supplied with the range. (See STEP 5.)
NOTE: The range is designed for flush installation to the back of the wall.
PLUG
For a successful installation, it may be necessary to reposition the gassupply line and electrical cords as the range is pushed back to its final
installed position.
IMPORTANT:
NEMA 5-20
RECEPTACLE
The cord supplied with the gas ranges, having an electric griddle,
requires a NEMA 5-20 receptacle, shown here. Local codes may
require a different wiring method.
6
Step 2: Cabinet Preparation
ELECTRICAL SUPPLY, ALL GAS RANGES
Installation of the range must be planned so that the
rough-in of the junction box for the receptacle will
allow maximum clearance to the rear of the unit.
FIG. 3B Wall Connection
To minimize binding when the unit is connected to the
receptacle or junction box, orient the receptacle and
slide back into position.
Power Cord & Receptacle
7
Step 3: Unpacking, Moving and Placing the Range
CAUTION
Proper equipment and adequate manpower must be
used in moving the range to
avoid injury, and to avoid
damage to the unit or the
floor. The unit is heavy
and should be handled
accordingly.
• The range has an approximate
shipping weight as shown in
Chart A. The grates, griddle plate
and frame, burner caps, front
kick panel and oven racks must
be removed to facilitate handling. This will reduce the weight
as shown in Chart A. See Figs.
2A and 2B on Page 5. Do not
remove the grill or griddle
assemblies.
Chart A 30" Range 36" Range
Shipping Weight 300 lbs. 335 lbs.
Weight without 265 lbs. 300 lbs.
packing materials
Without door(s), 142 lbs. 207 lbs
burner caps, front kick
panel and oven racks
.
FIG. 4 – Removal of the Four (4) Shipping Bolts
• Remove the outer carton and
packing material from the shipping base. The all gas ranges
are held to the pallet by four (4)
bolts (see Fig. 4). After removing the bolts, the range must be
lifted and removed from the
pallet.
• Important: DO NOT lift the
range by the oven door's
handle, as this may damage
the door hinges and cause
the door to fit incorrectly to
the oven cavity.
Pallet
NOTE: Leave adhesive-backed foam layer over brushed-metal surfaces, to protect finish from
scratches, until the range is installed in final position.
8
Step 3: Unpacking, Moving and Placing the Range
• Due to the weight, a dolly with soft wheels should
be used to move this unit. The weight must be
supported uniformly across the bottom (See Fig.
5).
• After transporting the professional range by dolly
close to its final location, the range can be tipped
back and supported on the rear legs while the dolly
is carefully removed.
THE FLOOR UNDER
THE LEGS SHOULD BE PROTECTED.
BEFORE PUSHING THE UNIT INTO POSITION. The anti-tip device must be installed
(STEP 4), gas and electrical connections should
be made (STEPS 5 and 6), and the backguard
installed (STEP 7) before the range is placed in its
final position.
• For proper performance, the range must be
level. (It is very important for all products that
have the griddle feature.) The range is leveled by
adjusting the legs with a wrench.
• Replace the kick panel. It is important that the
two (2) screws retaining the kick panel are
secure to prevent accidental access to hot
surfaces.
• Ensure that the burner caps are correctly
seated on the burner bases of the range's
cooktop.
FIG. 5- Dolly Positioning
Remove all tape and packaging before using the
appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with
packaging material.
IMPORT ANT: DO NOT lift the range by the
oven door's handle, as this may damage the
door hinges and cause the door to fit incorrectly to the oven cavity .
Grill/Griddle Tilt Adjustment (Not All Models)
If the range is equipped with an electric griddle or gas grill, check the grill/griddle frame adjustment by
pouring two tablespoons of water on the back of the griddle or grill plate. The water should slowly roll
into the grease tray. If not, adjust the two screws under the back of the frame. Start with one half turn
counterclockwise (CCW) of the screws. Further adjustment should be made by one-quarter turn until
water slowly flows into the grease tray.
9
Step 4: Installing Anti-Tip Device
For all 30" and 36" ranges, an anti-tip device must be installed as per these
instructions.
W ARNING
RANGE TIPPING HAZARD
• All ranges can tip and injury can result.
To prevent accidental tipping of the range,
attach it to the floor, wall or cabinet by
installing the Anti-Tip Device supplied.
• A risk of tip-over may exist if the appliance is not installed in accordance with
these instructions.
• If the range is pulled away from the wall
for cleaning, service or any other reason,
ensure that the Anti-Tip Device is properly reengaged when the range is pushed
back against the wall. In the event of
abnormal usage (such as a person standing, sitting, or leaning on an open door),
failure to take this precaution can result
in tipping of the range. Personal injury
might result from spilled hot liquids or
from the range itself.
WARNING
• ALL RANGES CAN
TIP
• INJURY TO PERSONS COULD
RE-
SULT
• INSTALL
ANTI-TIP
DEVICES PACKED
WITH RANGE
• SEE INSTALLATION
INSTRUCTIONS
W ARNING
ATTENTION
ELECTRICAL SHOCK HAZARD
• Use extreme caution when drilling holes
into the wall or floor. There may be concealed electrical wires located behind the
wall or under the floor.
• Identify the electrical circuits that could
be affected by the installation of the AntiTip Device, then turn off power to these
circuits.
• Failure to follow these instructions may
result in electrical shock or other personal injury.
PROPERTY DAMAGE
• Contact a qualified installer or contractor to determine the proper method for
drilling holes through the wall or floor
material (such as ceramic tile, hardwood,
etc.)
• Do not slide the range across an unprotected floor.
• Failure to follow these instructions may
result in damage to wall or floor coverings.
Tools Needed for Installation of Anti-Tip Device:
• Screwdriver, Phillips • Hammer
• Drill, electric or hand • Pencil or other marker
• Measuring tape or ruler
• 1/8" drill bit (wood or metal wall or floor)
• 3/16" carbide-tipped masonry drill bit (concrete or concrete block wall or floor)
• 3/16" anchors, drywall or concrete, 4 each (not required if mounting bracket is being attached to solid wood or metal)
10
Step 4: Installing Anti-Tip Device
30" and 36" Ranges (Figures 6 and 7)
Thermador Service Part No. Qty. Description
415078 4 Screw, Phillips, #10 x 1-1/2"
600413 1 Anti-Tip Bracket, Floor-Mounted
IMPORTANT INSTALLATION INFORMATION:
• The anti-tip bracket may be attached to a solid
wood cabinet having a minimum wall thickness of
3/4".
• The thickness of the wall or floor may require use
of longer screws, available at your local hardware
store.
• In all cases, at least two (2) of the bracket mounting screws must be fastened to solid wood or
metal.
• Use appropriate anchors when fastening the
mounting bracket to any material other than hardwood or metal.
• Prepare holes at fastener locations as identified
below:
FIG. 6 - Mounting Anti-tip Bracket
For walls, wall studs, or floors composed of
solid wood or metal, drill 1/8" pilot holes.
-
For walls or floors composed of drywall,
sheet-rock or other soft materials, drill 3/16"
holes to a minimum depth of 1-3/4", then tap
plastic anchors into each of the holes using
a hammer.
For walls or floors composed of concrete or
concrete block, drill 3/16" holes to a minimum depth of 1-3/4", then tap concrete
anchors into each of the holes using a
hammer.
For walls or floors having ceramic tile cover-
ing, drill 3/16" holes through the tile only, then
drill into the material behind the tile as indicated immediately above.
• If the range is moved to a new location, the AntiTip Device must be removed and reinstalled.
FIG. 7
®
®
2-1/2"
(typical either side)
MOUNTING ANTI-TIP BRACKET
The alternative floor mounted bracket shall be installed
as follows:
a) Place bracket on floor in position shown in Figure
7 (Bracket may be used in either corner of the
®
.
2-1/2"
®
from edge of range
installation area)
b) Secure to floor or wall stud.
c) Later, when the unit is installed, the adjustable leg
will slide under the bracket.
11
Loading...
