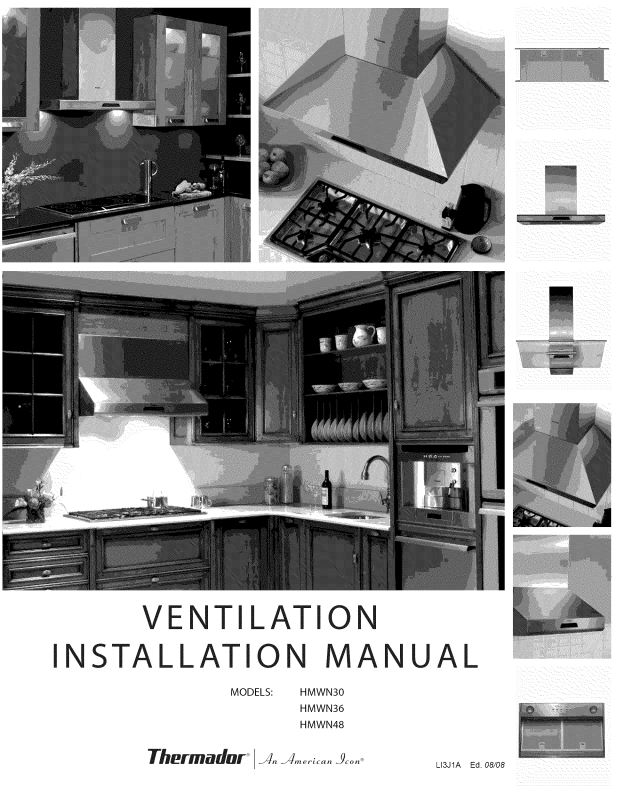

VENTILATION
INSTALLATION MAN UAL
MODELS: HMWN30
HMWN36
HMWN48
Therma_or +A_A=,,_,°. 3,o=+
LI3J1A Ed. 08/08
APPROVED FOR RESiDENTiAL APPLIANCES
FOR RESiDENTiAL USE ONLY
READ AND SAVE THESE iNSTRUCTiONS
PLEASE READ ENTIRE iNSTRUCTiONS BEFORE PROCEEDING.
iNSTALLATiON MUST COMPLY WiTH ALL LOCAL CODES.
IMPORTANT: Save these Instructions for the Local Electrical Inspector's use.
INSTALLER: Please leave these instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Safety Warning: Turn off power circuit at service panel and lock out panel, before wiring this appliance.
Requirement: 120 V AC, 60 Hz. 15 or 20 A Branch Circuit
IMPORTANT SAFETY INSTRUCTIONS
Read All Instructions Before Using the Appliance.
READ AND SAVE THESE INSTRUCTIONS
G
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR iNJURY TO PERSONS, OBSERVE
THE FOLLOWING:
A. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact
the manufacturer.
B. Before servicing or cleaning the unit, switch
power off at service panel and lock service
panel disconnecting means to prevent power
from being switched on accidentally. When the
service disconnecting means cannot be locked,
securely fasten a prominent warning device,
such as a tag, to the service panel.
C. installation Work and Electrical Wiring Must Be
Done By Qualified Person(s) In Accordance
With All Applicable Codes & Standards,
including Fire-rated Construction.
D. Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent
back- drafting. Follow the heating equipment
manufacturers guideline and safety standards
such as those published by the National Fire
Protection Association (NFPA), the American
Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the
local code authorities.
E. When cutting or drilling into wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
F. Ducted systems must always be vented to the
outdoors.
CAUTION
FOR GENERAL VENTILATING USE ONLY. DO
NOT USE TO EXHAUST HAZARDOUS OR
EXPLOSIVE MATERIALS OR VAPORS.
CAUTION
To reduce risk of fire and to properly exhaust
air, be sure to duct air outside - do not vent
exhaust air into spaces within walls, ceilings,
attics, crawl spaces, or garages.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY
METAL DUCT WORK.
Install this hood in accordance with all
requirements specified.
WARNING
To Reduce The Risk of Fire or Electric Shock,
Do Not Use This Hood With Any External Solid
State Speed Control Device.
OPERATION
a. Always leave safety grills and filters in place.
Without these components, operating blowers
could catch onto hair, fingers and loose clothing.
The manufacturer declines aII responsibility in the
event of failure to observe the instructions given
here for installation, maintenance and suitable use
ofthe product. The manufacturer further declines
all responsibility for injury due to negligence and
the warranty of the unitautomatically expires due to
improper maintenance.
This unit is manufactured for indoor use only. Do not use this unit outdoors.
IMPORTANT SAFETY INSTRUCTIONS
Read All Instructions Before Using the Appliance.
READ AND SAVE THESE INSTRUCTIONS
Electrical requirements
IMPORTANT
Observe all governing codes and ordinances.
It is the customer's responsibility:
To contact a qualified electrical installer.
To assure thatthe electrical installation is adequate
and in conformance with National Electrical Code,
ANSI/NFPA 70 -- latest edition s-,or CSA Standards
C22.1-94, Canadian Electrical Code, Part land
C22.2 No.0-M91 - latest edition_-_-and all local
codes and ordinances.
If codes permit and a separate ground wire is used,
iris recommended that a qualified electrician
determine that the ground path is adequate.
Do notground to a gas pipe.
Check with a qualified electrician if you are not sure
range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
IMPORTANT
Save Installation Instructions for electrical
inspector's use.
The range hood must be connected with copper
wire only.
The range hood should be connected directly to the
fused disconnect (or circuit breaker) box through
metal electrical conduit.
Wire sizes must conform to the requirements of the
National E lectrical Code ANSI/NFPA 70--latest
edition s-,or CSA Standards C22.1-94, Canadian
Electrical Code Part 1 and C22.2 No. 0-M91 - latest
edition_-_-and all local codes and ordinances.
A U.L. - or C.S.A. - listedconduit connector must be
provided at each end of the power supply conduit
(at the range hood and at the junction box).
Copies of the standards listed may be obtained from:
National Fire Protection Association Batterymarch Park
Quincy, Massachusetts 02269
_CSA International 8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
4
Parts In cluded with your Hood
• Hood Canopy Assembly without blower
• Grease filters
• Drip tray for each filter.
• Drip trays holding brakers + plastic washers and
knobs
• 1Transition withbackdraftdamper
• Use & Care / Installation Instructions
• Fittings bag with:
4 Washers
6 Drywall anchors
2 Hookswith regulating screws
6 ScrewsSX3S
4 Screws for transition
Parts Not Included with your
Hood
Duct Tape
• 1/2"Conduit
Wire Nuts
Round Duct.
• Wiring clamp
• A CAUTION! Lamps are not supplied, use
ONLY 120 Volt, S0 Watt (maximum) S0°
halogen light made or a GU10 base,
suitable for usei nopen luminarie .
• 4 #10 pan head wood screws for installation on
a bottomofa cabinet
• 3 prong plug
• Blowers
See sections for integral ventilator installation and remote
ventilator installtion for more blower details.
Op tion al accessory
Duct covers only for 30" and 36"
Ductless recirculation kit available only for HMWN30
HMWN36 model.
INSTALLING THE HOOD
For the most efficient air flow exhaust, use a
straight run or as few elbows as possible.
il_ CAUTION: Vent unittooutsideof
building, only.
• Two peopleare necessary for installation.
On average 2 hours are necessary to complete
installation (without considering cut to be done
on wall and or on cabinet, installation of ducts,
conduit and electrical connections to the mains).
installation steps:
11 installation steps are required for both
installation methods
Wall mount installation steps or in a Iternative
Cabinet installation
• The hood is fittedwith Screws and Drywall
Anchors suitable for most surfaces, consult a
Qualified Installer, check if they perfectly fit with
your cabinet/wall.
• Do not use flex ducting.
Tools required
Flat blade and Phillips screwdrivers
Pencil and tape measure
Metal snips (in some applications)
Electric drill
Saw (saber or keyhole)
Pliers
Level
Caulking
Flashlight
Wire stripper
Safety glasses
Gloves
Step ladder
• COLD WEATHER installations should have an
additional backdraft damper installed to
minimize backward cold air flow and a
nonmetallic thermal break to minimize
conduction of outside temperatures as part of
the ductwork. The damper should be on the
cold air side of the thermal break.
The break should be as close as possible to
where the ducting enters the heated portion of
the house.
• Make up air: Local building codes may require
the use of Make-Up Air Systems when using
Ducted Ventilation Systems greater than
specified CFM of air movement.
The specified CFM varies from location to location
Consult your HVAC professional for specific
requirements in your area.
Typical installation
The height from the countertop to the bottom of the hood is 30" to 36".
These hoods are not recommended to be used over indoor grills.
1. Choose vent options
The hood is designed to be used for vertical discharge as shown below.
Note: see also Fig. 1-2-3 for Cabinet preparation.
Install a 1/2" conduit from the service panel long enough to reach the hood
once it is installed. Power supply must be rated for 120 VAC, 60Hz. 15 or 20A.
Examples of possible ducting
Ceiling
*Deflector
Lamp
\
Hood
1
30" to 36"
Transition
Blower
*Charcoal filters
Filter
Round duct
Ceiling
Lam p
Hood
30" to 36"
1
Transition
Blower
Filter
* Charcoal filters
* Optional accessory - Ductless recirculation kit
* Only for 30" and 36" using integral blower VTN6OOF
DUCT FITTINGS
Use this chart to compute maximum
permissable lengths for duct runs to
outdoors.
Note: Do not exceed maximum permissable
equivalent lengths!
Maximum recommended duct
length for these hoods: 150 feet
Flexible ducting:
If flexible metal ducting is used, all
the equivalent feet values in the table
should be doubled. The flexible
metal duct should be straight and
smooth and extended as much as
possible.
Do NOT use flexible plastic ducting.
Note: Any home ventilation system, such as a
ventilation hood, may interrupt the proper flow of
combustion air and exhaust required by fireplaces,
gas furnaces, gas water heaters and other naturally
vented systems. To minimize the chance of interruption
of such naturally vented systems, follow the heating
equipment manufacturer's guidelines and safety
standards such as those published by NFPA and ASHRAE.
*Hoods are supplied with a 10"
round transition. A locally
supplied transition is required
for other sizes.
Note: Outlet on top of hood is
8-1/8" x 8".
Q
©
10" round
to 8" roun d
Round,
straight
3-1/4" x 10"
3-1/4" x 12 "
straight
90° elbow
45° elbow
3-1/4" x 12" 15 ft.
3-1/4" x 10" 14 ft.
90° elbow
3-1/4" xlO" 8ft.
3-1/4" x12" 9ft.
45° elbow
3-1/4" x 10" 33 ft.
3-1/4" x 12" 36ft.
go° fiat elbow
10" round transition
to 3-1/4" x 10" or
3-1/4" x 12" 9ft.
3-1/4" x 10" or
3-1/4" x 12" to
10" round transition 6 ft.
10" round to 3-1/4" x 10" 16 ft.
3-1/4" x 12" transition 13 ft.
go° elbow
3-1/4" xlO" 9ft.
3-1/4"x12"t o10" round 8ft.
transiti on 90 ° elbow
Roun d
wall cap
with damper
3-1/4" x 10" 24 ft.
3-1/4" x 12" wall cap 26ft.
with damper
Sft.
1ft.
(per foot
length)
1ft.
(per foot
length)
8" Dia. 17 ft.
10" Dia. 24 ft .
8" Dia. 10 ft.
10" Dia. 14ft .
8" Dia. 32 ft.
10" Dia.41 ft.
Round
roof cap
8" Dia. 44 ft.
10" Di a. 56 ft.
TotalDuct Run
For safety reasons, ducting should vent directly outdoors (not into an attic, underneath the house, into the
garage or into any enclosed space).
Keep duct runs as short and straight as possible.
Duct fittings (elbows and transitions) reduce air flow efficiency.
Back to back elbows and "S" turns give very poor delivery and are not recommended.
A short straight length of duct at the inlet of the remote blower gives the best delivery.
Transition to duct from the integral blower to remote duct transition as close as possible.
In order opreference, use:
1st. 10" round duct
2nd. 8" round duct
3rd. 3-1/4" x 14" duct
4th. 7" round duct
5th. 3-1/4" x 10"duct
6th. 6" round duct
The use of flexible metal round duct should only be used when no other duct fitting exists. Limit use to short
lengths and do not crush when making corners.
1. Prepare duct and conduit cut outs, see figures
1 and 2 as needed.
i
Mo0o3o,,36,,48,,
it,8, 1-1,2"o,a..o,os
Bottom of
Cabinet or
Soffit
12"
Rear
Wall
11
10-112" " '
%÷ I I /_ C_<-_-1_7f/ Vertical conduit
CL
_Hood Width
Figure 1
2. Assembly of the 10" transition:
The transition supplied with the hood mounts to
the top.
Do not install transition until hood is
fixed on cabinet or wall.
a. Place the transition piece over the hood
outlet and secure with 4 screws provided.
(Figure3)
b. Wrap all joints (metal transition and hood)
with duct tape for an airtight seal.
c. Remove tape holding damper.
Hood outlet
Figure 2
Figure 3
Transition
23-1/8"
Screws (4)
Wall Mount Installation
Note: see below if cabinet installation ispreferred
3. After the hood installation height has been
determined draw a horizontal line at a distance
above the cooktop equal to the desired hood
installation height plus 7- 1/2". See also Figure 4a.
4. Find the centerline of the cooktop. Draw a
vertical line along this centerline up to the hori-
zontal line drawn in step 1 and draw a vertical
line right and left at a distance of12-5/8" to
determine the mounting location of the
mounting hooks shipped with the hood.
5. Fit two mounting hooks on the wall to hang the
hood through the provided slots (2 wall
anchors + 2 hooks + 2 screws 5x35).
6. Run 10" Duct, long enough to reach the
transition once the hood has been installed plus
1 1/2" inch to connect ductwork. Fix Duct to
transition with screws and seal withtape.
7. Remove 1of 2 knockouts and install 1/2"
conduit connector in j-box.
8. Hang the hood and adjust its position through
the screws on the hooks.
9. Fix the hood to 4 additional point, 2 on
upperside, 2 on lower side (use 4 wall anchors
+ 4washers + 4 screws 5x35).
HOOD WIDTH DIM. "W" DIM. "K" DIM. "Z"
30" 29 - 1/8" 2 - 1/2" 7 - 1/16"
36" 35 - 1/16" 2 - 1/2" 7 - 1/16"
48" 47 - 1/16" 2 - 1/2" 7 - 1/16"
Table 3
Figure 4a
Knockouts
(junction
box)
7 1/2' l
W
Side slot x 4
bottom fixing
screws locations
Square
slot
CenterHole
Z
Top
location
Cabinet Installation:
Note: Seeabove if wall mount installation is preferred
Note: Distances on Table 3.3.
Find the centerline of the cabinet bottom. Draw a line
along this centerline from rear to front of the cabinet.
See also Figure 4b.
4. Draw two lines, one at a K distance from the wall,
the other one at a Z distance from the previous line.
Mark 4 points, two along each line at a distance of
halfW from the center line, to determine the screw
locations.
5. Fit 4 screws on cabinet bottom do not tighten
completely but leave a space of about 1/2" from
cabinet bottom surface and head screws.
6. Run 10" Duct, long enough to reach the transition
once the hood has been installed plus1 1/2" inch for
connect ductwork.
7. Remove 1of 2 knockouts and install 1/2"conduit
connector in j-box.
8. Hang the hood on screws through side slots provided
on hood top. Tighten the four screws. Note: If possible
fix the hood on the wall at 4 additional point (2 on
upper side, 2 on Iowerside).
9. From the inside of the cabinet attach the transition
on upper outlet.
© ©
Hook for wall Screw for
/installation cabinet
_ 25:3/16" = _'_ bottom
/_ _===_==_ ': ._ I_,_ installation
,, 12 5/8" 1 12 5/8" _" _Adjusting
7 112" I _I"_L_ screw
Bottom of the Hood
Figure 4b
_K
\
FixDucttotransitionandsealwithtape.
For both installation method:
10.Wiring the HOOD:
WARNING:
To Avoid Electrical Shock Hazard
Turn offpower at the service
panel before wiring this unit.
120 VAC, 15 or 20 Amp circuit
required.
ELECTRICAL GROUNDING INSTRUCTIONS
THIS APPLIANCE IS FI-I-FED WITH AN
ELECTRICAL JUNCTION BOX WITH 3
WIRES, ONE OF WHICH (GREEN/YELLOW)
SERVES TO GROUND THE APPLIANCE.
_It_ WARNING:
TO PROTECT YOU AGAINST ELECTRIC SHOCK,
THE GREENANDYELLOW WIRE MUST BE
CONNECTEDTO THE GROUNDING WIRE IN
YOLRHOME ELECTRICALSYSTEMANDIT MUST
UNDERNO CIRCUNSTANCEBECUTORREMOVED
Failure to do so can result in death or
electrical shock.
The integral motor blowers should be installed to the
hood with the hardware provided (Machine screws,
millimetric screws, millimetric nuts, motor bracket and
spring) in the VTN600F and VTN1000F hardware bags.
Millimetric nuts
%
Machine screws _
?/
/ / /
/
/
/
....i/
/i/
/i/
INTEGRAL VENTILATOR
INSTALLATION Models VTN600F & VTN 1000F
The Integral ventilator can be mounted to
discharge air as show on figure 3 and 4b at page 9.
It must be fixed through the slots of the ventilator
and pins with nuts of the hood.
Tighten the two nuts.
Machine screws
......Millimetric nuts /
/
/
Motor Bracket
_1_ Spring
Figure Sa
,..... Motor Bracket
_:__ Millimetric screws
_._1_ Millimetric screws
Install these components as is shown in the
picture 5a for VTN600F and 5b for VTN1000F.
10
Figure 5b
Wiring the HOOD with an
Integral Ventilator:
Warning: Turn off electricity at
the service panel before wiring the
unit.
1. Connect the Integral Ventilator
molex plug connector to the
connector present inside the
hood as shown in Figure 6.
2. Remove the j-box cover as
shown in Figure 7.
3. Remove 1 of 2 knockouts and
install 1/2" conduit connector
in j-box.
4. Run black, white, and green
wires (#14 AWG) in 1/2"conduit
from power supply to j-box.
5. Connect black, white, and
green wires from power supply
to black, white, and green/
yellow wires in j-box
respectively.
6. Close j-box coover.
7. Turn power on at service panel.
Check operation of the hood.
Power supply conduit
From
control
panel
Figure 7
\
\
\
\
\
\
Motor Connector
Figure 6
11
