HMWN30FS
WALL HOOD (30-INCH WIDTH)
MASTERPIECE
FEATURES & BENEFITS
- Recirculation possible with kit RECIRC30FS (max 600 CFM)
- Three fan speeds
- Built-in ‘Clean Filter‘ reminder light illuminates after 40 hours
of operation
- Delayed shut-off tackles lingering odors for up to 10 minutes
- Dishwasher-safe low-prole bafe lters
ACCESSORIES (OPTIONAL)
Roofplates
RFPLT600P - For use with 600 CFM Remote Blower VTR630P
RFPLT1000P - For use with 1000 CFM Remote Blower
VTR1030P and 1300 CFM Blower VTR1330P
Recirculation Kit
RECIRC30FS - For HPWB30FS, HMWB30FS and HMWN30FS
30" Hoods Only. Adds 4" to height of appliance
Replacement Charcoal Filter - CHFILT3036
For Use With Recirculation Kit RECIRC_FS
30" W, 6" H Stainless Steel Duct Cover DC30US
30" W, 12" H Stainless Steel Duct Cover DCT30US
®
GENERAL PROPERTIES
Operating Mode Convertible: Ducted /
Maximum CFM N/A
Number of Speed Settings 3-Stage
Motor Location Blower (Sold
Number Of Lights Lights Sold
Bulb Type 50 W - G10 Base
Total Power Of The Lamps (W) 100 W
Damper Included Yes
Grease Filter Material Washable Synthetic
Grease Filter Type Multilayer Cassette
TECHNICAL DETAILS
Watts (W) 100 W
Current (A) 15 A
Volts (V)
Frequency (Hz)
Plug Type
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (Width Of
Canopy Included) (HxWxD) (in)
Required Distance Above Cooktop / Range
Cooking Surface
Diameter of Air Duct (in) Top 10"
Diameter of Air Duct (in) Back N/A
Net Weight (lbs) 35 lbs
ACCESSORIES (REQUIRED)
Blower (Sold Separately)
BLOWER OPTIONS
Remote Blower
(Mounted to Roof or External Wall)
Inline Blower
(Mounted Between Kitchen and External Wall)
Integrated Blower (Mounted in Hood) VTN600F - 600 CFM
WARRANTY
Limited Warranty Parts And Labor 2 Year
Recirculating
Separately)
Separately - 2
120 V
60 HZ
Fixed Connection
11" x 30" x 23 1/8"
30" / 30"
VTR630P - 600 CFM
VTR1030P - 1000 CFM
VTR1330P - 1300 CFM
VTI610P - 600 CFM
VTI1010P - 1000 CFM
Page 1 of 5
09 / 16
HMWN30FS
WALL HOOD (30-INCH WIDTH)
MASTERPIECE
HOOD DIMENSIONS
®
OPTIONAL ACCESSORIES
30" WIDE DUCT COVER
DC30US 6" HIGH
DCT30US 12" HIGH
Stainless steel duct cover for wall hood applications
REPLACEMENT CHARCOAL FILTERS
CHFILT3036
For use with Recirculation Kit RECIRC_FS
RECIRCULATION KIT
RECIRC30FS 30" WIDE
– For use with HPWB30FS, HMWB30FS,
and HMWN30FS 30" Hoods Only
– Stainless steel nish
– Perfect for hard to duct installations
– Use with 600 CFM blowers only
– Adds 4" to total height of appliance
Page 2 of 5
09 / 16
HMWN30FS
WALL HOOD (30-INCH WIDTH)
MASTERPIECE

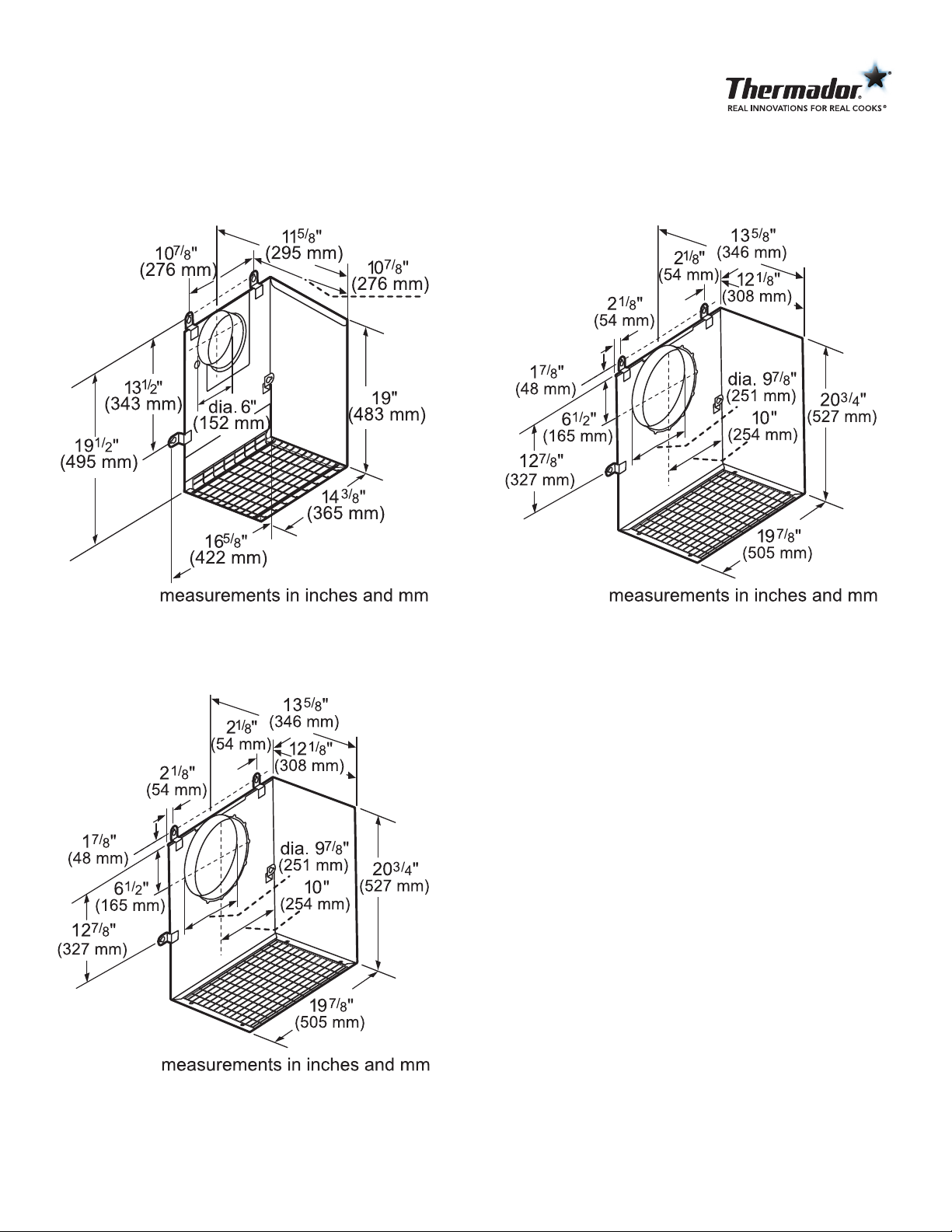

REMOTE BLOWERS (MOUNTED TO ROOF OR EXTERNAL WALL)
®
VTR630P–600 CFM
VTR1030P–1000 CFM
VTR1330P–1300 CFM
Page 3 of 5
09 / 16
HMWN30FS
WALL HOOD (30-INCH WIDTH)
MASTERPIECE

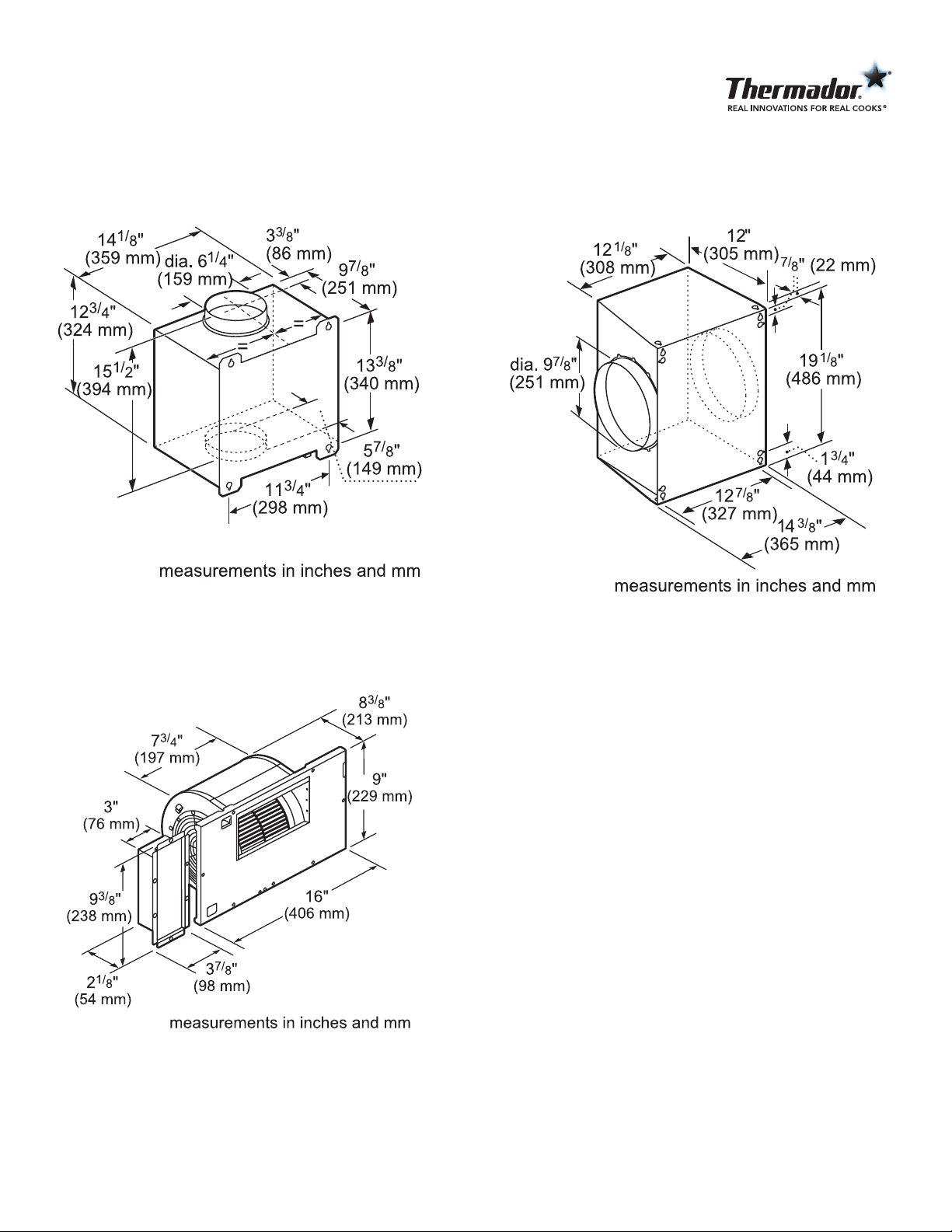

INLINE BLOWERS (MOUNTED BETWEEN KITCHEN AND EXTERNAL WALL)
VTI610P–600 CFM VTI1010P–1000 CFM
®
INTEGRATED BLOWERS (MOUNTED IN HOOD)
VTN600F–600 CFM
Page 4 of 5
09 / 16
HMWN30FS
WALL HOOD (30-INCH WIDTH)
MASTERPIECE

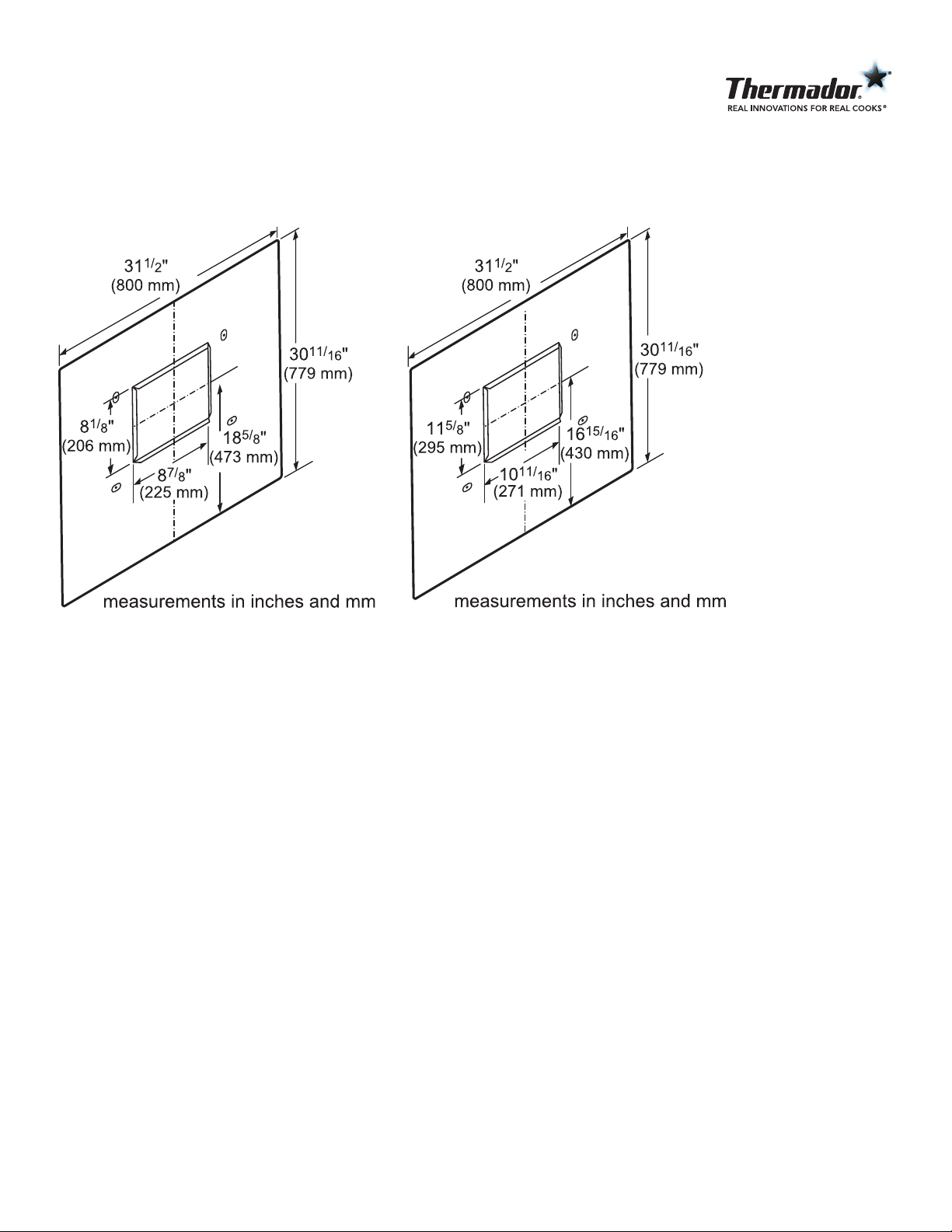

REMOTE BLOWER ACCESSORIES
®
ROOFPLATE–RFPLT600P
ROOFPLATE–RFPLT1000P
These warranties give you specific legal rights and you may have ot her rights that vary from state to stat e. Full war ranty and limited warr anty from date of installation. For comp lete war ranty
details, refe r to your Use & Care man ual, or as k your dealer.
Specifications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation
engineer for your specific ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador indicating the model
numbe r. Specif ications are correct a t time of pr inting. Thermador reserves t he right to change produc t spec ifications or design w ithout notice. Some models are certified for us e in Canada.
Thermador is not respo nsible for products t hat are transported f rom the U.S. for use in Canada.
1 800 735 4 328 | USA THERMADOR.COM | CANADA THERMAD OR.CA | ©2016 BSH H OME APPLI ANCES COR PORATION . ALL RIGH TS RESERVED.
Page 5 of 5
09 / 16
