HMCN36FS
36-INCH CHIMNEY WALL HOOD
MASTERPIECE® SERIES
FEATURES & BENEFITS
- Three fan speeds plus 10 minute high-power operation mode
- Delayed shut-off tackles lingering odors for up to 10 minutes
- Built-in ‘Clean Filter‘ reminder light illuminates after 40 hours of
operation
- Dimmer lighting–for those hours after a late meal
- Dishwasher-safe stainless-frame mesh lters
ACCESSORIES (OPTIONAL)
Roofplates
RFPLT600P - For use with 600 CFM Remote Blower VTR630P
RFPLT1000P - For use with 1000 CFM Remote Blower
VTR1030P and 1300 CFM Blower VTR1330P
Stainless Steel Chimney Hood Extension - CHIMXHMC
For up to 11-foot ceiling applications. Extension replaces upper
section of standard chimney extension. May require fabrication
to reduce height.
GENERAL PROPERTIES
Operating Mode Ducted
Maximum CFM Blower Sold Separately
Sones N/A
Number of Speed Settings 3-Stage
Motor Location Blower Sold Separately
Number of Lights 3
Bulb Type Halogen
Total Power of the Lamps (W) 20 W
Damper Included No
Grease Filter Material Washable Synthetic
Grease Filter Type Multilayer Cassette
TECHNICAL DETAILS
Watts (W) 60 W
Current (A) 15 A
Volts (V)
Frequency (Hz)
Plug Type
Conduit Length
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (Width of
Canopy Included) (HxWxD) (in)
Height of The Chimney (in) 21 1/2" - 25 1/2"
Accommodates Ceiling Heights 8 ft. 2 in. - 9 ft.
Required Distance Above Cooktop / Range
Cooking Surface
Diameter of Air Duct (in) Top 8"
Net Weight (lbs) 41 lbs
ACCESSORIES (REQUIRED)
Blower (Sold Separately)
BLOWER OPTIONS
Remote Blower
(Mounted to Roof or External Wall)
Inline Blower
(Mounted Between Kitchen and External Wall)
Integrated Blower (Mounted in Hood) VTN1080N - 1000 CFM
WARRANTY
Limited Warranty Parts and Labor 2 Year
110 V
60 Hz
120V-3 Prong
N/A
31" - 35" x 35 1/2"
x 21 1/2"
30" / 30"
VTR630P - 600 CFM
VTR1030P - 1000 CFM
VTR1330P - 1300 CFM
VTI610P - 600 CFM
VTI1010P - 1000 CFM
Page 1 of 5
09 / 16
HMCN36FS
36-INCH CHIMNEY WALL HOOD
MASTERPIECE® SERIES
HOOD DIMENSIONS
NOTE: Accommodates ceiling height of 8-ft. 2-in. to 9 ft.
May require fabrication to reduce height. An optional
Chimney Extension kit is available for ceilings up to 11-ft.
OPTIONAL ACCESSORIES
CHIMNEY EXTENSION
CHIMXHMC
Stainless steel chimney hood
extension for up to 11-foot ceiling
applications. Extension replaces
upper section of standard chimney
extension. May require fabrication
to reduce height.
Page 2 of 5
09 / 16
HMCN36FS
36-INCH CHIMNEY WALL HOOD
MASTERPIECE® SERIES
REMOTE BLOWERS (MOUNTED TO ROOF OR EXTERNAL WALL)
VTR630P–600 CFM
VTR1030P–1000 CFM
VTR1330P–1300 CFM
Page 3 of 5
09 / 16
HMCN36FS
36-INCH CHIMNEY WALL HOOD
MASTERPIECE® SERIES
REMOTE BLOWER ACCESSORIES
ROOFPLATE RFPLT600P
ROOFPLATE RFPLT1000P
Page 4 of 5
09 / 16
HMCN36FS
36-INCH CHIMNEY WALL HOOD
MASTERPIECE® SERIES

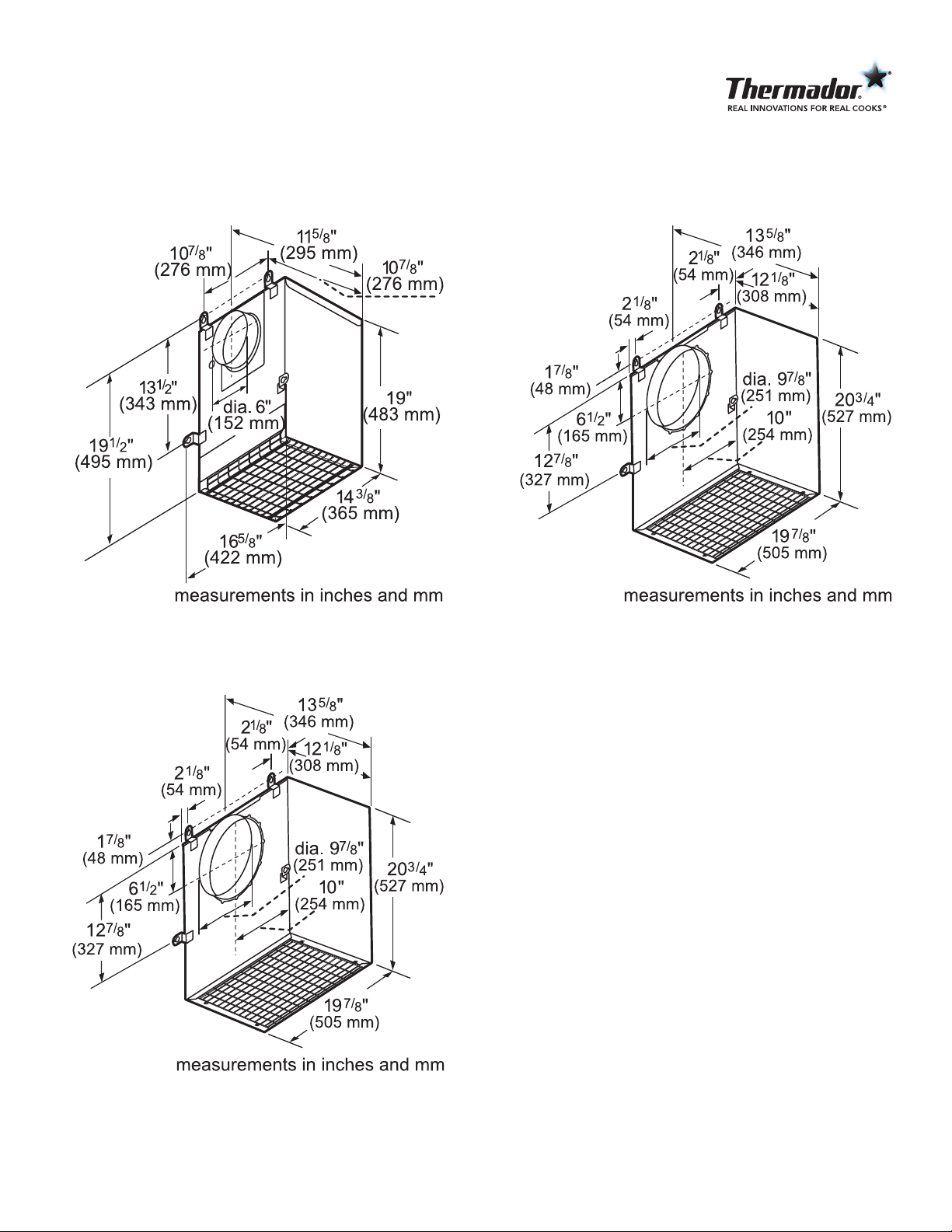

INLINE BLOWERS (MOUNTED BETWEEN KITCHEN AND EXTERNAL WALL)
VTI610P–600 CFM VTI1010P–1000 CFM

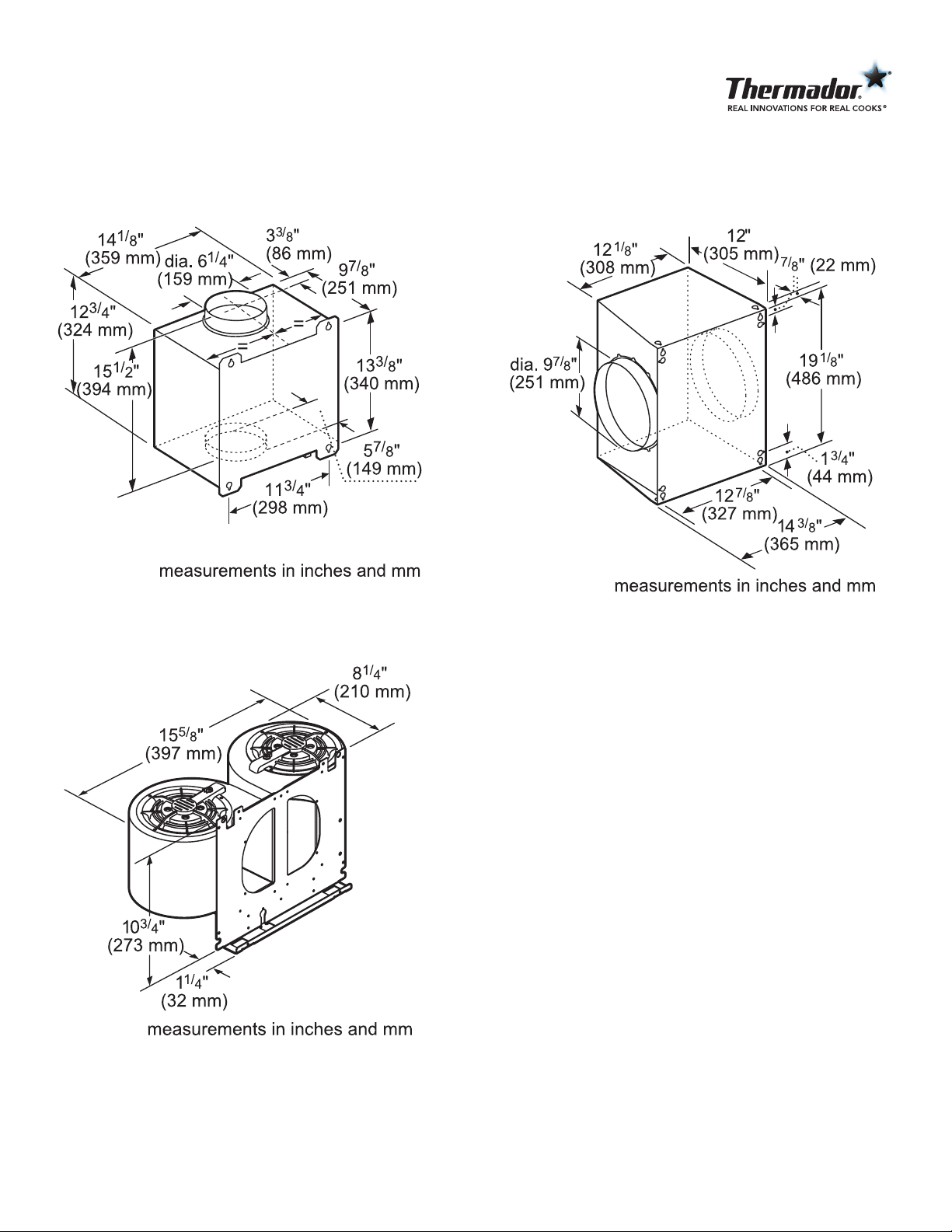

INTEGRATED BLOWERS (MOUNTED IN HOOD)
VTN1080N–1000 CFM
These warranties give you specific legal ri ghts and you may have other rights th at var y from state to state. Full warranty an d limited warrant y from d ate of in stallation. For co mplete warr anty
details, ref er to you r Use & Ca re manu al, or as k your dealer.
Specifications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation
engineer for your specific ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador indicating the model
numbe r. Specifica tions are correct a t time of printing. Th ermador res erves the ri ght to change p roduct specif ications or d esign without not ice. Some mode ls are certi fied f or use in Canada.
Thermador i s not res pons ible for product s that a re transported f rom the U.S. for u se in Ca nada.
