MODELS SHOWN: CIT36XKB FREEDOM® INDUCTION COOKTOP AND UCVM36FS DOWNDRAFT96
INDUCTION
COOKTOPS
MASTERPIECE
COOKTOPS — INDUCTION
®
SERIES
Induction has been the most revolutionary advancement in cooking technology in the last 30 years.
Now it‘s time for Thermador to inaugurate a new revolution: the Freedom
Never content to settle for status quo thinking, we have re-imagined the possibilities of induction
cooking, giving cooks the industry‘s rst induction cooktop with the largest, fully usable cooking surface.
The new Freedom Induction Cooktop offers more responsiveness, more exibility and the rst full-color
touch-screen interface on an induction cooktop. Our complete Induction Cooktop collection provides the
speed and precision of PowerBoost
its class.
2010
Silver Mirrored Finish
Induction Cooktop
®
technology and features the largest and most powerful element in
2010
Masterpiece
Induction Cooktop
®
Induction Cooktop.
1.800.735.4328 | THERMADOR.COM 97
INDUCTION COOKTOPS
FEATURES & BENEFITS
FREEDOM® INDUCTION
LARGEST COOKING SURFACE
The Freedom Induction Cooktop delivers 63% more usable surface
area than the competition, with 48 coils measuring 3" each —
offering the largest cooking surface on the market.
SAFETY / CLEAN LOCK
A critical feature for a touch-screen interface, Clean Lock prevents
unwanted changes to your cooking settings.
ONE-OF-A-KIND INNOVATION
With over 30 international patents, the Freedom® Induction
Cooktop represents a leap forward in induction cooking completely
unique to Thermador.
ANYWHERE, ANY POSITION
Place up to 4 pots or pans anywhere on the cooktop surface, in
any conguration. The cooking surface is optimized to work with
a pan as small as 3" and as large as 13" x 21" —delivering Real
Innovations for Real Cooks™.
FREEDOM TO MOVE
The Freedom Induction cooking surface automatically detects
the presence of your cookware. If you need to move your pot to
another location, the cooktop will transfer all of your programmed
settings to the new position of the pan.
STANDARD INDUCTION
TRIPLE ELEMENT
Only activates the heating zone directly in contact with the pot
surface so pans of different sizes are heated more efciently.
13-INCH ELEMENT
The largest cooking element on the market provides 40%
more usable cooking area than competing cooktops. Ideal for
accommodating oversized skillets, pots and pans.
POWERBOOST
To bring foods to the desired
temperature in the shortest possible
time, the PowerBoost function will
deliver a maximum power output
from 3,600 W to 4,600 W.
BRILLIANT INTERFACE
Featuring the rst full-color
touch screen induction panel on
the market: clear text displays,
cookware display, a 6.5" color
screen with touch-through glass.
Our intuitive interface offers
better control and faster access
to cooking settings.
A SOPHISTICATED
ALTERNATIVE
In addition to black, we offer a
stunning silver mirrored nish to
create a unique design statement
for the contemporary kitchen.
®
98
SUPERIOR RESPONSIVENESS
Induction technology allows instantaneous temperature
changes as the power level is adjusted, making it as responsive
and exible as gas cooktops.
THERMADOR EXCLUSIVE
TIMERS FOR ALL ELEMENTS
Each burner features its own
element shut-off timer, making it
easier to coordinate the cooking
of multiple dishes.
INDUCTION COOKTOPS
PLANNING INFORMATION
COOKTOPS — INDUCTION
MODEL OPTIONS
There are two sizes of induction cooktops to choose
from — 30-inch and 36-inch. Models are available in
our original black nish as well as our silver mirrored
nish for those who want a bold, striking alternative
that goes perfectly with stainless steel appliances. Be
sure to reference the correct model information in this
design guide.
INSTALLATION CONSIDERATIONS
The information in this design guide provides key
features, product dimensions, cutouts and installation
specications. Before installing a Thermador Induction
Cooktop, be sure to verify the cutout dimensions
and electrical connections. Also, always consult with
the installation manual packed with the product for
complete details before installing.
Thermador Induction Cooktops may be installed above
a Thermador Single Built-in Oven. A minimum 1" air
gap must be maintained between the bottom of the
cooktop and the top of the oven.
Thermador Cooktops may also be installed above a
Thermador Warming Drawer to create a convenient
cooking center. Refer to the warming drawer section
for additional specications.
ELECTRICAL SPECIFICATIONS
Be sure your appliance is properly installed and grounded by a qualied
technician. Installation, electrical connections and grounding must comply
with all applicable local codes.
All induction cooktops are dual rated, designed to be connected to either
240/208V AC, 60 Hz, 3-wire, single-phase power supply.
Install a suitable conduit box (not furnished). An appropriately-sized,
UL-listed conduit connector must be used to correctly attach the conduit to
the junction box.
MODEL REQUIRED CIRCUIT BREAKER
240V, 3-Wire, 60 Hz 208V, 3-Wire, 60 Hz
CIT36XKB 40 Amp 40 Amp
CIT365KB 50 Amp 50 Amp
CIT365KM 50 Amp 50 Amp
CIT365KBB 50 Amp 50 Amp
CIT304KB 40 Amp 40 Amp
CIT304KM 40 Amp 40 Amp
CIT304KBB 40 Amp 40 Amp
Product available 3rd Quarter 2012. For our current collection of Induction
Cooktops, refer to Volume 1 of the Kitchen Design and Planning Guide or
visit thermador.com or your local dealer for details.
Solid surface countertops often require special
installation. For example, heat reective tape or
rounded corners may be necessary. Contact the
countertop manufacturer for instructions specic
to your countertop.
We strongly recommend the installation of a
Thermador Ventilation System with this induction
cooktop. Refer to the ventilation section for
specications.
WARRANTY
Limited warranty parts and labor (2 year)
Limited warranty for glass ceramic surface/electronic
elements and switches; Parts only (3rd to 5th year)
See page 308 for additional warranty details.
IMPORTANT: Local Codes may vary; installation, electrical connections and
grounding must comply with all applicable local codes. If required by the
National Electrical Code (or Canadian Electrical Code), this appliance must
be installed on a separate branch circuit.
ELECTRICAL LOCATION
The junction box must be located
within 3 feet (~900 mm) of the
cooktop connection. It should be
easily accessible for service purposes.
CABINET REQUIREMENTS
The distance from the top of the
cooktop to the bottom of the
cabinets above it must be A = 30"
(762 mm) minimum. This distance
can be reduced to A = 24" (610 mm)
when the bottom of the wood or
metal cabinet is protected by not less
than 1/4" (6.35 mm) ame retardant
millboard, covered by no. 28 steel
sheet 0.015 (.4 mm) thick stainless
steel, 0.024" (0.6 mm) aluminum,
or 0.020" (0.5 mm) thick copper, at
a minimum. Verify that the cabinets
above the cooktop are a maximum
of B = 13" (330 mm) deep.
1.800.735.4328 | THERMADOR.COM 99
COOKTOPS
36-INCH FREEDOM® INDUCTION
CIT36XKB
MASTERPIECE
CIT36XKB – Black Finish
Product available 3rd Quarter 2012. For our current collection of Induction
Cooktops, refer to Volume 1 of the Kitchen Design and Planning Guide or
visit thermador.com or your local dealer for details.
SPECIFICATIONS
Total Number of Cooktop
Elements
Product Width 37"
Product Depth 21
Cutout Width 34
Cutout Height 3
Minimum Air Clearance 1"
Total Cutout Height
(Including Air Clearance)
Cutout Depth 19
Minimum Distance from
Counter Front
Minimum Distance from
Rear Wall
®
Freedom
Full Surface
Induction Cooktop
Electrical Supply 240/208V AC, 60 Hz
Required Circuit Breaker 40 Amp
Conduit 39" Flexible 3-Wire
Shipping Weight (lbs.) 62
* Cookware less than 3" will not be recognized. Theoretical maximum
cookware size is 13" x 27". Cookware must have a at bottom in order
to utilize the full surface.
Full Surface,
Maximum 4 Pots
1
/4"
3
/4" – 34 7/8"
1
/8"
1
4
/8"
7
/8" – 20"
1
2
/4"
2"
3"x 3" Minimum
Cookware Size* 15 W /
500 W
13"x 21" Maximum
Cookware Size* 100 W /
4,600 W
CIT36XKB
INNOVATION
- Largest usable cooking zone on the market with 13" x 21"
- Overall usable surface is 63% larger than any competitor
- Enjoy the exibility of cooking with up to 4 pots/pans/griddles
in any combination, shape or size
- Cooktop allows free movement of pots and pans while
retaining all settings
- Large full color touch control panel
PERFORMANCE
- Most powerful element in its class with 4,600 W– lets you boil water
faster than with any other cooking technology
- Auto Shut-Off Timer enables user to set desired cooking times for
each pot
- Separate kitchen timer
- Clean Lock feature locks control panel so that you can clean up spills
- Child safety lock
DESIGN
- Chiseled stainless steel frame
THERMADOR EXCLUSIVE
100
ACCESSORIES
SENSORPOT9
9" Ceramic Pot
SENSORPOT7
7" Ceramic Pot
SENSORPOT6
6" Ceramic Pot
SENSORPOTH
6" Ceramic Pot
TEPPAN1321
Griddle Style Teppanyaki
13" x 21"
TEPPAN1314
Griddle Style Teppanyaki
13" x 14"
CHEFSPAN13
16" Round Skillet
INSTALLATION ABOVE A BUILT-IN OVEN OR
WARMING DRAWER
Thermador Induction Cooktops may be installed above
a Thermador Single Built-in Oven. A minimum 1" air
gap must be maintained between the bottom of the
cooktop and the top of the oven.
Thermador Cooktops may also be installed above a
Thermador Warming Drawer to create a convenient
cooking center. Refer to the warming drawer section
for additional specications.
IMPORTANT
We strongly recommend the installation of a Thermador
Ventilation System with this induction cooktop.
Seal the surfaces of the cutout to make them heat
resistant. This prevents the surfaces from expanding
as a result of humidity.
Solid surface countertops often require special
installation. For example, heat reective tape or
rounded corners may be necessary. Contact the
countertop manufacturer for instructions specic
to your countertop.
COOKTOPS — INDUCTION
COOKTOPS
36-INCH FREEDOM® INDUCTION
CIT36XKB
36-INCH COOKTOP AND CUTOUT DIMENSIONSINSTALLATION OPTIONS
NOTE: The work surface should be
horizontal and level. The stability of
the countertop should be conrmed
even after making the cutout.
WARNING
To reduce the risk of ignition of nearby combustible
materials, install the countertop with a minimum
distance of 2" (51 mm) from both side walls and the
back wall.
HEAT SHIELD
The heat shield will require an additional 1" clearance
below the cooktop. For safety reasons, the heat shield
must be properly installed. This prevents components
from overheating as a result of the recirculation of
hot air from the cooktop. The heat shield is the same
width as the cooktop. For shipping, it is screwed to the
burner box. Once installed, the heat shield will be able
to rotate freely, as shown in the illustration. Refer to the
instructions packed with product for installation details.
heat shield
INSTALLATION ABOVE A THERMADOR BUILT-IN OVEN
1.800.735.4328 | THERMADOR.COM 101
COOKTOPS
36-INCH INDUCTION
CIT365KB / CIT365KM / CIT365KBB
MASTERPIECE
CIT365KB – Black Finish
MASTERPIECE
CIT365KBB – Frameless
SPECIFICATIONS
Total Number of Cooktop
Elements
Product Width 37"
Product Depth 21
Cutout Width 34
Cutout Height 3
Minimum Air Clearance 1"
Total Cutout Height
(Including Air Clearance)
Cutout Depth 19
Minimum Distance from
Counter Front
Minimum Distance from
Rear Wall
Left Front Element
(Size / W / W w/PowerBoost)
Right Front Element
(Size / W / W w/PowerBoost)
Left Rear Element
(Size / W / W w/PowerBoost)
Right Rear Element
(Size / W / W w/PowerBoost)
Center Element
(Size / W / W w/PowerBoost)
Outer Ring
Middle Ring
Inner Ring
Electrical Supply 240/208V AC, 60 Hz
Required Circuit Breaker 50 Amp
Conduit 39" Flexible 3-Wire
Shipping Weight (lbs.) 61
MASTERPIECE
CIT365KM – Silver Mirrored Finish
Product available 3rd Quarter 2012. For our
current collection of Induction Cooktops,
refer to Volume 1 of the Kitchen Design and
Planning Guide or visit thermador.com or
your local dealer for details.
5
1
/4"
3
/4" – 34 7/8"
1
/8"
1
4
/8"
7
/8" – 20"
1
2
/4"
2"
7" / 1,800 W / 2,500 W
9" / 2,200 W / 3,700 W
7" / 1,800 W / 2,500 W
6" / 1,400 W / 1,800 W
13" / 3,300 W / 4,600 W
11" / 2,600 W / 3,400 W
9" / 2,200 W / 3,300 W
CIT365KB / CIT365KM / CIT365KBB
INNOVATION
- New, redesigned Silver Mirrored Finish– striking and bold design
offers the perfect companion solution for stainless steel products
(CIT365KM)
- Largest (13") and most powerful (4,600 W) round heating element
on the market in its class
- Industry exclusive triple zone– accommodates multiple size pans
with 3 diameter sizes
PERFORMANCE
- Speed Heating– Induction cooktops heat 50% faster than
traditional gas cooktops
- Our Induction PowerBoost® feature heats cookware faster than any
other type of cooking technology.
- Auto Shut-Off Timer available for all elements enables user to set
desired cooking times. Separate kitchen timer also available.
- Keep Warm function allows meals to remain ready to serve
- Pan Recognition– Element will not turn on if other small objects
are placed on the cooking zone
- Anti-Overow System– exclusive feature prevents spills by
automatically shutting off and sounding alarm when liquids are
detected on surface
- 2-step digital control panel indicates when elements are hot
or very hot
- Child safety lock
DESIGN
- Touch control panel with blue light illumination offers 17
power settings
- Chiseled, angular design coordinates with the suite of
Thermador Masterpiece™ Collection appliances
- Full stainless steel frame (CIT365KB)
- Trapezoid design control panel
- New – Now available in black with frameless design (CIT365KBB)
THERMADOR EXCLUSIVE
102
ACCESSORIES
SENSORPOT9
9" Ceramic Pot
SENSORPOT7
7" Ceramic Pot
SENSORPOT6
6" Ceramic Pot
SENSORPOTH
6" Ceramic Pot
CHEFSPAN13
16" Round Skillet
COOKTOPS
36-INCH INDUCTION
CIT365KB / CIT365KM / CIT365KBB
COOKTOPS — INDUCTION
INSTALLATION OPTIONS
INSTALLATION ABOVE A BUILT-IN OVEN OR
WARMING DRAWER
Thermador Induction Cooktops may be installed above
a Thermador Single Built-in Oven. A minimum 1" air
gap must be maintained between the bottom of the
cooktop and the top of the oven.
Thermador Cooktops may also be installed above a
Thermador Warming Drawer to create a convenient
cooking center. Refer to the warming drawer section
for additional specications.
IMPORTANT
We strongly recommend the installation of a Thermador
Ventilation System with this induction cooktop.
Seal the surfaces of the cutout to make them heat
resistant. This prevents the surfaces from expanding
as a result of humidity.
Solid surface countertops often require special
installation. For example, heat reective tape or
rounded corners may be necessary. Contact the
countertop manufacturer for instructions specic
to your countertop.
WARNING
To reduce the risk of ignition of nearby combustible
materials, install the countertop with a minimum
distance of 2" (51 mm) from both side walls and the
back wall.
36-INCH COOKTOP AND CUTOUT DIMENSIONS
NOTE: The work surface should be
horizontal and level. The stability of
the countertop should be conrmed
even after making the cutout.
HEAT SHIELD
The heat shield will require an additional 1" clearance
below the cooktop. For safety reasons, the heat shield
must be properly installed. This prevents components
from overheating as a result of the recirculation of
hot air from the cooktop. The heat shield is the same
width as the cooktop. For shipping, it is screwed to the
burner box. Once installed, the heat shield will be able
to rotate freely, as shown in the illustration. Refer to the
instructions packed with product for installation details.
heat shield
INSTALLATION ABOVE A THERMADOR BUILT-IN OVEN
1.800.735.4328 | THERMADOR.COM 103
COOKTOPS
30-INCH INDUCTION

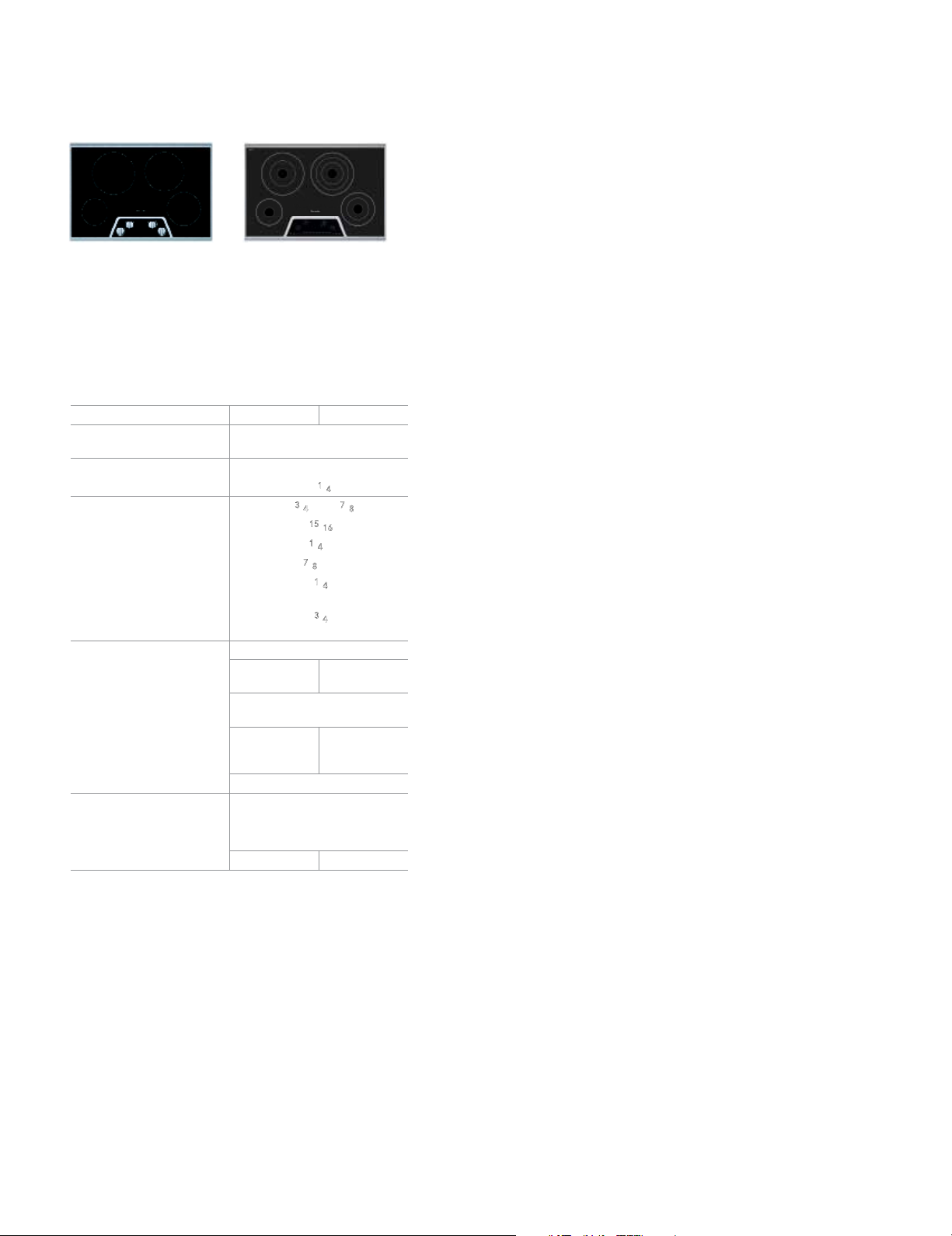

CIT304KB / CIT304KM / CIT304KBB
MASTERPIECE
CIT304KB – Black Finish
MASTERPIECE
CIT304KBB – Frameless
SPECIFICATIONS
Total Number of Cooktop
Elements
Product Width 31"
Product Depth 21
Cutout Width 28
Cutout Height 3
Minimum Air Clearance 1"
Total Cutout Height
(Including Air Clearance)
Cutout Depth 19
Minimum Distance from
Counter Front
Minimum Distance from
Rear Wall
Left Front Element
(Size / W / W with PowerBoost)
Right Front Element
(Size / W / W with PowerBoost)
Left Rear Element
(Size / W / W with PowerBoost)
Right Rear Element
(Size / W / W with PowerBoost)
Electrical Supply 240/208V AC, 60 Hz
Required Circuit Breaker 40 Amp
Conduit 39" Flexible 3-Wire
Shipping Weight (lbs.) 49
MASTERPIECE
CIT304KM – Silver Mirrored Finish
Product available 3rd Quarter 2012. For our
current collection of Induction Cooktops,
refer to Volume 1 of the Kitchen Design and
Planning Guide or visit thermador.com or
your local dealer for details.
4
1
/4"
3
/4" – 28 7/8"
1
/8"
1
4
/8"
7
/8" – 20"
1
2
/4"
2"
9" / 2,200 W / 3,700 W
6" / 1,400 W / 1,800 W
6" / 1,400 W / 1,800 W
11" / 2,400 W / 3,600 W
CIT304KB / CIT304KM / CIT304KBB
INNOVATION
- New, redesigned Silver Mirrored Finish– striking and bold
design offers the perfect companion solution for stainless steel
products (CIT304KM)
PERFORMANCE
- Speed Heating– Induction cooktops heat 50% faster than
traditional gas cooktops
- Large and powerful 11" element with 3,600 W
- Our Induction PowerBoost® feature heats cookware faster than
any other type of cooking technology.
- Auto Shut-Off Timer available for all elements enables user to
set desired cooking times. Separate kitchen timer also available.
- Keep Warm function allows meals to remain ready to serve
- Pan Recognition– Element will not turn on if other small objects
are placed on the cooking zone
- Anti-Overow System– exclusive feature prevents spills by
automatically shutting off and sounding alarm when liquids are
detected on surface
- 2-step digital control panel indicates when elements are hot
or very hot
- Child safety lock
DESIGN
- Touch control panel with blue light illumination offers 17
power settings
- Chiseled, angular design coordinates with the suite of
Thermador Masterpiece™ Collection appliances
- Full stainless steel frame (CIT304KB)
- Trapezoid design control panel
- New– Now available in black with frameless design (CIT365KBB)
THERMADOR EXCLUSIVE
104
ACCESSORIES
SENSORPOT9
9" Ceramic Pot
SENSORPOT7
7" Ceramic Pot
SENSORPOT6
6" Ceramic Pot
SENSORPOTH
6" Ceramic Pot
CHEFSPAN13
16" Round Skillet
COOKTOPS
30-INCH INDUCTION
CIT304KB / CIT304KM / CIT304KBB
COOKTOPS — INDUCTION
INSTALLATION OPTIONS
INSTALLATION ABOVE A BUILT-IN OVEN OR
WARMING DRAWER
Thermador Induction Cooktops may be installed above
a Thermador Single Built-in Oven. A minimum 1" air
gap must be maintained between the bottom of the
cooktop and the top of the oven.
Thermador Cooktops may also be installed above a
Thermador Warming Drawer to create a convenient
cooking center. Refer to the warming drawer section
for additional specications.
IMPORTANT
We strongly recommend the installation of a Thermador
Ventilation System with this induction cooktop.
Seal the surfaces of the cutout to make them heat
resistant. This prevents the surfaces from expanding
as a result of humidity.
Solid surface countertops often require special
installation. For example, heat reective tape or
rounded corners may be necessary. Contact the
countertop manufacturer for instructions specic
to your countertop.
WARNING
To reduce the risk of ignition of nearby combustible
materials, install the countertop with a minimum
distance of 2" (51 mm) from both side walls and the
back wall.
30-INCH COOKTOP AND CUTOUT DIMENSIONS
NOTE: The work surface should be
horizontal and level. The stability of
the countertop should be conrmed
even after making the cutout.
HEAT SHIELD
The heat shield will require an additional 1" clearance
below the cooktop. For safety reasons, the heat shield
must be properly installed. This prevents components
from overheating as a result of the recirculation of
hot air from the cooktop. The heat shield is the same
width as the cooktop. For shipping, it is screwed to the
burner box. Once installed, the heat shield will be able
to rotate freely, as shown in the illustration. Refer to the
instructions packed with product for installation details.
heat shield
INSTALLATION ABOVE A THERMADOR BUILT-IN OVEN
1.800.735.4328 | THERMADOR.COM 105

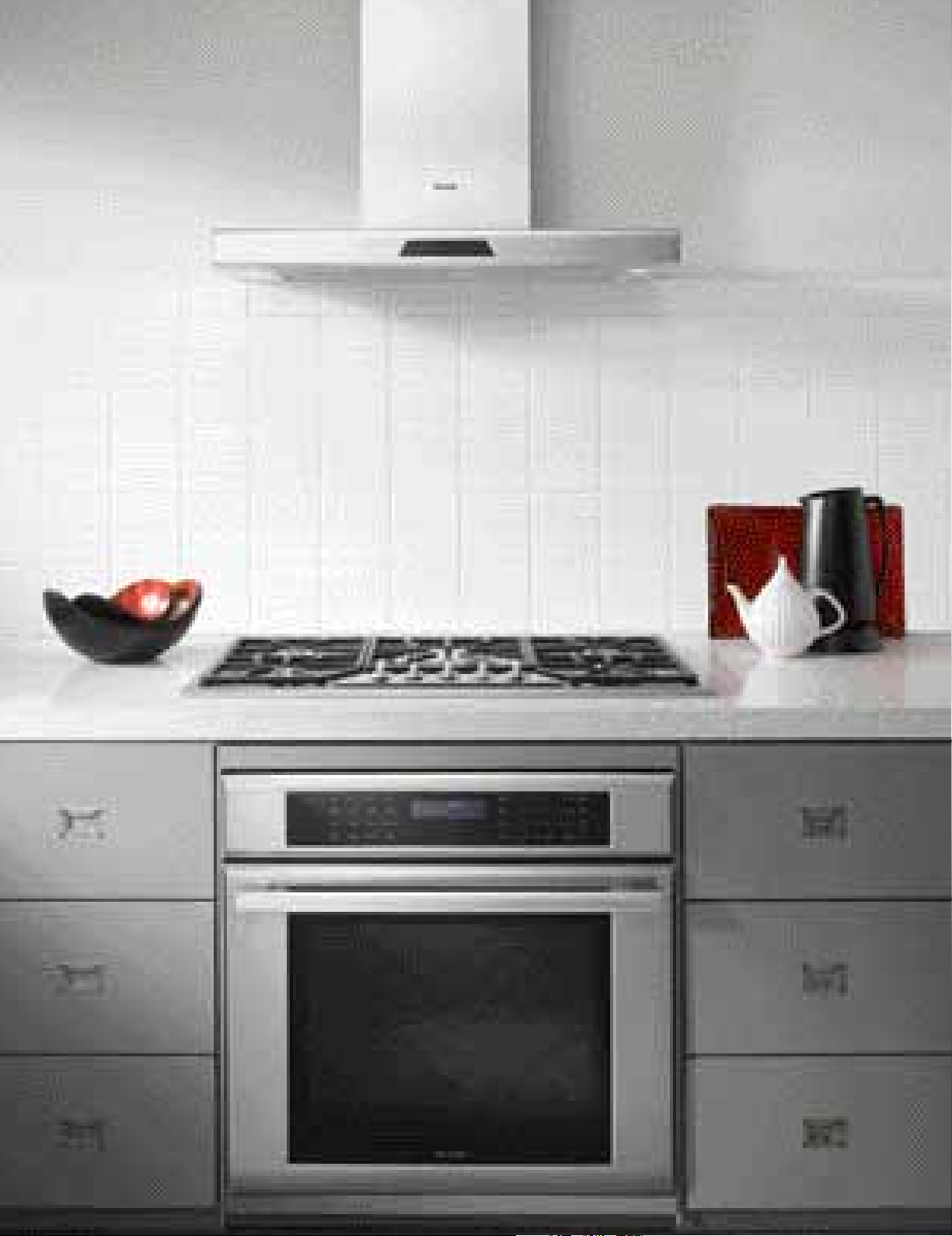

MODELS SHOWN: SGSX365FS GAS COOKTOP, HDDW36FS CHIMNEY DRAWER HOOD AND MED301JS BUILT-IN OVEN106
GAS COOKTOPS
®
MASTERPIECE
SERIES
COOKTOPS — GAS
From the company that brought you the rst built-in wall oven, Thermador delivers the most powerful 30-inch
cooktop in the luxury market. The 30-inch, 5-burner gas cooktop with our exclusive, patented Star
delivers sophisticated style and outstanding cooking performance. With 30-inch and 36-inch models to choose
from featuring up to ve Star Burners, there’s a Masterpiece Gas Cooktop designed to satisfy any cooking
enthusiast or kitchen conguration.
2010
Masterpiece Series
Gas Cooktop
®
Burners
1.800.735.4328 | THERMADOR.COM 107
GAS COOKTOPS
FEATURES & BENEFITS
EXTRALOW® BURNERS
A Thermador exclusive, this
setting cycles the burner on
and off to maintain 200 BTU/hr,
perfect for melting chocolate or
heating delicate sauces.
ILLUMINATED CONTROL
PANEL WITH METAL KNOBS
Metal knobs have blue
progressive illumination that
adjusts to indicate whether
the burner is on regular or
ExtraLow settings.

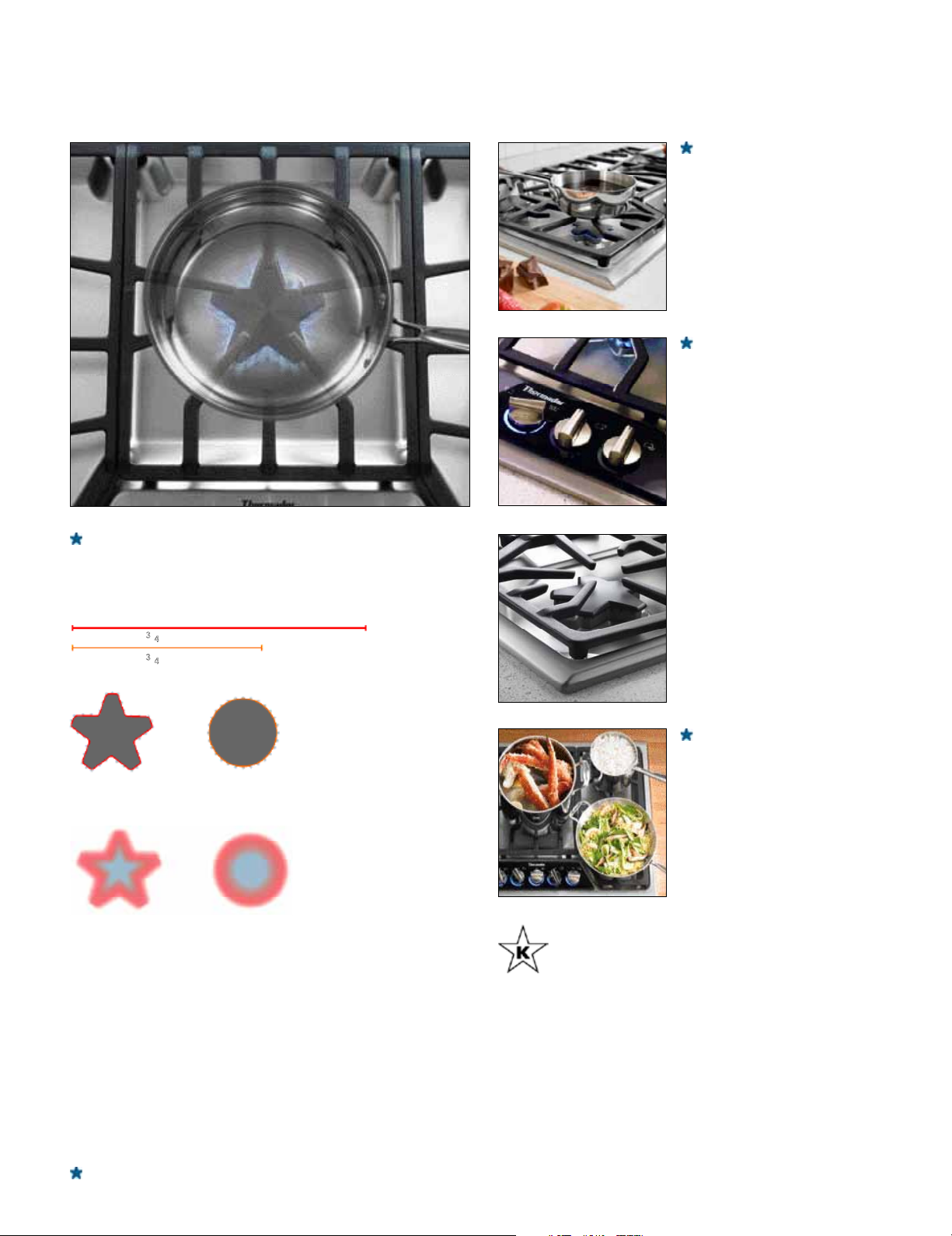

OUR EXCLUSIVE, PATENTED STAR® BURNER
The Star Burner’s unique shape isn’t just for show. The Star delivers
56% more coverage with superior ame spread and a reduced cold
spot for faster and more even heating across any size pan.
35 ports / 16 3/4" perimeter
28 ports / 10 3/4" perimeter
The Star Burner’s coverage area allows for more ports and more
ame distribution than a round burner.
The design of the Star Burner offers greater heat coverage,and
a smaller cold spot, making it ideal for any pan size.
MASTERPIECE
With chiseled edges and a
trapezoid control panel, these
cooktops were designed to
coordinate perfectly with the
entire Masterpiece line of
appliances.
THE MOST POWERFUL
30-INCH GAS COOKTOP
Thermador offers an impressive
30-inch gas cooktop with 5
burners, including a centermounted power burner, and
52,000 BTUs of overall heat
output. This gives you the
functionality of a 36-inch
cooktop in a compact kitchen
environment.
STAR-K CERTIFIED
Thermador Gas Cooktops are Star-K certied making
it possible to use them on Holy Days and the Sabbath.
®
DESIGN
108
THERMADOR EXCLUSIVE
GAS COOKTOPS
PLANNING INFORMATION
COOKTOPS — GAS
MODEL OPTIONS
There are two sizes of Thermador Masterpiece®
Gas Cooktops to choose from — 30-inch and 36-inch.
30-inch models are available with four Star Burners
or ve Star Burners. 36-inch models feature ve Star
Burners. Every model is LP convertible by ordering
SNLPKITF. Be sure to reference the correct model
information in this design guide.
INSTALLATION CONSIDERATIONS
The information in this design guide provides key
features, product dimensions, cutouts and installation
specications. Before installing a Thermador
Masterpiece Gas Cooktop, be sure to verify the cutout
dimensions and electrical/gas connections. Also,
always consult with the installation manual packed with
the product for complete details before installing.
Thermador Masterpiece Gas Cooktops may be
installed above a Thermador Single Built-in Oven as
long as there is no contact between the bottom of the
cooktop and the top of the oven.
Thermador Masterpiece Gas Cooktops may also
be installed above a Thermador Warming Drawer
to create a convenient cooking center. Refer to the
warming drawer section for additional specications.
Solid surface countertops require a special cutout size
and special installation. For example, heat reective
tape or rounded corners may be necessary. Contact
the countertop manufacturer for instructions specic to
your countertop.
VENTILATION REQUIREMENTS
We strongly recommend that a Thermador Ventilation
Hood be installed with all Thermador Masterpiece
Gas Cooktops. The hood must be installed according
to instructions furnished with the hood. Refer to the
ventilation section or www.Thermador.com for a
complete selection of ventilation options, blowers, and
accessories.
When installing the gas cooktop with a downdraft
ventilation system, provide approximately a 10
square inch opening (65 cm2) in the toekick area or
other cabinet area for adequate air inlet. Refer to the
downdraft ventilation section for more details.
ELECTRICAL AND GAS SPECIFICATIONS
Be sure your appliance is properly installed and grounded by a qualied
technician. Installation, electrical and gas connections, and grounding
must comply with all applicable local codes. Thermador Masterpiece Gas
Cooktops are equipped with a 60-inch, 3-wire supply cord.
MODEL REQUIRED CIRCUIT BREAKER
120V, 60 Hz
SGS304FS 15 Amp
SGS305FS 15 Amp
SGSX305FS 15 Amp
SGS365FS 15 Amp
SGSX365FS 15 Amp
SGSL365KS 15 Amp
IMPORTANT: It is required that the cooktop be installed on a grounded,
non-GFCI branch circuit.
Thermador Masterpiece Gas Cooktops are shipped by the factory to operate
on natural gas. They must be converted for use with propane. Verify the type
of gas being used at the installation site matches the type of gas used by
the appliance. If the location/job site requires conversion from natural gas to
propane (LP), order SNLPKITF. Field conversion must be done by qualied
service personnel only. Please refer to the LP Conversion Instructions for
further information.
SUPPLY PRESSURE REQUIREMENTS:
Natural Gas – 7 inches water column (14.9 Millibars) minimum.
LP (Propane Gas) –11 inches water column (27.4 Millibars) minimum.
NOTE: The propane gas tank must be equipped with its own high pressure
regulator in addition to the pressure regulator supplied with this unit.
ELECTRICAL AND
GAS LOCATIONS
The opening for the gas
connection and electrical
cord is located at the
right rear of rough-in
box as shown below.
WARRANTY
Limited warranty parts and labor (2 year)
See page 308 for additional warranty details.
1.800.735.4328 | THERMADOR.COM 109
Plan the installation
so that the power
connection is accessible
from the front of the
cabinet. Install a manual
gas shut-off valve near
the appliance. It must
be easily accessible in
an emergency.
GAS COOKTOPS
30-INCH
SGS304FS
SGS304FS
INNOVATION
- Patented and exclusive Star
- Unique shape of the Star
in smaller cold spots
®
Burner provides superior performance
®
Burner offers wider heat coverage resulting
MASTERPIECE
SGS304FS
SPECIFICATIONS
Number of Gas Burners 4
Product Width 31"
Product Depth 21
Cutout Width 28
Cutout Height 3
Cutout Depth 19
Minimum Distance from
Counter Front
Minimum Distance from
Rear Wall
Left Front Burner 10,000 BTU
Right Front Burner 16,000 BTU
Left Rear Burner 10,000 BTU
Right Rear Burner 8,000 BTU
Total Natural Gas Connection
Rating
Total LP Gas Connection Rating 39,200 BTU
Electrical Supply 120V AC, 60 Hz
Required Circuit Breaker 15 Amp
Power Cord 60", 3-Wire
Shipping Weight (lbs.) 45
1
/4"
15
/16"
13
/16"
1
/8"
7
/8"
1
3"
44,000 BTU
PERFORMANCE
- Powerful 16,000 BTU Burner
- Continuous grates allow pots and pans to glide smoothly across
the cooktop
- Automatic electronic re-ignition
- Knobs feature a safety “push to turn” system
- Star-K certied
DESIGN
- Chiseled, angular design coordinates with the suite of Thermador
Masterpiece
- High-grade, quality die cast metal knobs
THERMADOR EXCLUSIVE
®
Collection appliances
110
ACCESSORIES
SWOKRINGF
Wok Ring
SNLPKITF
LP Conversion Kit
GAS COOKTOPS
30-INCH
SGS304FS
COOKTOPS — GAS
INSTALLATION OPTIONS
INSTALLATION ABOVE A WALL OVEN OR
WARMING DRAWER
Thermador Masterpiece
installed above a Thermador Single Built-in Oven
as long as there is no contact between the bottom
of the cooktop and the top of the oven.
Thermador Masterpiece Gas Cooktops may also
be installed above a Thermador Warming Drawer
to create a convenient cooking center. Refer to the
warming drawer section for additional specications.
IMPORTANT
We strongly recommend the installation of a
Thermador Ventilation System with this gas cooktop.
Seal the surfaces of the cutout to make them heat
resistant. This prevents the surfaces from expanding
as a result of humidity.
Solid surface countertops require a special cutout size
and special installation. For example, heat reective
tape or rounded corners may be necessary. Contact
the countertop manufacturer for instructions specic
to your countertop.
NATURAL GAS OR LP
Thermador Masterpiece Gas Cooktops are shipped by
the factory to operate on natural gas. They must be
converted for use with propane. Verify the type of gas
being used at the installation site matches the type
of gas used by the appliance. If the location/job site
requires conversion from natural gas to propane (LP),
order SNLPKITF. Field conversion must be done by
qualied service personnel only. Please refer to the
LP Conversion Instructions for further information.
®
Gas Cooktops may be
30-INCH COOKTOP AND CUTOUT DIMENSIONS
CABINET REQUIREMENTS
Dimension requirements are for combustible surfaces. When the surface
is protected by a material listed by UL as a Floor Protector and Wall
Shield covered with not less than No. 28 MSG sheet metal 0.015 inch
(0.38 mm) stainless steel, 0.024 inch (0.6 mm) aluminum or copper, it is
considered noncombustible and some dimensions may be reduced. For a
noncombustible surface over the cooktop, the minimum clearance is 24"
(61 cm) rather than 30" (76 cm).
INSTALLATION ABOVE A THERMADOR
BUILT-IN OVEN
WARNING: To reduce the risk of ignition of nearby combustible materials, install the countertop with
a minimum distance of 12" (30 cm) from side walls and 1
NOTE: All measurements given have to be precisely followed. If nonstandard cabinets are used, make
sure they are installed with minimum dimensions shown.
Plan the installation of the unit so that the power cord, gas shut-off valve and gas pressure regulator
are accessible from the front of cabinet.
1.800.735.4328 | THERMADOR.COM 111
3
/4" (4 cm) from back wall.)
GAS COOKTOPS
30-INCH
SGS305FS / SGSX305FS
MASTERPIECE
SGS305FS
MASTERPIECE
SGSX305FS
SPECIFICATIONS
SGS305FS SGSX305FS
Number of Gas Burners 5
Product Width 31"
Product Depth 21
Cutout Width 28
Cutout Height 3 13/16"
Cutout Depth 19
Minimum Distance from
Counter Front
Minimum Distance from
Rear Wall
Left Front Burner 8,000 BTU
Right Front Burner 10,000 BTU
Left Rear Burner 10,000 BTU
Right Rear Burner 8,000 BTU
Center Burner 16,000 BTU
Total Natural Gas
Connection Rating
Total LP Gas Connection Rating 45,200 BTU
Electrical Supply 120V AC, 60 Hz
Required Circuit Breaker 15 Amp
Power Cord
Shipping Weight (lbs.)
*According to AHAM Standards
1
/4"
15
/16"
1
/8"
7
1
/8"
3"
52,000 BTU
60", 3-Wire
44 46
SGS305FS
INNOVATION
- Most powerful 30" cooktop in
the luxury segment (amongst
leading manufacturers) with an
overall output of 52,000 BTU
- Patented and exclusive Star
Burner provides superior
performance
PERFORMANCE
- 30" 5 burner gas cooktop
provides functionality of a
36" cooktop in a compact
kitchen environment
- Powerful 16,000 BTU
Center Burner
- Continuous grates allow pots
and pans to glide smoothly
across the cooktop
- Automatic electronic
re-ignition
- Knobs feature a safety
“push to turn” system
- Star-K certied
DESIGN
- Chiseled, angular design
coordinates with the suite
of Thermador Masterpiece
Collection appliances
- High-grade, quality die cast
metal knobs
THERMADOR EXCLUSIVE
SGSX305FS
INNOVATION
- Most powerful 30" cooktop in
the luxury segment (amongst
leading manufacturers) with an
®
- Patented and exclusive Star
Burner provides superior
performance
overall output of 52,000 BTU
- Exclusive 200 BTU ExtraLow
burners for perfect simmering
- Progressive illuminated control
panel with metal knobs
PERFORMANCE
- 30" 5 burner gas cooktop
provides functionality of a 36"
cooktop in a compact kitchen
environment
- Powerful 16,000 BTU
Center Burner
- Continuous grates allow pots
and pans to glide smoothly
across the cooktop
- Automatic electronic
re-ignition
- Knobs feature a safety
“push to turn” system
®
- Single point ignition– only
burner that is being used
is ignited
- Star-K certied
DESIGN
- Chiseled, angular design
coordinates with the suite
of Thermador Masterpiece®
Collection appliances
- High-grade, quality die cast
metal knobs
- Sleek control panel features
glass and stainless steel
®
®
112
ACCESSORIES
SWOKRINGF
Wok Ring
SGRIDDLEF
Griddle
SNLPKITF
LP Conversion Kit
GAS COOKTOPS
30-INCH
SGS305FS / SGSX305FS
COOKTOPS — GAS
INSTALLATION OPTIONS
INSTALLATION ABOVE A WALL OVEN OR
WARMING DRAWER
Thermador Masterpiece
installed above a Thermador Single Built-in Oven as
long as there is no contact between the bottom of the
cooktop and the top of the oven.
Thermador Masterpiece Gas Cooktops may also
be installed above a Thermador Warming Drawer
to create a convenient cooking center. Refer to the
warming drawer section for additional specications.
IMPORTANT
We strongly recommend the installation of a
Thermador Ventilation System with this gas cooktop.
Seal the surfaces of the cutout to make them heat
resistant. This prevents the surfaces from expanding
as a result of humidity.
Solid surface countertops require a special cutout size
and special installation. For example, heat reective
tape or rounded corners may be necessary. Contact
the countertop manufacturer for instructions specic
to your countertop.
NATURAL GAS OR LP
Thermador Masterpiece Gas Cooktops are shipped by
the factory to operate on natural gas. They must be
converted for use with propane. Verify the type of gas
being used at the installation site matches the type
of gas used by the appliance. If the location/job site
requires conversion from natural gas to propane (LP),
order SNLPKITF. Field conversion must be done by
qualied service personnel only. Please refer to the
LP Conversion Instructions for further information.
®
Gas Cooktops may be
30-INCH COOKTOP AND CUTOUT DIMENSIONS
CABINET REQUIREMENTS
Dimension requirements are for combustible surfaces. When the surface
is protected by a material listed by UL as a Floor Protector and Wall
Shield covered with not less than No. 28 MSG sheet metal 0.015 inch
(0.38 mm) stainless steel, 0.024 inch (0.6 mm) aluminum or copper, it is
considered noncombustible and some dimensions may be reduced. For a
noncombustible surface over the cooktop, the minimum clearance is 24"
(61 cm) rather than 30" (76 cm).
INSTALLATION ABOVE A THERMADOR
BUILT-IN OVEN
WARNING: To reduce the risk of ignition of nearby combustible materials, install the countertop with
a minimum distance of 12" (30 cm) from side walls and 1 3/4" (4 cm) from back wall.)
NOTE: All measurements given have to be precisely followed. If nonstandard cabinets are used,
make sure they are installed with minimum dimensions shown.
Plan the installation of the unit so that the power cord, gas shut-off valve and gas pressure regulator
are accessible from the front of cabinet.
1.800.735.4328 | THERMADOR.COM 113
GAS COOKTOPS
36-INCH
SGS365FS / SGSX365FS / SGSL365KS
MASTERPIECE
SGS365FS
MASTERPIECE
SGSX365FS
MASTERPIECE
SGSL365KS*
*Product available April 2012.
SPECIFICATIONS
SGS365FS
Number of Gas Burners 5
Product Width 37"
Product Depth 21
Cutout Width 34
Cutout Height 3
Cutout Depth 19
Minimum Distance from
Counter Front
Minimum Distance from
Rear Wall
Left Front Burner 9,100 BTU
Right Front Burner 12,000 BTU
Left Rear Burner 12,000 BTU
Right Rear Burner
Center Burner
Total Natural Gas
16,000 BTU 18,000 BTU
58,200 BTU 60,200
Connection Rating
Total LP Gas Connection Rating
Electrical Supply 120V AC, 60 Hz
Required Circuit Breaker 15 Amp
Power Cord
Shipping Weight (lbs.)
*According to AHAM Standards
51 53
SGSX365FS
SGSL365KS
1
/4"
15
/16"
13
/16"
1
/8"
7
1
/8"
3"
9,100 BTU
45,200 BTU
60", 3-Wire
SGS365FS
INNOVATION
- Patented and exclusive Star
Burner provides superior
performance
PERFORMANCE
- Powerful 16,000 BTU
Center Burner
- Continuous grates allow pots
and pans to glide smoothly
across the cooktop
- Automatic electronic
re-ignition
- Knobs feature a safety
“push to turn” system
- Star-K certied
DESIGN
- Chiseled, angular design
coordinates with the suite
of Thermador Masterpiece
Collection appliances
- High-grade, quality die cast
metal knobs
THERMADOR EXCLUSIVE
SGSX365FS /
SGSL365KS
®
®
INNOVATION
- Patented and exclusive
®
Burner provides
Star
superior performance
®
- 200 BTU ExtraLow
burners
for perfect simmering
(SGSX365FS model)
- Progressive illuminated control
panel with metal knobs
PERFORMANCE
- Powerful 18,000 BTU center-
mounted burner
- Continuous grates allow pots
and pans to glide smoothly
across the cooktop
- Automatic electronic
re-ignition
- Knobs feature a safety
“push to turn” system
- Single point ignition system
(SGSX365FS model)
- Star-K certied
DESIGN
- Chiseled, angular design
coordinates with the suite
of Thermador Masterpiece®
Collection appliances
- High-grade, quality die cast
metal knobs
- Sleek control panel features
glass and stainless steel
114
ACCESSORIES
SWOKRINGF
Wok Ring
SGRIDDLEF
Griddle
SNLPKITF
LP Conversion Kit
GAS COOKTOPS
36-INCh
SGS365FS / SGSX365FS / SGSL365KS
COOKTOPS — GAS
INSTALLATION OPTIONS
INSTALLATION AbOve A WALL OveN Or
WArmING DrAWer
Thermador Masterpiece
installed above a Thermador Single Built-in Oven as
long as there is no contact between the bottom of the
cooktop and the top of the oven.
Thermador Masterpiece Gas Cooktops may also
be installed above a Thermador Warming Drawer
to create a convenient cooking center. Refer to the
warming drawer section for additional specications.
ImPOrTANT
We strongly recommend the installation of a
Thermador Ventilation System with this gas cooktop.
Seal the surfaces of the cutout to make them heat
resistant. This prevents the surfaces from expanding
as a result of humidity.
Solid surface countertops require a special cutout size
and special installation. For example, heat reective
tape or rounded corners may be necessary. Contact
the countertop manufacturer for instructions specic
to your countertop.
NATurAL GAS Or LP
Thermador Masterpiece Gas Cooktops are shipped by
the factory to operate on natural gas. They must be
converted for use with propane. Verify the type of gas
being used at the installation site matches the type
of gas used by the appliance. If the location/job site
requires conversion from natural gas to propane (LP),
order SNLPKITF. Field conversion must be done by
qualied service personnel only. Please refer to the
LP Conversion Instructions for further information.
®
Gas Cooktops may be
36-INCh COOKTOP AND CuTOuT DImeNSIONS
CAbINeT reQuIremeNTS
Dimension requirements are for combustible surfaces. When the surface
is protected by a material listed by UL as a Floor Protector and Wall
Shield covered with not less than No. 28 MSG sheet metal 0.015 inch
(0.38 mm) stainless steel, 0.024 inch (0.6 mm) aluminum or copper, it is
considered noncombustible and some dimensions may be reduced. For a
noncombustible surface over the cooktop, the minimum clearance is 24"
(61 cm) rather than 30" (76 cm).
INSTALLATION AbOve A ThermADOr
buILT-IN OveN
WArNING: To reduce the risk of ignition of nearby combustible materials, install the countertop with
a minimum distance of 12" (30 cm) from side walls and 1
NOTe: All measurements given have to be precisely followed. If nonstandard cabinets are used, make
sure they are installed with minimum dimensions shown.
Plan the installation of the unit so that the power cord, gas shut-off valve and gas pressure regulator are
accessible from the front of cabinet.
1.800.735.4328 | THERMADOR.COM 115
1.800.735.4328 | THERMADOR.COM
3
/4" (4 cm) from back wall.)
116 MODELS SHOWN: CES365FS COOKTOP, UCVM30FS DOWNDRAFT, ME301JS 30" BUILT-IN OVEN AND WD30JS WARMING DRAWER
eLeCTrIC
COOKTOPS
mASTerPIeCe
COOKTOPS — eLeCTrIC
®
SerIeS
Excellent performance, precise control and a sleek elegant prole are just a few of the benets of these
re-engineered electric cooktops. The exclusive SensorDome
ensure perfect cooking results every time. Our 13-inch element is the industry’s largest and most powerful
electric round element, and our CookSmart
cook a wide range of foods. With a variety of new state-of-the-art features, Masterpiece Series Electric
Cooktops allow you to elevate your cooking to levels never imagined.
2010
SensorDome
Cooktops
™
®
system offers nine pre-programmed settings to effortlessly
™
system monitors the temperature of foods to
1.800.735.4328 | THERMADOR.COM
117
eLeCTrIC COOKTOPS
FeATureS & beNeFITS
brIDGe eLemeNT
Only Thermador offers a bridge
element that incorporates a dualzone element. Use the bridge
element to heat oblong pans and
the dual-zone element to heat pans
of different diameters.
LArGeST eLeCTrIC eLemeNT ON The mArKeT
This huge element is the widest and most powerful round electric
element on the market, with 4,000 watts of power for faster heat-up
and three zones to efciently heat a variety of pot sizes, such as a
16" skillet (e.g. accessory CHEFSPAN13–16" pan which ts perfectly
on the 13" element).
COOKSmArT
Never guess cooking time or temperature again. With 9
pre-programmed modes and auto shut-off, you’ll get perfect
results every time you cook. Cooking modes: pasta, potatoes,
rice, dumplings, vegetables, sausages, milk, rice pudding, and
deep frying.
®
SeNSOrDOme
Because the sensor constantly
monitors the temperature and can
automatically adjust the heat level
and cooking time, you can be sure
that your meals are being cooked
perfectly. This is the answer to
deep frying food, cooking rice and
simmering delicate sauces.
ThermADOr
SeNSOrDOme™ POTS
Special Thermador SensorDome pots
are available to order as accessories.
These pots are optimized for
CookSmart Sensor Cooking and
work with electric and induction
technology. They are ergonomically
designed for easy handling,
ovenproof and heat-insulated for
improved energy savings.
hOW IT WOrKS
This unique retractable sensor
utilizes an infrared beam that
continuously measures the heat
from the cookware. The sensor
shuts the burner off, as well as
cycles it on and off, to maintain
the precise temperature needed.
The result is time savings
combined with superior cooking
performance — without the
guesswork or the need to
constantly adjust the temperature.
™
118
ThermADOr eXCLuSIve
TOuCh CONTrOL
The handsome control panel gives
you immediate access to 17 power
settings, a keep warm, fast preheat
and a panel lock function.
eLeCTrIC COOKTOPS
PLANNING INFOrmATION
COOKTOPS — eLeCTrIC
mODeL OPTIONS
There are two sizes of Masterpiece® Electric Cooktops
to choose from — 30-inch and 36-inch. Models are
available with mechanical controls and touch controls
in a variety of cooktop congurations to t your client‘s
cooking style. In addition, you can choose models with
our exclusive SensorDome™ system which monitors the
temperature of foods to ensure perfect cooking results
every time. Be sure to reference the correct model
information in this design guide.
INSTALLATION CONSIDerATIONS
The information in this design guide provides key
features, product dimensions, cutouts and installation
specications. Before installing a Thermador
Masterpiece Electric Cooktop, be sure to verify the
cutout dimensions and electrical connections. Also,
always consult with the installation manual packed with
the product for complete details before installing.
Thermador Masterpiece Electric Cooktops may be
installed above a Thermador Single Built-in Oven as
long as there is no contact between the bottom of the
cooktop and the top of the oven.
Thermador Masterpiece Electric Cooktops may also
be installed above a Thermador Warming Drawer
to create a convenient cooking center. Refer to the
warming drawer section for additional specications.
eLeCTrICAL SPeCIFICATIONS
Be sure your appliance is properly installed and grounded by a qualied
technician. Installation, electrical connections and grounding must comply
with all applicable local codes.
All Thermador Electric Cooktops are dual rated, designed to be connected to
either 240/208V AC, 60 Hz, 3-wire, single-phase power supply.
Install a suitable conduit box (not furnished). An appropriately-sized,
UL-listed conduit connector must be used to correctly attach the conduit
to the junction box.
mODeL reQuIreD CIrCuIT breAKer
240V, 3-Wire, 60 Hz 208V, 3-Wire, 60 Hz
CEM304FS 40 Amp 30 Amp
CES304FS 40 Amp 30 Amp
CET304FS 40 Amp 30 Amp
CEM365FS 50 Amp 50 Amp
CES365FS 50 Amp 40 Amp
CES366FS 50 Amp 40 Amp
CET366FS 50 Amp 40 Amp
ImPOrTANT: Local Codes may vary; installation, electrical connections and
grounding must comply with all applicable local codes. If required by the
National Electrical Code (or Canadian Electrical Code), this appliance must be
installed on a separate branch circuit.
Solid surface countertops require a special cutout
size and installation. For example, heat reective tape
or rounded corners may be necessary. Contact the
countertop manufacturer for instructions specic to
your countertop.
We strongly recommend the installation of a
Thermador Ventilation System with all Masterpiece
Electric Cooktops. Refer to the ventilation section for
specications.
WArrANTY
Limited warranty parts and labor (2 year)
Limited warranty for glass ceramic surface/electronic
elements and switches; Parts only (2nd to 5th year)
See page 308 for additional warranty details.
eLeCTrICAL LOCATION
The junction box must be located
within 3 feet (~900 mm) of the
cooktop connection. It should be
easily accessible for service purposes.
CAbINeT reQuIremeNTS
The distance from the top of the
cooktop to the bottom of the
cabinets above it must be A = 30"
(762 mm) minimum. This distance
can be reduced to A = 24" (610 mm)
when the bottom of the wood or
metal cabinet is protected by not less
than 1/4" (6.35 mm) ame retardant
millboard, covered by no. 28 steel
sheet 0.015 (.4 mm) thick stainless
steel, 0.024" (0.6 mm) aluminum,
or 0.020" (0.5 mm) thick copper, at
a minimum. Verify that the cabinets
above the cooktop are a maximum
of B = 13" (330 mm) deep.
1.800.735.4328 | THERMADOR.COM
119
COOKTOPS
30-INCh eLeCTrIC
Cem304FS / CeT304FS
mASTerPIeCe
CEM304FS
Mechanical Controls
mASTerPIeCe
CET304FS
Touch Controls
SPeCIFICATIONS
CEM304FS CET304FS
Total Number of Cooktop
Elements
Product Width 31"
Product Depth 21
Cutout Width 28
Cutout Height 3
Minimum Air Clearance
Cutout Depth 19
Minimum Distance from
Counter Front
Minimum Distance from
Rear Wall
Left Front Element
Right Front Element 7" @
Left Rear Element 6" / 9" @ 1,100 / 2,500 W
Right Rear Element 5" / 8" @
Center Element
Electrical Supply 240/208V AC, 60 Hz
Required Circuit Breaker 40 Amp / 30 Amp
Conduit
Shipping Weight (lbs.)
1,800 W
6" / 9" @ 1,300 / 3,100 W
750 / 2,200 W
38" Flexible 3-Wire
34 36
4
1
/4"
3
/4"– 28 7/8"
15
/16"
1
/4"
7
/8"– 20"
1
2
/4"
3
2
/4"
6" @ 1,200 W
5" / 7" @
700 / 1,700 W
5" / 7"/ 9" @
800 / 1,600 /
2,500 W
N/A
Cem304FS
PerFOrmANCe
- Dual element offers the capability
to use multiple pan sizes
- Cooktop indicates when elements
are still hot
DeSIGN
- Heavy-duty, high quality
metal knobs
- Chiseled, angular design
coordinates with the suite
of Thermador Masterpiece
Collection appliances
- Full stainless steel frame
- Trapezoid design control panel
®
CeT304FS
PerFOrmANCe
- Triple and dual elements offer
the capability to use multiple
pan sizes
- Keep Warm function allows
meals to remain ready to serve
- 2-level digital control panel
indicates when elements are
still hot
DeSIGN
- Touch control panel with blue
light illumination offers 17
power settings
- Full stainless steel frame
- Trapezoid design control panel
120
COOKTOPS
30-INCh eLeCTrIC
Cem304FS / CeT304FS
COOKTOPS — eLeCTrIC
INSTALLATION OPTIONS
INSTALLATION AbOve A WALL OveN Or
WArmING DrAWer
Thermador Masterpiece
installed above a Thermador Single Built-in Oven as
long as there is no contact between the bottom of the
cooktop and the top of the oven.
Thermador Masterpiece Electric Cooktops may also
be installed above a Thermador Warming Drawer
to create a convenient cooking center. Refer to the
warming drawer section for additional specications.
ImPOrTANT
We strongly recommend the installation of a
Thermador Ventilation System with all Masterpiece
Electric Cooktops.
Seal the surfaces of the cutout to make them heat
resistant. This prevents the surfaces from expanding as
a result of humidity.
Solid surface countertops require a special cutout and
installation. For example, heat reective tape or
rounded corners may be necessary. Contact the
countertop manufacturer for instructions specic to
your countertop.
WArNING
To reduce the risk of ignition of nearby combustible
materials, install the countertop with a minimum
distance of 2" (51 mm) from both side walls and the
back wall.
®
Electric Cooktops may be
30-INCh eLeCTrIC COOKTOP AND CuTOuT DImeNSIONS
INSTALLATION AbOve A ThermADOr
buILT-IN OveN
COuNTerTOP reQuIremeNTS
1.800.735.4328 | THERMADOR.COM
121
COOKTOPS
30-INCh eLeCTrIC
CeS304FS
CeS304FS
INNOvATION
™
- SensorDome
of the pot and keeps the temperature consistent
- CookSmart
feature – a retractable sensor measures the heat
®
feature – 9 pre-programmed cooking modes
mASTerPIeCe
CES304FS
Touch Controls, SensorDome™, CookSmart
®
SPeCIFICATIONS
Total Number of
Cooktop Elements
Product Width 31"
Product Depth 21
Cutout Width 28
Cutout Height 3
Minimum Air Clearance
Cutout Depth 19
Minimum Distance from
Counter Front
Minimum Distance from
Rear Wall
Left Front Element 6" @ 1,200 W
Right Front Element 5" / 7" @ 700 / 1,700 W
Left Rear Element 6" / 8"/ 12" @ 1,050 / 2,200 /
Right Rear Element 7" @ 1,800 W
Center Element N/A
Electrical Supply 240/208V AC, 60 Hz
Required Circuit Breaker 40 Amp / 30 Amp
Conduit 38" Flexible 3-Wire
Shipping Weight (lbs.) 36
4
1
/4"
3
/4" – 28 7/8"
15
/16"
1
/4"
7
/8" – 20"
1
2
/4"
2 3/4"
3,080 W
PerFOrmANCe
- Triple and dual elements offers the capability to use multiple
pan sizes
- Auto Shut-Off Timer enables the user to set desired cooking time
- Keep Warm function allows meals to remain ready to serve
- Fast Preheat mode – accelerates the heating process – for
quicker results
- Child safety lock
- 2-level digital control panel indicates when elements are still hot
DeSIGN
- Touch control panel with blue light illumination offers 17
power settings
- Chiseled, angular design coordinates with the suite of Thermador
Masterpiece
®
Collection appliances
- Full stainless steel frame
- Trapezoid design control panel
ThermADOr eXCLuSIve
122
ACCeSSOrIeS
SENSORPOT7
7" Ceramic Pot with Glass Lid
SENSORSTRP
Additional stickers for non-enameled
and non-sensor cookware
INSTALLATION AbOve A WALL OveN Or
WArmING DrAWer
Thermador Masterpiece
installed above a Thermador Single Built-in Oven as
long as there is an no contact between the bottom of
the cooktop and the top of the oven.
Thermador Masterpiece Electric Cooktops may also
be installed above a Thermador Warming Drawer
to create a convenient cooking center. Refer to the
warming drawer section for additional specications.
ImPOrTANT
We strongly recommend the installation of a
Thermador Ventilation System with all Masterpiece
Electric Cooktops.
Seal the surfaces of the cutout to make them heat
resistant. This prevents the surfaces from expanding as
a result of humidity.
Solid surface countertops require a special cutout and
installation. For example, heat reective tape or
rounded corners may be necessary. Contact the
countertop manufacturer for instructions specic to
your countertop.
®
Electric Cooktops may be
COOKTOPS — eLeCTrIC
COOKTOPS
30-INCh eLeCTrIC
CeS304FS
30-INCh eLeCTrIC COOKTOP AND CuTOuT DImeNSIONSINSTALLATION OPTIONS
WArNING
To reduce the risk of ignition of nearby combustible
materials, install the countertop with a minimum
distance of 2" (51 mm) from both side walls and the
back wall.
INSTALLATION AbOve A ThermADOr
buILT-IN OveN
COuNTerTOP reQuIremeNTS
1.800.735.4328 | THERMADOR.COM
123
COOKTOPS
36-INCh eLeCTrIC
Cem365FS / CeT366FS
mASTerPIeCe
CEM365FS
Mechanical Controls
mASTerPIeCe
CET366FS
Touch Controls
SPeCIFICATIONS
CEM365FS CET366FS
Total Number of
Cooktop Elements
Product Width 37"
Product Depth 21
Cutout Width 34
Cutout Height 3
Minimum Air Clearance
Cutout Depth 19
Minimum Distance from
Counter Front
Minimum Distance from
Rear Wall
Left Front Element 5" / 8" @
Right Front Element 7" @ 1,800 W 5" / 7" @
Left Rear Element 6" @ 1,200 W
Right Rear Element
Center Element 6" / 9" @ 1,100
Electrical Supply
Required Circuit Breaker 50 Amp /
Conduit 38" Flexible 3-Wire
Shipping Weight (lbs.)
5 6
1
/4"
3
/4"– 34 7/8"
15
/16"
1
/4"
7
/8"– 20"
1
/4"
2
3
/4"
2
750 / 2,200 W
7" @ 1,800 W 7" @ 1,700 W
/ 2,500 W
240/208V AC, 60 Hz
50 Amp
40 42
6" / 9" @
1,300 / 3,100 W
700 / 1,700 W
(600 W Bridge)
6" / 8" / 12"
@ 1,050 / 2,200
/ 3,080 W
50 Amp /
40 Amp
Cem365FS
PerFOrmANCe
- Dual element offers the
capability to use multiple
pan sizes
- 2-level digital control panel
indicates when elements are
still hot
DeSIGN
- Heavy-duty, high quality
metal knobs
- Full stainless steel frame
- Trapezoid design control panel
ThermADOr eXCLuSIve
CeT366FS
INNOvATION
- Dual zone bridge element
accommodates oblong pans
and multiple diameter sizes
PerFOrmANCe
- Triple and dual elements offer
the capability to use multiple
pan sizes
- Keep Warm function allows
meals to remain ready to serve
- 2-level digital control panel
indicates when elements are
still hot
DeSIGN
- Touch control panel with blue
light illumination offers 17
power settings
- Full stainless steel frame
- Trapezoid design control panel
124
INSTALLATION AbOve A WALL OveN Or
WArmING DrAWer
Thermador Masterpiece
installed above a Thermador Single Built-in Oven as
long as there is no contact between the bottom of the
cooktop and the top of the oven.
Thermador Masterpiece Electric Cooktops may also
be installed above a Thermador Warming Drawer
to create a convenient cooking center. Refer to the
warming drawer section for additional specications.
ImPOrTANT
We strongly recommend the installation of a
Thermador Ventilation System with all Masterpiece
Electric Cooktops.
Seal the surfaces of the cutout to make them heat
resistant. This prevents the surfaces from expanding as
a result of humidity.
Solid surface countertops require a special cutout and
installation. For example, heat reective tape or
rounded corners may be necessary. Contact the
countertop manufacturer for instructions specic to
your countertop.
®
Electric Cooktops may be
COOKTOPS — eLeCTrIC
COOKTOPS
36-INCh eLeCTrIC
Cem365FS / CeT366FS
36-INCh eLeCTrIC COOKTOP AND CuTOuT DImeNSIONSINSTALLATION OPTIONS
WArNING
To reduce the risk of ignition of nearby combustible
materials, install the countertop with a minimum
distance of 2" (51 mm) from both side walls and the
back wall.
INSTALLATION AbOve A ThermADOr
buILT-IN OveN
COuNTerTOP reQuIremeNTS
1.800.735.4328 | THERMADOR.COM
125
COOKTOPS
36-INCh eLeCTrIC
CeS365FS / CeS366FS
mASTerPIeCe
CES365FS
Touch Controls,
SensorDome™, CookSmart
mASTerPIeCe
CES366FS
Touch Controls,
®
SensorDome™, CookSmart
SPeCIFICATIONS
CES365FS CES366FS
Total Number of
Cooktop Elements
Product Width 37"
Product Depth 21
Cutout Width 34
Cutout Height 3
Minimum Air Clearance
Cutout Depth 19
Minimum Distance from
Counter Front
Minimum Distance from
Rear Wall
Left Front Element 5" / 7" @
Right Front Element 6" / 8" @
Left Rear Element 5" / 7" @
Right Rear Element 6" @ 1,200 W 7" @ 1,700 W
Center Element
Electrical Supply 240/208V AC, 60 Hz
Required Circuit Breaker 50 Amp / 40 Amp
Conduit 38" Flexible 3-Wire
Shipping Weight (lbs.) 43
5 6
3
/4"– 34 7/8"
7
2
2
700 / 1,700 W
1,000 / 2,200 W
700 / 1,700 W
8" / 11" / 13"
@ 2,200 / 3,200
/ 4,000 W
1
/4"
15
/16"
1
/4"
/8"– 20"
1
/4"
3
/4"
6" / 8" @
1,000 / 2,200 W
5" / 7" @
700 / 1,700 W
6" @ 1,200 W
(600 W Bridge)
5" / 7" / 9"
@ 900 / 1,600 /
2,500 W
CeS365FS
INNOvATION
™
- SensorDome
a retractable sensor
measures the heat of the
pot and keeps the
temperature consistent
- CookSmart
®
9 pre-programmed
cooking modes
- Largest (13") and most
powerful (4,000 W) round
heating element on
feature –
®
feature –
CeS366FS
INNOvATION
™
- SensorDome
a retractable sensor
measures the heat of the
pot and keeps the
temperature consistent
- CookSmart
9 pre-programmed
cooking modes
- Dual zone bridge element
accommodates oblong pans
and multiple diameter sizes
feature –
®
feature –
the market
- Dual zone bridge element
accommodates oblong pans
and multiple diameter sizes
PerFOrmANCe
- Triple element offers the
capability to use multiple
pan sizes
PerFOrmANCe
- Triple element offers the
capability to use multiple
pan sizes
- Dual element offers the
capability to use multiple
pan sizes
- Auto Shut-Off Timer enables
the user to set desired
cooking time
- Fast Preheat mode –
accelerates the heating
process – for quicker results
- Keep Warm function allows
meals to remain ready
- Dual element offers the
capability to use multiple
pan sizes
- Auto Shut-Off Timer enables
the user to set desired
cooking time
- Fast Preheat mode –
accelerates the heating
process – for quicker results
- Keep Warm function allows
meals to remain ready
to serve
- 2-level digital control panel
indicates when elements
are still hot
to serve
- 2-level digital control panel
indicates when elements are
still hot
DeSIGN
- Touch control panel with
blue light illumination offers
17 power settings
DeSIGN
- Touch control panel with
blue light illumination offers
- Full stainless steel frame
- Trapezoid design control
panel
17 power settings
- Full stainless steel frame
- Trapezoid design control
panel
126
ACCeSSOrIeS
SENSORPOT9
9" Ceramic Pot with
Glass Lid
(CES366FS Only)
SENSORPOT7
7" Ceramic Pot with
Glass Lid
(CES366FS Only)
ThermADOr eXCLuSIve
SENSORPOT6
6" Ceramic Pot with
Glass Lid
SENSORPOTH
6" Ceramic Pot with
Glass Lid
CHEFSPAN13
16" Round Skillet
(CES365FS Only)
SENSORSTRP
Additional stickers
for non-enameled and
non-sensor cookware
inSTALLATiOn AbOvE A WALL OvEn OR
WARMing DRAWER
Thermador Masterpiece
installed above a Thermador Single Built-in Oven as
long as there is no contact between the bottom of the
cooktop and the top of the oven.
Thermador Masterpiece Electric Cooktops may also be
installed above a Thermador Warming Drawer to create
a convenient cooking center. Refer to the warming
drawer section for additional specications.
iMPORTAnT
We strongly recommend the installation of a
Thermador Ventilation System with all Masterpiece
Electric Cooktops.
Seal the surfaces of the cutout to make them heat
resistant. This prevents the surfaces from expanding as
a result of humidity.
Solid surface countertops require a special cutout and
installation. For example, heat reective tape or
rounded corners may be necessary. Contact the
countertop manufacturer for instructions specic to
your countertop.
®
Electric Cooktops may be
cOOKTOPS — ELEcTRic
cOOKTOPS
36-inch ELEcTRic
cES365FS / cES366FS
36-inch ELEcTRic cOOKTOP AnD cUTOUT DiMEnSiOnSinSTALLATiOn OPTiOnS
WARning
To reduce the risk of ignition of nearby combustible
materials, install the countertop with a minimum
distance of 2" (51 mm) from both side walls and the
back wall.
inSTALLATiOn AbOvE A ThERMADOR
bUiLT-in OvEn
cOUnTERTOP REQUiREMEnTS
1.800.735.4328 | THERMADOR.COM 127
Loading...
