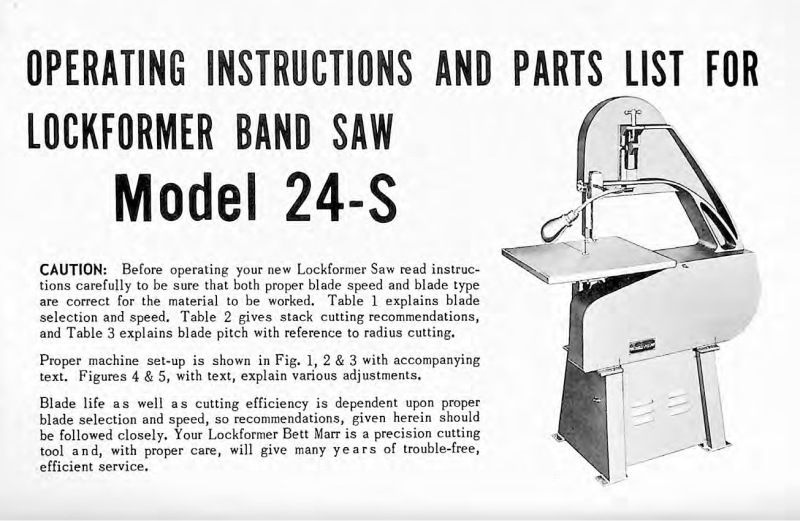

OPERATING INSTRUCTIONS
III
PARTS
LDCKFORMER BIND SAW
Model 24-S
LIST FOR
IT
CAUTION:
tions carefully to be sure that both proper blade speed and blade type
are correct for the material to be worked. Table 1 explains blade
selection and speed. Table 2 gives stack cutting recommendations,
and Table 3 explains blade pitch with reference to radius cutting.
Proper machine set-up is shown in Fig. 1, 2 & 3 with accompanying
text. Figures 4 & 5, with text, explain various adjustments.
Blade
blade selection and speed, so recommendations, given herein should
be followed closely. Your Lockformer Bett Marr is a precision cutting
tool and, with proper care, will give many years of trouble-free,
efficient service.
life as well as cutting efficiency is dependent upon proper
Before operating your new Lockformer Saw read instruc
Page 2
TABLE 1
Speed and Tooth Recommendations
(Keep at least 3 teeth in work at all timesl)
MATERIAL
WORKED
Carbon Tool Steel
Cast Iron
Cast Nickel Iron
Chromium Steel
Cold Rolled Steel
Drill Rod
High Chrome Carbon Steel
High Speed Steel
Iron Sheets
Machine Steel
Malleable Iron
Manganese Steel
PITCH
10 to 14
14
10 to 14
10 to 14
10 to 14
10 to 14
10 to 14
10 to 14
14 to 32
10
to 14
10 to 14
10 to 14
SPEED
FT./MIN.
FERROUS METALS
100
100
100
100
100
100
100
100
100
100
100
100
NON FERROUS METALS
MATERIAL
WORKED
Mild Steel (not rolled)
Nickel Si Iver
Nickel Steel
Pipe
Stainless Steel up to
12 gauge
Stainless Steel over
12 gauge
Steel (structural)
Galvanized Sheet Steel
Tool Steel
Tubing (steel)
SPEED
PITCH
10 to 14
10 to 14
10 to 14
14 to 18
ft./min
.
100
100
100
100
10 to 14
10 to 14
10 to 14
14 to 32
10 to 14
14 to 18
3000
100
100
600
100
100
Aluminum Airplane
A Hoys
Aluminum Castings
Aluminum, pure
Aluminum, single
sheets
Aluminum sheets
stacked
Aluminum
Babbitt (type &
bearing metal)
Brass Castings
Brass, soft screw
stock
Asbestos Board
Asbestos Sheet
Bakelite (plastics)
Fibre
Formica
tubing
Brass, sheets (thin)
6 to 14
6 to 8
6 to 8
600
600
600
10 to 18
3000
4 to 10
10 to 14
6 to 10
8 to 14
600
3000
600
600
Brass tubing (thin)
Bronze Castings
Bronze, manganese
Bronze, government
Bronze, nickel
Copper
Copper, drawn
Monel Metal
Monel Sheets
10 to 14
10 to 14
8 to 14
10 to 14
10 to 14
10 to 14
10 to 18
10 to 14
10 to 14
14 to 24
3000
3000
600
600
600
600
600
600
600
600
10 to 18
600
PLASTIC and NON-METALLIC
8
8 to 14
8 to 18
8 to 10
8
600
600
600
600
600
Metal Wood
Mica
Rubber, hard
Wood
14
10 to 14
8 to 10
6 to 14
600
600
600
3000
Page 3
TABLE 2
Stack-Cutting Recommendations
GALVANIZED SHEETS:
SHEET STEEL:
26 gauge, stack 1 to 50 sheets
Hot roll, cold roll, and any other metal
than galvanized, stack 1 to 10 sheets.
600 F.P.M.
100 F.P.M.
COLD ROLL, SHEET STEEL, ALUMINUM COATED:
Stack 1 to 10 sheets, cut at lowest speed
ALUMINUM SHEETS:
STAINLESS SHEET STEEL:
For cutting thin sheets use a fine pitched blade with at least three teeth engaged in the work at all times.
If the teeth “
larger teeth and a slower cutting speed than thin stock.
come out of the work" they will tear out and the blade ruined. Generally, thick stock requires
Stack 15 to 30 or more, use 4 pitch blade.
Single sheets use 24 pitch blade. Lubri
cate scribe line with bees wax or cutting
oil to aid in the lubrication of cutting
teeth.
FRICTION CUT, use 14 or 24 pitch blade
dull or sharp. CUT SINGLE SHEETS
ONLY UP TO 12 GAUGE.
100 F.P.M.
600 F.P.M.
3000 F.P.M.
(Direct Drive)
TABLE 3
Radius Cutting Recommendations
SAW WIDTH
1/8 in.
3/16 in.
3/8 in.
1/2 in.
1/4 in.
SIMPLE REMINDERS TO INSURE MAXIMUM BLADE LIFE
In most instances, experience has shown that short
ened blade life results from the following:
1. Incorrect blade speed (with reference to ma
2. Incorrect blade pitch (with reference to thick
ness of material or stacked material)
3. Blade being improperly set in guides
4. Excessive feed pressure or undue forcing of
In addition to following the recommendations made
herein, these additional general rules may be helpful:
SMALLEST RADIUS CUT
1/8 in.
5/16 in.
5/8 in.
1 7/16 in.
2 1/2 in.
terial being cut)
work into blade.
Avoid twisting blade. Use gradual, con
FIRST:
SECOND: Keep at least three teeth in the work at all
THIRD:
stant pressure in feed of work into blade
with gradual radius of cut.
Since the blade travels from top to bottom,
blade teeth should always be pointing
downward.
times. If you cut a thin piece of steel with
a coarse tooth blade, you may rip off teeth
or break the blade. In general, the thinner
the material or the stack of material, the
finer the blade tooth should be.
Be sure the teeth of the blade clear the
outside slot of the guide blocks.
Page 4
ASSEMBLY AND ADJUSTMENT PROCEDURE
ADJUSTMENT TAKE-UP
The reduction
unit is mounted on an eccentric hub and bearing assembly #6006 (see
Figure 1) that can be revolved to the right slightly to take up any undue slack in the drive
chain and V-belt.
MOTOR BELT INSTRUCTION
Motor belt can be tightened by turning hand wheel on base to the left. DO NOT have
belt too tight.
ASSEMBLY
OF TABLE ON SAW
First, remove the table slot screw #6007-9 from the table. (See Figure 5.) Guide
the blade through the slit in the front edge of the table #6007 and then rest the two front
table lugs on the 3/4" round table mounting
shaft #6007-3.
At the same time slip the
rear table lug over the 3/8" table mounting pin #6007-2 in the frame until the lug con
tacts the frame. Finally, lock the front lugs to the mounting
long studs and washers #6007-1.
table
.
Screw the table slot screw into the front edge of the
shaft with the two 1-1/4"
The insert riser bar #6007-5 is fastened to the top of the table when cutting stacked
galvanized or stacked aluminum
UPPER WHEEL ADJUSTMENT
sheets.
AND TRACKING THE BLADE
Place the blade on the rubber tires of both the upper and lower wheels and shift the
back edge of the blade up against the flange of both wheels, then, increase the tension on
the blade by screwing the riser bolt #6002-8 to the right (see Figure 4.) Care should be
taken that the tension is not too great to interfere
with free movement
of
the wheels. Too
great a tension on the blade is a common cause of blade breakage. When tension has been
adjusted,
revolve the wheels slowly forward by hand. NEVER ADJUST ANY PART OF
THE SAW WHILE MOTOR IS RUNNING. If the blade creeps away from the flange on the
upper wheel, tilt the upper wheel in at the top slightly by turning the upper wheel bracket
adjusting bolt #6002-4
against the flanges, in which position the blade is tracking properly.
to
the right.
This will cause the blade to gradually creep up
Lock the adjusting
nut in place to prevent shifting during operation of the saw.
SETTING AND ADJUSTING THE BLADE GUIDES
After the blade has been "tracked" properly, the blade guide brackets
#6003-1
(Upper) and #6004 (Lower) in Figure 5 should be adjusted so that the slit in the carbide
thrust and blade guides #6003-4 Upper and Lower are par
allel and centered with the blade.
blade guides,
adjust the carbide thrust
Also, when centering
and blade guide
#6003-4 Upper and Lower in or out, so that the back of the
blade clears the back of the slot in the carbide
about 1 /64
"
guides by
The blade should run freely through both the blade
guides when the blade guides are adjusted properly. Finally,
lock the carbide guides into position by tightening
the Allen
the
ATTACHMENTS
AVAILABLE
Arc-Matic Circle Cutting
Attachment
30° Angle Guides
setscrew in the guide insert holders.
1/4*
NOTE: The carbide thrust guides furnished
with the saw are
for 1/4" and 3/8"blades. The carbide guides are reversible,
side is for 1/4", the reverse side is 3/8".
one
Make sure
that proper slots are used on upper and lower. Teeth MUST
project outside of carbide insert.
Carbide guides may also
— 1/4** Carbide
Inserts
3/16**—1/2” Carbide
Inserts
be purchased for 3/16" and l/2" blades.
Page 5
6002
6001-1
6001-2
6003-1
6003-5
6003-7
6003-9
6003-4
6003-3
6004
V
9 '
6002-9
6003
6002-2
6002-1
6002-3
6002-5
56" BELT
6002-10
6005
6006
6006-1
6006-2
6005-18
6006-8
6006-6
6008-2A
6005-17
6005-19
6005-20
6006-7
6005-5
\
6005-3
6005-2
6005-4
6007
6005-15
6008-A
6005-7
6005-8A'
x
6008
6008-1
6008-6
6008-9A
6008-3
6008-4
6008-5
\
6008-7
6008-8
6008-2
t
l
54" BELT
■
6008-9D
6008-9C
2_
V
a
x
118" BLADE
6007-4
!
i
y
6007-3
6007-5
6007-7
6007-6
Page 6
PARTS LIST and DESCRIPTION LOCKFORMER
PLEASE USE NEW NUMBER
WHEN ORDERING PARTS
New
Part No. Part No.
40330 6001
56549 6001-1
56550 6001-2
*60984 6001-3
*60550 6001-4
40340 6002
44003 6002-1
40350 6002-2
14501 6002-3
40360 6002-5
*60525 6002-6
21878 6002-7
52605 6002-8
‘
62709 6002-8C 1
13514 6002-9 Riser Bolt Spacer
71170 6002-10 Neoprene Wheel Tire
9956505 6003
*35701 6003-B
*60790 6003-C 2 1/4 Drive Screw U Cad
40380 6003-1
60610 6003-1
*60055 6003-2
21651 6003-3
‘
60593 6003-3A 7/16 x 10-32 Fillister Head Set Screw
85101 60034
*85107
52604 6003-5
*40390 6003-5A Adj Handle
*14841 6003-5 B Adj Stud
*60055 6003-6
56506 6003-7
*60963 6003-7
*38702 6003-7
*60610 6003-8 1/4-20 Knurled Oiler Locking Screw
66710 6003-9 Felt Oiler Pad
40381 6004
40400 6005
*21879 6005
66502 6005-2
*13023 6005-3A Lower Wheel Bearing Shaft
*13661 6005-3B Bearing Spacer
62423 60054 Shaft Key
*60650 60054
*54201 6005-5B 10" Sprocket, Hub & Bearing Assembly
66412 6005-6 AA838 4 Amplex Bearing
43301 6005-7 AC 70 Shv
‘
60360 6005-8 5/16-18 2 SHCS Cad
37706 6005-8A Warning Belt Guard
70711 6005-9 35 205 Roller Link Chain
*70712 6005-9A 35
*14663 6005-15 Keyed Drive Collar
Old
Frame
Upper Front Cover
Lower Front Cover
Knurled Cover Studs
1/4-20-1/2 RHMS Cad
Upper Wheel
Bearing
Upper Wheel Bracket
Upper Wheel Bracket Pin
Riser Bar
5/16-18 3/4 Flat Head Cap Screw
Wheel Riser Bar
Riser Tension Bolt & Crank
/8 D 3/4 Roll Pin
Riser Bar and Blade Guard
Blade Guard
Blade Guide Bracket
A 1/4 - 20 - 1/4 SSS
5/16 Cap Set Screw
Guide Insert Holder
3/8
1/4
Riser Bar Locking Bolt & Wheel
5/16 Cap Set Screw
Blade Oiler Assembly
A 3/8 1 Sq.
B Oiler Holder
Blade Guide Bracket (Lower)
Lower Wheel
Riser Bar
-A
Scaled Ball Bearing
A 5/16 Sot Screw
Description
x 1/4
Carbide
x
1/2 Carbide Guide
Bolt
Conn
Link
Guide
BAND
Pieces
Per Unit
1
1
1
4
6
1
1
1
1
1
1
1
1
1
1
3
1
1
2
1
3
1
2
2
2
1
1
1
1
1
1
1
3
1
1
2
1
4
2
2
2
2
1
1
1
2
1
1
1
1
SAW Model
PLEASE USE NEW NUMBER
WHEN ORDERING PARTS
New
Part No. Part
*60359
43211
66041
66063
13119
*60153
*62055
44002
*54200
*43201
70027
*21876
*19133
44001
*60100
50269
*60002
‘
60091
*60763
*61100
*60054
13012 6007-3
39930 60074
9956554 6007-5
40420 6007-6
60923 6007-7
*60525
*60045
80030
*42729
19006
*31425
70026
70025
52600
*40391
*61120
80206
80545
*80702
*80540
*80550
*80210
*80700
*80701
*60820
56551
14803
*61475
*61101
40430
Old
No.
6005-16 Allen Releasing Cap Screw & Washer
6005-17 Idler Chain Sprocket
6005-18 Eccentric Idler Shaft Plug
6005-19 Idler Oilite Bearing
6005-20 Idler Shaft
6005-20A1/2 Locking Screw
6005- 22 1/2 ID 1/16 Washer
6006
6006- 1
6006-1 B 2 Sprocket
6006-2 56" Belt
6006-6 Idler Holder
6006-6A Holder
6006-8 Ball Bearing & Shaft
6006-9 3/8-16 3 1/4 HHCS
6007
6007-1
6007-2
6007-2A 5/16-18 2 Sq Head Set
6007-2
6007-2C 5/16-18 1 HHCS Cad
6007-8
6007- 9
6008
6008- 1
6008-A Motor Mounting Plate
6008-1
6008-2 54" Belt
6008-2
6008-3 Motor Adjustment Bolt Assembly
6008-3A Adj Handle
6008-3D 3/8-16 HN HVY SF
6008-4 Toggle Switch
6008-5 6' Cord and Plug Set
6008-6A Cord
6008-6B Cord
6008-6C Brs Cap
6008-6D Toggle Switch Bdy
6008-6E Half Reflector
6008-6G Stool Clamp
6008-6H 6 3/4 Drive Screw U
6008-7 Belt Guard
6008-8 Belt Guard Attaching Stud & Wing Nut
6008-8
6008-8
6008-9A Back Base
Description
Sealed Bearing & Shaft & Holder Assembly
A 12" Pulley and 2
20 x
22 Table
1/4-20 1 HHCS
3/8-16 x 1 HHCS
B Hex Head Nut
3/4 Table Support Shaft
Table Blade Insert
Insert
Stacking Clamps
5/16-18 2
Riser Bar Cap Screw
Table Slot Cap Screw
3/4 HP
7x3
Step
A Motor Mounting Plate
A 51" Belt High Speed
A 5/16-18 Wing Nut
B 5/16-18 HN HVY SF
Riser
Clamp
Motor
” Sprocket Assembly
Assembly
Bar
Thumb Screw
1800
Pulley
Screw
24-S
PLEASE USE NEW NUMBER
WHEN ORDERING PARTS
Pieces
Per Unit
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
New
Part No. Part No.
40440 6008-9B Front Base
37702 6008-9C Lower Std Cover
37701 6008-9D Lower Std Cover Left
*62011 6008-9F 5/16 1
*60590 6008-9G 1/4-20
*61061 6008-9
19007 6009
*19008 6009-1
*21801 6009-1
*30405 6009-3 Auxiliary Table Top 48 x 48
*32401 60094
*60606
*60680
*85100
*14835
Old
H 1/4-20 HN HVY SF
Angle Guide Holder (Lower)
Angle Guide Holder (Upper)
A Angle Guide
Auxiliary Table Top 36
10-32 x 1/4 SSS
3/8-16
DSP 83 Grade 883
Stud
1
*32907
2
1
1
1
1
1
1
1
4
4
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
*37913
*37916
*60051
*60052
*60056
*60094
*60153
*60161
*60576
*60652
*60795
*60797
*61040
*61122
*62010
*62029
*62362
*62363
*62370
*42730
*80483
*80493
*80543
*80602
*80607
1
1
1
5
5
1
1
1
7
1
*80608
*80703
*85004
*85155
*85164
*85303
*Not Illustrated
Shim
Shim 16 Gauge
Shim 20 Gauge
5/16-18 x 2 HHCS
5/16-18
5/16-18 x 1-1/2 HHCS
3/8-16 x 1/4 HHCS
1/2-13 x 1/2 HHCS
1/2-13
10-24 x 1/2 RHMS
5/16-18 x 1/2 SSS
4 x
4 x 1/4 DR SCR TP-U
10-24 HN
3/8-16 HN
5/16 x 1/16 Washer
3/8 x 1/16 Washer
5/16 Lock Washer
3/8 Lock Washer Med.
1 /4 Lock Washer
3 Step Shv
Box Conn 3/8
Sta Kon Conn B14
Cord 18-2 84
Rg Tng Terminal
Insulating Cap
Wire Joint
Toggle Switch Plate
Blade 118" lg.
Band Saw Name Plate
Lockformer Logo
Warning Sticker
Description
Right
/8 Washer
7/8 Fillister Head Mount Screw
x 36
x
3/8 SSS
10 Gauge
x
1
HHCS
x
3-1/4 HHCS
3/16 DR SCR TP-U
Pieces
Per Unit
1
1
1
5
16
16
1
1
2
1
1
2
2
2
1
0
1
2
6
1
1
1
1
5
4
4
1
2
4
2
4
2
16
1
1
2
1
3
3
3
1
1
1
1
2
0
0
Page 7
7
” Step
3
” Step
6006-7
6005-8
A
6005-5
6006-1
6005-16
6005-15
6006-6
6005-7
FOR 100 FEET PER MINUTE BLADE SPEED -
The two Allen socket head cap screws are engaged, #6005-8 is engaged in the
10'* sprocket
ond cap screw #6005-16 is engaged in keyed drive
sprocket #6005-5. Note warning tag #6005-8A is on
1.) The 54
#6006-7 and the 3** step groove of the motor
and you will operate at 100 F.P.M.
#6005-5
M V-Belt #6008-2 is placed on the 7" groove of the step idler pulley
and the shaft locking hub of the 7" pulley #6005-7; the sec
drive
6005-5
6008-1
collar #6005-15 and the rear 10**
hub of 7" pulley. (See Figure
pulley #6008-1. Turn on switch
Fifl. 2
FOR 600 FEET PER MINUTE BLADE SPEED-
The two Allen socket head cap screws are engaged, #6005*8 is engaged in the
10*' sprocket #6005-5 aid the shaft locking hub of the 7** pulley
ond cap screw #6005-16 is engaged in keyed drive collar
sprocket #6005-5. Note warning tag #6005-8A is
2.) The
#6006-7 on the 7" step groove of the motor drive pulley #6008-1. Turn on switch
and you will operate at 600 F.P.M.
54" V-Belt #6008-2 is placed on the 3" groove of the step idler pulley
on hub of 7
#6005-15
#6005*7;
” pulley. (See Figure
the sec
and the rear 10"
Page 8
6008* 2
f
A
FOR 3000 FEET PER MINUTE BLADE SPEED -
Remove the two Allen socket head cap screws #6005*8 and #6005-16 and
tag #6005-8A from the 10
pulley
#6005-7;
#6005-5. (See Figure 3.) This disengages the speed reduction unit from the band
saw drive shaft. It
at 3000 F.P.M. Remove 54
The 51
separately) is placed on the 3
the 7
” pulley
NOTE: The 56
ond 2%
bly during all speed changes.
6002-4
!
l
and from the keyed drive collar #6005- 15 and the rear 10
” V-Belt #6008-
#6005-7. Turn on switch and you will operate at 3000 F.P.M.
” V-Belt
” groove of the 7
” sprocket #6005-5 and the shaft locking hub of the 7
is imperative that these cap screws be removed before
” V-Belt completely from the machine.
2A
(this
belt is furnished
” step groove of the motor drive pulley #6008-1 and
#6006-2
that
connects the 12
” step idler pulley #6006*7 remains engaged on this assem
6002-8
with
the machine and is packed
” pulley #6006-1 with the sec
warning
” sprocket
operating
”
;
i
6007-9
6003-1
:
6003-1
6007-5
6003-4
'
ft
Fig. 5
6007
jJn’able Lugs
; 6007-3
v 6007-1
Page 9
Manufactured
by
THE
LOCKFORMER
711 OGDEN AVENUE . LISLE, ILLINOIS 60532
COMPANY
Loading...
