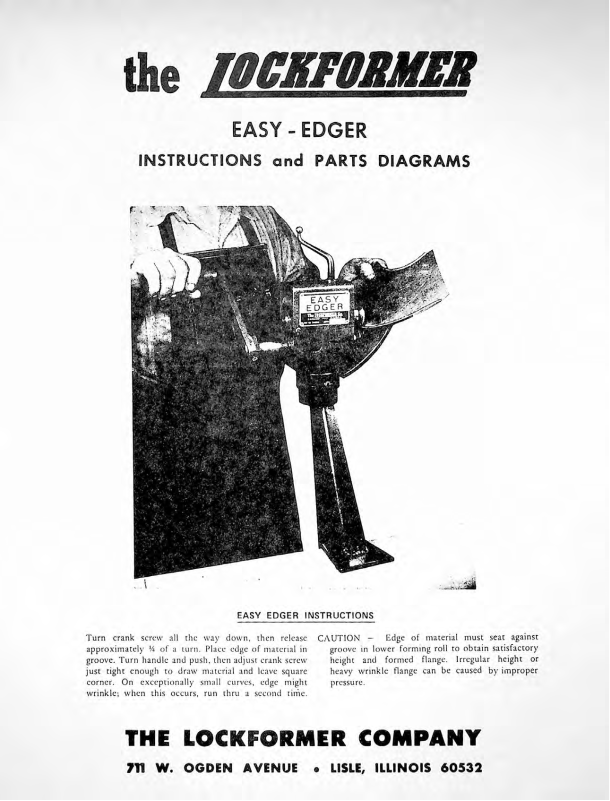

the lOCKFORMER
EASY -
EDGER
IMSTRUCTIGIN1S and PARTS DIAGRAMS
EASY EDGER INSTRUCTIONS
Turn crank screw all the way down, then release
approximately '/» of a turn. Place edge of material in
groove. Turn handle and push, then adjust crank screw
just tight enough to draw material and leave square
corner. On exceptionally small curves, edge might
wrinkle; when this occurs, run thru a second time.
THE LOCKFORMER COMPANY
7TI W. OGDEN AVENUE • LISLE, ILLINOIS 60532
CAUTION
groove in lower forming roll to obtain satisfactory
height and formed flange. Irregular height or
heavy wrinkle flange can be caused by improper
pressure.
Edge of material must seat against
Page 2
5E-116-A
SE-
c
s
SE-115-A
4 -n.
4
EES-ll
/
/
PLEASE USE NEW NUMBER
WHEN ORDERING PARTS
NEW PART OLD PART
NUMBER NUMBER
60780
50001
56500
22482
14028
60300
15003
60680
EES-8
EES-1
SE-101-A
SE-1
SE-1
SE-1 10
SE-1
SE-1
02
07
13
12
1
EASY
EDGER
’
lli'i .i Kn
PT?
(
j
c
DESCRIPTION PER UNIT
Square Head Set Screw
Easy Edger Stand
Assembly
Housing Cover Assembly
Top Bearing
16 Tooth Gear
Socket Head Cap Screw
Adjusting Handle
S.S. Set Screw
Bracket
EASY EDGER PARTS LIST
/
PIECES
1
1
1
1
2
2
1
2
SE
r
— 127
/■
r\
/
PLEASE USE NEW NUMBER
WHEN ORDERING PARTS
NEW PART OLD PART
NUMBER NUMBER
51602
51603
71020
52603
60760
66413
71152
85154
60795
SE-115-A
SE-116-A
SE-1
17
SE-1
18
SE-1 18-C
SE-121
SE-124
SE-1
26
SE-127
DESCRIPTION
Top Roll
Bottom Roll Shaft
Compression Spring
Crank Arm Assembly
Square Head Cap Screw
Bushing (Bronze)
Collar (Shaft)
Name Plate
Drive Screws
Shaft Assembly
PIECES
PER UNIT
1
1
1
1
1
4
2
1
4
