TEXIO PSW Series Programming Manual

Download

Page 1

Front cover

MULTI RANGE DC POWER SUPPLY

PSW SERIES

PROGRAMMING MANUAL

B71-0443-11

Page 2

■ About a trademark, a registered trademark

A company name and the brand name mentioned in this instruction manual are the trademark or the registered trademark of each company or group in each country and region.

■ About this instruction manual

When copying the part or all of contents of this instruction manual, seek the copyright holder. In addition, the specifications of the product and the contents of this instruction manual are subject to change without notice for improvement. Please check to our website for the latest version.

■ About firmware version

This programming manual is required firmware version 1.70 or higher.

Page 3

INDEX

Front cover ............................................................................. 1

1. Configuration Settings ....................................................... 1

1.1 Setting Configuration Settings ........................................ 1

2. REMOTE CONTROL ............................................................. 6

2.1 Interface Configuration ................................................... 6

2.1.1 USB Remote Interface ........................................................... 6

2.1.2 Configure GP-IB Interface...................................................... 6

2.1.3 Configure Ethernet Connection.............................................. 7

2.1.4 Web Server Configuration...................................................... 8

2.1.5 Sockets Server Configuration ................................................ 8

2.2 USB Remote Control Function Check .............................. 9

2.3 Web Server Remote Control Function Check ................. 10

2.4 Socket Server Function Check ................................ ...... 10

2.5 Socket Server Examples ............................................... 14

2.5.1 Examples of VBA for EXCEL ............................................... 14

2.5.2 C++ Example ....................................................................... 15

3. Command Syntax .............................................................. 16

4. Command List ................................................................... 18

4.1 Common Commands .................................................... 18

4.1.1 *CLS ..................................................................................... 18

4.1.2 *ESE ..................................................................................... 18

4.1.3 *ESR .................................................................................... 18

4.1.4 *IDN ...................................................................................... 19

4.1.5 *OPC .................................................................................... 19

4.1.6 *RST ..................................................................................... 19

4.1.7 *SRE .................................................................................... 20

4.1.8 *STB ..................................................................................... 20

4.1.9 *TRG .................................................................................... 20

4.1.10 *TST ................................................................................... 21

4.1.11 *WAI ................................................................................... 21

4.2 Abort Commands .......................................................... 21

4.2.1 ABORt .................................................................................. 21

4.3 Apply Commands .......................................................... 22

4.3.1 APPLy .................................................................................. 22

4.4 Display Commands ....................................................... 23

4.4.1 DISPlay:MENU[:NAME] ....................................................... 23

4.4.2 DISPlay[:WINDow]:TEXT:CLEar ......................................... 23

4.4.3 DISPlay[:WINDow]:TEXT[:DATA] ........................................ 23

4.4.4 DISPlay:BLINk ..................................................................... 24

4.5 Initiate Commands ........................................................ 24

Page 4

4.5.1 INITiate[:IMMediate]:NAME ................................................. 24

4.6 Measure Commands ..................................................... 25

4.6.1 MEASure[:SCALar]:CURRent[:DC] ..................................... 25

4.6.2 MEASure[:SCALar]:VOLTage[:DC] ..................................... 25

4.6.3 MEASure[:SCALar]:POWer[:DC] ......................................... 25

4.7 Output Commands ........................................................ 25

4.7.1 OUTPut:DELay:ON .............................................................. 25

4.7.2 OUTPut:DELay:OFF ............................................................ 26

4.7.3 OUTPut:MODE .................................................................... 26

4.7.4 OUTPut[:STATe][:IMMediate] .............................................. 27

4.7.5 OUTPut[:STATe]:TRIGgered ............................................... 27

4.7.6 OUTPut:PROTection:CLEar ................................................ 28

4.7.7 OUTPut:PROTection:TRIPped ............................................ 28

4.8 Sense Commands ........................................................ 28

4.8.1 SENSe:AVERage:COUNt .................................................... 28

4.9 Status Commands ........................................................ 29

4.9.1 STATus:OPERation[:EVENt] ............................................... 29

4.9.2 STATus:OPERation:CONDition ........................................... 29

4.9.3 STATus:OPERation:ENABle ............................................... 29

4.9.4 STATus:OPERation:PTRansition ........................................ 29

4.9.5 STATus:OPERation:NTRansition ........................................ 30

4.9.6 STATus:QUEStionable[:EVENt] .......................................... 30

4.9.7 STATus:QUEStionable:CONDition ...................................... 30

4.9.8 STATus:QUEStionable:ENABle........................................... 31

4.9.9 STATus:QUEStionable:PTRansition ................................... 31

4.9.10 STATus:QUEStionable:NTRansition ................................. 31

4.9.11 STATus:PRESet ................................................................ 32

4.10 Source Commands ..................................................... 32

4.10.1 [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude] ..... 32

4.10.2 [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] ...... 33

4.10.3 [SOURce:]CURRent:PROTection[:LEVel] ......................... 34

4.10.4 [SOURce:]CURRent:PROTection:STATe ......................... 34

4.10.5 [SOURce:]CURRent:SLEW:RISing ................................... 35

4.10.6 [SOURce:]CURRent:SLEW:FALLing ................................. 36

4.10.7 [SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude] .. 37

4.10.8 [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude] ..... 38

4.10.9 [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] ...... 38

4.10.10 [SOURce:]VOLTage:PROTection[:LEVel] ....................... 39

4.10.11 [SOURce:]VOLTage:SLEW:RISing ................................. 39

4.10.12 [SOURce:]VOLTage:SLEW:FALLing ............................... 40

4.11 System control setting Commands .............................. 41

4.11.1 SYSTem:BEEPer[:IMMediate] ........................................... 41

4.11.2 SYSTem:CONFigure:BEEPer[:STATe] ............................. 41

Page 5

4.11.3 SYSTem:CONFigure:BLEeder[:STATe] ............................ 42

4.11.4 SYSTem:CONFigure:BTRip[:IMMediate] .......................... 42

4.11.5 SYSTem:CONFigure:BTRip:PROTection .......................... 42

4.11.6 SYSTem:CONFigure:CURRent:CONTrol .......................... 43

4.11.7 SYSTem:CONFigure:VOLTage:CONTrol .......................... 43

4.11.8 SYSTem:CONFigure:MSLave ........................................... 44

4.11.9 SYSTem:CONFigure:OUTPut:EXTernal[:MODE] ............. 44

4.11.10 SYSTem:CONFigure:OUTPut:PON[:STATe] .................. 45

4.12 Communication system configuration Commands ........ 45

4.12.1 SYSTem:COMMunicate:ENABle ....................................... 45

4.12.2 SYSTem:COMMunicate:GPIB[:SELF]:ADDRess .............. 46

4.12.3 SYSTem:COMMunicate:LAN:IPADdress .......................... 46

4.12.4 SYSTem:COMMunicate:LAN:GATEway ........................... 46

4.12.5 SYSTem:COMMunicate:LAN:SMASk ............................... 47

4.12.6 SYSTem:COMMunicate:LAN:MAC ................................... 47

4.12.7 SYSTem:COMMunicate:LAN:DHCP ................................. 47

4.12.8 SYSTem:COMMunicate:LAN:DNS .................................... 48

4.12.9 SYSTem:COMMunicate:LAN:HOSTname ........................ 48

4.12.10 SYSTem:COMMunicate:LAN:WEB:PACTive .................. 49

4.12.11 SYSTem:COMMunicate:LAN:WEB:PASSword ............... 49

4.12.12 SYSTem:COMMunicate:USB:FRONt:STATe .................. 49

4.12.13 SYSTem:COMMunicate:USB:REAR:STATe ................... 50

4.12.14 SYSTem:COMMunicate:USB:REAR:MODE ................... 50

4.13 System Settings Commands ....................................... 51

4.13.1 SYSTem:ERRor ................................................................. 51

4.13.2 SYSTem:KEYLock:MODE ................................................. 51

4.13.3 SYSTem:KLOCk ................................................................ 51

4.13.4 SYSTem:INFormation ........................................................ 52

4.13.5 SYSTem:PRESet ............................................................... 52

4.13.6 SYSTem:VERSion ............................................................. 52

4.14 Trigger Commands ..................................................... 53

4.14.1 TRIGger:TRANsient[:IMMediate] ....................................... 53

4.14.2 TRIGger:TRANsient:SOURce............................................ 53

4.14.3 TRIGger:OUTPut[:IMMediate] ........................................... 53

4.14.4 TRIGger:OUTPut:SOURce ................................................ 54

4.14.5 Trigger Commands Examples ........................................... 54

5. Status Register Overview ................................................. 56

5.1 Introduction to the status register .................................. 56

5.2 Configuration status register ......................................... 57

5.3 Questionable Status Register Group ............................. 58

5.4 Operation Status Register Group .................................. 60

5.5 Standard Event Status Register Group .......................... 62

5.6 Status register group .................................................... 64

Page 6

5.7 Error code .................................................................... 66

6. Appendix ........................................................................... 67

6.1 PSW Default Settings ................................................... 67

6.2 Error Messages & Messages ........................................ 69

Page 7

Background

The normal configuration settings (F-01~F-61, F-88, F-89) are used to configure or view system settings. Use the following operation steps when configuring the interface settings used in the Remote Control chapter. Ensure the load is not connected. Ensure the output is off.

Note

Configuration settings F-90~F-95 cannot be edited in the Normal Function Settings. See the user manual for details. The F-89 settings can only be viewed, not set.

Steps.

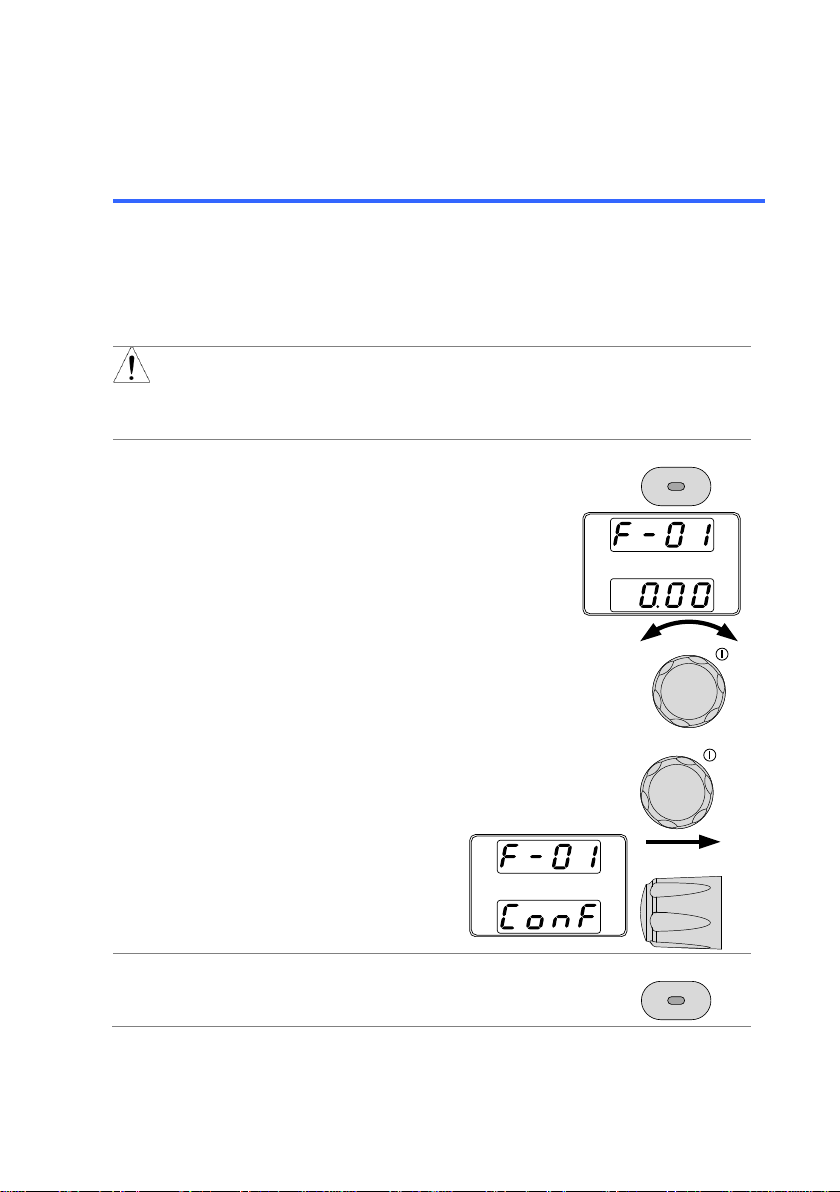

Press the Function key. The function key will light up.

Function

The display will show F-01 on the top and the configuration setting for F-01 on the bottom.

Rotate the voltage knob to change the F setting. Range F-00~ F-61, F-88, F-89

Voltage

Use the current knob to set the parameter for the chosen F setting.

Current

Press the Voltage knob to save the configuration setting. Conf will be displayed when successful.

Voltage

Exit Press the Function key again to exit the configuration settings. The function key light will turn off.

Function

1. Configuration Settings

1.1 Setting Configuration Settings

Page 8

Normal Function Settings

Setting

Setting Range Output ON delay time

F-01

0.00s~99.99s

Output OFF delay time

F-02

0.00s~99.99s

V-I mode slew rate select

F-03

0 = CV high speed priority 1 = CC high speed priority 2 = CV slew rate priority 3 = CC slew rate priority

Rising voltage slew rate

F-04

0.01V/s~60.00V/s (PSW -XX L30)

0.1V/s~160.0V/s (PSW -XX L80)

0.1V/s~320.0V/s (PSW-XX M160)

0.1V/s~500.0V/s (PSW-XXM250) 1V/s~1600V/s (PSW-XXH800)

Falling voltage slew rate

F-05

0.01V/s~60.00V/s (PSW -XX L30)

0.1V/s~160.0V/s (PSW -XX L80)

0.1V/s~320.0V/s (PSW-XX M160)

0.1V/s~500.0V/s (PSW-XXM250) 1V/s~1600V/s (PSW-XXH800)

Rising current slew rate

F-06

0.01A/s~72.00A/s (PSW-360L30)

0.1A/s~144.0A/s (PSW-720L30)

0.1A/s~216.0A/s (PSW-1080L30)

0.01A/s~27.00A/s (PSW-360L80)

0.01A/s~54.00A/s (PSW-720L80)

0.01A/s~81.00A/s (PSW-1080L80)

0.01A/s~14.40A/s (PSW-360M160)

0.01A/s~28.80A/s (PSW-720M160)

0.01A/s~43.20A/s (PSW-1080M160)

0.001A/s~9.000A/s (PSW-360M250)

0.01A/s~18.00A/s (PSW-720M250)

0.01A/s~27.00A/s (PSW-1080M250)

0.001A/s~2.880A/s (PSW-360H800)

0.001A/s~5.760A/s (PSW-720H800)

0.001A/s~8.640A/s (PSW-1080H800)

Configuration Table Please use the configuration settings listed below when applying the configuration settings.

Page 9

Falling current slew rate

F-07

0.01A/s~72.00A/s (PSW-360L30)

0.1A/s~144.0A/s (PSW-720L30)

0.1A/s~216.0A/s (PSW-1080L30)

0.01A/s~27.00A/s (PSW-360L80)

0.01A/s~54.00A/s (PSW-720L80)

0.01A/s~81.00A/s (PSW-1080L80)

0.01A/s~14.40A/s (PSW-360M160)

0.01A/s~28.80A/s (PSW-720M160)

0.01A/s~43.20A/s (PSW-1080M160)

0.001A/s~9.000A/s (PSW-360M250)

0.01A/s~18.00A/s (PSW-720M250)

0.01A/s~27.00A/s (PSW-1080M250)

0.001A/s~2.880A/s (PSW-360H800)

0.001A/s~5.760A/s (PSW-720H800)

0.001A/s~8.640A/s (PSW-1080H800)

Internal resistance setting

F-08

0.000Ω~0.833Ω (PSW-360L30)

0.000Ω~0.417Ω (PSW-720L30)

0.000Ω~0.278Ω (PSW-1080L30)

0.000Ω~5.926Ω (PSW-360L80)

0.000Ω~2.963Ω (PSW-720L80)

0.000Ω~1.975Ω (PSW-1080L80)

0.000Ω~22.222Ω (PSW-360M160)

0.000Ω~11.111Ω (PSW-720M160)

0.000Ω~7.407Ω (PSW-1080M160)

0.00Ω ~ 55.55Ω (PSW-360M250)

0.00Ω ~ 27.77Ω (PSW-720M250)

0.00Ω ~ 18.51Ω (PSW-1080M250)

0.0Ω ~ 555.5Ω (PSW-360H800)

0.0Ω ~ 277.8Ω (PSW-720H800)

0.0Ω ~ 185.1Ω (PSW-1080H800)

Bleeder circuit control

F-09

0 = OFF, 1 = ON, 2 = AUTO

Buzzer ON/OFF control

F-10

0 = OFF, 1 = ON

Measurement Average Setting

F-17

0 = Low, 1 = Middle, 2 = High

Lock Mode

F-19

0 = Panel lock: allow output off 1 = Panel lock: allow output on/off

USB/GPIB settings

Front panel USB State *

F-20

0 = Absent, 1 = Mass Storage

Rear panel USB State *

F-21

0 = Absent, 2 = USB-CDC, 3 = GPIB-USB adapter

Rear panel USB mode *

F-22

0 = Disable, 1 = GPIB-USB adapter, 2 = USB CDC, 3 = USB CDC(Full speed)

GPIB address

F-23

0~30

LAN settings

MAC Address-1 *

F-30

0x00~0xFF

Page 10

MAC Address-2 *

F-31

0x00~0xFF

MAC Address-3 *

F-32

0x00~0xFF

MAC Address-4 *

F-33

0x00~0xFF

MAC Address-5 *

F-34

0x00~0xFF

MAC Address-6 *

F-35

0x00~0xFF

LAN

F-36

0 = Disable, 1 = Enable

DHCP

F-37

0 = Disable, 1 = Enable

IP Address-1

F-39

0~255

IP Address-2

F-40

0~255

IP Address-3

F-41

0~255

IP Address-4

F-42

0~255

Subnet Mask-1

F-43

0~255

Subnet Mask-2

F-44

0~255

Subnet Mask-3

F-45

0~255

Subnet Mask-4

F-46

0~255

Gateway-1

F-47

0~255

Gateway-2

F-48

0~255

Gateway-3

F-49

0~255

Gateway-4

F-50

0~255

DNS address -1

F-51

0~255

DNS address -2

F-52

0~255

DNS address -3

F-53

0~255

DNS address -4

F-54

0~255

Sockets active

F-57

0 = Disable, 1 = Enable

Web Server active

F-59

0 = Disable, 1 = Enable

Web password active

F-60

0 = Disable, 1 = Enable

Web setting password

F-61

0000~9999

System Settings

Factory Set Value

F-88

0 = Disable 1 = Return to factory settings

Show Version

F-89

0, 1 = PSW version 2, 3 = PSW build year 4, 5 = PSW build month/day 6, 7 = Keyboard CPLD version 8, 9 = Analog-Control CPLD version A, B = Reserved C, D = Kernel build year E, F = Kernel build month/day G, H = Test command version I, J = Test command build year K, L = Test command build month/day

Page 11

Power On Configuration Settings*

CV Control

F-90

0 = Panel control (local) 1 = External voltage control 2 = External resistance control

(Ext-R 10kΩ = Vo, max)

3 =External resistance control

(Ext-R10kΩ = 0)

CC Control

F-91

0 = Panel control (local) 1 = External voltage control 2 = External resistance control

(Ext-R 10kΩ = Io,max)

3 = External resistance control

(Ext-R10kΩ = 0)

Power-ON Output

F-92

0 = OFF at startup,1 = On at startup t001 ~ t010 = run testscript t001 ~ t010

Master/Slave

F-93

0 = Master/Local 1 = Master/Parallel1 2 = Master/Parallel2 3 = Slave/Parallel 4 = Slave/Series(30V/80V/160V only)

External Out Logic

F-94

0 = High ON, 1 = Low ON

Power Switch trip

F-95

0 = Enable 1 = Disable

*Note

* Items marked with are for display only. They can not be set at normal settings. The Power On configuration settings can only be changed during power up to prevent the configuration settings being inadvertently changed.

Page 12

USB configuration

PC side connector

Type A, host

PSW side connector

Rear panel Type B, slave Speed

1.1/2.0 (full speed/high speed)

USB Class

CDC (communications device class)

Note

Before using the USB remote control, you will need to install the USB device driver(inf file) that is included on the CD accompanying accessories.

Panel operation

Connect the USB cable to the rear panel USB B port.

Press the Function key to enter the Normal configuration settings.

Set the following USB settings:

F-22 = 2

Set the rear panel USB port to USB-CDC.

F-22 = 3

Set the rear panel USB port to USB-CDC (Full speed only)

Configure GP-IB

Ensure the PSW is off before proceeding.

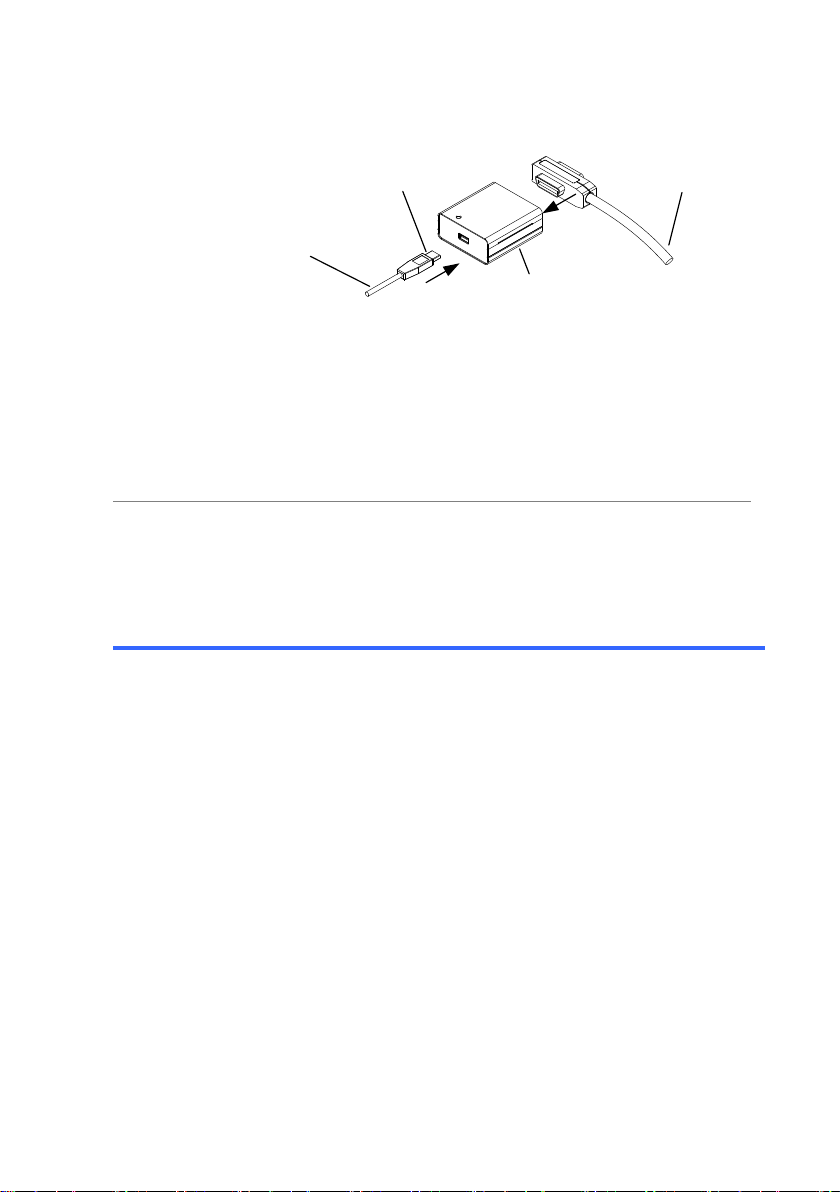

Connect the USB cable from the rear panel USB B port on the PSW to the USB A port on the GP-IB to USB adapter.

2. REMOTE CONTROL

This chapter describes basic configuration of IEEE488.2 based remote control.

2.1 Interface Configuration

2.1.1 USB Remote Interface

2.1.2 Configure GP-IB Interface

To use GP-IB, the optional GP-IB to USB (GUG-001) adapter must be used. The GP-IB to USB adapter must be connected before the PSW is turned on. Only one GP-IB address can be used at a time.

Page 13

Connect a GP-IB cable from a GP-IB controller to the GP-IB port on the adapter.

Type B plug for PSW series

Type A plug

From

computer

GUG-001

Turn the PSW on.

Press the Function key to enter the Normal configuration settings. Set the following GP-IB settings:

F-22 = 1

Set the rear panel USB port to GPIB-USB (GUG-001)

F-23 = 0~30

Set the GP-IB address (0~30/Default: 8)

GP-IB constraints

Maximum 15 devices altogether, 20m cable length, 2m between each device Unique address assigned to each device At least 2/3 of the devices turned On No loop or parallel connection

Ethernet configuration Parameters MAC Address (display only)

LAN DHCP

IP Address

Subnet Mask

Gateway

DNS Address

Sockets Active

Web Server Active

Web Password Active

Web set password Port number : 2268(Fixed)

0000～9999(default 0000)

2.1.3 Configure Ethernet Connection

The Ethernet interface can be configured for a number of different applications. Ethernet can be configured for basic remote control or monitoring using a web server or it can be configured as a socket server. The PSW series supports both DHCP connections so the instrument can be automatically connected to an existing network or alternatively, network settings can be manually configured.

Page 14

Configuration

This configuration example will configure the PSW as a web server and use DHCP to automatically assign an IP address to the PSW.

1.Connect an Ethernet cable from the network to the rear panel Ethernet port.

LAN

2. Press the Function key to enter the Normal configuration settings.

Set the following LAN settings:

F-36 = 1

Enable LAN

F-37 = 1

Turn DHCP to enable

F-59 = 1

Turn the web server on

Note

It may be necessary to cycle the power or refresh the web browser to connect to a network.

Configuration

This configuration example will configure the PSW for web sockets control. The following configuration settings will manually assign the PSW an IP address and enable web sockets. By default, the socket port number is 2268 and cannot be configured.

1. Connect an Ethernet cable from the network to the rear panel Ethernet port.

LAN

2. Press the Function key to enter the Normal configuration settings.

3. Set the following LAN settings:

F-36 = 1

Enable LAN

F-37 = 0

Disable DHCP

F-39 = 172

IP Address part 1 of 4

F-40 = 16

IP Address part 2 of 4

F-41 = 5

IP Address part 3 of 4

F-42 = 133

IP Address part 4 of 4

F-43 = 255

Subnet Mask part 1 of 4

F-44 = 255

Subnet Mask part 2 of 4

F-45 = 128

Subnet Mask part 3 of 4

F-46 = 0

Subnet Mask part 4 of 4

F-43 = 172

Gateway part 1 of 4

F-44 = 16

Gateway part 2 of 4

F-45 = 21

Gateway part 3 of 4

2.1.4 Web Server Configuration

2.1.5 Sockets Server Configuration

Page 15

F-46 = 101

Gateway part 4 of 4

F-57 = 1

Enable Sockets

Note

The socket function is only available for firmware version V1.12 or above. See the user manual to check your firmware version number.

Functionality check

Install a driver(TEXIO_CDC.inf) from Manual CD. The USB device driver of psw is more downloadable than our homepage . When USB connects psw to a computer for the first time, installation of the USB device driver is required.

Please perform the installation from the Device Manager if a computer can’t recognize psw. Control Panel – All Control Panel Items – Device Manager – Other Device – PSW (Right click)

– Update driver Software

Please prepare the Terminal application(Such as PuTTY or RealTerm). Serial communication settings are as follows.

Baud rate

: 9600bps

Data length

: 8bit

Parity bit

: None

Stop bits

: 1bit

Flow control

: None

Run this query command via the terminal after the instrument has been configured for USB remote control. *idn? This should return the Manufacturer, Model number, Serial number, and Firmware version in the following format. TEXIO,xxxxxxxxxx,TW123456,01.00.20110101 Manufacturer :TEXIO Model number :xxxxxxxxxxx Serial number :TW123456 Firmware version :01.00.20110101

Termination character of commands and queries use the ^j(LF:Line Feed).

2.2 USB Remote Control Function Check

Page 16

Functionality check

Enter the IP address of the power supply in a web browser after the instrument has been configured as a web server

http:// XXX.XXX.XXX.XXX The web browser interface appears.

Background

To test the socket server functionality, National Instruments Measurement and Automation Explorer can be used. This program is available on the NI website, www.ni.com.

Requirements

PSW Firmware: V1.12 Operating System: Windows XP, 7, 8

Functionality check

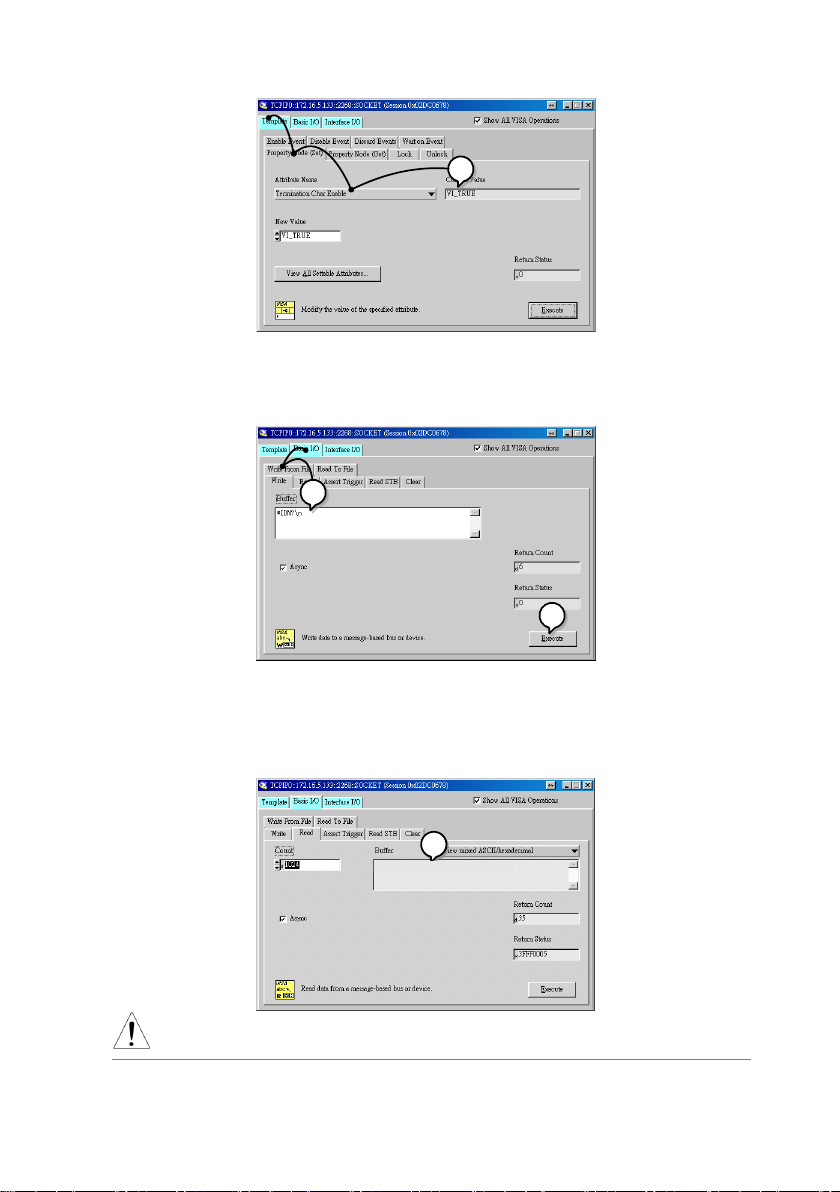

1. Start the NI Measurement and Automation Explorer (NI-MAX) program. Using Windows, press: Start ->All Programs ->National Instruments

->Measurement & Automation

Display and operated by a version of NI-MAX is different.Please operate in accordance with the version you are using.

2. From the Configuration panel access; My System ->Devices and Interfaces

->Network Devices

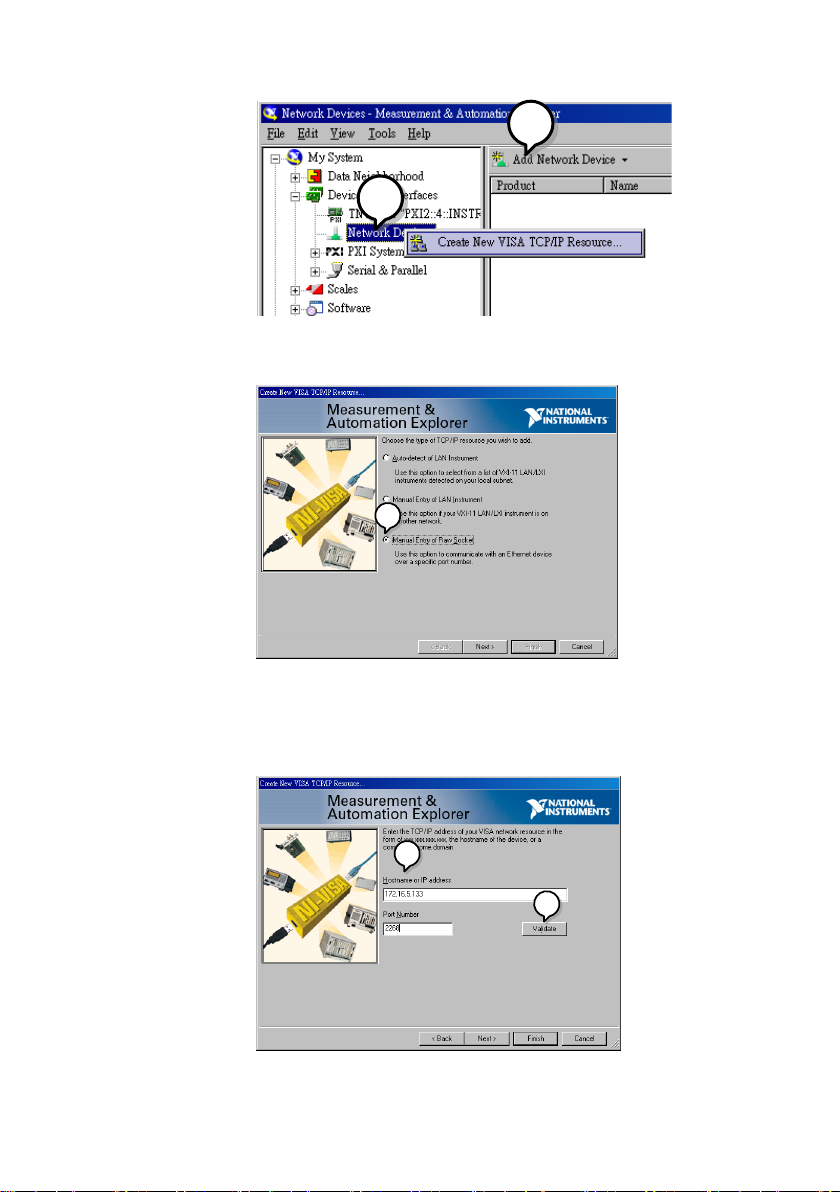

3. Press Add New Network Device->Visa TCP/IP

Resource....

2.3 Web Server Remote Control Function Check

2.4 Socket Server Function Check

Page 17

4. Select Manual Entry of Raw Socket from the popup window.

5. Enter the IP address and the port number of the PSW. The port number is fixed at 2268.

6. Double click the Validate button.

Page 18

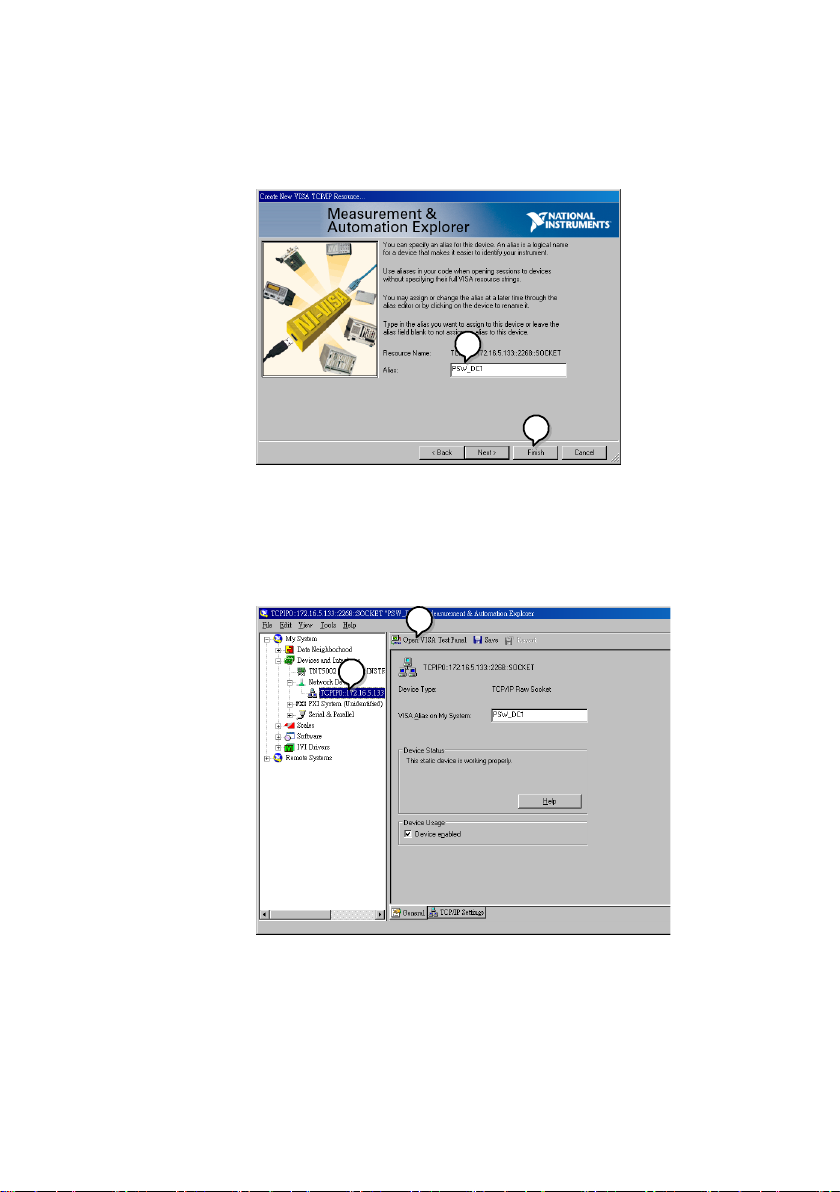

7. Next configure the Alias (name) of the PSW connection. In this example the Alias is:PSW_DC1

8. Click finish.

9. The IP address of the PSW will now appear under Network Devices in the configuration panel. Select this icon now.

10. Press Open VISA Test Panel.

11. Under the Template -> Property Node tabs, set Termination Char Enable from the Attribute Name list to VI_TRUE.

Page 19

12. Under the Basic I/O ->Write tabs, Enter the *IDN? query into the Buffer, if it is not already there.

13. Click the Execute button.

14. In the Basic I/O -> Read tabs, the return parameter for the *IDN? query should be returned to the buffer area: TEXIO,PSWxxxx,xxxxxxxxxx,,T1.12.20111013

TEXIO,PSW-360L30,,1. 1220111013

Note

For further details, please see the following programming examples.

Page 20

Background

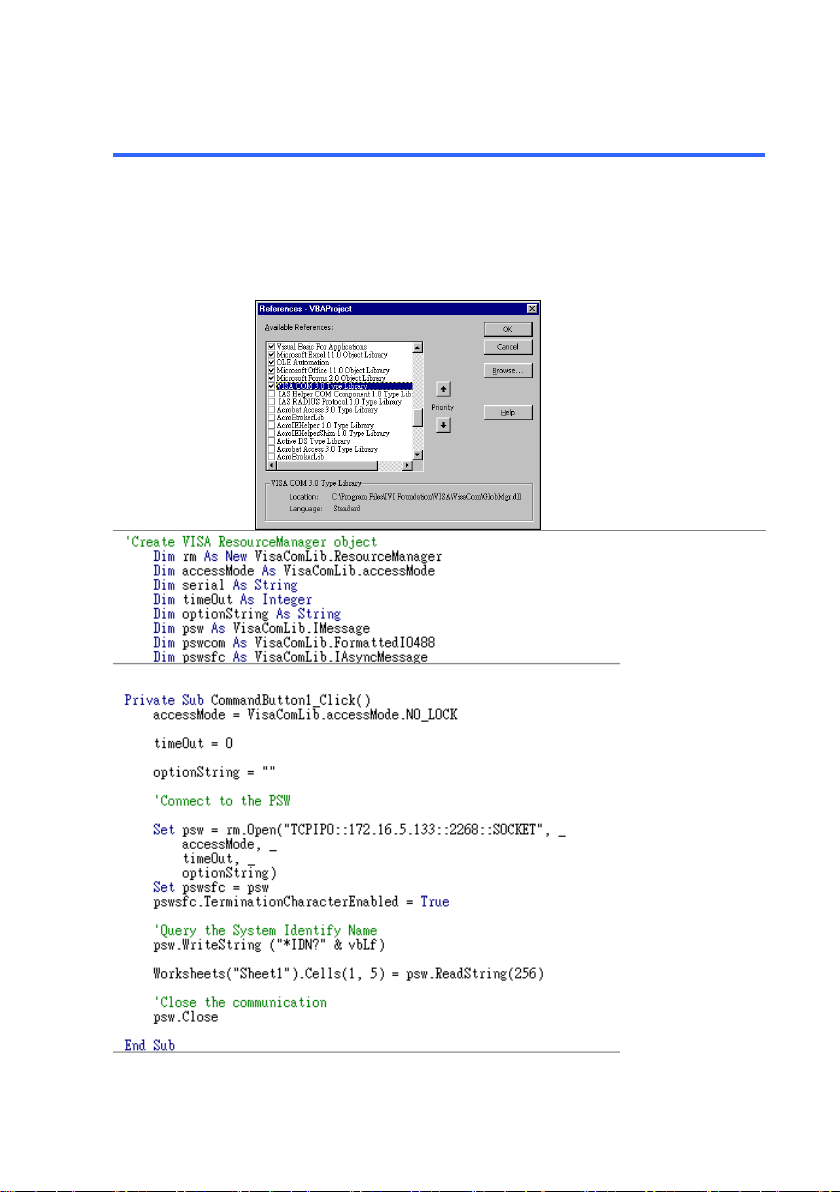

The following visual basic programming example uses the VISA COM 3.0 Type Library. The example will connect to the PSW using the IP address of 172.15.5.133 over port 2268. The program will send the *IDN? to the PSW, print the return string and then close the connection.

2.5 Socket Server Examples

2.5.1 Examples of VBA for EXCEL

Page 21

Background

The following program creates a connection to the PSW and sets the voltage to 3.3 volts and the current 1.5 amps. The voltage and current reading is then read back and the connection is closed.

Note

Add visa32.lib to the project library when building the following sample program.

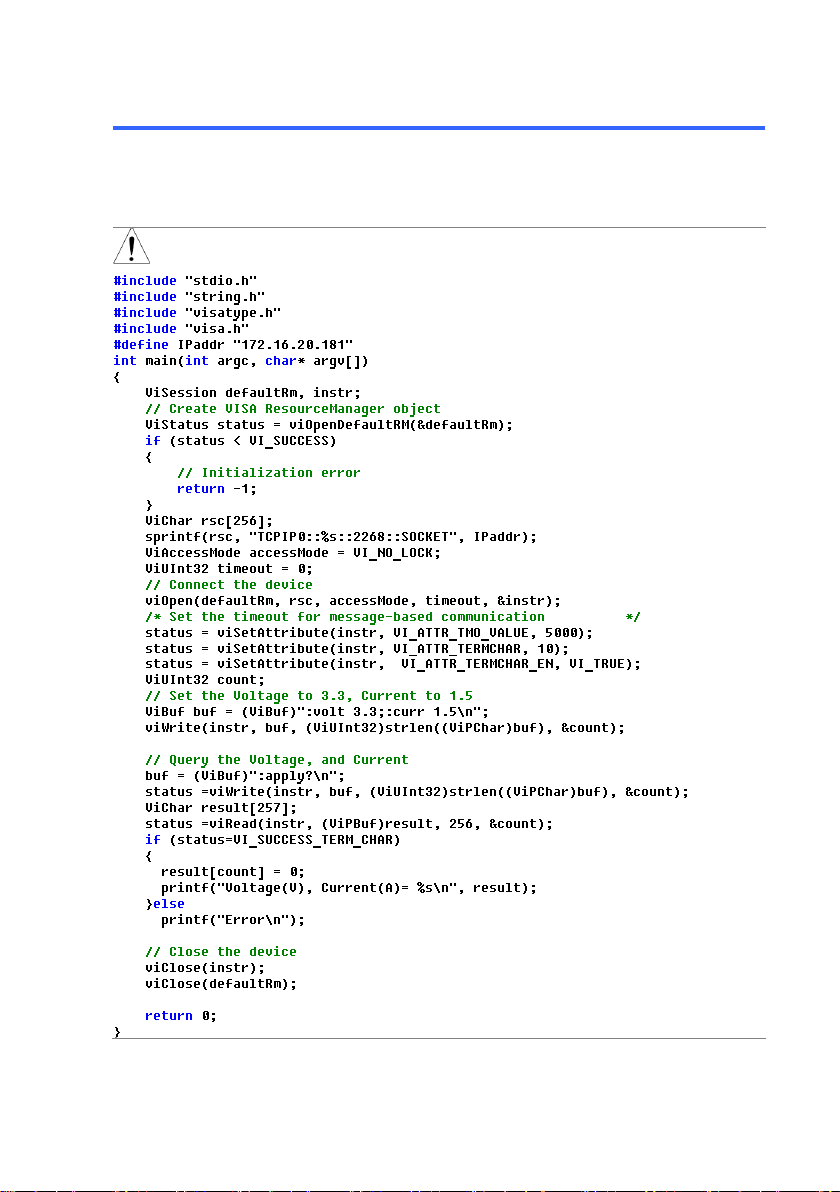

2.5.2 C++ Example

Page 22

Compatible Standard

IEEE488.2

Partial compatibility

SCPI 1999

Partial compatibility

Command Structure

SCPI commands follow a tree-like structure, organized into nodes. Each level of the command tree is a node. Each keyword in a SCPI command represents each node in the command tree. Each keyword (node) of a SCPI command is separated by a colon (:).

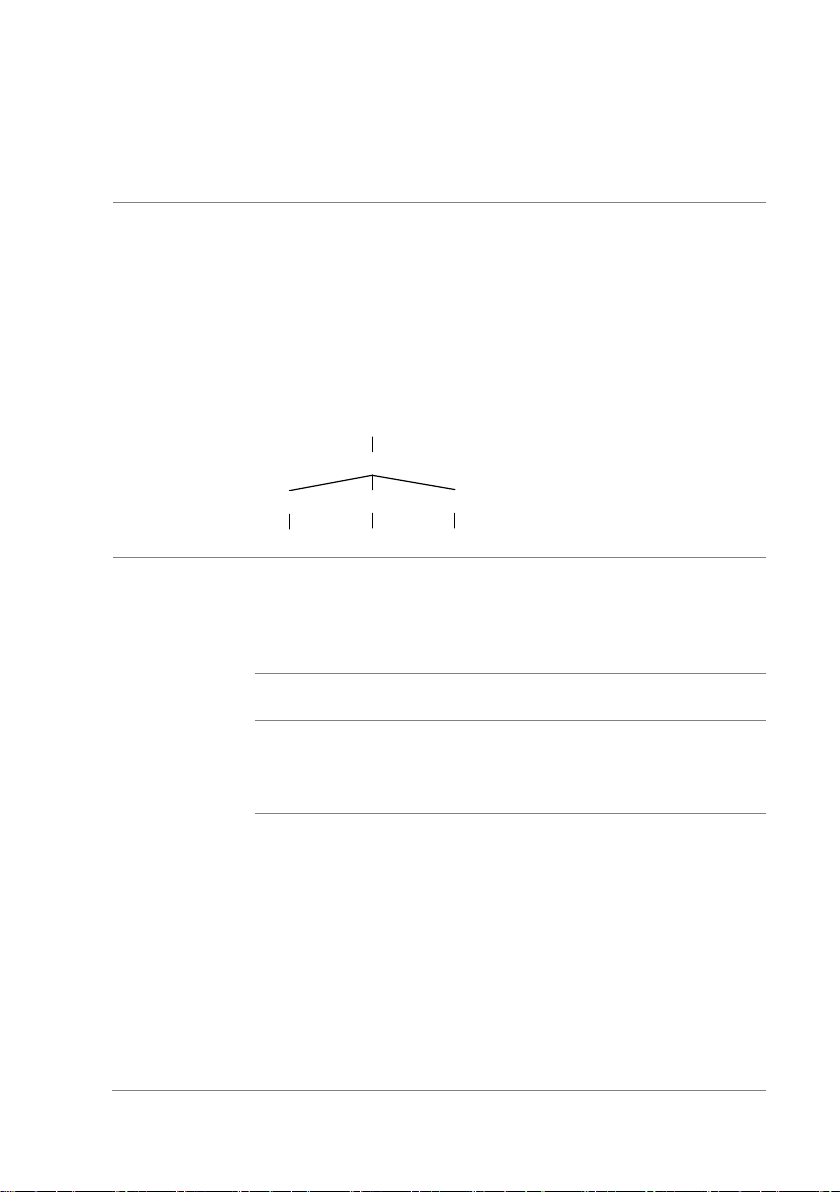

For example, the diagram below shows an SCPI sub-structure and a command example.

MEASure

SCALar

POWer

VOLTage

CURRent

MEASure:SCALar:CURRent:DC?

Command types

There are a number of different instrument commands and queries. A command sends instructions or data to the unit and a query receives data or status information from the unit.

Command types

Simple

A single command with/without a parameter

Example

*IDN?

Query

A query is a simple or compound command followed by a question mark (?). A parameter (data) is returned.

Example

meas:curr:dc?

Compound

Two or more commands on the same command line. Compound commands are separated with either a semi-colon (;) or a semi-colon and a colon (;:). A semi-colon is used to join two related commands, with the caveat that the last command must begin at the last node of the first command. A semi-colon and colon are used to combine two commands from different nodes.

Example

meas:volt:dc?;:meas:curr:dc?

3. Command Syntax

Page 23

Command Forms

Commands and queries have two different forms, long and short. The command syntax is written with the short form of the command in capitals and the remainder (long form) in lower case. The commands can be written in capitals or lower-case, just so long as the short or long forms are complete. An incomplete command will not be recognized. Below are examples of correctly written commands.

Long form

STATus:OPERation:NTRansition? STATUS:OPERATION:NTRANSITION? status:operation:ntransition?

Short form

STAT:OPER:NTR? stat:oper:ntr?

Square Brackets

Commands that contain square brackets indicate that the contents are optional. The function of the command is the same with or without the square bracketed items, as shown below. Both "DISPlay:MENU[:NAME]?" and "DISPlay:MENU?" are both valid forms.

Command Format

1.5,5.2

1 2 3 4 5

APPLY

1. Command header

2. Space

3. Parameter 1

4. Comma (no space before/after comma)

5. Parameter 2

Parameters

Type

Description

Example

Boolean logic

0, 1

<NR1>

integers

0, 1, 2, 3

<NR2>

decimal numbers

0.1, 3.14, 8.5

<NR3>

floating point

4.5e-1, 8.25e+1

<NRf>

any of NR1, 2, 3

1, 1.5, 4.5e-1

Sets the eight characters of 20H ~ 7EH of ASCII characters. Must be enclosed in quotation marks (") string.

Definitive length arbitrary block data. A single decimal digit followed by data. The decimal digit specifies how many 8-bit data bytes follow.

Message Terminator

Line feed code

Page 24

4.1.1 *CLS

Set

Description

The *CLS command clears the Standard Event Status, Operation Status and Questionable Status registers. The corresponding Enable registers in each of the above registers are not cleared. If a <NL> newline code immediately precedes a *CLS command, the Error Que and the MAV bit in the Status Byte Register is also cleared.

Syntax

*CLS

Example

*CLS Clear the event status register of Standard register and Operation register and Questionable register.

4.1.2 *ESE

Set

Query

Description

Sets or queries the Standard Event Status Enable register.

Syntax

*ESE <NR1>

Query Syntax

*ESE?

Parameter

<NR1>

0~255

Example

*ESE 255 Sets the Standard Event Status Enable register.

Query example

*ESE? >255 Return the setting value of the Standard Event Status Enable register.

4.1.3 *ESR

Query

Description

Queries the Standard Event Status (Event) register. The Event Status register is cleared after it is read.

Query Syntax

*ESR?

Return parameter

<NR1>

0~255

Query example

*ESR? >255 Return the value of Standard Event Status register.

4. Command List

4.1 Common Commands

Page 25

4.1.4 *IDN

Query

Description

Queries the manufacturer, model name, serial number, and firmware version of the PSW.

Query Syntax

*IDN?

Return parameter

Returns the instrument identification as a string in the following format:

Manufacturer:TEXIO

Model number : PSWxxxxxxx

Serial number :TW123456

Firmware version : 01.00.20110101

Query example

*IDN? > TEXIO,PSWxxxxxxx,TW123456,01.00.20110101 Return the device information.

4.1.5 *OPC

Set

Query

Description

The *OPC command sets the OPC bit (bit0) of the Standard Event Status Register when all current commands have been processed. The *OPC? Query returns 1 when all the outstanding commands have completed.

Syntax

*OPC

Query Syntax

*OPC?

Return parameter

Returns 1 when all the outstanding commands have completed.

Example

OPC Sets the OPC command.

Query example

OPC? >1 Returns 1 when all the outstanding commands have completed.

4.1.6 *RST

Set

Description

Performs a device reset. Configures the unit to a known configuration (default settings). This known configuration is independent of the usage history.

Syntax

*RST

Example

RST Run a reset of the device.

Page 26

4.1.7 *SRE

Set

Query

Description

Sets or queries the Service Request Enable register. The Service Request Enable register determines which registers of the Status Byte register are able to generate service requests.

Syntax

*SRE <NR1>

Query Syntax

*SRE?

parameter

<NR1>

0~255

Example

SRE 32 Sets the service request enable register.

Query example

SRE? >32 Return the settings of the service request enable register.

4.1.8 *STB

Query

Description

Queries the bit sum of the Status Byte register with MSS (Master summary Status).

Query Syntax

*STB?

Return parameter

<NR1>

0~255

Query example

SRE? >4 Returns the bit sum of the Status Byte register with the MSS bit (bit 6).

4.1.9 *TRG

Set

Description

The *TRG command is able to generate a “get”(Group Execute Trigger). If the PSW cannot accept a trigger at the time of the command, an error message is generated (-211, “Trigger ignored”).

Syntax

*TRG

Example

*TRG Sets the trigger.

Page 27

4.1.10 *TST

Query

Description

Executes a self test.

Query Syntax

*TST?

Return parameter

<NR1>

Returns the code of self-test. (No error = 0)

Query example

TST? >0 Returns an error code if there is an error.

4.1.11 *WAI

Set

Description

Prevents any other commands or queries from being executed until all outstanding commands have completed.

Syntax

*WAI

Example

WAI Run the process the WAI commands.

4.2.1 ABORt

Set

Description

The ABORt command will cancel any triggered actions.

Syntax

ABORt

Example

ABOR Cancel trigger action.

4.2 Abort Commands

Page 28

4.3.1 APPLy

Set

Query

Description

The APPLy command is used to set both the voltage and current. The voltage and current will be output as soon as the function is executed if the programmed values are within the accepted range. An execution error will occur if the programmed values are not within accepted ranges. The Apply command will set the voltage/current values but these values will not be reflected on the display until the Output is On or if the DISPlay:MENU:NAME 3 (set menu) command is used.

Syntax

APPLy {<voltage>|MINimum | MAXimum}[,{<current>|MINimum | MAXimum}]

Query Syntax

APPLy?

Parameter

<NRf> 0% ~ 105% of the rated output voltage.

<NRf> 0% ~ 105% of the rated output current.

MINimum

0 volts/0 amps

MAXimum

Maximum value for the present range.

Return parameter

<NR2>

Return value of the voltage. <NR2>

Return value of the current.

Example1

APPL 5.05,1.1 Sets to 1.1A current to 5.05V voltage.

Example2

APPL 3.5 Sets to 3.5V voltage only.

Query example

APPL? >+5.050, +1.100 Returns a value of setting current (1.1A) and voltage(5.05V) .

4.3 Apply Commands

Page 29

4.4.1 DISPlay:MENU[:NAME]

Set

Query

Description

The DISPlay MENU command selects a screen menu or queries the current screen menu.

Syntax

DISPlay:MENU[:NAME] <NR1>

Query Syntax

DISPlay:MENU[:NAME]?

Parameter

Measurement-Voltage / Current

1 Measurement-Voltage / Power

2 Measurement-Power / Current

3 Set Menu(Voltage/Current)

4 OVP / OCP Menu

5~99

Not Used.

100~199

F-00~99 Menu.

Example

DISP:MENU 0 Sets the display to the Voltage/Current display screen.

Query example

DISP:MENU? >0 Return the code of the display state. (0= Measurement-Voltage / Current)

4.4.2 DISPlay[:WINDow]:TEXT:CLEar

Set

Description

Clears the text on the main screen.

Syntax

DISPlay[:WINDow]:TEXT:CLEar

Example

DISP:TEXT:CLE Clears the text on the main screen.

4.4.3 DISPlay[:WINDow]:TEXT[:DATA]

Set

Query

Description

Sets or queries the data text that will be written to the display. Writing to the display will overwrite data that is currently on the screen. Overwriting a display area with a shorter string may or may not overwrite the screen. The string must be enclosed in quotes: “STRING”. Only ASCII characters 20H to 7EH can be used in the <string>.

Syntax

DISPlay[:WINDow]:TEXT[:DATA] “<string>”

Query Syntax

DISPlay[:WINDow]:TEXT[:DATA]?

4.4 Display Commands

Page 30

Parameter

“<string>”

Sets the eight characters of 20H ~ 7EH of ASCII characters. Must be enclosed in quotation marks (") string.

Return parameter

“<string>”

Return a text string enclosed in quotation marks (").

Example

DISP:TEXT “ABCD” Sets the screen the text data of "ABCD".

Query example

DISP:TEXT? >“ABCD” Return a string of text data displayed.

4.4.4 DISPlay:BLINk

Set

Query

Description

Turns blink on or off for the display.

Syntax

DISPlay:BLINk { <Boolean> | OFF | ON }

Query Syntax

DISPlay:BLINk?

Parameter

0 / OFF

Turns blink OFF

1 / ON

Turns blink ON

Return parameter

Return the status of the blink display.

Example

DISP:BLIN 1 Turns blink ON.

Query example

DISP:BLIN? >0 Return the status of the blink display.

4.5.1 INITiate[:IMMediate]:NAME

Set

Description

The INITiate command starts the TRANsient or OUTPut trigger.

Syntax

INITiate[:IMMediate]:NAME {TRANsient|OUTPut}

Parameter TRANsient

Starts the TRANsient trigger.

OUTPut

Starts the OUTPut trigger.

Example

INIT:NAME TRAN Starts the Transient trigger.

4.5 Initiate Commands

Page 31

4.6.1 MEASure[:SCALar]:CURRent[:DC]

Query

Description

Takes a measurement and returns the average output current.

Query Syntax

MEASure[:SCALar]:CURRent[:DC]?

Return parameter

<NR2>

Returns the current in amps.

Query example

MEAS:CURR? >+1.000 Return the average output current.

4.6.2 MEASure[:SCALar]:VOLTage[:DC]

Query

Description

Takes a measurement and returns the average output voltage.

Query Syntax

MEASure[:SCALar]:VOLTage[:DC]?

Return parameter

<NR2>

Returns the voltage in volts.

Query example

MEAS:VOLT? >+5.000 Return the average output voltage.

4.6.3 MEASure[:SCALar]:POWer[:DC]

Query

Description

Takes a measurement and returns the average output power.

Query Syntax

MEASure[:SCALar]:POWer[:DC]?

Return parameter

<NR2>

Returns the power measured in watts.

Query example

MEAS:POW? >+10 Return the average output power.

4.7.1 OUTPut:DELay:ON

Set

Query

Description

Sets the Delay Time in seconds for turning the output on. The delay is set to 0.00 by default.

Syntax

OUTPut:DELay:ON <NRf>

Query Syntax

OUTPut:DELay:ON?

Parameter

<NRf>

0.00~99.99 seconds, where 0=no delay.

4.6 Measure Commands

4.7 Output Commands

Page 32

Return parameter

<NR2>

Returns the delay on time in seconds until the output is turned on.

Example

OUTP:DEL:ON 1 Sets 1 second to the Delay Time for turning the output on.

Query example

OUTP:DEL:ON? >+10.000 Returns the delay on time in seconds until the output is turned on.

4.7.2 OUTPut:DELay:OFF

Set

Query

Description

Sets the Delay Time in seconds for turning the output off. The delay is set to 0.00 by default.

Syntax

OUTPut:DELay:OFF <NRf>

Query Syntax

OUTPut:DELay:OFF?

Parameter

<NRf>

0.00~99.99 seconds, where 0=no delay.

Return parameter

<NR2>

Returns the delay on time in seconds until the output is turned off.

Example

OUTP:DEL:OFF 1 Sets 1 second to the Delay Time for turning the output off.

Query example

OUTP:DEL:OFF? >+10.000 Returns the delay on time in seconds until the output is turned off.

4.7.3 OUTPut:MODE

Set

Query

Description

Sets the PSW output mode. This is the equivalent to the F-03 (V-I Mode Slew Rate Select) settings.

Syntax

OUTPut:MODE {<NR1>|CVHS|CCHS|CVLS|CCLS}

Query Syntax

OUTPut:MODE?

Parameter

0 / CVHS

CV high speed priority

1 / CCHS

CC high speed priority

2 / CVLS

CV slew rate priority

3 / CCLS

CCV slew rate priority

Return parameter

<NR1>

Returns the output mode.

Example

OUTP:MODE CVHS Sets the output mode.

Page 33

Query example

OUTP:MODE? >0 Returns the output mode.

4.7.4 OUTPut[:STATe][:IMMediate]

Set

Query

Description

Turns the output on or off.

Syntax

OUTPut[:STATe][:IMMediate] { <Boolean> | OFF | ON }

Query Syntax

OUTPut[:STATe][:IMMediate]?

Parameter

0 / OFF

Turns the output off.

1 / ON

Turns the output on.

Return parameter

<NR1>

Returns output status of the instrument.

Example

OUTP ON Sets output status of the instrument.

Query example

OUTP? >1 Returns output status of the instrument.

4.7.5 OUTPut[:STATe]:TRIGgered

Set

Query

Description

Turns the output on or off when a software trigger is generated.

Syntax

OUTPut[:STATe]:TRIGgered { <Boolean> | OFF | ON }

Query Syntax

OUTPut[:STATe]:TRIGgered?

Parameter

0 / OFF

Turns the output off when a software trigger is generated.

1 / ON

Turns the output on when a software trigger is generated.

Return parameter

<NR1>

Returns output trigger status of the instrument.

Example

OUTP:TRIG ON Sets output trigger status of the instrument.

Query example

OUTP:TRIG? >1 Returns output trigger status of the instrument.

Page 34

4.7.6 OUTPut:PROTection:CLEar

Set

Description

Clears over-voltage, over-current and over-temperature (OVP, OCP, OTP) protection circuits. It also clears the shutdown protection circuit. The AC failure protection cannot be cleared.

Syntax

OUTPut:PROTection:CLEar

Example

OUTP:PROT:CLE Clears the protection circuit.

4.7.7 OUTPut:PROTection:TRIPped

Query

Description

Returns the state of the protection circuits (OVP, OCP, OTP).

Query Syntax

OUTPut:PROTection:TRIPped?

Return parameter

Protection circuits are not tripped. 1 Protection circuits are tripped.

Query example

OUTP:PROT:TRIP? >0 Return the state of protection circuit.

4.8.1 SENSe:AVERage:COUNt

Set

Query

Description

Determines the level of smoothing for the average setting. This is the equivalent to the F-17 function setting.

Syntax

SENSe:AVERage:COUNt {<NR1>| LOW | MIDDle | HIGH}

Query Syntax

SENSe:AVERage:COUNt?

Parameter

0 / LOW

Low level of smoothing.

1 / MIDDle

Middle level of smoothing.

2 / HIGH

High level of smoothing.

Return parameter

<NR1> 0 1 2

Returns the level of smoothing. Low level of smoothing. Middle level of smoothing. High level of smoothing.

Example

SENSe:AVERage:COUNt 1 Sets the level of smoothing to middle.

Query example

SENS:AVER:COUN? >0 Return the state of smoothing for the average setting.

4.8 Sense Commands

Page 35

4.9.1 STATus:OPERation[:EVENt]

Query

Description

Queries the Operation Status Event register and clears the contents of the register.

Query Syntax

STATus:OPERation[:EVENt]?

Return parameter

<NR1>

Returns the bit sum of the Operation Status Event register.

Query example

STAT:OPER? >0 Return the value of the Operation Status Event register.

4.9.2 STATus:OPERation:CONDition

Query

Description

Queries the Operation Condition register. This query will not clear the register.

Query Syntax

STATus:OPERation:CONDition?

Return parameter

<NR1>

Returns the bit sum of the Operation Condition register.

Query example

STAT:OPER:COND? >0 Return the value of the Operation Condition register.

4.9.3 STATus:OPERation:ENABle

Set

Query

Description

Sets or queries the bit sum of the Operation Status Enable register.

Syntax

STATus:OPERation:ENABle <NRf>

Query Syntax

STATus:OPERation:ENABle?

Parameter

<NR1>

0~32767

Example

STAT:OPER:ENAB 1 Sets the Operation Status Enable register.

Query example

STAT:OPER:ENAB? >1 Return the value of the Operation Status Enable register.

4.9.4 STATus:OPERation:PTRansition

Set

Query

Description

Sets or queries the bit sum of the positive transition filter of the Operation Status register.

Syntax

STATus:OPERation:PTRansition <NRf>

4.9 Status Commands

Page 36

Query Syntax

STATus:OPERation:PTRansition?

Parameter

<NR1>

0~32767

Example

STAT:OPER:PTR 1 Sets the positive transition filter of the Operation Status register.

Query example

STAT:OPER:PTR? >1 Return the value of the positive transition filter of the Operation Status register.

4.9.5 STATus:OPERation:NTRansition

Set

Query

Description

Sets or queries the bit sum of the negative transition filter of the Operation Status register.

Syntax

STATus:OPERation:NTRansition <NRf>

Query Syntax

STATus:OPERation:NTRansition?

Parameter

<NR1>

0~32767

Example

STAT:OPER:NTR 1 Sets the negative transition filter of the Operation Status register.

Query example

STAT:OPER:NTR? >1 Return the value of the negative transition filter of the Operation Status register.

4.9.6 STATus:QUEStionable[:EVENt]

Query

Description

Queries the bit sum of the Questionable Status Event register. This query will also clear the contents of the register.

Query Syntax

STATus:QUEStionable[:EVENt]?

Return parameter

<NR1>

Returns the bit sum of the Questionable Status Event register.

Query example

STAT:QUES? >0 Return the value of the Questionable Status Event register.

4.9.7 STATus:QUEStionable:CONDition

Query

Description

Queries the Questionable Condition register. This query will not clear the register.

Page 37

Query Syntax

STATus:QUEStionable:CONDition?

Return parameter

<NR1>

Returns the bit sum of the Questionable Condition register.

Query example

STAT:QUES:COND? >0 Return the value of the Questionable Condition register.

4.9.8 STATus:QUEStionable:ENABle

Set

Query

Description

Sets or queries the bit sum of the Questionable Status Enable register.

Syntax

STATus:QUEStionable:ENABle <NRf>

Query Syntax

STATus:QUEStionable:ENABle?

Parameter

<NR1>

0~32767

Example

STAT:QUES:ENAB 1 Sets the Questionable Status Enable register.

Query example

STAT:QUES:ENAB? >1 Return the value of the Questionable Status Enable register.

4.9.9 STATus:QUEStionable:PTRansition

Set

Query

Description

Sets or queries the bit sum of the positive transition filter of the Questionable Status register.

Syntax

STATus:QUEStionable:PTRansition <NRf>

Query Syntax

STATus:QUEStionable:PTRansition?

Parameter

<NR1>

0~32767

Example

STAT:QUES:PTR 1 Sets the positive transition filter of the Questionable Status register.

Query example

STATQUES:PTR? >1 Return the value of the positive transition filter of the Questionable Status register.

4.9.10 STATus:QUEStionable:NTRansition

Set

Query

Description

Sets or queries the bit sum of the negative transition filter of the Questionable Status register.

Syntax

STATus:QUEStionable:NTRansition <NRf>

Query Syntax

STATus:QUEStionable:NTRansition?

Page 38

Parameter

<NR1>

0~32767

Example

STAT:QUES:NTR 1 Sets the negative transition filter of the Questionable Status register.

Query example

STAT:QUES:NTR? >1 Return the value of the negative transition filter of the Questionable Status register.

4.9.11 STATus:PRESet

Set

Description

This command resets the ENABle register, the PTRansistion filter and NTRansistion filter on the Operation Status and Questionable Status Registers. The registers/filters will be reset to a default value.

Default Register/Filter Values

Setting

QUEStionable Status Enable

0x0000

QUEStionable Status Positive Transition

0x7FFF

QUEStionable Status Negative Transition

0x0000

Operation Status Enable

0x0000

Operation Status Positive Transition

0x7FFF

Operation Status Negative Transition

0x0000

Summary: The Questionable Status Enable registers and the Operation Status Enable registers are both reset to 0. The Questionable Status and Operation Status Positive Transition filters are all set high (0x7FFF) and the Negative Transition filters are all set low (0x0000). I.e., only positive transitions will be recognized for the Questionable Status and Operation Status registers.

Syntax

STATus:PRESet

Example

STAT:PRES Sets the initial value to Questionable status and Operation status.

4.10.1 [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]

Set

Query

Description

Sets or queries the current level in amps. For externally set current levels (from the analog control connector) the set current level is returned.

4.10 Source Commands

Page 39

Syntax

[SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude] {<NRf>|MINimum | MAXimum}

Query Syntax

[SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]? [MINimum | MAXimum]

Parameter

<NRf>

0%~105% of the rated current output level.

MINimum

Minimum current level.

MAXimum

Maximum current level.

Return parameter

<NR2>

Return the level of the output current.

Example

CURR 5 Sets the output current level.

Query example1

CURR? >+5.120 Return the setting level of the output current.

Query example2

CURR? MAX >+37.800 Return the maximum setting level of the output current.

4.10.2 [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude]

Set

Query

Description

Sets or queries the current level in amps when a software trigger has been generated.

Syntax

[SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] {<NRf>|MINimum | MAXimum}

Query Syntax

[SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude]? [MINimum | MAXimum]

Parameter

<NRf>

0%~105% of the rated current output in amps.

MINimum

Minimum current level.

MAXimum

Maximum current level.

Return parameter

<NR2>

Return the level of the output current of software trigger.

Example

CURR:TRIG 15 Sets the output current level of software trigger.

Query example1

CURR:TRIG? >+15.000 Return the setting level of the output current of software trigger.

Query example2

CURR:TRIG? MAX >+37.800 Return the maximum setting level of the output current of software trigger.

Page 40

4.10.3 [SOURce:]CURRent:PROTection[:LEVel]

Set

Query

Description

Sets or queries the OCP (over-current protection) level in amps.

Syntax

[SOURce:]CURRent:PROTection[:LEVel] {<NRf>|MINimum | MAXimum}

Query Syntax

[SOURce:]CURRent:PROTection[:LEVel]? [MINimum | MAXimum]

Parameter

<NRf>

10%~110% of the rated current output level.

MINimum

Minimum OCP level.

MAXimum

Maximum OCP level.

Return parameter

<NR2>

Returns the OCP level.

Example

CURR:PROT 5 Sets the OCP level.

Query example1

CURR:PROT? >+5.000 Returns the setting value of the OCP level.

Query example2

CURR:PROT? MIN >+3.600 Returns the minimum possible OCP level in amps.

4.10.4 [SOURce:]CURRent:PROTection:STATe

Set

Query

Description

Turns OCP (over-current protection)function to on or off.

Syntax

[SOURce:]CURRent:PROTection:STATe {0|1|OFF|ON}

Query Syntax

[SOURce:]CURRent:PROTection:STATe?

Parameter

0 / OFF

Turns off the OCP function.

1 / ON

Turns on the OCP function and set OCP value to Maximum.

Return parameter

Return the state(0 or 1) of the OCP function.

Example

CURR:PROT:STAT ON Sets the OCP function.

Query example

CURR:PROT:STAT? >1 Return the setting of the OCP function.

Page 41

4.10.5 [SOURce:]CURRent:SLEW:RISing

Set

Query

Description

Sets or queries the rising current slew rate. This is only applicable for CC slew rate priority mode.

Syntax

[SOURce:]CURRent:SLEW:RISing {<NRf>|MINimum | MAXimum}

Query Syntax

[SOURce:]CURRent:SLEW:RISing? [MINimum | MAXimum]

Parameter

<NRf>

0.01A/s~72.00A/s (PSW-360L30)

0.1A/s~144.0A/s (PSW-720L30)

0.1A/s~216.0A/s (PSW-1080L30)

0.01A/s~27.00A/s (PSW-360L80)

0.01A/s~54.00A/s (PSW-720L80)

0.01A/s~81.00A/s (PSW-1080L80)

0.01A/s~14.40A/s (PSW-360M160)

0.01A/s~28.80A/s (PSW-720M160)

0.01A/s~43.20A/s (PSW-1080M160)

0.001A/s ~ 9.000A/s (PSW-360M250)

0.01A/s ~ 18.00A/s (PSW-720M250)

0.01A/s ~ 27.00A/s (PSW-1080M250)

0.001A/s ~ 2.880A/s (PSW-360H800)

0.001A/s ~ 5.760A/s (PSW-720H800)

0.001A/s ~ 8.640A/s (PSW-1080H800)

MINimum

Minimum rising current slew rate.

MAXimum

Maximum rising current slew rate.

Return parameter

<NR2>

Return the value of the rising current slew rate.

Example

CURR:SLEW:RIS 72 Sets the rising current slew rate of 72A/s.

Query example1

CURR:SLEW:RIS? >+5.000 Return the setting value of the rising current slew rate.

Query example2

CURR:SLEW:RIS? MAX >+72.000 Return the maximum setting value of the rising current slew rate.

Page 42

4.10.6 [SOURce:]CURRent:SLEW:FALLing

Set

Query

Description

Sets or queries the falling current slew rate. This is only applicable for CC slew rate priority mode.

Syntax

[SOURce:]CURRent:SLEW:FALLing {<NRf>|MINimum | MAXimum}

Query Syntax

[SOURce:]CURRent:SLEW:FALLing? [MINimum | MAXimum]

Parameter

NRf

0.01A/s~72.00A/s (PSW-360L30)

0.1A/s~144.0A/s (PSW-720L30)

0.1A/s~216.0A/s (PSW-1080L30)

0.01A/s~27.00A/s (PSW-360L80)

0.01A/s~54.00A/s (PSW-720L80)

0.01A/s~81.00A/s (PSW-1080L80)

0.01A/s~14.40A/s (PSW-360M160)

0.01A/s~28.80A/s (PSW-720M160)

0.01A/s~43.20A/s (PSW-1080M160)

0.001A/s ~ 9.000A/s (PSW-360M250)

0.01A/s ~ 18.00A/s (PSW-720M250)

0.01A/s ~ 27.00A/s (PSW-1080M250)

0.001A/s ~ 2.880A/s (PSW-360H800)

0.001A/s ~ 5.760A/s (PSW-720H800)

0.001A/s ~ 8.640A/s (PSW-1080H800)

MINimum

Minimum falling current slew rate.

MAXimum

Maximum falling current slew rate.

Return parameter

<NR2>

Return the value of the falling current slew rate.

Example

CURR:SLEW:FALL 1 Sets the falling current slew rate of 1A/s.

Query example1

CURR:SLEW:FALL? >+5.000 Return the setting value of the falling current slew rate.

Query example2

CURR:SLEW:FALL? MAX >+72.000 Return the maximum setting value of the falling current slew rate.

Page 43

4.10.7 [SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude]

Set

Query

Description

Sets or queries the internal resistance in ohms.

Syntax

[SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude] {<NRf>|MINimum | MAXimum|?}

Query Syntax

[SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude]? [MINimum | MAXimum]

Parameter

<NRf>

Resistance in ohms:

0.000Ω~0.833Ω (PSW-360L30)

0.000Ω~0.417Ω (PSW-720L30)

0.000Ω~0.278Ω (PSW-1080L30)

0.000Ω~5.926Ω (PSW-360L80)

0.000Ω~2.963Ω (PSW-720L80)

0.000Ω~1.975Ω (PSW-1080L80)

0.000Ω~22.222Ω (PSW-360M160)

0.000Ω~11.111Ω (PSW-720M160)

0.000Ω~7.407Ω (PSW-1080M160)

0.00Ω ~ 55.55Ω (PSW-360M250)

0.00Ω ~ 27.77Ω (PSW-720M250)

0.00Ω ~ 18.51Ω (PSW-1080M250)

0.0Ω ~ 555.5Ω (PSW-360H800)

0.0Ω ~ 277.8Ω (PSW-720H800)

0.0Ω ~ 185.1Ω (PSW-1080H800)

MINimum

Minimum internal resistance in ohms

MAXimum

Maximum internal resistance in ohms

Return parameter

<NR2>

Return the setting value of the internal resistance.

Example

RES 0.1 Sets the internal resistance to 100mΩ.

Query example1

RES? >+0.100 Return the setting value of the internal resistance.

Query example2

RES? MAX >+0.278 Return the maximum setting value of the internal resistance.

Page 44

4.10.8 [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude]

Set

Query

Description

Sets or queries the voltage level in volts.

Syntax

[SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude] {<NRf>|MINimum | MAXimum}

Query Syntax

[SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude]? [MINimum | MAXimum]

Parameter

<NRf>

0%~105% of the rated voltage output level.

MINimum

Minimum voltage level.

MAXimum

Maximum voltage level.

Return parameter

<NR2>

Return the level of the output voltage.

Example

VOLT 10 Sets the output voltage level.

Query example1

VOLT? >+10.000 Return the setting level of the output voltage.

Query example2

VOLT? MAX >+31.500 Return the maximum setting level of the output voltage.

4.10.9 [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude]

Set

Query

Description

Sets or queries the voltage level in volts when a software trigger has been generated.

Syntax

[SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] {<NRf>|MINimum | MAXimum}

Query Syntax

[SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude]? [MINimum | MAXimum]

Parameter

<NRf>

0%~105% of the rated voltage output in volts.

MINimum

Minimum voltage level.

MAXimum

Maximum voltage level.

Return parameter

<NR2>

Return the level of the output voltage of software trigger.

Example

VOLT:TRIG 10 Sets the output voltage level of software trigger.

Page 45

Query example1

VOLT:TRIG? >+10.000 Return the setting level of the output voltage of software trigger.

Query example2

VOLT:TRIG? MAX >+31.500 Return the maximum setting level of the output voltage of software trigger.

4.10.10 [SOURce:]VOLTage:PROTection[:LEVel]

Set

Query

Description

Sets or queries the OVP (over-voltage protection) level.

Syntax

[SOURce:]VOLTage:PROTection[:LEVel] {<NRf>|MINimum | MAXimum}

Query Syntax

[SOURce:]VOLTage:PROTection[:LEVel]? [MINimum | MAXimum]

Parameter

<NRf>

10%~110% of the rated output voltage in volts.

MINimum

Minimum OVP level.

MAXimum

Maximum OVP level.

Return parameter

<NR2>

Returns the OVP level.

Example

VOLT:PROT MAXimum Sets the maximum OVP level.

Query example1

VOLT:PROT? >+10.000 Returns the setting value of the OVP level.

Query example2

VOLT:PROT? MAX OVP >+33.000 Returns the maximum possible OVP level in volts.

4.10.11 [SOURce:]VOLTage:SLEW:RISing

Set

Query

Description

Sets or queries the rising voltage slew rate. This is only applicable for CV slew rate priority mode.

Syntax

[SOURce:]VOLTage:SLEW:RISing {<NRf>|MINimum | MAXimum}

Query Syntax

[SOURce:]VOLTage:SLEW:RISing? [MINimum | MAXimum]

Page 46

Parameter

<NRf>

0.01V/s~60.00V/s (PSW-XXL30)

0.1V/s~160.0V/s (PSW-XXL80)

0.1V/s~320.0V/s (PSW-XXM160)

0.1V/s~500.0V/s (PSW-XXM250) 1V/s ~1600V/s (PSW-XXH800)

MINimum

Minimum rising voltage slew rate.

MAXimum

Maximum rising voltage slew rate.

Return parameter

<NR2>

Return the value of rising slew rate of voltage.

Example

VOLT:SLEW:RIS MAX Sets the rising voltage slew rate to its maximum.

Query example1

VOLT:SLEW:RIS? >+10.000 Return the setting value of the rising voltage slew rate.

Query example2

VOLT:SLEW:RIS? MAX >+33.000 Return the rising voltage slew rate to its maximum.

4.10.12 [SOURce:]VOLTage:SLEW:FALLing

Set

Query

Description

Sets or queries the falling voltage slew rate. This is only applicable for CV slew rate priority mode.

Syntax

[SOURce:]VOLTage:SLEW:FALLing {<NRf>|MINimum | MAXimum}

Query Syntax

[SOURce:]VOLTage:SLEW:FALLing? [MINimum | MAXimum]

Parameter

<NRf>

0.01V/s~60.00V/s (PSW-XXL30)

0.1V/s~160.0V/s (PSW-XXL80)

0.1V/s~320.0V/s (PSW-XXM160)

0.1V/s~500.0V/s (PSW-XXM250) 1V/s ~1600V/s (PSW-XXH800)

MINimum

Minimum falling voltage slew rate.

MAXimum

Maximum falling voltage slew rate.

Return parameter

<NR2>

Return the value of falling slew rate of voltage.

Example

VOLT:SLEW:FALL MIN Sets the falling voltage slew rate to its minimum.

Query example1

VOLT:SLEW:FALL? >+10.000 Return the setting value of the falling voltage slew rate.

Page 47

Query example2

VOLT:SLEW:FALL? MIN >+0.01 Return the falling voltage slew rate to its maximum.

4.11.1 SYSTem:BEEPer[:IMMediate]

Set

Query

Description

This command causes an audible tone to be generated by the instrument. The duration time is specified in seconds.

Syntax

SYSTem:BEEPer[:IMMediate] {<NR1>|MINimum|MAXimum}

Query Syntax

SYSTem:BEEPer[:IMMediate]? [MINimum|MAXimum]

Parameter

<NR1>

0 ~ 3600 seconds.

MINimum

Sets the beeper time to the minimum (0 seconds)

MAXimum

Sets the beeper time to the maximum (3600 seconds)

Return parameter

<NR1>

Returns the remaining beeper duration time in seconds or returns the maximum or minimum beeper time in seconds (for the [MINimum| MAXimum] query parameters).

Example1

SYST:BEEP 10 after a 2 second wait SYST:BEEP? >8 The first command turns the beeper on for 10 seconds. After 2 seconds the SYST:BEEP? query returns the remaining beeper time (8 seconds).

Example2

SYST:BEEP? MAX >3600 Returns the maximum settable beeper time in seconds.

4.11.2 SYSTem:CONFigure:BEEPer[:STATe]

Set

Query

Description

Sets or queries the buzzer state on/off.

Syntax

SYSTem:CONFigure:BEEPer[:STATe] {<Boolean> | OFF | ON }

Query Syntax

SYSTem:CONFigure:BEEPer[:STATe]?

Parameter

0 / OFF

Turns the buzzer off.

1 / ON

Turns the buzzer on.

Return parameter

Return the setting value of the buzzer by 0 or 1.

Example

SYST:CONF:BEEP ON Sets to turn on the buzzer.

4.11 System control setting Commands

Page 48

Query example

SYST:CONF:BEEP? >1 Return the setting of buzzer.

4.11.3 SYSTem:CONFigure:BLEeder[:STATe]

Set

Query

Description

Sets or queries the status of the bleeder resistor.

Syntax

SYSTem:CONFigure:BLEeder[:STATe] {<NR1> | OFF | ON | AUTO}

Query Syntax

SYSTem:CONFigure:BLEeder[:STATe]?

Parameter

0 / OFF

Turns the bleeder resistor off.

1 / ON

Turns the bleeder resistor on.

2 / AUTO

Turns the AUTO mode on.

Return parameter

<NR1>

Return the setting value of the bleeder resistor.

Example

SYST:CONF:BLE ON Sets to turn on the bleeder resistor.

Query example

SYST:CONF:BLE? >1 Return the setting of the bleeder resistor.

4.11.4 SYSTem:CONFigure:BTRip[:IMMediate]

Set

Description

Trips the power switch trip (circuit breaker) to turn the unit off (shut down the power).

Syntax

SYSTem:CONFigure:BTRip[:IMMediate]

Example

SYST:CONF:BTR Turn off the breaker of the power switch.

4.11.5 SYSTem:CONFigure:BTRip:PROTection

Set

Query

Description

Enables/Disables the power switch trip (circuit breaker) when the OVP or OCP protection settings are tripped. This setting only applies after power has been reset.

Syntax

SYSTem:CONFigure:BTRip:PROTection {<Boolean> | OFF | ON }

Query Syntax

SYSTem:CONFigure:BTRip:PROTection?

Parameter

0 / OFF

Sets to disable the power switch circuit breaker of OCP or OVP.

1 / ON

Sets to enable the power switch circuit breaker of OCP or OVP.

Page 49

Return parameter

Return the setting value of the power switch circuit breaker by 0 or 1.

Example

SYST:CONF:BTR:PROT ON Sets to enable the protection function of the power switch circuit breaker.

Query example

SYST:CONF:BTR:PROT? >1 Return the value of the protection function of circuit breaker of the power switch.

4.11.6 SYSTem:CONFigure:CURRent:CONTrol

Set

Query

Description

Sets or queries the CC control mode (local control (panel), external voltage control, external resistance control). This setting is applied only after the unit is reset.

Syntax

SYSTem:CONFigure:CURRent:CONTrol {0 | 1 | 2 | 3}

Query Syntax

SYSTem:CONFigure:CURRent:CONTrol?

Parameter

Local (Panel) control

1 External voltage control

2 External resistance control; 10kΩ = Io max, 0kΩ = Io min.

3 External resistance control; 10kΩ = Io min, 0kΩ = Io max.

Example

SYST:CONF:CURR:CONT 0 Sets the setting state of the CC control mode.

Query example

SYST:CONF:CURR:CONT? >0 Return the setting state of the CC control mode.

4.11.7 SYSTem:CONFigure:VOLTage:CONTrol

Set

Query

Description

Sets or queries the CV control mode (local control, external voltage control, external resistance control). This setting is applied only after the unit is reset.

Syntax

SYSTem:CONFigure:VOLTage:CONTrol {0 | 1 | 2 | 3}

Query Syntax

SYSTem:CONFigure:VOLTage:CONTrol?

Parameter

Local (Panel) control

1 External voltage control

2 External resistance control; 10kΩ = Vo max, 0kΩ = Vo min.

3 External resistance control; 10kΩ = Vo min, 0kΩ = Vo max.

Page 50

Example

SYST:CONF:VOLT:CONT 0 Sets the setting state of the CV control mode.

Query example

SYST:CONF:VOLT:CONT? >0 Return the setting state of the CV control mode.

4.11.8 SYSTem:CONFigure:MSLave

Set

Query

Description

Sets or queries the unit operation mode. This setting is only applied after the unit has been reset.

Syntax

SYSTem:CONFigure:MSLave {0 | 1 | 2 | 3 | 4}

Query Syntax

SYSTem:CONFigure:MSLave?

Note

Series mode is only supported for 30V/80V/160V models.

Parameter

Master / Local

1 Master / Parallel 1 (2 units)

2 Master / Parallel 2 (3 units)

3 Slave / Parallel

4 Slave / Series

Example

SYST:CONF:MSL 0 Sets the operation mode.

Query example

SYST:CONF:MSL? >0 Return the operation mode.

4.11.9 SYSTem:CONFigure:OUTPut:EXTernal[:MODE]

Set

Query

Description

Sets the external logic as active high or active low. This setting is only applied after the unit has been reset.

Syntax

SYSTem:CONFigure:OUTPut:EXTernal[:MODE]

Query Syntax

SYSTem:CONFigure:OUTPut:EXTernal[:MODE]?

Parameter

0 / HIGH

Active high

1 / LOW

Active low

Return parameter

Return the setting value of the the mode of the external logic by 0 or 1.

Example

SYST:CONF:OUTP:EXT HIGH Sets the external logic mode.

Query example

SYST:CONF:OUTP:EXT? >0 Return the external logic mode.

Page 51

4.11.10 SYSTem:CONFigure:OUTPut:PON[:STATe]

Set

Query

Description

Sets the unit to turn the output ON/OFF at power-up. This setting is only applied after the unit has been reset.

Syntax

SYSTem:CONFigure:OUTPut:PON[:STATe] {<Boolean> | OFF | ON }

Query Syntax

SYSTem:CONFigure:OUTPut:PON[:STATe]?

Parameter

0 / OFF

Output off at power up

1 / ON

Output on at power up

Return parameter

Return the setting value of the power up by 0 or 1.

Example

SYST:CONF:OUTP:PON ON Sets the output state of the power up.

Query example

SYST:CONF:OUTP:PON? >0 Return the output state setting of the power up.

4.12.1 SYSTem:COMMunicate:ENABle

Set

Query

Description

Enables/Disables LAN, GPIB or USB remote interfaces as well as remote services (Sockets, Web Server). This setting is applied only after the unit is reset.

Syntax

SYSTem:COMMunicate:ENABle <mode>,<interface>

Query Syntax

SYSTem:COMMunicate:ENABle? <interface>

Parameter

<mode>

0 / OFF

Turns the selected mode off.

1 / ON

Turns the selected mode on.

GPIB

Select GPIB

USB

Select USB

LAN

Select LAN

SOCKets

Select Sockets

WEB

Select the web server

Return parameter

Return the setting value of selected the remote interfaces by 0 or 1.

Example

SYST:COMM:ENAB 1,USB Sets of the operation of the USB.

4.12 Communication system configuration Commands

Page 52

Query example

SYST:COMM:ENAB? USB >1 Return the setting of the operation of USB.

4.12.2 SYSTem:COMMunicate:GPIB[:SELF]:ADDRess

Set

Query

Description

Sets or queries the GPIB address. This setting is applied only after the unit is reset.

Syntax

SYSTem:COMMunicate:GPIB[:SELF]:ADDRess <NR1>

Query Syntax

SYSTem:COMMunicate:GPIB[:SELF]:ADDRess?

Parameter

<NR1>

0~30

Example

SYST:COMM:GPIB:ADDR 15 Sets 15 as the GP-IB address.

Query example

SYST:COMM:GPIB:ADDR? >15 Return the setting value of the GP-IB address.

4.12.3 SYSTem:COMMunicate:LAN:IPADdress

Set

Query

Description

Sets or queries LAN IP address. This setting is applied only after the unit is reset.

Syntax

SYSTem:COMMunicate:LAN:IPADdress <string>

Query Syntax

SYSTem:COMMunicate:LAN:IPADdress?

Parameter

LAN IP address in string format (”address”)

Applicable ASCII characters: 20H to 7EH.

Return parameter

Return the set value of the IP address of the LAN.

Example

SYST:COMM:LAN:IPAD “172.16.5.111” Sets the IP address of the LAN.

Query example

SYST:COMM:LAN:IPAD? >172.16.5.111 Return the setting value of the IP address of the LAN.

4.12.4 SYSTem:COMMunicate:LAN:GATEway

Set

Query

Description

Sets or queries the Gateway address. This setting is applied only after the unit is reset.

Syntax

SYSTem:COMMunicate:LAN:GATEway <string>

Query Syntax

SYSTem:COMMunicate:LAN:GATEway?

Parameter

LAN Gateway address in string format

(”address”) Applicable ASCII characters:

20H to 7EH.

Page 53

Return parameter

Return the set value of the Gateway address of the LAN.

Example

SYST:COMM:LAN:GATE “172.16.0.254” Sets the Gateway address of the LAN.

Query example

SYST:COMM:LAN:GATE? >172.16.0.254 Return the setting value of the Gateway address of the LAN.

4.12.5 SYSTem:COMMunicate:LAN:SMASk

Set

Query

Description

Sets or queries the LAN subnet mask. This setting is applied only after the unit is reset.

Syntax

SYSTem:COMMunicate:LAN:SMASk <string>

Query Syntax

SYSTem:COMMunicate:LAN:SMASk?

Parameter

Subnet mask in string format ( “mask”)

Applicable ASCII characters: 20H to 7EH.

Return parameter

Return the set value of the subnet mask of the LAN.

Example

SYST:COMM:LAN:SMAS “255.255.0.0” Sets the subnet mask of the LAN.

Query example

SYST:COMM:LAN:SMAS? >255.255.0.0 Return the setting value of the subnet mask of the LAN.

4.12.6 SYSTem:COMMunicate:LAN:MAC

Query

Description

Returns the unit MAC address as a string. The MAC address cannot be changed.

Query Syntax

SYSTem:COMMunicate:LAN:MAC?

Return parameter

Returns the MAC address in the following format “FF-FF-FF-FF-FF-FF”.

Query example

SYST:COMM:LAN:MAC? 02-80-AD-20-31-B1 Returns the MAC address.

4.12.7 SYSTem:COMMunicate:LAN:DHCP

Set

Query

Description

Turns DHCP on/off. Queries the DHCP status. This setting is applied only after the unit is reset.

Syntax

SYSTem:COMMunicate:LAN:DHCP {<Boolean> | OFF | ON }

Query Syntax

SYSTem:COMMunicate:LAN:DHCP?

Page 54

Parameter

0 / OFF

DHCP off

1 / ON

DHCP on

Return parameter

Return the setting of the DHCP by 0 or 1.

Example

SYST:COMM:LAN:DHCP ON DHCP on

Query example

SYST:COMM:LAN:DHCP? >1 Return the setting of the DHCP.

4.12.8 SYSTem:COMMunicate:LAN:DNS

Set

Query

Description

Sets or queries the DNS address. This setting is applied only after the unit is reset.

Syntax

SYSTem:COMMunicate:LAN:DNS <string>

Query Syntax

SYSTem:COMMunicate:LAN:DNS?

Parameter

DNS in string format ( “mask”) Applicable

ASCII characters: 20H to 7EH.

Return parameter

Return the set value of the DNS address of the LAN.

Example

SYST:COMM:LAN:DNS “172.16.1.252” Sets the DNS address of the LAN.

Query example

SYST:COMM:LAN:DNS? >172.16.1.252 Return the setting value of the DNS address of the LAN.

4.12.9 SYSTem:COMMunicate:LAN:HOSTname

Query

Description

Queries the host name.

Query Syntax

SYSTem:COMMunicate:LAN:HOSTname?

Return parameter

Host name in string format.

Query example

SYST:COMM:LAN:HOST? >P-160054 Returns the host name.

Page 55

4.12.10 SYSTem:COMMunicate:LAN:WEB:PACTive

Set

Query

Description

Sets or queries whether the web password is on or off. This setting is applied only after the unit is reset.

Syntax

SYSTem:COMMunicate:LAN:WEB:PACTive {<Boolean> | OFF | ON }

Query Syntax

SYSTem:COMMunicate:LAN:WEB:PACTive?

Parameter

0 / OFF

Web password off

1 / ON

Web password on

Return parameter

Return the setting state of the Web password by 0 or 1.

Example

SYST:COMM:LAN:WEB:PACT ON Sets the Web password.

Query example

SYST:COMM:LAN:WEB:PACT? >1 Return the setting state of the Web password.

4.12.11 SYSTem:COMMunicate:LAN:WEB:PASSword

Set

Query

Description

Sets or queries the web password. This setting is applied only after the unit is reset.

Syntax

SYSTem:COMMunicate:LAN:WEB:PASSword <NR1>

Query Syntax

SYSTem:COMMunicate:LAN:WEB:PASSword?

Parameter

<NR1>

0 ~ 9999

Example

SYST:COMM:LAN:WEB:PASS 1234 Sets the Web password of 1234.

Query example

SYST:COMM:LAN:WEB:PASS? >1234 Return the setting value of the Web password.

4.12.12 SYSTem:COMMunicate:RLSTate

Set

Query

Description

Sets or queries the control state of the instrument.

Syntax

SYSTem:COMMunicate:RLSTate {LOCal | REMote | RWLock}

Query Syntax

SYSTem:COMMunicate:RLSTate ?

Page 56

Parameter

LOCal

Sets the instrument to front panel control.

REMote

Sets the instrument to remote interface control.

RWLock

Disables the front panel keys and only allows the instrument to be controlled via the remote interface.

Return parameter

LOC

The instrument is set to front panel control.

REM

The instrument is set to remote interface control.

RWL

The front panel keys are disabled. The instrument can only be controlled via the remote interface.

Example

SYST:COMM:RLST: LOC Sets the instrument to front panel control.

4.12.13 SYSTem:COMMunicate:USB:FRONt:STATe

Query

Description

Queries the front panel USB-A port state.

Query Syntax

SYSTem:COMMunicate:USB:FRONt:STATe?

Return parameter

0 1 Absent Mass Storage

Query example

SYST:COMM:USB:FRON:STAT? >1 Return the status of the USB connection on the front panel.

4.12.14 SYSTem:COMMunicate:USB:REAR:STATe

Query

Description

Queries the rear panel USB-B port state.

Query Syntax

SYSTem:COMMunicate:USB:REAR:STATe?

Return parameter

0 2 3

Absent USB-CDC GPIB-USB (GUG-001)

Query example

SYST:COMM:USB:REAR:STAT? >2 Return the status of the USB connection on the rear panel.

4.12.15 SYSTem:COMMunicate:USB:REAR:MODE

Set

Query

Description

Sets or queries the rear panel USB-B port mode. This command is the equivalent to the F-22 configuration setting.

Syntax

SYSTem:COMMunicate:USB:REAR:MODE {0|1|2|3}

Page 57

Query Syntax

SYSTem:COMMunicate:USB:REAR:MODE?

Parameter

0 1 2 3

Disable GPIB-USB adapter Auto detect speed Full speed only

Example

SYST:COMM:USB:REAR:MODE 1 Sets the rear panel USB-B port mode to GPIB-USB adapter.

4.13.1 SYSTem:ERRor

Query

Description

Queries the error queue. The last error message is returned. A maximum of 32 errors are stored in the error queue.

Query Syntax

SYSTem:ERRor?

Return parameter

Returns an error code followed by an error message as a string. The string is returned as “string”.

Query example

SYST:ERR? >-100, “Command error” Returns the contents of the error message and error code.

4.13.2 SYSTem:KEYLock:MODE

Set

Query

Description

Sets or queries the key lock mode. This setting is the equivalent of the F-19 function setting.

Syntax

SYSTem:KEYLock:MODE {0|1}

Query Syntax

SYSTem:KEYLock:MODE?

Parameter

Panel lock: allow output off.

Panel lock: allow output on/off.

Example

SYST:KEYL:MODE 0 Sets the key lock mode of allow output off

Query example

SYST:KEYL:MODE? >0 Return the setting state of the key lock mode by 0 or 1.

4.13.3 SYSTem:KLOCk

Set

Query

Description

Enables or disables the front panel key lock.

Syntax

SYSTem:KLOCk { Boolean> | OFF | ON}

4.13 System Settings Commands

Page 58

Query Syntax

SYSTem:KLOCk?

Parameter

0 / OFF

Panel keys unlocked

1 / ON

Panel keys locked

Return parameter

Return the setting state of the key lock of the front panel by 0 or 1.

Example

SYST:KLOC ON Sets the key lock of the front panel.

Query example

SYST:KLOC? >1 Return the setting state of the key lock of the front panel by 0 or 1.

4.13.4 SYSTem:INFormation

Query

Description

Queries the system information. Returns the machine version, build date, keyboard CPLD version and analog CPLD version.

Query Syntax

SYSTem:INFormation?

Return parameter

Definite length arbitrary block response data.

Query example

SYST:INF? #3238MFRS TEXIO,Model PSW,SN EL160054,Firmware-Version T1.11.20110922,Keyboard-CPLD 0x030C,AnalogControl-CPLD 0x0421,Kernel-Buildon May 22 2011,OSRelease 2.6.28.10,Test-Version 01.00 Aug 1 2011,MAC 02-80-ad-20-31-b1 Returns the system information as a block data.

4.13.5 SYSTem:PRESet

Set

Description

Resets all the settings to the factory default settings. See page 67for details.

Syntax

SYSTem:PRESet

Example

SYST:PRES Sets to the factory setting default settings of all.

4.13.6 SYSTem:VERSion

Query

Description

Returns the version of the SCPI specifications that the unit complies with.

Query Syntax

SYSTem:VERSion?

Return parameter

1999.0

Always return the SCPI version of "1999.0".

Page 59

Query example

SYST: VERS >1999.0 Rturn the SCPI version.

4.14.1 TRIGger:TRANsient[:IMMediate]

Set

Description

Generates a software trigger for the transient trigger system.

Syntax

TRIGger:TRANsient[:IMMediate]

Example

TRIG:TRAN Generates a software trigger for the transient trigger system.

4.14.2 TRIGger:TRANsient:SOURce

Set

Query

Description

Sets or queries the trigger source for the transient system.

Syntax

TRIGger:TRANsient:SOURce {BUS | IMMediate}

Query Syntax

TRIGger:TRANsient:SOURce?

Parameter

BUS

Internal software trigger. Waits for the *TRG (or IEEE 488.1 “get” group execute trigger) command to start the trigger.

IMMediate

Starts the trigger immediately. (default)

Return parameter

Return in value of the {BUS| IMM} the setting the trigger source for the transient system.

Example

TRIG:TRAN:SOUR IMM Sets the trigger source of the transient system.

Query example

TRIG:TRAN:SOUR? >IMM Return the trigger source of the transient system.

4.14.3 TRIGger:OUTPut[:IMMediate]

Set

Description

Generates a software trigger for the output trigger system.

Syntax

TRIGger:OUTPut[:IMMediate]

Example

TRIG:OUTP Generates a software trigger for the output trigger system.

4.14 Trigger Commands

Page 60

4.14.4 TRIGger:OUTPut:SOURce

Set

Query

Description

Sets or queries the trigger source for the output system.

Syntax

TRIGger:OUTPut:SOURce [BUS | IMMediate]

Query Syntax

TRIGger:OUTPut:SOURce?

Parameter

BUS

Internal software trigger. Waits for the *TRG (or IEEE 488.1 “get” group execute trigger) command to start the trigger.

IMMediate

Starts the trigger immediately. (default)

Return parameter

Return in value of the {BUS| IMM} the setting the trigger source for the output system.

Example

TRIG:OUTP:SOUR IMM Sets the trigger source of the output system.

Query example

TRIG:OUTP:SOUR? >IMM Return the trigger source of the output system.

4.14.5 Trigger Commands Examples

Example 1

The transient system for the trigger in immediate mode.

TRIG:TRAN:SOUR IMM CURR:TRIG MAX VOLT:TRIG 5

INIT:NAME TRAN ->

The current changes to the maximum, and the voltage changes to 5V.

Example 2

The transient system for the trigger in BUS mode.

TRIG:TRAN:SOUR BUS CURR:TRIG MAX VOLT:TRIG 5 INIT:NAME TRAN

TRIG:TRAN (or *TRG) ->

The current changes to the maximum, and the voltage changes to 5V.

Example 3 The output system for the trigger in immediate mode.

TRIG:OUTP:SOUR IMM OUTP:TRIG 1

INIT:NAME OUTP ->

The output changes to ON.

Example 4

The output system for the trigger in BUS mode.

Page 61

TRIG:OUTP:SOUR BUS OUTP:TRIG 1 INIT:NAME OUTP

TRIG:OUTP (or *TRG) ->

The output changes to ON.

Page 62

Overview

The status registers are used to determine the status of the power supply. The status registers maintain the status of the protection conditions, operation conditions and instrument errors.

The PSW Series have a number of register groups:

・Questionable Status Register Group ･Operation Status Register Group ･Standard Event Status Register Group ･Status register group

5. Status Register Overview

To program the PSW power supply effectively, the Status registers need to be understood. This chapter explains in detail how the Status registers are used and how to configure them.

5.1 Introduction to the status register

Page 63

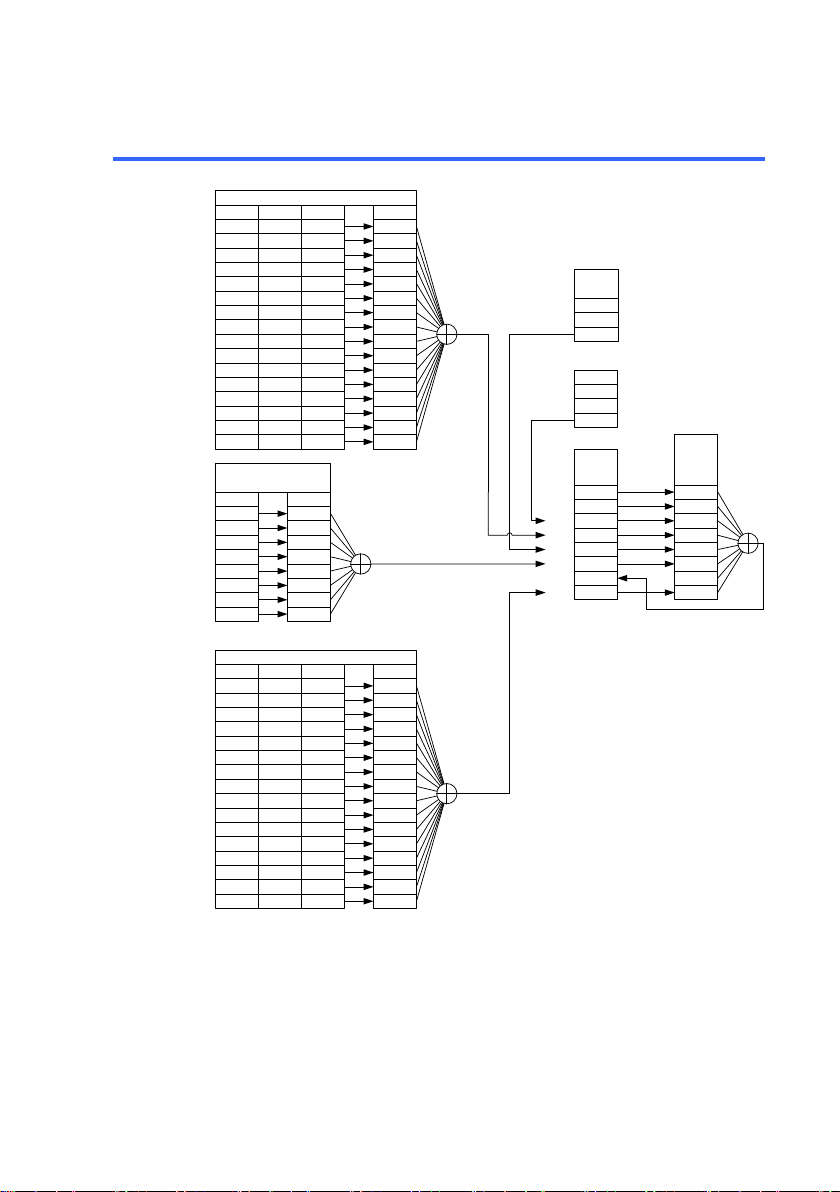

Condition

OV (Over-Voltage) 0

PTR/NTP Event Enable

OC (Over-Current) 1

Not Used 2

POW (AC Power Off) 3

OT (Over-Temperature) 4

Not Used 5 Not Used 6

Not Used 7 VL (Voltage-Limit) 8 CL (Current-Limit) 9

Not Used 10

SD (Shutdown Alarm) 11

Power-Limit 12

Not Used 13

Not Used 14

Not Used 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Condition

CAL (Calibration mode) 0

PTR/NTP Event Enable

Not Used 1 Not Used 2 Not Used 3 Not Used 4

WTG (Waiting for Trigger)

5 Not Used 6 Not Used 7

CV (Constant Voltage Mode)

8 Not Used 9

CC (Constant Current Mode)

OND (Output ON Delay) 11

OFD (Output OFF Delay)

Not Used 13

PR (Program Running) 14

Not Used 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

OPC (Operation Complete)

RQC (Request Control)

QUE (Query Error)

DDE (Device Dependent Error)

EXE (Execution Error)

CME (Command Error)

URQ (User Request)

PON (Power On)

0 1 2 3 4 5 6 7

ERR

QUES

MAV ESB MSS

OPER

0 1 2 3 4 5 6 7

Output

Buffer

: : :

Error Que

: : :

EnableEvent

Status

Byte

Service

Request

Enable

Questionable Status Register

Operation Status Register

Standard Event Status

5.2 Configuration status register

Page 64

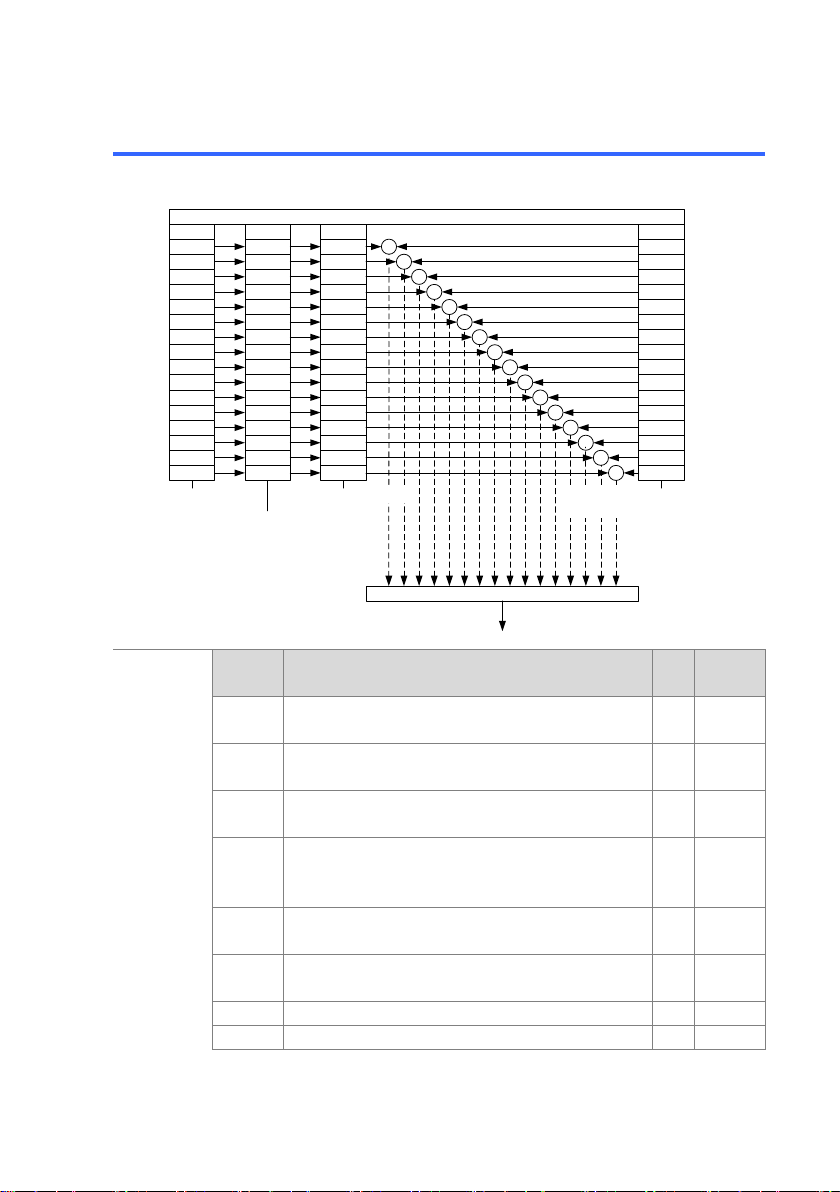

Overview

The Questionable Status Register Group indicates if any protection modes or limits have been tripped.

Condition

OV 0

PTR/NTP Event Enable

OC 1

Not Used 2

POW 3

OT 4 Not Used 5 Not Used 6 Not Used 7

VL 8 CL 9

Not Used 10

SD 11

PL 12 Not Used 13 Not Used 14 Not Used 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Questionable Status Register

Logical OR

To Status Byte Register

STATus:QUEStionable:CONDition? STATus:QUEStionable:EVENt?

STATus:QUEStionable:NTRansition <NRf>

STATus:QUEStionable:NTRansition?

STATus:QUEStionable:PTRansition <NRf>

STATus:QUEStionable:PTRansition?

STATus:QUEStionable:ENABle <NRf>

STATus:QUEStionable:ENABle?

Bit Summary

Bit name

Event

Bit # Bit Weight

OV (Over-Voltage) Over voltage protection has been tripped

OC (Over-Current) Over current protection has been tripped

1 2 POW

POW (AC Power Off) AC power switch is off

OT (Over Temperature) Over temperature protection has been tripped

16 VL

VL (Voltage Limit) Voltage limit has been reached

256

CL (Current Limit) Current limit has been reached

512 SD

Shutdown Alarm

2048

Power-Limit

4096

5.3 Questionable Status Register Group

Page 65

Condition Register

The Questionable Status Condition Register indicates the status of the power supply. If a bit is set in the Condition register, it indicates that the event is true. Reading the condition register does not change the state of the condition register.

PTR/NTR Filters

The PTR/NTR (Positive/Negative transition) register determines the type of transition conditions that will set the corresponding bit in the Event Registers. Use the Positive transition filter to view events that change from false to positive, and use the negative transition filter to view events that change from positive to negative.

Positive Transition Negative Transition

0→1 1→0

Event Register

The PTR/NTR Register will dictate the type of transition conditions will set the corresponding bits in the Event Register. If the Event Register is read, it will be cleared to 0.

Enable Register

The Enable register determines which Events in the Event Register will be used to set the QUES bit in the Status Byte Register.

Page 66

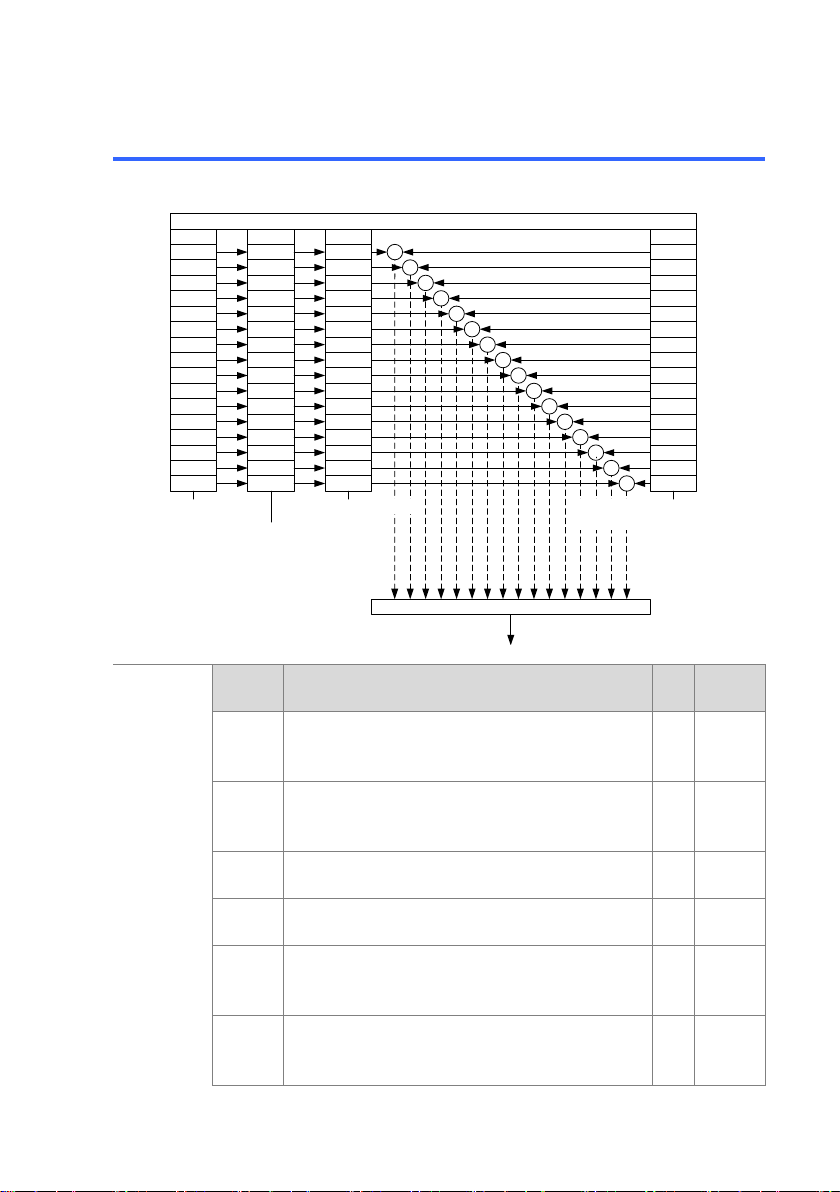

Overview

The Operation Status Register Group indicates the operating status of the power supply.

CAL Not Used Not Used Not Used Not Used

WTG Not Used Not Used

Not Used

CC OND OFD

Not Used

Condition0PTR/NTP Event Enable

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Operation Status Register

Logical OR

To Status Byte Register

STATus:OPERation:CONDition? STATus:OPERation:EVENt?

STATus:OPERation:NTRansition <NRf>

STATus:OPERation:NTRansition?

STATus:OPERation:PTRansition <NRf>

STATus:OPERation:PTRansition?

STATus:OPERation:ENABle <NRf>

STATus:OPERation:ENABle?

Bit Summary

Bit name

Event

Bit # Bit Weight

CAL

CAL (Calibration mode) Indicates if the PSW is in calibration mode.

WTG

WTG (Waiting for trigger) Indicates if the PSW is waiting for a trigger.

32 CV

CV (Constant voltage mode) Indicates if the PSW is in CV mode.

256

CC (Constant current mode) Indicates if the PSW is in CC mode.

1024

OND

OND (Output ON Delay) Indicates if Output ON delay time is active

2048

OFD

OFD (Output OFF Delay) Indicates if Output OFF delay time is active

4096

5.4 Operation Status Register Group

Page 67

PR (Program Running) Indicates if a Test is running

8192

Condition Register

The Operation Status Condition Register indicates the operating status of the power supply. If a bit is set in the Condition register, it indicates that the event is true. Reading the condition register does not change the state of the condition register.

PTR/NTR Filters

Positive Transition Negative Transition

0→1 1→0

Event Register

The PTR/NTR Register will dictate the type of transition conditions will set the corresponding bits in the Event Register. If the Event Register is read, it will be cleared to 0.

Enable Register

The Enable register determines which registered Events in the Event Register will be used to set the OPER bit in the Status Byte Register.

Page 68

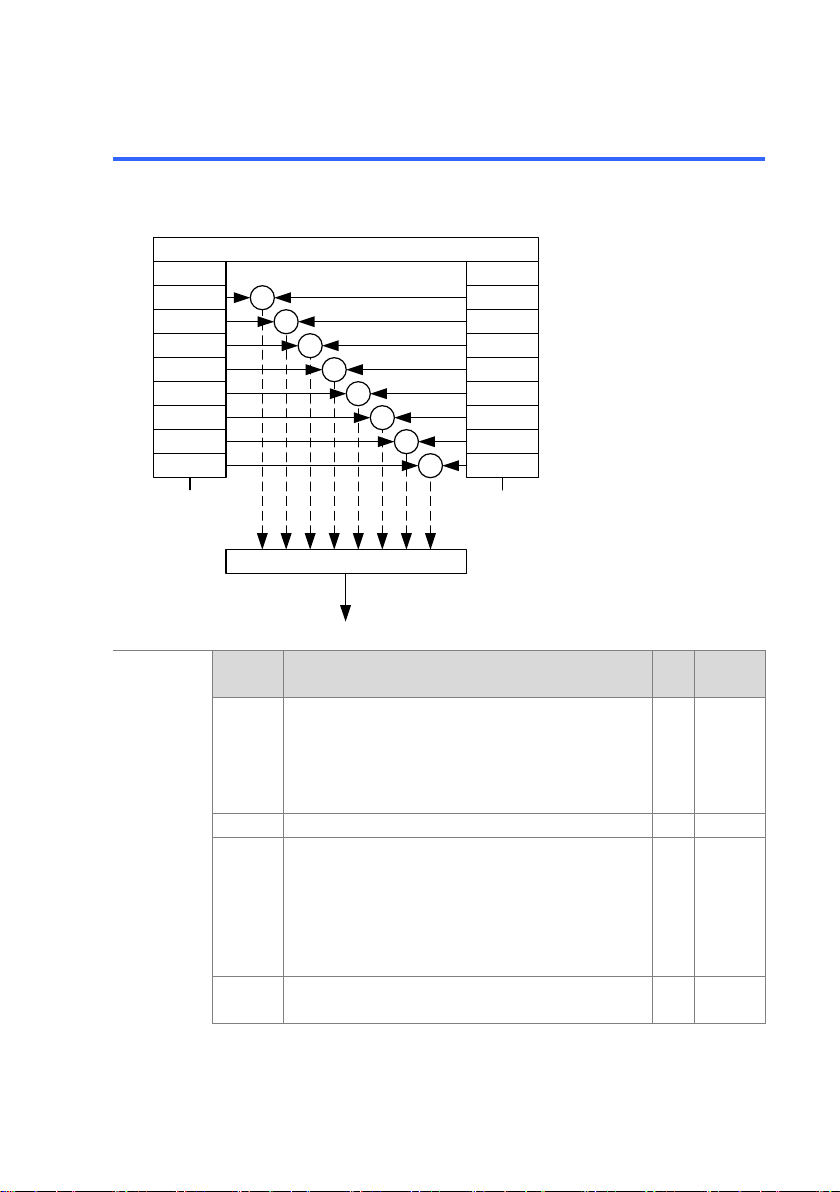

Overview

The Standard Event Status Register Group indicates if any errors have occurred. The bits of the Event register are set by the error event queue.

OPC

RQC

QUE DDE

EXE CME URQ

PON

Event Enable

0 1 2 3 4 5 6 7

Standard Event Status Register

To Status Byte Register

*ESR?

Logical OR

*ESE <NRf>

*ESE?

Bit Summary

Bit name

Event

Bit # Bit Weight

OPC

OPC (Operation complete) The OCP bit is set when all selected pending operations are complete. This bit is set in response to the *OPC command.

RQC

Request control

QUE

QUE (Query Error) The Query Error bit is set in response to an error reading the Output Queue. This can be caused by trying to read the Output Queue when there is no data present.

DDE

DDE (Device Dependent Error) Device specific error.

5.5 Standard Event Status Register Group

Page 69

EXE

EXE (Execution Error) The EXE bit indicates an execution error due to one of the following: illegal command parameter, parameter out of range, invalid parameter, the command didn’t execute due to an overriding operation condition.

16 CME

CME (Command Error) The CME bit is set when a syntax error has occurred. The CME bit can also be set when a <GET> command is received within a program message.

URQ

(User Request

PON

PON (Power On) Indicates the power is turned on.

128

Event Register

Any bits set in the event register indicate that an error has occurred. Reading the Event register will reset the register to

Enable Register

The Enable register determines which Events in the Event Register will be used to set the ESB bit in the Status Byte Register.

Page 70

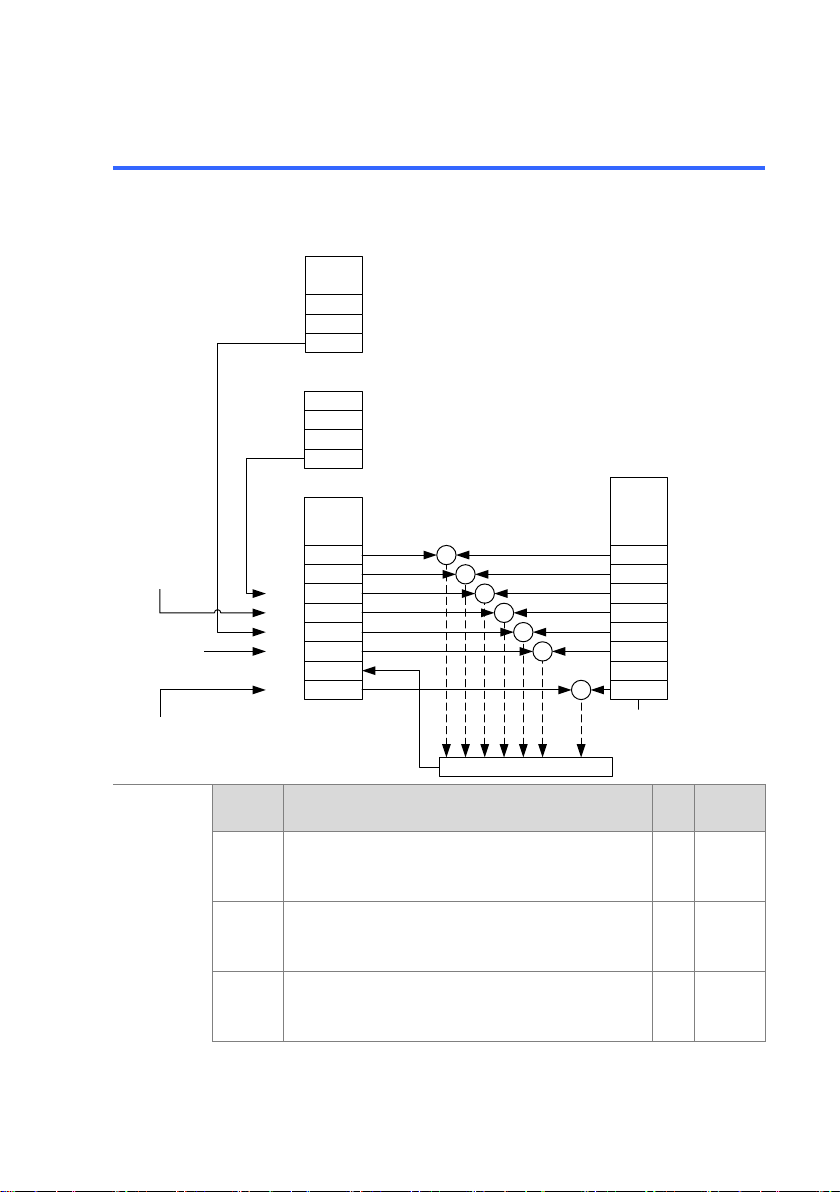

Overview

The Status Byte register consolidates the status events of all the status registers. The Status Byte register can be read with the *STB? query and can be cleared with the *CLS command.

ERR

QUES

MAV

ESB

MSS

OPER

0 1 2 3 4 5 6 7

Output

Buffer

: : :

Error Que

: : :

Status

Byte

0 1 2 3 4 5 6 7

*SRE <NRf>

*SRE?

Service

Request

Enable

Logical OR

*STB?

From Operation Status Register

From

Questionable

Status Register

From Standard

Event Status

Bit Summary

Bit name

Event

Bit # Bit Weight

ERR

ERR (Error Event/Queue) If data is present in the Error queue, the ERR bit will be set.

QUES

QUES (Questionable Status Register) The summary bit for the Questionable Status Register group.

MAV

MAV (Message Available) This is set when there is data in the Output Queue waiting to be read.

5.6 Status register group

Page 71

ESB

ESB (Event Summary Bit) The ESB is the summary bit for the Standard Event Status Register group.

MSS

The MSS Bit is the summary of the Status Byte Register and Service Request register (bits 1-5, 7). This will be set to 1.

64 OPER

OPER (Operation Status Register) OPER bit is the summary bit for the Operation Status Register Group.

128

Status Byte Register

Any bits set in the Status byte register acts as a summary register for all the three other status registers and indicates if there is a service request, an error in the Error Queue or data in the Output Queue. Reading the Status Byte register will reset the register to 0.

Service Request Enable Register

The Service Request Enable Register controls which bits in the Status Byte Register are able to generate service requests.

Page 72

No.

Description

-100

Command

-102

Syntax error

-103

Invalid separator

-104

Data type

-108

Parameter not allowed

-109

Missing parameter

-111

Header separator error

-112

Program mnemonic too long

-113

Undefined header

-114

Header suffix out of range

-115

Unexpected number of parameters

-120

Numeric data error

-121

Invalid character in number

-128

Numeric data not allowed

-131

Invalid suffix

-141

Invalid character data

-148

Character data not allowed

-151

Invalid string data

-158

String data not allowed

-160

Block data error

-161

Invalid block data

-168

Block data not allowed

-178

Expression data not allowed

-180

Macro error

-200

Execution error

-201

Invalid while in local

-203

Command protected

-211

Trigger ignored

-213

Init ignored

-220

Parameter error

-221

Settings conflict

-222

Data out of range

-224

Illegal parameter value

-310

System error

-320

Storage fault

-400

Query error

5.7 Error code

Page 73

Initial Settings

Default Setting

Output

OFF

Key lock

0 (Disabled)

Voltage setting

0 V

Current setting

0 A

OVP

Maximum

OCP

Maximum

Normal Function Settings

Setting

Default Setting

Output ON delay time

F-01

0.00s

Output OFF delay time

F-02

0.00s

V-I mode slew rate select

F-03

0 = CV high speed priority

Rising voltage slew rate

F-04

0.01V/s~60.00V/s (PSW-XXL30)

0.1V/s~160.0V/s (PSW-XXL80)

0.1V/s~320.0V/s (PSW-XXM160)

0.1V/s~500.0V/s (PSW-XXM250) 1V/s ~1600V/s (PSW-XXH800)

Falling voltage slew rate

F-05

0.01V/s~60.00V/s (PSW-XXL30)

0.1V/s~160.0V/s (PSW-XXL80)

0.1V/s~320.0V/s (PSW-XXM160)

0.1V/s~500.0V/s (PSW-XXM250) 1V/s ~1600V/s (PSW-XXH800)

Rising current slew rate

F-06

0.01A/s~72.00A/s (PSW-360L30)

0.1A/s~144.0A/s (PSW-720L30)

0.1A/s~216.0A/s (PSW-1080L30)

0.01A/s~27.00A/s (PSW-360L80)

0.01A/s~54.00A/s (PSW-720L80)

0.01A/s~81.00A/s (PSW-1080L80)

0.01A/s~14.40A/s (PSW-360M160)

0.01A/s~28.80A/s (PSW-720M160)

0.01A/s~43.20A/s (PSW-1080M160)

0.001A/s ~ 9.000A/s (PSW-360M250)

0.01A/s ~ 18.00A/s (PSW-720M250)

0.01A/s ~ 27.00A/s (PSW-1080M250)

0.001A/s ~ 2.880A/s (PSW-360H800)

0.001A/s ~ 5.760A/s (PSW-720H800)

0.001A/s ~ 8.640A/s (PSW-1080H800)

6. Appendix

6.1 PSW Default Settings

The following default settings are the factory configuration settings for the power supply(Function settings/Test settings).

Page 74

Falling current slew rate

F-07

0.01A/s~72.00A/s (PSW-360L30)

0.1A/s~144.0A/s (PSW-720L30)

0.1A/s~216.0A/s (PSW-1080L30)

0.01A/s~27.00A/s (PSW-360L80)

0.01A/s~54.00A/s (PSW-720L80)

0.01A/s~81.00A/s (PSW-1080L80)

0.01A/s~14.40A/s (PSW-360M160)

0.01A/s~28.80A/s (PSW-720M160)

0.01A/s~43.20A/s (PSW-1080M160)

0.001A/s ~ 9.000A/s (PSW-360M250)

0.01A/s ~ 18.00A/s (PSW-720M250)

0.01A/s ~ 27.00A/s (PSW-1080M250)

0.001A/s ~ 2.880A/s (PSW-360H800)

0.001A/s ~ 5.760A/s (PSW-720H800)

0.001A/s ~ 8.640A/s (PSW-1080H800)

Internal resistance setting

F-08

0.000Ω

Bleeder circuit control

F-09

1 = ON

Buzzer ON/OFF control

F-10

1 = ON

Measurement Average Setting

F-17

0 = Low

Lock Mode

F-19

0 = Panel lock: allow output off

USB/GPIB setting

Rear Panel USB Mode

F-22

2 = USB CDC

GPIB address

F-23

LAN setting

LAN

F-36

1 = Enable

DHCP

F-37

1 = Enable

Sockets active

F-57

1 = Enable

Web Server active

F-59

1 = Enable

Web password active

F-60

1 = Enable

Web setting password

F-61

0000

Power On Configuration

CV Control

F-90

0 = Panel control (local)

CC Control

F-91

0 = Panel control (local)

Power-ON Output

F-92

0 = OFF at startup

Master/Slave

F-93

0 = Master/Local

External Out Logic

F-94

0 = High ON

Power Switch trip

F-95

0 = Enable

Page 75

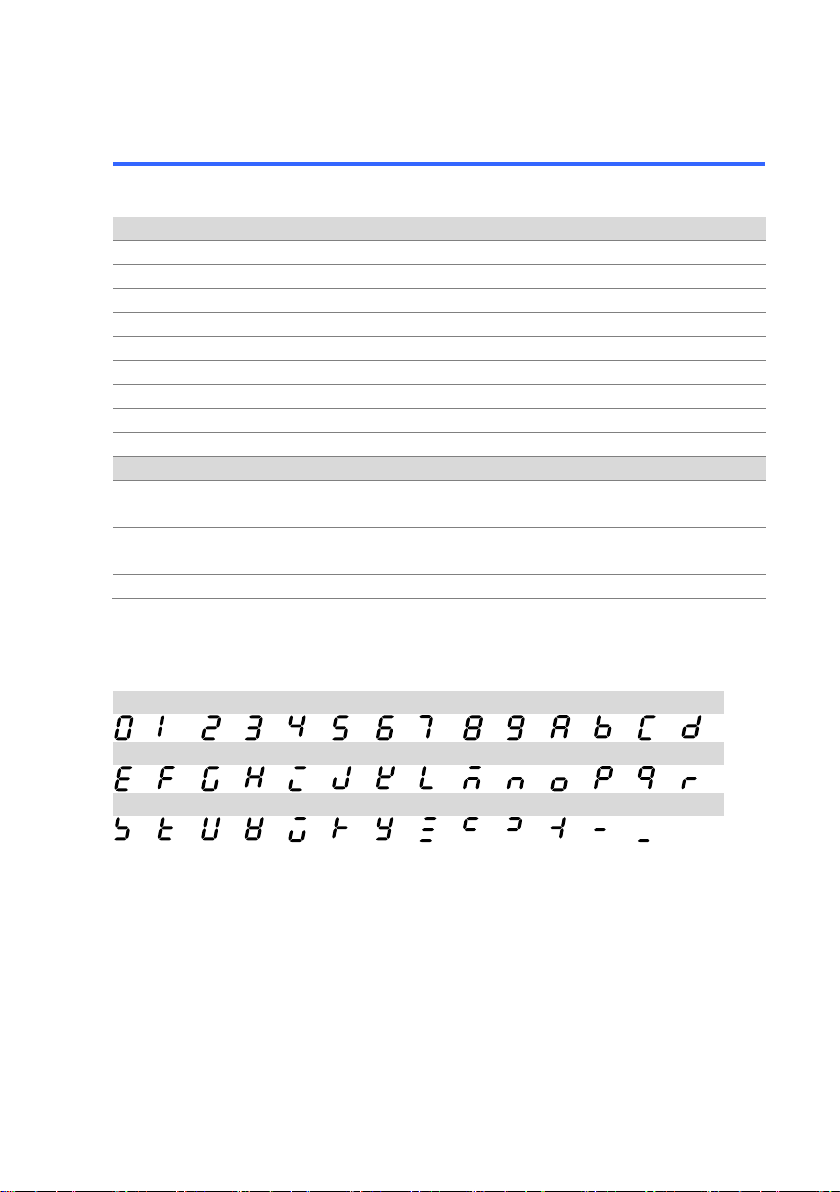

Error Messages

Description

Err 001

USB Mass Storage is not present

Err 002

No (such)file in USB mass storage

Err 003

Empty memory location

Err 004

File access error

Err 901

Keyboard CPLD error

Err 902

External control input and output error CPLD

Err 920

Over-range of the ADC calibration

Err 921

Over-range of the DAC calibration

Err 922

Calibration point invalid

Messages

Description

MSG 001

External control of output. Output off (F-94=0, High=on)

MSG 002

External control of output. Output off (F-94=1, Low=on)

MSG 003

Not connected. (F-93=1 or F-93=2)

0 1 2 3 4 5 6 7 8 9 A B C

E F G H I J K L M N O P Q

S T U V W X Y Z ( ) + - ,

6.2 Error Messages & Messages

The following error messages or messages may appear on the PSW screen during operation.

LCD Display Format Use the following table to read the LCD display messages.

Page 76

7F Towa Fudosan Shin Yokohama Bldg. 2-18-13, Shin Yokohama, Kohoku-ku,Yokohama, Kanagawa, 222-0033 Japan http://www.texio.co.jp/
