Texas Instruments TPA 311 User Manual

TPA311 Audio Power Amplifier Evaluation Module
User’s Guide
1998 Mixed-Signal Products
TPA311 Audio Power Amplifier
Evaluation Module
User’ s Guide
February 1998
Printed on Recycled Paper
IMPORTANT NOTICE
T exas Instruments (TI) reserves the right to make changes to its products or to discontinue any semiconductor product or service without notice, and advises its customers to obtain the latest version of relevant information to verify , before placing orders, that the information being relied on is current.
TI warrants performance of its semiconductor products and related software to the specifications applicable at the time of sale in accordance with TI’s standard warranty . T esting and other quality control techniques are utilized to the extent TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily performed, except those mandated by government requirements.
Certain applications using semiconductor products may involve potential risks of death, personal injury , or severe property or environmental damage (“Critical Applications”).
TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, INTENDED, AUTHORIZED, OR WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT APPLICATIONS, DEVICES OR SYSTEMS OR OTHER CRITICAL APPLICATIONS.
Inclusion of TI products in such applications is understood to be fully at the risk of the customer. Use of TI products in such applications requires the written approval of an appropriate TI officer . Questions concerning potential risk applications should be directed to TI through a local SC sales office.
In order to minimize risks associated with the customer’s applications, adequate design and operating safeguards should be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance, customer product design, software performance, or infringement of patents or services described herein. Nor does TI warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right of TI covering or relating to any combination, machine, or process in which such semiconductor products or services might be or are used.
Copyright 1998, Texas Instruments Incorporated
Related Documentation From Texas Instruments
J
TI Plug-N-Play Audio Amplifier Evaluation Platform
number SLOU011) provides detailed information on the evaluation platform and its use with TI audio evaluation modules.
J
TP A311 350-mW LOW-VOLTAGE AUDIO POWER AMPLIFIER
(literature number SLOS207) This is the data sheet for the TPA311 audio amplifier integrated circuit.
FCC Warning
This equipment is intended for use in a laboratory test environment only. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to subpart J of part 15 of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this equipment in other environments may cause interference with radio communications, in which case the user at his own expense will be required to take whatever measures may be required to correct this interference.
Preface
(literature
Trademarks
TI is a trademark of Texas Instruments Incorporated.
Chapter Title—Attribute Reference
iii
If You Need Assistance
If You Need Assistance. . .
If you want to. . . Do this. . .
Request more information about Texas Instruments Digital Signal Processing (DSP) products
Order Texas Instruments docu­mentation
Ask questions about product op­eration or report suspected prob­lems
Report mistakes in this document or any other TI documentation
Texas Instruments Product Information Center
Call the PIC
(972) 644–5580
Or send a fax to the PIC:
(972) 480–7800
Or write to: Texas Instruments Incorporated Product Information Center, MS 3123 P.O. Box 660246 Dallas, Texas 75266
Call the PIC† hotline:
(972) 644–5580
Call the PIC† hotline:
(972) 644–5580
Send a fax to MSP Marketing Documentation Correction: (972) 480–3160
Or send your comments to: Texas Instruments Incorporated MSP Marketing Documentation, MS 8710 P.O. Box 660199 Dallas, Texas 75266–0199
hotline:
iv
Running Title—Attribute Reference
Contents
1 Introduction 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 Feature Highlights 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Description 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 TP A311 EVM Specifications 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Quick Start 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 Precautions 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Quick Start List for Platform 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Quick Start List for Stand-Alone 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Details 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Precautions 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 The TPA311 Audio Amplifier Evaluation Module 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2.1 TPA311 Audio Amplifier IC 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2.2 BTL Operation 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2.3 Single-Ended Operation 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2.4 Module Gain 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2.5 Shutdown 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3 Using The TPA311 EVM With The Plug-N-Play Evaluation Platform 3-6. . . . . . . . . . . . . . .
3.3.1 Installing and Removing EVM Boards 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3.2 Signal Routing 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3.3 Mute/Mode 3-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3.4 Power Requirements 3-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3.5 Inputs and Outputs 3-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4 Using The TPA311 EVM Stand-ALone 3-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.1 TPA311 EVM Connected for BTL Output 3-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.2 TPA311 EVM Connected for Single-Ended Output 3-13. . . . . . . . . . . . . . . . . . . . . .
3.5 TPA311 Audio Amplifier Evaluation Module Parts List 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter Title—Attribute Reference
v
Running Title—Attribute Reference
Figures
1–1 The TI TPA311 Audio Amplifier Evaluation Module 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–1 Quick Start Platform Map 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–2 Quick Start Module Map 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–1 The TI Plug-N-Play Audio Amplifier Evaluation Platform 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–2 TPA311 EVM 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–3 TPA311 EVM Schematic Diagram 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–4 TPA311 Audio Amplifier IC 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–5 Platform Signal Routing and Outputs 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–6 Mute/Mode and Polarity Control 3-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–7 Typical Headphone Plug 3-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

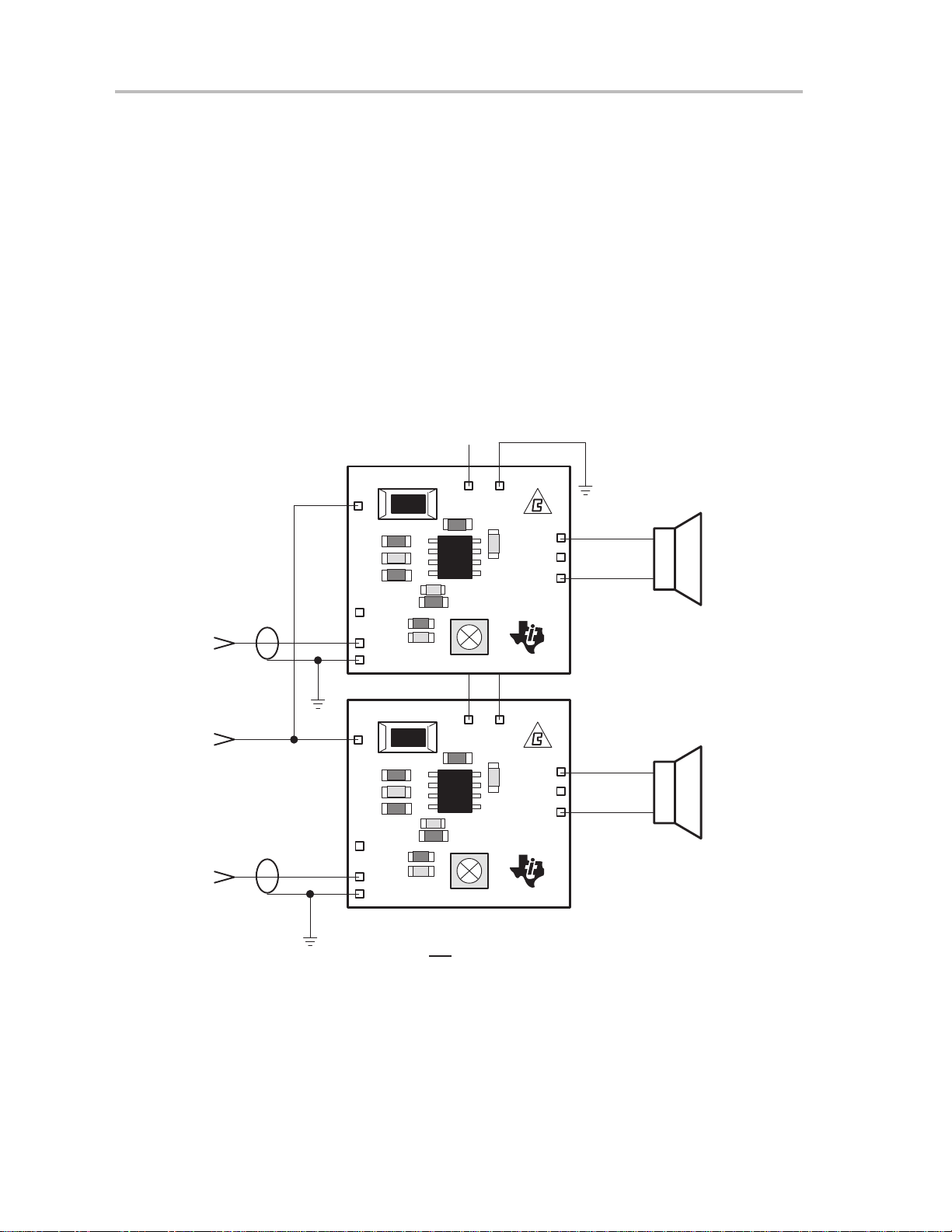

3–8 TPA311 EVM Connected for Stereo BTL Output 3-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–9 TPA311 EVM Connected for Stereo Single-Ended Output 3-13. . . . . . . . . . . . . . . . . . . . . . . . .
T ables
2–1 Typical TI Plug-N-Play Platform Jumper and Switch Settings for the TPA311 2-1. . . . . . . . . .
2–2 Platform Jumper and Switch Settings for the TPA311 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–1 TPA311 EVM Parts List 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
vi
Chapter 1
Introduction
This chapter provides an overview of the Texas Instruments (TI) TPA311 Audio Amplifier Evaluation Module (SLOP116). It includes a list of EVM features, a brief description of the module illustrated with a pictorial diagram, and a list of EVM specifications.
Topic Page
1.1 Feature Highlights 1–3
1.2 Description 1–4
1.3 TP A311 EVM Specifications 1–4
Introduction
1-1
1-2
Introduction
1.1 Feature Highlights
The TI TPA311 Audio Amplifier Evaluation Module and the TI Plug-N-Play Audio Amplifier Evaluation Platform include the following features:
-
TPA311 Low-Voltage Audio Power Amplifier Evaluation Module
J
J
J
J
J
J
-
Quick and Easy Configuration with The TI Plug-N-Play Audio Amplifier Evaluation Platform
J
J
Feature Highlights
Single channel, bridge-tied load (BTL) or single-ended operation
3.3-V and 5-V operation 350 mW output power into 8 at 5 V, BTL Ultra-low current consumption in shutdown/mute mode Internal thermal and short-circuit protection Module gain adjustable between approximately 2 and 22
Evaluation module is designed to simply plug into the platform, auto­matically making all signal, control, and power connections
Platform provides flexible power options
J
Jumpers on the platform select power and module control options
J
Switches on the platform route signals
J
Platform provides quick and easy audio input and output connections
-
Platform Power Options
J
On-board 9-V battery
J
External 5-V – 15-V DC VCC supply inputs
J
External regulated VDD supply input
J
Socket for on-board 5 V/3.3 V VDD voltage regulator EVM
J
On-board overvoltage and reverse polarity power protection
-
Platform Audio Input and Output Connections
J
Left and right RCA phono jack inputs
J
Miniature stereo phone jack input
J
Left and right RCA phono jack outputs
J
Left and right compression speaker terminal outputs
J
Miniature stereo headphone jack output
Introduction
1-3
Description
1.2 Description
The TPA311 Audio Power Amplifier Evaluation Module is a complete, low­power single-channel audio power amplifier. It consists of the TI TPA311 350-mW Low-Voltage Audio Power Amplifier IC along with a small number of other parts mounted on a circuit board that is approximately one and a quarter inches square (Figure 1–1).
Figure 1–1.The TI TPA311 Audio Amplifier Evaluation Module
C5
R3
U1
GNDVDD
C3
009227
OUT–
GND
OUT+
Literature # SLOP116
EVM
–3
Shutdown
S1 R1
C2 R5
SE\BTL*
R2 C1
IN+ GND
C4
R4
TPA311
Single in-line header pins are mounted to the underside of the module circuit board to allow the EVM to be plugged into the TI Plug-N-Play Audio Amplifier Evaluation Platform, or to be wired directly into existing circuits and equipment when used stand-alone.
The platform has room for a pair of TPA311 evaluation modules and is a convenient vehicle for demonstrating TI’s audio power amplifier and related evaluation modules. The EVMs simply plug into the platform, which auto­matically provides power to the modules, interconnects them correctly, and connects them to a versatile array of standard audio input and output jacks and connectors. Easy-to-use configuration controls allow the platform and EVMs to quickly model many possible end-equipment configurations.
There is nothing to build, nothing to solder, and nothing but the speakers included with the platform to “hook up.”
1.3 TPA311 EVM Specifications
Supply voltage range, V Supply current, I
DD
Continuous output power, PO:8-Ω BTL, VDD=5 V: 350 mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio input voltage, V Minimum load impedance, R
1-4
DD
32- BTL, VDD=5 V: 75 mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I
L
2 V to 5.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
250 mA, max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Vpp, max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
Chapter 2
Quick Start
The steps in this chapter can be followed to quickly prepare the TP A31 1 audio amplifier EVM for use. While using the TP A31 1 with the TI Plug-N-Play Audio Amplifier Evaluation Platform is a quick and easy way to connect power, signal and control inputs, and signal outputs to the EVM using standard connectors, the audio amplifier evaluation module can be used stand-alone by making connections directly to the module pins, and can be wired directly into existing circuits or equipment.
The platform switch and jumper settings shown in T able 2–1 are typical for the TPA311 EVM and will cause the TPA311 to switch to single-ended output mode when a plug is inserted into platform headphone jack J10.
Table 2–1. Typical TI Plug-N-Play Platform Jumper and Switch Settings for the TPA311
EVM JP6 JP7 JP8 S2 S3
TPA311 Mode X Hi Note 2 X
Notes: 1) X = Don’t care
2) Set S2 to ON when signal conditioning board is installed in U1; set S2 to OFF when no signal conditioning board is installed.
T opic Page
2.1 Precautions 2–2
2.2 Quick Start List for Platform 2–3
2.3 Quick Start List for Stand-Alone 2–4
Quick Start
2-1
Precautions
2.1 Precautions
Power Supply Input Polarity and Maximum Voltage Always ensure that the polarity and voltage of the external power
connected to VCC power input connector J1, J2, and/or VDD power input connector J6 are correct. Overvoltage or reverse-polarity power applied to these terminals can open on-board soldered-in fuses and cause other damage to the platform, installed evaluation modules, and/or the power source.
Inserting or Removing EVM Boards Do not insert or remove EVM boards with power applied — damage
to the EVM board, the platform, or both may result.
Power
Input
7b
Audio Input
9

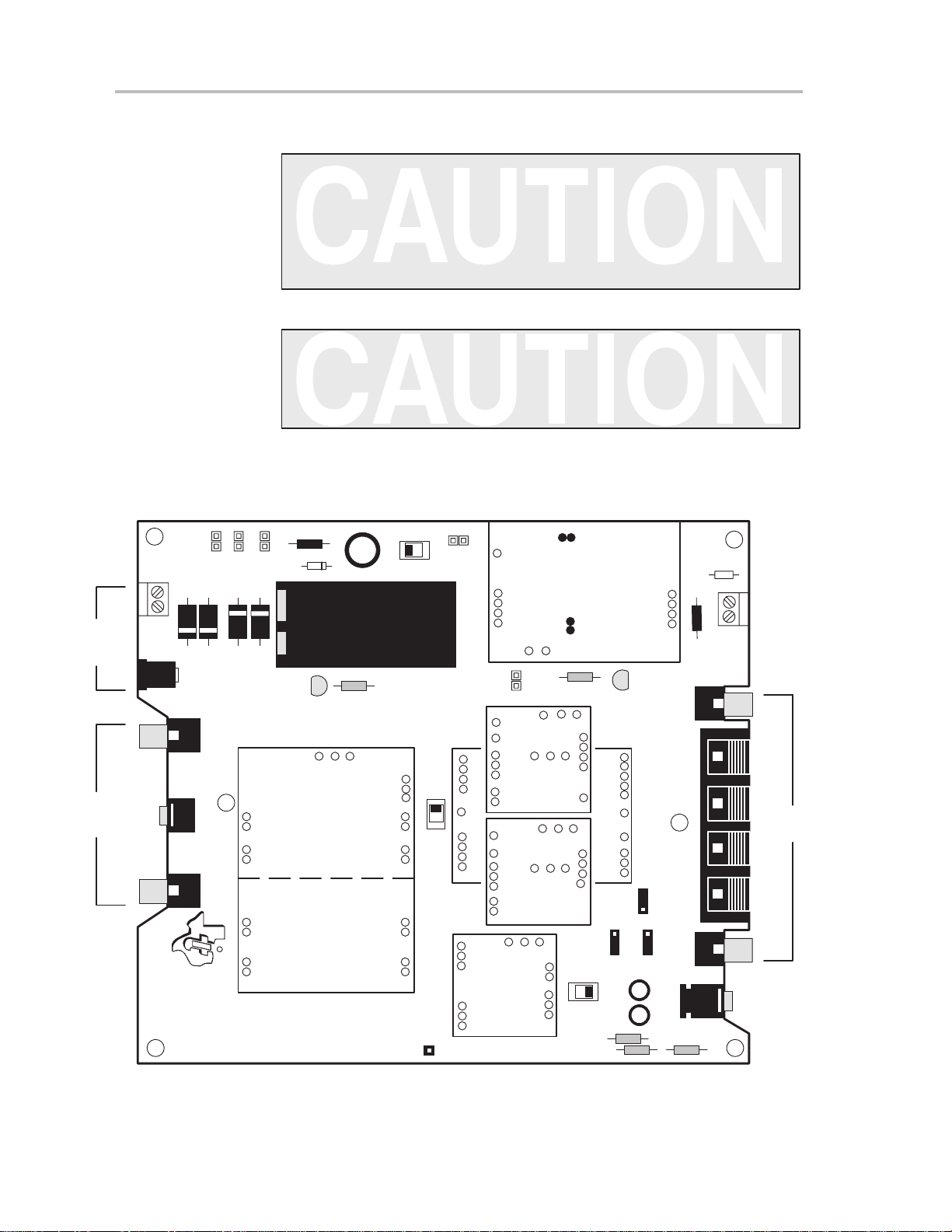

Figure 2–1.
SOURCE
VCC
J1
In
+
D4
AC/DC
In
J2
Right
In
Stereo
In
Left
In
1997
Quick Start Platform Map
7b
JP3
JP2
JP1
DC
VCC(J1)
AC/DC
(J2)
Batt
D1
D2
D3
J3
Signal Conditioning
J4
J5
****CAUTION****
Do not insert or remove
EVM boards with power
TEXAS
INSTRUMENTS
Plug-N-Play Audio Amplifier Evaluation Platform SLOP097 Rev. C.1
VR1
F1
LED1
VCC
applied
C1+
R1
U1
111
Off Pwr
ConditioningS2
GND
On
S1
Audio Power Amps
OnOff
TP1
ICC JP4
B1
IDD
U5
JP5
7b
U3 U4
R2
U2-U4
U5
HP
Source
SUPPLY
U2
HP(U5)
S3
R3
R4
POWER
LED2
VDD
JP6
Polarity
Lo Hi
JP7
+
+
7b
U6
Mode Mute
Spk(U2-U4)
JP8
C3 C2
HP Out
J7
Right
Out
Out
Out
J9
Out
Stereo
VR2
F2
+
J6
In/Out
VDD
J8
+–+– Right
Left
Left
Headphone Output
J10
R5
DC Power In/Out
Speaker Output
7a
10
5
2-2
3
2
6
4
Quick Start
2.2 Quick Start List for Platform
Use the following steps when using the TP A311 EVM with the TI Plug-N-Play Audio Amplifier Evaluation Platform (see the platform user’s guide, SLOU011, for additional details). Numbered callouts for selected steps are shown in Figure 2–1 and details appear in Chapter 3.
-
Platform preparations
1) Ensure that all external power sources are set to power switch S1 is set to
2) Install a TPA311 module in platform sockets U3 and U4 for stereo operation (or a module in either U3 or U4 for single channel operation), taking care to align the module pins correctly
3) Use switch S2 to select or bypass the signal conditioning EVM (U1)
OFF
Quick Start List for Platform
OFF
and that the platform
4) Set control signal Polarity jumper JP8 to
5) Set jumper JP6 to select the
Mode
control input (causes the TPA311 to switch to the single-ended output mode if a plug is inserted into platform headphone jack J10)
6) If the headphone Jack (J10) output will be used, set Hp source switch S3 to U2–U4.
Table 2–2. Platform Jumper and Switch Settings for the TPA311
EVM JP6 JP7 JP8 S2 S3
TPA311 Mode X Hi Note 2 X
Notes: 1) X = Don’t care
ON
2) Set S2 to to
OFF
-
Power supply
7) Select and connect the power supply: a) Connect an external regulated power supply set to a voltage between
2.0 V and 5.5 V to platform VDD power input connector J6 taking care to observe marked polarity, or
b) Install a voltage regulator EVM (SL VP097 or equiv.) in platform socket
U6. Install a 9-V battery in B1 or connect a 7 V – 12 V power source to a platform V power input (see platform user’s guide)
-
Inputs and outputs
8) Ensure that signal source level adjustments and EVM gain, R4, are set to minimum
9) Connect the audio source to left and right RCA phono jacks J3 and J5 or stereo miniature phone jack J4
10) Connect 8-Ω – 32-Ω speakers to left and right RCA jacks J7 and J9 or to stripped wire connectors J8
-
Power-up
1 1) V erify correct voltage and input polarity and set the external power supply
to
ON.
If VCC and an on-board regulator EVM are used to provide VDD, set
platform power switch S1 to
when signal conditioning board is installed in U1; set S2
when no signal conditioning board is installed.
power input J1 or J2 and jumper the appropriate
CC
ON
Hi
Platform LED2 should light indicating the presence of VDD, and the evaluation modules installed on the platform should begin operation.
12) Adjust the signal source level and EVM gain level (R4) as needed
Quick Start
2-3
Quick Start List for Stand-Alone
2.3 Quick Start List for Stand-Alone
Use the following steps to use the TPA311 EVM stand-alone or when connecting it into existing circuits or equipment. Connections to the TPA311 module header pins can be made via individual sockets, wire-wrapping, or soldering to the pins, either on the top or the bottom of the module circuit board. Numbered callouts for selected steps are shown in Figure 2–2 and details appear in Chapter 3.
Figure 2–2.
Quick Start Module Map
-
Power supply
1) Ensure that all external power sources are set to
2) Connect an external regulated power supply set to 5 V to the module VDD and GND pins taking care to observe marked polarity
-
Inputs and outputs
3) Ensure that signal source level adjustments and EVM gain (R4) are set to minimum
5
4
Shutdown
S1 R1
C2 R5
SE\BTL*
R2 C1
IN+ GND
C4
TPA311
R4
C5
R3
2
U1
GNDVDD
C3
009227
OUT–
GND
OUT+
Literature # SLOP116
EVM
Gain Adjust
–3
7
6
OFF
2-4
4) Connect the audio source to the module IN+ and GND pins taking care to observe marked polarity
5) Connect the Shutdown pin to V
through a Normally Open switch
DD
6) For BTL output, connect an 8-Ω – 32-Ω speaker to the module OUT+ and OUT– pins, or
7) For single-ended output, connect a headphone or an 8- – 32- speaker to the module OUT+ and GND pins through a 33 µF to 1000 µF output- coupling capacitor (figure 3–9)
-
Power-up
8) Verify correct voltage and input polarity and set the external power supply to
ON
The EVM should begin operation.
9) Adjust the signal source level and EVM gain level (R4) as needed
Quick Start
Chapter 3
Details
This chapter provides details on the TPA311 IC, the evaluation module, and the steps in the Quick-Start List, additional application information, and a parts list for the TPA311 evaluation module.
Topic Page
3.1 Precautions 3–2
3.2 The TPA311 Audio Power Amplifier Evaluation Module 3–3
3.2.1 TPA311 Audio Amplifier IC 3–4
3.2.2 BTL Operation 3–4
3.2.3 Single-Ended Operation 3–5
3.2.4 Module Gain 3–5
3.2.5 Shutdown 3–5
3.3 Using The TPA311 EVM With The Plug-N-Play Evaluation Platform 3–6
3.3.1 Installing and Removing EVM Boards 3–6
3.3.2 Signal Routing 3–7
3.3.3 Mute/Mode 3–8
3.3.4 Power Requirements 3–10
3.3.5 Inputs and Outputs 3–11
3.4 Using The TPA311 EVM Stand-Alone 3–12
3.4.1 TPA311 EVM Connected for BTL Output 3–12
3.4.2 TPA311 EVM Connected for Single-Ended Output 3–13
3.5 TP A311 Audio Power Amplifier Evaluation Module Parts List 3–14
Details
3-1
Precautions
3.1 Precautions
Power Supply Input Polarity and Maximum Voltage Always ensure that the polarity and voltage of the external power
connected to VCC power input connector J1, J2, and/or VDD power input connector J6 are correct. Overvoltage or reverse-polarity power applied to these terminals can open on-board soldered-in fuses and cause other damage to the platform, installed evaluation modules, and/or the power source.
Inserting or Removing EVM Boards Do not insert or remove EVM boards with power applied — damage
to the EVM board, the platform, or both may result.
Figure 3–1.The TI Plug-N-Play Audio Amplifier Evaluation Platform
On
R1
U1
Off Pwr
S1
Audio Power Amps
OnOff
ConditioningS2
ICC JP4
B1
IDD
JP5
Power
Input
Audio
Input
In
+
AC/DC
In
VCC
J1
D4
J2
In
In
In
SOURCE
DC
VCC(J1)
D3
Right
J3
Stereo
J4
Left
J5
JP3
JP2
JP1
AC/DC
(J2)
Batt
VR1
D1
D2
Signal Conditioning
F1
VCC
C1+
LED1
U3 U4
R2
SUPPLY
U2
POWER
U6
LED2
VDD
VR2
F2
J6
In/Out
VDD
J7
Right
Out
J8
+–+– Right
Out
Left
Out
+
DC Power In/Out
Speaker Output
3-2
TEXAS
INSTRUMENTS
1997
Plug-N-Play Audio Amplifier Evaluation Platform SLOP097 Rev. C.1
****CAUTION**** Do not insert or remove EVM boards with power
applied
TP1
GND
U5
U2-U4
U5
S3
HP
Source
HP(U5)
Polarity
JP7
+
R3
R4
JP6
Lo
Hi
+
Mode Mute
Spk(U2-U4)
Out
JP8
C3 C2
HP Out
J9
Left
Stereo
J10
R5
Headphone Output
Details
The TPA311 Audio Power Amplifier Evaluation Module
3.2 The TPA311 Audio Power Amplifier Evaluation Module
The TPA311 Audio Power Amplifier Evaluation Module is powered by a TPA311 350-mW Low-Power Audio Amplifier IC and includes on-board gain adjustment, a shutdown control signal input with on-board switch, and can be operated in either the BTL or single-ended output mode.
The module can be used with the TI Plug-N-Play Audio Amplifier Evaluation Platform (Figure 3–1) or wired directly into circuits or equipment. The module has single in-line header connector pins mounted to the under side of the board. These pins allow the module to be plugged into the TI platform, which automatically makes all the signal input and output, power, and control connections to the module.
The module connection pins are on 0.1-inch centers to allow easy use with standard perf board and plug board-based prototyping systems, or to be wired directly into existing circuits and equipment when used stand-alone.
The module appears in Figure 3–2 and its schematic is shown in Figure 3–3.
Figure 3–2.TPA311 EVM
Shutdown
S1 R1
C2 R5
SE\BTL*
IN+ GND
Figure 3–3.TPA311 EVM Schematic Diagram
S1
Shutdown
R1
20 k
SE/BTL
C1
1 µF
Audio Input+
GND
C2
2.2 µF
R5
100 k
20 k
R2
No
1
Shutdown
2
Bypass
3
SE/BTL
4
In
R3
20 kR4200 k
C4
R2 C1
TPA311
V
GND
V V
R4
O–
DD O+
GNDVDD
C5
C3
U1
R3
VDD
2 V to 5.5 V
8 7
6 5
009227
OUT–
GND
OUT+
Literature # SLOP116
EVM
C5
10 µF
+
C3
2.2 µF
C4 5 pF
–3
GND
OUT– GND
OUT+
Details
3-3
The TP A311 Audio Power Amplifier Evaluation Module
3.2.1 TPA311 Audio Amplifier IC
The TPA311 audio amplifier IC is a CMOS device intended primarily for bridge-tied load (BTL) operation in battery-powered applications. It is supplied in a very small surface-mount package and has been designed to operate from low supply voltages (between approximately 2 V and 5.5 V) and deliver up to approximately 350 mW into an 8-Ω, BTL (Figure 3 – 4). Typical applications include portable phones, toys, games, and similar hand-held audio applications.
Figure 3–4.TPA311 Amplifier IC
4 IN
2
Bypass
1
Shutdown
3
SE/BTL
VDD/2
Bias
Control
6
V
DD
_
+
_
+
5
VO+
8
VO–
7
GND
3.2.2 BTL Operation
The IC includes two separate internal amplifiers and can operate in either the bridged-tied load (BTL) mode or the single-ended mode as selected by the SE/BTL pin. In the BTL mode, the two amplifiers operate 180° out-of-phase with each other for increased power. The speaker load is connected directly across V
+ and VO–, and neither line is connected to ground. BTL operation
O
provides many benefits, including quadruple the output power of single-ended operation and no need for bulky output coupling capacitors. In the single-ended mode, one internal amplifier is turned off and the speaker load is connected between the VO+ terminal, through an output coupling capacitor, and system ground. For more information, see the TPA311 amplifier IC data sheet, TI Literature Number SLOS207.
To operate in the bridge-tied load output mode, the module SE/BTL control input terminal must be held low. The module output signal from OUT+ must go
NOT
through the speaker load and be returned directly to OUT–, and
to system ground. This requires that the OUT– line be isolated not only from system ground, but also from the OUT– lines of any other amplifiers in the system. The platform provides such isolated output lines from the amplifier EVM sockets directly to separate left and right speaker connectors.
3-4
Details
3.2.3 SIngle-Ended Operation
For single-ended operation, the module SE/BTL control input pin must be held high. The speaker (or headphone) load is connected to the module OUT+ output pin through a coupling capacitor, and to platform/system ground. A 470 -µF electrolytic coupling capacitor is provided on the platform in the signal path to the headphone output jack for this purpose and a control signal from the platform headphone jack can be routed to the module control input pin to switch the TPA311 IC to the single-ended mode.
In the single-ended mode, the amplifier inside the TPA311 IC that drives the OUT– line does not operate and does not dissipate any power. The OUT– pin goes into a high-impedance state and can be left connected or allowed to float.
3.2.4 Module Gain
The TP A311 evaluation module can be set for an overall gain of between 2 and 22 by adjustment of the the on-board gain control, R4. The TP A311 amplifier IC, as most other amplifiers, exhibits its best distortion and noise performance at lower gain levels (see the TP A311 data sheet). Even so, the TP A311 at its highest gain setting has significantly less distortion than most low-cost speakers.
The TPA311 Audio Power Amplifier Evaluation Module
3.2.5 Shutdown
Gain versus total harmonic distortion (THD) should be considered in each application. Both the module input signal level and the TPA311 module gain should be adjusted to obtain the lowest overall distortion level for a particular overall gain. A quick rule of thumb (everything else being equal): the module input signal level should be as high as possible without clipping or overloading the TPA311 input, and the TPA311 gain kept as low as possible.
When the shutdown terminal of the TP A311 amplifier IC is taken high, the IC ceases operation and enters an ultra-low power state. This is accomplished by applying a control signal to the module Shutdown pin or by pressing the Shutdown switch, S1, on the module. When the control signal goes low or is removed (or the switch is released), amplifier operation resumes.
The Plug-N-Play platform can generate the shutdown (mute) signal for the module either when a plug is or when the plug is
removed
inserted
, as selected by a platform jumper (JP8).
into the platform headphone output jack
Details
3-5
Using The TP A311 EVM With the Plug-N-Play Evaluation Platform
3.3 Using The TPA311 EVM With the Plug-N-Play Evaluation Platform
The TP A31 1 Audio Amplifier Evaluation Module was designed to be used with the TI Plug-N-Play Audio Amplifier Evaluation Platform. It simply plugs into socket U3 or U4.
The following paragraphs provide additional details for using the TP A311 EVM with the platform.
3.3.1 Installing and Removing EVM Boards
TI Plug-N-Play evaluation modules use single-in-line header pins installed on the underside of the module circuit board to plug into sockets on the platform. The EVM pins and the platform sockets are keyed such that only the correct type of EVM can be installed in a particular socket, and then only with the proper orientation.
Evaluation modules are easily removed from the platform by simply prying them up and lifting them out of their sockets. Care must be taken, however, to prevent bending the pins.
3.3.1.1 EVM Insertion
3.3.1.2 EVM Removal
1) Remove all power from the evaluation platform
2) Locate socket U3 or U4 on the platform
3) Orient the module correctly
4) Carefully align the pins of the module with the socket pin receptacles
5) Gently press the module into place
6) Check to be sure that all pins are seated properly and that none are bent
over
1) Remove all power from the evaluation platform
2) Using an appropriate tool as a lever, gently pry up one side of the module
a small amount
3) Change to the opposite side of the module and use the tool to pry that side
up a small amount
4) Alternate between sides, prying the module up a little more each time to
avoid bending the pins, until it comes loose from the socket
3-6
5) Lift the EVM off of the platform
Details
Using The TP A311 EVM With the Plug-N-Play Evaluation Platform
3.3.2 Signal Routing
Signal flow on the platform is controlled by two signal routing switches, as shown in Figure 3–5.
Figure 3–5.Platform Signal Routing and Outputs
R
Audio
Input
L
U1
Signal
Conditioning
3.3.2.1 Signal Conditioning
Off
S2
On
U3
TPA311
Amplifier EVM
U4
TPA311
Amplifier EVM
U5
Stereo
Headphone
Amplifier
+
GND
R
L
R
L
J7, J8, J9
Speaker Outputs
+
+
Headphone
Output
+
J10
R
L
U2–U4
R
S3
L
U5
The audio signal from the input jacks can be applied to the signal conditioning socket (U1) if an EVM is installed there, or socket U1 can be bypassed and the audio input signal applied directly to the inputs of the TP A311 power amplifiers.
-
Switch S2 selects signal conditioning or bypasses it
3.3.2.2 Headphone Output Jack
Switch S3 is the source select for the stereo headphone output jack, J10. The headphone jack is capacitively coupled (via 470 µF electrolytics) and can output either the signal from the headphone amplifier in socket U5, or the signal from the TPA311 power amplifiers installed in sockets U3 and U4, as determined by the setting of headphone source select switch S3.
When S3 is set to the power amplifier position (U2 – U4), the headphone jack is connected to the TP31 1 power amplifier OUT+ output lines. When a plug is inserted into the jack, signals output through J10 are returned to platform ground, requiring single-ended power amplifier operation. A switch inside the headphone jack produces a control signal that can be routed to the power amplifier sockets to shut down the TPA311 EVMs when a plug is inserted.
Source select switch S3 connects the headphone jack to the output lines of either the headphone amplifier socket U5, or the power amplifier sockets (U2 – U4).
J
T o keep the TPA31 1 amplifier outputs separated, set switch S3 to the headphone amplifier position (U5) and use the speaker outputs (J7, J8, and J9)
J
To route the TPA311 amplifier outputs to the headphone output jack (J10), set switch S3 to the power amplifier position ( this setting
only
if the TPA311 EVMs are to drive single-ended loads
U2 – U4)
connected to J10
Details
— use
3-7
Using The TP A311 EVM With the Plug-N-Play Evaluation Platform
3.3.3 Mute/Mode
The TP A31 1 EVM is equipped with a mute (shutdown) control input pin. When this input is tied to VDD, the TP A311 amplifier IC on the module shuts down and assumes an ultra-low power mode. When the EVM control input is tied to GND or allowed to float, amplifier operation resumes.
In typical applications, as often found in notebook computers, portable audio products, and such, the internal speakers mute when headphones are plugged into the headphone jack, or internal speakers mute when external speakers are connected. In applications using separate speaker and headphone amplifiers, the one not being used can be shut down (muted) to conserve power.
A mode control input pin on the EVM switches the TPA311 amplifier IC between the bridge-tied load (BTL) output mode and the single-ended output mode. When the mode control input is tied to GND, the module operates in the BTL output mode. When this input is tied to V single-ended output mode.
In the typical application, output mode switching allows the TP A31 1 to operate in the BTL output mode for increased power to internal speakers and then switch to single-ended mode to drive headphones when a plug is inserted into the headphone jack.
, the module operates in the
DD
3.3.3.1 Headphone Jack Control Signals
The platform headphone output jack (J10) contains an internal switch that changes the state of a pair of control lines when a plug is inserted (Figure 3–6). Each control line is pulled down by a 1-k resistor to ground (R4 and R5). The switch in the headphone jack pulls one line or the other up to VDD through a 240 resistor (R3) depending on whether a plug is inserted in J10 or not.
Figure 3–6.Mute/Mode and Polarity Control
V
DD
R3 240
J10
Headphone
Jack
R4 1 k
R5 1 k
Polarity
JP8 JP6
Lo
Hi
SPK
(U2–U4)
Mode
Mute
U3, U4 Power
Amplifiers
3-8
Details
Using The TP A311 EVM With the Plug-N-Play Evaluation Platform
3.3.3.2 Mute/Mode Select (JP6)
A 3-pin jumper header (JP6) on the platform, functioning as a SPDT switch, routes the control signal from the headphone jack to either the mute control input pin or the mode control input pin of the evaluation module.
J
T o mute the TP A311 amplifier module using the control signal from the platform headphone jack, jumper JP6 to
J
To switch the output mode of the TPA311 amplifier between BTL and single-ended using the control signal from the platform headphone jack, jumper JP6 to
3.3.3.3 Mute/Mode Polarity Select (JP8)
A second 3-pin jumper header (JP8) on the platform selects the control signal polarity by connecting either the active-high or the active-low line from the headphone jack to jumper JP6.
-
When JP6 is set to Mute, use the following JP8 settings for the TPA311:
J
T o mute the TP A311 amplifier module headphone jack, jumper JP8 to Hi (this is the typical setting).
MODE
MUTE
when
a plug is inserted into the
J
To mute the TPA311 amplifier module
until
a plug is inserted into the
headphone jack, jumper JP8 to Lo.
-
When JP6 is set to Mode, use the following JP8 settings for the TP A311:
J
To switch the TPA311 amplifier module to the
single-ended
mode when a plug is inserted into the headphone jack, jumper JP8 to
Hi
(this is the typical setting).
J
T o switch the TPA31 1 amplifier module to the plug is inserted into the headphone jack, jumper JP8 to
BTL
output mode when a
Lo
output
.
Details
3-9
Power Requirements
3.3.4 Power Requirements
The TP A311 Audio Power Amplifier Evaluation Module can operate from any voltage between approximately 2 V and 5.5 V , however , the TPA311 amplifier IC on the module is characterized for operation at 3.3 V and 5 V. For best performance (highest output power with lowest distortion), the module should be operated at approximately 5 V unless there is a specific reason for operating it from a lower voltage.
The TI Plug-N-Play Audio Amplifier Evaluation Platform with a voltage regulator EVM installed on it can provide a regulated V variety of unregulated VCC voltage inputs between approximately 5.5 V and 12 V, including an on-board 9 -V battery. Or, an external regulated power source can be used to supply VDD voltage to the platform and the TPA311 evaluation modules installed on it.
The platform is equipped with overvoltage and reverse-polarity supply voltage input protection in the form of fused crowbar circuits.
-
VDD voltage applied to platform screw terminals J6 the absolute maximum rating for the TP A311 amplifier IC installed on the evaluation module (6 V) or damage to the IC may result. In no case should V
DD
screw terminals J6 of the platform, or the power protection circuit on the VDD line will trip.
supply from a wide
DD
MUST NOT
exceed
voltage of the incorrect polarity or in excess of 6.1 V be applied to
-
VCC voltage applied to the platform
MUST NOT
exceed the maximum voltage input specified for the voltage regulator module installed in socket U6 (12 V for the SLVP097), or damage to the voltage regulator module may result. In no case should VCC voltage applied to the platform exceed 15 V, or the overvoltage protection circuit on the VCC bus will trip.
3-10
Details
3.3.5 Inputs and Outputs
The TI Plug-N-Play Audio Amplifier Evaluation Platform is equipped with several standard conectors for audio inputs and outputs.
3.3.5.1 Inputs
In most cases, audio signals enter the platform through either a pair of RCA phono jacks (J3 and J5) or a miniature (1/8) stereo phone jack (J4). Certain signal conditioning and amplifier EVMs, however, may have additional signal input connectors mounted on the module circuit board.
The platform audio signal input jacks (J3, J4, and J5) are of the closed-circuit type, grounding the signal input lines when no plugs are inserted.
3.3.5.2 Outputs
Amplified audio output signals leave the platform through left and right RCA phono jacks (J7 and J9), left and right pairs of compression connectors for stripped speaker wires (J8), and optionally , through a miniature (1/8″) stereo phone jack (J10), for headphones.
The audio output lines from the power amplifiers are separate all the way to the edge of the platform (output jacks J7, J8, and J9) — the OUT– lines from the power amplifier sockets are not tied to each other or to platform ground. This allows the TP A311 power amplifier EVMs to operate in the highly-ef ficient bridge-tied load configuration.
Inputs and Outputs
The headphone jack (J10) is capacitively coupled to source select switch S3, which connects J10 to the output lines of either the headphone amplifier socket or the power amplifier sockets (Figure 3–5). When the TPA311 output signal is routed to J10 by S3, signals output via J10 are returned to platform ground when a plug is inserted (Figure 3–7), requiring single-ended operation of the power amplifiers.
Figure 3–7.Typical Headphone Plug
Left Right GND
Details
3-11
Using The TP A311 EVM Stand-Alone
3.4 Using The TPA311 EVM Stand-Alone
Using the TPA311 Audio Power Amplifier Evaluation Module stand-alone is much the same as using it with the platform. The same 2-V to 5.5-V power sup­ply range and the isolated OUT+ and OUT– lines for BTL operation require­ment exists.
Note that the mute signal applied to the EVM shutdown pins must be able to supply enough current to overcome the pulldown resistors on the modules (20 k|| 20 k for two EVMs).
3.4.1 TPA311 EVM Connected for BTL Output
Figure 3–8.TPA311 EVM Connected for Stereo BTL Output
5 VDC
Audio
Input
(Right)
External Mute
Control
(active high)
Audio
Input (Left)
Shutdown
S1 R1
C2
R5
SE\BTL*
R2 C1
IN+ GND
Shutdown
S1 R1
C2
R5
SE\BTL*
R2 C1
IN+ GND
C4
TPA311
5 VDC
C4
TPA311
R4
R4
C5
R3
C5
R3
U1
U1
GNDVDD
C3
GNDVDD
C3
009227
OUT–
GND
OUT+
Literature # SLOP116
EVM
GND
009227
OUT–
GND
OUT+
Literature # SLOP116
EVM
–3
Right
–3
Left
3-12
Note: The SE/BTL* (SE/BTL) EVM pin is pulled to GND through a 100-K resistor on the mod-
ule.
Details
Using The TP A311 EVM Stand-Alone
3.4.2 TPA311 EVM Connected for Single-Ended Output
Figure 3–9.TPA311 EVM Connected for Stereo Single-Ended Output
5 VDC
Audio
Input
(Right)
External Mute
Control
(active high)
Audio
Input (Left)
Shutdown
S1 R1
C2
R5
SE\BTL*
R2 C1
IN+ GND
Shutdown
S1 R1
C2
R5
SE\BTL*
R2 C1
IN+ GND
C4
TPA311
5 VDC
C4
TPA311
R4
R4
C5
R3
C5
R3
U1
U1
GNDVDD
C3
GNDVDD
C3
009227
OUT–
GND
OUT+
Literature # SLOP116
EVM
GND
009227
OUT–
GND
OUT+
Literature # SLOP116
EVM
–3
+
33 µF – 1000 µF
–3
33 µF – 1000 µF
+
Details
3-13
TP A311 Audio Power Amplifier Evaluation Module Parts List
3.5 TPA311 Audio Power Amplifier Evaluation Module Parts List
Table 3–1. TPA311 EVM Parts List
Ref. Description Size
R4 Trim Pot, 200 k Cermet
ST SL, (through hole)
C5 Capacitor, 10 µF, 6.3 V A 1 Panasonic
C1 Capacitor, 1 µF,
+80%/–20%, nonpolarized
C2, C3 Capacitor, 2.2 µF, 20%,
nonpolarized
C4 Capacitor, 5 pF 0805 1 Panasonic
R1, R2,R3Resistor, 20 kΩ, 1/8 W,5%1206 3 Panasonic
S1 Switch, momentary 1 Panasonic
U1 IC, TPA311, audio
amplifier, 350 mW, mono
PCB1 PCB, TP A311 sample
EVM
1206 1 Murata
1206 2 TDK
SOIC-81 TI
EVM
Qty.
1 Bourns
1
Manufacturer/
Part Number
3323P-1-204
ECS-TOJY106R
GRM42-6Y5V105Z16BL
C3216X5R1A225
ECU-V1H050CCN
ERJ-8GEYJ203
P8048SCT-ND
TPA311
Digi-Key Number
Digi-Key 3323P-204-ND
Digi-Key PCS1106CT-ND
Newark 93F2254
Digi-Key PCC050CNCT-ND
Digi-Key P20KECT-ND
Digi-Key P8048SCT-ND
NOTE: All items are SMD except as noted.
3-14
Details
Loading...
