Texas Instruments TLC27L2MJGB, TLC27L2MJG, TLC27L2MFKB, TLC27L2IPWR, TLC27L2MD Datasheet
...
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
D
Trimmed Offset Voltage:
TLC27L7 . . . 500 µV Max at 25°C,
V
DD
= 5 V
D
Input Offset Voltage Drift . . . Typically
0.1 µV/Month, including the First 30 Days
D
Wide Range of Supply Voltages Over
Specified Temperature Range:
0°C to 70°C...3 V to 16 V
–40 °C to 85°C...4 V to 16 V
–55 °C to 125°C...4 V to 16 V
D
Single-Supply Operation
D
Common-Mode Input Voltage Range
Extends Below the Negative Rail (C-Suffix,
I-Suffix Types)
D
Ultra-Low Power...Typically 95 µW
at 25°C, V
DD
= 5 V
D
Output Voltage Range includes Negative
Rail
D
High Input Impedance...1012 Ω Typ
D
ESD-Protection Circuitry
D
Small-Outline Package Option Also
Available in Tape and Reel
D
Designed-In Latch-Up immunity
description
The TLC27L2 and TLC27L7 dual operational
amplifiers combine a wide range of input offset
voltage grades with low offset voltage drift, high
input impedance, extremely low power, and high
gain.
AVAILABLE OPTIONS
PACKAGE
T
A
VIOmax
AT 25°C
SMALL
OUTLINE
(D)
CHIP
CARRIER
(FK)
CERAMIC
DIP
(JG)
PLASTIC
DIP
(P)
0°C
500 µV
2 mV
TLC27L7CD
TLC27L2BCD
TLC27L7CP
TLC27L2BCP
to
°
5 mV TLC27L2ACD
— —
TLC27L2ACP
70 C
10 mV TLC27L2CD TLC27L2CP
–40°C
500 µV
2 mV
TLC27L7ID
TLC27L2BID
TLC27L7IP
TLC27L2BIP
to
°
5 mV TLC27L2AID
— —
TLC27L2AIP
85 C
10 mV TLC27L2ID TLC27L2IP
–55°C
500 µV TLC27L7MD TLC27L7MFK TLC27L7MJG TLC27L7MP
to
125°C
µ
10 mV TLC27L2MD TLC27L2MFK TLC27L2MJG TLC27L2MP
The D package is available taped and reeled. Add R suffix to the device type
(e.g., TLC27L7CDR).
Copyright 1994, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
LinCMOS is a trademark of Texas Instruments Incorporated.
–800
Percentage of Units – %
VIO – Input Offset Voltage – µV
30
800
0
–400 0 400
5
10
15
20
25
DISTRIBUTION OF TLC27L7
INPUT OFFSET VOLTAGE
1
2
3
4
8
7
6
5
1OUT
1IN–
1IN+
GND
V
DD
2OUT
2IN–
2IN+
D, JG, OR P PACKAGE
(TOP VIEW)
3 2 1 20 19
910111213
4
5
6
7
8
18
17
16
15
14
NC
2OUT
NC
2IN–
NC
NC
1IN–
NC
1IN+
NC
FK PACKAGE
(TOP VIEW)
NC
1OUT
NCNCNC
NC
GND
NC
NC – No internal connection
2IN +
DD
V
335 Units Tested From 2 Wafer Lots
VDD = 5 V
TA = 25°C
P Package
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
2
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
description (continued)
These devices use Texas Instruments silicon-gate LinCMOS technology, which provides offset voltage
stability far exceeding the stability available with conventional metal-gate processes.
The extremely high input impedance, low bias currents, and low power consumption make these cost-effective
devices ideal for high gain, low frequency, low power applications. Four offset voltage grades are available
(C-suffix and I-suffix types), ranging from the low-cost TLC27L2 (10 mV) to the high-precision TLC27L7
(500 µV). These advantages, in combination with good common-mode rejection and supply voltage rejection,
make these devices a good choice for new state-of-the-art designs as well as for upgrading existing designs.
In general, many features associated with bipolar technology are available in LinCMOS operational amplifiers,
without the power penalties of bipolar technology . General applications such as transducer interfacing, analog
calculations, amplifier blocks, active filters, and signal buffering are easily designed with the TLC27L2 and
TLC27L7. The devices also exhibit low voltage single-supply operation and ultra-low power consumption,
making them ideally suited for remote and inaccessible battery-powered applications. The common-mode input
voltage range includes the negative rail.
A wide range of packaging options is available, including small-outline and chip-carrier versions for high-density
system applications.
The device inputs and outputs are designed to withstand –100-mA surge currents without sustaining latch-up.
The TLC27L2 and TLC27L7 incorporate internal ESD-protection circuits that prevent functional failures at
voltages up to 2000 V as tested under MIL-STD-883C, Method 3015.2; however, care should be exercised in
handling these devices as exposure to ESD may result in the degradation of the device parametric performance.
The C-Suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized
for operation from – 40°C to 85°C. The M-suffix devices are characterized for operation over the full military
temperature range of –55°C to 125°C.
equivalent schematic (each amplifier)
P5 P6
OUT
N7N6
R7
N4
C1
R5
N3
GND
N2
D2R4D1R3
N1
IN+
IN–
P1
R1
P2
R2
N5
R6
P3 P4
V
DD
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
3
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
†
Supply voltage, V
DD
(see Note 1) 18 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Differential input voltage (see Note 2) ±V
DD
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage range, V
I
(any input) –0.3 V to V
DD
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input current, I
I
±5 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output current, I
O
(each output) ±30 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Total current into V
DD
45 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Total current out of GND 45 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Duration of short-circuit current at (or below) 25°C (see Note 3) Unlimited. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous total dissipation See Dissipation Rating Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating free-air temperature, T
A
: C suffix 0°C to 70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I suffix –40°C to 85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
M suffix –55°C to 125°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range –65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Case temperature for 60 seconds: FK package 260°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or P package 260°C. . . . . . . . . . . . . . . . .
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package 300°C. . . . . . . . . . . . . . . . . . . .
†
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values, except differential voltages, are with respect to network ground.
2. Differential voltages are at IN+ with respect to IN–.
3. The output may be shorted to either supply. Temperature and/or supply voltages must be limited to ensure that the maximum
dissipation rating is not exceeded (see application section).
DISSIPATION RATING TABLE
T
≤ 25°C DERATING FACTOR T
= 70°C T
= 85°C T
= 125°C
PACKAGE
A
POWER RATING ABOVE TA = 25°CAPOWER RATINGAPOWER RATINGAPOWER RATING
D 725 mW 5.8 mW/°C 464 mW 377 mW —
FK 1375 mW 11.0 mW/°C 880 mW 715 mW 275 mW
JG 1050 mW 8.4 mW/°C 672 mW 546 mW 210 mW
P 1000 mW 8.0 mW/°C 640 mW 520 mW —
recommended operating conditions
C SUFFIX I SUFFIX M SUFFIX
MIN MAX MIN MAX MIN MAX
UNIT
Supply voltage, V
DD
3 16 4 16 4 16 V
p
VDD = 5 V –0.2 3.5 –0.2 3.5 0 3.5
Common-mode input voltage, V
IC
VDD = 10 V –0.2 8.5 –0.2 8.5 0 8.5
V
Operating free-air temperature, T
A
0 70 –40 85 –55 125 °C
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
4
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 5 V (unless otherwise noted)
PARAMETER TEST CONDITIONS
T
A
†
TLC27L2C
TLC27L2AC
TLC27L2BC
TLC27L7C
UNIT
MIN TYP MAX
V
= 1.4 V, V
= 0,
25°C 1.1 10
TLC27L2C
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
12
V
= 1.4 V, V
= 0,
25°C 0.9 5
mV
p
TLC27L2AC
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
6.5
VIOInput offset voltage
V
= 1.4 V, V
= 0,
25°C 204 2000
TLC27L2BC
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
3000
V
= 1.4 V, V
= 0,
25°C 170 500
µ
V
TLC27L7C
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
1500
Average temperature coefficient of input 25°C to
°
α
VIO
g
offset voltage 70°C
1.1µV/°C
p
25°C 0.1
p
IIOInput offset current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
70°C 7 300
pA
p
25°C 0.6
p
IIBInput bias current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
70°C 50 600
pA
–0.2 –0.3
25°C
0.2to0.3
to
V
Common-mode input voltage range
4 4.2
V
ICR
gg
(see Note 5)
–0.2
Full range
0.2
to
V
g
3.5
25°C 3.2 4.1
V
OH
High-level output voltage VID = 100 mV , RL = 1 MΩ
0°C
3 4.1
V
70°C 3 4.2
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV, IOL = 0
0°C 0 50
mV
70°C 0 50
25°C 50 700
A
VD
Large-signal differential voltage
p
VO = 0.25 V to 2 V, RL = 1 MΩ
0°C
50 700
V/mV
am lification
70°C 50 380
25°C 65 94
CMRR Common-mode rejection ratio VIC = V
ICR
min
0°C 60 95
dB
70°C 60 95
25°C 70 97
k
SVR
Supply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V
0°C
60 97
dB
(∆VDD/∆VIO)
70°C 60 98
25°C 20 34
I
DD
Supply current (two amplifiers)
V
O
= 2.5 V,
V
IC
= 2.5 V,
0°C
24 42
µA
No load
70°C 16 28
†
Full range is 0°C to 70°C.
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically .
5. This range also applies to each input individually.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
5
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 10 V (unless otherwise noted)
PARAMETER TEST CONDITIONS
T
A
†
TLC27L2C
TLC27L2AC
TLC27L2BC
TLC27L7C
UNIT
MIN TYP MAX
V
= 1.4 V, V
= 0,
25°C 1.1 10
TLC27L2C
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
12
V
= 1.4 V, V
= 0,
25°C 0.9 5
mV
p
TLC27L2AC
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
6.5
VIOInput offset voltage
V
= 1.4 V, V
= 0,
25°C 235 2000
TLC27L2BC
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
3000 µV
V
= 1.4 V, V
= 0,
25°C 190 800
TLC27L7C
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
1900
α
VIO
Average temperature coefficient of input
offset voltage
25°C to
70°C
1 µV/°C
p
25°C 0.1
p
IIOInput offset current (see Note 4)
V
O
= 5 V,
V
IC
= 5
V
70°C 8 300
pA
p
25°C 0.7
p
IIBInput bias current (see Note 4)
V
O
=
5 V
,
V
IC
=
5 V
70°C 50 600
pA
–0.2 –0.3
25°C
0.2to0.3
to
V
Common-mode input voltage range
9 9.2
V
ICR
gg
(see Note 5)
–0.2
Full range
0.2
to
V
g
8.5
25°C 8 8.9
V
OH
High-level output voltage VID = 100 mV , RL = 1 MΩ
0°C
7.8 8.9
V
70°C 7.8 8.9
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV, IOL = 0
0°C
0 50
mV
70°C 0 50
25°C 50 860
A
VD
Large-signal differential voltage
p
VO = 1 V to 6 V, RL = 1 MΩ
0°C
50 1025
V/mV
am lification
70°C 50 660
25°C 65 97
CMRR Common-mode rejection ratio VIC = V
ICR
min
0°C 60 97
dB
70°C 60 97
25°C 70 97
k
SVR
Supply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V
0°C
60 97
dB
(∆VDD/∆VIO)
70°C 60 98
25°C 29 46
I
DD
Supply current (two amplifiers)
V
O
=
5 V
,
V
IC
=
5 V
,
0°C
36 66
µA
No load
70°C 22 40
†
Full range is 0°C to 70°C.
NOTES: 4 The typical values of input bias current and input offset current below 5 pA were determined mathematically .
5 This range also applies to each input individually.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
6
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 5 V (unless otherwise noted)
PARAMETER TEST CONDITIONS
T
A
†
TLC27L2I
TLC27L2AI
TLC27L2BI
TLC27L7I
UNIT
MIN TYP MAX
V
= 1.4 V, V
= 0,
25°C 1.1 10
TLC27L2I
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
13
V
= 1.4 V, V
= 0,
25°C 0.9 5
mV
p
TLC27L2AI
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
7
VIOInput offset voltage
V
= 1.4 V, V
= 0,
25°C 240 2000
TLC27L2BI
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
3500
V
= 1.4 V, V
= 0,
25°C 170 500
µ
V
TLC27L7I
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
2000
Average temperature coefficient of 25°C to
°
α
VIO
g
input offset voltage 85°C
1.1µV/°C
p
25°C 0.1
p
IIOInput offset current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
85°C 24 1000
pA
p
25°C 0.6
p
IIBInput bias current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
85°C 200 2000
pA
–0.2 –0.3
25°C
0.2to0.3
to
V
Common-mode input voltage range
4 4.2
V
ICR
gg
(see Note 5)
–0.2
Full range
0.2
to
V
g
3.5
25°C 3.2 4.1
V
OH
High-level output voltage VID = 100 mV , RL = 1 MΩ
–40°C
3 4.1
V
85°C 3 4.2
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV, IOL = 0
–40°C 0 50
mV
85°C 0 50
25°C 50 480
A
VD
Large-signal differential
p
VO = 0.25 V to 2 V, RL = 1 MΩ
–40°C
50 900
V/mV
voltage am lification
85°C 50 330
25°C 65 94
CMRR Common-mode rejection ratio VIC = V
ICR
min
–40°C 60 95
dB
85°C 60 95
25°C 70 97
k
SVR
Supply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V
–40°C
60 97
dB
(∆VDD/∆VIO)
85°C 60 98
25°C 20 34
I
DD
Supply current (two amplifiers)
V
O
= 2.5 V,
V
IC
= 2.5 V,
–40°C
31 54
µA
No load
85°C 15 26
†
Full range is –40°C to 85°C.
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically.
5. This range also applies to each input individually.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
7
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 10 V (unless otherwise noted)
PARAMETER TEST CONDITIONS
T
A
†
TLC27L2I
TLC27L2AI
TLC27L2BI
TLC27L7I
UNIT
MIN TYP MAX
V
= 1.4 V, V
= 0,
25°C 1.1 10
TLC27L2I
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
13
V
= 1.4 V, V
= 0,
25°C 0.9 5
mV
p
TLC27L2AI
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
7
VIOInput offset voltage
V
= 1.4 V, V
= 0,
25°C 235 2000
TLC27L2BI
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
3500
V
= 1.4 V, V
= 0,
25°C 190 800
µ
V
TLC27L7I
O
,
RS = 50 Ω,
IC
,
RL = 1 MΩ
Full range
2900
Average temperature coefficient of input 25°C to
°
α
VIO
g
offset voltage 85°C
1µV/°C
p
25°C 0.1
p
IIOInput offset current (see Note 4)
V
O
= 5 V,
V
IC
= 5
V
85°C 26 1000
pA
p
25°C 0.7
p
IIBInput bias current (see Note 4)
V
O
= 5 V,
V
IC
= 5
V
85°C 220 2000
pA
–0.2 –0.3
25°C
0.2to0.3
to
V
Common-mode input voltage range
9 9.2
V
ICR
gg
(see Note 5)
–0.2
Full range
0.2
to
V
g
8.5
25°C 8 8.9
V
OH
High-level output voltage VID = 100 mV , RL = 1 MΩ
–40°C
7.8 8.9
V
85°C 7.8 8.9
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV, IOL = 0
–40°C 0 50
mV
85°C 0 50
25°C 50 860
A
VD
Large-signal differential voltage
p
VO = 1 V to 6 V, RL = 1 MΩ
–40°C
50 1550
V/mV
am lification
85°C 50 585
25°C 65 97
CMRR Common-mode rejection ratio VIC = V
ICR
min
–40°C 60 97
dB
85°C 60 98
25°C 70 97
k
SVR
Supply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V
–40°C
60 97
dB
(∆VDD/∆VIO)
85°C 60 98
25°C 29 46
I
DD
Supply current (two amplifiers)
V
O
= 5 V,
V
IC
= 5 V,
–40°C
49 86
µA
No load
85°C 20 36
†
Full range is –40°C to 85°C.
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically.
5. This range also applies to each input individually.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
8
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 5 V (unless otherwise noted)
PARAMETER TEST CONDITIONS
T
A
†
TLC27L2M
TLC27L7M
UNIT
A
MIN TYP MAX
VO = 1.4 V, VIC = 0,
25°C 1.1 10
p
TLC27L2M
O
RS = 50 Ω,
IC
RL = 1 MΩ
Full range
12
mV
VIOInput offset voltage
VO = 1.4 V, VIC = 0,
25°C 170 500
TLC27L7M
O
RS = 50 Ω,
IC
RL = 1 MΩ
Full range
3750
µ
V
Average temperature coefficient of 25°C to
°
α
VIO
g
input offset voltage 125°C
1.4µV/°C
p
25°C 0.1 pA
IIOInput offset current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
125°C 1.4 15 nA
p
25°C 0.6 pA
IIBInput bias current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
125°C 9 35 nA
0 –0.3
25°C
to to
V
Common-mode input voltage range
4 4.2
V
ICR
gg
(see Note 5)
0
Full range
to
V
g
3.5
25°C 3.2 4.1
V
OH
High-level output voltage VID = 100 mV , RL = 1 MΩ –55°C 3 4.1 V
125°C 3 4.2
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV, IOL = 0 –55°C 0 50 mV
125°C 0 50
25°C 50 500
A
VD
L
arge-signal
diff
erential voltage
p
VO = 0.25 V to 2 V, RL = 1 MΩ –55°C 25 1000 V/mV
am lification
125°C 25 200
25°C 65 94
CMRR Common-mode rejection ratio VIC = V
ICR
min –55°C 60 95 dB
125°C 60 85
25°C 70 97
k
SVR
S
upply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V –55°C 60 97 dB
(∆VDD/∆VIO)
125°C 60 98
25°C 20 34
I
DD
Supply current (two amplifiers)
V
O
= 2.5 V,
V
IC
= 2.5 V,
–55°C
35 60 µA
No load
125°C 14 24
†
Full range is –55°C to 125°C.
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically.
5. This range also applies to each input individually.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
9
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 10 V (unless otherwise noted)
PARAMETER TEST CONDITIONS
T
A
†
TLC27L2M
TLC27L7M
UNIT
A
MIN TYP MAX
VO = 1.4 V, VIC = 0,
25°C 1.1 10
p
TLC27L2M
O
RS = 50 Ω,
IC
RL = 1 MΩ
Full range
12
mV
VIOInput offset voltage
VO = 1.4 V, VIC = 0,
25°C 190 800
TLC27L7M
O
RS = 50 Ω,
IC
RL = 1 MΩ
Full range
4300
µ
V
Average temperature coefficient of 25°C to
°
α
VIO
g
input offset voltage 125°C
1.4µV/°C
p
25°C 0.1 pA
IIOInput offset current (see Note 4)
V
O
= 5 V,
V
IC
= 5
V
125°C 1.8 15 nA
p
25°C 0.7 pA
IIBInput bias current (see Note 4)
V
O
= 5 V,
V
IC
= 5
V
125°C 10 35 nA
0 –0.3
25°C
to to
V
Common-mode input voltage range
9 9.2
V
ICR
gg
(see Note 5)
0
Full range
to
V
g
8.5
25°C 8 8.9
V
OH
High-level output voltage VID = 100 mV , RL = 1 MΩ –55°C 7.8 8.8 V
125°C 7.8 9
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV, IOL = 0 –55°C 0 50 mV
125°C 0 50
25°C 50 860
A
VD
L
arge-signal
diff
erential voltage
p
VO = 1 V to 6 V, RL = 1 MΩ –55°C 25 1750 V/mV
am lification
125°C 25 380
25°C 65 97
CMRR Common-mode rejection ratio VIC = V
ICR
min –55°C 60 97 dB
125°C 60 91
25°C 70 97
k
SVR
S
upply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V –55°C 60 97 dB
(∆VDD/∆VIO)
125°C 60 98
25°C 29 46
I
DD
Supply current (two amplifiers)
V
O
= 5 V,
V
IC
= 5 V,
–55°C
56 96 µA
No load
125°C 18 30
†
Full range is –55 °C to 125°C.
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically.
5. This range also applies to each input individually.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
10
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
operating characteristics, VDD = 5 V
PARAMETER TEST CONDITIONS T
A
TLC27L2C
TLC27L2AC
TLC27L2BC
TLC27L7C
UNIT
MIN TYP MAX
25°C 0.03
V
I(PP)
= 1 V
0°C 0.04
RL = 1 MΩ,
p
()
70°C 0.03
SR
Slew rate at unity gain
C
L
= 20 pF,
See Fi
g
ure 1
25°C 0.03
V/µs
See Figure 1
V
I(PP)
= 2.5 V
0°C 0.03
()
70°C 0.02
p
f = 1 kHz, R
= 20 Ω,
°
VnEquivalent input noise voltage
,
See Figure 2
S
,
25°C
68
n
V/√H
z
25°C 5
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 pF,
0°C 6
kHz
R
L
= 1 MΩ,
See Figure 1
70°C 4.5
25°C 85
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 pF,
0°C
100
kHz
See Figure 3
70°C 65
25°C 34°
φ
m
Phase margin
V
I
= 10 mV,
=
p
f
=
B
1
,
0°C 36°
C
L
= 20 F,
See Figure 3
70°C 30°
operating characteristics, VDD = 10 V
PARAMETER TEST CONDITIONS T
A
TLC27L2C
TLC27L2AC
TLC27L2BC
TLC27L7C
UNIT
MIN TYP MAX
25°C 0.05
V
I(PP)
= 1 V
0°C 0.05
RL = 1 MΩ,
p
()
70°C 0.04
SR
Slew rate at unity gain
C
L
= 20 pF,
See
Figure 1
25°C 0.04
V/µs
See Figure 1
V
I(PP)
= 5.5 V
0°C 0.05
()
70°C 0.04
p
f = 1 kHz, R
= 20 Ω,
°
VnEquivalent input noise voltage
,
See Figure 2
S
,
25°C
68
n
V/√H
z
25°C 1
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 pF,
0°C 1.3
kHz
R
L
= 1 MΩ,
See Figure 1
70°C 0.9
25°C 110
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 pF,
0°C
125
kHz
See Figure 3
70°C 90
25°C 38°
φ
m
Phase margin
V
I
= 10 mV,
=
p
f
=
B
1
,
0°C 40°
C
L
= 20 F,
See Figure 3
70°C 34°
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
11
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
operating characteristics, V
DD
= 5 V
PARAMETER TEST CONDITIONS T
A
TLC27L2I
TLC27L2AI
TLC27L2BI
TLC27L7I
UNIT
MIN TYP MAX
25°C 0.03
V
I(PP)
= 1 V
–40°C 0.04
RL = 1 MΩ,
p
()
85°C 0.03
SR
Slew rate at unity gain
C
L
= 20 pF,
See Fi
g
ure 1
25°C 0.03
V/µs
See Figure 1
V
I(PP)
= 2.5 V
–40°C 0.04
()
85°C 0.02
p
f = 1 kHz, R
= 20 Ω,
°
VnEquivalent input noise voltage
,
See Figure 2
S
,
25°C
68
n
V/√H
z
25°C 5
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 pF,
–40°C 7
kHz
R
L
= 1 MΩ,
See Figure 1
85°C 4
25°C 85
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 pF,
–40°C
130
kHz
See Figure 3
85°C 55
25°C 34°
φ
m
Phase margin
V
I
= 10 mV,
=
p
f
=
B
1
,
–40°C 38°
C
L
= 20 F,
See Figure 3
85°C 29°
operating characteristics, V
DD
= 10 V
PARAMETER TEST CONDITIONS T
A
TLC27L2I
TLC27L2AI
TLC27L2BI
TLC27L7I
UNIT
MIN TYP MAX
25°C 0.05
V
I(PP)
= 1 V
–40°C 0.06
RL = 1 MΩ,
p
()
85°C 0.03
SR
Slew rate at unity gain
C
L
= 20 pF,
See
Figure 1
25°C 0.04
V/µs
See Figure 1
V
I(PP)
= 5.5 V
–40°C 0.05
()
85°C 0.03
p
f = 1 kHz, R
= 20 Ω,
°
VnEquivalent input noise voltage
,
See Figure 2
S
,
25°C
68
n
V/√H
z
25°C 1
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 pF,
–40°C 1.4
kHz
R
L
= 1 MΩ,
See Figure 1
85°C 0.8
25°C 110
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 pF,
–40°C
155
kHz
See Figure 3
85°C 80
25°C 38°
φ
m
Phase margin
V
I
= 10 mV,
=
p
f
=
B
1
,
–40°C 42°
C
L
= 20 F,
See Figure 3
85°C 32°
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
12
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
operating characteristics, VDD = 5 V
PARAMETER TEST CONDITIONS T
TLC27L2M
TLC27L7M
UNIT
A
MIN TYP MAX
25°C 0.03
V
I(PP)
= 1 V
–55°C 0.04
RL = 1 MΩ,
p
()
125°C 0.02
SR
Slew rate at unity gain
C
L
= 20 pF,
See Fi
g
ure 1
25°C 0.03
V/µs
See Figure 1
V
I(PP)
= 2.5 V
–55°C 0.04
()
125°C 0.02
p
f = 1 kHz, R
= 20 Ω,
°
VnEquivalent input noise voltage
,
See Figure 2
S
,
25°C
68
n
V/√H
z
25°C 5
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 pF,
–55°C 8
kHz
R
L
= 1 MΩ,
See Figure 1
125°C 3
25°C 85
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 pF,
–55°C
140
kHz
See Figure 3
125°C 45
25°C 34°
φ
m
Phase margin
V
I
= 10 mV,
p
f
=
B
1
,
–55°C 39°
C
L
= 20 F,
See Figure 3
125°C 25°
operating characteristics, V
DD
= 10 V
PARAMETER TEST CONDITIONS T
TLC27L2M
TLC27L7M
UNIT
A
MIN TYP MAX
25°C 0.05
V
I(PP)
= 1 V
–55°C 0.06
RL = 1 MΩ,
p
()
125°C 0.03
SR
Slew rate at unity gain
C
L
= 20 pF,
See Fi
g
ure 1
25°C 0.04
V/µs
See Figure 1
V
I(PP)
= 5.5 V
–55°C 0.06
()
125°C 0.03
p
f = 1 kHz, R
= 20 Ω,
°
VnEquivalent input noise voltage
,
See Figure 2
S
,
25°C
68
n
V/√H
z
25°C 1
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 pF,
–55°C 1.5
kHz
R
L
= 1 MΩ,
See Figure 1
125°C 0.7
25°C 110
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 pF,
–55°C
165
kHz
See Figure 3
125°C 70
25°C 38°
φ
m
Phase margin
V
I
= 10 mV,
=
p
f
=
B
1
,
–55°C 43°
C
L
= 20 F,
See Figure 3
125°C 29°
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
13
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
single-supply versus split-supply test circuits
Because the TLC27L2 and TLC27L7 are optimized for single-supply operation, circuit configurations used for
the various tests often present some inconvenience since the input signal, in many cases, must be offset from
ground. This inconvenience can be avoided by testing the device with split supplies and the output load tied to
the negative rail. A comparison of single-supply versus split-supply test circuits is shown below. The use of either
circuit gives the same result.
V
DD–
V
DD+
–
+
C
L
R
L
V
O
V
I
V
I
V
O
R
L
C
L
V
DD
–
+
(a) SINGLE SUPPLY (b) SPLIT SUPPLY
Figure 1. Unity-Gain Amplifier
V
O
2 kΩ
20 Ω20 Ω
V
DD–
20 Ω
2 kΩ
V
O
20 Ω
1/2 V
DD
–
+
V
DD+
–
+
V
DD
(b) SPLIT SUPPL Y(a) SINGLE SUPPLY
Figure 2. Noise-Test Circuit
V
DD–
V
DD+
–
+
10 kΩ
V
O
100 Ω
C
L
V
I
V
I
1/2 V
DD
C
L
100 Ω
V
O
10 kΩ
–
+
V
DD
(a) SINGLE SUPPLY (b) SPLIT SUPPLY
Figure 3. Gain-of-100 Inverting Amplifier
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
14
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
input bias current
Because of the high input impedance of the TLC27L2 and TLC27L7 operational amplifiers, attempts to measure
the input bias current can result in erroneous readings. The bias current at normal room ambient temperature
is typically less than 1 pA, a value that is easily exceeded by leakages on the test socket. Two suggestions are
offered to avoid erroneous measurements:
1. Isolate the device from other potential leakage sources.Use a grounded shield around and between the
device inputs (see Figure 4). Leakages that would otherwise flow to the inputs are shunted away.
2. Compensate for the leakage of the test socket by actually performing an input bias current test (using
a picoammeter) with no device in the test socket. The actual input bias current can then be calculated
by subtracting the open-socket leakage readings from the readings obtained with a device in the test
socket.
One word of caution: many automatic testers as well as some bench-top operational amplifier testers use the
servo-loop technique with a resistor in series with the device input to measure the input bias current (the voltage
drop across the series resistor is measured and the bias current is calculated). This method requires that a
device be inserted into the test socket to obtain a correct reading; therefore, an open-socket reading is not
feasible using this method.
85
14
V = V
IC
Figure 4. Isolation Metal Around Device Inputs
(JG and P packages)
low-level output voltage
T o obtain low-supply-voltage operation, some compromise was necessary in the input stage. This compromise
results in the device low-level output being dependent on both the common-mode input voltage level as well
as the differential input voltage level. When attempting to correlate low-level output readings with those quoted
in the electrical specifications, these two conditions should be observed. If conditions other than these are to
be used, please refer to Figures 14 through 19 in the Typical Characteristics of this data sheet.
input offset voltage temperature coefficient
Erroneous readings often result from attempts to measure temperature coefficient of input offset voltage. This
parameter is actually a calculation using input offset voltage measurements obtained at two different
temperatures. When one (or both) of the temperatures is below freezing, moisture can collect on both the device
and the test socket. This moisture results in leakage and contact resistance, which can cause erroneous input
offset voltage readings. The isolation techniques previously mentioned have no effect on the leakage since the
moisture also covers the isolation metal itself, thereby rendering it useless. It is suggested that these
measurements be performed at temperatures above freezing to minimize error.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
15
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
full-power response
Full-power response, the frequency above which the operational amplifier slew rate limits the output voltage
swing, is often specified two ways: full-linear response and full-peak response. The full-linear response is
generally measured by monitoring the distortion level of the output while increasing the frequency of a sinusoidal
input signal until the maximum frequency is found above which the output contains significant distortion. The
full-peak response is defined as the maximum output frequency , without regard to distortion, above which full
peak-to-peak output swing cannot be maintained.
Because there is no industry-wide accepted value for significant distortion, the full-peak response is specified
in this data sheet and is measured using the circuit of Figure 1. The initial setup involves the use of a sinusoidal
input to determine the maximum peak-to-peak output of the device (the amplitude of the sinusoidal wave is
increased until clipping occurs). The sinusoidal wave is then replaced with a square wave of the same
amplitude. The frequency is then increased until the maximum peak-to-peak output can no longer be maintained
(Figure 5). A square wave is used to allow a more accurate determination of the point at which the maximum
peak-to-peak output is reached.
(d) f > B
OM
(c) f = B
OM
(b) BOM > f > 100 kHz(a) f = 100 kHz
Figure 5. Full-Power-Response Output Signal
test time
Inadequate test time is a frequent problem, especially when testing CMOS high-volume, short-test-time
environment. Internal capacitances are inherently higher in CMOS devices and require longer test times than
their bipolar and BiFET counterparts. The problem becomes more pronounced with reduced supply levels and
lower temperatures.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
16
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
Table of Graphs
FIGURE
V
IO
Input offset voltage Distribution 6, 7
α
VIO
Temperature coefficient of input offset voltage Distribution 8, 9
vs High-level output current 10, 11
V
OH
High-level output voltage
vs High level out ut current
vs Supply voltage
10, 11
12
OH
gg
yg
vs Free-air temperature 13
-
p
p
vs Common mode in ut voltage
vs Differential input voltage
14, 15
16
VOLLow-level output voltage
g
vs Free-air temperature 17
vs Low-level output current 18, 19
vs Supply voltage 20
A
VD
Large-signal differential voltage amplification
vs Su ly voltage
vs Free-air temperature
20
21
VD
gg g
vs Frequency 32, 33
I
IB
Input bias current vs Free-air temperature 22
I
IO
Input offset current vs Free-air temperature 22
V
IC
Common-mode input voltage vs Supply voltage 23
pp
vs Supply voltage 24
IDDSupply current
yg
vs Free-air temperature 25
vs Supply voltage 26
SR
Slew rate
yg
vs Free-air temperature 27
Normalized slew rate vs Free-air temperature 28
V
O(PP)
Maximum peak-to-peak output voltage vs Frequency 29
vs Free-air temperature 30
B1Unity-gain bandwidth
vs Supply voltage 31
vs Supply voltage 34
φ
m
Phase margin
vs Su ly voltage
vs Free-air temperature
34
35
φ
m
g
vs Load capacitance 36
V
n
Equivalent input noise voltage vs Frequency 37
Phase shift vs Frequency 32, 33
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
17
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
Figure 6
60
50
40
30
20
10
43210–1–2–3–4
70
5
VIO – Input Offset Voltage – mV
Percentage of Units – %
0
–5
DISTRIBUTION OF TLC27L2
INPUT OFFSET VOLTAGE
P Package
TA = 25°C
VDD = 5 V
905 Amplifiers Tested From 6 Wafer Lots
Figure 7
–5
0
Percentage of Units – %
VIO – Input Offset Voltage – mV
5
70
–4 –3 –2 –1 0 1 2 3 4
10
20
30
40
50
60
DISTRIBUTION OF TLC27L2
INPUT OFFSET VOLTAGE
905 Amplifiers Tested From 6 Wafer Lots
VDD = 10 V
TA = 25°C
P Package
Figure 8
–10
0
Percentage of Units – %
α
VIO
– Temperature Coefficient – µV/°C
10
70
–8 –6 –4 –2 0 2 4 6 8
10
20
30
40
50
60
DISTRIBUTION OF TLC27LC AND TLC27L7
INPUT OFFSET VOLTAGE
TEMPERATURE COEFFICIENT
356 Amplifiers Tested From 8 Wafer Lots
VDD = 5 V
TA = 25°C to 125°C
P Package
Outliers:
(1) 19.2 µV/°C
(1) 12.1 µV/°C
Figure 9
60
50
40
30
20
10
86420–2–4–6–8
70
10
α
VIO
– Temperature Coefficient – µV/°C
Percentage of Units – %
0
–10
DISTRIBUTION OF TLC27LC AND TLC27L7
INPUT OFFSET VOLTAGE
TEMPERATURE COEFFICIENT
(1) 11.6 µV/°C
(1) 18.7 µV/°C
Outliers:
P Package
TA = 25°C to 125°C
VDD = 10 V
356 Amplifiers Tested From 8 Wafer Lots
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
18
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†
Figure 10
VDD = 3 V
VDD = 4 V
VDD = 5 V
4
3
2
1
–8–6–4–2
5
–10
IOH – High-Level Output Current – mA
VOH – High-Level Output Voltage – V
0
0
HIGH-LEVEL OUTPUT VOLTAGE
vs
HIGH-LEVEL OUTPUT CURRENT
V
OH
TA = 25°C
VID = 100 mV
Figure 11
TA = 25°C
VID = 100 mV
VDD = 10 V
14
12
10
8
6
4
2
–30–20–10
16
–4
0
IOH – High-Level Output Current – mA
0
0
HIGH-LEVEL OUTPUT VOLTAGE
vs
HIGH-LEVEL OUTPUT CURRENT
VOH – High-Level Output Voltage – V
V
OH
–5 –15 –25 –35
VDD = 16 V
Figure 12
TA = 25°C
RL = 10 kΩ
VID = 100 mV
0
16
2
4
6
8
10
12
14
1412108642 16
VDD – Supply Voltage – V
0
HIGH-LEVEL OUTPUT VOLTAGE
vs
SUPPLY VOLTAGE
VOH – High-Level Output Voltage – V
V
OH
Figure 13
VDD = 10 V
VDD = 5 V
–75
–2.4
TA – Free-Air Temperature – °C
125
VDD –1.6
–50 –25 0 20 50 75 100
–2.3
–2.2
–2.1
–2
–1.9
–1.8
–1.7
HIGH-LEVEL OUTPUT VOLTAGE
vs
FREE-AIR TEMPERATURE
VOH – High-Level Output Voltage – V
V
OH
VID = 100 mA
IOH = –5 mA
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
19
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†
Figure 14
VID = –1 V
VID = –100 mV
VDD = 5 V
IOL = 5 mA
TA = 25°C
600
500
400
321
700
4
VIC – Common-Mode Input Voltage – V
VOL – Low-Level Output V oltage – mV
300
0

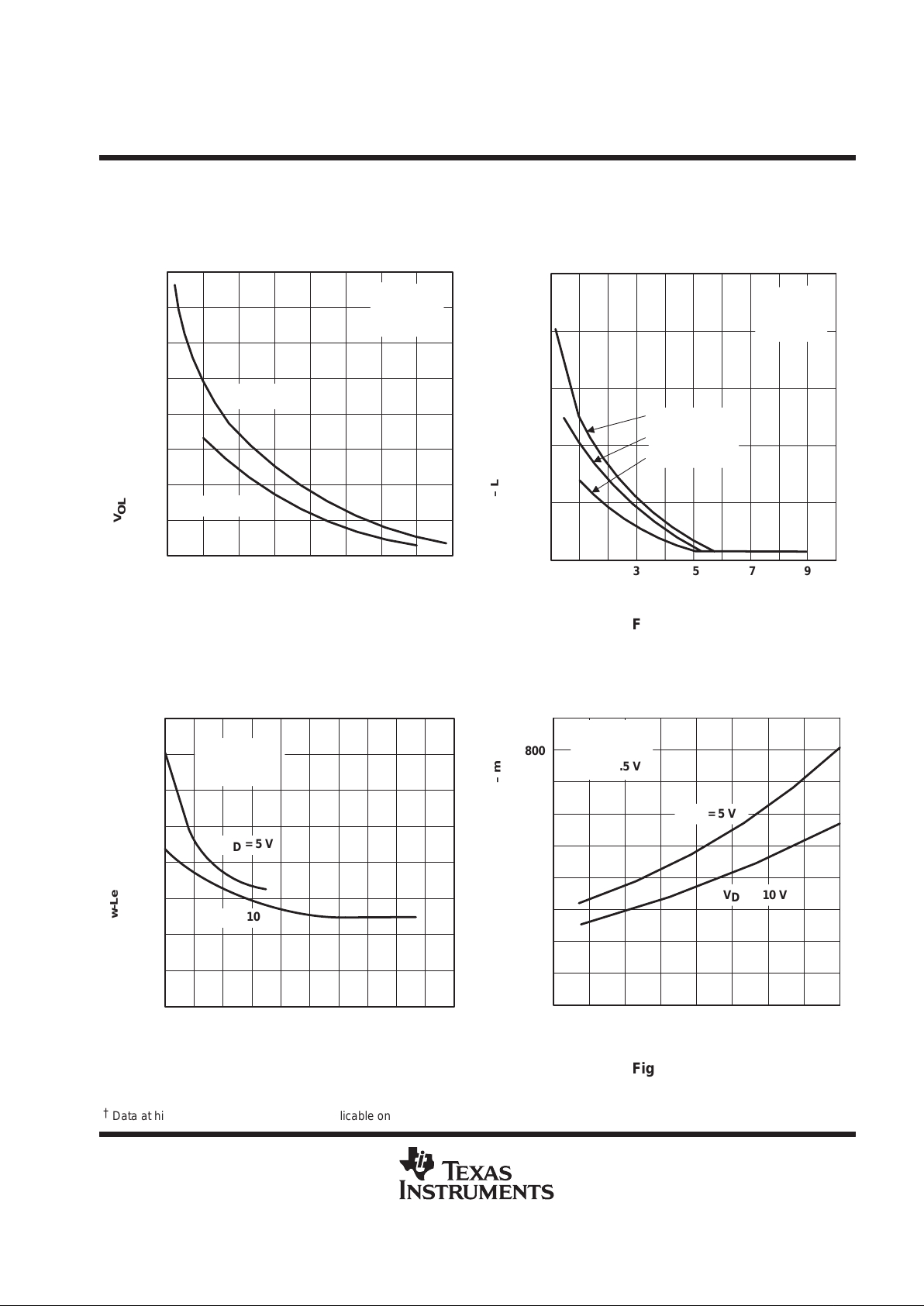

LOW-LEVEL OUTPUT VOLTAGE
vs
DIFFERENTIAL INPUT VOLTAGE
0.5 1.5 2.5 3.3
V
OL
Figure 15
VID = –100 mV
VID = – 2.5 V
VID = –1 V
TA = 25°C
IOL = 5 mA
VDD = 10 V
108642
500
450
400
350
300
VIC – Common-Mode Input Voltage – V
0
250
LOW-LEVEL OUTPUT VOLTAGE
vs
FREE-AIR TEMPERATURE
VOL – Low-Level Output V oltage – mV
V
OL
13 579
Figure 16
TA = 25°C
VIC = |V
ID/
2|
IOL = 5 mA
0
100
200
300
400
500
600
700
800
–8–6–4–2 –10
VID – Differential Input Voltage – V
0
LOW-LEVEL OUTPUT VOLTAGE
vs
DIFFERENTIAL INPUT VOLTAGE
–1 –3 –5 –7 –9
VOL – Low-Level Output V oltage – mV
V
OL
VDD = 10 V
VDD = 5 V
Figure 17
VDD = 5 V
800
700
600
500
400
300
200
100
1007550250–25–50
900
125
TA – Free-Air Temperature – °C
0
–75
LOW-LEVEL OUTPUT VOLTAGE
vs
FREE-AIR TEMPERATURE
VOL – Low-Level Output V oltage – mV
V
OL
IOL = 5 mA
VID = –1 V
VIC = 0.5 V
VDD = 10 V
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
20
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†
Figure 18
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
VDD = 4 V
VDD = 3 V
TA = 25°C
VIC = 0.5 V
VID = –1 V
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
7654321
0
8
1
IOL – Low-Level Output Current – mA
0
VOL – Low-Level Output Voltage – V
V
OL
VDD = 5 V
Figure 19
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
VDD = 16 V
VDD = 10 V
VID = –1 V
VIC = 0.5 V
TA = 25°C
2.5
2
1.5
1
0.5
252015105
0
30
3
IOL – Low-Level Output Current – mA
0
VOL – Low-Level Output Voltage – V
V
OL
Figure 20
0
VDD – Supply Voltage – V
2000
16
0
2 4 6 8 10 12 14
200
400
600
800
1000
1200
1400
1600
1800
RL = 1 MΩ
TA = –55°C
–40°C
TA = 0°C
70°C
85°C
125°C
LARGE-SIGNAL
DIFFERENTIAL VOLTAGE AMPLIFICATION
vs
SUPPLY VOLTAGE
25°C
AVD – Large-Signal Differential
A
VD
Voltage Amplification – V/mV
Figure 21
LARGE-SIGNAL
DIFFERENTIAL VOLTAGE AMPLIFICATION
vs
FREE-AIR TEMPERATURE
1007550250–25–50
0
125
TA – Free-Air Temperature – °C
–75
RL = 1 MΩ
VDD = 5 V
VDD = 10 V
1800
1600
1400
1200
1000
800
600
400
200
2000
AVD – Large-Signal Differential
A
VD
Voltage Amplification – V/mV
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
21
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†
Figure 22
0.1
125
10000
45 65 85 105
1
10
100
1000
25
IIB and IIO – Input Bias and Offset Currents – pA
TA – Free-Air Temperature – °C
INPUT BIAS CURRENT AND INPUT OFFSET CURREN
T
vs
FREE-AIR TEMPERATURE
IB
I
I
IO
VDD = 10 V
VIC = 5 V
See Note A
I
IB
I
IO
NOTE A: The typical values of input bias current and input offset
current below 5 pA were determined mathematically.
Figure 23
COMMON-MODE
INPUT VOLTAGE POSITIVE LIMIT
vs
SUPPLY VOLTAGE
0
VI – Common-Mode Input Voltage – V
VDD – Supply Voltage – V
16
16
0
246810 12 14
2
4
6
8
10
12
14
TA = 25°C
V
IC
Figure 24
No Load
VO = VDD/2
0°C
–40°C
80
70
60
50
40
30
20
10
1412108642
0
16
90
VDD – Supply Voltage – V
IDD – Supply Current – mA
0
125°C
70°C
25°C
TA = –55°C
SUPPLY CURRENT
vs
SUPPLY VOLTAGE
DD
I
Aµ
Figure 25
50
40
30
20
10
1007550250–25–50
0
125
60
TA – Free-Air Temperature – °C
–75
VDD = 5 V
VDD = 10 V
No Load
VO = VDD/2
SUPPLY CURRENT
vs
FREE-AIR TEMPERATURE
IDD – Supply Current – mA
DD
I
Aµ
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
22
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†
Figure 26
See Figure 1
TA = 25°C
0
SR – Slew Rate – V/s
VDD – Supply Voltage – V
0.07
16
0.00
2 4 6 8 10 12 14
0.01
0.02
0.03
0.04
0.05
0.06
SLEW RATE
vs
SUPPLY VOLTAGE
CL = 20 pF
RL =1 MΩ
V
I(PP)
= 1 V
AV = 1
sµ
Figure 27
V
I(PP)
= 5.5 V
VDD = 10 V
–75
TA – Free-Air Temperature – °C
0.07
125
0.00
–50 –25 0 25 50 75 100
0.01
0.02
0.03
0.04
0.05
0.06
SLEW RATE
vs
FREE-AIR TEMPERATURE
RL =1 MΩ
CL = 20 pF
AV = 1
See Figure 1
V
I(PP)
= 1 V
VDD = 10 V
V
I(PP)
= 1 V
VDD = 5 V
V
I(PP)
= 2.5 V
VDD = 5 V
SR – Slew Rate – V/s
sµ
Figure 28
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1007550250–25–50 125
TA – Free-Air Temperature – °C
Normalized Slew Rate
–75
NORMALIZED SLEW RATE
vs
FREE-AIR TEMPERATURE
CL = 20 pF
RL =1 MΩ
V
IPP
= 1 V
AV = 1
VDD = 10 V
VDD = 5 V
Figure 29
101
9
8
7
6
5
4
3
2
1
0
100
10
f – Frequency – kHz
0.1
MAXIMUM-PEAK-TO-PEAK OUTPUT VOLTAGE
vs
FREQUENCY
RL = 1 MΩ
See Figure 1
VDD = 5 V
TA = –55°C
TA = 25°C
TA = 125°C
VDD = 10 V
– Maximum Peak-to-Peak Output Voltage – V
V
O(PP)
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
23
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†

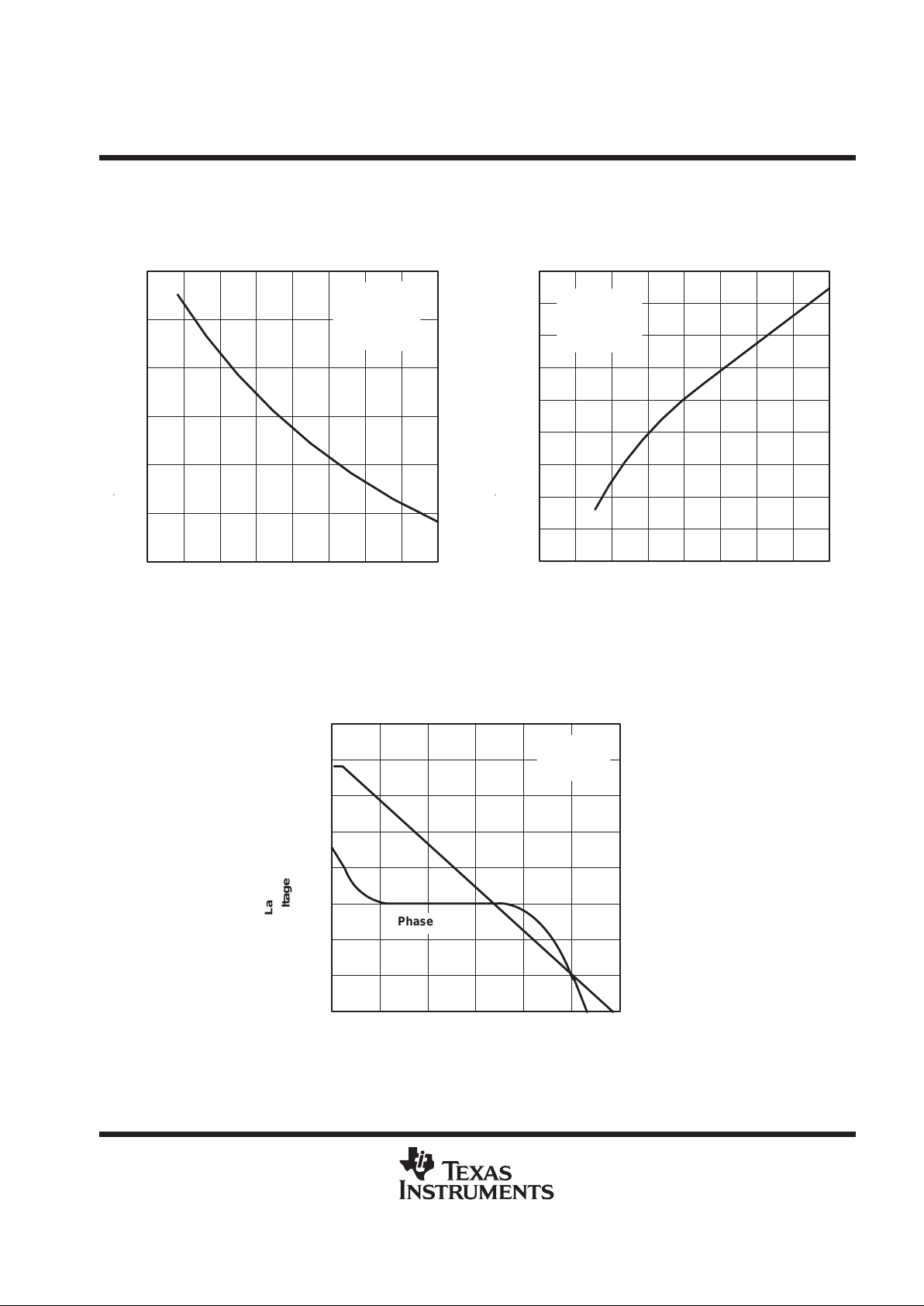

Figure 30
VDD = 5 V
VI = 10 mV
CL = 20 pF
See Figure 3
–75
B1 – Unity-Gain Bandwidth – kHz
TA – Free-Air Temperature – °C
150
125
30
–50 –25 0 25 50 75 100
50
70
90
110
130
UNITY-GAIN BANDWIDTH
vs
FREE-AIR TEMPERATURE
B
1
Figure 31
0
VDD – Supply Voltage – V
140
16
50
2 4 6 8 10 12 14
60
70
80
90
100
110
120
130
See Figure 3
TA = 25°C
CL = 20 pF
VI = 10 mV
UNITY-GAIN BANDWIDTH
vs
SUPPLY VOLTAGE
B1 – Unity-Gain Bandwidth – kHz
B
1
1
f – Frequency – Hz
1 M10 100 1 k 10 k 100 k
Phase Shift
A
VD
Phase Shift
180°
0°
30°
60°
90°
120°
150°
10
7
10
6
0.1
1
10
5
10
4
10
3
10
2
10
1
VDD = 10 V
RL = 1 MΩ
TA = 25°C
LARGE-SIGNAL DIFFERENTIAL VOLTAGE
AMPLIFICATION AND PHASE SHIFT
vs
FREQUENCY
AVD – Large-Signal Differential
A
VD
Voltage Amplification
Figure 32
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
24
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†

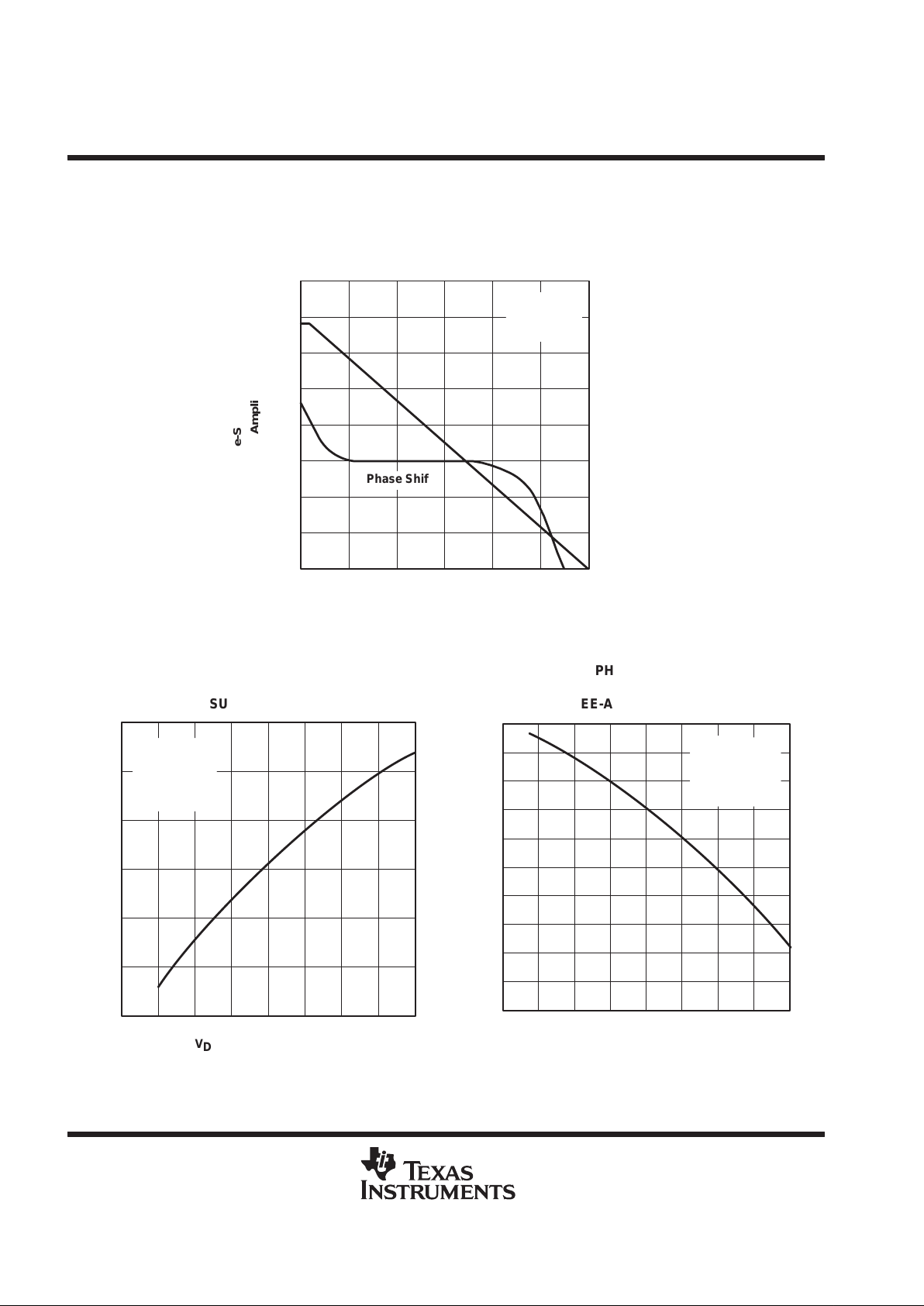

Phase Shift
A
VD
VDD = 10 V
RL = 1 MΩ
TA = 25°C
Phase Shift
180°
0°
30°
60°
90°
120°
150°
100 k10 k1 k10010 1 M
f – Frequency – Hz
1
10
7
LARGE-SIGNAL DIFFERENTIAL VOLTAGE
AMPLIFICATION AND PHASE SHIFT
vs
FREQUENCY
10
6
0.1
1
10
5
10
4
10
3
10
2
10
1
AVD – Large-Signal Differential
A
VD
Voltage Amplification
Figure 33
Figure 34
0
m – Phase Margin
VDD – Supply Voltage – V
42°
16
30°
2 4 6 8 10 12 14
32°
34°
36°
38°
40°
See Figure 3
VI = 10 mV
TA = 25°C
CL = 20 pF
m
φ
PHASE MARGIN
vs
SUPPLY VOLTAGE
Figure 35
See Figure 3
VI = 10 mV
CL = 20 pF
VDD = 5 mV
–75
TA – Free-Air Temperature – °C
40°
125
20°
–50 –25 0 25 50 75 100
24°
28°
32°
36°
m – Phase Margin
m
φ
PHASE MARGIN
vs
FREE-AIR TEMPERATURE
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
25
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
Figure 36
VDD = 5 mV
TA = 25°C
See Figure 3
VI = 10 mV
0
CL – Capacitive Load – pF
37°
100
25°
20 40 60 80
27°
29°
31°
33°
35°
PHASE MARGIN
vs
CAPACITIVE LOAD
m – Phase Margin
m
φ
10 30 50 70 90
Figure 37
See Figure 2
RS = 20 Ω
VDD = 5 V
1
VN – Equivalent Input Noise Voltage – nV/Hz
f – Frequency – Hz
100
0
10 100
EQUIVALENT INPUT NOISE VOLTAGE
vs
FREQUENCY
TA = 25°C
200
175
150
125
100
75
50
25
0
V
n
ÁÁ
ÁÁ
nV/ Hz
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
26
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
single-supply operation
While the TLC27L2 and TLC27L7 perform well using dual power supplies (also called balanced or split
supplies), the design is optimized for single-supply operation. This design includes an input common-mode
voltage range that encompasses ground as well as an output voltage range that pulls down to ground. The
supply voltage range extends down to 3 V (C-suffix types), thus allowing operation with supply levels commonly
available for TTL and HCMOS; however, for maximum dynamic range, 16-V single-supply operation is
recommended.
Many single-supply applications require that a voltage be applied to one input to establish a reference level that
is above ground. A resistive voltage divider is usually sufficient to establish this reference level (see Figure 38).
The low input bias current of the TLC27L2 and TLC27L7 permits the use of very large resistive values to
implement the voltage divider, thus minimizing power consumption.
The TLC27L2 and TLC27L7 work well in conjunction with digital logic; however, when powering both linear
devices and digital logic from the same power supply, the following precautions are recommended:
1. Power the linear devices from separate bypassed supply lines (see Figure 39); otherwise, the linear
device supply rails can fluctuate due to voltage drops caused by high switching currents in the digital
logic.
2. Use proper bypass techniques to reduce the probability of noise-induced errors. Single capacitive
decoupling is often adequate; however, high-frequency applications may require RC decoupling.
–
+
0.01 µF
C
R3
V
REF
V
I
R1
R2
V
DD
V
O
R4
V
REF
+
V
DD
R3
R1)R3
VO+ǒV
REF
–V
I
Ǔ
R4
R2
)
V
REF
Figure 38. Inverting Amplifier With Voltage Reference
(b) SEPARATE BYPASSED SUPPLY RAILS (preferred)
(a) COMMON SUPPLY RAILS
–
+
–
+
Logic Logic Logic
Supply
Power
LogicLogicLogic
Supply
Power
V
O
V
O
Figure 39. Common Versus Separate Supply Rails
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
27
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
input characteristics
The TLC27L2 and TLC27L7 are specified with a minimum and a maximum input voltage that, if exceeded at
either input, could cause the device to malfunction. Exceeding this specified range is a common problem,
especially in single-supply operation. Note that the lower range limit includes the negative rail, while the upper
range limit is specified at V
DD
–1 V at T
A
= 25°C and at VDD –1.5 V at all other temperatures.
The use of the polysilicon-gate process and the careful input circuit design gives the TLC27L2 and TLC27L7
very good input offset voltage drift characteristics relative to conventional metal-gate processes. Offset voltage
drift in CMOS devices is highly influenced by threshold voltage shifts caused by polarization of the phosphorus
dopant implanted in the oxide. Placing the phosphorus dopant in a conductor (such as a polysilicon gate)
alleviates the polarization problem, thus reducing threshold voltage shifts by more than an order of magnitude.
The offset voltage drift with time has been calculated to be typically 0.1 µV/month, including the first month of
operation.
Because of the extremely high input impedance and resulting low bias current requirements, the TLC27L2 and
TLC27L7 are well suited for low-level signal processing; however, leakage currents on printed circuit boards
and sockets can easily exceed bias current requirements and cause a degradation in device performance. It
is good practice to include guard rings around inputs (similar to those of Figure 4 in the Parameter Measurement
Information section). These guards should be driven from a low-impedance source at the same voltage level
as the common-mode input (see Figure 40).
Unused amplifiers should be connected as grounded unity-gain followers to avoid possible oscillation.
noise performance
The noise specifications in operational amplifier circuits are greatly dependent on the current in the first-stage
differential amplifier . The low input bias current requirements of the TLC27L2 and TLC27L7 result in a very low
noise current, which is insignificant in most applications. This feature makes the devices especially favorable
over bipolar devices when using values of circuit impedance greater than 50 kΩ, since bipolar devices exhibit
greater noise currents.
V
I
–
+
–
+
V
I
(b) INVERTING AMPLIFIER
–
+
(c) UNITY-GAIN AMPLIFIER(a) NONINVERTING AMPLIFIER
V
I
V
O
V
O
V
O
Figure 40. Guard-Ring Schemes
output characteristics
The output stage of the TLC27L2 and TLC27L7 is designed to sink and source relatively high amounts of current
(see typical characteristics). If the output is subjected to a short-circuit condition, this high current capability can
cause device damage under certain conditions. Output current capability increases with supply voltage.
All operating characteristics of the TLC27L2 and TLC27L7 were measured using a 20-pF load. The devices
drive higher capacitive loads; however, as output load capacitance increases, the resulting response pole
occurs at lower frequencies, thereby causing ringing, peaking, or even oscillation (see Figure 41). In many
cases, adding a small amount of resistance in series with the load capacitance alleviates the problem.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
28
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
output characteristics (continued)
(b) CL = 260 pF, RL = NO LOAD(a) CL = 20 pF, RL = NO LOAD
V
I
–2.5 V
C
L
V
O
2.5 V
–
+
TA = 25°C
f = 1 kHz
V
I(PP)
= 1 V
(d) TEST CIRCUIT
(c) CL = 310 pF, RL = NO LOAD
Figure 41. Effect of Capacitive Loads and Test Circuit
Although the TLC27L2 and TLC27L7 possess excellent high-level output voltage and current capability,
methods for boosting this capability are available, if needed. The simplest method involves the use of a pullup
resistor (R
P
) connected from the output to the positive supply rail (see Figure 42). There are two disadvantages
to the use of this circuit. First, the NMOS pulldown transistor N4 (see equivalent schematic) must sink a
comparatively large amount of current. In this circuit, N4 behaves like a linear resistor with an on-resistance
between approximately 60 Ω and 180 Ω, depending on how hard the operational amplifier input is driven. With
very low values of R
P
, a voltage offset from 0 V at the output occurs. Second, pullup resistor RP acts as a
drain load to N4 and the gain of the operational amplifier is reduced at output voltage levels where N5 is not
supplying the output current.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
29
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
output characteristics (continued)
Figure 42. Resistive Pullup to Increase V
OH
I
L
I
F
I
P
R
L
R1
R2
V
O
R
P
V
DD
V
I
–
+
RP+
VDD–V
O
IF)
IL)
I
P
IP = Pullup current required
by the operational amplifier
(typically 500 µA)
Figure 43. Compensation for
Input Capacitance
C
–
+
V
O
feedback
Operational amplifier circuits nearly always employ feedback, and since feedback is the first prerequisite for
oscillation, some caution is appropriate. Most oscillation problems result from driving capacitive loads
(discussed previously) and ignoring stray input capacitance. A small-value capacitor connected in parallel with
the feedback resistor is an effective remedy (see Figure 43). The value of this capacitor is optimized empirically .
electrostatic discharge protection
The TLC27L2 and TLC27L7 incorporate an internal electrostatic discharge (ESD) protection circuit that
prevents functional failures at voltages up to 2000 V as tested under MIL-STD-883C, Method 3015.2. Care
should be exercised, however, when handling these devices, as exposure to ESD may result in the degradation
of the device parametric performance. The protection circuit also causes the input bias currents to be
temperature dependent and have the characteristics of a reverse-biased diode.
latch-up
Because CMOS devices are susceptible to latch-up due to their inherent parasitic thyristors, the TLC27L2 and
TLC27L7 inputs and outputs were designed to withstand –100-mA surge currents without sustaining latch-up;
however, techniques should be used to reduce the chance of latch-up whenever possible. Internal protection
diodes should not, by design, be forward biased. Applied input and output voltage should not exceed the supply
voltage by more than 300 mV . Care should be exercised when using capacitive coupling on pulse generators.
Supply transients should be shunted by the use of decoupling capacitors (0.1 µF typical) located across the
supply rails as close to the device as possible.
The current path established if latch-up occurs is usually between the positive supply rail and ground and can
be triggered by surges on the supply lines and/or voltages on either the output or inputs that exceed the supply
voltage. Once latch-up occurs, the current flow is limited only by the impedance of the power supply and the
forward resistance of the parasitic thyristor and usually results in the destruction of the device. The chance of
latch-up occurring increases with increasing temperature and supply voltages.
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
30
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
–
+
–
+
500 kΩ
500 kΩ
5 V
500 kΩ
0.1 µF
500 kΩ
V
O2
V
O1
1/2
TLC27L2
TLC27L2
1/2
Figure 44. Multivibrator
Reset
Set
TLC27L2
1/2
–
+
100 kΩ
V
DD
33 kΩ
100 kΩ
100 kΩ
NOTE: VDD = 5 V to 16 V
Figure 45. Set/Reset Flip-Flop
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
31
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
–
+
V
DD
V
O
90 kΩ
9 kΩ
X1
1
1
B
TLC4066
V
DD
V
I
S
1
S
2
C
A
C
A
2
X2
2
B
1 kΩ
Analog
Switch
1/2
TLC27L7
SELECT:
S1S
2
A
V
10 100
NOTE: VDD = 5 V to 12 V
Figure 46. Amplifier With Digital Gain Selection
–
+
10 kΩ
V
O
100 kΩ
V
DD
20 kΩ
V
I
1/2
TLC27L2
NOTE: VDD = 5 V to 16 V
Figure 47. Full-Wave Rectifier
TLC27L2, TLC27L2A, TLC27L2B, TLC27L7
LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS
SLOS052B – OCTOBER 1987 – REVISED AUGUST 1994
32
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
TLC27L2
1/2
V
I
0.016 µF
V
O
10 kΩ
5 V
–
+
10 kΩ
0.016 µF
NOTE: Normalized to fc = 1 kHz and RL = 10 kΩ
Figure 48. Two-Pole Low-Pass Butterworth Filter
–
+
V
O
1/2
TLC27L7
R2
100 kΩ
R1
10 kΩ
100 kΩ
R2
V
IB
V
DD
V
IA
R1
10 kΩ
NOTE: VDD = 5 V to 16 V
VO+
R2
R1
ǒ
VIB–V
IA
Ǔ
Figure 49. Difference Amplifier
IMPORTANT NOTICE
T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those
pertaining to warranty, patent infringement, and limitation of liability.
TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.
CERT AIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MA Y INVOLVE POTENTIAL RISKS OF
DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL
APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR
WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER
CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICA TIONS IS UNDERST OOD TO
BE FULLY AT THE CUSTOMER’S RISK.
In order to minimize risks associated with the customer’s applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent
that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.
Copyright 1998, Texas Instruments Incorporated
Loading...
