TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
D
Trimmed Offset Voltage:
TLC279 . . . 900 µV Max at 25°C,
VDD = 5 V
D
Input Offset Voltage Drift ...Typically
0.1 µV/Month, Including the First 30 Days
D
Wide Range of Supply Voltages Over
Specified Temperature Range:
0°C to 70°C...3 V to 16 V
–40°C to 85°C...4 V to 16 V
–55°C to 125°C...4 V to 16 V
D
Single-Supply Operation
D
Common-Mode Input Voltage Range
Extends Below the Negative Rail (C-Suffix
and I-Suffix Versions)
D
Low Noise ...Typically 25 nV/√Hz
at f = 1 kHz
D
Output Voltage Range Includes Negative
Rail
D
High Input Impedance ...1012 Ω Typ
D
ESD-Protection Circuitry
D
Small-Outline Package Option Also
Available in Tape and Reel
D
Designed-In Latch-Up Immunity
description
The TLC274 and TLC279 quad operational
amplifiers combine a wide range of input offset
voltage grades with low offset voltage drift, high
input impedance, low noise, and speeds
approaching that of general-purpose BiFET
devices.
These devices use Texas Instruments
silicon-gate LinCMOS technology, which
provides offset voltage stability far exceeding the
stability available with conventional metal-gate
processes.
The extremely high input impedance, low bias
currents, and high slew rates make these
cost-effective devices ideal for applications which
have previously been reserved for BiFET and
NFET products. Four offset voltage grades are
available (C-suffix and I-suffix types), ranging
from the low-cost TLC274 (10 mV) to the highprecision TLC279 (900 µV). These advantages, in
combination with good common-mode rejection
and supply voltage rejection, make these devices
a good choice for new state-of-the-art designs as
well as for upgrading existing designs.
Copyright 1998, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
–1200
Percentage of Units – %
VIO – Input Offset Voltage – µV
30
1200
0
–600 0 600
5
10
15
20
25
VDD = 5 V
TA = 25°C
N Package
DISTRIBUTION OF TLC279
INPUT OFFSET VOLTAGE
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1OUT
1IN–
1IN+
V
DD
2IN+
2IN–
2OUT
4OUT
4IN–
4IN+
GND
3IN+
3IN–
3OUT
D, J, N, OR PW PACKAGE
(TOP VIEW)
3212019
910111213
4
5
6
7
8
18
17
16
15
14
4IN+
NC
GND
NC
3IN+
1IN+
NC
V
DD
NC
2IN+
FK PACKAGE
(TOP VIEW)
1IN –
1OUT
NC
3OUT
3IN –
4OUT
4IN –
2IN –
2OUT
NC
NC – No internal connection
290 Units Tested From 2 Wafer Lots
LinCMOS is a trademark of Texas Instruments Incorporated.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
2
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
description (continued)
In general, many features associated with bipolar technology are available on LinCMOS operational
amplifiers, without the power penalties of bipolar technology. General applications such as transducer
interfacing, analog calculations, amplifier blocks, active filters, and signal buffering are easily designed with the
TLC274 and TLC279. The devices also exhibit low voltage single-supply operation, making them ideally suited
for remote and inaccessible battery-powered applications. The common-mode input voltage range includes the
negative rail.
A wide range of packaging options is available, including small-outline and chip-carrier versions for high-density
system applications.
The device inputs and outputs are designed to withstand –100-mA surge currents without sustaining latch-up.
The TLC274 and TLC279 incorporate internal ESD-protection circuits that prevent functional failures at voltages
up to 2000 V as tested under MIL-STD-883C, Method 3015.2; however, care should be exercised in handling
these devices as exposure to ESD may result in the degradation of the device parametric performance.
The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized
for operation from – 40°C to 85°C. The M-suffix devices are characterized for operation over the full military
temperature range of –55°C to 125°C.
AVAILABLE OPTIONS
PACKAGED DEVICES
T
A
VIOmax
AT 25°C
SMALL
OUTLINE
(D)
CHIP
CARRIER
(FK)
CERAMIC
DIP
(J)
PLASTIC
DIP
(N)
TSSOP
(PW)
CHIP
FORM
(Y)
0°C to 70°C
900 µV
2 mV
5 mV
10 mV
TLC279CD
TLC274BCD
TLC274ACD
TLC274CD
—
—
—
—
—
—
—
—
TLC279CN
TLC274BCN
TLC274ACN
TLC274CN
—
—
—
TLC274CPW
—
—
—
TLC274Y
— —
— —
°
°
900 µV
2 mV
TLC279ID
TLC274BID — —
TLC279IN
TLC274BIN — —
–
40°C to 85°C
5 mV TLC274AID — — TLC274AIN — —
10 mV TLC274ID — — TLC274IN — —
–55°C to 125°C
900 µV
10 mV
TLC279MD
TLC274MD
TLC279MFK
TLC274MFK
TLC279MJ
TLC274MJ
TLC279MN
TLC274MN
—
—
—
—
The D package is available taped and reeled. Add R suffix to the device type (e.g., TLC279CDR).
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
3
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
equivalent schematic (each amplifier)
V
DD
P4
P3
R6
N5R2
P2
R1
P1
IN–
IN+
N1
R3 D1 R4 D2
N2
GND
N3
R5
C1
N4
R7
N6 N7
OUT
P6P5
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
4
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TLC274Y chip information
These chips, when properly assembled, display characteristics similar to the TLC274C. Thermal compression
or ultrasonic bonding may be used on the doped-aluminum bonding pads. Chips may be mounted with
conductive epoxy or a gold-silicon preform.
BONDING PAD ASSIGNMENTS
CHIP THICKNESS: 15 TYPICAL
BONDING PADS: 4 × 4 MINIMUM
TJmax = 150°C
TOLERANCES ARE ±10%.
ALL DIMENSIONS ARE IN MILS.
PIN (11) IS INTERNALLY CONNECTED
TO BACKSIDE OF CHIP.
+
–
1OUT
1IN+
1IN–
V
DD
(4)
(6)
(3)
(2)
(5)
(1)
–
+
(7)
2IN+
2IN–
2OUT
11
GND
+
–
3OUT
3IN+
3IN–
(13)
(10)
(9)
(12)
(8)
–
+
(14)
4OUT
4IN+
4IN–
68
108
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)(10)
(11)
(12)(13)
(14)
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
5
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
†
Supply voltage, VDD (see Note 1) 18 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Differential input voltage, VID (see Note 2) ±V
DD
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage range, V
I
(any input) –0.3 V to V
DD
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input current, II ±5 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output current, lO (each output) ±30 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Total current into VDD 45 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Total current out of GND 45 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Duration of short-circuit current at (or below) 25°C (see Note 3) unlimited. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous total dissipation See Dissipation Rating Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating free-air temperature, T
A
: C suffix 0°C to 70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I suffix –40°C to 85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
M suffix –55°C to 125°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range –65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Case temperature for 60 seconds: FK package 260°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D, N, or PW package 260°C. . . . . . . . . . . .
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J package 300°C. . . . . . . . . . . . . . . . . . . . .
†
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values, except differential voltages, are with respect to network ground.
2. Differential voltages are at the noninverting input with respect to the inverting input.
3. The output may be shorted to either supply. Temperature and/or supply voltages must be limited to ensure that the maximum
dissipation rating is not exceeded (see application section).
DISSIPATION RATING TABLE
PACKAGE
TA ≤ 25°C
POWER RATING
DERATING FACTOR
ABOVE TA = 25°C
TA = 70°C
POWER RATING
TA = 85°C
POWER RATING
TA = 125°C
POWER RATING
D 950 mW 7.6 mW/°C 608 mW 494 mW —
FK 1375 mW 11.0 mW/°C 880 mW 715 mW 275 mW
J 1375 mW 11.0 mW/°C 880 mW 715 mW 275 mW
N 1575 mW 12.6 mW/°C 1008 mW 819 mW —
PW 700 mW 5.6 mW/°C 448 mW — —
recommended operating conditions
C SUFFIX I SUFFIX M SUFFIX
MIN MAX MIN MAX MIN MAX
UNIT
Supply voltage, V
DD
3 16 4 16 4 16 V
p
VDD = 5 V –0.2 3.5 –0.2 3.5 0 3.5
Common-mode input voltage, V
IC
VDD = 10 V –0.2 8.5 –0.2 8.5 0 8.5
V
Operating free-air temperature, T
A
0 70 –40 85 –55 125 °C
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
6
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 5 V (unless otherwise noted)
PARAMETER TEST CONDITIONS
T
A
†
TLC274C, TLC274AC,
TLC274BC, TLC279C
UNIT
A
MIN TYP MAX
V
= 1.4 V, V
= 0,
25°C 1.1 10
TLC274C
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
12
V
= 1.4 V, V
= 0,
25°C 0.9 5
mV
p
TLC274AC
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
6.5
VIOInput offset voltage
V
= 1.4 V, V
= 0,
25°C 340 2000
TLC274BC
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
3000
V
= 1.4 V, V
= 0,
25°C 320 900
µ
V
TLC279C
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
1500
α
VIO
Average temperature coefficient of input
offset voltage
25°C to
70°C
1.8 µV/°C
p
25°C 0.1
p
IIOInput offset current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
70°C 7 300
pA
p
25°C 0.6
p
IIBInput bias current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
70°C 40 600
pA
Common-mode input voltage range
25°C
–0.2
to
4
–0.3
to
4.2
V
V
ICR
gg
(see Note 5)
Full range
–0.2
to
3.5
V
25°C 3.2 3.8
V
OH
High-level output voltage VID = 100 mV , RL = 10 kΩ
0°C
3 3.8
V
70°C 3 3.8
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV, IOL = 0
0°C
0 50
mV
70°C 0 50
25°C 5 23
A
VD
Large-signal differential voltage
p
VO = 0.25 V to 2 V, RL = 10 kΩ
0°C
4 27
V/mV
am lification
70°C 4 20
25°C 65 80
CMRR Common-mode rejection ratio VIC = V
ICR
min
0°C 60 84
dB
70°C 60 85
25°C 65 95
k
SVR
Supply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V
0°C
60 94
dB
(∆VDD/∆VIO)
70°C 60 96
25°C 2.7 6.4
I
DD
Supply current (four amplifiers)
V
O
= 2.5 V,
V
IC
= 2.5 V,
0°C
3.1 7.2
mA
No load
70°C 2.3 5.2
†
Full range is 0°C to 70°C.
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically .
5. This range also applies to each input individually.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
7
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 10 V (unless otherwise noted)
PARAMETER TEST CONDITIONS
T
A
†
TLC274C, TLC274AC,
TLC274BC, TLC279C
UNIT
A
MIN TYP MAX
V
= 1.4 V, V
= 0,
25°C 1.1 10
TLC274C
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
12
V
= 1.4 V, V
= 0,
25°C 0.9 5
mV
p
TLC274AC
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
6.5
VIOInput offset voltage
V
= 1.4 V, V
= 0,
25°C 390 2000
TLC274BC
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
3000
V
= 1.4 V, V
= 0,
25°C 370 1200
µ
V
TLC279C
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
1900
α
VIO
Average temperature coefficient of
input offset voltage
25°C to
70°C
2 µV/°C
p
25°C 0.1
p
IIOInput offset current (see Note 4)
V
O
=.5 V,
V
IC
= 5
V
70°C 7 300
pA
p
25°C 0.7
p
IIBInput bias current (see Note 4)
V
O
= 5 V,
V
IC
= 5
V
70°C 50 600
pA
Common-mode input voltage range
25°C
–0.2
to
9
–0.3
to
9.2
V
V
ICR
gg
(see Note 5)
Full range
–0.2
to
8.5
V
25°C 8 8.5
V
OH
High-level output voltage VID = 100 mV , RL = 10 kΩ
0°C
7.8 8.5
V
70°C 7.8 8.4
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV, IOL = 0
0°C
0 50
mV
70°C 0 50
25°C 10 36
A
VD
Large-signal differential voltage
p
VO = 1 V to 6 V, RL = 10 kΩ
0°C
7.5 42
V/mV
am lification
70°C 7.5 32
25°C 65 85
CMRR Common-mode rejection ratio VIC = V
ICR
min
0°C 60 88
dB
70°C 60 88
25°C 65 95
k
SVR
Supply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V
0°C
60 94
dB
(∆VDD/∆VIO)
70°C 60 96
25°C 3.8 8
I
DD
Supply current (four amplifiers)
V
O
= 5 V,
V
IC
= 5 V,
0°C
4.5 8.8
mA
No load
70°C 3.2 6.8
†
Full range is 0°C to 70°C.
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically.
5. This range also applies to each input individually.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
8
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 5 V (unless otherwise noted)
PARAMETER TEST CONDITIONS
T
A
†
TLC274I, TLC274AI,
TLC274BI, TLC279I
UNIT
A
MIN TYP MAX
V
= 1.4 V, V
= 0,
25°C 1.1 10
TLC274I
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
13
V
= 1.4 V, V
= 0,
25°C 0.9 5
mV
p
TLC274AI
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
7
VIOInput offset voltage
V
= 1.4 V, V
= 0,
25°C 340 2000
TLC274BI
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
3500
V
= 1.4 V, V
= 0,
25°C 320 900
µ
V
TLC279I
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
2000
α
VIO
Average temperature coefficient of input
offset voltage
25°C to
85°C
1.8 µV/°C
p
25°C 0.1
p
IIOInput offset current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
85°C 24 1000
pA
p
25°C 0.6
p
IIBInput bias current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
85°C 200 2000
pA
Common-mode input voltage range
25°C
–0.2
to
4
–0.3
to
4.2
V
V
ICR
gg
(see Note 5)
Full range
–0.2
to
3.5
V
25°C 3.2 3.8
V
OH
High-level output voltage VID = 100 mV , RL = 10 kΩ
–40°C
3 3.8
V
85°C 3 3.8
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV , IOL = 0
–40°C
0 50
mV
85°C 0 50
25°C 5 23
A
VD
Large-signal differential voltage
p
VO = 0.25 V to 2 V, RL = 10 kΩ
–40°C
3.5 32
V/mV
am lification
85°C 3.5 19
25°C 65 80
CMRR Common-mode rejection ratio VIC = V
ICR
min
–40°C 60 81
dB
85°C 60 86
25°C 65 95
k
SVR
Supply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V
–40°C
60 92
dB
(∆VDD/∆VIO)
85°C 60 96
25°C 2.7 6.4
I
DD
Supply current (four amplifiers)
V
O
= 2.5 V,
V
IC
= 2.5 V,
–40°C
3.8 8.8
mA
No load
85°C 2.1 4.8
†
Full range is –40°C to 85°C.
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically.
5. This range also applies to each input individually.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
9
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 10 V (unless otherwise noted)
PARAMETER TEST CONDITIONS
T
A
†
TLC274I, TLC274AI,
TLC274BI, TLC279I
UNIT
A
MIN TYP MAX
V
= 1.4 V, V
= 0,
25°C 1.1 10
TLC274I
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
13
V
= 1.4 V, V
= 0,
25°C 0.9 5
mV
p
TLC274AI
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
7
VIOInput offset voltage
V
= 1.4 V, V
= 0,
25°C 390 2000
TLC274BI
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
3500
V
= 1.4 V, V
= 0,
25°C 370 1200
µ
V
TLC279I
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
2900
α
VIO
Average temperature coefficient of input
offset voltage
25°C to
85°C
2 µV/°C
p
25°C 0.1
p
IIOInput offset current (see Note 4)
V
O
= 5 V,
V
IC
= 5
V
85°C 26 1000
pA
p
25°C 0.7
p
IIBInput bias current (see Note 4)
V
O
= 5 V,
V
IC
= 5
V
85°C 220 2000
pA
Common-mode input voltage range
25°C
–0.2
to
9
–0.3
to
9.2
V
V
ICR
gg
(see Note 5)
Full range
–0.2
to
8.5
V
25°C 8 8.5
V
OH
High-level output voltage VID = 100 mV , RL = 10 kΩ
–40°C
7.8 8.5
V
85°C 7.8 8.5
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV, IOL = 0
–40°C
0 50
mV
85°C 0 50
25°C 10 36
A
VD
Large-signal differential voltage
p
VO = 1 V to 6 V, RL = 10 kΩ
–40°C
7 47
V/mV
am lification
85°C 7 31
25°C 65 85
CMRR Common-mode rejection ratio VIC = V
ICR
min
–40°C 60 87
dB
85°C 60 88
25°C 65 95
k
SVR
Supply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V
–40°C
60 92
dB
(∆VDD/∆VIO)
85°C 60 96
25°C 3.8 8
I
DD
Supply current (four amplifiers)
V
O
= 5 V,
V
IC
= 5 V,
–40°C
5.5 10
mA
No load
85°C 2.9 6.4
†
Full range is –40°C to 85°C.
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically.
5. This range also applies to each input individually.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
10
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 5 V (unless otherwise noted)
TLC274M, TLC279M
PARAMETER
TEST CONDITIONS
T
A
†
MIN TYP MAX
UNIT
V
= 1.4 V, V
= 0,
25°C 1.1 10
p
TLC274M
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
12
mV
VIOInput offset voltage
V
= 1.4 V, V
= 0,
25°C 320 900
TLC279M
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
3750
µ
V
α
VIO
Average temperature coefficient of input
offset voltage
25°C to
125°C
2.1 µV/°C
p
25°C 0.1 pA
IIOInput offset current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
125°C 1.4 15 nA
p
25°C 0.6 pA
IIBInput bias current (see Note 4)
V
O
= 2.5 V,
V
IC
= 2.5
V
125°C 9 35 nA
Common-mode input voltage range
25°C
0
to
4
–0.3
to
4.2
V
V
ICR
gg
(see Note 5)
Full range
0
to
3.5
V
25°C 3.2 3.8
V
OH
High-level output voltage VID = 100 mV , RL = 10 kΩ
–55°C
3 3.8
V
125°C 3 3.8
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV, IOL = 0
–55°C
0 50
mV
125°C 0 50
25°C 5 23
A
VD
Large-signal differential voltage
p
VO = 0.25 V to 2 V, RL = 10 kΩ
–55°C
3.5 35
V/mV
am lification
125°C 3.5 16
25°C 65 80
CMRR Common-mode rejection ratio VIC = V
ICR
min
–55°C 60 81
dB
125°C 60 84
25°C 65 95
k
SVR
Supply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V
–55°C
60 90
dB
(∆VDD/∆VIO)
125°C 60 97
25°C 2.7 6.4
I
DD
Supply current (four amplifiers)
V
O
= 2.5 V,
V
IC
= 2.5 V,
–55°C
4 10
mA
No load
125°C 1.9 4.4
†
Full range is –55°C to 125°C.
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically.
5. This range also applies to each input individually.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
11
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics at specified free-air temperature, VDD = 10 V (unless) otherwise noted)
TLC274M, TLC279M
PARAMETER
TEST CONDITIONS
T
A
†
MIN TYP MAX
UNIT
V
= 1.4 V, V
= 0,
25°C 1.1 10
p
TLC274M
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
12
mV
VIOInput offset voltage
V
= 1.4 V, V
= 0,
25°C 370 1200
TLC279M
O
,
RS = 50 Ω,
IC
,
RL = 10 kΩ
Full range
4300
µ
V
α
VIO
Average temperature coefficient of input
offset voltage
25°C to
125°C
2.2 µV/°C
p
25°C 0.1 pA
IIOInput offset current (see Note 4)
V
O
= 5 V,
V
IC
= 5
V
125°C 1.8 15 nA
p
25°C 0.7 pA
IIBInput bias current (see Note 4)
V
O
= 5 V,
V
IC
= 5
V
125°C 10 35 nA
Common-mode input voltage range
25°C
0
to
9
–0.3
to
9.2
V
V
ICR
gg
(see Note 5)
Full range
0
to
8.5
V
25°C 8 8.5
V
OH
High-level output voltage VID = 100 mV , RL = 10 kΩ
–55°C
7.8 8.5
V
125°C 7.8 8.4
25°C 0 50
V
OL
Low-level output voltage VID = –100 mV, IOL = 0
–55°C
0 50
mV
125°C 0 50
25°C 10 36
A
VD
Large-signal differential voltage
p
VO = 1 V to 6 V, RL = 10 kΩ
–55°C
7 50
V/mV
am lification
125°C 7 27
25°C 65 85
CMRR Common-mode rejection ratio VIC = V
ICR
min
–55°C 60 87
dB
125°C 60 86
25°C 65 95
k
SVR
Supply-voltage rejection ratio
VDD = 5 V to 10 V, VO = 1.4 V
–55°C
60 90
dB
(∆VDD/∆VIO)
125°C 60 97
25°C 3.8 8
I
DD
Supply current (four amplifiers)
V
O
= 5 V,
V
IC
= 5 V,
–55°C
6.0 12
mA
No load
125°C 2.5 5.6
†
Full range is –55°C to 125°C.
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically.
5. This range also applies to each input individually.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
12
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
operating characteristics at specified free-air temperature, VDD = 5 V
PARAMETER
TEST CONDITIONS T
A
TLC274C, TLC274AC,
TLC274AC,
TLC274BC, TLC279C
UNIT
MIN TYP MAX
25°C 3.6
V
IPP
= 1 V
0°C 4
RL = 10 Ω,
70°C 3
SR
Slew rate at unity gain
C
L
= 20
P
F
,
See
Figure 1
25°C 2.9
V/µs
See Figure 1
V
IPP
= 2.5 V
0°C 3.1
70°C 2.5
V
n
Equivalent input noise voltage
f = 1 kHz,
See Figure 2
RS = 20 Ω,
25°C 25
nV/√Hz
25°C 320
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 PF,
0°C 340
kHz
R
L
= 10 kΩ,
See Figure 1
70°C 260
25°C 1.7
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 PF,
0°C
2
MHz
See Figure 3
70°C 1.3
25°C 46°
φ
m Phase margin
V
I
= 10 mV,
=
f
=
B
1
,
0°C
47°
C
L
= 20
P
F
,
70°C 44°
operating characteristics at specified free-air temperature, VDD = 10 V
PARAMETER
TEST CONDITIONS T
A
TLC274C, TLC274AC,
TLC274AC,
TLC274BC, TLC279C
UNIT
MIN TYP MAX
25°C 5.3
V
IPP
= 1 V
0°C 5.9
RL = 10 Ω,
70°C 4.3
SR
Slew rate at unity gain
C
L
= 20
P
F
,
See
Figure 1
25°C 4.6
V/µs
See Figure 1
V
IPP
= 5.5 V
0°C 5.1
70°C 3.8
V
n
Equivalent input noise voltage
f = 1 kHz,
See Figure 2
RS = 20 Ω,
25°C 25
nV/√Hz
25°C 200
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 PF,
0°C 220
kHz
R
L
= 10 kΩ,
See Figure 1
70°C 140
25°C 2.2
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 PF,
0°C
2.5
MHz
See Figure 3
70°C 1.8
25°C 49°
φ
m Phase margin
V
I
= 10 mV,
=
f
=
B
1
,
0°C 50°
C
L
= 20
P
F
,
See Figure 3
70°C 46°
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
13
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
operating characteristics at specified free-air temperature, VDD = 5 V
PARAMETER
TEST CONDITIONS T
TLC274I, TLC274AI,
TLC274BI, TLC279I
UNIT
A
MIN TYP MAX
25°C 3.6
V
IPP
= 1 V
–40°C 4.5
RL = 10 kΩ,
85°C 2.8
SR
Slew rate at unity gain
C
L
= 20
P
F
,
See
Figure 1
25°C 2.9
V/µs
See Figure 1
V
IPP
= 2.5 V
–40°C 3.5
85°C 2.3
V
n
Equivalent input noise voltage
f = 1 kHz,
See Figure 2
RS = 20 Ω,
25°C 25
nV/√Hz
25°C 320
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 PF,
–40°C 380
kHz
R
L
= 10 kΩ,
See Figure 1
85°C 250
25°C 1.7
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 PF,
–40°C
2.6
MHz
See Figure 3
85°C 1.2
25°C 46°
φ
m Phase margin
V
I
=
10 mV
,
=
f
=
B
1
,
–40°C 49°
C
L
= 20
P
F
,
See Figure 3
85°C 43°
operating characteristics at specified free-air temperature, VDD = 10 V
PARAMETER
TEST CONDITIONS T
TLC274I, TLC274AI,
TLC274BI, TLC279I
UNIT
A
MIN TYP MAX
25°C 5.3
V
IPP
= 1 V
–40°C 6.7
RL = 10 Ω,
85°C 4
SR
Slew rate at unity gain
C
L
= 20
P
F
,
See
Figure 1
25°C 4.6
V/µs
See Figure 1
V
IPP
= 5.5 V
–40°C 5.8
85°C 3.5
V
n
Equivalent input noise voltage
f = 1 kHz,
See Figure 2
RS = 20 Ω,
25°C 25
nV/√Hz
25°C 200
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 PF,
–40°C 260
kHz
R
L
= 10 kΩ,
See Figure 1
85°C 130
25°C 2.2
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 PF,
–40°C
3.1
MHz
See Figure 3
85°C 1.7
25°C 49°
φ
m Phase margin
V
I
= 10 mV,
=
f
=
B
1
,
–40°C 52°
C
L
= 20
P
F
,
See Figure 3
85°C 46°
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
14
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
operating characteristics at specified free-air temperature, VDD = 5 V
TLC274M, TLC279M
PARAMETER
TEST CONDITIONS
T
A
MIN TYP MAX
UNIT
25°C 3.6
V
IPP
= 1 V
–55°C 4.7
RL = 10 kΩ,
125°C 2.3
SR
Slew rate at unity gain
C
L
= 20
P
F
,
See
Figure 1
25°C 2.9
V/µs
See Figure 1
V
IPP
= 2.5 V
–55°C 3.7
125°C 2
V
n
Equivalent input noise voltage
f = 1 kHz,
See Figure 2
RS = 20 Ω,
25°C 25
nV/√Hz
25°C 320
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 PF,
–55°C 400 kHz
R
L
= 10 kΩ,
See Figure 1
125°C 230
25°C 1.7
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 PF,
–55°C
2.9 MHz
See Figure 3
125°C 1.1
25°C 46°
φ
m Phase margin
V
I
= 10 mV,
=
f
=
B
1
,
–55°C 49°
C
L
= 20
P
F
,
See Figure 3
125°C 41°
operating characteristics at specified free-air temperature, VDD = 10 V
TLC274M, TLC279M
PARAMETER
TEST CONDITIONS
T
A
MIN TYP MAX
UNIT
25°C 5.3
V
IPP
= 1 V
–55°C 7.1
RL = 10 Ω ,
125°C 3.1
SR
Slew rate at unity gain
C
L
= 20
P
F
,
See
Figure 1
25°C 4.6
V/µs
See Figure 1
V
IPP
= 5.5 V
–55°C 6.1
125°C 2.7
V
n
Equivalent input noise voltage
f = 1 kHz,
See Figure 2
RS = 20 Ω,
25°C 25
nV/√Hz
25°C 200
B
OM
Maximum output-swing bandwidth
VO = VOH,
CL = 20 PF,
–55°C 280
kHz
R
L
= 10 kΩ,
See Figure 1
125°C 110
25°C 2.2
B
1
Unity-gain bandwidth
VI = 10 mV,
CL = 20 PF,
–55°C
3.4
MHz
See Figure 3
125°C 1.6
25°C 49°
φ
m Phase margin
V
I
= 10 mV,
=
f
=
B
1
,
–55°C 52°
C
L
= 20
P
F
,
See Figure 3
125°C 44°
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
15
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics, VDD = 5 V, TA = 25°C (unless otherwise noted)
TLC274Y
PARAMETER
TEST CONDITIONS
MIN TYP MAX
UNIT
V
IO
Input offset voltage
VO = 1.4 V,
RS = 50 Ω,
VIC = 0,
RL = 10 kΩ
1.1 10 mV
I
IO
Input offset current (see Note 4) VO = 2.5 V, VIC = 2.5 V 0.1 pA
I
IB
Input bias current (see Note 4) VO = 2.5 V, VIC = 2.5 V 0.6 pA
V
ICR
Common-mode input voltage range (see Note 5)
–0.2
to
4
–0.3
to
4.2
V
V
OH
High-level output voltage VID = 100 mV , RL = 10 kΩ 3.2 3.8 V
V
OL
Low-level output voltage VID = –100 mV , IOL = 0 0 50 mV
A
VD
Large-signal differential voltage amplification VO = 0.25 V to 2 V, RL = 10 kΩ 5 23 V/mV
CMRR Common-mode rejection ratio VIC = V
ICR
min 65 80 dB
k
SVR
Supply-voltage rejection ratio (∆VDD/∆VIO) VDD = 5 V to 10 V, VO = 1.4 V 65 95 dB
I
DD
Supply current (four amplifiers)
VO = 2.5 V,
No load
VIC = 2.5 V,
2.7 6.4 mA
electrical characteristics, VDD = 10 V, TA = 25°C (unless otherwise noted)
TLC274Y
PARAMETER
TEST CONDITIONS
MIN TYP MAX
UNIT
V
IO
Input offset voltage
VO = 1.4 V,
RS = 50 Ω,
VIC = 0,
RL = 10 kΩ
1.1 10 mV
I
IO
Input offset current (see Note 4) VO = 5 V, VIC = 5 V 0.1 pA
I
IB
Input bias current (see Note 4) VO = 5 V, VIC = 5 V 0.7 pA
V
ICR
Common-mode input voltage range (see Note 5)
–0.2
to
9
–0.3
to
9.2
V
V
OH
High-level output voltage VID = 100 mV , RL = 10 kΩ 8 8.5 V
V
OL
Low-level output voltage VID = –100 mV , IOL = 0 0 50 mV
A
VD
Large-signal differential voltage amplification VO = 1 V to 6 V, RL = 10 kΩ 10 36 V/mV
CMRR Common-mode rejection ratio VIC = V
ICR
min 65 85 dB
k
SVR
Supply-voltage rejection ratio (∆VDD/∆VIO) VDD = 5 V to 10 V, VO = 1.4 V 65 95 dB
I
DD
Supply current (four amplifiers)
VO = 5 V,
No load
VIC = 5 V,
3.8 8 mA
NOTES: 4. The typical values of input bias current and input offset current below 5 pA were determined mathematically.
5. This range also applies to each input individually.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
16
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
operating characteristics, VDD = 5 V, TA = 25°C
TLC274Y
PARAMETER
TEST CONDITIONS
MIN TYP MAX
UNIT
R
= 10 kΩ, C
= 20
F,
V
IPP
= 1 V 3.6
SR
Slew rate at unity gain
L
,
See Figure 1
LP
,
V
IPP
= 2.5 V 2.9
V/µs
V
n
Equivalent input noise voltage f = 1 kHz, RS = 20 Ω, See Figure 2 25 nV/√Hz
B
OM
Maximum output-swing bandwidth
VO = VOH,
See Figure 1
CL = 20 PF, RL = 10 kΩ,
320 kHz
B
1
Unity-gain bandwidth VI = 10 mV, CL = 20 PF, See Figure 3 1.7 MHz
φ
m Phase margin
VI = 10 mV,
See Figure 3
f = B1, CL = 20 PF,
46°
operating characteristics, VDD = 10 V, TA = 25°C
TLC274Y
PARAMETER
TEST CONDITIONS
MIN TYP MAX
UNIT
R
= 10 kΩ, C
= 20
F,
V
IPP
= 1 V 5.3
SR
Slew rate at unity gain
L
,
See Figure 1
LP
,
V
IPP
= 5.5 V 4.6
V/µs
V
n
Equivalent input noise voltage f = 1 kHz, RS = 20 Ω, See Figure 2 25 nV/√Hz
B
OM
Maximum output-swing bandwidth
VO = VOH,
See Figure 1
CL = 20 PF, RL = 10 kΩ,
200 kHz
B
1
Unity-gain bandwidth VI = 10 mV, CL = 20 PF, See Figure 3 2.2 MHz
φ
m Phase margin
VI = 10 mV,
See Figure 3
f = B1, CL = 20 PF,
49°
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
17
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
single-supply versus split-supply test circuits
Because the TLC274 and TLC279 are optimized for single-supply operation, circuit configurations used for the
various tests often present some inconvenience since the input signal, in many cases, must be offset from
ground. This inconvenience can be avoided by testing the device with split supplies and the output load tied to
the negative rail. A comparison of single-supply versus split-supply test circuits is shown below. The use of either
circuit gives the same result.
–
+
V
DD
C
L
R
L
V
I
V
I
R
L
C
L
–
+
VDD+
VDD–
(a) SINGLE SUPPLY (b) SPLIT SUPPLY
V
O
V
O
Figure 1. Unity-Gain Amplifier
V
DD
–
+
VDD+
–
+
1/2 V
DD
20 Ω
V
O
2 kΩ
20 Ω
VDD–
20 Ω 20 Ω
2 kΩ
V
O
(b) SPLIT SUPPL Y(a) SINGLE SUPPLY
Figure 2. Noise-Test Circuit
V
DD
–
+
10 kΩ
100 Ω
C
L
1/2 V
DD
V
I
V
I
C
L
100 Ω
10 kΩ
–
+
VDD+
VDD–
(b) SPLIT SUPPL Y(a) SINGLE SUPPLY
V
O
V
O
Figure 3. Gain-of-100 Inverting Amplifier
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
18
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
input bias current
Because of the high input impedance of the TLC274 and TLC279 operational amplifiers, attempts to measure
the input bias current can result in erroneous readings. The bias current at normal room ambient temperature
is typically less than 1 pA, a value that is easily exceeded by leakages on the test socket. Two suggestions are
offered to avoid erroneous measurements:
1. Isolate the device from other potential leakage sources. Use a grounded shield around and between the
device inputs (see Figure 4). Leakages that would otherwise flow to the inputs are shunted away.
2. Compensate for the leakage of the test socket by actually performing an input bias current test (using
a picoammeter) with no device in the test socket. The actual input bias current can then be calculated
by subtracting the open-socket leakage readings from the readings obtained with a device in the test
socket.
One word of caution: many automatic testers as well as some bench-top operational amplifier testers use the
servo-loop technique with a resistor in series with the device input to measure the input bias current (the voltage
drop across the series resistor is measured and the bias current is calculated). This method requires that a
device be inserted into the test socket to obtain a correct reading; therefore, an open-socket reading is not
feasible using this method.
V = V
IC
148
17
Figure 4. Isolation Metal Around Device Inputs (J and N packages)
low-level output voltage
T o obtain low-supply-voltage operation, some compromise was necessary in the input stage. This compromise
results in the device low-level output being dependent on both the common-mode input voltage level as well
as the differential input voltage level. When attempting to correlate low-level output readings with those quoted
in the electrical specifications, these two conditions should be observed. If conditions other than these are to
be used, please refer to Figures 14 through 19 in the Typical Characteristics of this data sheet.
input offset voltage temperature coefficient
Erroneous readings often result from attempts to measure temperature coefficient of input offset voltage. This
parameter is actually a calculation using input offset voltage measurements obtained at two different
temperatures. When one (or both) of the temperatures is below freezing, moisture can collect on both the device
and the test socket. This moisture results in leakage and contact resistance, which can cause erroneous input
offset voltage readings. The isolation techniques previously mentioned have no effect on the leakage since the
moisture also covers the isolation metal itself, thereby rendering it useless. It is suggested that these
measurements be performed at temperatures above freezing to minimize error.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
19
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
full-power response
Full-power response, the frequency above which the operational amplifier slew rate limits the output voltage
swing, is often specified two ways: full-linear response and full-peak response. The full-linear response is
generally measured by monitoring the distortion level of the output while increasing the frequency of a sinusoidal
input signal until the maximum frequency is found above which the output contains significant distortion. The
full-peak response is defined as the maximum output frequency , without regard to distortion, above which full
peak-to-peak output swing cannot be maintained.
Because there is no industry-wide accepted value for significant distortion, the full-peak response is specified
in this data sheet and is measured using the circuit of Figure 1. The initial setup involves the use of a sinusoidal
input to determine the maximum peak-to-peak output of the device (the amplitude of the sinusoidal wave is
increased until clipping occurs). The sinusoidal wave is then replaced with a square wave of the same
amplitude. The frequency is then increased until the maximum peak-to-peak output can no longer be maintained
(Figure 5). A square wave is used to allow a more accurate determination of the point at which the maximum
peak-to-peak output is reached.
(a) f = 1 kHz (b) BOM > f > 1 kHz (c) f = BOM (d) f > BOM
Figure 5. Full-Power-Response Output Signal
test time
Inadequate test time is a frequent problem, especially when testing CMOS devices in a high-volume,
short-test-time environment. Internal capacitances are inherently higher in CMOS than in bipolar and BiFET
devices and require longer test times than their bipolar and BiFET counterparts. The problem becomes more
pronounced with reduced supply levels and lower temperatures.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
20
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
Table of Graphs
FIGURE
V
IO
Input offset voltage Distribution 6, 7
α
VIO
Temperature coefficient of input offset voltage Distribution 8, 9
vs High-level output current 10, 11
V
OH
High-level output voltage
vs High level out ut current
vs Supply voltage
10, 11
12
OH
gg
yg
vs Free-air temperature 13
-
p
p
vs Common mode in ut voltage
vs Differential input voltage
14, 15
16
VOLLow-level output voltage
g
vs Free-air temperature 17
vs Low-level output current 18, 19
vs Supply voltage 20
A
VD
Large-signal differential voltage amplification
vs Su ly voltage
vs Free-air temperature
20
21
VD
gg g
vs Frequency 32, 33
I
IB
Input bias current vs Free-air temperature 22
I
IO
Input offset current vs Free-air temperature 22
V
IC
Common-mode input voltage vs Supply voltage 23
pp
vs Supply voltage 24
IDDSupply current
yg
vs Free-air temperature 25
vs Supply voltage 26
SR
Slew rate
yg
vs Free-air temperature 27
Normalized slew rate vs Free-air temperature 28
V
O(PP)
Maximum peak-to-peak output voltage vs Frequency 29
vs Free-air temperature 30
B1Unity-gain bandwidth
vs Supply voltage 31
vs Supply voltage 34
φ
m
Phase margin
vs Su ly voltage
vs Free-air temperature
34
35
φ
m
g
vs Load capacitance 36
V
n
Equivalent input noise voltage vs Frequency 37
Phase shift vs Frequency 32, 33
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
21
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
Figure 6
–5
0
Percentage of Units – %
VIO – Input Offset Voltage – mV
5
60
–4 –3 –2 –1 0 1 2 34
10
20
30
40
50
TA= 25°C
N Package
DISTRIBUTION OF TLC274
INPUT OFFSET VOLTAGE
753 Amplifiers Tested From 6 Wafer Lots
VDD = 5 V
Figure 7
50
40
30
20
10
43210–1–2–3–4
60
5
VIO – Input Offset Voltage – mV
Percentage of Units – %
0
–5
N Package
TA = 25°C
VDD = 10 V
DISTRIBUTION OF TLC274
INPUT OFFSET VOLTAGE
753 Amplifiers Tested From 6 Wafer Lots
Figure 8
50
40
30
20
10
86420–2–4–6–8
60
10
α
VIO
– Temperature Coefficient – µV/°C
Percentage of Units – %
0
–10
N Package
TA = 25°C to 125°C
324 Amplifiers Tested From 8 Wafer Lots
Outliers:
(1) 20.5 V/°C
DISTRIBUTION OF TLC274 AND TLC279
INPUT OFFSET VOLTAGE
TEMPERATURE COEFFICIENT
VDD = 5 V
Figure 9
–10
0
Percentage of Units – %
α
VIO
– Temperature Coefficient – µV/°C
10
60
–8 –6 –4 –2 0 2 4 6 8
10
20
30
40
50
Outliers:
TA = 25°C to 125°C
N Package
(1) 21.2 V/C
DISTRIBUTION OF TLC274 AND TLC279
INPUT OFFSET VOLTAGE
TEMPERATURE COEFFICIENT
324 Amplifiers Tested From 8 Wafer Lots
VDD = 10 V
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
22
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†
Figure 10
0
0
– High-Level Output Voltage – V
IOH – High-Level Output Current – mA
–10
5
–2 –4 –6 –8
1
2
3
4
TA = 25°C
VDD = 5 V
VDD = 4 V
VDD = 3 V
HIGH-LEVEL OUTPUT VOLTAGE
vs
HIGH-LEVEL OUTPUT CURRENT
V
OH
VID = 100 mV
Q
Figure 11
0
0
IOH – High-Level Output Current – mA
–40
16
–10 –20 –30
2
4
6
8
10
12
14
VDD = 16 V
VDD = 10 V
VID = 100 mV
TA = 25°C
HIGH-LEVEL OUTPUT VOLTAGE
vs
HIGH-LEVEL OUTPUT CURRENT
– High-Level Output Voltage – VV
OH
–35–5 –15 –25
Figure 12
0
VDD – Supply Voltage – V
162 4 6 8 10 12 14
14
12
10
8
6
4
2
16
0
VID = 100 mV
RL = 10 kΩ
TA = 25°C
HIGH-LEVEL OUTPUT VOLTAGE
vs
SUPPLY VOLTAGE
– High-Level Output Voltage – VV
OH
Figure 13
HIGH-LEVEL OUTPUT VOLTAGE
vs
FREE-AIR TEMPERATURE
VDD–1.7
VDD–1.8
VDD–1.9
VDD–2
VDD–2.1
VDD–2.2
VDD–2.3
1007550250–25–50
VDD–1.6
125
TA – Free-Air Temperature – °C
VDD–2.4
–75
IOH = –5 mA
VID = 100 mA
VDD = 5 V
VDD = 10 V
– High-Level Output Voltage – VV
OH
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
23
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†

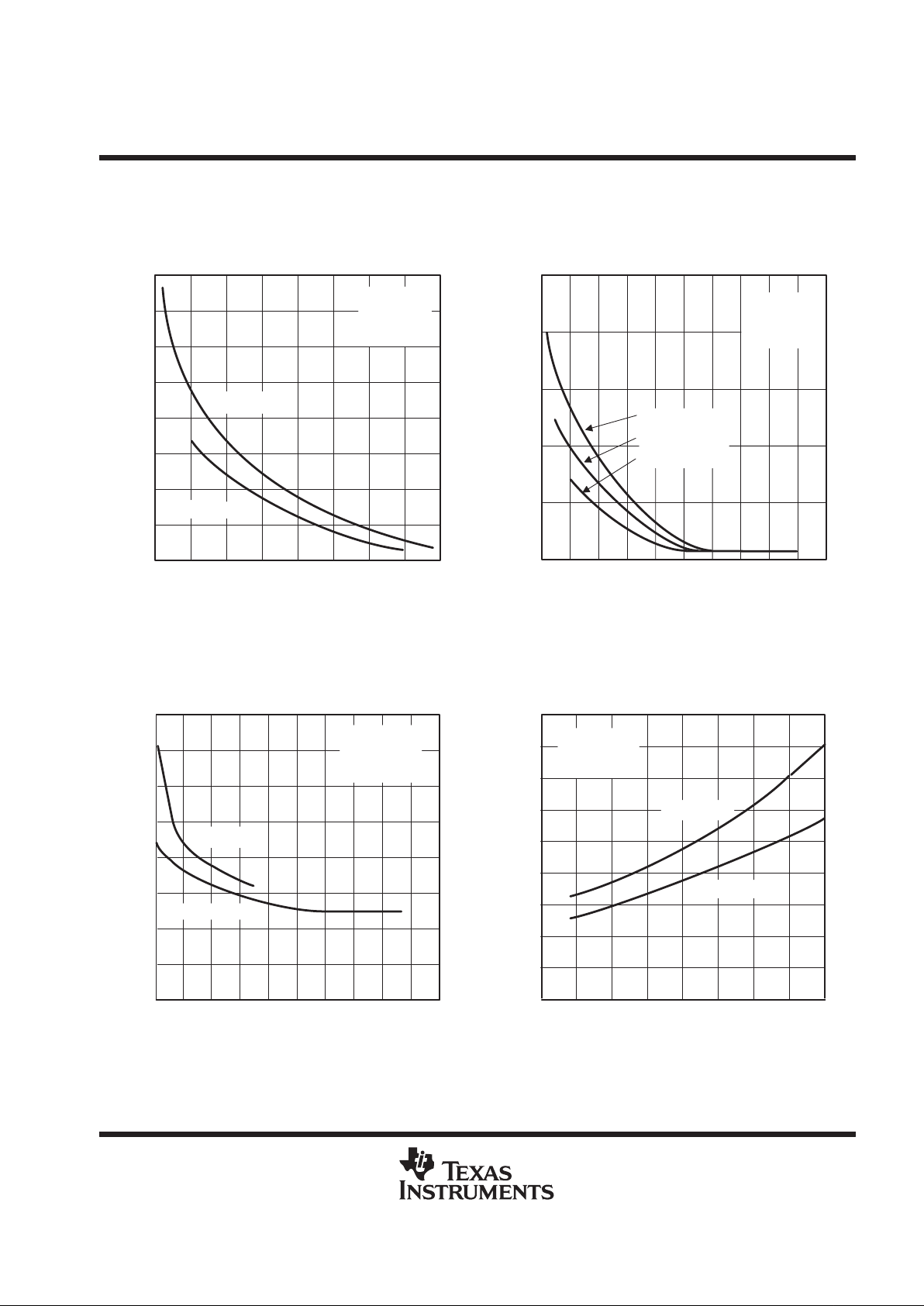

Figure 14
0
300
– Low-Level Output Voltage – mV
VIC – Common-Mode Input Voltage – V
4
700
1 2 3
400
500
600
TA = 25°C
IOL = 5 mA
VDD = 5 V
VID = –100 mV
VID = –1 V
LOW-LEVEL OUTPUT VOLTAGE
vs
COMMON-MODE INPUT VOLTAGE
V
OL
650
350
450
550
Figure 15
250
0
VIC – Common-Mode Input Voltage – V
300
350
400
450
500
246810
VDD = 10 V
IOL = 5 mA
TA = 25°C
VID = –1 V
VID = –2.5 V
VID = –100 mV
LOW-LEVEL OUTPUT VOLTAGE
vs
COMMON-MODE INPUT VOLTAGE
– Low-Level Output Voltage – mVV
OL
13579
Figure 16
LOW-LEVEL OUTPUT VOLTAGE
vs
DIFFERENTIAL INPUT VOLTAGE
0
VID – Differential Input Voltage – V
–10–2 –4 –6 –8
800
700
600
500
400
300
200
100
0
VDD = 5 V
VDD = 10 V
– Low-Level Output Voltage – mVV
OL
IOL = 5 mA
VIC = |VID/2|
TA = 25°C
–9–1 –3 –5 –7
Figure 17
LOW-LEVEL OUTPUT VOLTAGE
vs
FREE-AIR TEMPERATURE
–75
0
125
900
–50 –25 0 25 50 75 100
100
200
300
400
500
600
700
800
VIC = 0.5 V
VID = –1 V
IOL = 5 mA
VDD = 5 V
VDD = 10 V
TA – Free-Air Temperature – °C
– Low-Level Output Voltage – mVV
OL
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
24
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†
Figure 18
0
IOL – Low-Level Output Current – mA
1
8
0
1 2 3 4 5 6 7
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
VID = –1 V
VIC = 0.5 V
TA = 25°C
VDD = 3 V
VDD = 4 V
VDD = 5 V
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
– Low-Level Output Voltage – VV
OL
Figure 19
0
IOL – Low-Level Output Current – mA
3
30
0
5 10 15 20 25
0.5
1
1.5
2
2.5
TA = 25°C
VIC = 0.5 V
VID = –1 V
VDD = 10 V
VDD = 16 V
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
– Low-Level Output Voltage – VV
OL
Figure 20
0
60
16
0
2 4 6 8 10 12 14
10
20
30
40
50
VDD – Supply Voltage – V
TA = –55°C
RL = 10 kΩ
LARGE-SIGNAL
DIFFERENTIAL VOLTAGE AMPLIFICATION
vs
SUPPLY VOLTAGE
TA = 25°C
TA = 85°C
TA = 125°C
TA = 0°C
AVD – Large-Signal Differential
A
VD
Voltage Amplification – V/mV
Figure 21
–75
50
125
0
–50 –25 0 25 50 75 100
5
10
15
20
25
30
35
40
45
VDD = 5 V
VDD = 10 V
RL = 10 kΩ
LARGE-SIGNAL
DIFFERENTIAL VOLTAGE AMPLIFICATION
vs
FREE-AIR TEMPERATURE
TA – Free-Air Temperature – °C
AVD – Large-Signal Differential
A
VD
Voltage Amplification – V/mV
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
25
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†
Figure 22
INPUT BIAS CURRENT AND INPUT OFFSET CURREN
T
vs
FREE-AIR TEMPERATURE
0.1
125
10000
45 65 85 105
1
10
100
1000
25
– Input Bias and Offset Currents – pA
VDD = 10 V
VIC = 5 V
See Note A
I
IB
I
IB
I
IO
and
TA – Free-Air Temperature – °C
I
IO
NOTE A: The typical values of input bias current and input offset
current below 5 pA were determined mathematically.
Figure 23
COMMON-MODE
INPUT VOLTAGE POSITIVE LIMIT
vs
SUPPLY VOLTAGE
0
VDD – Supply Voltage – V
16
16
0
2 4 6 8 10 12 14
2
4
6
8
10
12
14
TA = 25°C
IC
V – Common-Mode Input Voltage – V
Figure 24
SUPPLY CURRENT
vs
SUPPLY VOLTAGE
0
VDD – Supply Voltage – V
10
16
0
2 4 6 8 10 12 14
2
4
6
8
VO = VDD/2
No Load
TA = –55°C
– Supply Current – mAI
DD
1
3
5
7
9
TA = 70°C
TA = 125°C
TA = 0°C
TA = 25°C
Figure 25
SUPPLY CURRENT
vs
FREE-AIR TEMPERATURE
–75
– Supply Current – mA
4
125
0
1
2
3
–50 –25
0 25 50 75 100
No Load
VO = VDD/2
VDD = 10 V
VDD = 5 V
5
6
7
8
I
DD
TA – Free-Air Temperature – °C
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
26
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†
Figure 26
0
VDD – Supply Voltage – V
16
0
2 4 6 8 10 12 14
1
2
3
4
5
6
7
8
CL = 20 pF
RL = 10 kΩ
V
IPP
= 1 V
AV = 1
See Figure 1
TA = 25°C
SLEW RATE
vs
SUPPLY VOLTAGE
µsSR – Slew Rate – V/
Figure 27
TA – Free-Air Temperature – °C
125–50 –25 0 25 50 75 100
8
7
6
5
4
3
2
1
0
–75
CL = 20 pF
See Figure 1
AV = 1
RL = 10 kΩ
VDD = 10 V
VDD = 5 V
V
IPP
= 1 V
VDD = 5 V
V
IPP
= 2.5 V
VDD = 10 V
V
IPP
= 1 V
SLEW RATE
vs
FREE-AIR TEMPERATURE
V
IPP
= 5.5 V
µsSR – Slew Rate – V/
Figure 28
–75
Normalized Slew Rate
TA – Free-Air Temperature – °C
125–50 –25 02550 75 100
AV = 1
V
IPP
= 1 V
RL = 10 kΩ
CL = 20 pF
1.4
1.3
1.2
1.1
1
0.9
0.8
0.7
0.6
0.5
1.5
VDD = 10 V
VDD = 5 V
NORMALIZED SLEW RATE
vs
FREE-AIR TEMPERATURE
Figure 29
10
f – Frequency – kHz
10
10000
0
1
2
3
4
5
6
7
8
9
100 1000
VDD = 10 V
VDD = 5 V
See Figure 1
RL = 10 kΩ
TA = 125°C
TA = 25°C
TA = –55°C
MAXIMUM PEAK-TO-PEAK OUTPUT VOLTAGE
vs
FREQUENCY
– Maximum Peak-to-Peak Output Voltage – V
V
O(PP)
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
27
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†

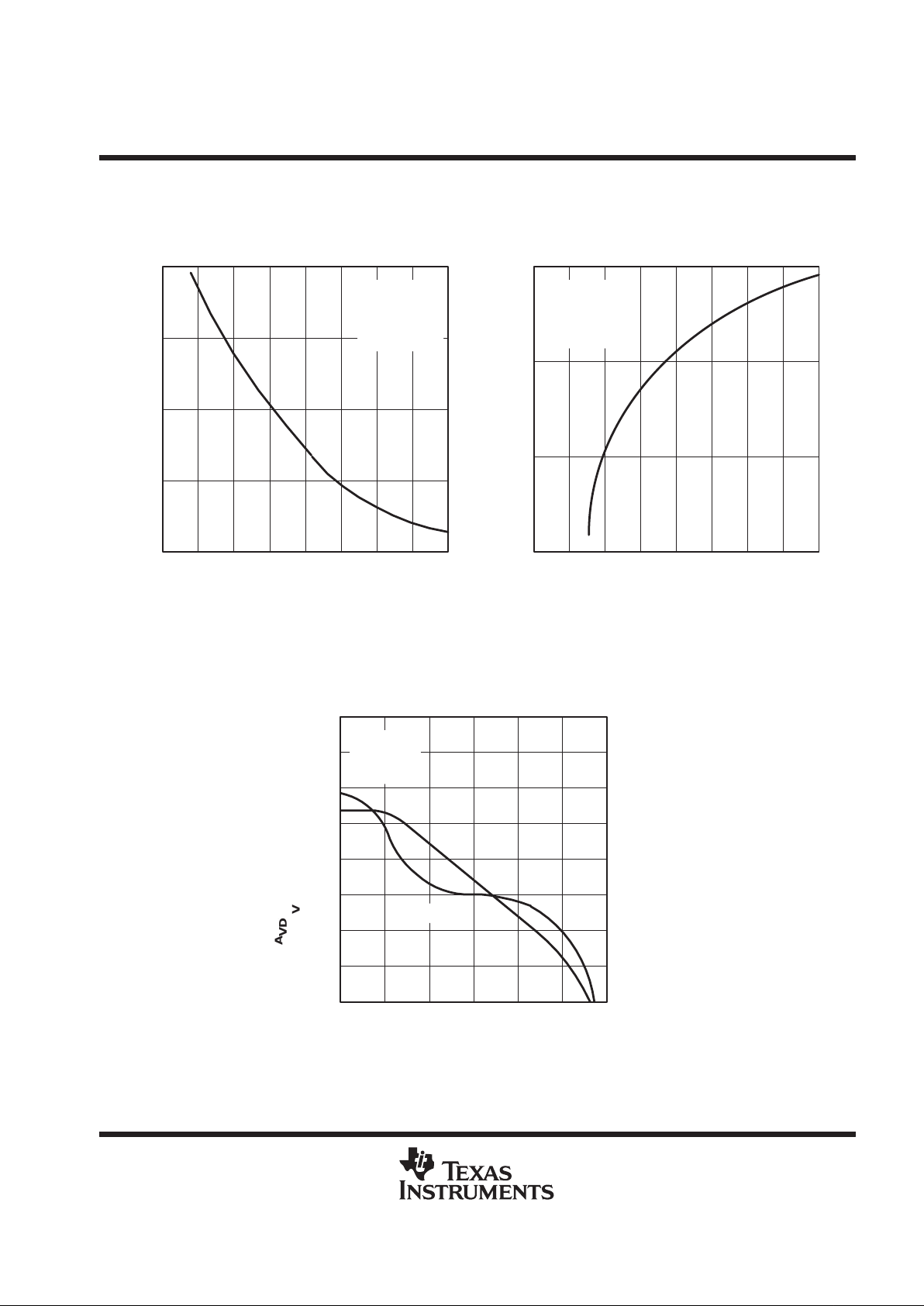

Figure 30
VDD = 5 V
VI = 10 mV
CL = 20 pF
See Figure 3
–75
TA – Free-Air Temperature – °C
3
125
1
–50 –25 0 25 50 75 100
1.5
2
2.5
UNITY-GAIN BANDWIDTH
vs
FREE-AIR TEMPERATURE
– Unity-Gain Bandwidth – MHzB
1
Figure 31
See Figure 3
TA = 25°C
CL = 20 pF
VI = 10 mV
0
VDD – Supply Voltage – V
2.5
16
1
2 4 6 8 10 12 14
1.5
2
UNITY-GAIN BANDWIDTH
vs
SUPPLY VOLTAGE
– Unity-Gain Bandwidth – MHzB
1
10
f – Frequency – Hz
10 M
0.1
100 1 k 10 k 100 k 1 M
1
10
10
2
10
3
10
4
10
5
106
150°
120°
90°
60°
30°
0°
180°
TA = 25°C
RL = 10 kΩ
VDD = 5 V
A
VD
Phase Shift
10
7
LARGE-SIGNAL DIFFERENTIAL VOLTAGE
AMPLIFICATION AND PHASE SHIFT
vs
FREQUENCY
Phase Shift
AVD – Large-Signal Differential
A
VD
Voltage Amplification
Figure 32
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
28
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
†

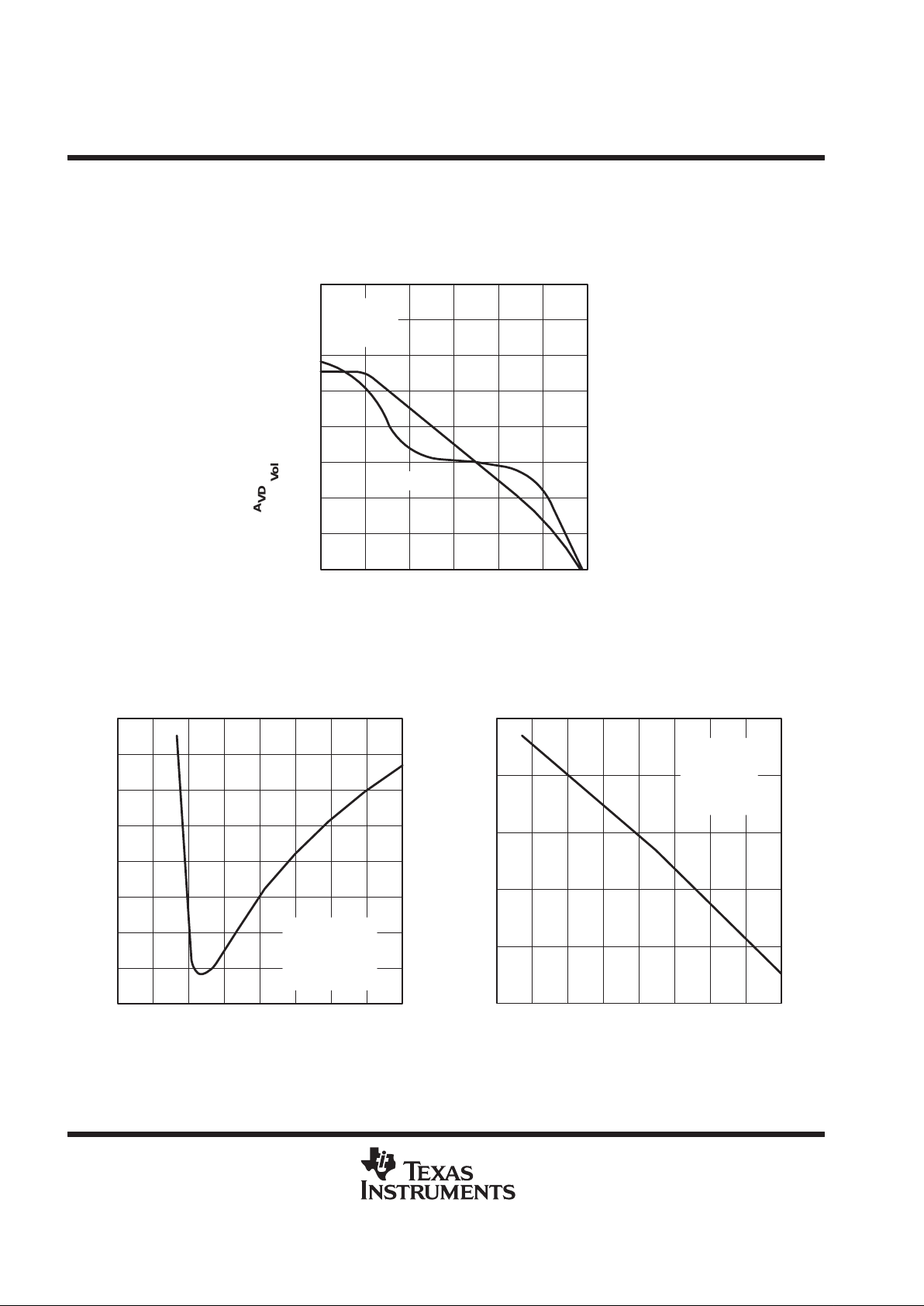

10
f – Frequency – Hz
10 M
0.1
100 1 k 10 k 100 k 1 M
1
10
10
2
10
3
10
4
10
5
10
6
180°
0°
30°
60°
90°
120°
150°
VDD = 10 V
RL = 10 kΩ
TA = 25°C
A
VD
Phase Shift
10
7
LARGE-SIGNAL DIFFERENTIAL VOLTAGE
AMPLIFICATION AND PHASE SHIFT
vs
FREQUENCY
Phase Shift
AVD – Large-Signal Differential
A
VD
Voltage Amplification
Figure 33
Figure 34
0
– Phase Margin
VDD – Supply Voltage – V
53°
16
2 4 6 8 10 12 14
51°
CL = 20 pF
TA = 25°C
VI = 10 mV
See Figure 3
45°
PHASE MARGIN
vs
SUPPLY VOLTAGE
φ
m
52°
50°
49°
48°
47°
46°
Figure 35
–75 125
40°
–50 –25 0 25 50 75 100
42°
44°
VDD = 5 V
CL = 20 pF
VI = 10 mV
See Figure 3
TA – Free-Air Temperature – °C
PHASE MARGIN
vs
FREE-AIR TEMPERATURE
– Phase Marginφ
m
50°
46°
48°
†
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
29
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
Figure 36
0
CL – Capacitive Load – pF
100
25°
20 40 60 80
30°
35°
See Figure 3
VI = 10 mV
TA = 25°C
VDD = 5 V
PHASE MARGIN
vs
CAPACITIVE LOAD
– Phase Margin φ
m
45°
50°
40°
10 30 50 70 90
Figure 37
1
– Equivalent Input Noise Voltage –
f – Frequency – Hz
400
1000
0
100
200
300
10 100
VDD = 5 V
TA = 25°C
RS = 20 Ω
See Figure 2
EQUIVALENT INPUT NOISE VOLTAGE
vs
FREQUENCY
nV/ Hz
V
n
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
30
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
single-supply operation
While the TLC274 and TLC279 perform well using dual power supplies (also called balanced or split supplies),
the design is optimized for single-supply operation. This design includes an input common-mode voltage range
that encompasses ground as well as an output voltage range that pulls down to ground. The supply voltage
range extends down to 3 V (C-suffix types), thus allowing operation with supply levels commonly available for
TTL and HCMOS; however, for maximum dynamic range, 16-V single-supply operation is recommended.
Many single-supply applications require that a voltage be applied to one input to establish a reference level that
is above ground. A resistive voltage divider is usually sufficient to establish this reference level (see Figure 38).
The low input bias current of the TLC274 and TLC279 permits the use of very large resistive values to implement
the voltage divider, thus minimizing power consumption.
The TLC274 and TLC279 work well in conjunction with digital logic; however, when powering both linear devices
and digital logic from the same power supply, the following precautions are recommended:
1. Power the linear devices from separate bypassed supply lines (see Figure 39); otherwise the linear
device supply rails can fluctuate due to voltage drops caused by high switching currents in the digital
logic.
2. Use proper bypass techniques to reduce the probability of noise-induced errors. Single capacitive
decoupling is often adequate; however, high-frequency applications may require R
C
decoupling.
R4
V
O
V
DD
R2
R1
V
I
V
REF
R3
C
0.01 µF
–
+
V
REF
= V
DD
R3
R1 + R3
VO = (V
REF
– VI)
R4
R2
+ V
REF
Figure 38. Inverting Amplifier With Voltage Reference
LogicLogicLogic
–
+
–
+
(a) COMMON SUPPLY RAILS
(b) SEPARATE BYPASSED SUPPLY RAILS (preferred)
Logic Logic Logic
Power
Supply
Power
Supply
V
O
V
O
Figure 39. Common Versus Separate Supply Rails
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
31
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
input characteristics
The TLC274 and TLC279 are specified with a minimum and a maximum input voltage that, if exceeded at either
input, could cause the device to malfunction. Exceeding this specified range is a common problem, especially
in single-supply operation. Note that the lower range limit includes the negative rail, while the upper range limit
is specified at V
DD
– 1 V at TA = 25°C and at VDD – 1.5 V at all other temperatures.
The use of the polysilicon-gate process and the careful input circuit design gives the TLC274 and TLC279 very
good input offset voltage drift characteristics relative to conventional metal-gate processes. Offset voltage drift
in CMOS devices is highly influenced by threshold voltage shifts caused by polarization of the phosphorus
dopant implanted in the oxide. Placing the phosphorus dopant in a conductor (such as a polysilicon gate)
alleviates the polarization problem, thus reducing threshold voltage shifts by more than an order of magnitude.
The offset voltage drift with time has been calculated to be typically 0.1 µV/month, including the first month of
operation.
Because of the extremely high input impedance and resulting low bias current requirements, the TLC274 and
TLC279 are well suited for low-level signal processing; however, leakage currents on printed-circuit boards and
sockets can easily exceed bias current requirements and cause a degradation in device performance. It is good
practice to include guard rings around inputs (similar to those of Figure 4 in the Parameter Measurement
Information section). These guards should be driven from a low-impedance source at the same voltage level
as the common-mode input (see Figure 40).
Unused amplifiers should be connected as grounded unity-gain followers to avoid possible oscillation.
noise performance
The noise specifications in operational amplifier circuits are greatly dependent on the current in the first-stage
differential amplifier. The low input bias current requirements of the TLC274 and TLC279 result in a very low
noise current, which is insignificant in most applications. This feature makes the devices especially favorable
over bipolar devices when using values of circuit impedance greater than 50 kΩ, since bipolar devices exhibit
greater noise currents.
V
I
(a) NONINVERTING AMPLIFIER (c) UNITY-GAIN AMPLIFIER
–
+
(b) INVERTING AMPLIFIER
V
I
–
+
–
+
V
I
V
O
V
O
V
O

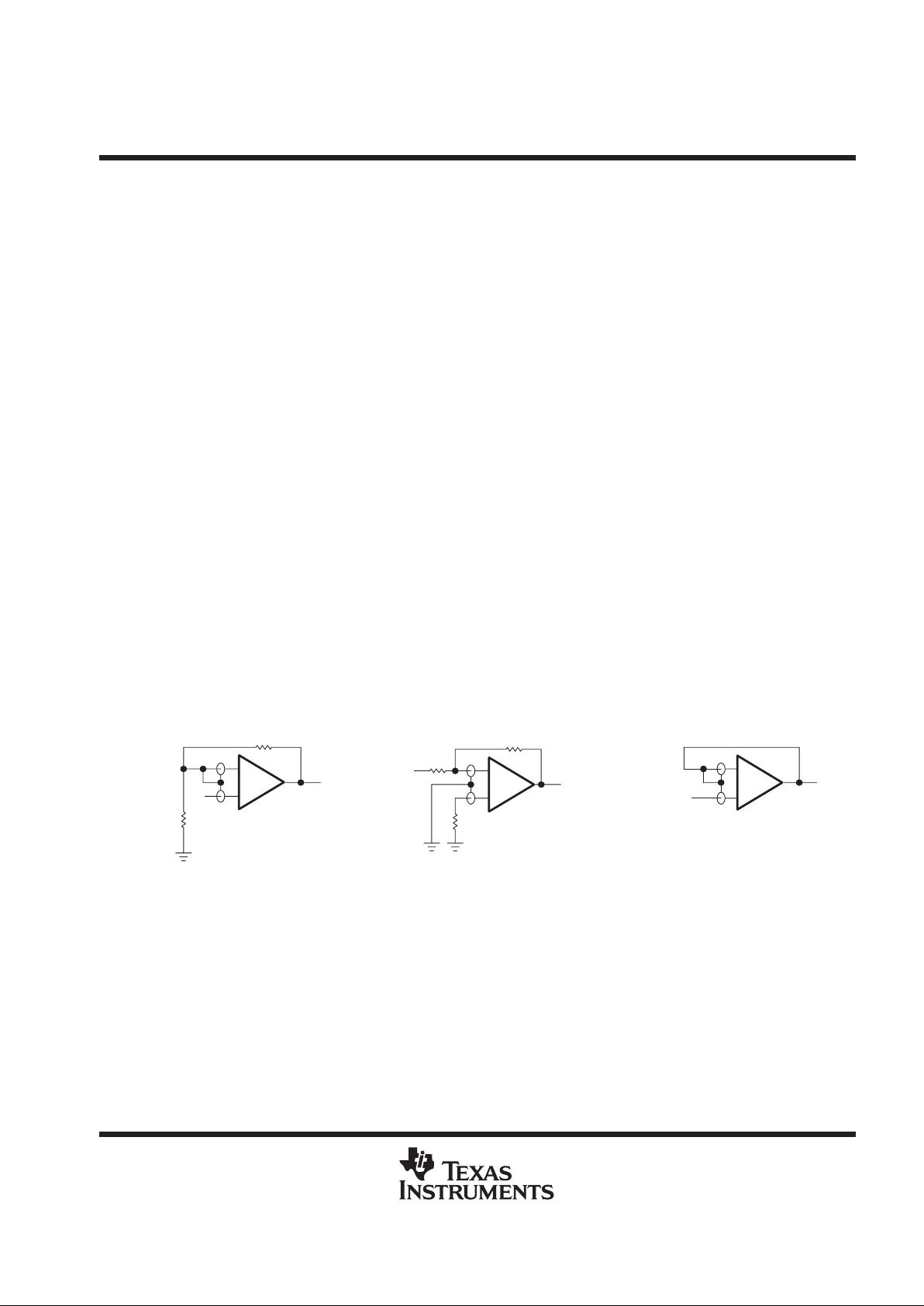

Figure 40. Guard-Ring Schemes
output characteristics
The output stage of the TLC274 and TLC279 is designed to sink and source relatively high amounts of current
(see typical characteristics). If the output is subjected to a short-circuit condition, this high current capability can
cause device damage under certain conditions. Output current capability increases with supply voltage.
All operating characteristics of the TLC274 and TLC279 were measured using a 20-pF load. The devices drive
higher capacitive loads; however, as output load capacitance increases, the resulting response pole occurs at
lower frequencies, thereby causing ringing, peaking, or even oscillation (see Figure 41). In many cases, adding
a small amount of resistance in series with the load capacitance alleviates the problem.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
32
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
output characteristics (continued)
–
+
2.5 V
V
O
C
L
–2.5 V
V
I
(d) TEST CIRCUIT
TA = 25°C
f = 1 kHz
V
IPP
= 1 V
(a) CL = 20 pF, RL = NO LOAD (b) CL = 130 pF, RL = NO LOAD
(c) CL = 150 pF, RL = NO LOAD
Figure 41. Effect of Capacitive Loads and Test Circuit
Although the TLC274 and TLC279 possess excellent high-level output voltage and current capability , methods
for boosting this capability are available, if needed. The simplest method involves the use of a pullup resistor
(RP) connected from the output to the positive supply rail (see Figure 42). There are two disadvantages to the
use of this circuit. First, the NMOS pulldown transistor N4 (see equivalent schematic) must sink a comparatively
large amount of current. In this circuit, N4 behaves like a linear resistor with an on-resistance between
approximately 60 Ω and 180 Ω, depending on how hard the op amp input is driven. With very low values of R
P
,
a voltage offset from 0 V at the output occurs. Second, pullup resistor RP acts as a drain load to N4 and the gain
of the operational amplifier is reduced at output voltage levels where N5 is not supplying the output current.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
33
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
output characteristics (continued)
–
+
V
I
V
DD
R
P
V
O
R2
R1
R
L
I
P
I
F
I
L
–
+
C
IP = Pullup current required
by the operational amplifier
(typically 500 µA)
V
O
Rp =
VDD – V
O
IF + IL + I
P
Figure 42. Resistive Pullup to Increase V
OH
Figure 43. Compensation for
Input Capacitance
feedback
Operational amplifier circuits nearly always employ feedback, and since feedback is the first prerequisite for
oscillation, some caution is appropriate. Most oscillation problems result from driving capacitive loads
(discussed previously) and ignoring stray input capacitance. A small-value capacitor connected in parallel with
the feedback resistor is an effective remedy (see Figure 43). The value of this capacitor is optimized empirically .
electrostatic discharge protection
The TLC274 and TLC279 incorporate an internal electrostatic discharge (ESD) protection circuit that prevents
functional failures at voltages up to 2000 V as tested under MIL-STD-883C, Method 3015.2. Care should be
exercised, however, when handling these devices as exposure to ESD may result in the degradation of the
device parametric performance. The protection circuit also causes the input bias currents to be
temperature-dependent and have the characteristics of a reverse-biased diode.
latch-up
Because CMOS devices are susceptible to latch-up due to their inherent parasitic thyristors, the TLC274 and
TLC279 inputs and outputs were designed to withstand –100-mA surge currents without sustaining latch-up;
however, techniques should be used to reduce the chance of latch-up whenever possible. Internal protection
diodes should not, by design, be forward biased. Applied input and output voltage should not exceed the supply
voltage by more than 300 mV . Care should be exercised when using capacitive coupling on pulse generators.
Supply transients should be shunted by the use of decoupling capacitors (0.1 µF typical) located across the
supply rails as close to the device as possible.
The current path established if latch-up occurs is usually between the positive supply rail and ground and can
be triggered by surges on the supply lines and/or voltages on either the output or inputs that exceed the supply
voltage. Once latch-up occurs, the current flow is limited only by the impedance of the power supply and the
forward resistance of the parasitic thyristor and usually results in the destruction of the device. The chance of
latch-up occurring increases with increasing temperature and supply voltages.
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
34
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
5 V
0.016 µF
–
+
Low Pass
HIgh Pass
Band Pass
R = 5 kΩ (3/d–1)
(see Note A)
–
+
0.016 µF
10 kΩ
10 kΩ
10 kΩ
–
+
V
I
5 kΩ
10 kΩ
10 kΩ
1/4
TLC274
TLC274
1/4
1/4
TLC274
NOTE A: d = damping factor, 1/Q
Figure 44. State-Variable Filter
–
+
–
+
100 kΩ
V
O
N.O.
Reset
0.5 µF
Mylar
H.P.
5082-2835
12 V
V
I
TLC274
1/4
TLC274
1/4
Figure 45. Positive-Peak Detector
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
35
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
–
+
V
I
(see Note A)
1.2 kΩ
4.7 kΩ
0.1 µF
22 kΩ
47 kΩ
0.01 µF
TIS193
15 Ω
0.47 µF
100 kΩ
1 kΩ
20 kΩ
TL431
TIP31
10 kΩ
250 µF,
25 V
+
–
V
O
(see Note B)
110 Ω
1/4
TLC274
NOTES: B. VI = 3.5 V to 15 V
C. VO = 2 V, 0 to 1 A
Figure 46. Logic-Array Power Supply
–
+
R1
9 V
100 kΩ
0.1 µF
R3
10 kΩ
10 kΩ
VO (see Note B)
VO (see Note A)
R2
TLC274
1/4
1/4
TLC274
47 kΩ
C
100 kΩ
9 V
fO =
1
4C(R2)
R1
R2
NOTES: A. V
O(PP)
= 8 V
B. V
O(PP)
= 4 V
Figure 47. Single-Supply Function Generator
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
36
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
APPLICATION INFORMATION
–
+
–
+

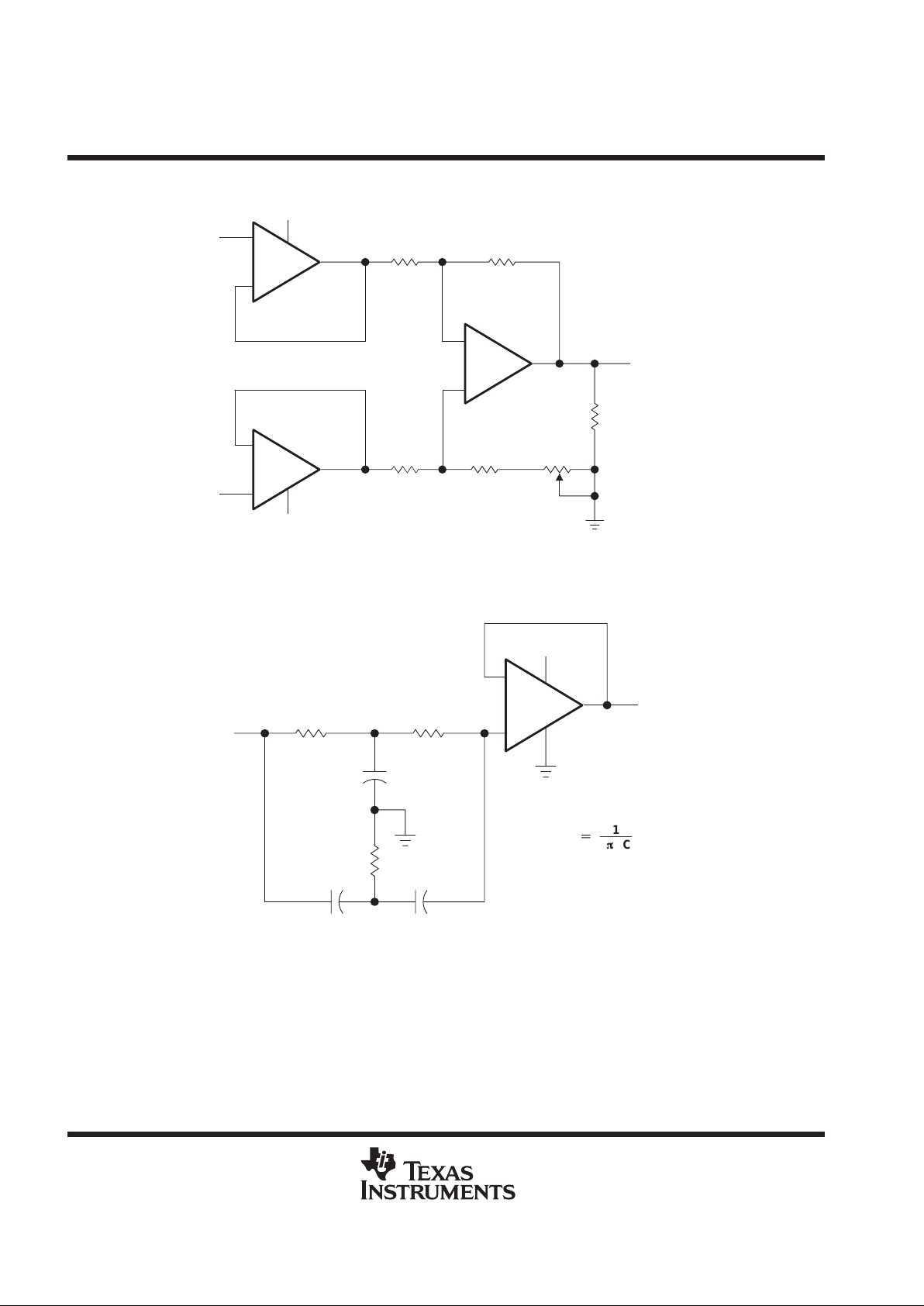

100 kΩ10 kΩ
5 V
VI–
VI+
–5 V
–
+
10 kΩ 95 kΩ
V
O
R1, 10 kΩ
(see Note A)
1/4
TLC279
1/4
TLC279
1/4
TLC279
10 kΩ
NOTE C: CMRR adjustment must be noninductive.
Figure 48. Low-Power Instrumentation Amplifier
–
+
5 V
V
I
V
O
R
10 MΩ
2C
540 pF
10 MΩ
R
270 pF
CC
270 pF
5 MΩ
R/2
TLC274
1/4
f
NOTCH
+
1
2pRC
Figure 49. Single-Supply Twin-T Notch Filter
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
37
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
MECHANICAL INFORMATION
D (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE
14 PIN SHOWN
4040047/D 10/96
0.228 (5,80)
0.244 (6,20)
0.069 (1,75) MAX
0.010 (0,25)
0.004 (0,10)
1
14
0.014 (0,35)
0.020 (0,51)
A
0.157 (4,00)
0.150 (3,81)
7
8
0.044 (1,12)
0.016 (0,40)
Seating Plane
0.010 (0,25)
PINS **
0.008 (0,20) NOM
A MIN
A MAX
DIM
Gage Plane
0.189
(4,80)
(5,00)
0.197
8
(8,55)
(8,75)
0.337
14
0.344
(9,80)
16
0.394
(10,00)
0.386
0.004 (0,10)
M
0.010 (0,25)
0.050 (1,27)
0°–8°
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion, not to exceed 0.006 (0,15).
D. Falls within JEDEC MS-012
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
38
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
MECHANICAL INFORMATION
FK (S-CQCC-N**) LEADLESS CERAMIC CHIP CARRIER
4040140/D 10/96
28 TERMINAL SHOWN
B
0.358
(9,09)
MAX
(11,63)
0.560
(14,22)
0.560
0.458
0.858
(21,8)
1.063
(27,0)
(14,22)
A
NO. OF
MINMAX
0.358
0.660
0.761
0.458
0.342
(8,69)
MIN
(11,23)
(16,26)
0.640
0.739
0.442
(9,09)
(11,63)
(16,76)
0.962
1.165
(23,83)
0.938
(28,99)
1.141
(24,43)
(29,59)
(19,32)(18,78)
**
20
28
52
44
68
84
0.020 (0,51)
TERMINALS
0.080 (2,03)
0.064 (1,63)
(7,80)
0.307
(10,31)
0.406
(12,58)
0.495
(12,58)
0.495
(21,6)
0.850
(26,6)
1.047
0.045 (1,14)
0.045 (1,14)
0.035 (0,89)
0.035 (0,89)
0.010 (0,25)
12
1314151618 17
11
10
8
9
7
5
432
0.020 (0,51)
0.010 (0,25)
6
12826 27
19
21
B SQ
A SQ
22
23
24
25
20
0.055 (1,40)
0.045 (1,14)
0.028 (0,71)
0.022 (0,54)
0.050 (1,27)
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. This package can be hermetically sealed with a metal lid.
D. The terminals are gold plated.
E. Falls within JEDEC MS-004
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
39
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
MECHANICAL INFORMATION

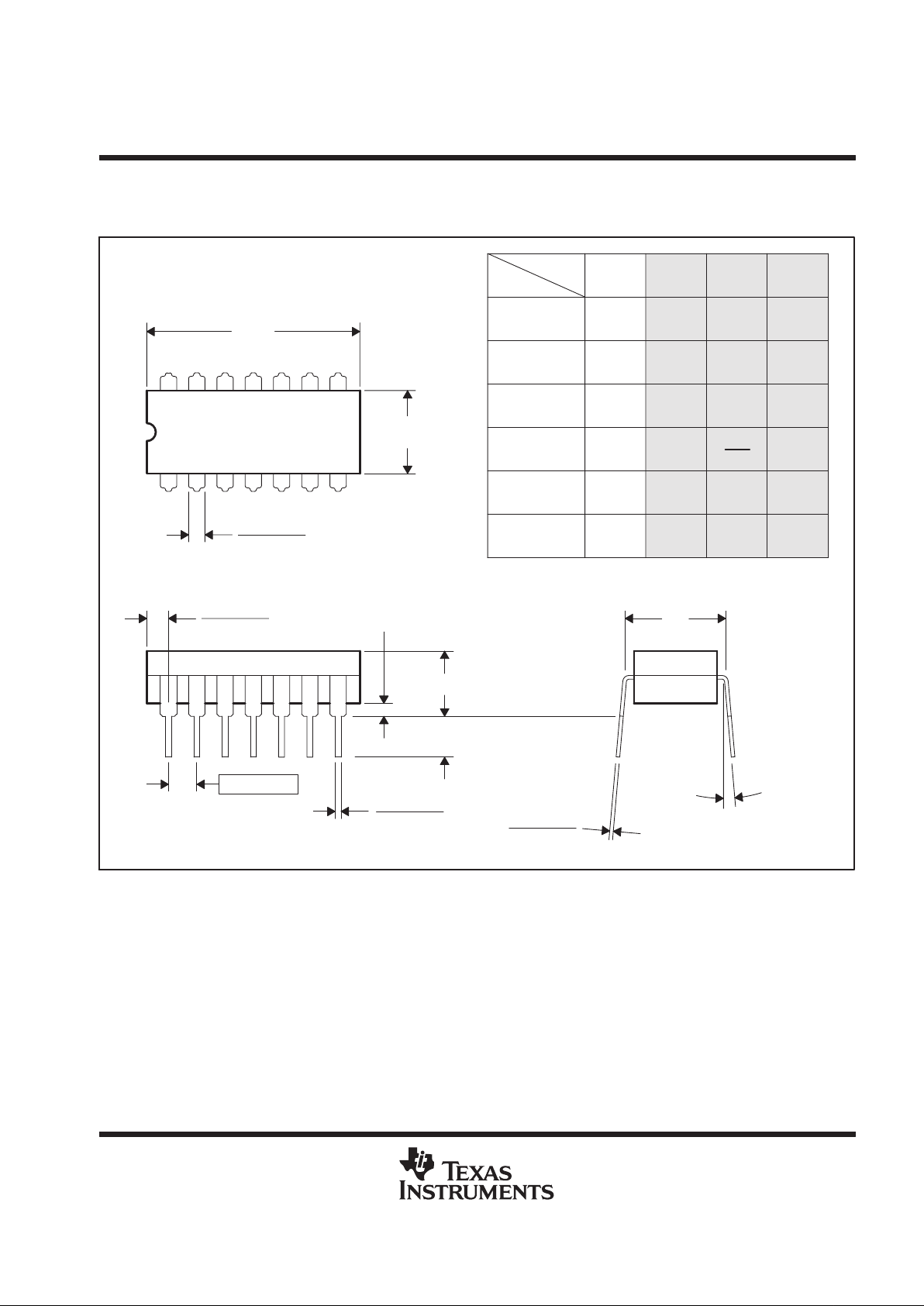

J (R-GDIP-T**) CERAMIC DUAL-IN-LINE PACKAGE
14 PIN SHOWN
20
0.290
(7,87)
0.310
0.975
(24,77)
(23,62)
0.930
(7,37)
0.245
(6,22)
(7,62)
0.300
181614
PINS **
0.290
(7,87)
0.310
0.785
(19,94)
(19,18)
0.755
(7,37)
0.310
(7,87)
(7,37)
0.290
0.755
(19,18)
(19,94)
0.785
0.245
(6,22)
(7,11)
0.280A0.300
(7,62)
(6,22)
0.245
A MIN
A MAX
B MAX
B MIN
C MIN
C MAX
DIM
0.310
(7,87)
(7,37)
0.290
(23,10)
0.910
0.300
(7,62)
(6,22)
0.245
Seating Plane
0.014 (0,36)
0.008 (0,20)
4040083/C 08/96
C
8
7
0.020 (0,51) MIN
B
0.070 (1,78)
0.100 (2,54)
0.065 (1,65)
0.045 (1,14)
14
1
0.015 (0,38)
0.023 (0,58)
0.200 (5,08) MAX
0.130 (3,30) MIN
0.100 (2,54)
0°–15°
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. This package can be hermetically sealed with a ceramic lid using glass frit.
D. Index point is provided on cap for terminal identification only on press ceramic glass frit seal only.
E. Falls within MIL-STD-1835 GDIP1-T14, GDIP1-T16, GDIP1-T18, and GDIP1-T20
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
40
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
MECHANICAL INFORMATION
N (R-PDIP-T**) PLASTIC DUAL-IN-LINE PACKAGE
20
0.975
(24,77)
0.940
(23,88)
18
0.920
0.850
14
0.775
0.745
(19,69)
(18,92)
16
0.775
(19,69)
(18,92)
0.745
A MIN
DIM
A MAX
PINS **
0.310 (7,87)
0.290 (7,37)
(23.37)
(21.59)
Seating Plane
0.010 (0,25) NOM
14/18 PIN ONL Y
4040049/C 08/95
9
8
0.070 (1,78) MAX
A
0.035 (0,89) MAX
0.020 (0,51) MIN
16
1
0.015 (0,38)
0.021 (0,53)
0.200 (5,08) MAX
0.125 (3,18) MIN
0.240 (6,10)
0.260 (6,60)
M
0.010 (0,25)
0.100 (2,54)
0°–15°
16 PIN SHOWN
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. Falls within JEDEC MS-001 (20 pin package is shorter then MS-001.)
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092C – SEPTEMBER 1987 – REVISED MARCH 1998
41
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

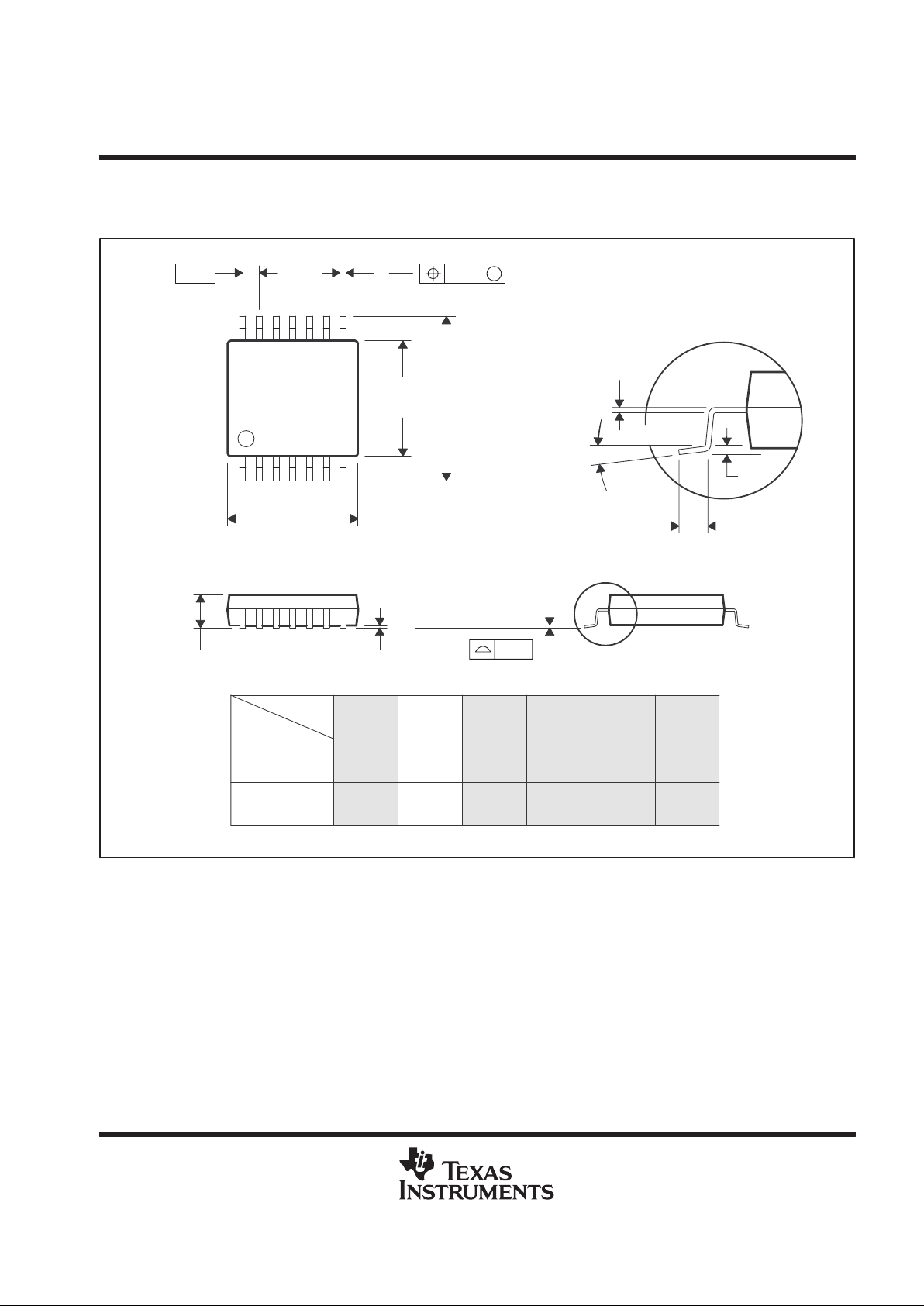

MECHANICAL INFORMATION
PW (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE
4040064/E 08/96
14 PIN SHOWN
Seating Plane
0,05 MIN
1,20 MAX
1
A
7
14
0,19
4,50
4,30
8
6,20
6,60
0,30
0,75
0,50
0,25
Gage Plane
0,15 NOM
0,65
M
0,10
0°–8°
0,10
PINS **
A MIN
A MAX
DIM
2,90
3,10
8
4,90
5,10
14
6,60
6,404,90
5,10
16
7,70
20
7,90
24
9,60
9,80
28
NOTES: A. All linear dimensions are in millimeters.
B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion not to exceed 0,15.
D. Falls within JEDEC MO-153
IMPORTANT NOTICE
T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those
pertaining to warranty, patent infringement, and limitation of liability.
TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.
CERT AIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF
DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL
APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR
WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER
CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICA TIONS IS UNDERSTOOD T O
BE FULLY AT THE CUSTOMER’S RISK.
In order to minimize risks associated with the customer’s applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent
that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.
Copyright 1999, Texas Instruments Incorporated
Loading...
