MSP430 Programming Via the Bootstrap Loader

User's Guide

Literature Number: SLAU319F

July 2010–Revised September 2013

Contents

1 Programming With the Bootstrap Loader ............................................................................... 5

1.1 Supplementary Online Information ....................................................................................... 5

1.2 Introduction .................................................................................................................. 5

1.3 Standard RESET and BSL Entry Sequence ............................................................................ 6

1.3.1 MSP430 Devices With Shared JTAG Pins ..................................................................... 6

1.3.2 MSP430 Flash Devices With Dedicated JTAG Pins .......................................................... 7

1.3.3 Devices With USB ................................................................................................. 7

1.4 UART Protocol .............................................................................................................. 7

1.5 USB Protocol ................................................................................................................ 8

2 Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families .......................................................... 9

2.1 Synchronization Sequence ................................................................................................ 9

2.2 Commands ................................................................................................................... 9

2.2.1 Unprotected Commands .......................................................................................... 9

2.2.2 Password Protected Commands ................................................................................. 9

2.3 Programming Flow ........................................................................................................ 10

2.4 Data Frame ................................................................................................................. 11

2.4.1 Data-Stream Structure ........................................................................................... 11

2.4.2 Checksum ......................................................................................................... 12

2.4.3 Example Sequence ............................................................................................... 12

2.4.4 Commands – Detailed Description ............................................................................. 12

2.5 Loadable BSL .............................................................................................................. 16

2.6 Exiting the BSL ............................................................................................................ 17

2.7 Password Protection ...................................................................................................... 17

2.8 Code Protection Fuse ..................................................................................................... 18

2.9 BSL Internal Settings and Resources .................................................................................. 18

2.9.1 Chip Identification and BSL Version ........................................................................... 18

2.9.2 Vectors to Call the BSL Externally ............................................................................. 18

2.9.3 Initialization Status ............................................................................................... 19

2.9.4 Memory Allocation and Resources ............................................................................. 20

3 Bootstrap Loader Protocol – 5xx and 6xx Families ................................................................ 21

3.1 BSL Data Packet .......................................................................................................... 21

3.2 UART Peripheral Interface (PI) .......................................................................................... 21

3.2.1 Wrapper ............................................................................................................ 21

3.2.2 Abbreviations ...................................................................................................... 21

3.2.3 Messages .......................................................................................................... 22

3.2.4 Interface Specific Commands ................................................................................... 22

3.3 I2C Peripheral Interface .................................................................................................. 23

3.3.1 Basic Protocol With Byte Level Acknowledge ................................................................ 23

3.3.2 I2C Protocol for BSL - Read From Slave ...................................................................... 23

3.3.3 Acknowledge (ACK) .............................................................................................. 24

3.3.4 Wrapper ............................................................................................................ 24

3.4 USB Peripheral Interface ................................................................................................. 25

3.4.1 Wrapper ............................................................................................................ 25

3.4.2 Hardware Requirements ......................................................................................... 25

3.5 BSL Core Command Structure .......................................................................................... 25

Contents SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

3.5.1 Abbreviations ...................................................................................................... 26

3.5.2 Command Descriptions .......................................................................................... 26

3.6 BSL Security ............................................................................................................... 27

3.6.1 Protected Commands ............................................................................................ 27

3.6.2 RAM Erase ........................................................................................................ 27

3.7 BSL Core Responses ..................................................................................................... 28

3.7.1 Abbreviations ...................................................................................................... 28

3.7.2 BSL Core Messages ............................................................................................. 29

3.7.3 BSL Version Number ............................................................................................. 29

3.7.4 Example Sequences for UART BSL ........................................................................... 30

3.8 BSL Public Functions and Z-Area ....................................................................................... 30

3.8.1 Starting the BSL From an External Application ............................................................... 30

3.8.2 Function Description ............................................................................................. 30

4 Bootstrap Loader Hardware ................................................................................................ 31

4.1 Hardware Description ..................................................................................................... 31

4.1.1 Power Supply ..................................................................................................... 31

4.1.2 Serial Interface .................................................................................................... 32

4.1.3 Target Connector ................................................................................................. 33

4.1.4 Parts List ........................................................................................................... 34

5 Differences Between Devices and Bootstrap Loader Versions ................................................ 35

5.1 1xx, 2xx, and 4xx BSL Versions ......................................................................................... 35

5.2 Special Consideration for ROM BSL Version 1.10 .................................................................... 42

5.3 1xx, 2xx, and 4xx BSL Known Issues .................................................................................. 43

5.4 Special Note on the MSP430F14x Device Family BSL .............................................................. 43

5.5 5xx and 6xx Flash-Based BSL Versions ............................................................................... 44

5.6 5xx and 6xx ROM-Based BSL Versions ................................................................................ 47

6 Bootstrap Loader PCB Layout Suggestion ........................................................................... 48

Revision History ......................................................................................................................... 51

SLAU319F–July 2010–Revised September 2013 Contents

Submit Documentation Feedback

www.ti.com

List of Figures

1-1. Standard RESET Sequence............................................................................................... 6

1-2. BSL Entry Sequence at Shared JTAG Pins ............................................................................. 6

1-3. BSL Entry Sequence at Dedicated JTAG Pins.......................................................................... 7

3-1. Basic Protocol - Byte Level ACK ........................................................................................ 23

3-2. Byte Level ACK ............................................................................................................ 24

4-1. Bootstrap Loader Interface Schematic ................................................................................. 31

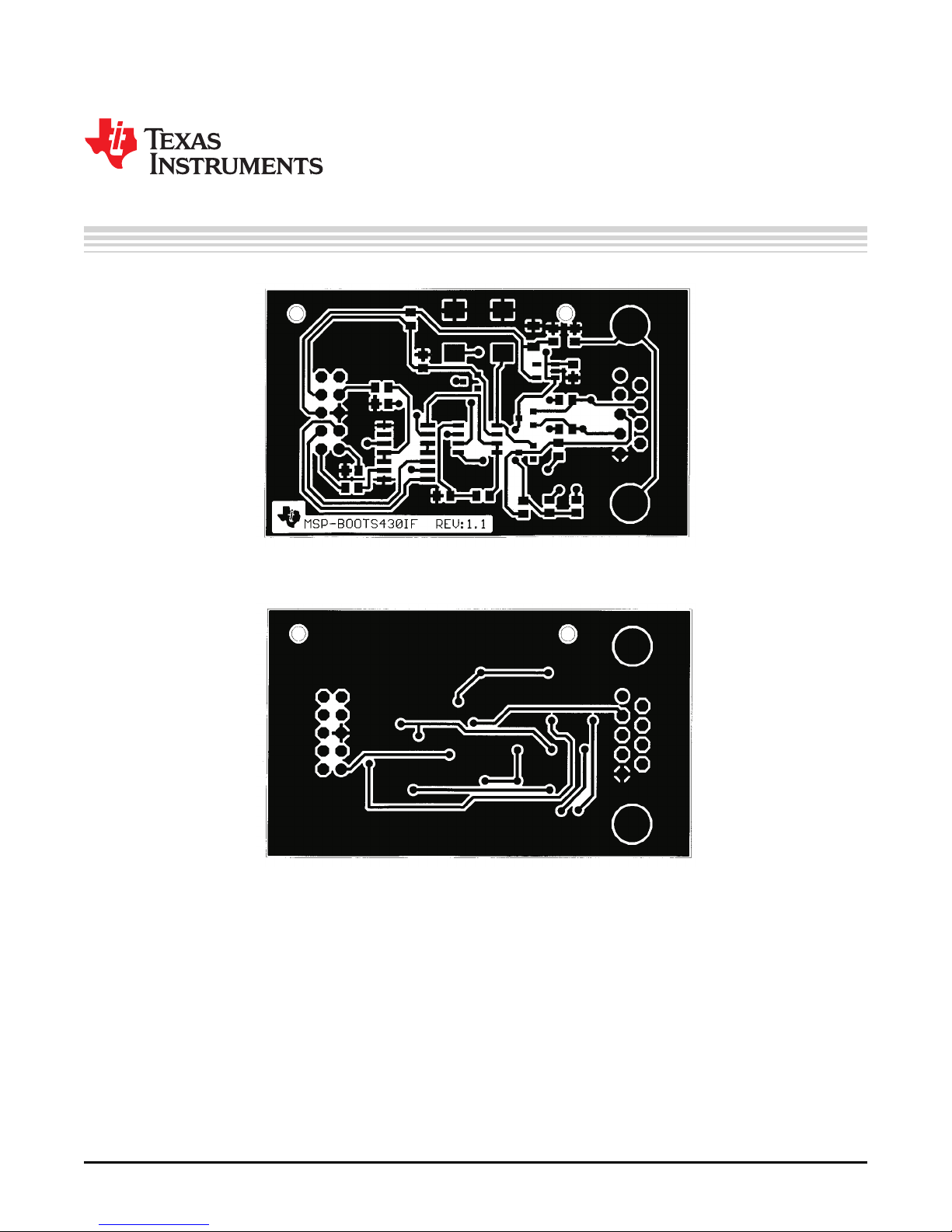

6-1. Universal BSL Interface PCB Layout, Top ............................................................................. 48

6-2. Universal BSL Interface PCB Layout, Bottom ......................................................................... 48

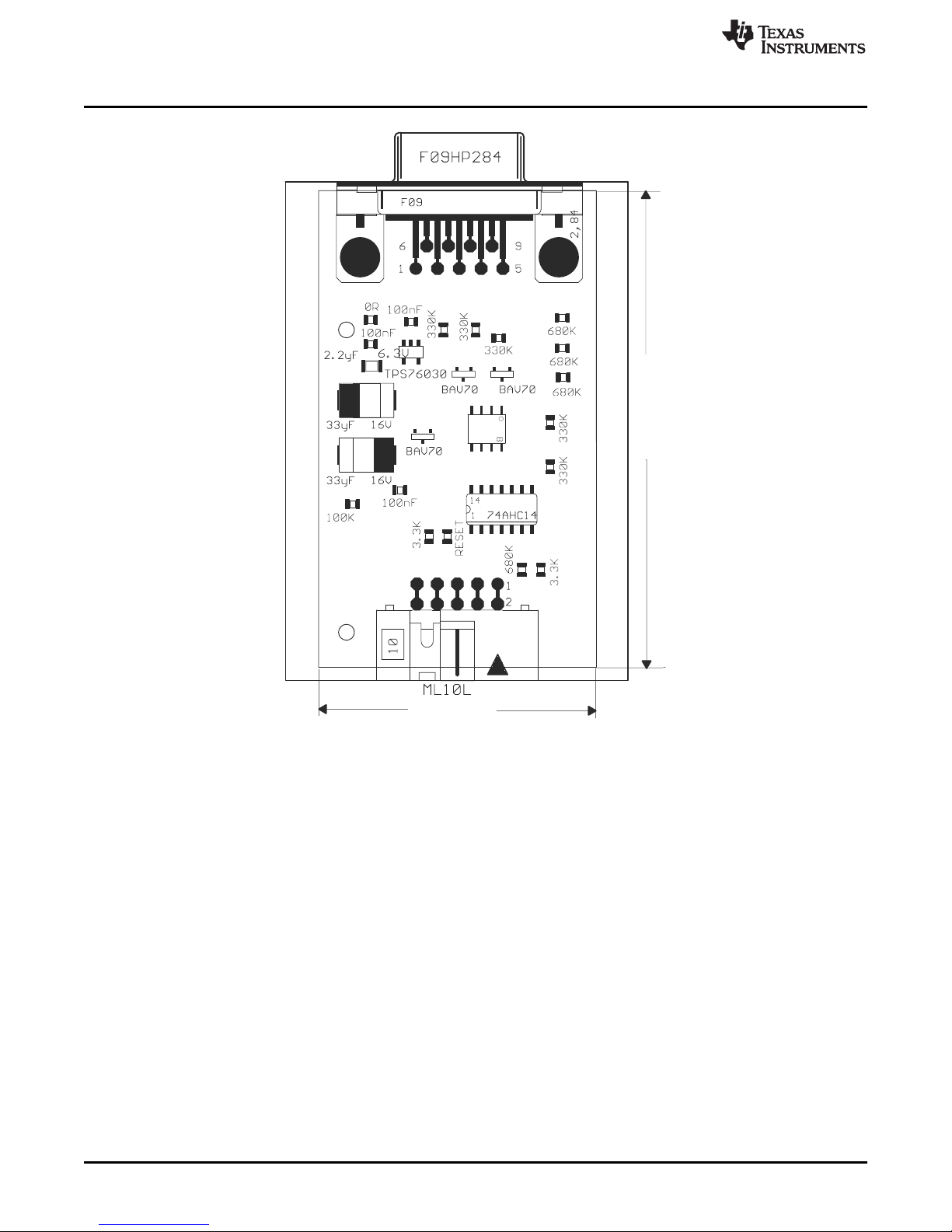

6-3. Universal BSL Interface Component Placement ...................................................................... 49

6-4. Universal BSL Interface Component Placement ...................................................................... 50

List of Tables

2-1. Data Frame of BSL Commands......................................................................................... 11

2-2. Recommendations for MSP430F149 [MSP430F449] (TA= 25°C, VCC= 3.0 V, f 2-3. Recommendations for MSP430F2131 (TA= 25°C, VCC= 3.0 V, f

= 6.7 MHz) .................................. 15

max

3-1. UART Protocol Interface.................................................................................................. 21

3-2. UART Error Messages.................................................................................................... 22

3-3. BSL Core Command Wrapper for I2C.................................................................................. 24

3-4. USB Peripheral Interface ................................................................................................. 25

3-5. BSL Core Commands..................................................................................................... 25

3-6. BSL Core Responses..................................................................................................... 28

3-7. BSL Core Messages ...................................................................................................... 29

4-1. Serial-Port Signals and Pin Assignments .............................................................................. 32

4-2. RS-232 Levels ............................................................................................................. 32

4-3. Pin Assignment of Target Connector ................................................................................... 33

4-4. Universal BSL Interface Parts List ...................................................................................... 34

5-1. BSL Version 1.10 on F13x, F14x(1) (excluding Rev AA), F11x, and F11x1 ...................................... 35

5-2. BSL Version 1.30 on F41x, F11x, and F11x1 ......................................................................... 36

5-3. BSL Version 1.40 on F12x ............................................................................................... 37

5-4. BSL Version 1.60 on F11x2, F12x2, F43x, F44x, FE42x, FW42x, F(G)43x, F415, F417 ....................... 38

5-5. BSL Version 1.61 on F16x, F161x, F42x0, F13x rev AA, F14x(1) rev AA, F47x, FG47x........................ 39

5-6. BSL Version 2.02 and 2.13 on F21xx, F22xx, F23xx, F24xx, F261x............................................... 40

5-7. BSL Version 2.02 and 2.03 on G2xx3, G2xx4, G2xx5, TCH5E..................................................... 41

5-8. BSL Version 2.12 and 2.13 on FG46xx, F471xx...................................................................... 42

= 6.7 MHz) ................ 15

max

List of Figures SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

Programming With the Bootstrap Loader

The MSP430™ BSL enables users to communicate with embedded memory in the MSP430 microcontroller during the prototyping phase, final production, and in service. Both the programmable memory (flash memory) and the data memory (RAM) can be modified as required. Do not confuse the bootstrap loader with programs found in some digital signal processors (DSPs) that automatically load program code (and data) from external memory to the internal memory of the DSP. These programs are often referred to as bootstrap loaders as well.

To use the bootstrap loader, a specific BSL entry sequence must be applied. An added sequence of commands initiates the desired function. A boot-loading session can be exited by continuing operation at a defined user program address or by the reset condition.

If the device is secured by disabling JTAG, it is still possible to use the BSL. Access to the MSP430 memory through the BSL is protected against misuse by a user-defined password.

1.1 Supplementary Online Information

As a compliment to this document, a BSL wiki page is available. This wiki contains links to additional BSL projects, information, and an errata for this document. The wiki can be found at

http://processors.wiki.ti.com/index.php/BSL_(MSP430).

A zip file with additional information, executables, and code samples can be found at

http://www.ti.com/lit/zip/slau319.

Chapter 1

SLAU319F–July 2010–Revised September 2013

1.2 Introduction

This bootstrap loader provides a method to program the flash memory during MSP430 project development and updates. It can be activated by a utility that sends commands using the UART protocol. The BSL enables the user to control the activity of the MSP430 and to exchange data using a personal computer or other device.

To avoid accidental overwriting of the BSL code, this code is stored in a secure memory location, either ROM or specially protected flash. To prevent unwanted source readout, any BSL command that directly or indirectly allows data reading is password protected.

To invoke the bootstrap loader, a BSL entry sequence must be applied to dedicated pins. After that, a synchronization character, followed by the data frame of a specific command, initiates the desired function.

MSP430 is a trademark of Texas Instruments.

SLAU319F–July 2010–Revised September 2013 Programming With the Bootstrap Loader

Submit Documentation Feedback

Bootstrap Loader Starts

RST

DTR

/NMI

( )

TEST

( )RTS

RST

DTR

/NMI

( )

TEST

( )RTS

User Program Starts

Standard RESET and BSL Entry Sequence

1.3 Standard RESET and BSL Entry Sequence

1.3.1 MSP430 Devices With Shared JTAG Pins

Applying an appropriate entry sequence on the RST/NMI and TEST pins forces the MSP430 to start program execution at the BSL RESET vector instead of at the RESET vector located at address FFFEh.

If the application interfaces with a computer UART, these two pins may be driven by the DTR and RTS signals of the serial communication port (RS232) after passing level shifters. Detailed descriptions of the hardware and related considerations can be found in Chapter 4. The normal user reset vector at FFFEh is used if TEST is kept low while RST/NMI rises from low to high (standard method, see Figure 1-1).

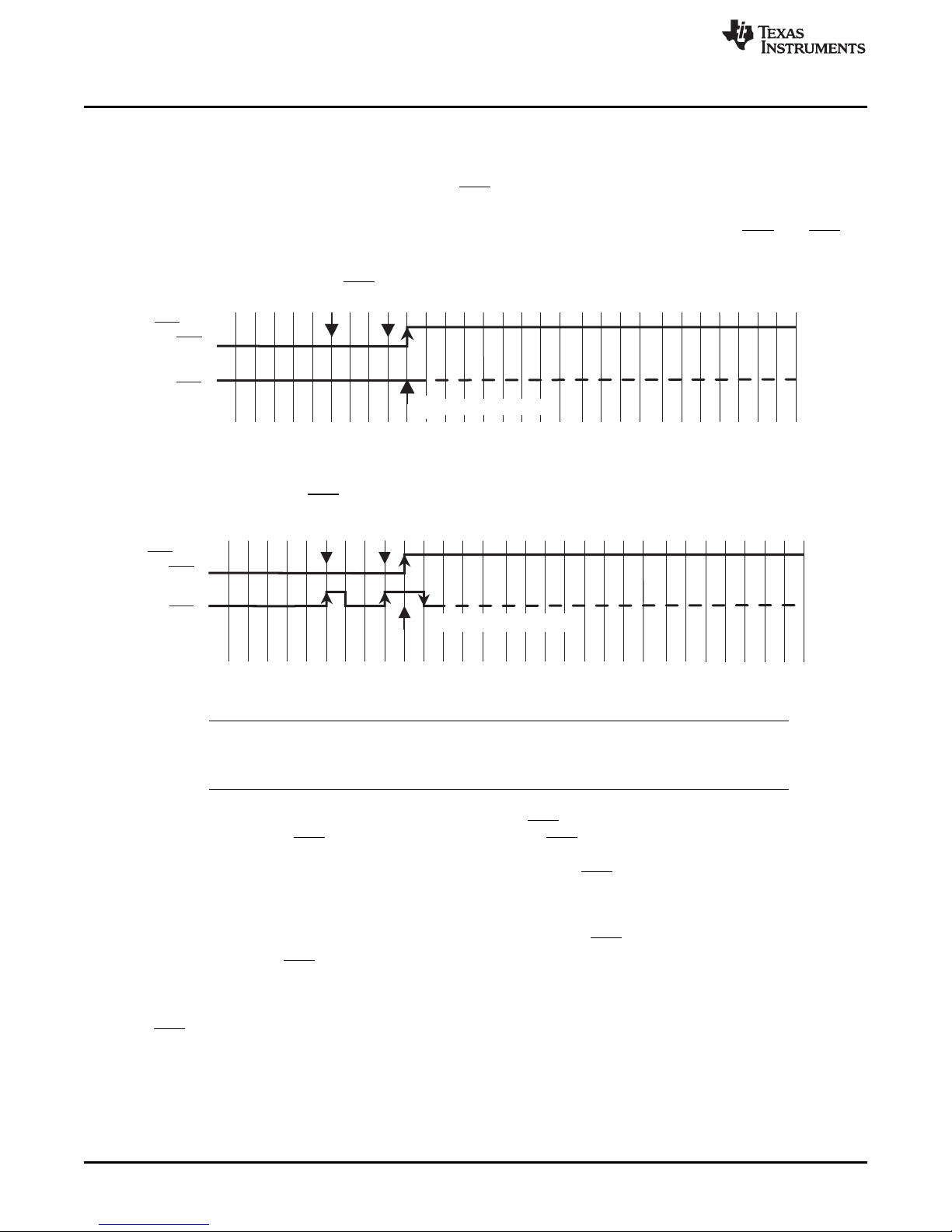

Figure 1-1. Standard RESET Sequence

The BSL program execution starts when the TEST pin has received a minimum of two positive transitions and if TEST is high while RST/NMI rises from low to high (BSL entry method, see Figure 1-2). This level transition triggering improves BSL startup reliability.

www.ti.com

Figure 1-2. BSL Entry Sequence at Shared JTAG Pins

NOTE: The recommended minimum time for pin states is 250 ns. See the device-specific errata for

any differences, because some 5xx and 6xx device revisions require specific entry sequences.

The TEST signal is normally used to switch the port pins between their application function and the JTAG function. In devices with BSL functionality, the TEST and RST/NMI pins are also used to invoke the BSL. To invoke the BSL, the RST/NMI pin must be configured as RST and must be kept low while pulling the TEST pin high and while applying the next two edges (falling, rising) on the TEST pin. The BSL is started after the TEST pin is held low for more than 100 µs and then the RST/NMI pin is released (see Figure 1-

2).

The BSL is not started by the BSL RESET vector if:

• There are fewer than two positive edges at the TEST pin while RST/NMI is low.

• TEST is low when RST/NMI rises from low to high.

• JTAG has control over the MSP430 resources.

• Supply voltage, VCC, drops below its threshold, and a power-on reset (POR) is executed.

• RST/NMI pin is configured for NMI functionality (NMI bit is set).

Programming With the Bootstrap Loader SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

RST

DTR

/NMI

( )

TCK

( )RTS

Bootstrap Loader Starts

www.ti.com

1.3.2 MSP430 Flash Devices With Dedicated JTAG Pins

Devices with dedicated JTAG pins use the TCK pin instead of the TEST pin. The BSL program execution starts whenever the TCK pin has received a minimum of two negative

transitions and TCK is low while RST/NMI rises from low to high (BSL entry method, see Figure 1-3). This level transition triggering improves BSL start-up reliability.

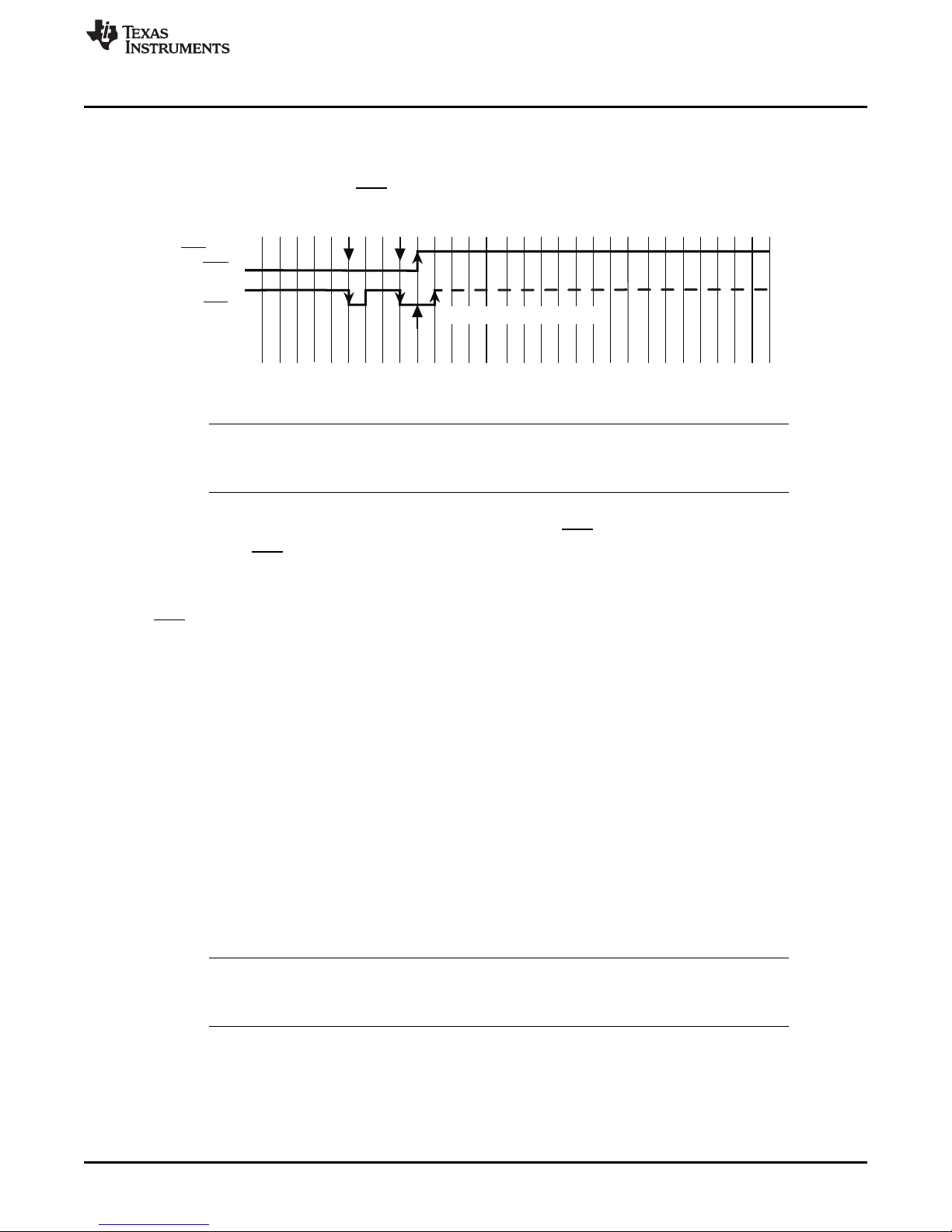

Figure 1-3. BSL Entry Sequence at Dedicated JTAG Pins

NOTE: The recommended minimum time for pin states is 250 ns. See the device-specific errata for

any differences, because some 5xx and 6xx device revisions have specific entry sequence requirements.

The BSL is not started by the BSL RESET vector if:

• There are fewer than two negative edges at TCK pin while RST/NMI is low.

• TCK is high if RST/NMI rises from low to high.

• JTAG has control over the MSP430 resources.

• Supply voltage, VCC, drops below its threshold, and a power-on reset (POR) is executed.

• RST/NMI pin is configured for NMI functionality (NMI bit is set).

UART Protocol

1.3.3 Devices With USB

Devices with USB are invoked when either of the following two conditions are met while the device is powered by VBUS:

• The device is powered up by USB and the reset vector is blank.

• The device powers up with the PUR pin tied to V

1.4 UART Protocol

The UART protocol applied here is defined as:

• Baud rate is fixed to 9600 baud in half-duplex mode (one sender at a time).

• Start bit, 8 data bits (LSB first), an even parity bit, 1 stop bit.

• Handshake is performed by an acknowledge character.

• Minimum time delay before sending new characters after characters have been received from the MSP430 BSL: 1.2 ms

NOTE: Applying baud rates other than 9600 baud at initialization results in communication problems

or violates the flash memory write timing specification. The flash memory may be extensively stressed or may react with unreliable program or erase operations.

USB

SLAU319F–July 2010–Revised September 2013 Programming With the Bootstrap Loader

Submit Documentation Feedback

USB Protocol

1.5 USB Protocol

The USB protocol applied here is defined as:

• HID protocol with one input endpoint and one output endpoint. Each endpoint has a length of 64 bytes.

• VID: 0x2047

• PID: 0x0200

www.ti.com

Programming With the Bootstrap Loader SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

SLAU319F–July 2010–Revised September 2013

Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families

2.1 Synchronization Sequence

Before sending any command to the BSL, a synchronization character (SYNC) with its value of 80h must be sent to the BSL. This character is necessary to calculate all the essential internal parameters, which maintain UART and flash memory program and erase timings. It provides the BSL system time reference. When this is received, an acknowledge DATA_ACK = 90h is sent back by the BSL to confirm successful reception.

This sequence must be done before every command that is sent to the BSL.

NOTE: The synchronization character is not part of the Data Frame described in Section 2.4.

2.2 Commands

Two categories of commands are available: commands that require a password and commands that do not require a password. The password protection safeguards every command that potentially allows direct or indirect data access.

Chapter 2

2.2.1 Unprotected Commands

• Receive password

• Mass erase (erase entire flash memory, main as well as information memory)

• Transmit BSL version (V1.50 or higher or in loadable BL_150S_14x.txt but not V2.x BSLs)

• Change baud rate (V1.60 or V1.61 or V2.0x or in loadable BL_150S_14x.txt)

2.2.2 Password Protected Commands

• Receive data block to program flash memory, RAM, or peripherals

• Transmit data block

• Erase segment

• Erase check (present in V1.60 or higher or in loadable BL_150S_14x.txt)

• Set Memory Offset (present in V2.12 or higher)

• Load program counter and start user program

• Change baud rate (BSL versions lower than V1.60 and higher than V2.10)

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families

Submit Documentation Feedback

Programming Flow

2.3 Programming Flow

The write access (RX data block command) to the flash memory, RAM, or peripheral modules area is executed online. That means a data byte or word is processed immediately after receipt, and the write cycle is finished before a following byte or word has completely arrived. Therefore, the entire write time is determined by the baud rate, and no buffering mechanism is necessary.

Data sections located below the flash memory area address are assumed to be loaded into the RAM or peripheral module area and, thus, no specific flash control bits are affected.

NOTE: If control over the UART protocol is lost, either by line faults or by violating the data frame

conventions, the only way to recover is to rerun the BSL entry sequence to initiate another BSL session.

www.ti.com

Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

2.4 Data Frame

To ensure high data security during the data transmission, a data frame protocol called serial standard protocol (SSP) is used. The BSL is considered the receiver in Table 2-1.

2.4.1 Data-Stream Structure

• The first eight bytes (HDR through LH) are mandatory (xx represents dummy data).

• Data bytes D1 to Dn are optional.

• Two bytes (CKL and CKH) for checksum are mandatory.

• Acknowledge done by the BSL is mandatory, except with the TX data block and TX BSL version commands.

Data Frame

Table 2-1. Data Frame of BSL Commands

Received

BSL HDR CMD L1 L2 AL AH LL LH D1 D2…Dn CKL CKH ACK

Command

RX data block 80 12 n n AL AH n–4 0 D1 D2 … Dn–4 CKL CKH ACK RX password 80 10 24 24 xx xx xx xx D1 D2 … D20 CKL CKH ACK Erase segment 80 16 04 04 AL AH 02 A5 – – – – CKL CKH ACK Erase main or info 80 16 04 04 AL AH 04 A5 – – – – CKL CKH ACK Mass erase 80 18 04 04 xx xx 06 A5 – – – – CKL CKH ACK Erase check 80 1C 04 04 AL AH LL LH – – – – CKL CKH ACK Change baud rate 80 20 04 04 D1 D2 D3 xx – – – – CKL CKH ACK Set mem offset 80 21 04 04 xx xx AL AH – – – – CKL CKH ACK Load PC 80 1A 04 04 AL AH xx xx – – – – CKL CKH ACK TX data block 80 14 04 04 AL AH n 0 – – – – CKL CKH –

BSL responds 80 xx n n D1 D2 ... ... … ... … Dn CKL CKH –

TX BSL version 80 1E 04 04 xx xx xx xx – – – – CKL CKH –

BSL responds 80 xx 10 10 D1 D2 ... ... … … … D10 CKL CKH –

(1)

All numbers are bytes in hexadecimal notation.

(2)

ACK is sent back by the BSL.

(3)

The synchronization sequence is not part of the data frame.

(4)

The erase check and TX BSL version commands are members of the standard command set in BSLs V1.50 or higher but excluding 2.x BSLs.

(5)

The change baud rate command is not a member of the standard command set (it is available in V1.60 or higher or in loadable BL_150S_14x.txt).

(6)

Abbreviations:

HDR: Header. Any value between 80h and 8Fh (normally 80h). CMD: Command identification L1, L2: Number of bytes consisting of AL through Dn. Restrictions: L1 = L2, L1 < 255, L1 even AL, AH: Block start address or erase (check) address or jump address LO or HI byte LL, LH: Number of pure data bytes (250 max) or erase information LO or HI byte or block length of erase check (FFFFh max) D1 … Dn: Data bytes CKL, CKH: 16-bit checksum LO or HI byte xx: Can be any data –: No character (data byte) received or transmitted ACK: The acknowledge character returned by the BSL. Can be either DATA_ACK = 90h: Frame was received correctly,

command was executed successfully, or DATA_NAK = A0h: Frame not valid (for example, wrong checksum, L1 ≠ L2), command is not defined, is not allowed, or was executed unsuccessfully.

n: Number of bytes consisting of AL through Dn

(1)(2)(3) (4)(5)(6)

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families

Submit Documentation Feedback

Data Frame

2.4.2 Checksum

The 16-bit (2-byte) checksum is calculated over all received or transmitted bytes B1 to Bn in the data frame, except the checksum bytes themselves, by XORing words (two successive bytes) and inverting the result.

This means that B1 is always the HDR byte and Bn is the last data byte just before the CKL byte.

Formula

CHECKSUM = INV [ (B1 + 256 × B2) XOR (B3 + 256 × B4) XOR … XOR (Bn–1 + 256 × Bn) ] or CKL = INV [ B1 XOR B3 XOR … XOR Bn–1 ] CKH = INV [ B2 XOR B4 XOR … XOR Bn ]

2.4.3 Example Sequence

The following example shows a request to read the memory of the MSP430 from location 0x0F00. All values shown below are represented in hexadecimal format.

TO BSL: 80

(Synchronization character sent to the BSL)

FROM BSL: 90

(Acknowledge from BSL)

TO BSL: 80 14 04 04 00 0F 0E 00 75 E0

(Send Command to read memory from 0x0F00, length 0x000E)

FROM BSL: 80 00 0E 0E F2 13 40 40 00 00 00 00 00 00 02 01 01 01 C0 A2

(Returned values from BSL)

www.ti.com

2.4.4 Commands – Detailed Description

See Table 2-1.

2.4.4.1 General

Following the header byte HDR (80h) and the command identification CMD, the frame length bytes L1 and L2 (which must be equal) hold the number of bytes following L2, excluding the checksum bytes CKL and CKH.

Bytes AL, AH, LL, LH, D1...Dn are command-specific. However, the checksum bytes CKL (low byte) and CKH (high byte) are mandatory.

If the data frame has been received correctly and the command execution was successful, an acknowledge character DATA_ACK = 90h is sent back by the BSL. Incorrectly received data frames, unsuccessful operations, and commands that are locked or not defined are confirmed with a DATA_NAK = A0h.

NOTE: BSL versions lower than V1.30 support only byte-access operations. Therefore, the

peripheral module addresses at 0100h to 01FFh cannot be accessed correctly, because they are word-oriented. In version V1.30 and higher, addresses 0000h to 00FFh are accessed in byte mode; all others are accessed in word mode.

2.4.4.2 RX Data Block

The receive data block command is used for any write access to the flash memory, RAM, or peripheral module control registers at 0000h to 01FFh. It is password protected.

The 16-bit even-numbered block start address is defined in AL (low byte) and AH (high byte). The 16-bit even-numbered block length is defined in LL (low byte) and LH (high byte). Because pure data bytes are limited to a maximum of 250, LH is always 0.

Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

The following data bytes are succeeded by the checksum bytes CKL (low byte) and CKH (high byte). If the receipt and programming of the appropriate data block was successful, an acknowledge character DATA_ACK is sent back by the BSL. Otherwise, the BSL confirms with a DATA_NAK.

NOTE: BSL versions V1.40 and higher support online verification inside the MSP430 for addresses

0200h to FFFFh, which reduces programming and verification time by 50%. Online verification means that the data is immediately verified with the data that is written into the flash without transmitting it again. In case of an error, the loadable bootstrap loader BL_150S_14x.txt additionally stores the first incorrectly written location address+3 into the error address buffer in the RAM at address 0200h (021Eh for F14x devices).

2.4.4.3 RX Password

The receive password command is used to unlock the password-protected commands, which perform reading, writing, or segment-erasing memory access. It is not password protected.

Neither start address nor block length information is necessary, because the 32-byte password is always located at addresses FFE0h to FFFFh. Data bytes D1 to D20h hold the password information starting with D1 at address FFE0h.

If the receipt and verification of the password is correct, a positive acknowledge DATA_ACK is sent back by the BSL, and the password-protected commands become unlocked. Otherwise the BSL confirms with a DATA_NAK.

After the protected commands become unlocked, they remain unlocked until another BSL entry is initiated.

Data Frame

2.4.4.4 Mass Erase

The mass erase command erases the entire flash memory area (main memory plus information memory, see corresponding data sheet). It is not password protected.

All parameters shown in Table 2-1 are mandatory. After erasing, an acknowledge character DATA_ACK is sent back by the BSL.

Mass erase initializes the password area to 32 times 0FFh.

NOTE: BSL versions V2.01 and higher support automatic clearing of the LOCKA bit protecting

information flash memory. When the BSL is entered from a reset condition, LOCKA is cleared by the BSL to mass erase the flash, including information memory. When the BSL is entered in-application, user software should ensure that LOCKA is written as 1 prior to initiating the BSL. Otherwise, information flash is not erased during a BSL mass erase.

2.4.4.5 Erase Segment

The erase segment command erases specific flash memory segments. It is password protected. The address bytes AL (low byte) and AH (high byte) select the appropriate segment. Any even-numbered

address within the segment to be erased is valid. After segment erasing, an acknowledge character DATA_ACK is sent back by the BSL (V1.40 or lower).

BSL versions V1.60 or higher perform a subsequent erase check of the corresponding segment and respond with a DATA_NAK if the erasure was not successful. In this case, the first non-erased location address + 1 is stored in the error address buffer in the RAM at address 0200h (021Eh for F14x devices). In this version, a problem occurs if only one of the information memory segments is erased. In this case, an error is reported, because an automatic erase check over the whole information memory is performed. As a solution, either erase the whole information memory or do a separate erase check after the erase, even if the erase reported an error.

Erase segment 0 clears the password area and, therefore, the remaining password is 32 times 0FFh.

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families

Submit Documentation Feedback

Data Frame

When applying LL = 0x04 and LH = 0xA5, a mass erasure of only the main memory is performed. Indeed, this command must be executed a minimum of 12 times to achieve a total erasure time of >200 ms. No subsequent erase check of the entire main memory is done. Use the erase check command additionally. Check the device data sheet for more information on the cumulative (mass) erase time that must be met and the number of erase cycles required.

2.4.4.6 Erase Main or Info

The erase main or info command erases specific flash memory section. It is password protected. The address bytes AL (low byte) and AH (high byte) select the appropriate section of flash (main or

information). Any even-numbered address within the section to be erased is valid.

2.4.4.7 Erase Check

The erase check command verifies the erasure of flash memory within a certain address range. It is password protected.

The 16-bit block start address is defined in AL (low byte) and AH (high byte). The 16-bit block length is defined in LL (low byte) and LH (high byte). Both can be either even or odd numbered to allow odd boundary checking.

If the erase check of the appropriate data block was successful (all bytes contain 0FFh), an acknowledge character DATA_ACK is sent back by the BSL. Otherwise, the BSL confirms with a DATA_NAK and the first non-erased location address + 1 is stored in the error address buffer at address 0200h (021Eh for F14x devices).

www.ti.com

NOTE: This command is not a member of the standard command set. It is implemented in BSL

version V1.60 and higher or in the loadable bootstrap loader BL_150S_14x.txt.

2.4.4.8 Change Baud Rate

The change baud rate command offers the capability of transmissions at higher baud rates than the default 9600 baud. With faster data transition, shorter programming cycles can be achieved, which is especially important with large flash memory devices. This command is not password protected.

Three control bytes (D1 to D3) determine the selected baud rate. D1 and D2 set the processor frequency (f ≥ f

), D3 indirectly sets the flash timing generator frequency (f

min

D1: F1xx: Basic clock module control register DCOCTL (DCO.2 to DCO.0)

F2xx: Basic clock module control register DCOCTL (DCO.2 to DCO.0) F4xx: FLL+ system clock control register SCFI0 (D, FN_8 to FN_2)

D2: F1xx: basic clock module control register BCSCTL1 (XT2Off, Rsel.2 to Rsel.0)

F2xx: basic clock module control register BCSCTL1 (XT2Off, Rsel.2 to Rsel.0) F4xx: FLL+ system clock control register SCFI1 (N

D3 0: 9600 Baud

1: 19200 Baud 2: 38400 Baud

After receiving the data frame, an acknowledge character DATA_ACK is sent back, and the BSL becomes prepared for the selected baud rate. It is recommended for the BSL communication program to wait approximately 10 ms between baud rate alteration and succeeding data transmission to give the BSL clock system time for stabilization.

DCO

≤ f

FTGmin

FTG

≤ f

FTGmax

). In detail:

)

NOTE: The highest achievable baud rate depends on various system and environment parameters

like supply voltage, temperature range, and minimum and maximum processor frequency. See the device-specific data sheet.

Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

Data Frame

NOTE: This command is implemented on BSL versions V1.60 or higher or available in the loadable

bootstrap loader BL_150S_14x.txt.

Table 2-2. Recommendations for MSP430F149 [MSP430F449]

(TA= 25°C, VCC= 3.0 V, f

BAUD RATE D1 DCOCTL D2 BCSCTL1

(Baud) [SCFI0]

PROCESSOR PROGRAM,

FREQUENCY, f

(MHz)

(2)

min

(3)

= 6.7 MHz)

max

[SCFI1]

(3)

(1)

(3)

VERIFY 60 Kbytes

9600 (init) 1.05 0x80 [00] 0x85 [98] 00 [00] 78 + 3.7 [0.0]

19200 2.1 0xE0 [00] 0x86 [B0] 01 [01] 39 + 3.7 [2.4] 38400 4.2 0xE0 [00] 0x87 [C8] 02 [02] 20 + 3.7 [2.4]

(1)

Values in brackets [ ] apply to MSP430F449.

(2)

The minimum processor frequency is lower than in the standard ROM BSL (see Section 2.9.3, Initialization Status).

(3)

D1 to D3 are bytes in hexadecimal notation.

(4)

Additional 3.7 [2.4] seconds result from loading, verifying, and launching the loadable BSL.

Table 2-3. Recommendations for MSP430F2131

(TA= 25°C, VCC= 3.0 V, f

BAUD RATE D1 DCOCTL D2 BCSCTL1 VERIFY

(Baud) [SCFI0]

PROCESSOR

FREQUENCY, f

(MHz)

(2)

min

(3)

= 6.7 MHz)

max

[SCFI1]

(3)

(1)

(3)

9600 (init) 1.05 0x80 0x85 00 78

19200 2.1 0x00 0x8B 01 39 38400 4.2 0x80 0x8C 02 20

(1)

Values in brackets [ ] are related to MSP430F449.

(2)

The minimum processor frequency is lower than in the standard ROM BSL (see Section 2.9.3, Initialization Status).

(3)

D1 to D3 are bytes in hexadecimal notation.

(4)

(sec)

PROGRAM,

60 Kbytes

(sec)

2.4.4.9 Set Memory Offset

An offset for the memory pointer can be set for devices that have more than 64K of memory, specifically MSP430X architecture devices. The value for the memory offset is used as the memory pointer’s upper word.

MemoryAddress = OffsetValue << 16 + ActualAddress

NOTE: This command is implemented on BSL versions V2.12 and higher.

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families

Submit Documentation Feedback

Loadable BSL

2.4.4.10 Load PC

The load program counter command directs the program counter (register R0) to any location within the entire address range. It is password protected.

After receiving the data frame, an acknowledge character (DATA_ACK) is sent back by the BSL. Then the selected address is moved into the program counter. The program flow continues operation there, and the BSL session is terminated.

Be aware that the password protection is not active at this time.

2.4.4.11 TX Data Block

The transmit data block command is used for any read access to the flash memory, RAM, or peripheral module control registers at 0000h to 01FFh. It is password protected.

The 16-bit block start address is defined in AL (low byte) and AH (high byte). The 16-bit block length is defined in LL (low byte) and LH (high byte). Because pure data bytes are limited to a maximum of 250, LH is always 0. The checksum bytes CKL (low byte) and CKH (high byte) immediately follow this information.

Now the BSL responds with the requested data block. After transmitting HDR, dummy CMD, L1 and L2, The BSL sends data bytes D1 through Dn, followed by the checksum bytes CKL (low byte) and CKH (high byte). No acknowledge character is necessary.

2.4.4.12 TX BSL Version

The transmit BSL version command gives the user information about chip identification and bootstrap loader software version. It is not password protected.

The values for AL, AH, LL, and LH can be any data, but must be transmitted to meet the protocol requirements. The checksum bytes CKL (low byte) and CKH (high byte) follow this information.

After that, the BSL responds with a 16-byte data block. After transmitting HDR, dummy CMD, L1 and L2, the BSL sends data bytes D1 through D16 (decimal), followed by the checksum bytes CKL (low byte) and CKH (high byte). No acknowledge character is necessary.

D1, D2 and D11, D12 (decimal) hold the specific information:

• D1: Device family type (high byte)

• D2: Device family type (low byte)

• D11: BSL version (high byte)

• D12: BSL version (low byte)

The remaining 12 bytes are for internal use only.

www.ti.com

2.5 Loadable BSL

For upgrading the BSL functionality, sometimes it is suitable to load a higher version of BSL into the RAM of a device and apply the latest innovations. To do so, use the following BSL commands:

• RX password (unlock password protection for following commands)

• RX data block (code of loadable BSL, code section address ≥ 220h)

• TX data block (for verification)

• RX data block (get start address from first code section address)

• Load program counter PC (with start address of loadable BSL)

• Wait at least 5 ms until the new loaded BSL has executed the initialized routine

• RX password (unlock password protection for loaded BSL)

• Perform any command (with loaded BSL)

Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

The following loadable BSLs are available:

• BL_150S_14x.txt is a complete BSL for the F14x and F13x family with BSL version 1.10. All features of BSL version V1.60 are supported. Because its code size is larger than 1 Kbyte, it can be used only in F1x8 and F1x9 devices. The error address buffer address for RX Block, Erase Segment, and Erase Check commands is 021Eh. BL_150S_14x.txt could also be used as a replacement for PATCH.txt.

• BS_150S_14x.txt is a small BSL with reduced command set for the F14x and F13x family with BSL version 1.10. Because its code size is smaller than 512B, it can be used in F1x4 up to F1x9 devices. The following commands of BSL version V1.60 are supported: Change Baud Rate, RX Block (with online verification), Erase Check, and Load PC. If a TX Block command (redirected to ROM BSL) is needed (for example, for transmitting error address or standalone Verify), the RAM BSL must be invoked again by the Load PC command. The error address buffer address for RX Block and Erase Check commands is 021Eh. BS_150S_14x.txt could also be used as a partial replacement for PATCH.txt. Note that no password is required, as the RX password command is stripped!

For more information on downloading a different bootstrap loader, see Application of Bootstrap Loader in MSP430 With Flash Hardware and Software Proposal (SLAA096).

Third-party software normally uses loadable BSLs to perform most functions, like online verification, and to improve speed for appropriate devices.

2.6 Exiting the BSL

To exit the BSL mode, two possibilities are provided:

• The microcontroller continues operation at a defined program address invoked by the load program counter command. Be aware that the password protection is not active at this time. In this case, the user application should ensure that the flash is locked, as this is not done by the BSL. Leaving the BSL unlocked increases the risk of erroneously modifying the flash due to system or software errors. On '2xx devices, the correct setting of the LOCKA bit should also be checked.

• Applying the standard RESET sequence (see Figure 1-1) forces the microcontroller to start with the user reset vector at address 0FFFEh.

Exiting the BSL

2.7 Password Protection

The password protection prohibits every command that potentially allows direct or indirect data access. Only the unprotected commands like mass erase and RX password (optionally, TX BSL version and change baud rate) can be performed without prior receipt of the correct password after BSL entry.

Applying the RX password command for receiving the correct password unlocks the remaining commands.

After it is unlocked, it remains unlocked until initiating another BSL entry. The password itself consists of the 16 interrupt vectors located at addresses FFE0h to FFFFh (256 bits),

starting with the first byte at address FFE0h. After mass erase and with unprogrammed devices, all password bits are logical high (1).

BSL versions 2.00 and higher have enhanced security features. These features are controlled by the flash data word located beneath the interrupt vector table addresses (for example, for the MSP430F2131, address 0xFFDE). If this word contains:

• 0x0000: The flash memory is not erased if an incorrect BSL password has been received by the target.

• 0xAA55: The BSL is disabled. This means that the BSL is not started with the default initialization sequence shown in Section 1.3.

• All other values: If an incorrect password is transmitted, the entire flash memory address space is erased automatically.

NOTE: The user must take care of password update after modifying the interrupt vectors and

initiating another BSL session. It is also strongly recommended to initialize unused interrupt vectors to increase data security.

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families

Submit Documentation Feedback

Code Protection Fuse

2.8 Code Protection Fuse

After the JTAG fuse (code protection fuse) is blown, no further access to the JTAG test feature is possible. The only way to get any memory read or write access is through the bootstrap loader by applying the correct password.

However, it is not possible for the BSL to blow the JTAG fuse. If fuse blowing is needed, use JTAG programming techniques.

2.9 BSL Internal Settings and Resources

The following paragraphs describe BSL internal settings and resources. Because the same device may have implemented different BSL versions, it is very important for the BSL communication program to know the settings and resources. Resources could be either device dependent (for example, RX or TX pins) or BSL-version dependent (for example, byte or word access). The following sections describe the possible variations.

2.9.1 Chip Identification and BSL Version

The upper 16 bytes of the boot-ROM (0FF0h to 0FFFh) hold information about the device and BSL version number in BCD representation. This is common for all devices and BSL versions:

• 0FF0h to 0FF1h: Chip identification (for example, F413h for an F41x device).

• 0FFAh to 0FFBh: BSL version number (for example, 0130h for BSL version V1.30).

See the MSP430 device to BSL version assignment in Chapter 5.

www.ti.com

2.9.2 Vectors to Call the BSL Externally

The entry part of the boot ROM holds the calling vectors for BSL access by program:

• 0C00h: Vector for cold start (mnemonic: BR &0C00h) (recommended)

• 0C02h: Vector for warm start (mnemonic: BR &0C02h). V1.30 or higher.

• 0C04h: Vectors for future use. This table is expandable.

NOTE: A warm start does not modify the stack pointer. Additionally, the status register for the BSL is

not cleared, which could cause a warm started BSL to come up in an unlocked state. Warm start possibility exists only for highly specialized instances where it is absolutely mandatory that a running application be returned to after a BSL session without resetting the device. In almost all cases, it is better to start the BSL from user code by calling the cold start vector.

Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

2.9.3 Initialization Status

When activating the BSL, the following settings take effect:

• Stop watchdog timer

• Disable all interrupts (GIE = 0)

• V1.10 The stack pointer is not modified, except when it points to an excluded memory area. If so, it is initialized to 021Ah.

V1.30 or higher

The stack pointer is not modified if the BSL is called by the program through the warm-start vector. It is initialized to 0220h if the BSL starts by the BSL RESET sequence or is called by the program through the cold-start vector.

• F1xx Determine basic clock module so that minimum frequency is 1.5 MHz: BCSCTL1 = 85h (RSEL = 5, XT2Off = 1) DCOCTL = 80h (DCO = 4, MOD = 0) BCSCTL2 = 00h only at cold-start SR: SCG1 = 00h (SMCLK on) only at cold-start

F2xx

Determine basic clock module so that minimum frequency is 1.5 MHz: BCSCTL1 = 88h (RSEL = 8, XT2Off = 1) DCOCTL = 80h (DCO = 4, MOD = 0) BCSCTL2 = 00h only at cold-start SR: SCG1 = 00h (SMCLK on) only at cold-start

F4xx

Determine FLL oscillator and system clock so that minimum frequency is 1.5 MHz: SCFI0 = 00h (D = 0, FN_x = 0) SCFI1 = 98h (N_DCO) SCFQCTL: (M = 0) SR: SCG0 = 1 (FLL loop control off) FLL_CTL1 = 00h only at cold-start

• SW-UART: Timer_A operates in continuous mode with MCLK source (Div = 1) CCR0 used for compare CCTL0 used for polling of CCIFG0

• TX pin is set to output high for RS232 idle state

• RX pin is set to input

• Password-protected commands are locked (only at cold start)

After system initialization, the BSL is ready for operation and waits for the first synchronization sequence (SS) followed by a data frame containing the first BSL command.

BSL Internal Settings and Resources

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families

Submit Documentation Feedback

BSL Internal Settings and Resources

2.9.4 Memory Allocation and Resources

• The BSL program code is located in the boot-ROM area 0C00h to 0FEFh.

• Addresses 0FF0h to 0FFFh hold the device identification.

• The BSL variables occupy the RAM area – 0200h to 0213h (V1.10) – 0200h to 0219h (V1.30 or higher)

• The BSL stack occupies the RAM area – 0214h to 0219h (V1.10) – 021Ah to 021Fh (V1.30 or higher, only at cold-start)

• The working registers used are: – R5 to R9 (V1.30 or lower) or – R5 to R10 (V1.40) or – R5 to R11 (V1.60) or – R5 to R14 (V2.00 or higher)

Their contents are not buffered. – F1xx and F2xx:

• The basic clock module registers used are:

• DCOCTL at address 056h

• BCSCTL1 at address 057h

– F4xx:

• The FLL oscillator and system clock registers used are:

• SCFI0 at address 050h

• SCFI1 at address 051h

• SCFQCTL at address 052h

• The Timer_A control registers used are:

• TACTL at address 0160h

• CCTL0 at address 0162h

• TAR at address 0170h

• CCR0 at address 0172h

• The flash control registers used are:

• FCTL1 at address 0128h

• FCTL2 at address 012Ah

• FCTL3 at address 012Ch

• No interrupt service is affected.

www.ti.com

Bootstrap Loader Protocol – 1xx, 2xx, and 4xx Families SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

Bootstrap Loader Protocol – 5xx and 6xx Families

3.1 BSL Data Packet

The BSL data packet has a layered structure. The BSL core command contains the actual command data to be processed by the BSL. In addition the standard BSL commands, there can be wrapper data before and after each core command known as the peripheral interface code (PI Code). This wrapper data is information that is specific to the peripheral and protocol being used, and it contains information that allows for correct transmission of the BSL core command. Taken together, the wrapper and core command constitute a BSL data packet.

PI Code BSL Core Command PI Code

3.2 UART Peripheral Interface (PI)

3.2.1 Wrapper

The default BSL430 programmed in each non-USB MSP430F5xx device communicates using a UART peripheral interface (PI). The UART protocol interface has the format shown in Table 3-1. All numbers are in hexadecimal format.

Chapter 3

SLAU319F–July 2010–Revised September 2013

Header Length Length BSL Core Command CKL CKH ACK

0x80 NL NH See Table 3-5 CKL CKH

3.2.2 Abbreviations

CKL, CKH

CRC checksum high and low bytes. The checksum is computed on bytes in BSL core command section only. The CRC is computed using the MSP430F5xx CRC module specification (see the CRC chapter of the MSP430x5xx and MSP430x6xx Family User's Guide (SLAU208) for implementation details).

NL, NH

Number of bytes in BSL core data packet, broken into high and low bytes.

ACK

Sent by the BSL after the packet is received to acknowledge receiving the data correctly. This does not imply the BSL core data is a correct command or that it was executed correctly. ACK signifies only that the packet was formatted as expected and had a correct checksum.

NOTE: If the PI encounters an error at any stage of receiving the packet, it immediately responds

with the appropriate error message.

Table 3-1. UART Protocol Interface

(ACK)

from BSL

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Protocol – 5xx and 6xx Families

Submit Documentation Feedback

UART Peripheral Interface (PI)

3.2.3 Messages

The peripheral interface section of the BSL430 software parses the wrapper section of the BSL data packet. If there are errors with the data transmission, an error message is sent immediately. An ACK is sent after all data has been successfully received and does not mean that the command has been correctly executed (or even that the command was valid) but, rather, that the data packet was formatted correctly and passed on to the BSL core software for interpretation.

Data Meaning

0x00 ACK 0x51 Header incorrect. The packet did not begin with the required 0x80 value. 0x52 Checksum incorrect. The packet did not have the correct checksum value. 0x53 Packet size zero. The size for the BSL core command was given as 0. 0x54 Packet size exceeds buffer. The packet size given is too big for the RX buffer. 0x55 Unknown error 0x56 Unknown baud rate. The supplied data for baud rate change is not a known value.

3.2.4 Interface Specific Commands

The Timer UART protocol interface also accepts the following command when it is transmitted as BSL core data.

www.ti.com

Table 3-2. UART Error Messages

BSL Command CMD AL AM AH Data

Change baud rate 0x52 – – – D1

3.2.4.1 Change Baud Rate

This command changes the baud rate for all subsequently received data packets. The command is acknowledged with either a single ACK or an error byte. No subsequent message packets can be expected.

D1: Valid values

• 0x02: 9600

• 0x03: 19200

• 0x04: 38400

• 0x05: 57600

• 0x06: 115200

Bootstrap Loader Protocol – 5xx and 6xx Families SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

START ADDRESS W ACK DATA PACK DATA ACK

Sent by master

Sent by slave

www.ti.com

3.3 I2C Peripheral Interface

3.3.1 Basic Protocol With Byte Level Acknowledge

Figure 3-1. Basic Protocol - Byte Level ACK

1. Send the START bit

2. Send the slave address

3. Send the Read(R)-1 or Write (W)-0 bit.

4. Wait for or send an acknowledge bit

5. Send or receive the data byte (8 bits)

6. Expect or send acknowledge bit

7. Send the STOP bit

3.3.2 I2C Protocol for BSL - Read From Slave

1. Send a start sequence (S)

2. Send I2C address of Slave with the R/W bit low (even address) (ADDR) + W.

3. Send Data or address of internal address of slave register (NDATA)

4. Send a start sequence again (repeated start) (Res)

5. Send I2C address of slave with the R/W bit high (odd address) (ADDR)

6. Read data byte from slave (RDATA)

7. Send the stop sequence (P)

All BSL wrapper commands from the host (master) are considered as data (represented as NDATA, they may consist of n number of bytes), and all data read from the slave are also considered data and represented as RDATA.

The protocol for all communication from Master to Slave is: From Master → S + ADDR + W + NDATA + ReS + ADDR + R From Slave → RDATA From Master → P

I2C Peripheral Interface

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Protocol – 5xx and 6xx Families

Submit Documentation Feedback

START ADDRESS W ACK DATA PACK DATA ACK

Sent by master

Sent by slave

I2C Peripheral Interface

3.3.3 Acknowledge (ACK)

There are two levels of acknowledge.

• The low-level acknowledges indicating reception of each byte that is part of the I2C protocol. This is managed by the hardware if proper I2C settings are set on the slave registers.

• The high-level acknowledge indicates that the checksum of the BSL core command obtained is correct and as expected. In some cases, this ACK may indicate the command was properly executed. This is the first byte of RDATA. If this is NAK (other than 0x00), it indicates that a proper command was not received and the master should consider that command transmission as a failure. If this is ACK (0x00), it indicates that the transmission or reception of the command was correct with the right checksum and that the data which follows is the response, if any, from the slave. The slave may keep the CLK line low if it needs time to process before it responds to the command.

3.3.4 Wrapper

The wrapper for the BSL data packet integrates the common UART BSL Core Command packet, but adds Length, Checksum, and Acknowledge to be used within I2C communication (see Table 3-3).

www.ti.com

Figure 3-2. Byte Level ACK

Table 3-3. BSL Core Command Wrapper for I2C

Header Length Length BSL Core Command CKL CKH ACK

0x80 NL NH See Section 3.5 CKL CKH

(ACK)

from BSL

CKL, CKH

CRC checksum high and low bytes. The checksum is computed on bytes in BSL core command section only.

NL, NH

Number of bytes in BSL core data packet, broken into high and low bytes.

ACK

Sent by the BSL after the packet is received to acknowledge receiving the data correctly. This does not imply that the BSL core data is a correct command or that it was executed correctly. ACK signifies only that the packet was formatted as expected and had a correct checksum.

Bootstrap Loader Protocol – 5xx and 6xx Families SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

3.4 USB Peripheral Interface

3.4.1 Wrapper

The Peripheral Interface for the USB Bootstrap loader has the wrapper format shown in Table 3-4. There are no interface specific commands or replies for the USB BSL. The only variable byte, NL, should describe the number of bytes contained in the BSL Core Command packet.

Header Length BSL Core Command

0x3F NL See Section 3.5

3.4.2 Hardware Requirements

The USB Peripheral Interface requires the use of a high-frequency oscillator on XT2. For the BSL to function properly, the oscillator can be 24 MHz, 12 MHz, 8 MHz, or 4 MHz.

3.5 BSL Core Command Structure

The BSL core command is transmitted in the format shown in Table 3-5. All numbers are in hexadecimal format.

NOTE: See Section 5.5 for using the following commands with the BSL in the MSP430F5438 (non-A

version).

USB Peripheral Interface

Table 3-4. USB Peripheral Interface

Table 3-5. BSL Core Commands

BSL Command CMD AL AM AH Data

RX Data Block 0x10 (AL) (AM) (AH) D1 ... Dn

RX Data Block Fast 0x1B (AL) (AM) (AH) D1 ... Dn

RX Password 0x11 – – – D1 ... D33

Erase Segment 0x12 (AL) (AM) (AH) –

Unlock and Lock Info 0x13 – – – –

Reserved 0x14 – – – – Mass Erase 0x15 – – – – CRC Check 0x16 (AL) (AM) (AH) Length (low byte), Length (high byte)

Load PC 0x17 (AL) (AM) (AH) –

TX Data Block 0x18 (AL) (AM) (AH) Length (low byte), Length (high byte)

TX BSL Version 0x19 – – – –

TX Buffer Size 0x1A – – – –

NOTE: BSLs that are programmed in Flash and that communicate by USB contain only a subset of

the commands shown in Table 3-5. These commands can be used to load in a full BSL into RAM for Flash programming. The commands in this subset are RX DATA BLOCK FAST, RX PASSWORD, and LOAD PC.

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Protocol – 5xx and 6xx Families

Submit Documentation Feedback

BSL Core Command Structure

3.5.1 Abbreviations

–

No data required. No delay should be given, and any subsequently required data should be sent as the immediate next byte.

AL, AM, AH

Address bytes. The low, middle, and upper bytes, respectively, of an address.

D1 ... Dn

Data bytes 1 through n (Note: n must be 4 less than the BSL buffer size.)

Length

A byte containing a value from 1 to 255 describing the number of bytes to be transmitted or used in a CRC. In the case of multiple length bytes, they are combined together as described to form a larger value describing the number of required bytes.

3.5.2 Command Descriptions

RX Data Block

The BSL core writes bytes D1 through Dn starting from the location specified in the address fields.

RX Data Block Fast

This command is identical to RX Data Block, except there is no reply indicating the data was correctly programmed. It is used primarily to speed up USB programming.

RX Password

The BSL core receives the password contained in the packet and unlocks the BSL protected commands if the password matches the top 16 words in the BSL interrupt vector table (located between addresses 0xFFE0 and 0xFFFF). When an incorrect password is given, a mass erase is initiated. This means all code flash is erased, but not Information Memory.

Erase Segment

The flash segment containing the given address is subjected to an erase.

Unlock and Lock Info

This command causes the INFO_A lock to toggle to either protect or lock the INFO_A segment. See the MSP430x5xx and MSP430x6xx Family User's Guide (SLAU208) for more detail on this lock. This command must be sent before an erase segment command for INFO_A but is not required before a mass erase.

Erase Block

The flash block containing the given address is subjected to an erase.

Mass Erase

All code Flash in the MSP430 is erased. This function does not erase Information Memory.

CRC Check

The MSP430 performs a 16-bit CRC check using the CCITT standard. The address given is the first byte of the CRC check. Two bytes are used for the length.

Load PC

Causes the BSL to begin execution at the given address using a CALLA instruction. As BSL code is immediately exited with this instruction, no core response can be expected.

TX BSL Version

BSL transmits its version information (see Section 3.7.3 for more details).

TX Buffer Size

The BSL transmits a value that represents the number of bytes available in its data buffer for sending or receiving BSL core data packets.

www.ti.com

Bootstrap Loader Protocol – 5xx and 6xx Families SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

3.6 BSL Security

3.6.1 Protected Commands

To protect data within the device, most core commands are protected. A protected command is successfully complete only after the device has been unlocked by sending the RX Password command with the correct password. In addition, commands specific to the peripheral interface are not protected.

Unprotected Commands

RX Password Mass Erase

Password Protected Commands

RX Data Block to Address (flash or RAM) TX BSL Version TX Data Block Erase Segment Erase Bank Set Program Counter Toggle INFO_A Lock Erase Main CRC Check

BSL Security

3.6.2 RAM Erase

At startup, the BSL performs a RAM erase, writing a constant word to certain RAM locations in a device. Usually these is the smallest shared RAM addresses within a family. See Chapter 5 for device specific information.

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Protocol – 5xx and 6xx Families

Submit Documentation Feedback

BSL Core Responses

3.7 BSL Core Responses

The BSL core responses are always wrapped in a peripheral interface wrapper with the identical format to that of received commands. The BSL core can respond in the format shown in Table 3-6. All numbers are in hexadecimal format.

3.7.1 Abbreviations

CMD

A required field used to distinguish between a message from the BSL and a data transmission from the BSL.

MSG

A byte containing a response from the BSL core describing the result of the requested action. This can either be an error code or an acknowledgment of a successful operation. It should be noted, in cases where the BSL is required to respond with data (for example, memory, version, CRC, or buffer size), no successful operation reply occurs, and the BSL core immediately sends the data.

D1, Dx

Data bytes containing the requested data.

DL, DH

Data low and high bytes, respectively, of a requested 16-bit CRC value.

NL, NH

Data bytes describing the length of the buffer size in bytes. To manage sizes above 255, the size is broken up into a low byte and a high byte.

www.ti.com

Table 3-6. BSL Core Responses

BSL Response CMD Data

Data Block 0x3A D1 ... Dn

BSL Version 0x3A D1 ... D4

CRC Value 0x3A DL, DH Buffer Size 0x3A NL, NH

Message 0x3B MSG

Bootstrap Loader Protocol – 5xx and 6xx Families SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

3.7.2 BSL Core Messages

Table 3-7 describes the BSL core messages.

MSG Meaning

0x00 Operation Successful 0x01

0x02

0x03 0x04 BSL Locked. The correct password has not yet been supplied to unlock the BSL.

0x05 BSL Password Error. An incorrect password was supplied to the BSL when attempting an unlock. 0x06 Byte Write Forbidden. This error is returned when a byte write is attempted in a flash area. 0x07 Unknown Command. The command given to the BSL was not recognized.

0x08

Flash Write Check Failed. After programming, a CRC is run on the programmed data. If the CRC does not match the expected result, this error is returned.

Flash Fail Bit Set. An operation set the FAIL bit in the flash controller (see the MSP430x5xx and MSP430x6xx Family User's Guide (SLAU208) for more details on the flash fail bit).

Voltage Change During Program. The VPE was set during the requested write operation (see the MSP430x5xx and MSP430x6xx Family User's Guide (SLAU208) for more details on the VPE bit).

Packet Length Exceeds Buffer Size. The supplied packet length value is too large to be held in the BSL receive buffer.

3.7.3 BSL Version Number

The BSL version number is a 4-byte array. Byte1: BSL Vendor information

TI BSL is always 0x00. Non-TI BSLs may use this area in another manner.

Byte 2: Command Interpreter Version

The version number for the section of code that interprets BSL core commands.

Byte 3: API Version

The version number for the section of code that reads and writes to MSP430 memory. Reserved bits:

0x80 indicates that this BSL can only execute the following commands:

RX Data Block Fast (and can only write to RAM) RX Password Set PC

0x30 indicates that this BSL API interfaces with FRAM.

Byte 4: Peripheral Interface Version

The version number for the section of code that manages communication. Reserved numbers:

0x00-0x2F: Indicates a Timer_A-based UART 0x30-0x4F: Indicates USB 0x50-0x6F: Indicates USCI-based UART 0x70-0x8F: Indicates eUSCI-based UART 0x90-0xAF: Indicates USCI_B-based I2C 0xB0-0xCF: Indicates eUSCI-based I2C

BSL Core Responses

Table 3-7. BSL Core Messages

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Protocol – 5xx and 6xx Families

Submit Documentation Feedback

BSL Public Functions and Z-Area

3.7.4 Example Sequences for UART BSL

NOTE: All values in the example sequences are hexadecimal.

Changing baud rate to 9600

Host: 80 02 00 52 02 90 55 BSL: 00

Get buffer size

Host: 80 01 00 1A 8B 52 BSL: 00 80 03 00 3A 04 01 1D 12

Get BSL version

Host: 80 01 00 19 E8 62 BSL: 00 80 05 00 3A 00 01 01 01 6C 4F

RX password to unlock BSL

Host: 80 11 00 11 FF FF FF FF FF FF FF FF FF FF FF FF FF FF 00 5C 38 4F BSL: 00 80 02 00 3B 00 60 C4

3.8 BSL Public Functions and Z-Area

The BSL Z-Area is a small section of memory that can be read and invoked from Application code. It is located at memory addresses 0x1000 to 0x100F.

Memory location 0x1000 contains a jump instruction pointing to the BSL start, it can be used to invoke the BSL from a running application.

Memory location 0x1002 contains a jump to the "BSL Action" function. To invoke the action function, 3 parameters are needed. The first parameter is a number describing which function, the second two are simply known values indicating the function was called on purpose.

R12: The function number R13: 0xDEAD R14: 0xBEEF

www.ti.com

3.8.1 Starting the BSL From an External Application

Setting the program counter to the memory location 0x1000 starts the BSL. The stack is always reset, and RAM is cleared. It should be noted that the GIE bit is not disabled, so this should be done by the calling application if interrupts are not desired and appropriately returned from "Return to BSL" if they are used.

Because the stack is reset, the location 0x1000 may also be called as a C function, as in the following example code:

((void (*)())0x1000)();

3.8.2 Function Description

Function number: 2 Function Name: Return to BSL Description: Any supplied function number calls the return to BSL function. This function can be used if the

BSL has written a program into Flash or RAM, started that program by "Set PC", and then the program needs to return to the BSL. This function executes the following code:

RETURN_TO_BSL POP.W RET_low ; remove first word from return addr POP.W RET_high ; remove second word from return addr RETA ; should now return to the BSL location

Bootstrap Loader Protocol – 5xx and 6xx Families SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

TL062D

This chapter describes simple and low-cost hardware and software solutions to access the bootstrap loader functions of the MSP430 flash devices through the serial port (RS-232) of a PC.

4.1 Hardware Description

The low-cost hardware presented in this document (see Figure 1-3) consists mainly of a low-dropout voltage regulator, some inverters, and operational amplifiers. There are also some resistors, capacitors, and diodes. A complete parts list is provided in Section 4.1.4.

The functional blocks are described in more detail in the following sections.

Chapter 4

SLAU319F–July 2010–Revised September 2013

Bootstrap Loader Hardware

Figure 4-1. Bootstrap Loader Interface Schematic

4.1.1 Power Supply

Power for the bootstrap loader hardware can be supplied from the RS-232 interface. RS-232 signals DTR (pin 7 of the serial connector) and RTS (pin 4 of the serial connector) normally deliver a positive voltage to load capacitor C1 and power to the low-dropout voltage regulator IC1 (TI TPS76030 or LP2980-3.0, or equivalent 3-V low-dropout regulator).

Using a fairly big capacitor, it is possible to draw a short-duration current that is higher than the driving serial port can supply. This feature is required to program the flash memory, for example.

It is also possible to connect an external supply voltage to the hardware on pin 8 of the BSL target connector (J1). Diodes are used to prevent reverse-polarity flow.

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Hardware

Submit Documentation Feedback

Hardware Description

4.1.2 Serial Interface

Table 4-1 shows the signals used to communicate with the bootstrap loader (through connector J2). The

names reflect the pin function as seen from the PC. For example, the PC receives data through the RxD pin, whereas the bootstrap loader needs to drive this signal.

PIN NAME FULL NAME (PC) 9-PIN SUB-D FUNCTION ON BSL INTERFACE

RxD Receive data 2 Transmit data to PC TxD Transmit data 3 Receive data from PC (and negative supply)

DTR Data terminal ready 4 Reset control (and positive supply)

RTS Request to send 7 TEST or TCK control (and positive supply)

GND Ground 5 Ground

4.1.2.1 Level Shifting

Simple CMOS inverters with Schmitt-trigger characteristics (IC2) are used to transform the RS-232 levels (see Table 4-2) to CMOS levels.

www.ti.com

Table 4-1. Serial-Port Signals and Pin Assignments

Table 4-2. RS-232 Levels

LOGIC LEVEL RS-232 LEVEL RS-232 VOLTAGE LEVEL

1 Mark –3 V to –15 V 0 Space 3 V to 15 V

The inverters are powered by the operational amplifier IC3A. This amplifier permits adjusting the provided logic level to the requirements of the connected target application. A voltage applied to pin 8 of the BSL target connector (VCC_IN) overrides the default 3-V level provided from IC1 and the 100-kΩ series resistor R11. Thus, the output voltage of the operational amplifier is pulled to the applied voltage VCC_IN.

Depending on the overvoltage protection of the device family selected, the excess voltage is either conducted to VCC(as in the TI '74HC14) or to GND (as in the TI '74AHC14). If the protection diode conducts to VCC, the operational amplifier IC3A needs to compensate for the overvoltage. Therefore, the '74AHC14 device, which conducts to ground (GND), is recommended.

To avoid excessive power dissipation and damage of the protection diodes, series resistors (R1, R2, and R3) are used to limit the input current.

An operational amplifier (IC3B) is used to generate RS-232 levels out of CMOS levels. The level at the positive input is set to VCC/2 (1.5 V nominal). If the level at the negative input rises above this level, the output is pulled to the negative supply of the operational amplifier (mark). If the level drops below VCC/2, the output is pulled to the positive rail (space).

The positive supply of the operational amplifier is the same as the input to the voltage regulator. A separate capacitor (C5) is used to generate the negative-supply voltage. This capacitor is charged by the receiving signal of the bootstrap loader hardware (pin 3 on SUB-D connector J2).

During an asynchronous serial communication, the combination of stop bit and start bit is used to synchronize sender and receiver. After the transmission of a data byte, the stop bit forces the transmission line into a defined state, which is usually a logic 1 or, in RS-232 terms, a mark. This means that the transmission-line voltage is negative when there is no transmission and the capacitor can be charged. Diodes are used to prevent discharge of the capacitor during transmission.

In very rare circumstances, the data sent to the bootstrap loader interface might hold too many zeros, so that the capacitor C5 required for the negative supply is discharged, causing a malfunction of the interface. (A possible workaround is to send the data in smaller chunks.) But under normal operating conditions, even data containing all zeros does not cause problems.

Bootstrap Loader Hardware SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

4.1.2.2 Control of RST/NMI and TEST or TCK Pins

The two pins used to invoke the bootstrap loader software of the MSP430—RST/NMI and TEST or TCK (for devices without a dedicated TEST pin)—are controlled by the DTR and RTS signals, respectively. These signals also deliver a positive voltage to supply the bootstrap loader hardware.

For devices with a dedicated TEST pin, the levels at RST/NMI and TEST during normal operation are logic 1 and logic 0, respectively. To achieve these levels and to use the corresponding RS-232 signals as power-supply lines, it is necessary to use two inverters (IC1A, IC2B) for the RST/NMI pin and one inverter (IC2E) for the TEST pin.

Devices without the TEST pin require the inverted TEST pin sequence on their TCK pin to invoke the bootstrap loader. Thus, the corresponding signal is inverted (inverter IC2F).

Diodes prevent discharge of capacitor C1 to allow control of the RS-232 lines (RTS and DTR).

4.1.3 Target Connector

Hardware Description

Table 4-3. Pin Assignment of Target Connector

PIN SIGNAL NAME DEVICES WITH TEST PIN PIN ON MSP430F4xx

PIN ON MSP430F13x OR

MSP430F14x

(1)

1 TXD P1.1 P1.1 P1.0 2 TCK Do not connect

(2)

TCK TCK 3 RXD P2.2 P2.2 P1.1 4 RST RST/NMI RST/NMI RST/NMI 5 GND GND GND GND 6 VCC(3.0 V) V

(3)

7 TST TEST Do not connect Do not connect 8 VCC_IN V

(3)

9 Not connected — — —

10 Not connected — — —

(1)

For device-specific BSL pin information, see the applicable device data sheet.

(2)

Signal TCK must not be connected on devices with the TEST pin.

(3)

Pin VCC(3.0 V) is a voltage source that can provide a limited current, depending on the serial port driver capability. If an external power supply is used, VCC(3.0 V) must not be connected to the target. In this case, the external supply voltage must be connected to pin VCC_IN. Otherwise, VCC_IN must be unconnected.

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader Hardware

Submit Documentation Feedback

Hardware Description

4.1.4 Parts List

www.ti.com

Table 4-4. Universal BSL Interface Parts List

PART PACKAGE COMMENT

C1 33 µF, 16 V SMD 7243 C2 100 nF SMD 0805 C3 2.2 µF, 6.3 V SMD 1206 C4 100 nF SMD 0805 C5 33 µF, 16 V SMD 7243 C6 100 nF SMD 0805 D1 BAV70 SOT23 High-speed double diode D2 BAV70 SOT23 High-speed double diode

D3 BAV70 SOT23 IC1 TPS76030 SOT23-5 TI IC2 74AHC14 SO14 TI IC3 TL062D SO8 TI

R1 330 kΩ SMD 0805

R2 330 kΩ SMD 0805

R3 330 kΩ SMD 0805

R4 680 kΩ SMD 0805

R5 680 kΩ SMD 0805

R6 680 kΩ SMD 0805

R7 330 kΩ SMD 0805

R8 330 kΩ SMD 0805

R9 3.3 kΩ SMD 0805

R10 3.3 kΩ SMD 0805 R11 100 kΩ SMD 0805 R12 0 kΩ SMD 0805 R13 680 kΩ SMD 0805

J1 Header 2x5 2X05 Target connector (see Table 4-3) J2 F09HP284 9-SUB-D female RS-232 connector

CON3 RESET SMD0805 Pads to connect an optional reset button

VALUE OR

PART NUMBER

Bootstrap Loader Hardware SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

Differences Between Devices and Bootstrap Loader

5.1 1xx, 2xx, and 4xx BSL Versions

The tables in this section show the key information of MSP430 device to BSL version assignment related to their hardware and software resources.

Table 5-1. BSL Version 1.10 on F13x, F14x(1) (excluding Rev AA), F11x, and F11x1

Device

BSL Version 1.10

BSL vector address

Chip ID address 0FF0h Chip ID data F149h F112h BSL version address 0FFAh BSL version data 0110h Mass erase time, nominal (ms) 17.2 Read and write access at 0000h to FFFFh Byte Verification during write (online) No

Stack pointer initialization

Transmit pin (TX), Receive pin (RX) P1.1, P2.2 RAM stack used 0200h to 0219h Working registers R5 to R9 System clock, affected controls BCSCTL1, DCOCTL Timer_A, affected controls TACTL, TAR, CCTL0, CCR0

Preparation for software call

Comment 1 Load PATCH.TXT to eliminate ROM bug (see Section 5.2 and Workaround mandatory Section 2.5).

Comment 2 Load BL_150S_14x.txt to get all features of V1.60 plus valid Optional for F148, F149 only: Use loadable BSL erase segment command (see Section 2.5). (>1 KB RAM required)

Comment 3 Load BS_150S_14x.txt to get some features of V1.60 (see Optional for F1x4 to F1x9: Use small loadable BSL Section 2.5). (<512B RAM required)

(1)

To reach the required mass erase time as specified in the data sheet, the mass erase command must be executed several times.

Cold start 0C00h Warm start —

SP critical 021Ah SP not critical Unchanged

Chapter 5

SLAU319F–July 2010–Revised September 2013

Versions

F13x F11x (obsolete)

F14x(1) up to Rev N F11x1 (obsolete)

(1)

Resources Used by BSL

mov #00h, &CCTL0 bic.b #02h, &P1SEL bic.b #04h, &P2SEL bic.b #32h, &IE1 mov.b #00h, &BCSCTL2 mov #00h, SR br &0C00h

SLAU319F–July 2010–Revised September 2013 Differences Between Devices and Bootstrap Loader Versions

Submit Documentation Feedback

1xx, 2xx, and 4xx BSL Versions

BSL vector address

Chip ID address 0FF0h Chip ID data F143h F112h BSL version address 0FFAh BSL version data 0130h Mass erase time, nominal (ms) 206.4

Read and write access at

Verification during write (online) No

Stack pointer initialization

Transmit pin (TX) P1.0 P1.1 Receive pin (RX) P2.1 P2.2 RAM stack used 0200h to 021Fh Working registers R5 to R9 System clock, affected controls SCFI0, SCFI1, SCFQCTL BCSCTL1, DCOCTL Timer_A, affected controls TACTL, TAR, CCTL0, CCR0

Preparation for software call

Table 5-2. BSL Version 1.30 on F41x, F11x, and F11x1

Device F41x

BSL Version 1.30

Cold start 0C00h Warm start 0C02h

0000h to 00FFh Byte 0100h to FFFEh Word

Cold start 0220h Warm start Unchanged

Resources Used by BSL

mov #00h, &CCTL0 mov.b #00h, &FLLCTL1 br &0C00h

www.ti.com

F11x (obsolete)

F11x1A

mov #00h, &CCTL0 mov.b #00h, &BCSCTL2 mov #00h, SR br &0C00h

Differences Between Devices and Bootstrap Loader Versions SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

1xx, 2xx, and 4xx BSL Versions

Table 5-3. BSL Version 1.40 on F12x

Device F122, F123x

BSL Version 1.40

BSL vector address

Chip ID address 0FF0h Chip ID data F123h BSL version address 0FFAh BSL version data 0140h Mass erase time, nominal (ms) 206.4

Read and write access at

Verification during write (online) For addresses 0200h to FFFEh

Stack pointer initialization

Transmit pin (TX) P1.1 Receive pin (RX) P2.2 RAM stack used 0200h to 021Fh Working registers R5 to R10 System clock, affected controls BCSCTL1, DCOCTL Timer_A, affected controls TACTL, TAR, CCTL0, CCR0

Preparation for software call

Cold start 0C00h Warm start 0C02h

0000h to 00FFh Byte 0100h to FFFEh Word

Cold start 0220h Warm start Unchanged

Resources Used by BSL

mov.b #00h, &BCSCTL2 mov #00h, SR br &0C00h

SLAU319F–July 2010–Revised September 2013 Differences Between Devices and Bootstrap Loader Versions

Submit Documentation Feedback

1xx, 2xx, and 4xx BSL Versions

Table 5-4. BSL Version 1.60 on F11x2, F12x2, F43x, F44x, FE42x, FW42x, F(G)43x, F415, F417

Device F(G)43x

BSL Version 1.60

BSL vector address

Chip ID address 0FF0h Chip ID data 1132h 1232h F449h F427h F439h BSL version address 0FFAh BSL version data 0160h Mass erase time, nominal (ms) 206.4

Read and write access at

Verification during write (online) For addresses 0200h to FFFEh Erase check command Yes (error address 0200h) Erase segment command With erasure verification (error address 0200h) TX identification command Yes Change baud rate command Yes

Stack pointer initialization

Transmit pin (TX) P1.1 P1.0 Receive pin (RX) P2.2 P1.1 RAM stack used 0200h to 021Fh Working registers R5 to R12 System clock, affected controls BCSCTL1, DCOCTL SCFI0, SCFI1, SCFQCTL Timer_A, affected controls TACTL, TAR, CCTL0, CCR0

Preparation for software call

Comment

www.ti.com

FE42x,

F1122, F1222, F43x, FW42x,

F1132 F1232 F44x F415,

F417

Cold start 0C00h Warm start 0C02h

0000h to 00FFh Byte 0100h to FFFEh Word

Cold start 0220h Warm start Unchanged

Resources Used by BSL

mov.b #00h, &BCSCTL2 mov.b #00h, &FLLCTL1 mov #00h, SR br &0C00h br &0C00h

Erase segment Addresses 1000h to 11FFh are verified coherently (three segments). Also use command erase check command.

Differences Between Devices and Bootstrap Loader Versions SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

1xx, 2xx, and 4xx BSL Versions

Table 5-5. BSL Version 1.61 on F16x, F161x, F42x0, F13x rev AA, F14x(1) rev AA, F47x, FG47x

Device F16x F161x F42x0 F41x2 F47197 FG47x

BSL Version 1.61

BSL vector address

Chip ID address 0FF0h Chip ID data 0F169h 0F16Ch F149h F427h 4152h F47Fh 0F479h BSL version address 0FFAh BSL version data 0161h Mass erase time, nominal (ms) 206.4

Read and write access at

Stack pointer initialization

Transmit pin (TX) P1.1 P1.0 Receive pin (RX) P2.2 P1.1 RAM stack used 0200h to 021Fh Working registers R5 to R14 System clock, affected controls BCSCTL1, DCOCTL SCFI0, SCFI1, SCFQCTL Timer_A, affected controls TACTL, TAR, CCTL0, CCR0

Preparation for software call

Comment

Cold start 0C00h Warm start 0C02h

0000h to 00FFh Byte 0100h to FFFEh Word

Cold start 0220h Warm start Unchanged

Resources Used by BSL

mov.b #00h, &BCSCTL2 mov.b #00h, &FLLCTL1 mov #00h, SR br &0C00h br &0C00h

Erase segment Addresses 1000h to 11FFh are verified coherently (three segments). Also use erase command check command.

F149

Rev AA

SLAU319F–July 2010–Revised September 2013 Differences Between Devices and Bootstrap Loader Versions

Submit Documentation Feedback

1xx, 2xx, and 4xx BSL Versions

Table 5-6. BSL Version 2.02 and 2.13 on F21xx, F22xx, F23xx, F24xx, F261x

Device F21xx F22xx F23xx F24x F261x

BSL Version 2.02 2.13

BSL Vector Address

Chip ID Address 0FF0h Chip ID Data F213h F227h F237h F249h F26Fh BSL Version Address 0FFAh BSL Version Data 0202h 0213h

Read and Write Access at

Verification during write (online) For addresses 0200h to FFFEh Erase Check Command Yes (error address 0200h) Erase Segment Command With erasure verification (error address 0200h) TX Identification command Yes Change baud rate command Yes

Stack Pointer Initialization

Transmit Pin (TX) P1.1 Receive Pin (RX) P2.2 RAM Stack Used 0200h to 021Fh 0200h to 0223h Working Registers R5 to R14 R4 to R15

System clock, affected controls BCSCTL1, DCOCTL Timer_A, Affected controls TACTL, TAR, CCTL0, CCR0

Preparation for software call

Comment

(1)

The LOCK and LOCKA bits must be cleared by the user application before entering the BSL:

mov.w #FWKEY+LOCKA,&FCTL3

www.ti.com

Cold Start 0C00h Warm Start 0C02h

(1)

0000h to 00FFh Byte 0100h to FFFEh Word

Cold Start 0220h 0224h Warm Start Unchanged

Resources Used by BSL

SCFI0, SCFI1,

SCFQCTL

mov.b #00h, &BCSCTL2 mov #00h, SR br &0C00h

Erase Segment Addresses 1000h to 11FFh are verified coherently (five segments). Also use erase Command check command.

Differences Between Devices and Bootstrap Loader Versions SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

(1) (2)

1xx, 2xx, and 4xx BSL Versions

Table 5-7. BSL Version 2.02 and 2.03 on G2xx3, G2xx4, G2xx5, TCH5E

Device G2xx4 G2xx5 G2xx3 TCH5E

BSL Version 2.02 2.03

BSL Vector Address

Chip ID Address 0FF0h Chip ID Data F227h 2955h 2553h 255Ch BSL Version Address 0FFAh BSL Version Data 0202h 0203h

Read and Write Access at

Stack Pointer Initialization

Transmit Pin (TX) P1.1 P1.1 Receive Pin (RX) P2.2 P1.5 RAM Stack Used 0200h to 021Fh Working Registers R5 to R14 System clock, affected controls BCSCTL1, DCOCTL Timer_A, Affected controls TACTL, TAR, CCTL0, CCR0

Preparation for software call

Comment

Not all Value Line devices contain a BSL; see device-specific data sheet. The LOCK and LOCKA bits must be cleared by the user application before entering the BSL:

Cold Start 0C00h Warm Start 0C02h

(2)

0000h to 00FFh Byte 0100h to FFFEh Word

Cold Start 0220h Warm Start Unchanged

Resources Used by BSL

mov.b #00h, &BCSCTL2 mov #00h, SR br &0C00h

Erase Segment Addresses 1000h to 11FFh are verified coherently (five segments). Also Command use erase check command.

(1)

mov.w #FWKEY+LOCKA,&FCTL3

SLAU319F–July 2010–Revised September 2013 Differences Between Devices and Bootstrap Loader Versions

Submit Documentation Feedback

Special Consideration for ROM BSL Version 1.10

Table 5-8. BSL Version 2.12 and 2.13 on FG46xx, F471xx

Device FG46xx F471xx

BSL Version 2.12 2.13

BSL vector address

Chip ID address 0FF0h Chip ID data F46Fh BSL version address 0FFAh BSL version data 0212h 0213h Mass erase time, nominal (ms) 206.4

Read and write access at

Verification during write (online) For addresses 0200h to FFFEh Erase check command Yes (error address 0200h)

Erase segment command TX identification command Yes

Change baud rate command Yes

Stack pointer initialization

Transmit pin (TX) P1.0 Receive pin (RX) P1.1 RAM stack used 0200h to 0223h Working registers R4 to R15 System clock, affected controls SCFI0, SCFI1, SCFQCTL Timer_A, affected controls TACTL, TAR, CCTL0, CCR0

Preparation for software call

Comment Erase segment command

(1)

The LOCK and LOCKA bits must be cleared by the user application before entering the BSL:

mov.w #FWKEY+LOCKA,&FCTL3.

Cold start 0C00h Warm start 0C02h

0000h to 00FFh Byte 0100h to FFFEh Word

Cold start 0224h Warm start Unchanged

www.ti.com

(1)

Erase segment command with erasure verification (error

address 0200h)

Resources Used by BSL

mov.b #00h, &FLLCTL1 br &0C00h

Addresses 1000h to 11FFh are verified coherently (five segments). Also use erase check command.

5.2 Special Consideration for ROM BSL Version 1.10

The first official version V1.10 of the ROM BSL requires a small loadable patch sequence, PATCH.TXT, to reliably execute the RX block command. The same procedure must be executed if a loadable BSL is downloaded to such a device. After the BSL has been started, proceed in the following manner:

1. RX password (unlock password protection for the following command)

2. Load program counter (PC) with 0C22h (initialize stack pointer to a safe address)

3. RX password again (unlock password protection for subsequent commands)

4. RX data block (code of loadable patch, code section address is 0220h)

5. TX data block (code of loadable patch for verification) From this time forward, the RX block and TX block commands can be used with one restriction: prior to

their invocation, the program counter must be set to the start address of the patch.

1. Load program counter (PC) with start address 0220h of loadable patch

2. RX data block (code to be programmed at any location), or

3. TX data block (from any location)

Differences Between Devices and Bootstrap Loader Versions SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

5.3 1xx, 2xx, and 4xx BSL Known Issues

BSL Command Erase Main or Info Versions Affected 1.x Description Does not erase information memory when supplied with address in information memory Workarounds Use Erase Segment command

BSL Command Erase Main or Info Versions Affected 1.x

Description Workarounds Use any other main memory address

BSL Command Erase Segment Versions Affected 1.x Description Reports failure when used in information memory. However, the erase is properly performed. Workarounds None

Reports failure when first segment of code memory is supplied as address. However, the erase is properly performed.

5.4 Special Note on the MSP430F14x Device Family BSL

Revision AA of the MSP430F14x devices have a BSL that was updated to Version 1.61. The primary reasons for this change were to increase IP security, ensure correct flash programming and mass erase, and to negate the need for using any patches during programming. To ensure a smooth transition, a programming environment should be updated to take into account the following changes:

• The Mass Erase command needs to be issued only once, and execution of this command takes longer.

• Only word writes are allowed to flash memory.

• No patch or RAM loadable BSL is required.

• BSL has "online verification" to speed programming.

• Memory allocation has changed (see BSL version charts in Section 5.3).

• BSL can return a NAK if Segment Erase fails.

• Transmit BSL Version and Change Baud rate are now unprotected.

1xx, 2xx, and 4xx BSL Known Issues

SLAU319F–July 2010–Revised September 2013 Differences Between Devices and Bootstrap Loader Versions

Submit Documentation Feedback

5xx and 6xx Flash-Based BSL Versions

5.5 5xx and 6xx Flash-Based BSL Versions

www.ti.com

Devices MSP430F5438, MSP430F5437, MSP430F5435, MSP430F5436, MSP430F5435, MSP430F5419,

BSL Version 00.01.01.01 RAM erased None Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

Devices MSP430F5438A, MSP430F5437A, MSP430F5435A, MSP430F5436A, MSP430F5435A, MSP430F5419A,

BSL Version 00.05.04.03 (Rev A to Rev E)

RAM erased 0x1C00-0x5BFF Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

MSP430F5418

1. The BSL does not contain a mechanism to unlock the BSL area for erasing and writing a custom BSL.

2. This function is not supported in this version. The BSL may be safely erased however.

3. The only supported baud rates are 9600 and 57600.

4. The BSL transmits on TA0.0 and receives on TA0.1.

5. The BSL does not expect a parity bit.

1. The password for the BSL is the bytes between addresses 0xFFF0 and 0xFFFF. This means that this BSL version expects only 16 bytes for a password in the RX Password command. Sending 32 bytes returns an error.

2. If the addresses 0x20396 or 0x20397 are included in the address range of the CRC command, the returned data is incorrect.

3. The Mass Erase command also erases Info_A.

4. On incorrect password, the device erases all RAM, including its stack. Thus, proper returning of an error code is not assured.

5. The total number of bytes for the CRC function is masked with 0x7FFF and is, therefore, limited to

32767.

MSP430F5418A

00.07.05.04 (Rev F and later)

1. TX and RX pins are noted in the device data sheet

1. The baud rate of 115k cannot be ensured across all clock, voltage, and temperature variations.

Devices CC430F6147, CC430F6145, CC430F6143, CC430F6137, CC430F6135, CC430F6127, CC430F6126,

BSL Version 00.05.04.52 (Rev A to Rev C)

RAM erased 0x1C00-0x23FF Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

Differences Between Devices and Bootstrap Loader Versions SLAU319F–July 2010–Revised September 2013

CC430F6125, CC430F5147, CC430F5145, CC430F5143, CC430F5137, CC430F5135, CC430F5133, CC430F5125, CC430F5123

00.07.05.53 (Rev D and later)

1. TX and RX pins are noted in the device data sheet (TXD P1.6, RXD P1.5)

1. The baud rate of 115k cannot be ensured across all clock, voltage, and temperature variations.

Submit Documentation Feedback

www.ti.com

5xx and 6xx Flash-Based BSL Versions

Devices MSP430F5529, MSP430F5514, MSP430F5515, MSP430F5517, MSP430F5519, MSP430F5521,

BSL Version 00.03.83.33 (Rev A to Rev H)

RAM erased 0x2400-0x33FF Buffer size for Core 62 bytes

Commands Notable Information

Known Bugs

Devices MSP430F5172, MSP430F5152, MSP430F5132, MSP430F5171, MSP430F5151, MSP430F5131 BSL Version 00.07.05.04 RAM erased 0x1C00-0x1FFF Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

MSP430F5522, MSP430F5524, MSP430F5525, MSP430F5526, MSP430F5527, MSP430F5528, MSP430F5510, MSP430F5500, MSP430F5501, MSP430F5502, MSP430F5503, MSP430F5504, MSP430F5505, MSP430F5506, MSP430F5507, MSP430F5508, MSP430F5509

00.07.85.36 (Rev I)

00.07.87.37 (Rev J and later)

1. BSL in device is RAM write only. Full BSL must first be loaded into device RAM and started to perform flash write. Only the commands RX PASSWORD, RX DATA BLOCK FAST, and SET PC are supported.

2. When starting this BSL from an application, the application should first de-enumerate itself, then delay (approximately 500 ms), before starting the BSL. This allows proper re-enumeration with the host.

3. External crystal at XT2 is required to ensure USB operation.

1. TX and RX pins are noted in the device data sheet

1. The baud rate of 115k cannot be ensured across all clock, voltage, and temperature variations.

Devices MSP430F5229, MSP430F5227, MSP430F5219, MSP430F5217, MSP430F5224, MSP430F5222,

BSL Version 00.07.05.04 RAM erased 0x2400-0x43FF Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

Devices MSP430F5255, MSP430F5254, MSP430F5253, MSP430F5252 BSL Version 00.08.08.04 RAM erased 0x2400-0x43FF Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

Devices MSP430F5259, MSP430F5258, MSP430F5257, MSP430F5256 BSL Version 00.07.06.94 RAM erased 0x1C00-0x23FF Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

MSP430F5213, MSP430F5212

1. TX and RX pins are noted in the device data sheet

1. The baud rate of 115k cannot be ensured across all clock, voltage, and temperature variations.

1. TX and RX pins are noted in the device data sheet

1. The baud rate of 115k cannot be ensured across all clock, voltage, and temperature variations.

1. I2C pins are noted in the device data sheet

1. I2C read commands with length greater than 260 do not return correct data.

SLAU319F–July 2010–Revised September 2013 Differences Between Devices and Bootstrap Loader Versions

Submit Documentation Feedback

5xx and 6xx Flash-Based BSL Versions

www.ti.com

Devices MSP430F5310, MSP430F5309, MSP430F5308, MSP430F5304, MSP430F5340, MSP430F5341,

BSL Version 00.06.04.04 RAM erased 0x1C00-0x33FF Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

Devices MSP430F6638, MSP430F6637, MSP430F6636, MSP430F6635, MSP430F6634, MSP430F6633,

BSL Version 00.07.84.34 (Rev A to Rev D)

RAM erased 0x2400-0x33FF Buffer size for Core 62 bytes

Commands Notable Information

Known Bugs

MSP430F5342, MSP430F5329, MSP430F5324, MSP430F5325, MSP430F5326, MSP430F5327, MSP430F5328

1. TX and RX pins are noted in the device data sheet

1. The baud rate of 115k cannot be ensured across all clock, voltage, and temperature variations.

MSP430F6632, MSP430F6631, MSP430F6630, MSP430F5638, MSP430F5637, MSP430F5636, MSP430F5635, MSP430F5634, MSP430F5633, MSP430F5632, MSP430F5631, MSP430F5630, MSP430F6659, MSP430F6658, MSP430F5659, MSP430F5658

00.07.86.36 (Rev E and later)

1. BSL in device is RAM write only. Full BSL must first be loaded into device RAM and started to perform flash write. Only the commands RX PASSWORD, RX DATA BLOCK FAST, and SET PC are supported

Devices MSP430F6438, MSP430F6438, MSP430F6436, MSP430F6435, MSP430F6433, MSP430F5338,

BSL Version 00.07.05.04 RAM erased 0x1C00-0x43FF Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

Devices MSP430F6736, MSP430F6720, MSP430F6721, MSP430F6723, MSP430F6724, MSP430F6725,

BSL Version 00.07.05.04 RAM erased 0x1C00-0x1FFF Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

MSP430F5336, MSP430F5335, MSP430F5333, MSP430F6459, MSP430F6458, MSP430F5359, MSP430F5358

1. TX and RX pins are noted in the device data sheet

1. The baud rate of 115k cannot be ensured across all clock, voltage, and temperature variations.

MSP430F6726, MSP430F6730, MSP430F6731, MSP430F6733, MSP430F6734, MSP430F6735

1. TX and RX pins are noted in the device data sheet

1. The baud rate of 115k cannot be ensured across all clock, voltage, and temperature variations.

Differences Between Devices and Bootstrap Loader Versions SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

5xx and 6xx ROM-Based BSL Versions

Devices MSP430F6779, MSP430F6745, MSP430F6746, MSP430F6747, MSP430F6748, MSP430F6749,

BSL Version 00.07.05.04 RAM erased 0x1C00-0x5BFF Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

MSP430F6765, MSP430F6776, MSP430F6767, MSP430F6768, MSP430F6769, MSP430F6775, MSP430F6776, MSP430F6777, MSP430F6778, MSP430F67791, MSP430F67451, MSP430F67461, MSP430F67471, MSP430F67481, MSP430F67491, MSP430F67651, MSP430F67761, MSP430F67671, MSP430F67681, MSP430F67691, MSP430F67751, MSP430F67761, MSP430F67771, MSP430F67781

1. TX and RX pins are noted in the device data sheet

1. The baud rate of 115k cannot be ensured across all clock, voltage, and temperature variations.

5.6 5xx and 6xx ROM-Based BSL Versions

Devices MSP430FR5739, MSP430FR5730, MSP430FR5731, MSP430FR5732, MSP430FR5733, MSP430FR5734,

BSL Version 00.04.31.71 RAM erased 0x1C00-0x1FFF Buffer size for Core 260 bytes

Commands Notable Information

Known Bugs

MSP430FR5735, MSP430FR5736, MSP430FR5737, MSP430FR5738

1. TX and RX pins are noted in the device data sheet

2. A mass erase command or incorrect password triggers a BSL reset. This resets the BSL state to the default settings (9600 baud, password locked)

1. The baud rate of 115k cannot be ensured across all clock, voltage, and temperature variations.

SLAU319F–July 2010–Revised September 2013 Differences Between Devices and Bootstrap Loader Versions

Submit Documentation Feedback

unibottom.wmf@

unitop.wmf@

Chapter 6

SLAU319F–July 2010–Revised September 2013

Bootstrap Loader PCB Layout Suggestion

Figure 6-1. Universal BSL Interface PCB Layout, Top

Figure 6-2. Universal BSL Interface PCB Layout, Bottom

Bootstrap Loader PCB Layout Suggestion SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

3,5 mm

60,00 mm

www.ti.com

Figure 6-3. Universal BSL Interface Component Placement

SLAU319F–July 2010–Revised September 2013 Bootstrap Loader PCB Layout Suggestion

Submit Documentation Feedback

3,5 mm

60,0 mm

TL062D

www.ti.com

Figure 6-4. Universal BSL Interface Component Placement

Bootstrap Loader PCB Layout Suggestion SLAU319F–July 2010–Revised September 2013

Submit Documentation Feedback

www.ti.com

Revision History

Changes from E Revision (March 2013) to F Revision ................................................................................................... Page

• Changed the paragraph that follows the note after Figure 1-2 ..................................................................... 6

• Added Section 3.3 ...................................................................................................................... 23

• Added "Reserved numbers" starting at 0x90 and 0xB0 ........................................................................... 29

• Changed the order of subsections in Chapter 5 .................................................................................... 35

• Added FG47xx to Table 5-5 ........................................................................................................... 39

• Changed all tables in Section 5.5 ..................................................................................................... 44

• Added table for MSP430F5255, MSP430F5254, MSP430F5253, MSP430F5252 ............................................. 45

• Added Section 5.6 ...................................................................................................................... 47

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

SLAU319F–July 2010–Revised September 2013 Revision History

Submit Documentation Feedback

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed.

TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use of any TI components in safety-critical applications.

In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and requirements. Nonetheless, such components are subject to these terms.

No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties have executed a special agreement specifically governing such use.

Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.

Products Applications

Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps DSP dsp.ti.com Energy and Lighting www.ti.com/energy Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial Interface interface.ti.com Medical www.ti.com/medical Logic logic.ti.com Security www.ti.com/security Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video RFID www.ti-rfid.com OMAP Applications Processors www.ti.com/omap TI E2E Community e2e.ti.com Wireless Connectivity www.ti.com/wirelessconnectivity

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Texas Instruments MSP430 series User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
