About This Manual

Information About Cautions and Warnings

Preface

Read This First

This user’s guide describes the characteristics, operation, and the use of the
DA7741 evaluation module. It covers all pertinent areas involved to properly
use this EVM board along with the devices that it supports. The physical PCB
layout, schematic diagram and circuit descriptions are included.

How to Use This Manual

This document contains the following chapters:

- Chapter 1—EVM Overview

- Chapter 2—Physical Description

- Chapter 3—EVM Operation

Information About Cautions and Warnings

This book may contain cautions and warnings.

This is an example of a caution statement.
A caution statement describes a situation that could potentially

damage your software or equipment.

This is an example of a warning statement.
A warning statement describes a situation that could potentially

cause harm to you

.

The information in a caution or a warning is provided for your protection.
Please read each caution and warning carefully.

iii

Trademarks

Related Documentation From Texas Instruments

To obtain a copy of any of the following TI documents, call the Texas Instru­ments Literature Response Center at (800) 477 – 8924 or the Product Informa­tion Center (PIC) at (972) 644 – 5580. When ordering, identify this manual by
its title and literature number. Updated documents can also be obtained
through our website at www.ti.com.

Data Sheets: Literature Number:

DAC7741 SBAS248
REF102 PDS-900E
OPA627 PDS-998H

Questions about this or other Data Converter EVM’s?

If you have questions about this or other Texas Instruments Data Converter
evaluation modules, please feel free to e-mail the Data Converter Application
Team at [e-mail]
product you have questions or concerns with.

. Please include in the subject heading the

FCC Warning

Trademarks

This equipment is intended for use in a laboratory test environment only. It gen­erates, uses, and can radiate radio frequency energy and has not been tested
for compliance with the limits of computing devices pursuant to subpart J of
part 15 of FCC rules, which are designed to provide reasonable protection
against radio frequency interference. Operation of this equipment in other en­vironments may cause interference with radio communications, in which case
the user at his own expense will be required to take whatever measures may
be required to correct this interference.

TI Logo is a trademark of Texas Instruments Incorporated. SPI and QSPI are
trademarks of Motorola, Inc.

iv

Contents

Contents

1 EVM Overview 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1 Features 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 Power Requirements 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2.1 Supply Voltage 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2.2 Reference Voltage 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3 EVM Basic Functions 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Physical Description 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1 PCB Layout 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2 Bill of Materials 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 EVM Operation 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1 Factory Default Setting 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 Host Processor Operation 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2.1 Unity Gain Output 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2.2 Output Gain of Two 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2.3 Capacitive Load Drive 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 Jumper Setting 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

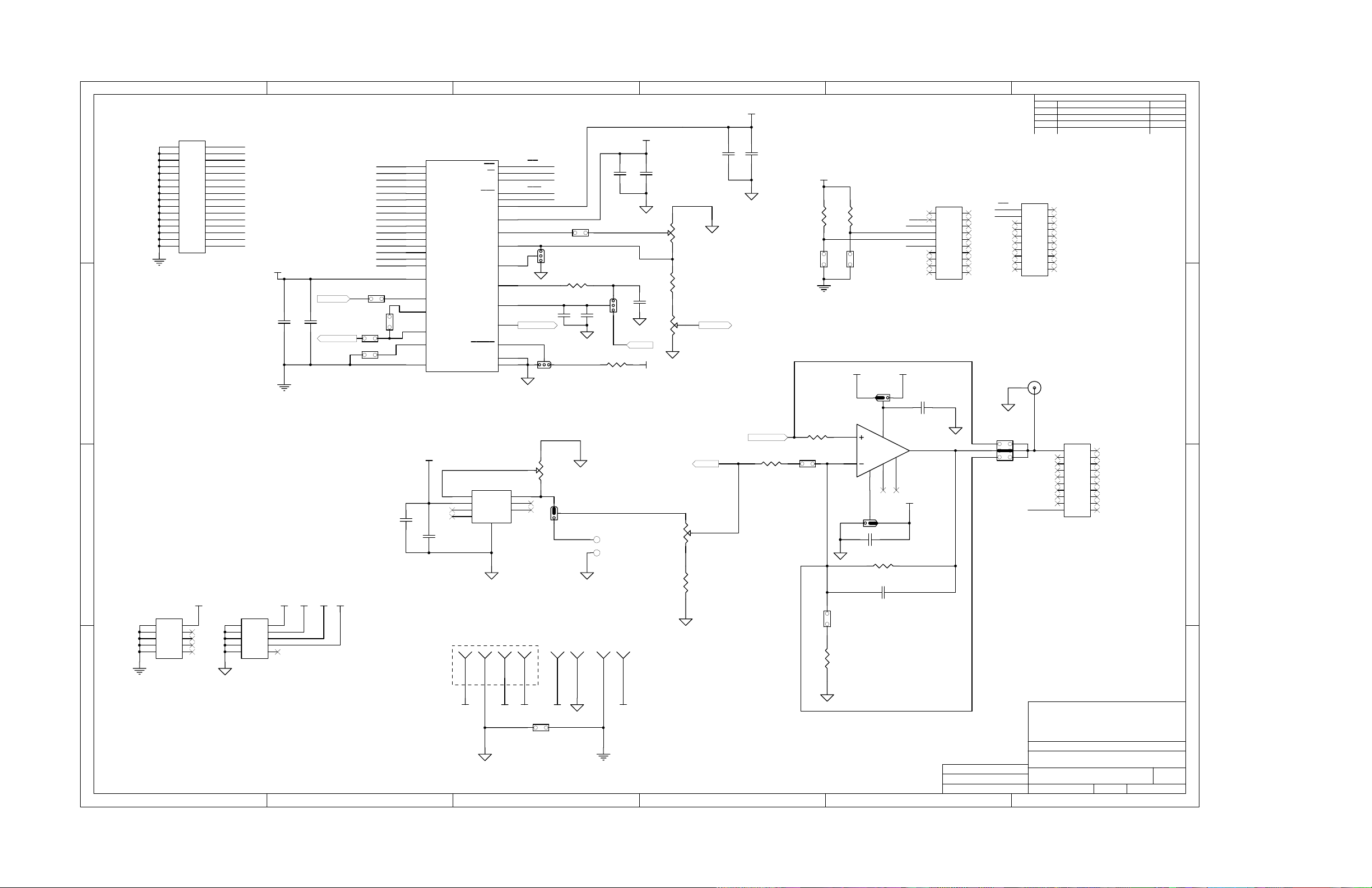

3.4 Schematics 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figures

1-1 EVM Block Diagram 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1 Layer One (Top Silkscreen) 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2 Layer Two (Ground Plane) 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-3 Layer 3 (Power Plane) 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-4 Layer 4 (Bottom Plane) 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-5 Drill Drawing 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

v

Contents

Tables

2-1 Parts List 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-1 Factory Default Jumper Setting 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2 Unity Gain Output Jumper Settings 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-3 Gain of Two Output Jumper Settings 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4 Capacitive Load Drive Output Jumper Settings 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5 Jumper Setting Function 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

vi

Chapter 1

EVM Overview

This chapter gives a general overview of the DAC7741 evaluation module
(EVM), and describes some of the factors that must be considered in using this
module.

Topic Page

1.1 Features 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 Power Requirements 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3 EVM Basic Functions 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EVM Overview

1-1

Features

1.1 Features

This EVM features the DAC7741 digital-to-analog converter. The DAC7741
EVM is a simple evaluation module designed for a quick and easy way to
evaluate the functionality of the high resolution, single-channel, and parallel
input DAC. This EVM features a parallel interface to communicate to any host
processor base system.

1.2 Power Requirements

The following sections describe the power requirements of this EVM.

1.2.1 Supply Voltage

The dc power supply requirement for the digital section of this EVM is typically
5 V connected to the J11-2 or via J6-2 terminal (when plugged in with another
EVM board or interface card) and is referenced to ground through the J11-1
and J6-1 terminal. The dc power supply requirement for the analog section

and VSS) of this EVM range from 15.75 V to -15.75 V maximum and

(V

CC

connects through J10-4 and J12-1 or through J7-6 and J7-8 terminals and
is referenced to analog ground through J10-2, J12-2 and J7-1 terminals.

A dc source of ±15 V supply is required to provide the rails for the external
output op-amp p r o v i d e d f o r o u t put signal conditioning or boost capacitive load
drive and for other output modes of application. The 15 V supply connects
through J10-1 or J7-2 terminal, and the –15 V supply connects through J10-3
or J7-4 terminals. The ±15 V supply is referenced to ground through J10-2
or J7-3 terminals. The supply source for V
supply source for 15 V and -15 V respectively.

To avoid potential damage to the EVM board, make sure that the
correct cables are connected to their respective terminals as
labeled on the EVM board.

Stresses above the maximum listed voltage ratings may cause
permanent damage to the device.

1.2.2 Reference Voltage

Although the DAC7741 has a built-in 10-V voltage reference, an external
reference circuit is provided in the EVM board. The external reference circuit
can be isolated if the internal reference voltage is selected.

The 10-V precision voltage reference is provided to supply the external voltage
reference for the DAC through REF102, U3, via jumper W4 by shorting pins
1 and 2. An adjustable 100-kΩ potentiometer, R11, is installed in series with
20 kΩ, R10, to allow the user to adjust the reference voltage to its desired
settings. TP1 and TP2 are also provided, as well as J4-20, to allow the user
to connect other external reference source if the onboard reference circuit is
not desired. The external voltage reference should not exceed 10-V dc.

and VSS can also be used as the

CC

1-2

EVM Basic Functions

The REF102 precision reference derives its power of ±15-V supply through
J10 or J7 terminal. The (plus) 15 V connects through J10-1 or J7-2 terminals,
while the (minus) -15 V connects through J10-3 or J7-4 terminals. They are
both referenced to analog ground through J10-2 and J7-1.

The DAC7741 has a REFEN
disable it and select an external reference source. The REFEN

pin to enable the internal reference circuit or

pin can be
hardware driven through W2 jumper. Likewise, it can also be software driven
through J2-11 terminal via W2 jumper by shorting pins 1 and 2. The REF

OUT

pin of the DAC7741 must be connected to the REFIN pin to use the internal
voltage reference. This can be done through W3 jumper by shorting pins 1 and

2. Shorting pins 2 and 3 of W3 selects the external voltage reference source.
The on-chip reference buffer output is channeled out through V

REF

pin which
is used to set up the DAC7741 output amplifier into one of three voltage output
modes. V

can also be used to drive other system components that require

REF

external voltage reference.

When applying an external voltage reference through TP1 or J4-20,
make sure that it does not exceed 10 V maximum. Otherwise, this
can permanently damage the DAC7741, U11, device under test.

1.3 EVM Basic Functions

The DAC7741 EVM is a functional evaluation platform to test certain functional
characteristics of the DAC7741 digital-to-analog converter. Functional
evaluation of the DAC device can be accomplished with the use of any
microprocessor, TMS320VC33 DS P, or some sort of a waveform generator.

The headers, J1, J2 and J3 are provided to channel in the necessary control
signals and data needed to interface a microprocessor/microcontroller, TI’s
DSP starter kit or waveform generator to the DAC7741 EVM, through a custom
cable.

A specific adapter interface card is also available for most of TI’s DSP starter
kit (DSK) and the card model depend on the type of the DSP starter kit to be
used. The user must specify the DSP used as an interface to acquire the right
adapter interface card. Call or email TI for more information regarding the
adapter interface card.

The output of the DAC can be monitored through two different access points
which are as follows; a BNC connector (J5, if installed), and also a header
through pin 2 of J4. The 6-pin header, W13, provides different options of the
DAC output, but requires the output op-amp, U2, to be configured correctly first
for the desired waveform characteristic. Shorting pins 1 and 2 of W13 allows
the user to monitor the raw output of the DAC7741.

EVM Overview

1-3

EVM Basic Functions

A block diagram of the EVM is shown below in the Figure 1-1.

Figure 1-1.EVM Block Diagram

Output

Buffer

DAC Out

(J4)
(J5)

W13

Module

+15 V

-15 V

W14

TP1

+REF
Ext Ref

Input

TP2

External

Reference

Module

IN

W4

REF

W3

REF

IN

out

DAC Module

VCC

VDD

VSS

(J6)
(J7)

(J2)
(J3)

(J1)

+15 V
GND

-15 V
GND

VCC
VDD
VSS

REFEN
LDAC
RST

RSTSEL

CS
R/W

DB15 (MSB)

DB1 (LSB)

1-4

Chapter 2

Physical Description

This chapter describes the physical characteristics and PCB layout of the EVM
and lists the components used on the module.

Topic Page

2.1 PCB Layout 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2 Bill of Materials 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Physical Description

2-1

PCB Layout

2.1 PCB Layout

The EVM is constructed on a four-layer printed-circuit board using a
copper-clad FR-4 laminate material. The printed-circuit board has a dimension
of 99,06 mm (3.90 inch) × 104,14 mm (4.10 inch), and the board thickness is
1,57 mm (0.062 inch). Figures 2-1 through 2-6 show the individual artwork
layers.

Figure 2-1.Layer One (Top Silkscreen)

2-2

Figure 2-2.Layer Two (Ground Plane)

PCB Layout

Physical Description

2-3

PCB Layout

Figure 2-3.Layer 3 (Power Plane)

2-4

Figure 2-4.Layer 4 (Bottom Plane)

PCB Layout

Physical Description

2-5

PCB Layout

Figure 2-5. Drill Drawing

2-6

Bill of Materials

2.2 Bill of Materials

Table 2-1.Parts List

Item # Qty Designator Manufacturer Part Number Description

1 1 C8 Panasonic ECJ3VB1C105K 1 µF, 1206 multilayer ceramic

2 2 C9 C10 Panasonic ECUV1H103KBM 0.01 µF, 1206 multilayer ceramic

3 5 C1 C2 C3 C7

C13

4 1 C12 Panasonic ECUV1H102JCH 1 nF, 1206 multilayer ceramic

5 5 C4 C5 C6 C11

C14
6 1 R8 Panasonic ERJ-8GEY0R00V 0 Ω, 1/4W 1206 chip resistor
7 2 R7 R10 Panasonic ERJ-8ENF2002V 20 kΩ, 1/4W 1206 chip resistor
8 6 R4 R5 R6 R12

R13 R14
9 2 R1 R2 Bourns 3214W-103E 10 kΩ, BOURNS_32X4W Series 5T

10 1 R11 Bourns 3214W-104E 100 kΩ, BOURNS_32X4W Series 5T

11 1 R3 Panasonic ERJ-8ENF1003V 100 kΩ, 1/4W 1206 chip resistor
12 2 J6 J7 Samtec IPT1-105-01-S-D-VS 5X2X0.1

13 3 J2 J3 J4 Samtec TSM-110-01-S-DV-M 10X2X.1, 20-pin 0.025” sq SMT socket
14 1 J1 Samtec TSM-116-01-S-DV-M 16X2X.1, 32-pin 0.025” sq SMT socket
15 2 J11 J12 Lumberg KRMZ2 2-pin Terminal screw connector
16 1 J5 (Not

Installed)

17 1 J10 Lumberg KRMZ4 4-pin Terminal screw connector
18 1 U1 Texas Instruments DAC7741 16-bit, 48-LQFP DAC
19 1 U2 Texas Instruments OPA627AU 8-SOP(D) Precision op amp
20 1 U3 Texas Instruments REF102AU 10 V, 8-SOP(D) Precision voltage

21 2 TP1 TP2 Cambion 180-7337-02-05 Turret terminal test point
22 1 W13 Samtec TSW-103-07-L-D 3X2X 0.1 6-Pin IDC header
23 3 P2 P3 P4

(see Note)

24 1 P1 (see Note) Samtec SSW-116-22-S-D-VS-P 32-pin 0.025” sq SMT Terminal Strips
25 2 P6 P7

(see Note)

26 10 W6 W7 W8

W9 W10 W11

W14 W15

W16 W17

27 6 W1 W2 W3

W4 W5 W12

28 1 R9 Bourns 3214W-203E 20 kΩ, BOURNS_32X4W Series 5T

Panasonic ECJ3VB1C104K 0.1 µF, 1206 multilayer ceramic

Kemet C1210C106K8PAC 10 µF, 1210 multilayer ceramic X5R

Panasonic ERJ-8ENF1002V 10 kΩ, 1/4W 1206 chip resistor

AMP (TYCO) 227699-2 PCB Mounted BNC - Amphenol

Samtec SSW-110-22-S-D-VS-P 20-pin 0.025” sq SMT terminal strips

Samtec IPS1-105-01-S-D-VS 3A Isolated power header

Samtec TSW-102-07-L-S 2 Position jumper_ 0.1” spacing

Samtec TSW-103-07-L-S 3 Position Jumper_ 0.1” spacing

capacitor

capacitor

capacitor

capacitor

capacitor

pot

pot

10-pin 3A isolated power socket

reference

pot

Note: P1, P2, P3, P4, P8, & P9 parts are not shown in the schematic diagram. All the P designated parts are installed in the

bottom side of the PC Board opposite the J designated counterpart. Example, J1 is installed on the topside while P1 is
installed in the bottom side opposite of J1.

Physical Description

2-7

Bill of Materials

(This page has been left blank intentionally.)

2-8

Chapter 3

EVM Operation

This chapter covers in detail the operation of the EVM to provide guidance to
the user in evaluating the onboard DAC and how to interface the EVM to a
specific host processor.

Refer to the DAC7741 data sheet, SBAS248, for information about its parallel
interface and other related topics.

The EVM board is factory tested and configured to operate in the bipolar output
mode.

Topic Page

3.1 Factory Default Setting 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 Host Processor Interface 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 Jumper Setting 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4 Schematic 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EVM Operation

3-1

Factory Default Setting

3.1 Factory Default Setting

The EVM board is set to its default configuration from factory as described on
the table below to operate in bipolar ±10V mode of operation using the internal
reference.

Table 3-1.Factory Default Jumper Setting

Jumper

Reference

W1 OPEN V
W2 2-3 REFEN pin is tied to AGND to enable 10 V internal reference.
W3 1-2 REF
W4 OPEN Onboard external reference through U3 is disconnected.
W5 1-2 Negative supply rail of U2 op-amp is supplied with -15 V.
W6 OPEN REFADJ pin is floated.
W7 CLOSE RFB2 pin is strapped to V
W8 CLOSE TEST pin is tied to DGND.

W9 OPEN SJ pin is floated.
W10 OPEN RFB1 is floated.
W11 CLOSE AGND and DGND are tied together to a common point.
W12 1-2 Positive supply rail of U2 op-amp is supplied with 15 V.
W13 3-4 Buffered output of DAC is channeled through to J5 and J4-2.
W14 OPEN External reference is disconnected from the negative input of U2 to configure U2 for

W15 OPEN Configure U2 op-amp for unity gain.
W16 OPEN RSTSEL pin is tied high to set DAC reset value to midscale.
W17 OPEN RST pin is tied high by default.

Position

Function

output pin is floated and not used for offset adjustment.

REF

pin is strapped to REFIN to provide 10 V internal voltage reference.

OUT

pin for DAC output feedback.

OUT

unity gain.

3-2

3.2 Host Processor Operation

The host processor basically drives the DAC, so the DACs proper operation
depends on the successful configuration between the host processor and the
EVM board. In addition, a properly written code is also required to operate the
DAC.

A custom cable can be made specific to the host interface platform. The EVM
allows interface to the host processor through J2 and J3 header connectors
for the control signals, and J1 header connector for the data input. The output
can be monitored through the J5 BNC connector (if installed) or J4 header
connector. An interface adapter card is also available for specific DSP starter
kits as mentioned in Chapter 1 of this manual.

The EVM includes an optional signal conditioning circuit for the DAC output
through an external operational amplifier, U2. This is set to a unity gain
configuration by default. Regardless, the raw output of the DAC can be probed
through W13 pin 2 so that it can be compared with the output of U2 if
necessary. The output terminals J5 and J4 are provided to monitor the desired
output of the DAC by shorting the respective pins of W13.

The following sections describe the different configurations of the output
amplifier, U2.

Host Processor Operation

3.2.1 Unity Gain Output

The buffered output configuration is used to prevent loading the DAC7741 and
should closely match the raw output of the DAC with maybe some slight
distortion because of the feedback resistor and capacitor. The user can tailor
the feedback circuit to closely match their desired wave shape by simply
desoldering R7 and C11 and replacing them with the desired values. You can
also simply get rid of R7 and C11 altogether and just solder a zero-Ω resistor
in replacement of R7, if desired.

Table 3-2 shows the jumper setting for the unity gain configuration of the DAC
external output buffer in unipolar or bipolar mode.

Table 3-2.Unity Gain Output Jumper Settings

Reference

W5 2-3 1-2 Supplies the voltage for the negative rail of op-amp.
W12 2-3 1-2 Supplies the voltage for the positive rail of op-amp.
W13 3-4 3-4 DAC output is channeled to the output terminals.
W14 Open Open exREFin is disconnected from the negative input of op-amp.
W15 Open Open Disconnect negative input of op-amp from GND

Jumper Setting

Unipolar Bipolar

Function

EVM Operation

3-3

Host Processor Operation

3.2.2 Output Gain of Two

This configuration allows the DAC output with a gain of two, but is limited to
the effective rails of the operational amplifier. When the DAC7741 is
configured to operate in bipolar mode, the DAC output must be within the
range of 1 2 V

or less. Anywhere above the range of 12 V

P- P

output of the op-amp. Likewise, when operating the DAC in unipolar mode, the
DAC output must not exceed 6 V

P- P

.

Table 3-3 shows the proper jumper settings of the EVM for the 2× gain output
of the DAC.

Table 3-3.Gain of Two Output Jumper Settings

Reference Jumper Setting Function

W5 1-2 (Bipolar)

2-3 (Unipolar)
W12 1-2 Positive rail supply of the op-amp tied to 15 V
W13 3-4 Amplified output of DAC is channeled to the output terminals
W14 Open Disconnect exREFin from negative input of op-amp
W15 Close Configures op-amp for a 2× gain output

Negative rail of the op-amp tied to -15 V for bipolar operation or AGND
for unipolar operation.

would clip the

P- P

3.2.3 Capacitive Load Drive

Another output configuration option is to drive a wide range of capacitive load
requirement. However, all op-amps under certain conditions may become
unstable depending on the op-amp configuration, gain, and load value. These
are just few factors that can affect op-amps stability performance and should
be considered when implementing.

In unity gain, the OPA627 op-amp, U2, performs very well with very large
capacitive loads. Increasing the gain enhances the amplifier’s ability to drive
even more capacitance, and by adding a load resistor would even improve the
capacitive load drive capability.

Table 3-4 shows the jumper setting configuration for a capacitive load drive.

Table 3-4.Capacitive Load Drive Output Jumper Settings

Reference Jumper Setting Function

W5 1-2 (Bipolar)

2-3 (Unipolar)
W12 1-2 Positive rail supply of the op-amp tied to 15 V
W13 5-6 Capacitive load drive output of DAC is channeled to the output terminals
W14 Open Disconnect exREFin from negative input of op-amp
W15 Open Disconnect R12 (see note)

Note: If there is a need to incrementally adjust the capacitive load output, replace R12 with a capacitor with the desired capaci-

tance value and CLOSE W15.

Negative rail of the op-amp tied to -15 V for bipolar operation or AGND
for unipolar operation.

3-4

3.3 Jumper Setting

The figures in Table 3-5 will show the function of each jumper on the
EVM.

Table 3-5.Jumper Setting Function

Reference

Jumper

Setting

13

Function

R

OFFSET

is strapped to V

sheet for offset adjustment.

to set VSJ (summing junction) to V

REF

Jumper Setting

/2. Refer to the data

REF

W1

W2

W3

W4

W5

W6

W7

13

13

13

13

3

1

13

13

13

13

13

R

is not connected to set VSJ (summing junction) to V

OFFSET

/3. Refer to the data

REF

sheet for offset adjustment.
R

is strapped to AGND to set VSJ (summing junction) to V

OFFSET

/6. Refer to the

REF

data sheet for osset adjustment.
Disables the internal reference voltage.

Enables the internal reference voltage of +10V.

REFIN is strapped to REF

to allow the internal 10 V to supply the DAC reference

OUT

voltage.
REFIN is strapped to exREFin to allow either the onboard adjustable reference or user

supplied reference to supply the DAC reference voltage.
Routes the onboard 10 V reference through the adjustable pot to W3 and W14.

Routes the user supplied reference from TP1 or J4-20 through the adjustable pot to
W3 and W14.

Negative supply rail of op-amp is powered by -15 V.

Negative supply rail of op-amp is tied to AGND.

REFADJ pin is not connected.
REFADJ pin is connected to R1 pot for gain adjustment input when internal reference

is used.
RFB2 pin is not connected to the V

RFB2 pin is strapped to the V

OUT

pin.

OUT

pin for feedback.

W8

W9

W10

TEST pin not connected to DGND.
TEST pin connected to DGND (default mode).
SJ (summing junction) pin of the DAC output amplifier is not connected.
SJ (summing junction) pin of the DAC output amplifier is connected to R2 pot to allow

small amount of current for offset adjustment.
RFB1 pin is not connected.

RFB1 pin is strapped to RFB2 pin for DAC V

feedback.

OUT

EVM Operation

3-5

Jumper Setting

Table 3-5. Jumper Setting Function (Continued)

Reference

W11

Jumper

Setting

Function

Disconnects AGND from DGND.
Connects AGND and DGND together.

W12

W13

W14

W15

W16

W17

13

13

264

153

264

153

264

153

Positive supply rail of op-amp is powered by +15V.

Positive supply rail of op-amp is powered by VCC.

Routes the raw output of the DAC7741 to J4-2 and J5 output terminals.

Routes the output of U2 to J4-2 and J5 output terminals. Used for unipolar and bipolar
modes of operation.

Routes the output of U2 to J4-2 and J5 output terminals. Used for capacitive load
driving.

Disconnects exREFin from the negative input terminal of U2.
Allows exREFin to be routed to the negative input terminal of U2 used for

experimentation purposes only.
Disconnect the negative terminal of U2 to AGND and disable 2x gain.

Configures U2 for a 2× gain output.
RSTSEL pin is pulled high and configures the DAC to midscale when POR or reset is

initiated.
RSTSEL pin is pulled low and configures the DAC to minscale when POR or reset is

initiated.
RST pin is pulled high and configures the DAC not to reset (default state).

RST pin is pulled low and holds the DAC to reset state.

Legend: Indicates the corresponding pins that are shorted or closed.

3-6

3.4 Schematic

Schematic

A schematic of the DAC7741 is found on the following page.

EVM Operation

3-7

VCC

54321

REV EC N Number Approved

6

Revision History

J1

D

C

B

D15

3132

D14

2930

D13

2728

D12

2526

D11

2324

D10

2122

D9

1920

D8

1718

D7

1516

D6

1314

D5

1112

D4

910

D3

78

D2

56

D1

34

D0

12

VDD

Sum_Junc

C2

C6

0.1µF

10µF

DAC_VOUT

W7

W8

W9

Tantalum

D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0

W10

35
34
33
32
31
30
29
28
27
22
21
20
19
18
17
16

38

10

26

37

9

8

C11
10µF

C3

0.1µF

U1

DB15
DB14
DB13
DB12
DB11
DB10
DB9
DB8
DB7
DB6
DB5
DB4
DB3
DB2
DB1
DB0

VDD

SJ

RFB1

RFB2

TEST

DGND

DAC7741

+15V

5
2
8
7

R/W

LDAC

RST

RSTSEL

VCC

VSS

REFadj

Vref

Roffset

REFout

REFin

Vout

REFEN

AGND
AGND

U3

TRIM
V+
NC
NC

CS

TEMP

GND

4

41
42
40

39
43
3

2

46

4

5

45

47

11

44

6
7

OUT

NC

REF102AU(8)

CS
R/W
LDAC

RST
RSTSEL

DAC_VOUT

W2

1

R9
20K

2

6

3

3
1

W6

W1

R3

100K

C14

C13

0.1µF
10µF

REF_en

W4

1

3

TP1

+REFin

TP2

C1

0.1µF

W3

exREFin

R4

10K

EXTERNAL

REFERENCE

(exREFin)

VSS

C8
1µF

VDD

C4
10µF

R1
10K

R7
0/5K/20K

R2

10K

3

1

exREFin

R11

100K

R10
20K

Sum_Junc

2

C7

0.1µF

C5
10µF

DAC_VOUT

R5

10K

W14

R8

VDD

R13

10k

W16 W17

0

D

J3

CS

1 2

R/W

3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20

C

J5

W13

2

A

1

4

B

3

C

6

5

+REFin

J4

12
34
56
78

910
1112
1314
1516
1718
1920

B

LDAC
RST
RSTSEL
REF_en

Op Amp

-15V

6

C9

0.01µF

J2

1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20

R14
10k

+15V

3

2

C10

VCC

W12

71

U2

5

4

W5

0.01µF

R6

10K

C12

-15V VCC+15VVDD

J6

1 2
3 4
5 6
7 8
9 10

A

J7

1 2
3 4
5 6
7 8
9 10

VSS

J10

1

2

3

+15V -15V VCC

1nF

W15

J12

4

1

VSS

W11

J11

1

2

2

VDD

R12
10K

CLD_OUT

A

ti

12500 TI Boulevard. Dallas, Texas 75243

Title:

Engineer:

J. PARGUIAN

Drawn By:

FILE: SIZE:

1 2 3 4 56

DAC7741.Sch

DOCUMENTCONTROL #

DATE:

27-Sep-2002

DAC7741

6443168

REV:

SHEET: OF:

1

A

1
