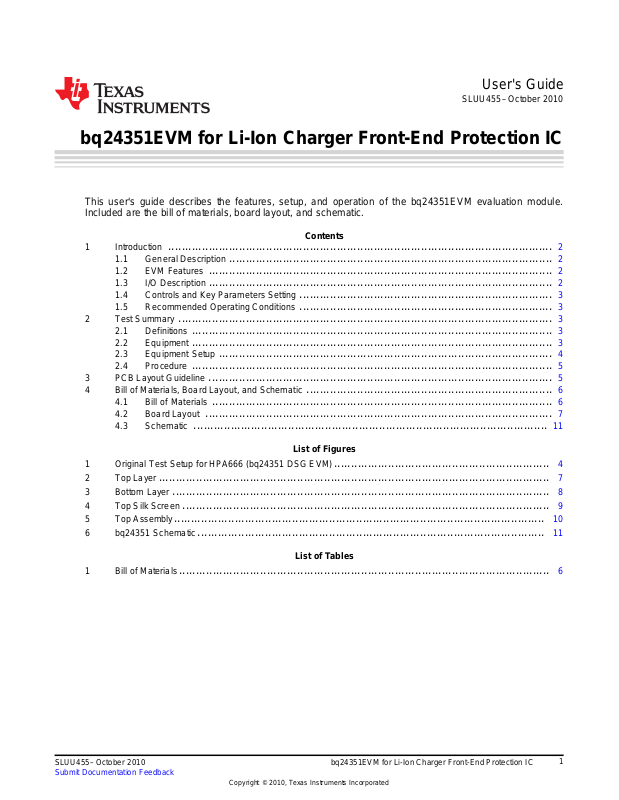

User's Guide
SLUU455–October 2010
bq24351EVM for Li-Ion Charger Front-End Protection IC
This user's guide describes the features, setup, and operation of the bq24351EVM evaluation module.
Included are the bill of materials, board layout, and schematic.
Contents
1 Introduction .................................................................................................................. 2
1.1 General Description ................................................................................................ 2
1.2 EVM Features ...................................................................................................... 2
1.3 I/O Description ...................................................................................................... 2
1.4 Controls and Key Parameters Setting ........................................................................... 3
1.5 Recommended Operating Conditions ........................................................................... 3
2 Test Summary ............................................................................................................... 3
2.1 Definitions ........................................................................................................... 3
2.2 Equipment ........................................................................................................... 3
2.3 Equipment Setup ................................................................................................... 4
2.4 Procedure ........................................................................................................... 5
3 PCB Layout Guideline ...................................................................................................... 5
4 Bill of Materials, Board Layout, and Schematic ......................................................................... 6
4.1 Bill of Materials ..................................................................................................... 6
4.2 Board Layout ....................................................................................................... 7
4.3 Schematic ......................................................................................................... 11
List of Figures
1 Original Test Setup for HPA666 (bq24351 DSG EVM)................................................................ 4
2 Top Layer .................................................................................................................... 7
3 Bottom Layer ................................................................................................................ 8
4 Top Silk Screen ............................................................................................................. 9
5 Top Assembly.............................................................................................................. 10
6 bq24351 Schematic....................................................................................................... 11
List of Tables
1 Bill of Materials.............................................................................................................. 6
SLUU455–October 2010 bq24351EVM for Li-Ion Charger Front-End Protection IC
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
1
Introduction
1 Introduction
1.1 General Description
The bq24351 evaluation module (EVM) is a complete charger module for evaluating a charger front-end
protection and charger solution using the bq24351 and bq2057C devices. It is designed to deliver up to
560 mA of charge current to Li-ion or Li-polymer applications. The charger front-end protection current is
designed to 1.2 A.
The bq24351 protects the charging system against three types of failures: input overvoltage when the ac
adapter fails to regulate its voltage, load overcurrent when failures such as a short circuit occur in the
charging system, and battery overcharge.
For details, see the bq24351 data sheet (SLUSA62).
1.2 EVM Features
• Evaluation module for bq24351 DSG
• Evaluation module for bq2057C charger integrated circuit (IC)
• Input operating range for bq24351 4.5 V–26 V
• Input overvoltage protection.
• Input overcurrent protection.
• Battery overvoltage protection.
• LED indication for status signals.
• Test points for key signals available for testing purposes. Easy probe hook-up
• Jumpers available. Easy to change connections
www.ti.com
1.3 I/O Description
Jack Description
J1–DC+ AC adapter, positive output
J1–DC– AC adapter, negative output, ground
J2–FAULT Reserved for other ICs
J2–VBAT bq24351 VBAT pin
J2–GATDRV bq24351 GATDRV pin
J2–CHGIN bq24351 CHGIN pin
J3–BATEN Reserved for ohter ICs
J3–OUT bq24351 OUT pin
J3–BAT+ Battery positive output
J3–GND Ground
J4–BAT+ Connect to battery positive output
J4–BAT– Connect to battery negative output, ground
2
bq24351EVM for Li-Ion Charger Front-End Protection IC SLUU455–October 2010
Copyright © 2010, Texas Instruments Incorporated
Submit Documentation Feedback
www.ti.com
1.4 Controls and Key Parameters Setting
(1)
Jack
JP1 If on, high-side sensing resistor is disabled Jumper on
JP2 Reserved for other ICs Jumper (BATEN, GND) on
JP3 bq24351 GATDRV pin Jumper off
JP4 bq2057C BAT pin connection to bq24351 Jumper on
JP5 bq2057C VCC pin connection to bq24351 Jumper on
JP6 bq2057C CC pin connection to bq24351 Jumper on
JP7 If on, low-side current-sensing resistor is disabled Jumper off
(1)
Short JP1, JP4, JP5, and JP6, and disconnect JP7 to use onboard bq2057C as charger; to use external charger to control
bq24351, disconnect JP1, JP4, JP5, and JP6 and short JP7.
Description Factory Setting
1.5 Recommended Operating Conditions
Symbol Description MIN TYP MAX Unit
Supply voltage, V
Battery voltage, V
Supply current, I
Charge current, I
Operating junction temperature range, T
IN
BAT
AC
chrg
Input voltage from ac adapter input 4.5 5 26 V
Voltage applied at VBAT terminal of J4 0 3–4.2 5 V
Maximum input current from ac adapter input 0 1.5 A
Battery charge current 0.05 0.56 1 A
J
Test Summary
0 125 °C
2 Test Summary
2.1 Definitions
This procedure details how to configure the evaluation board. On the test procedure, the following naming
conventions are followed. See the schematic for details.
VXXX External voltage supply name (VIN, VBAT, VOUT)
LOADW External load name (LOADR, LOADI)
V(TPyyy) Voltage at internal test point TPyyy. For example, V(TP1) means the voltage at
V(Jxx): Voltage at jack terminal Jxx.
V(TP(XXXXX)) Voltage at test point XXXXX. For example, V(ACDET) means the voltage at the
V(XXX, YYY) Voltage across points XXX and YYY.
I(JXX(YYY)) Current going out from the YYY terminal of jack XX.
Jxx(BBB) Terminal or pin BBB of jack xx
Jxx ON Internal jumper Jxx terminals are shorted
Jxx OFF Internal jumper Jxx terminals are open
Jxx (-YY-) ON Internal jumper Jxx adjacent terminals marked as YY are shorted
Measure → A,B Check specified parameters A, B. If measured values are not within specified
Observe → A,B Observe if A, B occur. If they do not occur, the unit under test has failed.
TP1.
test point which is marked as ACDET.
limits, the unit under test has failed.
Assembly drawings show locations for jumpers, test points, and individual components.
2.2 Equipment
2.2.1 Power Supplies
Power supply 1 (PS 1): a power supply capable of supplying 15 V at 2 A is required.
SLUU455–October 2010 bq24351EVM for Li-Ion Charger Front-End Protection IC
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
3
FAULT
VBAT
GATDRV
CHGIN
BATEN
OUT
BAT+
GND
HPA666 bq24351EVM
JP7
V
Supply 1
J1
DC+
JP1
U1
J4
BAT+
V
I
2
Ibat
CFET APPLICATION
CIRCUIT
JP6 JP5
JP4
JP3 JP2
U2
J2
J3
I
I
Load
1
Test Summary
2.2.2 Load 1
A 10-V (or above), 2-A (or above) electronic load that can operate in constant-current mode.
2.2.3 Load 2
A 10-V (or above), 2-A (or above) electronic load that can operate in constant-voltage mode.
2.2.4 Meters
Four Fluke 75 multimeters (equivalent or better)
Or:
Three equivalent voltage meters and one equivalent current meter
The current meter must be capable of measuring 2-A+ current.
2.2.5 Wire Gauge
All wires connected to the EVM input power supply and output load must be at least AWG 22. The
maximum current is up to 1 A.
2.3 Equipment Setup
1. Set PS 1 for 0 V ±100 mVdc, 2 ± 0.1 A current limit, and then disable the output.
2. Connect the output of PS 1 to J1 (DC+, DC–).
3. Connect a voltage meter across J1 (DC+, DC–).
4. Connect the output of load 1 in series with a current meter (multimeter) to J2 (CHGIN) and J3 (GND).
Turn on the power of load 1. Set the load current to 1.5 A ±50 mA, but disable the output.
5. Connect the output of load 2 in series with a current meter (multimeter) to J4 (BAT+, BAT–).
6. Connect a voltage meter across J4 (BAT+, BAT–).
7. Set the voltage of load 2 to 3.6 V ±0.1 V, and disable output of load 2.
8. JP1: ON, JP2 (BATEN, GND): ON, JP3: OFF, JP4: ON, JP5: ON, JP6: ON, JP7: OFF.
After the preceding steps have been taken, the test setup for HPA666 (bq24351 DSG EVM) appears as is
shown in Figure 1.
www.ti.com
Figure 1. Original Test Setup for HPA666 (bq24351 DSG EVM)
4
bq24351EVM for Li-Ion Charger Front-End Protection IC SLUU455–October 2010
Copyright © 2010, Texas Instruments Incorporated
Submit Documentation Feedback
www.ti.com
2.4 Procedure
2.4.1 Charger Current and Voltage Regulation
1. Ensure that steps in Section 2.3 are followed.
2. Enable output of PS 1.
3. Increase the output voltage of PS 1 to 5 V ±0.1 V.
4. Enable the output of load 2.
Measure → V(J2(OUT)) = 3.6 V ±200 mV
Measure → Ibat = 560 mA ±70 mA
Observe → D2 on, D3 on, D6 off, D7 on.
2.4.2 CFET Input Overvoltage Protection
1. Increase the voltage of PS 1 to 11 V ±0.1 V.
Observe → D2 on, D3 off, D6 off, D7 off.
2. Decrease the voltage of PS 1 to 5 V ±0.1 V.
Observe → D2 on, D3 on, D6 off, D7 on.
2.4.3 CFET Load Overcurrent Protection
1. Enable the output of load 1.
Observe → D2 on, D3 off, D6 off, D7 off.
2. Disable the output of load 1.
Observe → D2 on, D3 on, D6 off, D7 on.
3. Decrease the voltage of PS 1 to 0 V ±0.1 V.
PCB Layout Guideline
3 PCB Layout Guideline
1. It is critical that the exposed thermal pad on the back side of the bq24351 package be soldered to the
printed-circuit board (PCB) ground. Ensure that sufficient thermal vias are located underneath the IC,
connecting to the ground plane on the other layers.
2. The high-current charge paths into ACIN and from the CHGIN and OUT pins must be sized
appropriately for the maximum charge current in order to avoid excessive voltage drops in these
traces.
3. Decoupling capacitors for ACIN and CHGIN must be placed to make the interconnections to the IC as
short as possible.
4. Resistors for VBAT pin must be placed close to the corresponding IC pins and make the
interconnections to the IC as short as possible.
SLUU455–October 2010 bq24351EVM for Li-Ion Charger Front-End Protection IC
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
5
Bill of Materials, Board Layout, and Schematic
4 Bill of Materials, Board Layout, and Schematic
4.1 Bill of Materials
Table 1. Bill of Materials
bq24351 RefDes Value Description Size Part Number MFR
1 C1 1 µF Capacitor, ceramic, 35-V, X5R, 10% 603 Std Std
3 C2, C3, C5 1 µF Capacitor, ceramic, 10-V, X7R, 10% 603 Std Std
1 C4 0.1 µF Capacitor, ceramic, 16-V, X7R, 10% 805 Std Std
1 C6 0.1 µF Capacitor, ceramic, 10-V, X7R, 10% 603 Std Std
1 C7 220 µF Capacitor, electrolytic, 25-V, 20% 0.327 inch × 0.327 UUD1E221MNL1GS Nichicon
inch (8.3 mm × 8.3
mm)
1 D1 BZT52C6V8S Diode, zener, 200-mW, 6.8-V SOD-323 BZT52C6V8S General
3 D2, D3, D6 Green Diode, LED, green, 2.1-V, 20-mA, 6-mcd 603 LTST-C190GKT LITE-ON
2 D4, D7 Red Diode, LED, red, 2.1-V, 20-mA, 6-mcd 603 LTST-C190CKT Lite-On
1 D5 BAT54C Diode, dual Schottky, 200-mA, 30-V SOT23 BAT54C Vishay/LITE-
2 J1, J4 ED1514/2DS Terminal block, 2-pin, 6-A, 3.5-mm 0.27 inch × 0.25 ED1514/2DS OST
inch (6.86 mm ×
6.35 mm)
2 J2, J3 ED1516/4DS Terminal block, 4-pin, 6-A, 3.5-mm 0.55 inch × 0.25 ED1516/4DS OST
inch (14 mm × 6.35
mm)
5 JP1, JP4, JP5, PEC02SAAN Header, 2-pin, 100-mil (2.54-mm) spacing 0.100 inch (2.54 PEC02SAAN Sullins
JP6, JP7 mm) × 2
2 JP2, JP3 PTC03SAAN Header, male 3-pin, 100-mil (2.54-mm) spacing, 0.100 inch (2.54 PTC03SAAN Sullins
(36-pin strip) mm) × 3
5 929950-00 Shorting jumpers, 2-pin, 100-mil (2.54-mm) 929950-00 3M/ESD
spacing
2 R1, R2 0 Resistor, chip, 1/16-W, 1% 402 Std Std
0 R3, R4 0 Resistor, chip, 1/16-W, 1% 402 Std Std
2 R5, R6 200 kΩ Resistor, chip, 1/16-W, 5% 402 Std Std
2 R7, R8 200 kΩ Resistor, chip, 1/16-W, 5% 603 Std Std
2 R9, R10 0.2 Ω Resistor, metal film, 1/4-W, 1% 1206 Std Std
1 R11 20 kΩ Resistor, chip, 1/16-W, 5% 603 Std Std
1 R12 100 kΩ Resistor, chip, 1/16-W, 5% 603 Std Std
1 R13 100 Ω Resistor, chip, 1/16-W, 5% 603 Std Std
1 R14 6.2 kΩ Resistor, chip, 1/16-W, 5% 603 Std Std
4 R15, R16, R17, 1.5 kΩ Resistor, chip, 1/16-W, 5% 603 Std Std
R18
1 R19 51 Ω Resistor, chip, 1/16-W, 5% 603 Std Std
4 6-32 NYL nuts NY HN 632 H620-ND Building
4 ST1, ST2, ST3, 4816 Standoff, M/F, hex 6-32 NYL, 0.500 inch (12.7 sf_thvt_325_rnd 4816 Keystone
ST4 mm)
8 TP1, TP2, TP3, White Test point, white, thru hole, color-keyed 0.100 × 0.100 inch 5002 Keystone
TP4, TP5, TP6, (2.54 mm × 2.54
TP7, TP8 mm)
1 TP9 White Test point, white, thru hole, color-keyed 0.100 × 0.100 inch 5001 Keystone
(2.54 mm × 2.54
mm)
1 U1 bq24351DSG IC, overvoltage and overcurrent charger front-end SON-8 bq24351DSG TI
1 U2 bq2057CSN IC, charge management, one- or two-cell Li-Ion SOIC(SN) bq2057CSN TI
or Li-Pol charger
1 — HPA666 PCB, 2.8-inch × 2.8-inch × 0.062-inch (7.11-cm × PCB Any
7.11-cm × 1.58-mm)
Notes: 1. Number 0 in left side columns means do not use this component.
2. Std in part number column means standard manufacturer’s part number.
www.ti.com
ON
Fasteners
6
bq24351EVM for Li-Ion Charger Front-End Protection IC SLUU455–October 2010
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
C001
www.ti.com
4.2 Board Layout
Bill of Materials, Board Layout, and Schematic
Figure 2. Top Layer
SLUU455–October 2010 bq24351EVM for Li-Ion Charger Front-End Protection IC
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
7
C002
Bill of Materials, Board Layout, and Schematic
www.ti.com
Figure 3. Bottom Layer
8
bq24351EVM for Li-Ion Charger Front-End Protection IC SLUU455–October 2010
Copyright © 2010, Texas Instruments Incorporated
Submit Documentation Feedback
C003
www.ti.com
Bill of Materials, Board Layout, and Schematic
Figure 4. Top Silk Screen
SLUU455–October 2010 bq24351EVM for Li-Ion Charger Front-End Protection IC
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
9
C004
Bill of Materials, Board Layout, and Schematic
www.ti.com
10
Figure 5. Top Assembly
bq24351EVM for Li-Ion Charger Front-End Protection IC SLUU455–October 2010
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
CAUTION: Device may have surface temperature
in excess of 60°C when unit is operational.
www.ti.com
4.3 Schematic
Bill of Materials, Board Layout, and Schematic
Figure 6. bq24351 Schematic
SLUU455–October 2010 bq24351EVM for Li-Ion Charger Front-End Protection IC
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
11
Evaluation Board/Kit Important Notice
Texas Instruments (TI) provides the enclosed product(s) under the following conditions:
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the
product(s) must have electronics training and observe good engineering practice standards. As such, the goods being provided are
not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations,
including product safety and environmental measures typically found in end products that incorporate such semiconductor
components or circuit boards. This evaluation board/kit does not fall within the scope of the European Union directives regarding
electromagnetic compatibility, restricted substances (RoHS), recycling (WEEE), FCC, CE or UL, and therefore may not meet the
technical requirements of these directives or other related directives.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30
days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY
SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all
claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to
take any and all appropriate precautions with regard to electrostatic discharge.
EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive.
TI assumes no liability for applications assistance, customer product design, software performance, or infringement of
patents or services described herein.
Please read the User’s Guide and, specifically, the Warnings and Restrictions notice in the User’s Guide prior to handling the
product. This notice contains important safety information about temperatures and voltages. For additional information on TI’s
environmental and/or safety programs, please contact the TI application engineer or visit www.ti.com/esh.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used.
FCC Warning
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. It generates, uses, and
can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15
of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this
equipment in other environments may cause interference with radio communications, in which case the user at his own expense
will be required to take whatever measures may be required to correct this interference.
EVM Warnings and Restrictions
It is important to operate this EVM within the input voltage range of 4.5 V to 26 V and the output voltage range of 0 V to 4.2 V .
Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there are
questions concerning the input range, please contact a TI field representative prior to connecting the input power.
Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to the
EVM. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the load
specification, please contact a TI field representative.
During normal operation, some circuit components may have case temperatures greater than 70°C. The EVM is designed to
operate properly with certain components above 125°C as long as the input and output ranges are maintained. These components
include but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types of
devices can be identified using the EVM schematic located in the EVM User's Guide. When placing measurement probes near
these devices during operation, please be aware that these devices may be very warm to the touch.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2010, Texas Instruments Incorporated
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products Applications
Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DLP® Products www.dlp.com Communications and www.ti.com/communications
DSP dsp.ti.com Computers and www.ti.com/computers
Clocks and Timers www.ti.com/clocks Consumer Electronics www.ti.com/consumer-apps
Interface interface.ti.com Energy www.ti.com/energy
Logic logic.ti.com Industrial www.ti.com/industrial
Power Mgmt power.ti.com Medical www.ti.com/medical
Microcontrollers microcontroller.ti.com Security www.ti.com/security
RFID www.ti-rfid.com Space, Avionics & www.ti.com/space-avionics-defense
RF/IF and ZigBee® Solutions www.ti.com/lprf Video and Imaging www.ti.com/video
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2010, Texas Instruments Incorporated
Telecom
Peripherals
Defense
Wireless www.ti.com/wireless-apps
Loading...
