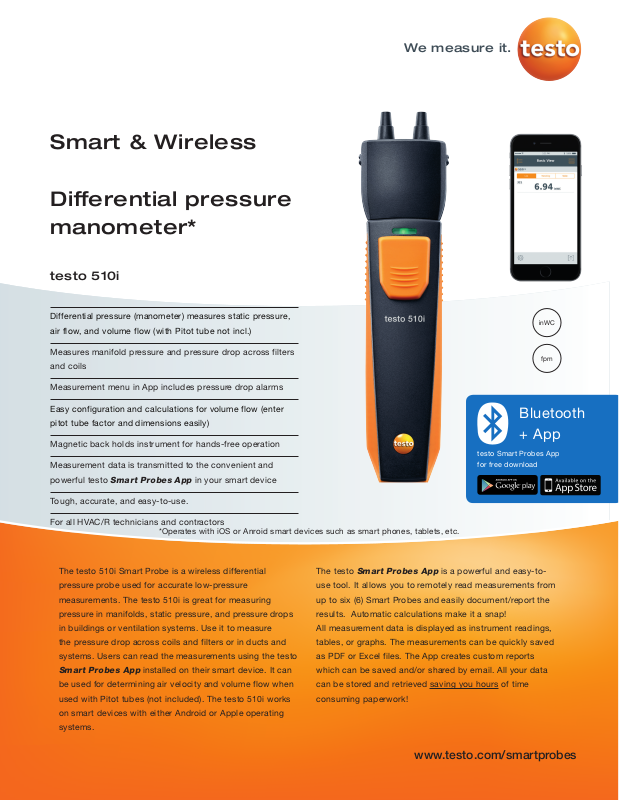

Testo 510i Specifications

Smart & Wireless

Dierential pressure
manometer*

testo 510i

We measure it.

Differential pressure (manometer) measures static pressure,

air flow, and volume flow (with Pitot tube not incl.)

Measures manifold pressure and pressure drop across filters

and coils

Measurement menu in App includes pressure drop alarms

Easy configuration and calculations for volume flow (enter

pitot tube factor and dimensions easily)

Magnetic back holds instrument for hands-free operation

Measurement data is transmitted to the convenient and

powerful testo

Tough, accurate, and easy-to-use.

For all HVAC/R technicians and contractors

The testo 510i Smart Probe is a wireless differential

pressure probe used for accurate low-pressure

measurements. The testo 510i is great for measuring

pressure in manifolds, static pressure, and pressure drops

in buildings or ventilation systems. Use it to measure

the pressure drop across coils and filters or in ducts and

systems. Users can read the measurements using the testo

Smart Probes App

be used for determining air velocity and volume flow when

used with Pitot tubes (not included). The testo 510i works

on smart devices with either Android or Apple operating

systems.

Smart Probes App

*Operates with iOS or Anroid smart devices such as smart phones, tablets, etc.

installed on their smart device. It can

in your smart device

inWC

fpm

Bluetooth
+ App

testo Smart Probes App

for free download

The testo

use tool. It allows you to remotely read measurements from

up to six (6) Smart Probes and easily document/report the

results. Automatic calculations make it a snap!

All measurement data is displayed as instrument readings,

tables, or graphs. The measurements can be quickly saved

as PDF or Excel files. The App creates custom reports

which can be saved and/or shared by email. All your data

can be stored and retrieved saving you hours of time

consuming paperwork!

Smart Probes App

www.testo.com/smartprobes

is a powerful and easy-to-

testo 510i We measure it.

Technical data/accessories

testo 510i

testo 510i, Bluetooth differential pressure probe
withApp, incl. hose set (Ø 0.15 in and 0.2 in)
with adapter, 3 AAA batteries and certificate of
calibration

Order no. 0560 1510

Testo Smart Probes App

The Testo
power of your smart phone/tablet with the
accurate measurements of your Smart Probes.
The operation and display of the instruments are
communicated via Bluetooth to the App on your
smart phone or tablet . The
uses the measurements to create custom reports
(including added photos and comments).
Information and reports can be saved as files
and/or sent by e-mail. For Apple iOS and
Android.

Smart Probes App

combines the

Smart Probes App

Sensor type Pressure

Measuring range -60 to 60inWC

Accuracy ±0.02 inWC (0 to 0.4 inWC)

Resolution 0.004inWC

±(0.01 inWC + 1.5 % of m.v.) (0.4 to 60 inWC)

General technical data

Compatibility requires iOS 8.3 (or later) /

Storage temperature -4 to 140 °F

Operating temperature -4 to 122 °F

Battery type 3 AAA Batteries (incl.)

Battery life 150hrs

Dimensions 5.8 x 1.4 x 0.9 in

Warranty 2 years

Measuring Units mbar, hPa, Pa, mmHg, inHg, inWC, psi,

Android 4.3 (or later)

requires mobile device with Bluetooth4.0

mmWC, m/s, fpm, m3/h, cfm, l/s

VAC Smart Probe Kit: 0563 0003

Accessories

testo VAC Smart Probe Kit for servicing ventilation and air conditioning systems.
Includes: testo 405i, testo 410i, testo 605i, testo 805i. Dimensions 10.6 x 7.5 x 2.4 in

testo Smart Case (VAC) for the storage and transport of testo 405i, testo 410i, testo 510i, testo 605i, testo805i and testo 905i
Dimensions 10.6 x 7.5 x 2.4 in

Order no.

0563 0003

0516 0260

Testo, Inc.

40 White Lake Road

Sparta, NJ 07871

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Web: www.testo.com

testo 510i data sheet ver l.o | Subject to change without notice | Not responsible for typographical errors.
