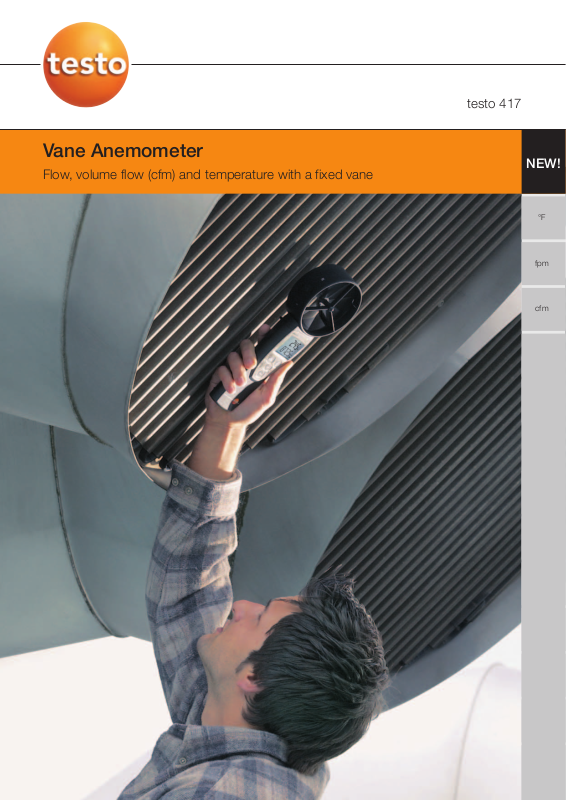

Testo 417 Data sheet

Vane Anemometer

Flow, volume flow (cfm) and temperature with a fixed vane

testo 417

NEW!

°F

fpm

cfm

testo 417

Vane Anemometer

The compact testo 417
anemometer utilizes a fixed flow­temperature vane to directly
measure flow, volume flow and
temperature. Volumetric flow is
shown directly on the clear backlit
display. Just input the duct
measurements. and accurate
volume flow calculations are
automatically displayed. You can
also switch between flow and
temperature. Flow direction,
either from pressure or vacuum
source, is visible in the display.
Timed and multi-point mean
caluclations provide information
on mean volume flow, velocity
and temperature. Min-Max values
can also be displayed. The
"Hold" function freezes current
readings in the display making
data recording easy.

Flow direction is shown in display

Flow, volume flow (cfm), and
temperature measurements

Multi-point and timed mean
calculations

Max - Min values

"Hold" button freezes readings

Clear backlit display

Auto Off

testo 417 monitoring the air flow at a ventilation duct

testo 417, vane probe anemometer
with built-in 4 in. vane, incl.
temperature measurement, battery
and calibration document

Part no.

0560 4170

Technical data

PPrroobbee ttyyppee
Meas. range
Accuracy
±1 digit
Resolution

Oper. temp. 32 to +122 °F
Storage temp. -40 to +185 °F
Battery type 9V battery
Battery life

testo

Inc
35 Ironia Rd.
Flanders, NJ 07836
Tel.: [phone]
Fax: [phone]
E-Mail: [e-mail]
Internet: www.testo.com

NNTTCC
32 to +122 °F

±0.9 °F

0.1 °F

50 hr

VVaannee
+0.3 to +20 fpm

±(0.1 fpm +1.5% of m.v.)

0.01 fpm

Dimensions
Weight 8 oz
Material/Housing
Warranty 2 years

VVoolluummee ffllooww
0 to +99999 cfm

0.1 cfm (0 to +99.9 cfm)
1 cfm (+100 to +99999 cfm)

11 x 4 x 1.8 in

ABS

testo 417 monitoring the exhaust air flow at a wall duct

Accessories

Zubehör

Case for instrument 0516 0210

Funnel kit consisting of funnel for disc valves (8" x 8") and funnel for
ventilator (12" x 12")

Recharger for 9 V rechargeable battery
For external recharging of 0515 0025 battery

9V rechargeable battery for instrument 0515 0025

NIST calibration certificate/Velocity
Hot wire, vane anemometer; calibration points 100; 200; 400; 1000; 2000 fpm

ISO calibration certificate/Velocity
Hot wire, vane anemometer, Pitot tube; calibration points 200; 400; 1000;

ISO calibration certificate/Velocity
Hot wire, vane anemometer, Pitot tube; calibration points 1000; 2000; 3000;

ISO calibration certificate/Velocity
Hot wire, vane anemometer; calibration points 100; 160; 200; 300 fpm

Part no.

0563 4170

0554 0025

0520 0244

0520 0004

520 0034

0520 0024

nformation subject to change without notice.
