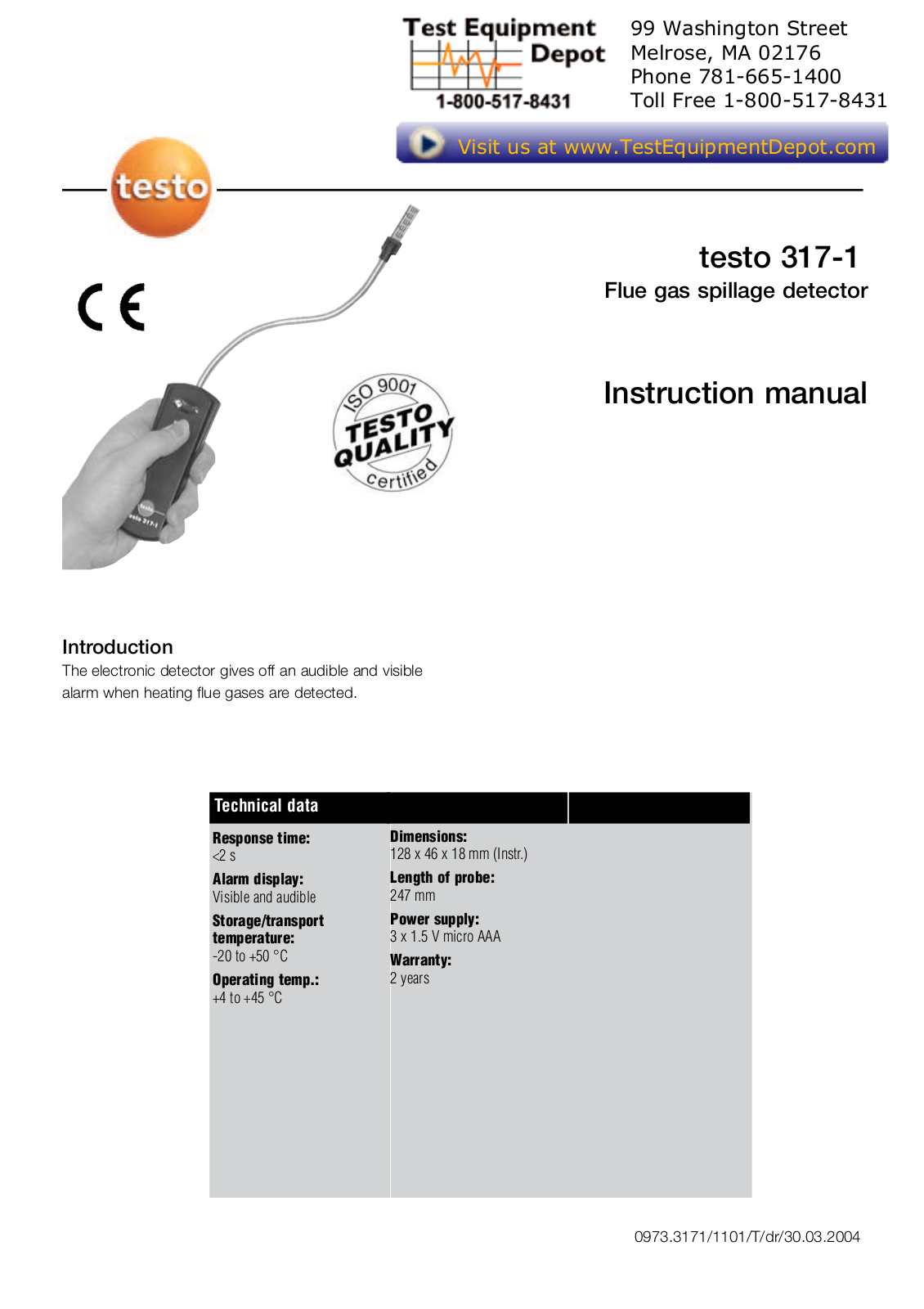

TESTO 317-1 Instruction Manual

Introduction

The electronic detector gives off an audible and visible
alarm when heating flue gases are detected.

99 Washington Street
Melrose, MA 02176

Phone [phone]
Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

testo 317-1

Flue gas spillage detector

Instruction manual

Technical data

Response time:

<2 s

Alarm display:

Visible and audible

Storage/transport
temperature:

-20 to +50 °C

Operating temp.:

+4 to +45 °C

Dimensions:

128 x 46 x 18 mm (Instr.)

Length of probe:

247 mm

Power supply:

3 x 1.5 V micro AAA

Warranty:

2 years

0973.3171/1101/T/dr/30.03.2004

testo 317-1

0632.3170

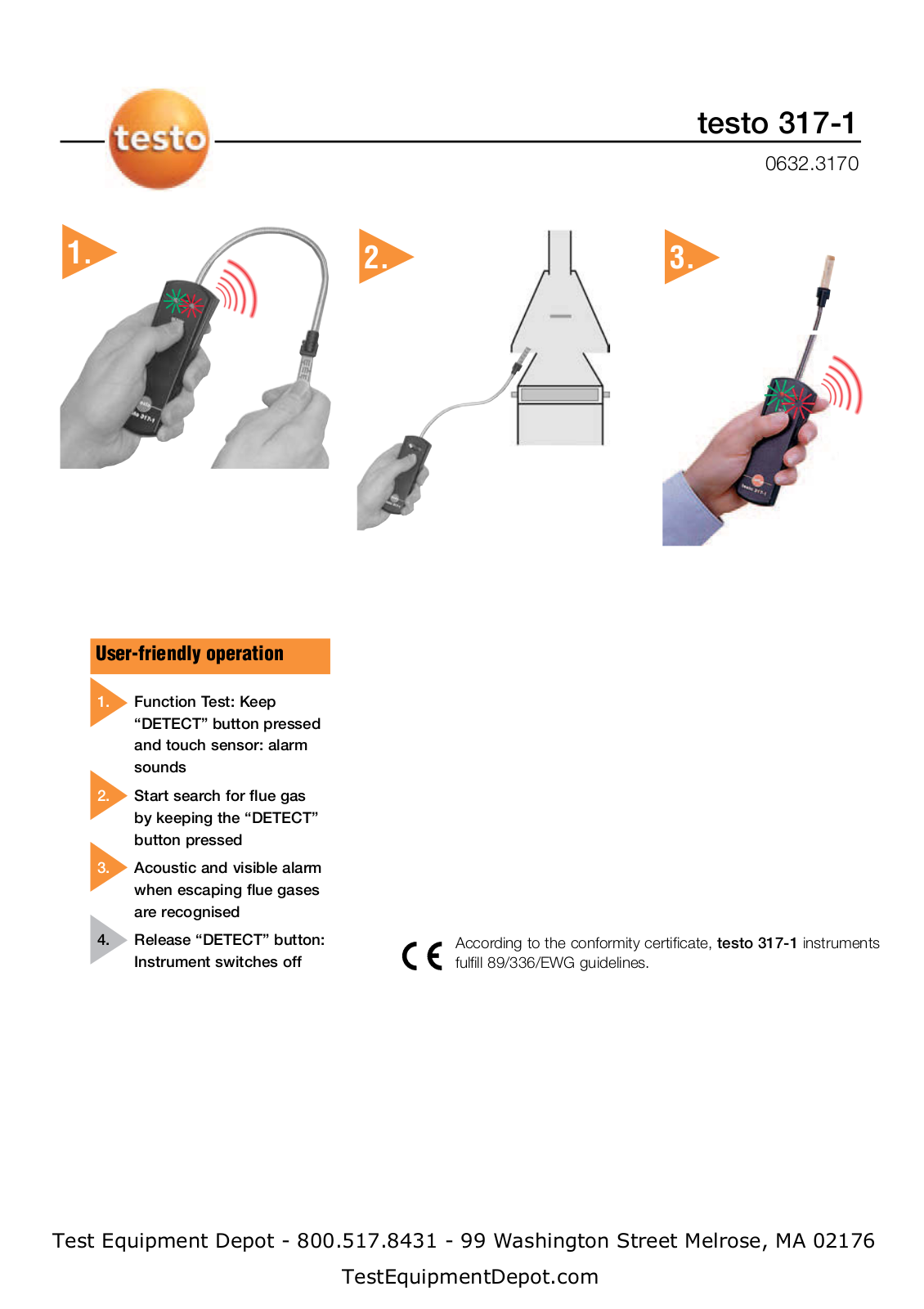

1.

User-friendly operation

1. Function Test: Keep

“DETECT” button pressed
and touch sensor: alarm
sounds

2. Start search for flue gas

by keeping the “DETECT”
button pressed

3. Acoustic and visible alarm

when escaping flue gases
are recognised

4. Release “DETECT” button:
Instrument switches off

2.

3.

According to the conformity certificate, testo 317-1 instruments
fulfill 89/336/EWG guidelines.
