NSG 435 ESD Simulator
Page 2
Combining ease of operation and ergonomic design with exceptionally high functionality,
the NSG 435 offers all the features of a comprehensive ESD test system in a compact,
light-weight, hand-held instrument.
ESD tests form a particularly powerful part of EMC test strategies: they are used to verify
complete systems and identify disturbances in installations, as well for type testing.
The high frequency components of the pulse help diagnose immunity failures caused by
bad cabling or system composition, and can also indicate grounding problems.
Ergonomic design and high functionality
Careful attention has been paid to ergonomic design to ensure that the NSG 435 sits easily in the
hand without being tiring or uncomfortable during long or repeated test procedures. The liquid crystal
display panel is clearly visible at all times in the working position and all the controls are conveniently
at the user’s fingertips.
The NSG 435 is powered by a rechargeable battery supply, so there is no separate high voltage
generator or stiff connecting cable to hinder access to the EUT. The battery, which lasts for several
days under normal test usage, can be easily interchanges and recharged in just three hours.
Microprocessor-based control and a five-key pad give access to the comprehensive range of built-in
functions. The liquid crystal display shows the operating status and all user-programmed test
parameters continuously. A discharge pulse counter is incorporated and a further handy feature is the
provision of a preset counter for long duration tests and remote use.
The NSG 435 has its own high voltage generator producing pulses up to 16.5kV. In addition to the
pre-programmed, standard IEC pulses, the user can create custom tests, using single or repetitive
discharges with selectable frequencies, discharge rates and manual or automatic polarity switching.
A unique feature is the detection of a real or valid discharge thereby avoiding misleading discharge
counts. This is especially important during long term and remote test set up.
● User programmable discharge voltage 200V to 16.5kV
● Built-in IEC 1000-4-2 test settings
● Battery powered
● Compact and Iightweight design
NSG 435
A new concept
The NSG 435 comes with a
150pF/330Ω discharge network
for tests to IEC 1000-4-2, and a
range of interchangeable
discharge networks is available
for other standards including
EN, ANSI-IEEE, ISO, etc.
The discharge voltage of up to
16.5kV for air discharges and
up to 9kV for contact
discharges ensures a
comfortable margin over and
above the values required for
the standard tests.
Page 3
Basic Kit

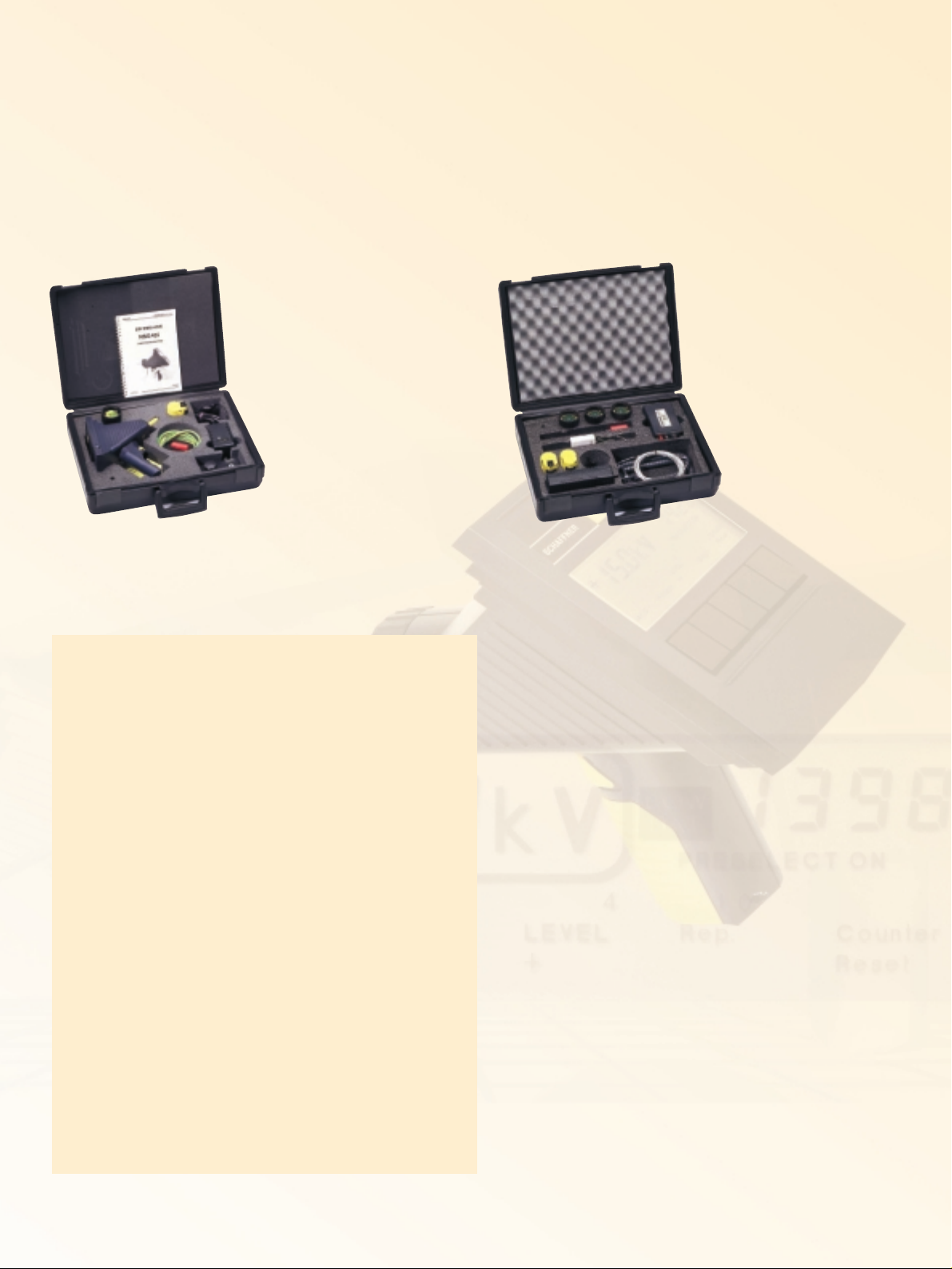

The standard basic NSG 435
simulator system consists of:
Carrying case 42 x 3 2x 13.5cm
(16.5 x 12.5 x 5.3ins)
NSG 435 electrostatic discharge
generator
Battery pack
Discharge network for
150pF/330Ω test to IEC 1000-4-2
Test finger, air discharge
Test finger, contact discharge
Earthing cable
Battery re-charger
Operating instructions
Optional Extras
A range of optional extras is
available for special
applications:
Carrying case (options)
42 x 32 x 13.5cm
(16.5 x 12.5 x 5.3ins)
Mains power supply unit
Spare battery pack
Remote triggering unit with
5m (16ft) fibre-optic cable
Discharge network for
150pF/150Ω test to
IEC 801-2/1984
Special discharge networks
Test finger with fast leading
edge <400ps
Coaxial measuring adapter
Technical specifications
Pulse data - standard As per IEC 1000-4-2
Pulse data - special Interchangeable test fingers to conform with
other standards
Discharge network - standard 150pF/330Ω as per IEC 1000-4-2
Discharge network - special Interchangeable networks to conform with
other standards
Discharge voltage - air 200V to 16.5kV (in 100V steps); tolerance
±5%, 1 to 16kV
Discharge voltage - contact 200V to 9kV (in 100V steps); tolerance ±5%,
1 to 9kV
Test finger - standard Ball and point as per IEC, interchangeable,
screw fitting
Test finger - special Special test finger for fast rise time pulse
Voltage measurement On HV side, dynamic; accuracy better than
±5%, 1 to 16kV
Holding time > 5s
Triggering Manual trigger button or optical remote input
Remote control Optical interface for INA 415
Power supply Rechargeable battery pack in hand-grip,
interchangeable, 3hour re-charging time;
mains power unit available as an accessory
Polarity Positive, negative or automatic switching
Operating modes Single; repetitive at 0.5, 1, 5, 10, 20, or 25Hz;
continuous
Pulse counter 0 to 9999
Pre-set counter 0 to 9999
Display LCD panel showing:
discharge voltage • breakdown voltage •
polarity • air/contact discharge •
counter/preset counter • soft key functions •
battery monitor
Weight NSG 435 with battery: 1.2kg (2.64lbs) approx.
Environmental conditions
during operation 5 to 40°C (40 to 105°F); 20 to 80% rh (non
condensing);
68 to 106kPa
A comprehensive test package
The simulator system is supplied with standard accessories,
including interchangeable test fingers, an earthing cable and
battery re-charger - all in a durable carrying case. There is
an optional fibre optic remote control trigger for operation
inside a screened room or enclosure. The LC-display gives
the operator a clear, continuous indication of all the test
parameters, the operational status of the instrument and the
current function of each of the five software-controlled keys
as well as:
• Discharge voltage - actual or pre-set
voltage, with polarity indicator
• Counter - number of discharges,
up-counter or preselection down-counter
• Battery status - low battery indicator
