Blood Pressure Monitor for
Medical Professionals from TERUMO
®

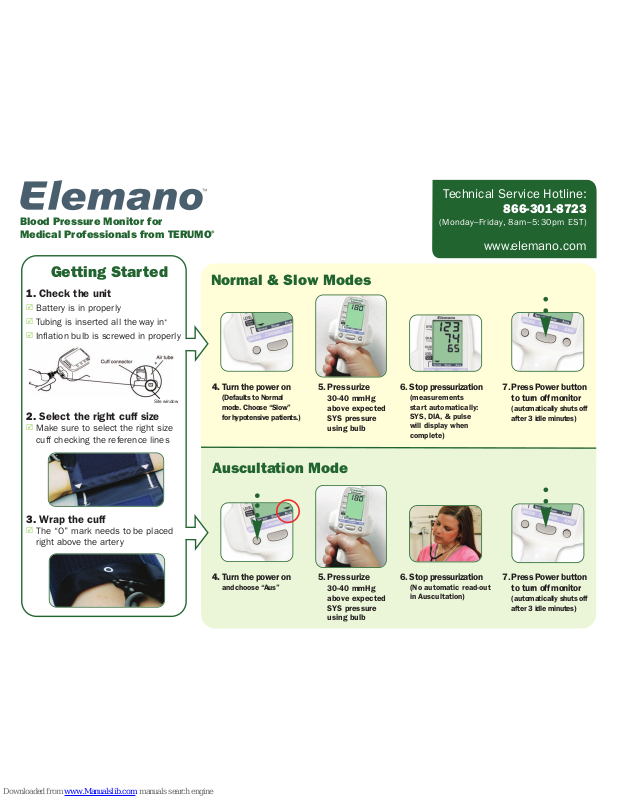

Getting Started
1. Check the unit
!
Battery is in properly
!
Tubing is inserted all the way in
*
!
Ination bulb is screwed in properly
2. Select the right cuff size
!
Make sure to select the right size
cuff checking the reference lines
3. Wrap the cuff
!
The “O” mark needs to be placed
right above the ar ter y
Normal & Slow Modes
Auscultation Mode
4. Tur n th e po wer on
(Defaults to Normal
mode. Choose “Slow”
for h ypotensive patients.)
4. Tur n th e po wer on
and choose “Aus”
6. Stop pressurization
(measurements
start automatically:
SYS, DIA, & pulse
will display when
complete)
7. Press Power button
to turn off monitor
(automatically shuts off
after 3 idle minutes)
5. Pressurize
30-40 mmHg
above expected
SYS pressure
using bulb
5. Pressurize
30-40 mmHg
above expected
SYS pressure
using bulb
6. Stop pressurization
(No automatic read-out
in Auscultation)
7. Press Power button
to turn off monitor
(automatically shuts off
after 3 idle minutes)
*
Site window
™
![](/html/eb/eb06/eb062478a415b4a4b52979312391aa11711c36d7e0fee1a7d89b9a07aa683bd9/bg2.png)
TERUMO MEDICAL PRODUCTS
Troubleshooting
A
“LOW” INDICATION
“Low” indication displays when pressurization
is not enough. It is recommended to pressurize
30–40 mmHg higher than expected systolic.
If you see the LOW sign, keep pumping to
higher number. Make sure the tubes are
connected properly using the site window.
B
DIFFICULT PRESSURIZATION
Elemano may have a clogged air lter in
ination bulb or there may be deterioration in
the bulb. In case of a clogged air lter, it
needs to be cleaned (refer to the Instructions
Manual, page E-18). If the ination bulb has
deteriorated, replace it with a new bulb.
Err 1, Err 2,
Err 5
Err 3
Err 4
Errors Symptoms Measures
Contact Terumo technical service
Check the connection between the main
body and the cuff/ination bulb
Reapply the cuff around the patient’s arm
Check the connection between the main
body and the cuff
Measure again while keeping the patient at
rest with the arm rested on a rm surface
Do not shake or vibrate the main body during
measurement
Use Auscultation or palpation for
measurement
Reapply the cuff around the patient’s arm
Measure again while keeping the patient at
rest with the arm rested on a rm surface
Do not shake or vibrate the main body during
measurement
Out of order
The cuff connector, the air tube
and/or the ination bulb are
incorrectly connected to the
main body
The cuff is not applied properly
The air tube is not connected
The patient moved during
measurement
The main body was shaken or
vibrated during measurement
Abnormal blood pressure/pulse
was detected
The cuff is not applied properly
The patient moved during
measurement
The main body was shaken or
vibrated during measurement
D
Error indications
Arm circumference sizing:
Size Centimeters Inches
SS 13-20 cm 5.1”-7.9”
S 17-26 cm 6.7”-10.2”
M 24-32 cm 9.4”-12.6”
L 32-42 cm 12.6”-16.5”
Cuff Sizes
Please refer to the Instruction Manual or visit our website for detailed troubleshooting information.
©2008 Elemano is a trademark ofTerumo Corporation. TERUMO is a registered trademark of Terumo Corporation.
C
FLASHING PANEL
The Elemano display panel ashes to
warn abnormal conditions such as irregular
beats or weak pulse. If this happens, perform
the measurement in the Auscultation mode to
verify the condition.
Technical Service Hotline:
866-301-8723
www.elemano.com
