Terra mhi430 User Manual

HDMI encoder with IP output mhi430

1. Product description

HDMI encoder with IP output (in text - module) designed to encode in H.264 standard and broadcast in multicast on an
IP network the services (TV programs) issued from HDMI input. The IP streams can be viewed using an IPTV set-top box
or a software video player.

Modules are intended for indoor use only.

2. Characteristics

Input: Three HDMI inputs.

Output: Three IP-encapsulated services (TV programs), encoded in H.264 standard, with individual multicast addresses.

• Generating of DVB tables.

• UDP & RTP transmission protocols.

• Web interface for conguration and setting.

• SNMP agent for monitoring and alarms.

• SAP & SDP protocols that facilitate automatic service selection on the user's STB and provide information to external

servers.

• PID conguration.

• PSI/SI conguration.

• PAT, PMT and SDT table generation.

• Congurable QoS marking.

• Congurable Time To Live.

3. Safety instructions

Installation of the module must be done according IEC60728-11 and national safety standards.

Any repairs must be made by qualied personnel.

Do not expose this module to moisture or splashing water and make sure no objects lled with liquids, such as vases,

are placed near or on the unit.

Avoid placing the module next to heat sources such as central heating components or in areas of high humidity.

Keep the module away from naked ames.

If the module has been kept in cold conditions for a long time, bringing it into a warm environment may cause condensation,
so allow it to warm up for no less than 2 hours before plugging into the mains.

Ventilation should not be impeded by covering the module, such as newspapers, table-cloths, curtains etc.

Mount the module in a vertical position only. If installing in a 19” rack system additional forced air cooling fans may be
required (see table "Technical specications" - operating temperature range).

Always allow 10 cm of free space from the top, front and bottom of the unit to enable any heat to be dissipated.

Draugystes str. 22, LT-51256 Kaunas, Lithuania, tel.: +370 37 - 31 34 44, fax: +370 37 - 31 35 55

E-mail: [e-mail], http://www.terraelectronics.com

Channel processing equipment

This product complies with the relevant clauses of the European Directive 2002/96/EC. The unit must be recycled

or discarded according to applicable local and national regulations.

Equipment intended for indoor usage only.

TERRA confirms, that this product is in accordance to following norms of EU: EMC norm EN50083-2, safety norm EN60065,
RoHS norm EN50581.

TERRA conrms, that this product is in accordance with Custom Union Technical Regulations: “Electromagnetic compatibility of technical
equipment“ CU TR 020/2011, “On safety of low-voltage equipment“ CU TR 004/2011.

Vers. 1.02

11

2

5. Installation instructions

Read the safety instruction rst.

All settings can be made using the web browser via control Ethernet interface.
Disconnect power supply unit from the mains before make all connections of modules.
Mount the module on DIN RAIL or individual holder. The module or mounting bracket must be xed with steel

screws Ø 3.5-4 mm. The screws are not included in a package.

Connect all necessary HDMI, powering and control cables. Shielded cable is recommended for Ethernet connection.
Connect power supply in to the mains.

Within 5-20 seconds of powering the module will run in normal operation mode.

Comments of the Ethernet interface indicators:

• if the link with the control Ethernet interface is established - the LINK/ACTIVITY indicator [5] blinks;

• when module operating, the STATUS indicator [6] blinks at frequency about one time per second;

• if the link with the streaming Ethernet interface is established - the LINK indicator [12] glows.

1, 2, 3 - HDMI 1, HDMI 2, HDM 3 input connectors.

4 - ETHERNET - control over Ethernet interface.

RJ-45 socket.

5 - LINK/ACTIVITY (yellow) indicator of the Ethernet

interface.

6 - STATUS (green) indicator.

7 - RESET button.

* Press this button shortly to restart the module.
* Press this button for more than three seconds to
set the default IP address of control over Ethernet
interface. Administrator password will be changed
to the default value as well.

8 - Power distribution bus connector.

9 - +12 V DC powering input. Screw terminal.
10 - TS/IP OUT - streaming Ethernet interface.

RJ45 socket.

11 - ACTIVITY (yellow) indicator of the streaming

Ethernet interface.

12 - LINK (green) indicator of the Ethernet interface.

4. External view

6. MOUNTING

Mounting on a wall by screws Mounting on a bracket (supplied)

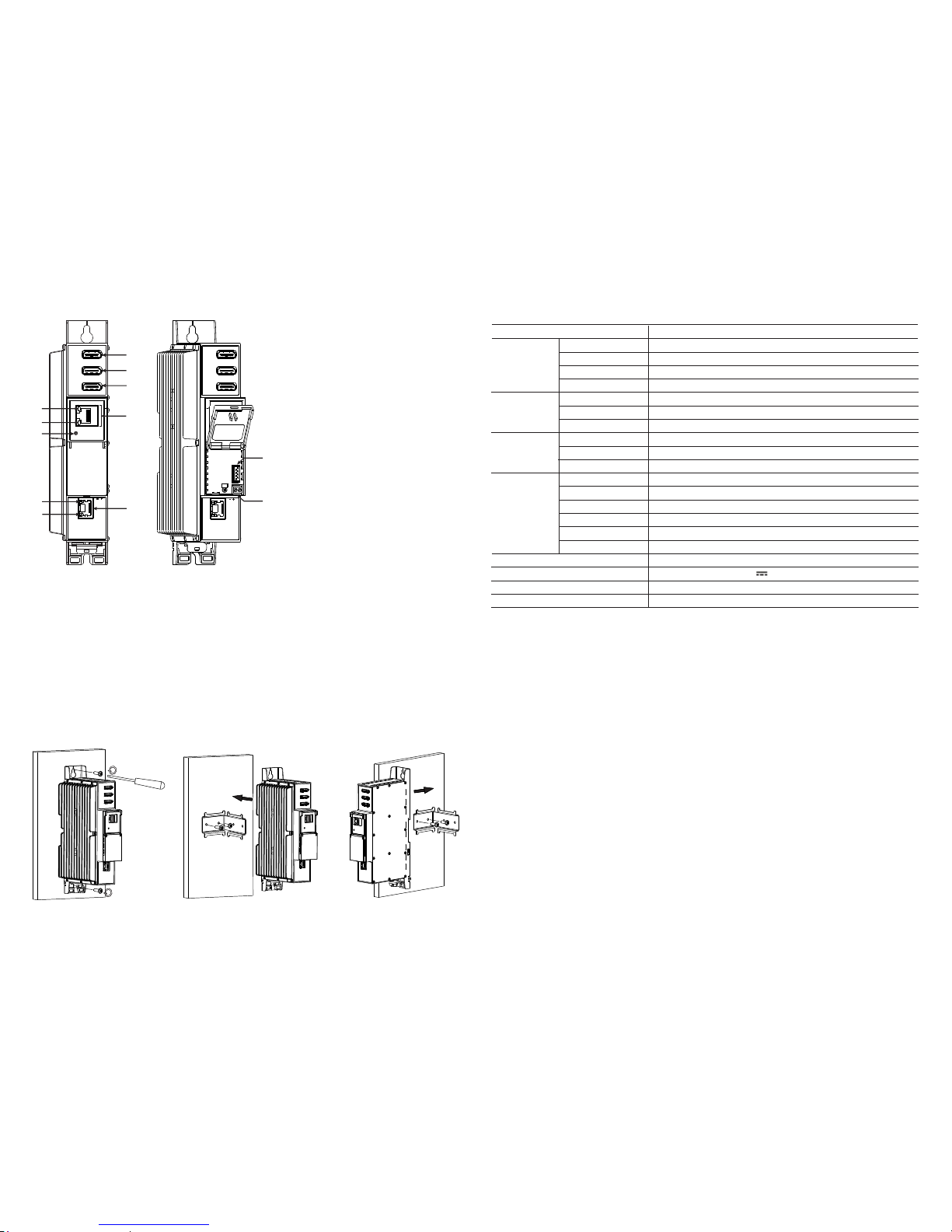

Figure 1. External view of the encoder

Perpendicular to the wall Parallel to the wall

Figure 2. Mounting of the encoder

Technical specications

Type mhi430

Video input input signal type HDMI

video coding MPEG-4 AVC/H.264, Baseline profile 4.0

input resolution 1920x1080-60p

output resolution 1920x1080-30p

Audio input input signal type HDMI

standard MPEG-1 Layer II, AAC

audio bit rate 64, 96, 128, 192, 256, 320, 384 kbps

H.264 Encoder standard MPEG-4 AVC/H.264

bit rate 4 - 11 Mb/s adjustable

configurable parameters Service Name, Service ID, Video PID, Audio PID, PMT PID, PCR PID

IP output standard IEE802.3 10/100 Base T

bit rate up to 100 Mbps

transmission protocols UDP/RTP

multicast Yes

MPTS No

SPTS Yes

Supply voltage 12 V ±1 V

Current consumption 700 mA max.

Operating temperature 00 C ÷ +500 C

Dimensions/Weight (packed) 48.5x198x112 mm/0.9 kg

DC IN

12V

-

+

mhi430

RESET

ETHERNET

TERRA

1

2

5

6

4

7

8

9

TS/IP
OUT

10

11

12

HDMI 1

HDMI 2

HDMI 3

3

mhi430

DC IN

12V

-

+

TS/IP
OUT

HDMI 1

HDMI 2

HDMI 3

3

10

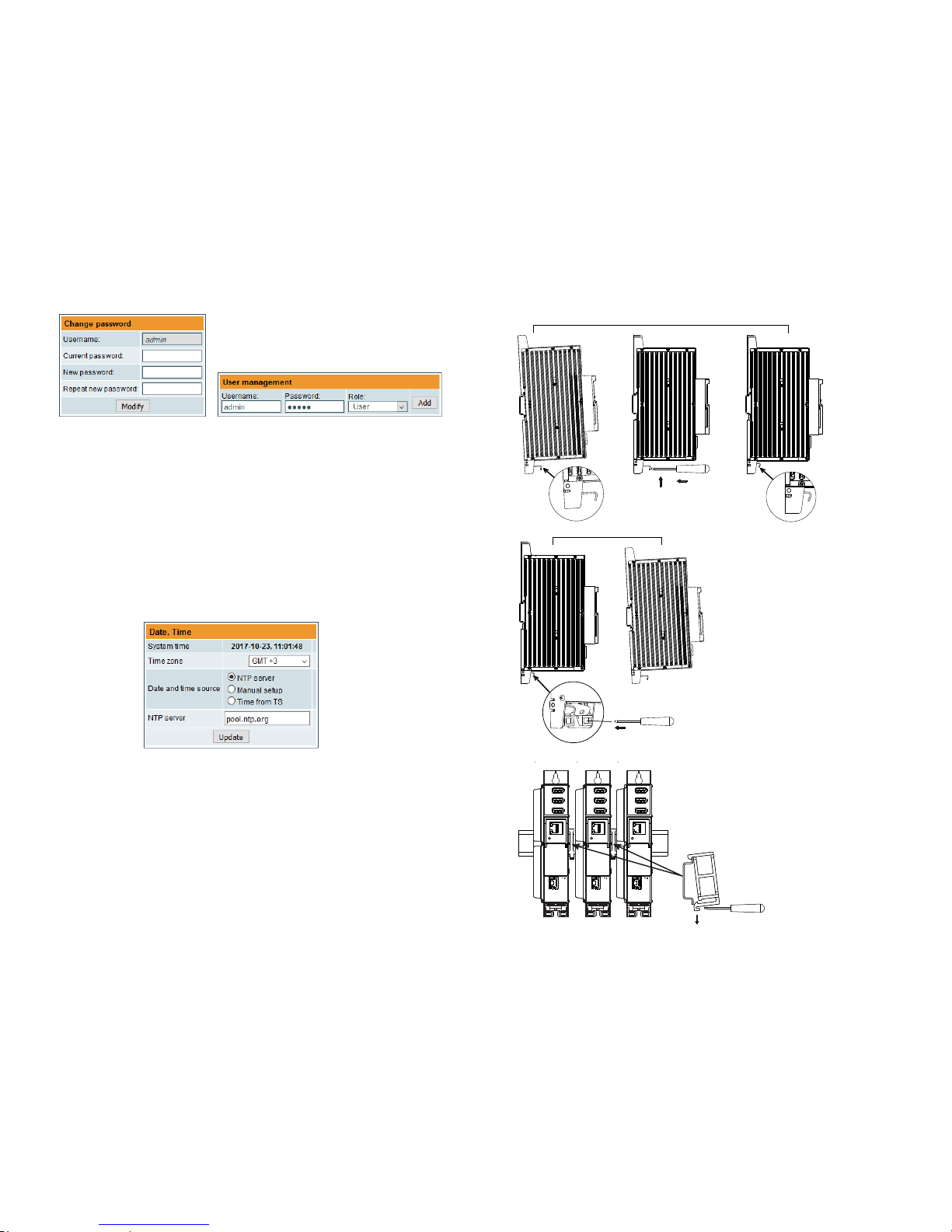

Mounting on DIN rail

Figure 5. Mounting or removing to/from

DIN rail of plastic spacers (supplied).

Figure 3. Mounting to DIN rail

Figure 4. Mounting from DIN rail

Figure 16. User management

Enter it’s username, password, select a role and press „Add“ button.
Only administrator (user with a role „admin“) may manage other users.

NOTE: By giving your personal password or user access account for another person, you take full responsibility for all

module settings modications made by that person or anyone else they may give the password to.

7.6.6. Restore defaults

All parameters will be restored back to factory defaults after conrmation. The exception – IP address and users – these
parameters will be unchanged. To restore IP address and system password to system defaults, see „RESET“ button at
section 3, pos.7.

Several seconds can take to restore all parameters, so be patient.

7.6.7. Restart the device

Device will be restarted after conrmation to do it. This is an alternative to pressing a „RESET“ button when the device

is operating.

7.6.8. Date, Time

System time can be congured manually or taken from NTP server (only if module can access NTP server).

Figure 17. "Date, Time" settings table

7.6.9. Language

Device control panel supports several preinstalled languages. A change of language requires system restart. Note, that
all previously logged records will remain in previous language.

Additional languages can be installed under request. Contact our distributors for such possibility.

1. 2.

RESET

ETHERNET

mhi430

DC IN
12V

-

+

TS/IP
OUT

RESET

ETHERNET

mhi430

DC IN
12V

-

+

TS/IP
OUT

RESET

ETHERNET

mhi430

DC IN
12V

-

+

TS/IP
OUT

9

4

7. Operating

7.1 Initial conguration

All modules leave the factory with this control Ethernet interface IP address: 192.168.1.10. In order to avoid conicts with
other IP addresses, it is necessary to perform an initial conguration in local mode. Subsequently, it will be possible to access
the modules via the local area network (LAN), either to re-programme it or to check is operating status.

The modules leave the factory with the following Control Ethernet interface TCP/IP conguration:

IP address of the module: 192.168.1.10

Subnet mask: 255.255.255.0

Default Gateway: 192.168.1.1

To access each module, use a PC or MAC personal computer equipped with an Ethernet

card and RJ-45 cable (CAT-5E or CAT-6). The IP address of the PC/MAC must be congured
within the following range: 192.168.1.2 - 192.168.1.254 (do not use 192.168.1.10, since this is
the IP address of the module to be congured). To start the conguration of the module, open

your web browser and type in the following direction: http://192.168.1.10. The login prompt
will appear on the screen (see Figure 6.). Module can be controlled using any web browser.
The exception is Internet Explorer, which must be 10.0 version or higher.

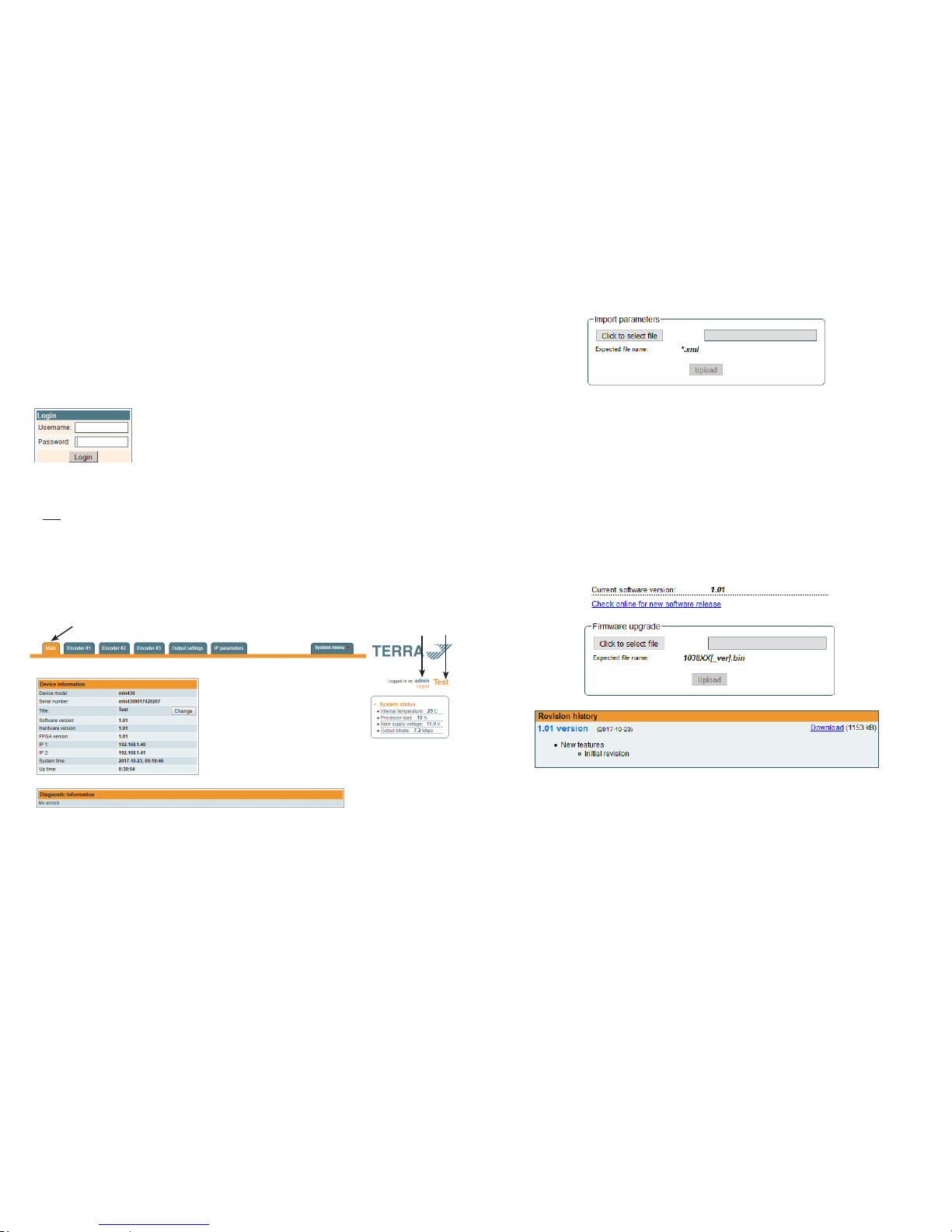

Figure 6. Login prompt

Access to the site is protected by user name and password. The default user name and password is admin. Enter the
user name and password and click on "Login" button.

Note: the default password - admin - can (and must) be changed as explained on section 7.6.5.

During initial conguration you need to change the default control and streaming Ethernet interfaces TCP/IP conguration

as explained on section 7.5.

Control interface IP address reset to default procedure: press the "RESET" [7] button (Figure 1) for more than 3 seconds and

release it. After this operation the control interface IP address will be set to 192.168.1.10, user name and password set to admin.

7.2 General conguration

Initial program screen

The rst screen that appears when the module accessed contains the "Main" window, which gives general information

on the device.

Figure 7. General information screen

In the top of each conguration screen you will see a main menu tabs [1].

Using it, you can switch between the different conguration menus. The tab highlighted in yellow shows which menu is

active at a given moment. The "System menu" tab contains several submenu.

Also common elements for all screens is module title [2] and login information strings [3]. The module title can be changed
after pressing the "Change" button in the "Device information" table. Pressing on the "Logout" string you can logout from

module control.

[1]

[2]

[3]

Figure 14. Import parameters

Press “Upload” button to send the le to the device. It will take several seconds to update all parameters after le upload.

After that, device will function with new conguration. No restart is required.

7.6.4. Firmware upgrade

Device rmware can be upgraded via web browser. Press the “Click to select le” button and select rmware binary le. If
valid le was selected, a version number of new rmware will be displayed. Otherwise an error message will appear. Press
the “Upload” button to upload new rmware to the device. Upload progress bar will appear and may take several seconds
to upload, depending on the size of a le and a network connection speed. A message will be displayed asking to restart
the device when the le was sent to the device. New rmware will be programmed into the device only after restart. It may
take additional minute or more to ash new program. Device will start up with a new rmware and continue to operate with
previous parameters. Additional new rmware features (if any) may need to setup additionally to take effect.

Avoid power supply interruption when a programming process is going on.

Device has possibility to load software revision history and check availability for new software release. Click the “Check
online” link. If computer (not device!) has internet access, it will show a list of all software releases with links to binary les.
Binary le can be downloaded and saved to computer (see Figure 15 "Firmware upgrade"). After that, use the rmware

upgrade method as described above.

Figure 15. Firmware upgrade

7.6.5. User management

User may change a password here. Length of the password is up to 16 symbols. Type current password and double enter

new password to change it.

If logged in user has admin role, new users can be added (see Figure 16 "User management").

5

8

Device information table

This shows the data of module:

“Device model”: model of the module.

“Serial number”: serial number of the module.

“Software version”: module software version number.

“Hardware version”: module hardware version number.

“FPGA version”: module FPGA rmware version number.

“IP 1”: IP address of the control interface.

“IP 2”: IP address of the streaming interface.

“System time”: current time, synchronized from the time source set in the “System menu”→ “Date Time” submenu, see

section 7.6.8.

“Up time”: time passed from last power-up or restart of the module.

In the "Common status" table the following parameters are displayed at real time: internal temperature in degrees of
Celsius, processor load in percentages, power voltage in Volts, output bit rate in Mbps.

In the "Diagnostic information" table all module errors and comments how to eliminate these errors are displayed.

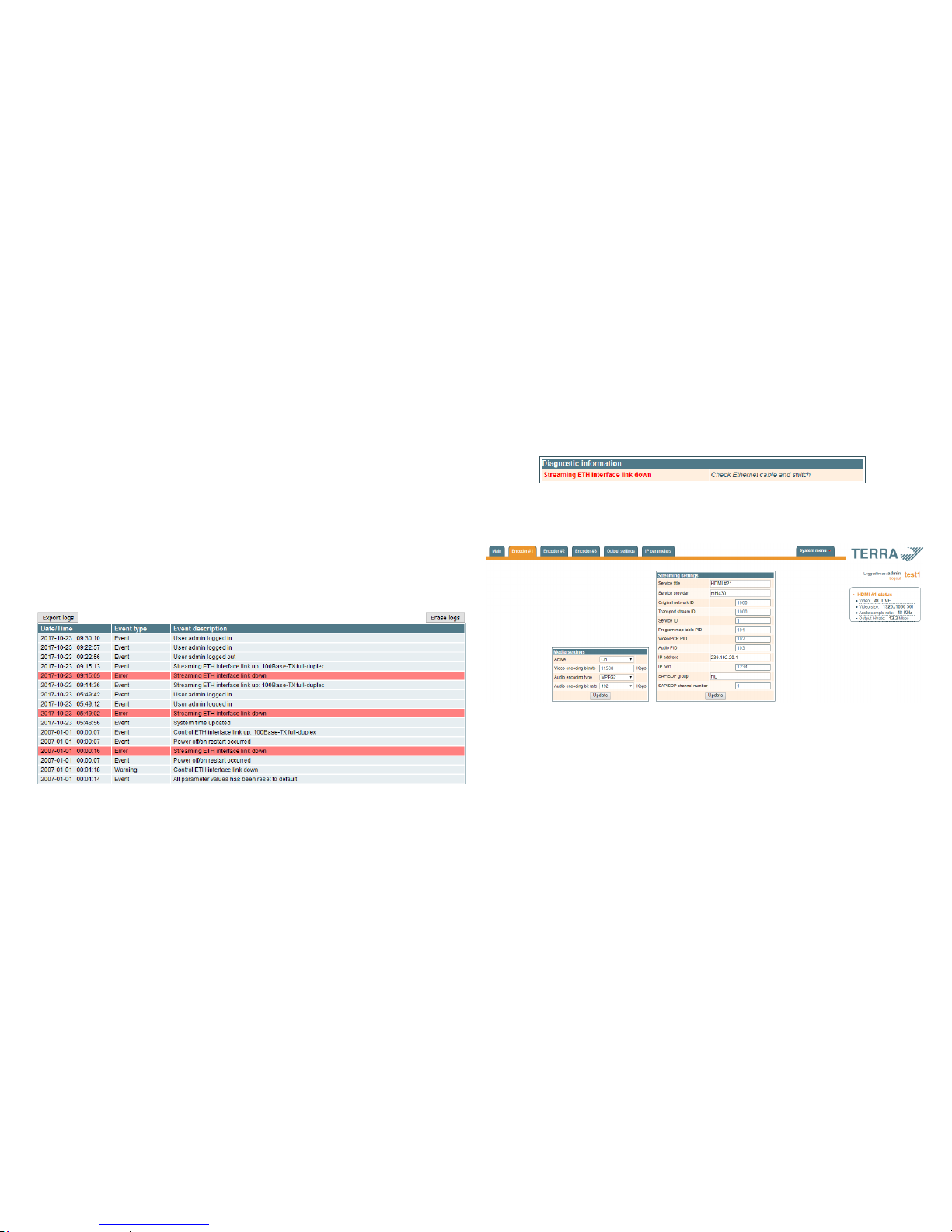

Figure 8. Diagnostic information table with errors

7.3 Encoder #1-3

This screen consists of two tables with appropriate encoder media settings and streaming settings.

Figure 9. "Encoder #1-3" screen

7.3.1. Media settings table

The "Media settings" table consists of following parameters:

"Active" – used to enable/disable the appropriate encoder. When the “Active” parameter is set to “Off”, all rest parameters

in table are disabled.

"Video encoding bitrate" - the bitrate of H.264 encoded video stream in Kbps. Can be set in the range 1000 – 11500 Kbps.

For the best quality of encoded video stream it is recommended to set bitrate at maximum.

"Audio encoding type" – used to select between MPEG2 or AAC audio encoding standard.

"Audio bit rate” - the bitrate of encoded audio stream in Kbps. Can be set in the range 32 – 320 Kbps.

Once the different data values have been entered, click on “Update” to conclude the media settings.

7.3.2. Streaming settings table

The "Streaming settings" table consists of following parameters:

“Service title”- enter a service name of the output stream.

"Service provider" - enter a provider name of the output stream.

“Original network ID” - enter a unique identier of a broadcast platform operator.

“Transport stream ID” - enter an identier of a TS within an original network.

“Service ID” - enter an indentier which serves as a label to identify this service from any other service within the TS.

“Program map table PID” - a Program map table (PMT) identies and indicates the locations of the streams that make up
each service and the location of the Program Clock Reference elds for a service. Enter a packet identier (PID) of PMT.

7.5.2. SNMP settings table

The description of the "SNMP settings" table rows.
"Enable TRAP" - SNMP traps are alerts generated by agents on a managed device. Check this box to enable TRAP

generation. The streamer generates traps when the diagnostic message occurs.

“Trap community”, "Read community" - community name acts as a password that is shared by multiple SNMP agents

and one or more SNMP managers. The "Read Community" password is used for read-only access to encoder parameters.

"Write Community" - is the password used for read-write access to encoder parameters.
"TRAP Community" - is the password used for accessing of TRAPS.

"Trap IP address 1-3" - IP addresses of hosts with SNMP managers, where TRAPS will be send.

7.5.3. E-mail settings table

The device can send e-mail reports if errors were detected. SMTP protocol is used for that. “E-mail-settings table” shows
parameters related to this feature. “Enable e-mail error report” checkbox enables error monitoring. All errors within “timeout”
period will be gathered, and send to the e-mail address, provided in “Receiver e-mail address” input box. Comma separated
e-mail addresses can be used to send report to multiple addresses. The timer will be started as soon, as the rst error is
detected, and stopped when e-mail is sent. The timer will be restarted again if a new error will appear. “Sender e-mail address”
can be used as authentication in the SMTP server side. SSL (SMTPS) protocol is not supported.

7.6. System menu

This menu tab contains following submenu items: “Event logs”, “Export parameters”, “Import parameters”, “Firmware
upgrade”, “User management”, “Restore defaults“, “ Reset the device“, “Time, Date”, “Language”. Mouse over to show the

list of this submenu.

7.6.1. Event logs

Various important events, errors, warnings will be logged into the system, see Figure 13 "Event logs". Each record has
an event type, which can be used to lter particular messages. Just select checkboxes in the „Logs ltering“ table and press
„Apply“. Other messages will be hidden.

„Erase logs“ button will erase all logs from the system.

“Export logs” button forms the le (log.html) which will be downloaded to PC.

Each record has a log time when the event appeared. Refer to 7.6.8 "Date and time settings" for instructions how to

congure time settings.

Figure 13. Event logs

7.6.2. Export parameters

All settings of encoder can be exported for backup or copying to another device. Press “Export parameters” and
“parameters.xml” le will be downloaded to PC. This le can be imported only to the same type of device.

7.6.3. Import parameters

Exported parameters can be imported back to the device. Press onto “Click to select le” button (see Figure 14 "Import
parameters") to select exported le.

7

6

“Video/PCR PID” – enter a PID of output video and program clock reference (PCR) stream.
“Audio PID” - enter a PID of output audio stream.

"IP address" - the multicast address required for the stream to be added. The available range is from 224.0.0.0 to

239.255.255.255, but it is recommended to reduce it from 224.0.1.0 to 238.255.255.255.
"IP port" - the IP port required for the stream to be added. The default value is 1234.
"SAP/SDP group" – enter a name of SAP group to which you want to link the service.

"SAP/SDP channel number" - enter the order number you want to assign to the service on the subscriber's set-top box

or reproducer, if the device supports SAP.

Once the different data values have been entered, click on “Update” to conclude the streaming settings.

7.3.3. HDMI #1-3 status table

The following information is displayed in HDMI #1-3 status table:
“Video” “ACTIVE” – corresponding HDMI input is enabled and connected; “NO
SIGNAL” – corresponding HDMI input is enabled and not connected; “INACTIVE” –

corresponding HDMI input is disabled.

“Video size” – size of input video signal in pixels and frame rate of video signal.
“Audio sample rate” – sample rate of input audio signal.
“Output bitrate” – bit rate of output stream.

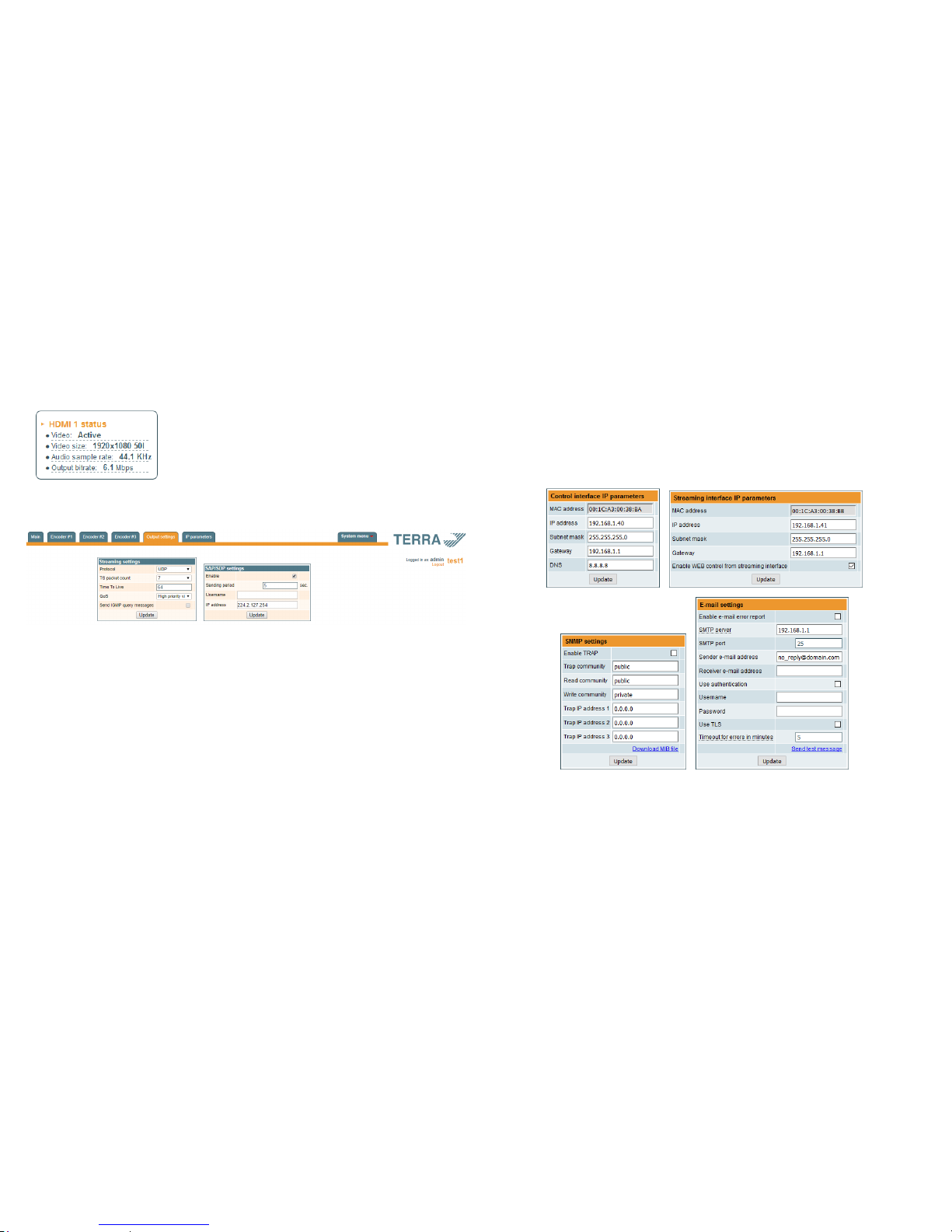

Figure 10. “HDMI status” table

7.4. Output settings

Figure 11. "Output settings "

This screen consists of two tables: "Streaming settings" and "SAP/SDP settings". The "Streaming settings" table is

used specify common streaming parameters to all output streams. The "SAP/SDP settings" table is used to congure the

announcement and service description SAP/SDP channel.

7.4.1. Streaming settings table

This table is used specify common streaming parameters to all output streams.
This table consists of following lines:
"Protocol" - the drop down menu offers two options: UDP and RTP/UDP. UDP is a transport protocol which is not connection

oriented and is particularly useful for streaming. RTP/UDP adds extra data elds so that the data ow is served at the correct

speed for its projection in real time.

"TS packet count" - count of the MPEG2 TS packets in the UDP packet. Can be selected from one to seven. It is

recommended to select the value of seven packets.

"Time To Live" - a parameter used to restrict the stream multicasting range. A number between 1 and 255 is entered in

this box. Each time that an IP stream passes through a router, the TTL is reduced by one unit. The stream will be rejected
by any router when the TTL value is reduced to zero.

"QoS" - quality of Service. The drop down list offers ve differentiated service options or Diffserv. These options relate

to the priority that you wish to assign to the streaming packets on their routes through switches or routers that are QoS

management capable.

QoS values:
1 - Top priority

2 - High priority video

3 - Low priority video

4 - Video and voice

5 - Best effort (best effort made to correctly deliver the video data and the associated audio data)
"Count of output streams" - count of output streams, displayed in the "Output streams" table bellow. Can be selected

from one to twenty ve. After updating ot the FR input parameters this count is automatically set to input stream count value.

"Send IGMP query messages" - enable of the IGMP query messages transmitting. Enable this function when the streaming
output of module is connected to the manageable Ethernet switch with IGMP snooping support. In order for IGMP snooping to
function, a multicast router must exist on the network and generate IGMP queries. The tables created for snooping are associated
with the querier. Without a querier the tables are not created and snooping will not work. When the IGMP query messages send

enabled, the module acts as the multicast router. It is sufcient to enable the IGMP query in one module per one Ethernet switch.

Once the different data values have been entered, click on "Update" to conclude the streaming settings.

7.4.2. SAP/SDP settings table

This table is used to congure the announcement and service description SAP/SDP channel. SAP and SDP are two

protocols for creating an EPG type program guide.

"Enable" - check the box if you wish to transmit the service information by SAP/SDP protocol.

"Sending period" - introduce the time interval, in seconds, at which the transmitted information will refresh.

"Username" - the name entered will be transmitted on the SAP/SDP channel.

"IP address" - multicast address of SAP/SDP messages. It is need to be changed only when your IP receiving equipment
use different address.

7.5. IP parameters

This screen (Figure 12) consists of four tables: "Control interface IP parameters", "Streaming interface IP parameters", “SNMP
settings”, “E-mail settings”. The IP parameters tables are used to congure Ethernet connection parameters of both interfaces.

Figure 12. IP settings screen

7.5.1. Control and streaming interfaces IP parameters

The description of the "IP parameters" tables rows.

"MAC Address" - the physical address of the module's Ethernet network card is displayed automatically.

"IP Address" - enter the IP address that you wish to assign to the module. This address must fall within the range of local
network addresses.

"Subnet mask" - enter the local network mask.

"Gateway" - enter the IP address of this gateway. This information is only required if you want to access the module from
the Internet.

“DNS” – address of domain name server.

It is possible to control the module via streaming interface. Check the enable WEB control from streaming interface
checkbox to enable this function. NOTE: for security reasons WEB control from streaming interface should be disabled.

NOTE: Press the "RESET" button [7] for more than three seconds to set default IP address of the control Ethernet interface
(see Figure 1 "External view of the module").
