English
Contents
* A monitor
* A signal cord
* A power cable
* A adapter
* A warranty card
* A user manual instruction
* An audio cable
Features:
*.16 7M high quality image colors
* Smart image screen setting OSD with simple layout and easy selection-
* Smart control interfaces for easy settings
*;Auto function when no settings are set it will auto adjust to optimum settings,-
1 Unplug the monitor before cleaning it with a slightly damp cloth..
2 Wiping the screen with a dry cloth is recommendable and only during the power has been switched off.,.
3 Do not use alcohol or ammonia based liquids.-.
4 This monitor is designed with ventilation holes on the cabinet back please do not cover them or block it.,.
5 Also avoid placing the monitor near the electric heater or heater including in an enclosed room with no
ventilations,.
.
6 Please do not insert any matter or spray any liquid on it..
7 Please do not position the monitor on unsafe space if it falls it may be damaged and may hurt the user,, ..
8 Unplug the monitor if it is not going to be in use for an extended period of time..
9 Please do not put heavy items on the monitor or electric cord,..
10 Please do not open the monitor back panel because the monitor contained high voltage current..
Safety Precautions and Maintenance
Read this manual carefully and retain for future reference
1
Safety Precautions and Maintenance
Basic setup
Screen image setups
Color
Tracking
Setup
Installing the LED Monitor
Supporting Timing Modes
Troubleshooting
Specifications
Functions
1
2
2
3
3
4
4
5
7
8
9
10
English
Basic setup
a)Insert the DVI or VGA cable signal cord to the PC graphic card signal input
cable ( ) ( ).
We recommend using the digital interface (DVI).
b) The monitor has a wide power voltage range; it can be used on AC100 240V 50/60Hz supply.- ～ power
c) Connect the power cable to the Monitor power socket and to the power source in the room.
d) Turn on the power source supply.
e) To switch on the monitor, press the power control key.

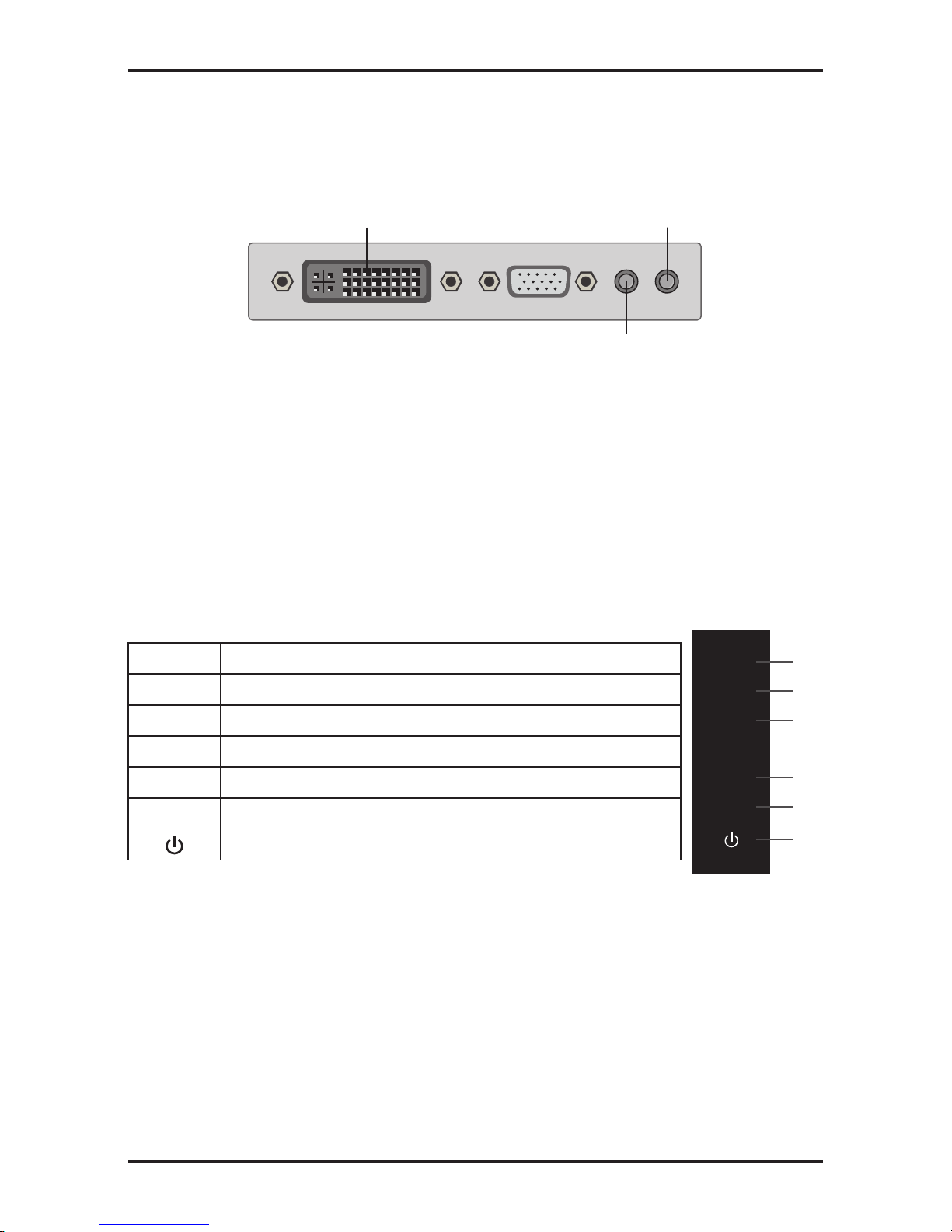

Screen image setups
The right side of the monitor
Display.
have Seven keys to adjust the monitor settings with the aid of the OnScreen
AUTO
MENU
VOL-
VOL+
1
2
3
4
5
UP
DOWN
6
7
Adjustment settings
1. Press MENU key into main Setup menu on the screen.
2. Press UP/DOWN key to switch selections on the Setup screen.
3. Press MENU key again to access setup selection.
a. Press to jump between menu options.UP/DOWN
Press MENU key to access the function.
b. Press to adjust the setting.
VOL+/VOL-
c. Press AUTO to return to main menu.
Exit main menu, or when no menus - auto adjust image.
Shows main choice menus
Adjust the options - move up or higher/ When no menus VGA/DVI source selection
Adjust the options - move down or lower
Power ON OFF /
AUTO
MENU
VOL-
VOL+
UP
DOWN
Increase the sound level/Adjust the options - move up or higher
Decrease the sound level/Adjust the options - move down or lower
2
DVI connector
VGA connector
Audio connector
DC connector
English
CONTRAST
Press button to select then press button confirmation choice and press
button to adjust
UP DOWN CONTRAST MENU
VOL+ VOL-
/,
/.
GAMMA
Press button to select then press button confirmation choice and press
button to adjust
UP DOWN GAMMA MENU
VOL+ VOL-
/,
/.
Press the Buttion Then the main menu of the appearsMENU OSD,.
BRIGHTNESS
Press button to select then press button confirmation choice and press
button to adjust
UP DOWN BRIGHTNESS MENU
VOL+ VOL-
/,
/.

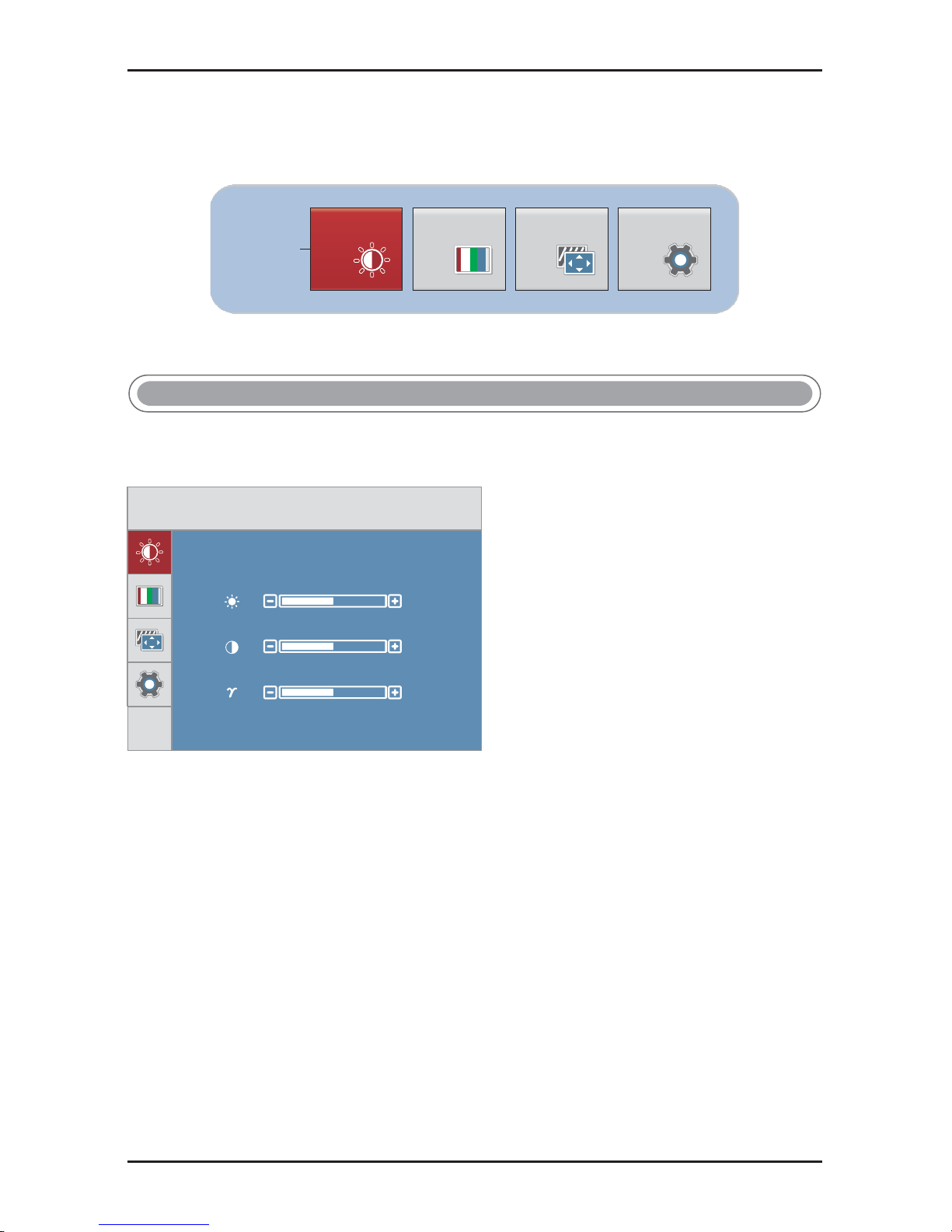

Functions:
Press button the main menu will appear as followsMENU ,:
Press button to select in the main menu then press button to enterUP DOWN PICTURE MENU/,.
TRACKING SETUP
COLOR
Main Menu
BRIGHTNESS
CONTRAST
GAMMA
50
50
0
3
English

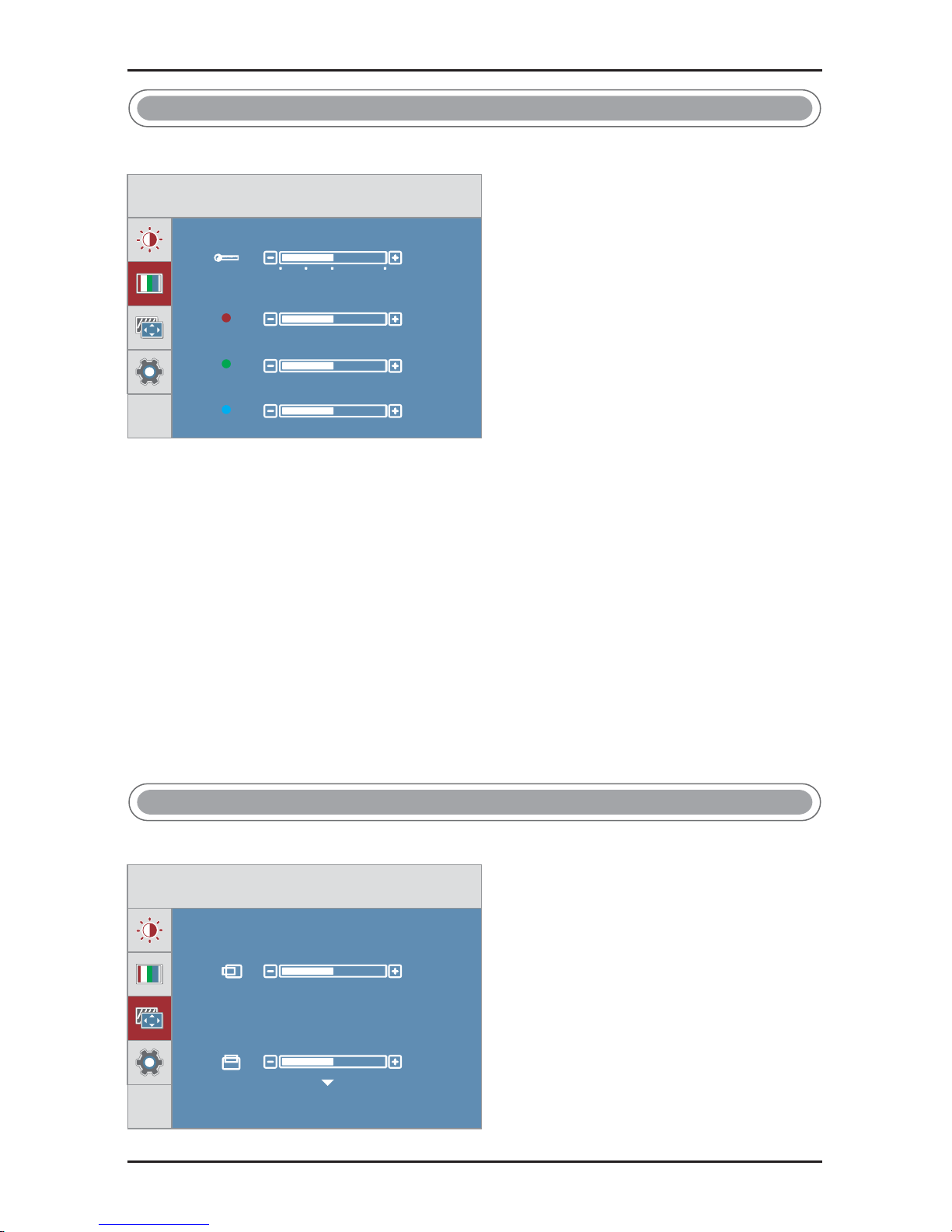

Press ,.UP DOWN/ button to select in the main menu then press button to enterCOLOR MENU
PRESET
Press button to select then press button confirmation choice And press
button to adjust
UP DOWN PRESET MENU
VOL+ VOL-
/, .
/.
RED
Press button to select then press button confirmation choice and press
button to adjust the value of the three primary colors of red
UP DOWN RED MENU
VOL+ VOL-
/,
/.
GREEN
Press button to select then press button confirmation choiceand press
button to adjust the value of the three primary colors of green
UP DOWN GREEN MENU
VOL+ VOL-
/,
/.
BLUE
Press button to select then press button confirmation choiceand press
button to adjust the value of the three primary colors of blue
,UP DOWN BLUE MENU
VOL+ VOL-
/
/.

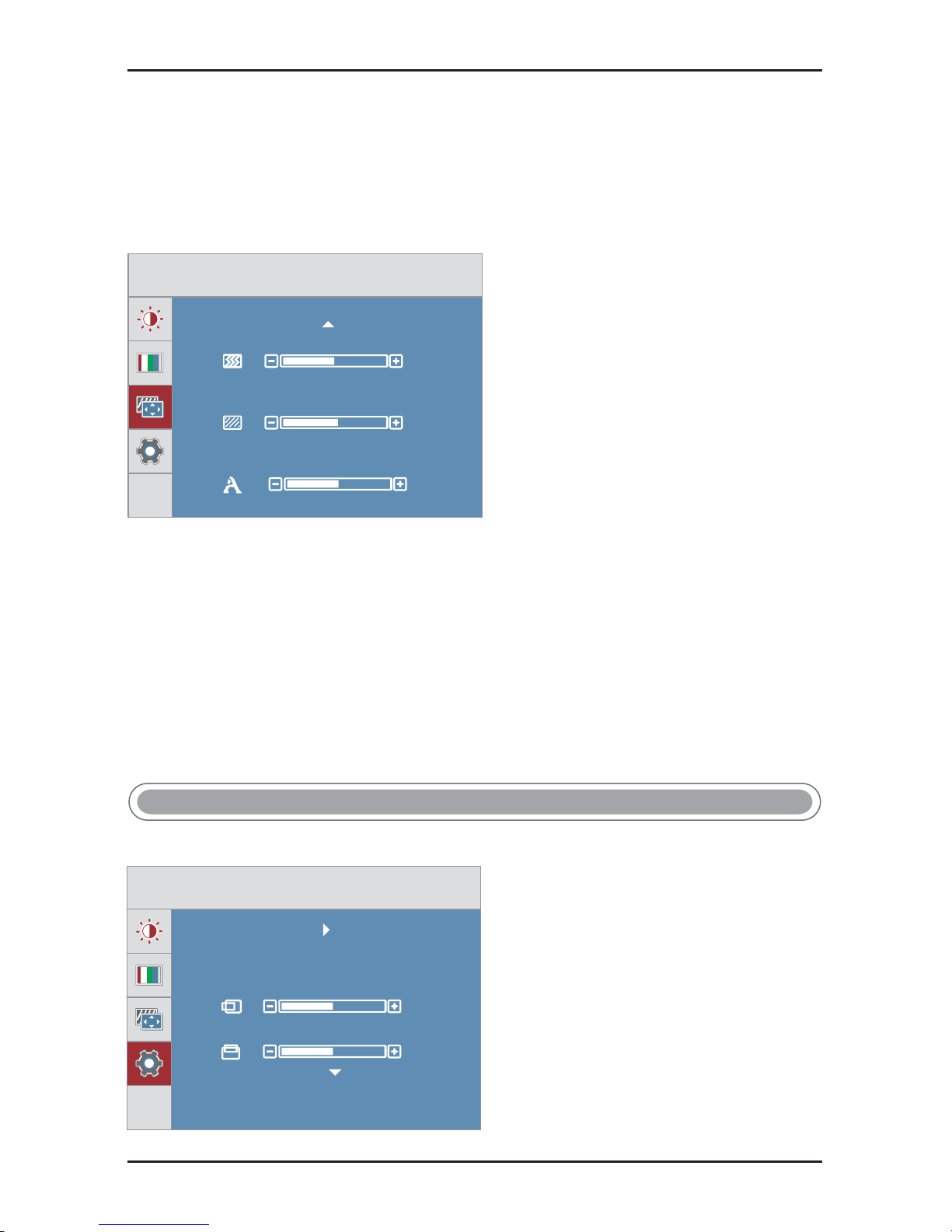

Press UP DOWN ,/ button to select in the main menu then press buttonTRACKING MENU to enter.
COLOR
TRACKING
TRACKING
HORIZONTAL
50
VERTICAL
50
COLOR
PRESET
RED
50
50
50
GREEN
BLUE
5400K
S
RGB
6500K 9300K
4
English
Press button to select then press button confirmation choice and
Press button image toward the left migration
H Position MENU.,UP DOWN/
..
Press
button image toward the right migrationVOL+ VOL-
H Position.
V Position.
Press and Press
button image toward the up migration
UP DOWN V Position/.,
.
button to select then press button confirmation choice
Press button image toward the down migration
MENU
VOL+ VOL- .
CLOCK
Press button to select then press button confirmation choiceand press
button to adjust
UP DOWN CLOCK MENU
VOL+ VOL-
/,
/.
PHASE
Press button to select then press button confirmation choice and press
button to adjust
UP DOWN PHASE MENU
VOL+ VOL-
/,
/.
SHARPNESS
Press button to select thenpress button confirmation choice and press
button tochoose1 to 10 between
UP DOWN SHARPNESS MENU
VOL+ VOL-
/,
/.
Press in the main menu to enterUP DOWN SETUP/,.button to select then press buttonMENU
SETUP
HORIZONTAL
50
VERTICAL
50
LANGUAGE ENGLISH
OSD POSITION
ANALOG
1920x1080 60Hz
SETUP
TRACKING
CLOCK
50
PHASE
54
5
SHARPNESS
5
English
SETUP
ANALOG
1920x1080 60Hz
WHITE BALANCE
DCR
4 3 WIDE:
OR
INPUT SELECT
FACTORY RESET
NO
ON
WIDE
VGA
NO
VERTICAL
Press button to select then press button confirmation choice and Press
button OSD towardthe up migration Press button OSD toward the down migration
UP DOWN VERTICAL MENU
VOL+ VOL-
/,
..
HORIZONTAL
Press button to select then press button confirmation choice and
Press button OSD toward the right migration Press button OSD toward the left migration
UP DOWN HORIZONTAL MENU
VOL+ VOL-
/,
..
LANGUAGE
Press button to select then press button confirmationchoice and press
button to adjust
UP DOWN LANGUAGE MENU
VOL+ VOL-
/,
/.
INPUT SELECT
Press button to select then press button confirmation choice and press
button to choose VGA or DVI
UP DOWN INPUT SELECT MENU
VOL+ VOL-
/,
/ .
4:3 WIDEOR
Press button to select then press button confirmation choice and press
button to choose 4 3 or wide
UP DOWN 4:3 OR WIDE MENU
VOL+ VOL-
/,
/:.
WHITE BALANCE
Confirmation choice and press button to choose YES or NOVOL+ VOL-/.
FACTORY RESET
Press button to select then press button confirmation choice and
press button to choose YES or NO When select YES the system will restore to the factory
mode
UP DOWN FACTORY RESET MENU
VOL+ VOL-
/,
/.,
.
DCR
Press button to select then press button confirmation choice and press
button to choose ON or OFF
UP DOWN DCR MENU VOL+ VOL-/, /
.
6
English

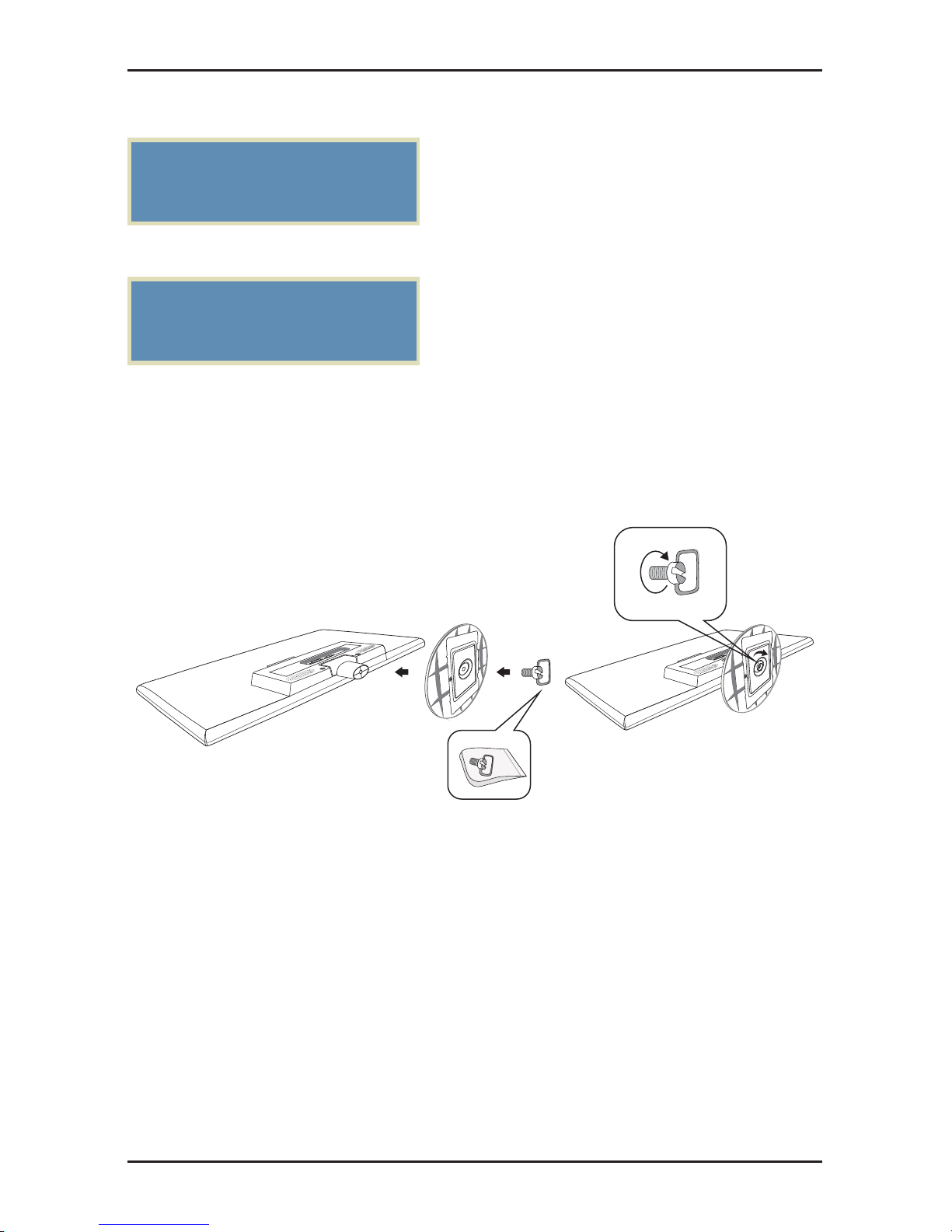

1 place the monitor face down on a soft cloth or cushion on a table
2 Install the stand base to the monitor
..
..
Other function
Press key to long term OSD LOCKEDMENU -, .【】
OSD LOCKED
Installing the LED Monitor
Then press MENU【】key to long term OSD UNLOCKED-, .
OSD UNLOCKED
You can find the screw in the
small bag from the attached bag
7
English
Supporting Timing Modes
Warning: .
.
Do not set the graphic card in your computer to exceed these maximum refresh rates Doing so
may result in permanent damage to your monitor
VGA
720x400 70Hz@
VGA
640x480 60Hz@
MAC
640x480 67Hz@
VESA
640x480 72Hz@
VESA
640x480 75Hz@
VESA
800x600 56Hz@
VESA
800x600 60Hz@
VESA
800x600 72Hz@
VESA
800x600 75Hz@
VESA
1024x768 60Hz@
VESA
1024x768 70Hz@
VESA
1024x768 75Hz@
VESA
1280x960 60Hz@
VESA
1152x864 60Hz@
VESA
1280x1024 60Hz@
VESA
1280x1024 75Hz@
VESA
1440x900 60Hz@
VESA
1600x1200 60Hz@
VESA
1680x1050 60Hz@
VESA
1920x1080 60Hz@
Resolutions
VGA DVI
Standard
8
English
Troubleshooting
1 NO Image on Screen.
a Check if the power button has been switched on) .
b Verify the brightness and contrast of the monitor is within the normal setting) .
c Check if the power indicator is flashing If so this indicates that the monitor is not receiving the input) .
signal.
d If the signal indicator is notebook or laptop make sure that the signal has been switched to screen) ,
mode.
2 Non focus Image.--
a Check if the image signal cable is inserted properly upright position)().
3 Flash Screen.
a The power is insufficient to connect the monitor or too weak) .
b To avoid magnetic field around the monitor do not place these devices close to it Such as speakers) ,,.
,fluorescence lightings AC transformer table fan and etc,,.
c By pressing the AUTO key the Auto Adjust Image function will automatically apply optimizes settings) ,
to the display.
4 Wrong or Unusual Colour.
a if red green blue or any of the colour disappears check to see if the signal cord is connected properly) ,, , .
If the plug is loosely connected it might cause bad connection.
b Try connecting to another PC for comparison) .
5 The Whole Screen Appear and H rolling Scan.-+--+-
a Make sure that the input signal frequency is within 60 75Hz) -.
b Do not spray any liquid on the screen or the plastic panel directly) .
6 How to Clean the Monitor.
a Make sure that the monitor power has been switched off) .
7 When Cleaning the Screen.
a Use clean soft no fur materials to clean the screen) ,.
b If it is still dirty do add a little of non ammonia liquid and non alcohol glass cleanser to clean the screen) ,- - .
8 When Cleaning the Plastic Panel.
a Use soft dry cloth)
b To add a little of non ammonia liquid and non alcohol of non abrasion cleanser to clean surface if it) ---
.is still unclean
9
