Chris Lorek G4HCL finds that L has all the best

tunings.

For many amateurs operating on the HF bands, particularly 80m and 160m, an aerial tuning unit or ATU is an absolute necessity. This matches the impedance of the aerial system to the output impedance of your transmitter, giving maximum power transfer into the aerial system, and possibly more importantly safeguarding your expensive power amplifier devices from blowing up!

impedance at full power of 3000 ohms. A modified 'L Match' arrangement is used

(more of this later), with a large tuning capacitor of 3.5kV voltage rating and a silver plated multi-turn roller coaster coil of 28^H to provide a continuously variable inductance. A sliding cursor along the front panel window together with a calibrated adjustment knob gives an indication of the inductance in circuit, the capacitor knob graduated with a 0-10

The KW ATU Veteran HF operators will know the

KW 'Eee-Zee' match ATU well, on sale

many years ago and regarded by many

amateurs as the ultimate of the day. The

latest KW ATI) is featured in the Ten-Tec range as their Model 229B, and is claimed

to match virtually any unbalanced load, at

all the power the law will allow, from

1.8MHz to 30MHz. We thought it would be a good idea to try it out, even to the extent of loading up the house drainpipes and having worldwide QSOs.

scale to show the amount of variable capacitance in circuit.

Four SO-239 aerial input sockets are

ntn ntn

(g\M/

-O OUT IN <

provided, a front panel switch being used to select these in use. One of these sockets is internally linked to a screw terminal to allow a long wire aerial to be connected in place of aerial connection No.4 if required. An optional balun may also be internally fitted, to allow a balance input to be matched to a 50ohms unbalanced line to feed your transmitter. A large screw connection is also provided on the rear of the case to allow connection of an RF ground, very important and of course essential when using long wire aerials.

A front panel meter gives a readout

of switched forward or reverse power,

with full-scale ranges of 200W and 2000W. A further rotary 'SWR SET' potentiometer is provided, to allow direct SWR readings to be given following adjustment to match the forward power level. Applying a DC supply provides internal backlighting of the meter scale and inductance position cursor.

Circuitry

The matching circuit is basically an 'L' network using an inductor-capacitor arrangement in an L-formation. This arrangement does have the advantage

that only two adjustable components are

used rather than three. Because there are no internal nodes in the network, the maximum circuit voltages and currents

that occur in the ATI) are never greater than those present at the input or output

connections. Also, because there are only

two components to adjust, there is only

comp

—oc

Offerings

The aerial tuning unit comes in a large metal case, 139mm x 330mm x 279mm, its physical size together with the large tuning controls giving you an idea of its quoted power handling capabilities of 2kW. The output matching range is specified as at least 10:1 SWR, at any phase angle, with a maximum input

please mention HRT when replying to advertisements

IN O-

r.fWi

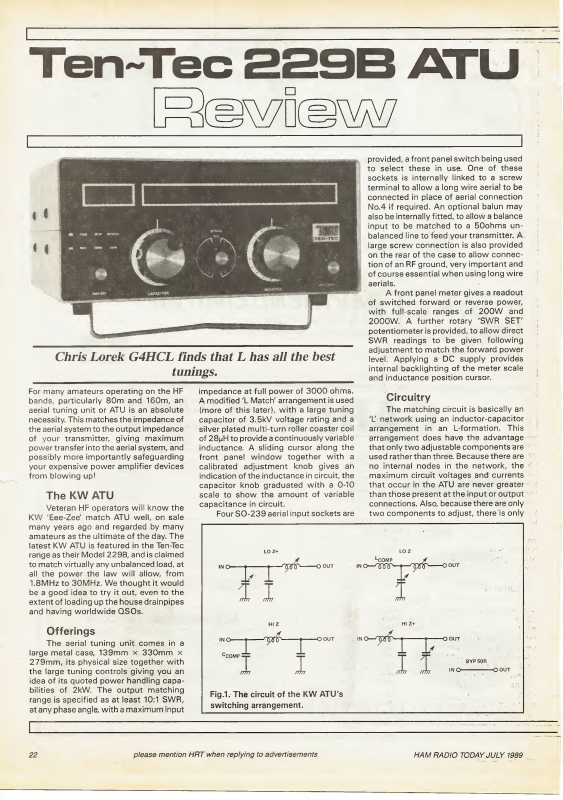

Fig.l. The circuit of the KW ATU's switching arrangement.
