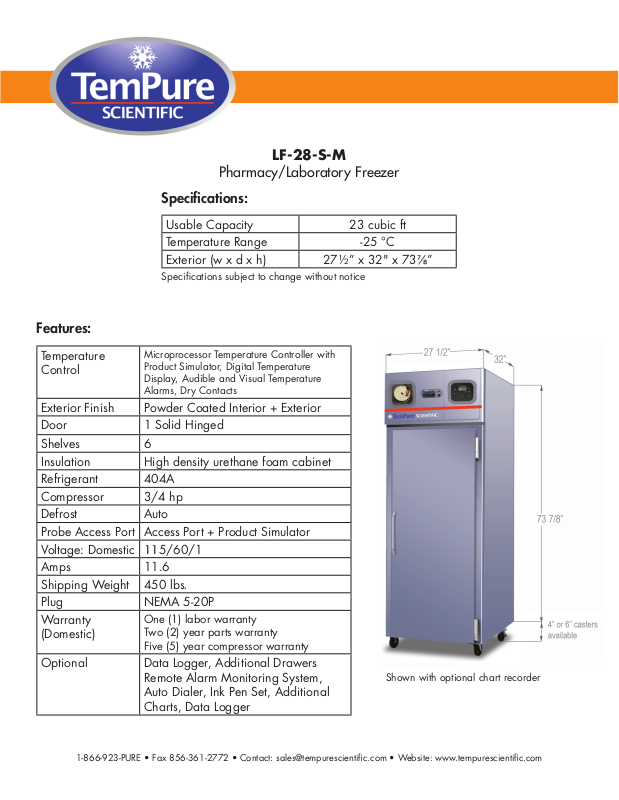

Tempure Scientific LF-28-S-M User Manual

Features:

LF-28-S-M

Pharmacy/Laboratory Freezer

Specifications:

Usable Capacity 23 cubic ft
Temperature Range -25 °C
Exterior (w x d x h) 27½” x 32" x 73⅞”

Specications subject to change without notice

Temperature
Control

Microprocessor Temperature Controller with
Product Simulator, Digital Temperature
Display, Audible and Visual Temperature
Alarms, Dry Contacts

Exterior Finish Powder Coated Interior + Exterior
Door 1 Solid Hinged

Shelves 6
Insulation High density urethane foam cabinet
Refrigerant 404A
Compressor 3/4 hp
Defrost Auto
Probe Access Port Access Port + Product Simulator
Voltage: Domestic 115/60/1
Amps 11.6
Shipping Weight 450 lbs.
Plug NEMA 5-20P
Warranty

(Domestic)

One (1) labor warranty
Two (2) year parts warranty
Five (5) year compressor warranty

Optional Data Logger, Additional Drawers

Remote Alarm Monitoring System,
Auto Dialer, Ink Pen Set, Additional
Charts, Data Logger

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

Shown with optional chart recorder

115VAC/60Hz/1PH

NEMA-5-15P

27½”

Exterior

LF-28-S-M

Pharmacy/Laboratory Freezers

32”

3/4

73⅞

32”

27½ 32

6

73⅞”

5”

2 Solid 11.6

23 Auto

CUTSHEET

LF-28-S-M 450 lbs.

Model Defrost Door Shelves H.P. Amps WeightCu. Ft W” D” H”
