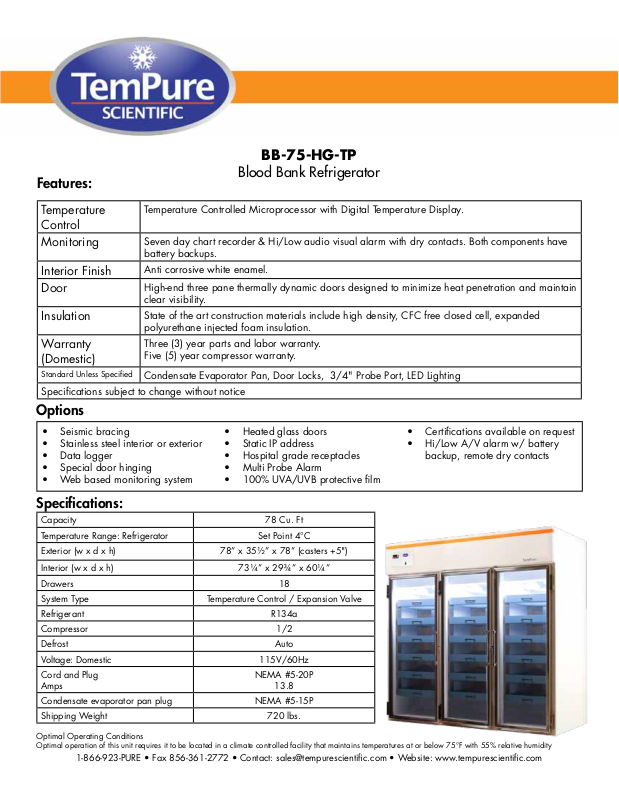

Page 1
Features:
BB-75-HG-TP
Blood Bank Refrigerator
Temperature
Temperature Controlled Microprocessor with Digital Temperature Display.
Control
Monitoring
Interior Finish
Door
Insulation
Warranty
(Domestic)
Standard Unless Specified
Specifications subject to change without notice
Seven day chart recorder & Hi/Low audio visual alarm with dry contacts. Both components have
battery backups.
Anti corrosive white enamel.
High-end three pane thermally dynamic doors designed to minimize heat penetration and maintain
clear visibility.
State of the art construction materials include high density, CFC free closed cell, expanded
polyurethane injected foam insulation.
Three (3) year parts and labor warranty.
Five (5) year compressor warranty.
Condensate Evaporator Pan, Door Locks, 3/4" Probe Port, LED Lighting
Options
• Seismic bracing
• Stainless steel interior or exterior
• Data logger
• Special door hinging
• Web based monitoring system
• Heated glass doors
• Static IP address
• Hospital grade receptacles
• Multi Probe Alarm
• 100% UVA/UVB protective film
• Certifications available on request
• Hi/Low A/V alarm w/ battery
backup, remote dry contacts
Specifications:
Capacity 78 Cu. Ft
Temperature Range: Refrigerator Set Point 4°C
Exterior (w x d x h) 78” x 35½” x 78” (casters +5")
Interior (w x d x h) 73¼” x 29¾” x 60¼”
Drawers 18
System Type Temperature Control / Expansion Valve
Refrigerant R134a
Compressor 1/2
Defrost Auto
Voltage: Domestic 115V/60Hz
Cord and Plug
Amps
Condensate evaporator pan plug NEMA #5-15P
Shipping Weight 720 lbs.
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
NEMA #5-20P
13.8
Page 2
Exterior
23¾”
13.8
78”
½ 720 lbs.BB-75-HG-TP
BB-75-HG-TP
Blood Bank Refrigerator
W” D” H”
35½ 78
78
35½”
35½”
78”
13/32”
Probe
Hole
5”
Auto
78”
Front View Side View Top View
78 3 0 18
CUTSHEET
Model Defrost Door Int Door Drawers H.P. Amps WeightCu. Ft
Page 3
Interior
BB-75-HG-TP
Blood Bank Refrigerator
29¾
Interior Dim.
60¼”
W” D” H”
73¼”
Front View Side View
Auto
CUTSHEET
BB-75-HG-TP 78 3 0 18 ½ 13.8 720 lbs.73¼ 29¾ 60¼
Model Defrost Door Int Door Drawers H.P. Amps WeightCu. Ft
