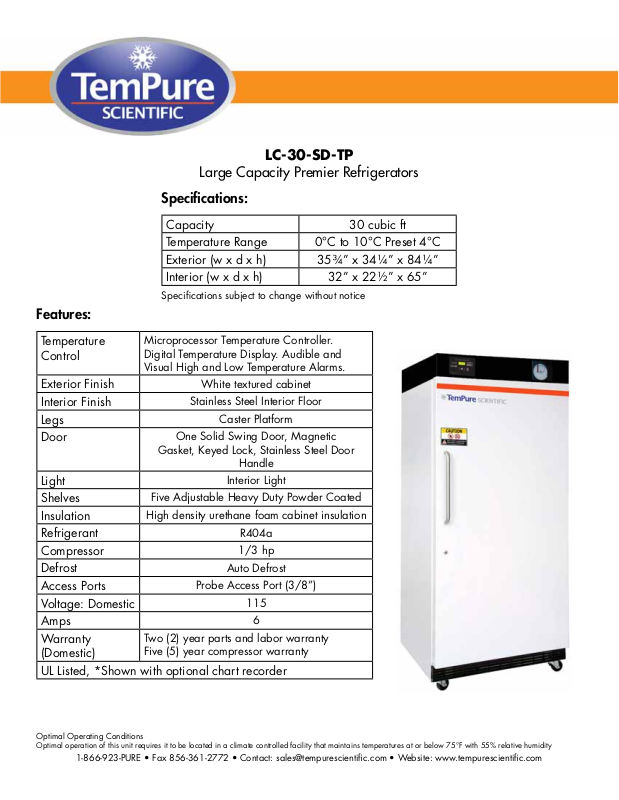

Tempure Scientific LC-30-SD-TP User Manual
Features:
LC-30-SD-TP
Large Capacity Premier Refrigerators
Specifications:
Capacity 30 cubic ft
Temperature Range 0°C to 10°C Preset 4°C
Exterior (w x d x h) 35¾” x 34¼” x 84¼”
Interior (w x d x h) 32” x 22½” x 65”
Specifications subject to change without notice
Temperature
Control
Exterior Finish
Interior Finish
Legs
Door
Light
Shelves
Insulation
Refrigerant
Compressor
Defrost
Access Ports
Voltage: Domestic
Amps
Warranty
(Domestic)
Microprocessor Temperature Controller.
Digital Temperature Display. Audible and
Visual High and Low Temperature Alarms.
White textured cabinet
Stainless Steel Interior Floor
Caster Platform
One Solid Swing Door, Magnetic
Gasket, Keyed Lock, Stainless Steel Door
Handle
Interior Light
Five Adjustable Heavy Duty Powder Coated
High density urethane foam cabinet insulation
R404a
1/3 hp
Auto Defrost
Probe Access Port (3/8”)
115
6
Two (2) year parts and labor warranty
Five (5) year compressor warranty
UL Listed, *Shown with optional chart recorder
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
Exterior
64¾”
Large Capacity Premier Refrigerator
LC-30-SD-TP
35”
28½”
5¾ ”
115VAC/60Hz/1PH
NEMA-5-15R
34¼”
35¾”
Front View Side View Top View
5 Adj
79½”
4¾”
1 Solid 0 35¾ 34¼ 84¼ 6 432 lbs.1/3
84¼”
30 Auto
CUTSHEET
LC-30-SD-TP
Model Defrost Door Int Door Shelves W” D” H” H.P. Amps Unit WeightCu. Ft
