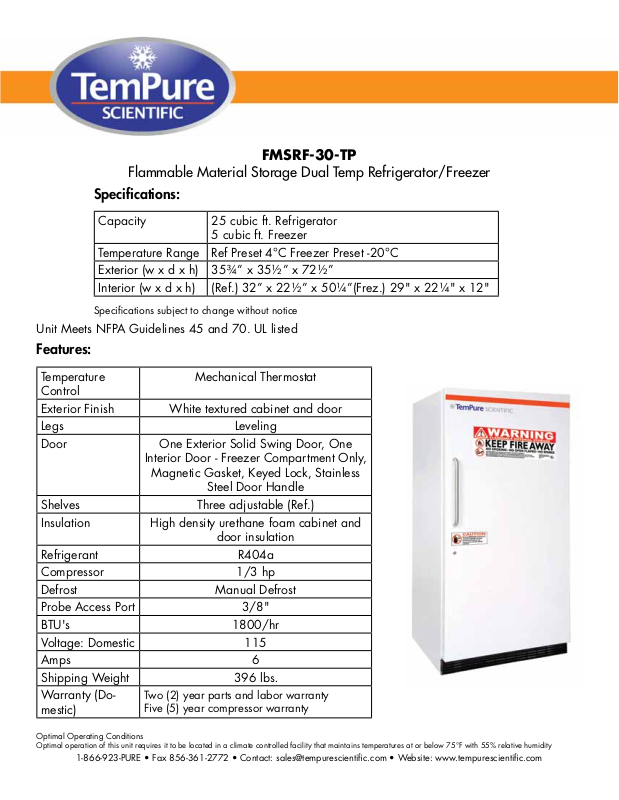

Tempure Scientific FMSRF-30-TP User Manual

FMSRF-30-TP

Flammable Material Storage Dual Temp Refrigerator/Freezer

Specifications:

Capacity 25 cubic ft. Refrigerator

5 cubic ft. Freezer
Temperature Range Ref Preset 4°C Freezer Preset -20°C
Exterior (w x d x h) 35¾” x 35½” x 72½”
Interior (w x d x h) (Ref.) 32” x 22½” x 50¼”(Frez.) 29" x 22¼" x 12"

Specifications subject to change without notice

Unit Meets NFPA Guidelines 45 and 70. UL listed

Features:

Temperature

Mechanical Thermostat

Control
Exterior Finish White textured cabinet and door
Legs Leveling
Door One Exterior Solid Swing Door, One

Interior Door - Freezer Compartment Only,

Magnetic Gasket, Keyed Lock, Stainless

Steel Door Handle
Shelves Three adjustable (Ref.)
Insulation High density urethane foam cabinet and

door insulation
Refrigerant R404a
Compressor 1/3 hp
Defrost Manual Defrost
Probe Access Port 3/8"
BTU's 1800/hr
Voltage: Domestic 115
Amps 6
Shipping Weight 396 lbs.
Warranty (Do-

mestic)

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

Two (2) year parts and labor warranty
Five (5) year compressor warranty

Front View Side View Top View

CUTSHEET

Exterior Flammable Material Storage

Dual Temp Refrigerator/Freezer

FMSRF-30-TP

FMSRF-30-TP

30 Manual

1 Solid 1 Freezer 35¾ 35½ 72½ 6 356 lbs.

3 Adj Refrig

Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft

115VAC/60Hz/1PH

NEMA-5-15R

35¾”

35½”

5¾”

28½”

66”

35”

72½”

35”

11/9/2012

Unit Weight
