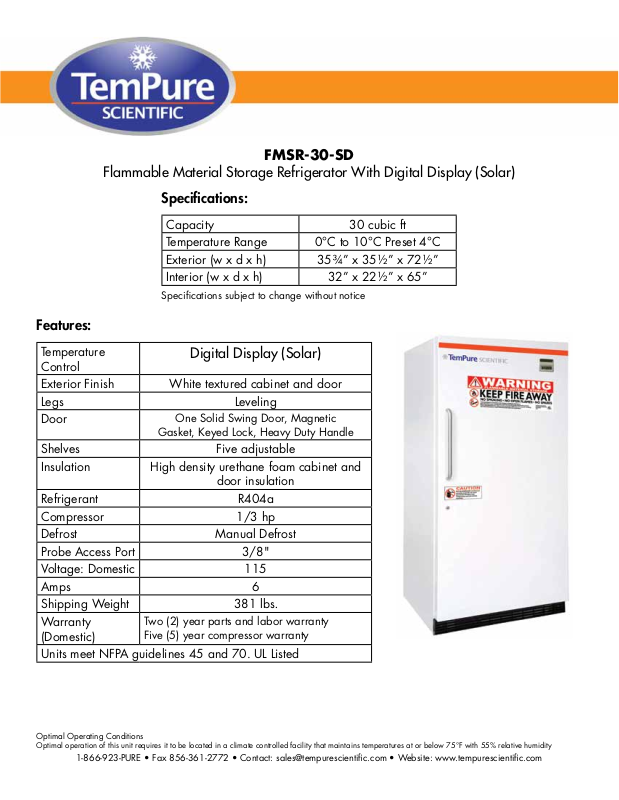

Tempure Scientific FMSR-30-SD User Manual
Features:
FMSR-30-SD
Flammable Material Storage Refrigerator With Digital Display (Solar)
Specifications:
Capacity 30 cubic ft
Temperature Range 0°C to 10°C Preset 4°C
Exterior (w x d x h) 35¾” x 35½” x 72½”
Interior (w x d x h) 32” x 22½” x 65”
Specifications subject to change without notice
Temperature
Digital Display (Solar)
Control
Exterior Finish White textured cabinet and door
Legs Leveling
Door
One Solid Swing Door, Magnetic
Gasket, Keyed Lock, Heavy Duty Handle
Shelves Five adjustable
Insulation High density urethane foam cabinet and
door insulation
Refrigerant R404a
Compressor 1/3 hp
Defrost Manual Defrost
Probe Access Port 3/8"
Voltage: Domestic 115
Amps 6
Shipping Weight 381 lbs.
Warranty
(Domestic)
Two (2) year parts and labor warranty
Five (5) year compressor warranty
Units meet NFPA guidelines 45 and 70. UL Listed
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
66”
Exterior Flammable Material Storage
Refrigerator With Digital Display (Solar)
FMSR-30-SD
35”
28½”
5¾”
115VAC/60Hz/1PH
NEMA-5-15R
115VAC/60Hz/1PH
NEMA-5-15R
Unit Weight
35¾ 35½ 72½
Front View Side View Top View
35½”
35¾”
5 Adj
1 Solid 0 6 341lbs.1/3
72½”
30 Manual
CUTSHEET
Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft
FMSR-30-SD
