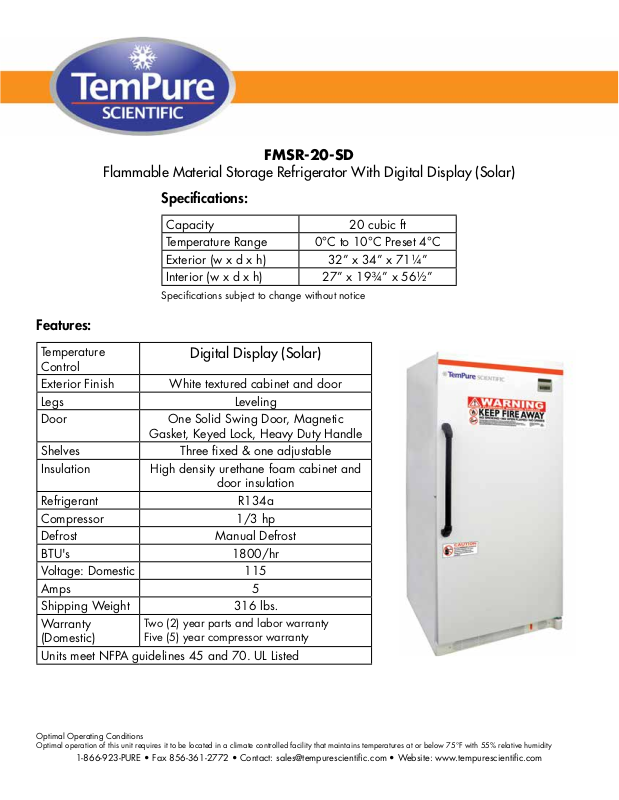

Page 1
Features:
FMSR-20-SD
Flammable Material Storage Refrigerator With Digital Display (Solar)
Specifications:
Capacity 20 cubic ft
Temperature Range 0°C to 10°C Preset 4°C
Exterior (w x d x h) 32” x 34” x 71¼”
Interior (w x d x h) 27” x 19¾” x 56½”
Specifications subject to change without notice
Temperature
Digital Display (Solar)
Control
Exterior Finish White textured cabinet and door
Legs Leveling
Door One Solid Swing Door, Magnetic
Gasket, Keyed Lock, Heavy Duty Handle
Shelves Three fixed & one adjustable
Insulation High density urethane foam cabinet and
door insulation
Refrigerant R134a
Compressor 1/3 hp
Defrost Manual Defrost
BTU's 1800/hr
Voltage: Domestic 115
Amps 5
Shipping Weight 316 lbs.
Warranty
(Domestic)
Two (2) year parts and labor warranty
Five (5) year compressor warranty
Units meet NFPA guidelines 45 and 70. UL Listed
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
Page 2
61½”
Exterior Flammable Material Storage
Refrigerator With Digital Display (Solar)
FMSR-20-SD
32”
26¼”
5½”
115VAC/60Hz/1PH
NEMA-5-15R
Unit Weight
Front View Side View Top View
34”
71¼”
1 Adj/3 Fixed
1 Solid 0 32 34 71¼ 5 276 lbs.1/3
°
Manual
32”
20
CUTSHEET
Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft
FMSR-20-SD
Page 3
Interior Flammable Material Storage
Refrigerator With Digital Display (Solar)
FMSR-20-SD
A d j u s t a b l e
22¼”
S h e l v i n g
17¾”
9¾”
19¾”
13½”
9¾”
115VAC/60Hz/1PH
NEMA-5-15R
Interior Dim.
Unit Weight
D” H”
W”
56½
19¾
27
Front View Side View
1 Adj/3 Fixed
1 Solid 0 5 276 lbs.1/3
27”
Probe
27”
Hole
5”
20 Manual
56½”
CUTSHEET
Model Defrost Door Int Door Shelves H.P. AmpsCu. Ft
FMSR-20-SD
