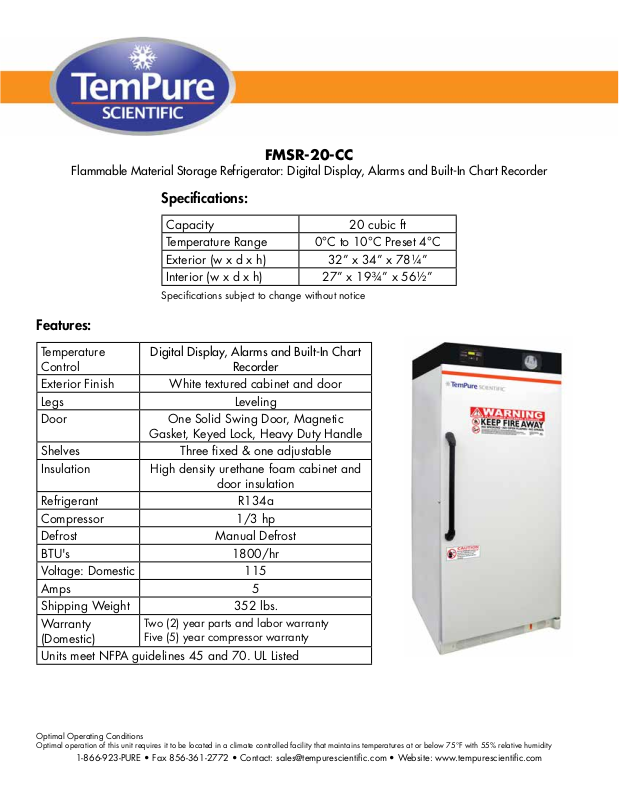

Tempure Scientific FMSR-20-CC User Manual

Flammable Material Storage Refrigerator: Digital Display, Alarms and Built-In Chart Recorder

Features:

FMSR-20-CC

Specifications:

Capacity 20 cubic ft
Temperature Range 0°C to 10°C Preset 4°C
Exterior (w x d x h) 32” x 34” x 78¼”
Interior (w x d x h) 27” x 19¾” x 56½”

Specifications subject to change without notice

Temperature
Control

Digital Display, Alarms and Built-In Chart

Recorder

Exterior Finish White textured cabinet and door
Legs Leveling
Door One Solid Swing Door, Magnetic

Gasket, Keyed Lock, Heavy Duty Handle
Shelves Three fixed & one adjustable
Insulation High density urethane foam cabinet and

door insulation
Refrigerant R134a
Compressor 1/3 hp
Defrost Manual Defrost
BTU's 1800/hr
Voltage: Domestic 115
Amps 5
Shipping Weight 352 lbs.
Warranty

(Domestic)

Two (2) year parts and labor warranty
Five (5) year compressor warranty

Units meet NFPA guidelines 45 and 70. UL Listed

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

61½”

Exterior Flammable Material Storage:

Digital Display, Alarms and Built-In Chart Recorder

FMSR-20-CC

32”

26¼”

5½”

115VAC/60Hz/1PH

NEMA-5-15R

Unit Weight

Front View Side View Top View

34”

78¼”

1 Adj/3 Fixed

1 Solid 0 32 34 78¼ 5 276 lbs.1/3

Manual

32”

20

CUTSHEET

Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft

FMSR-20-CC
