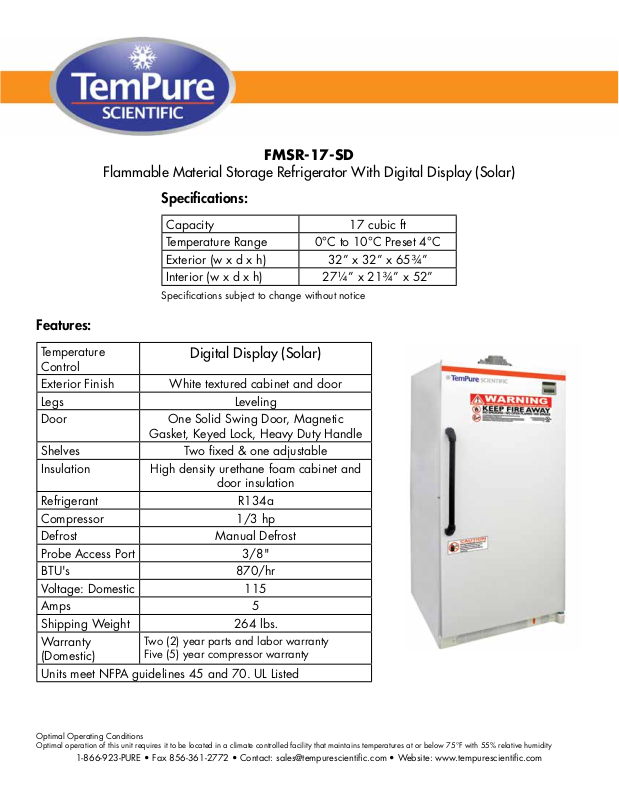

Tempure Scientific FMSR-17-SD User Manual

Features:

FMSR-17-SD

Flammable Material Storage Refrigerator With Digital Display (Solar)

Specifications:

Capacity 17 cubic ft
Temperature Range 0°C to 10°C Preset 4°C
Exterior (w x d x h) 32” x 32” x 65¾”
Interior (w x d x h) 27¼” x 21¾” x 52”

Specifications subject to change without notice

Temperature

Digital Display (Solar)

Control
Exterior Finish White textured cabinet and door
Legs Leveling
Door One Solid Swing Door, Magnetic

Gasket, Keyed Lock, Heavy Duty Handle
Shelves Two fixed & one adjustable
Insulation High density urethane foam cabinet and

door insulation
Refrigerant R134a
Compressor 1/3 hp
Defrost Manual Defrost
Probe Access Port 3/8"
BTU's 870/hr
Voltage: Domestic 115
Amps 5
Shipping Weight 264 lbs.
Warranty

(Domestic)

Two (2) year parts and labor warranty
Five (5) year compressor warranty

Units meet NFPA guidelines 45 and 70. UL Listed

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

59¾”

Exterior Flammable Material Storage

Refrigerator With Digital Display (Solar)

FMSR-17-SD

32”

24¼”

5½”

115VAC/60Hz/1PH

NEMA-5-15R

Unit Weight

32 32 65¾

Front View Side View Top View

32”

65¾”

1 Adj/2 Fixed

1 Solid 0 5 224 lbs.1/3

°

32”

17 Manual

CUTSHEET

Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft

FMSR-17-SD
