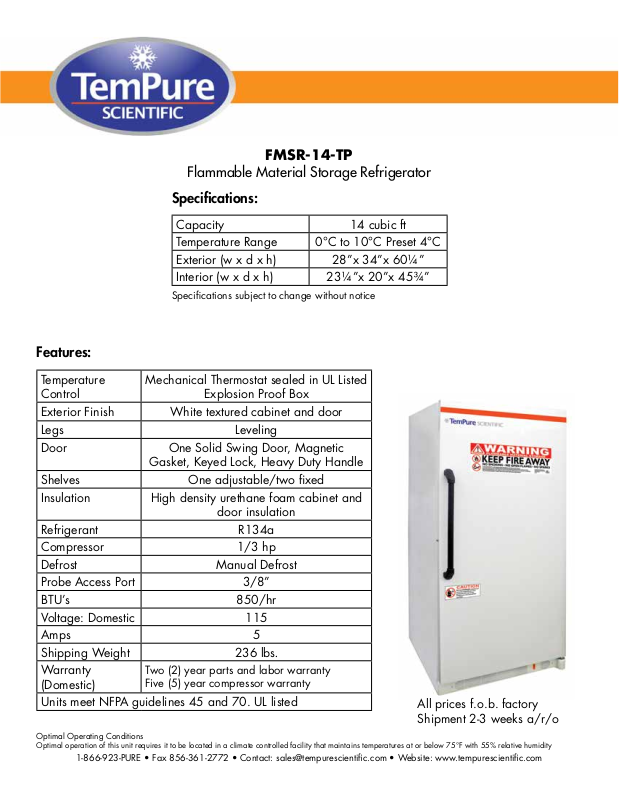

Tempure Scientific FMSR-14-TP User Manual

Features:

FMSR-14-TP

Flammable Material Storage Refrigerator

Specifications:

Capacity 14 cubic ft
Temperature Range 0°C to 10°C Preset 4°C
Exterior (w x d x h) 28”x 34”x 60¼”
Interior (w x d x h) 23¼”x 20”x 45¾”

Specifications subject to change without notice

Temperature
Control

Mechanical Thermostat sealed in UL Listed

Explosion Proof Box

Exterior Finish White textured cabinet and door
Legs Leveling

Door One Solid Swing Door, Magnetic

Gasket, Keyed Lock, Heavy Duty Handle
Shelves One adjustable/two fixed
Insulation High density urethane foam cabinet and

door insulation
Refrigerant R134a
Compressor 1/3 hp
Defrost Manual Defrost
Probe Access Port 3/8”
BTU’s 850/hr
Voltage: Domestic 115
Amps 5
Shipping Weight 236 lbs.
Warranty

(Domestic)

Two (2) year parts and labor warranty
Five (5) year compressor warranty

Units meet NFPA guidelines 45 and 70. UL listed

All prices f.o.b. factory
Shipment 2-3 weeks a/r/o

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

57¾”

Exterior

Flammable Material Storage Refrigerator

FMSR-14-TP

28”

26¼”

5½”

115VAC/60Hz/1PH

NEMA-5-15R

Unit Weight

28 34 60¼

Front View Side View Top View

34”

60¼”

1 Adj/2 Fixed

1 Solid 0 5 196 lbs.1/3

Manual

28”

14

CUTSHEET

Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft

FMSR-14-TP
