Page 1

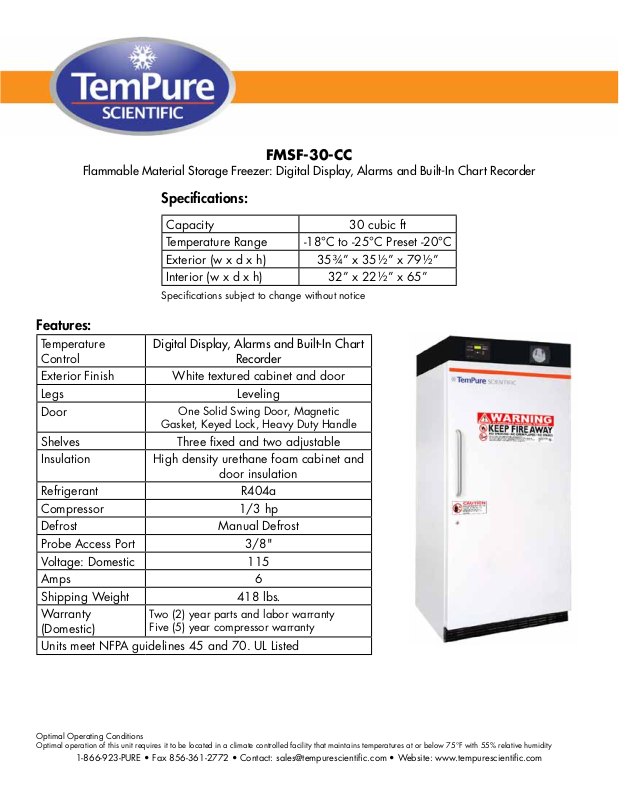

Flammable Material Storage Freezer: Digital Display, Alarms and Built-In Chart Recorder
Features:
FMSF-30-CC
Specifications:
Capacity 30 cubic ft
Temperature Range -18°C to -25°C Preset -20°C
Exterior (w x d x h) 35¾” x 35½” x 79½”
Interior (w x d x h) 32” x 22½” x 65”
Specifications subject to change without notice
Temperature
Control
Digital Display, Alarms and Built-In Chart
Recorder
Exterior Finish White textured cabinet and door
Legs Leveling
Door
One Solid Swing Door, Magnetic
Gasket, Keyed Lock, Heavy Duty Handle
Shelves Three fixed and two adjustable
Insulation High density urethane foam cabinet and
door insulation
Refrigerant R404a
Compressor 1/3 hp
Defrost Manual Defrost
Probe Access Port 3/8"
Voltage: Domestic 115
Amps 6
Shipping Weight 418 lbs.
Warranty
(Domestic)
Two (2) year parts and labor warranty
Five (5) year compressor warranty
Units meet NFPA guidelines 45 and 70. UL Listed
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
Page 2
66”
Exterior Flammable Material Storage:
Digital Display, Alarms and Built-In Chart Recorder
FMSF-30-CC
35”
28½”
5¾”
115VAC/60Hz/1PH
NEMA-5-15R
115VAC/60Hz/1PH
NEMA-5-15R
Unit Weight
35¾ 35½ 79½
Front View Side View Top View
35½”
35¾”
2 Adj/3 Fixed
1 Solid 0 6 338 lbs.1/3
79½”
30 Manual
CUTSHEET
Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft
FMSF-30-CC
Page 3
FMSF-30-CC
13½”
A d j u s t a b l e
26½”
S h e l v i n g
12¾”
9¾”
115VAC/60Hz/1PH
NEMA-5-15R
Unit Weight
Interior Flammable Material Storage:
Digital Display, Alarms and Built-In Chart Recorder
10¾”
22½”
D” H”
22½
Interior Dim.
65
4 ½”
19¾”
7 ½”
W”
32
2 Adj/3 Fixed
Probe
36¼”
Hole
32”
1 Solid 0 6 338 lbs.1/3
Front View Side View
65”
CUTSHEET
Model Defrost Door Int Door Shelves H.P. AmpsCu. Ft
30 Manual
FMSF-30-CC
